Document Overview
This article is based on the official user manual for the HYVOHEX PUMP2 (HB2) portable air pump, document version V1.0, filename HB2_manual_EN_20260326.pdf. The manual is issued by the brand owner Mozhen Technology (Shenzhen) Co., Ltd and covers safe operation, technical specifications, nozzle usage, battery indicator states, and warranty terms. The manual is published in English, Chinese, and Korean, targeting end consumers globally. The document scope includes all stages of product use: setup, inflation, deflation, charging, storage, and disposal guidance.
Product Information
The HYVOHEX PUMP2 (HB2) is a compact, rechargeable portable air pump designed for inflating and deflating a wide range of objects including air mattresses, floating beds, air pillows, swimming rings, inflatable toys, vacuum storage bags, and camping sleeping pads.
| Attribute | Detail |
|---|---|
| Product Name | PUMP2 |
| Model | HB2 |
| Brand | HYVOHEX |
| Dimensions | 69 × 56 × 105.5 mm |
| Battery Capacity | 4000 mAh (14.8 Wh) |
| Charging Time | 2–3 hours |
| Charging Port | Type-C |
| Manufacturer | Guangdong Bestek Technology Co., Ltd, No. North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Brand Owner | Mozhen Technology (Shenzhen) Co., Ltd, CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, CN |
| EU Representative | SUCCESS COURIER SL, Tormes Num. 1, Planta 1, Derecha, Oficina 5, Fuenlabrada, Madrid, 28947, Spain |
| Country of Origin | P.R. China |
| Support Email | [email protected] |
Key Details

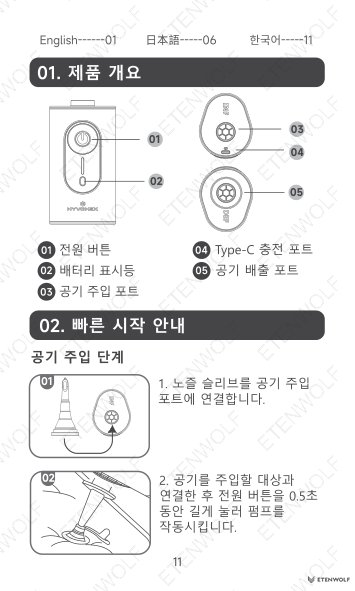

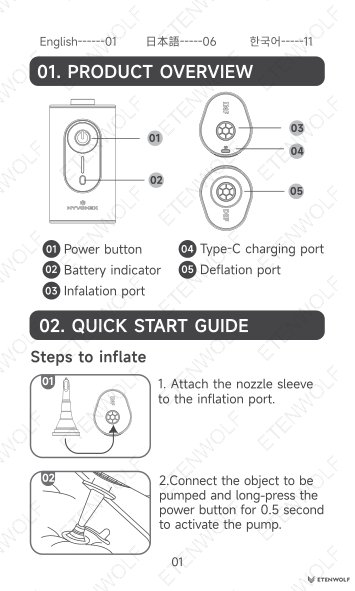

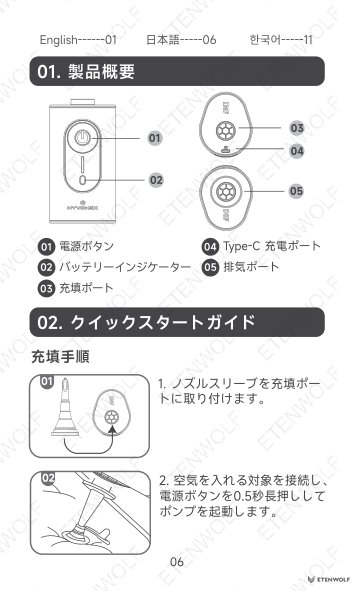

Component Identification
The PUMP2 unit features the following physical components:
- Power Button – controls on/off and speed switching
- Type-C Charging Port – for recharging the internal battery
- Battery Indicator LED – displays charge level and warnings
- Deflation Port – dedicated port for removing air from objects
- Inflation Port – dedicated port for pumping air into objects

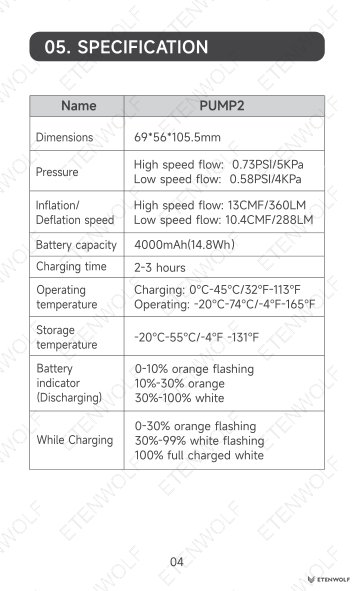

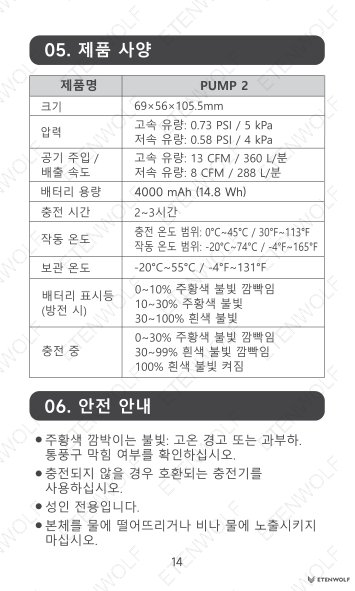

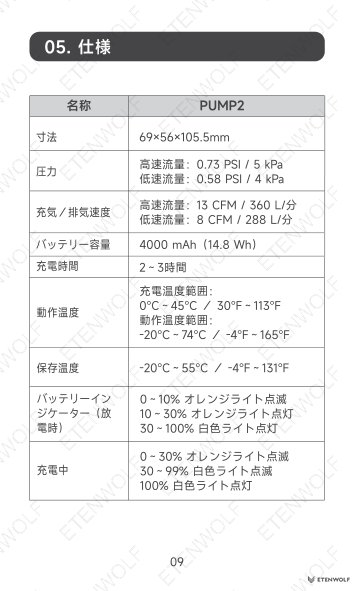

Technical Specifications
| Parameter | High Speed | Low Speed |
|---|---|---|
| Pressure | 0.73 PSI / 5 kPa | 0.58 PSI / 4 kPa |
| Inflation / Deflation Flow Rate | 13 CFM / 360 L/min | 10.4 CFM / 288 L/min |
Temperature Ranges
| Condition | Range |
|---|---|
| Charging Temperature | 0°C – 45°C / 32°F – 113°F |
| Operating Temperature | -20°C – 74°C / -4°F – 165°F |
| Storage Temperature | -20°C – 55°C / -4°F – 131°F |
Battery Indicator States
| Condition | Indicator State | Meaning |
|---|---|---|
| Discharging | 0–10% | Orange flashing |
| Discharging | 10–30% | Orange steady |
| Discharging | 30–100% | White steady |
| Charging | 0–30% | Orange flashing |
| Charging | 30–99% | White flashing |
| Charging | 100% (Full) | White steady |
Steps to Inflate
- Attach the appropriate nozzle sleeve to the inflation port.
- Connect the nozzle to the object to be inflated, then long-press the power button for 0.5 seconds to activate the pump (starts at high speed).
- Within the first 5 seconds of high-speed operation, press the power button once to switch to low speed. Press again to stop inflation.
- If running at high speed for more than 5 seconds, pressing the power button will stop operation immediately.
Important: The pump does not stop automatically. Always verify the maximum allowable pressure of the object before inflating. Overinflation may cause the object to burst.

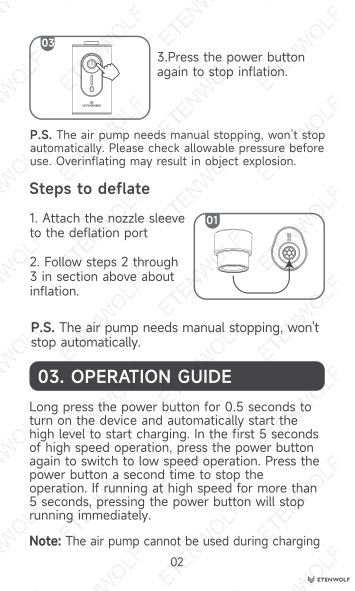

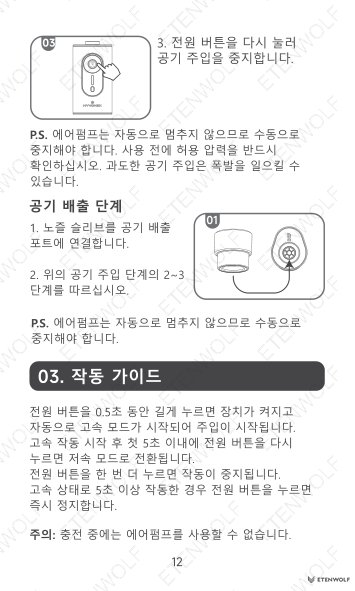

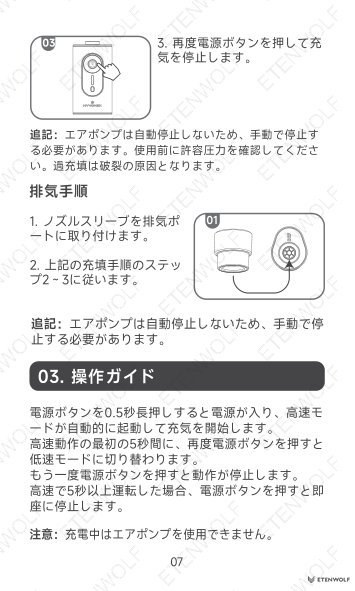

Steps to Deflate
- Attach the appropriate nozzle sleeve to the deflation port.
- Connect the nozzle to the object and long-press the power button for 0.5 seconds to activate.
- Press the power button again to stop deflation when done.
Important: The pump does not stop automatically during deflation either. Monitor the process throughout.

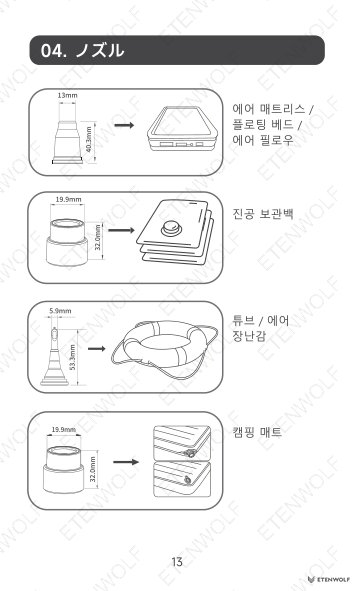

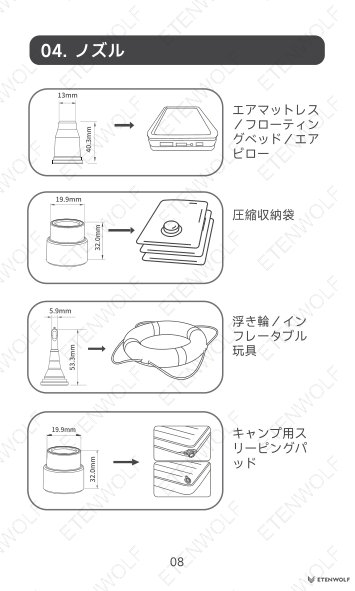

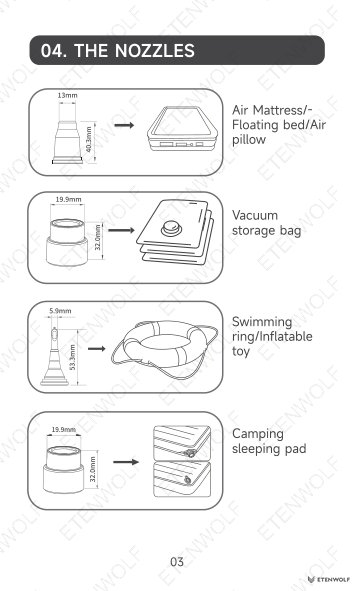

Nozzle Compatibility
The PUMP2 includes multiple nozzle sleeves compatible with the following object types:
- Air mattresses, floating beds, and air pillows
- Vacuum storage bags
- Swimming rings and inflatable toys
- Camping sleeping pads
Standards & Compliance
The HYVOHEX PUMP2 (HB2) is a consumer rechargeable lithium battery-powered device. Based on the manufacturer and EU representative information provided in the manual, the product is placed on the EU market and is subject to the following applicable regulatory frameworks and standards:
- IEC standards for portable battery-operated appliances and lithium-ion battery safety
- ISO standards for product safety and quality management
- CE Marking – EU Declaration of Conformity applicable for market placement in the European Economic Area via the EU representative SUCCESS COURIER SL (Spain)
- RoHS Directive – Restriction of Hazardous Substances, applicable to electrical and electronic equipment sold in the EU
- REACH Regulation – Registration, Evaluation, Authorisation and Restriction of Chemicals
- UN 38.3 – Transport testing standard for lithium batteries (applicable to the 4000 mAh / 14.8 Wh internal battery)
The product carries safety instructions aligned with IEC guidelines for appliances not intended for use by persons with reduced physical, sensory, or mental capabilities without supervision. No specific certificate numbers or test report numbers are cited in this manual document.
Validity & Certification Body
This user manual (version V1.0, dated 2026-03-26) is the governing document for the HYVOHEX PUMP2 (HB2) at time of publication. Validity information for individual compliance certifications is not enumerated within this manual; separate compliance certificates should be consulted for specific validity periods.
| Entity | Role | Details |
|---|---|---|
| Guangdong Bestek Technology Co., Ltd | Manufacturer | No. North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Mozhen Technology (Shenzhen) Co., Ltd | Brand Owner | CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, CN |
| SUCCESS COURIER SL | EU Authorized Representative | Tormes Num. 1, Planta 1, Derecha, Oficina 5, Fuenlabrada, Madrid, 28947, Spain | [email protected] |

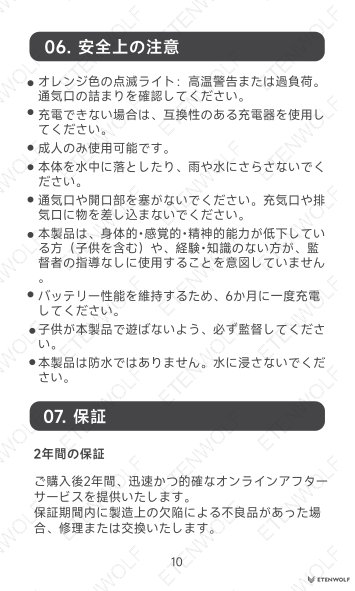

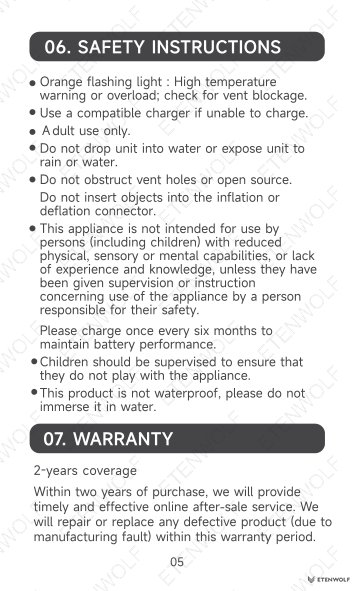

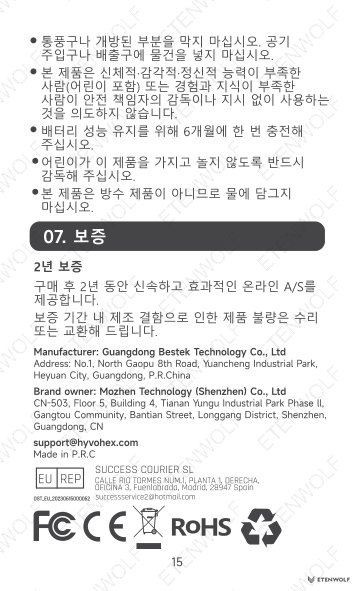

The product is covered by a 2-year warranty from date of purchase. Within this period, the manufacturer will repair or replace any product found to be defective due to a manufacturing fault. Warranty service is provided online via [email protected].
Frequently Asked Questions
- Does the HYVOHEX PUMP2 (HB2) stop automatically when the target pressure is reached?
- No. The PUMP2 does not stop automatically at any point during inflation or deflation. You must press the power button manually to stop the pump. Always check the maximum allowable pressure for the object you are inflating before use to avoid overinflation and potential damage or injury.
- What does an orange flashing light mean on the PUMP2?
- An orange flashing light has two possible meanings. During normal discharging it indicates the battery is below 10% and needs charging soon. If it appears during operation it may also signal a high-temperature warning or motor overload — in that case, stop use immediately and check that the ventilation holes are not blocked.
- Can I use the PUMP2 while it is charging?
- No. The PUMP2 cannot be used during charging. Wait until the charging cycle is complete before operating the pump. The battery indicator will show a steady white light when the battery is fully charged (100%).
- How do I switch between high speed and low speed during inflation?
- After turning the device on (long-press 0.5 seconds), the pump starts at high speed. Within the first 5 seconds of high-speed operation, press the power button once to switch to low speed, then press again to stop. If more than 5 seconds have elapsed at high speed, pressing the power button will stop the pump immediately rather than switch speeds.
Related Documents
The following certification and compliance document types are relevant to the HYVOHEX PUMP2 (HB2) and may be obtained from the manufacturer or brand owner upon request:
- CE Declaration of Conformity – Required for EU market access; covers Low Voltage Directive (LVD), EMC Directive, and Battery Directive compliance.
- UN 38.3 Test Report – Lithium battery transport safety test report for the 4000 mAh / 14.8 Wh internal cell; required for air and ground freight.
- RoHS Compliance Certificate – Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the product’s electrical components.
- REACH Statement of Compliance – Confirms the product does not contain SVHC (Substances of Very High Concern) above threshold limits.
- FCC Declaration of Conformity – Applicable if the product is sold in the United States; covers electromagnetic interference limits for consumer electronics.
- KC Certification – Required for the South Korean market under the Radio Waves Act and Electrical Appliances Safety Control Act.
- Product Safety Data Sheet (PSDS) – Details material composition and handling precautions for the lithium-ion battery pack.
