Document Overview
This article is based on the official product user manual for the CL6 Mini Camping Lantern, document version V1.0, filename CL6_manual_EN_20251224.pdf, dated December 24, 2025. The manual is issued under the HYVOHEX brand and covers all aspects of safe operation, button functions, battery management, technical specifications, and warranty terms for end users. It applies to all retail units of the CL6 shipped globally and includes multilingual content (English and Spanish). Users are required to read all instructions and safety warnings before operating the device. For support, contact [email protected].
Product Information
The CL6 Mini Camping Lantern is a compact, rechargeable multi-mode lighting tool designed for outdoor camping, emergency use, and everyday portable illumination. It combines a wide-area camping lamp with a focused spotlight in a single handheld unit.

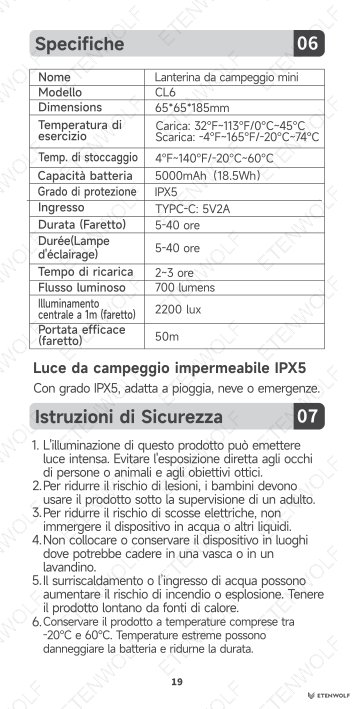

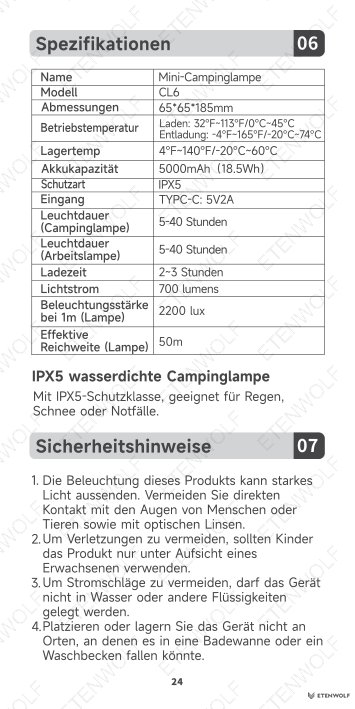

| Attribute | Value |
|---|---|
| Product Name | Mini Camping Lantern |
| Model | CL6 |
| Dimensions | 65 × 65 × 185 mm |
| Battery Capacity | 5000 mAh (18.5 Wh) |
| Protection Level | IPX5 |
| Input | Type-C: 5 V / 2 A |
| Luminous Flux | 700 lumens |
| Center Illuminance at 1 m (Spotlight) | 2200 lux |
| Effective Range (Spotlight) | 50 m |
| Lighting Duration (Camping Lamp) | 5–40 hours |
| Lighting Duration (Spotlight) | 5–40 hours |
| Charging Time | 2–3 hours |
| Operating Temperature (Charging) | 32 °F – 113 °F / 0 °C – 45 °C |
| Operating Temperature (Discharging) | -4 °F – 165 °F / -20 °C – 74 °C |
| Storage Temperature | -4 °F – 140 °F / -20 °C – 60 °C |

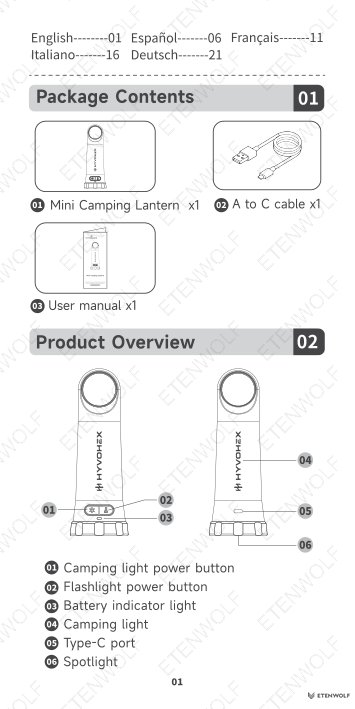

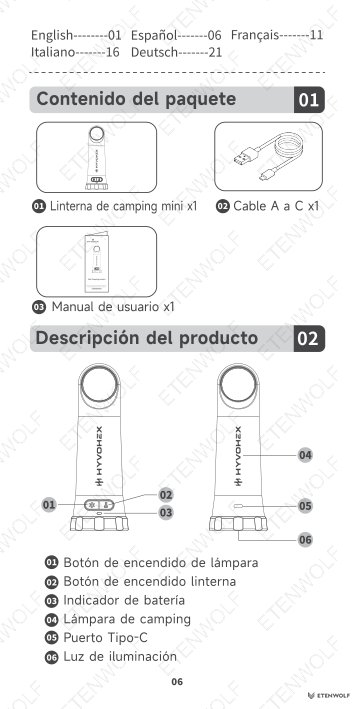

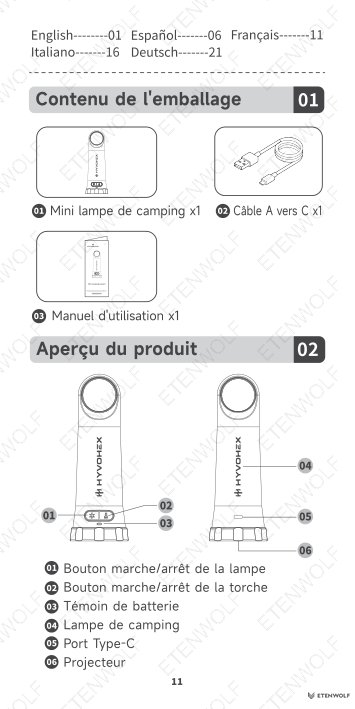

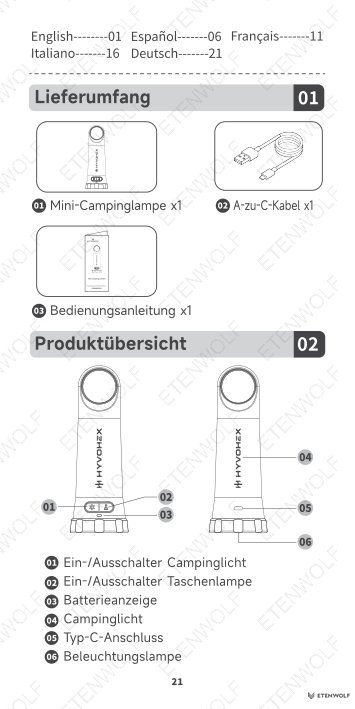

The package includes: CL6 Mini Camping Lantern ×1, USB-A to Type-C cable ×1, and User Manual ×1. The unit features two independent power buttons — one for the camping lamp and one for the spotlight — along with a battery indicator LED and a Type-C charging port.
Key Details

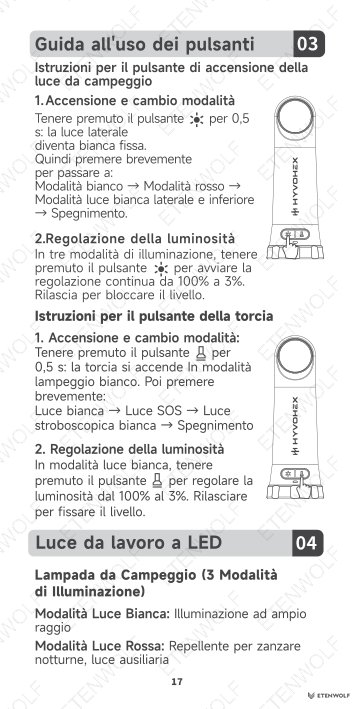

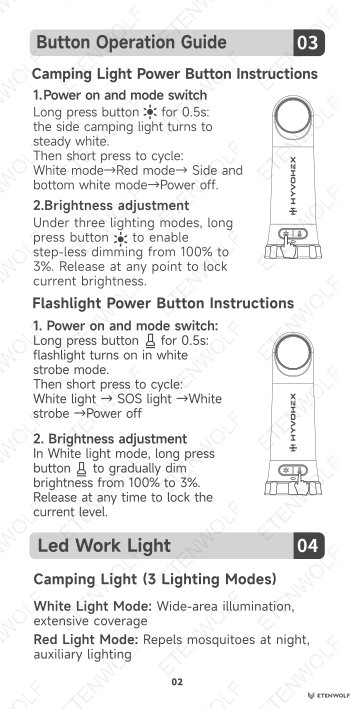

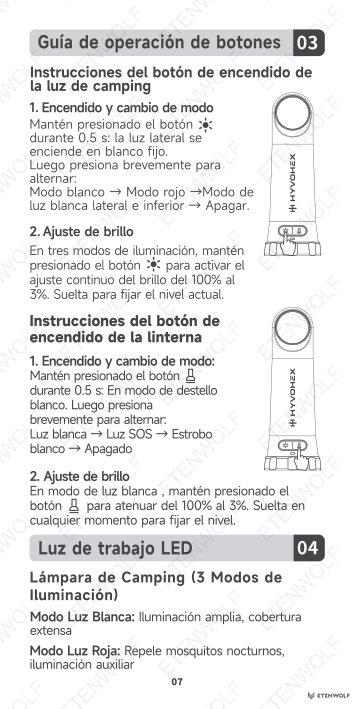

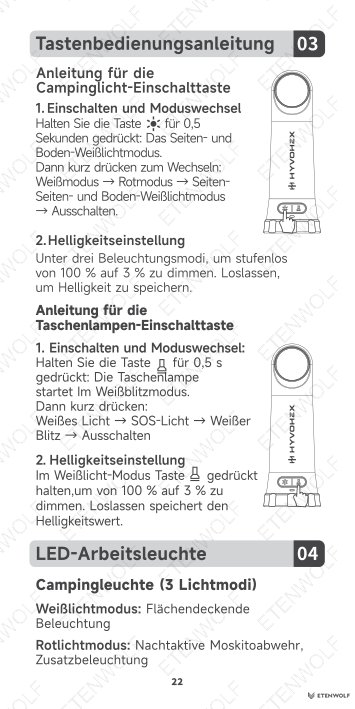

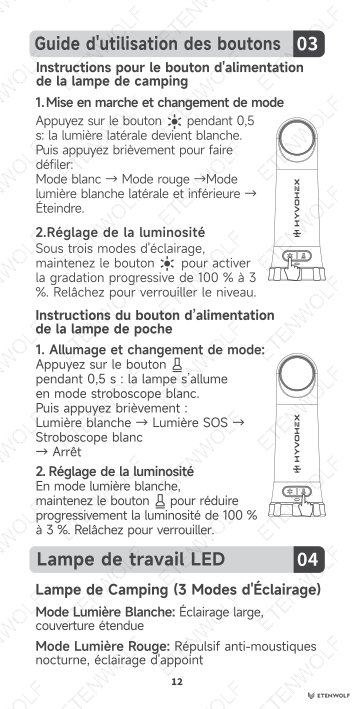

Camping Light Button Operation
The camping light is controlled by Button 1 (the camping light power button):
- Power on / Mode switch: Long press for 0.5 s to turn on in steady white mode. Short press to cycle through: White Mode → Red Mode → Side & Bottom White Mode → Power Off.
- Brightness adjustment: In any of the three lighting modes, long press Button 1 to step-less dim from 100% to 3%. Release at any point to lock the current brightness level.
Camping Light Modes
- White Light Mode: Wide-area illumination with extensive area coverage, suitable for general camp lighting.
- Red Light Mode: Repels mosquitoes at night and provides auxiliary lighting without disrupting night vision.
- Side & Bottom White Light Mode: Illuminates both laterally and downward simultaneously for table or ground-level use.
Flashlight Button Operation
The spotlight/flashlight is controlled by Button 2 (the flashlight power button):
- Power on / Mode switch: Long press for 0.5 s to turn on in white strobe mode. Short press to cycle through: White Light → SOS Signal → White Strobe → Power Off.
- Brightness adjustment: In White Light mode only, long press Button 2 to gradually dim from 100% to 3%. Release at any time to lock the current level.
Flashlight Modes
- White Light Mode: Focused high-intensity beam, 2200 lux at 1 m, effective range up to 50 m.
- SOS Signal Mode: Internationally recognized SOS Morse code light pattern for emergency signaling.
- White Strobe Mode: Rapid flashing for visibility and emergency alerting.
Warning: NEVER shine the spotlight directly into human or animal eyes.

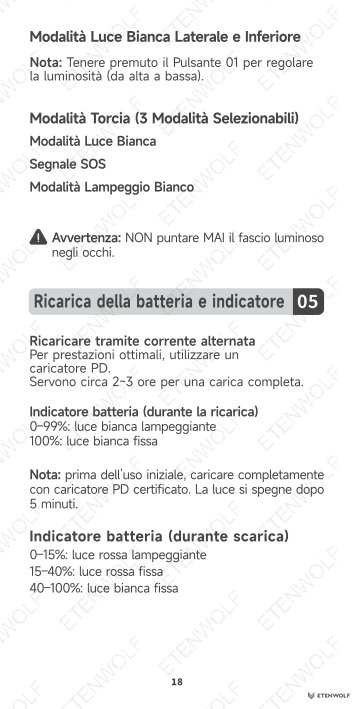

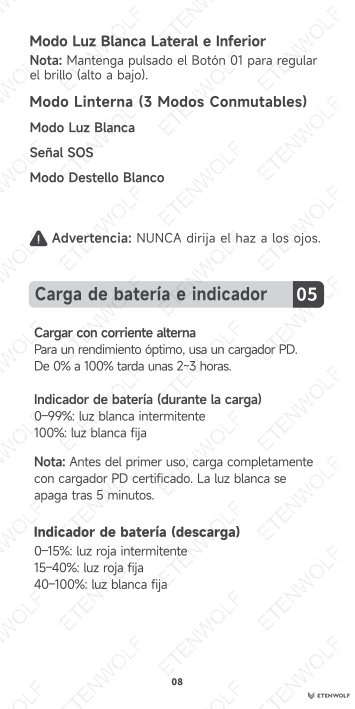

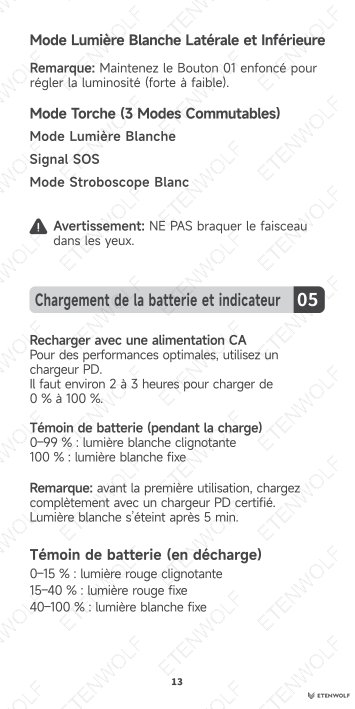

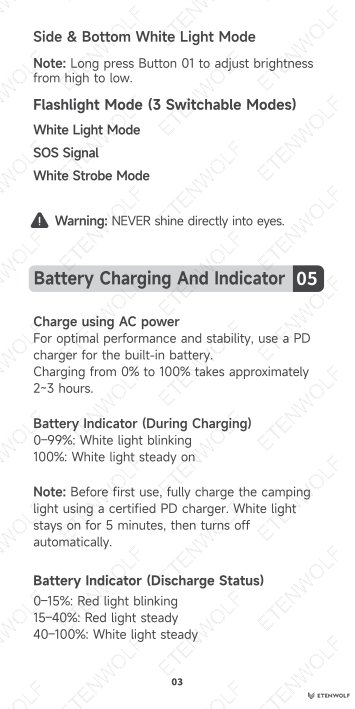

Battery Charging
Charge the CL6 via the Type-C port using a PD (Power Delivery) charger at 5 V / 2 A. A full charge from 0% to 100% takes approximately 2–3 hours. Before first use, fully charge the unit. After initial charging, the white indicator light will remain on for 5 minutes and then turn off automatically.
Battery Indicator States
| Status | Indicator Behavior | Charge Level |
|---|---|---|
| Charging in progress | White light blinking | 0–99% |
| Charging complete | White light steady on | 100% |
| Discharging – critical | Red light blinking | 0–15% |
| Discharging – low | Red light steady on | 15–40% |
| Discharging – normal | White light steady on | 40–100% |
Standards & Compliance
The CL6 Mini Camping Lantern complies with applicable regulatory and safety requirements for consumer portable lighting products. The following markings and compliance indicators are referenced in the manual documentation:
- CE Marking: Indicates conformity with EU health, safety, and environmental protection standards. Refer to European Commission CE Marking for details.
- FCC: Federal Communications Commission compliance for electronic devices sold in the United States. See fcc.gov for regulatory information.
- RoHS: Restriction of Hazardous Substances compliance, limiting use of specific dangerous materials in electrical and electronic equipment. Refer to EU RoHS Directive.
- IPX5 Water Resistance: Rated per IEC 60529 standard, confirming protection against water jets from any direction. This makes the CL6 suitable for use in rain, snow, or wet emergency conditions. Refer to IEC standards.
- EU Representative (EU REP): An authorized EU representative is designated as required under EU product regulations for products sold within the European Union market.
The manual also references an EU Authorized Representative address and importer information (S. COURIER SL, TORMES NUM, PLANTA, Fuenlabrada, Madrid 28, [email protected]) for EU regulatory compliance purposes.
Users must use only a certified PD charger and the supplied cable. Use of non-compliant accessories voids the warranty and may present a safety risk.
Validity & Certification Body
The user manual is version V1.0, issued December 24, 2025, and remains valid for the current production version of the CL6 Mini Camping Lantern.

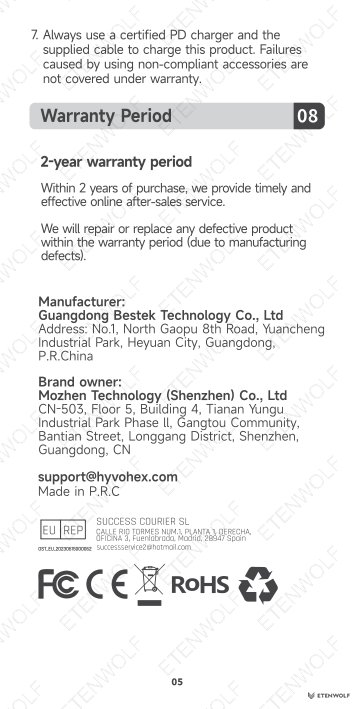

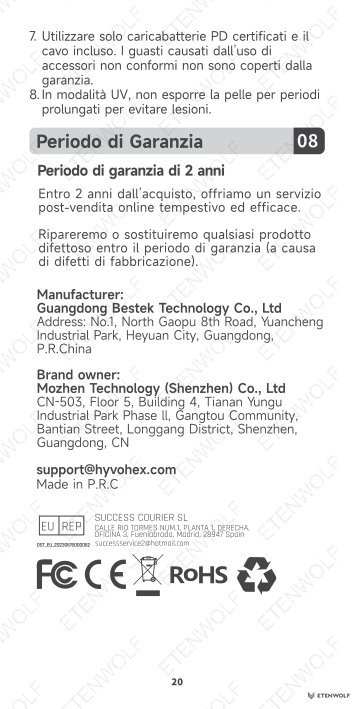

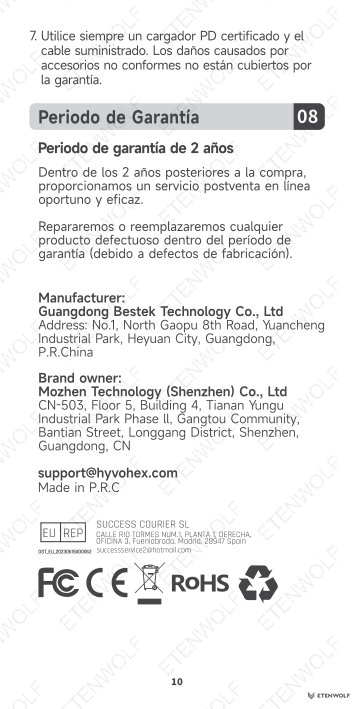

Warranty
- Warranty Period: 2 years from date of purchase.
- Coverage: Manufacturing defects. Within the warranty period, the product will be repaired or replaced at no charge.
- Service channel: Online after-sales service via [email protected].
- Exclusions: Damage caused by use of non-compliant chargers or accessories is explicitly excluded from warranty coverage.
Manufacturer
Guangdong Bestek Technology Co., Ltd
Address: No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Brand Owner
Mozhen Technology (Shenzhen) Co., Ltd
CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China
Made in P.R.C.
Frequently Asked Questions
- Q: How do I switch between the camping light modes on the CL6?
- Long press the camping light power button (Button 1) for 0.5 seconds to turn on in steady white mode. Then short press to cycle through White Mode, Red Mode, Side & Bottom White Mode, and finally Power Off. In any active mode, long press to adjust brightness step-lessly from 100% down to 3%.
- Q: What does it mean when the battery indicator shows a red blinking light?
- A red blinking light during discharge indicates the battery level is between 0% and 15% — critically low. Charge the unit promptly using a certified PD charger via the Type-C port. A red steady light means 15–40% remaining, and a white steady light means 40–100%.
- Q: Is the CL6 safe to use in the rain?
- Yes. The CL6 carries an IPX5 water resistance rating, which means it is protected against water jets from any direction. It is suitable for use in rain, snow, and wet emergency conditions. However, IPX5 does not mean it is fully waterproof — do not submerge the unit in water.
- Q: What charger should I use with the CL6, and how long does a full charge take?
- Always use a certified PD (Power Delivery) charger with the supplied USB-A to Type-C cable. Charging input is 5 V / 2 A. A full charge from 0% to 100% takes approximately 2–3 hours. Using non-certified or incompatible chargers voids the warranty and may be a safety hazard.
Related Documents
The following document types are relevant to the CL6 Mini Camping Lantern and may be available from the manufacturer or authorized testing laboratories:
- CE Declaration of Conformity – Formal declaration confirming compliance with applicable EU directives including Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) Directive.
- FCC Declaration of Conformity / Test Report – Documentation confirming compliance with FCC Part 15 for unintentional radiators sold in the US market.
- RoHS Test Report – Laboratory report verifying restriction of hazardous substances (lead, mercury, cadmium, etc.) in product materials, per EU Directive 2011/65/EU.
- IEC 60529 IPX5 Test Report – Standardized ingress protection test report confirming the IPX5 waterproof rating of the enclosure.
- Battery Safety / UN 38.3 Test Report – Required for lithium battery transport compliance. Confirms the 5000 mAh (18.5 Wh) built-in cell passes UN 38.3 transport testing. Refer to UN 38.3 standard.
- REACH Compliance Statement – Confirms the product materials comply with EU REACH regulation (EC No 1907/2006) regarding substances of very high concern (SVHC). Refer to ECHA REACH information.
- Product Safety Data Sheet (PSDS) – Detailed safety data for the integrated lithium battery and device materials.

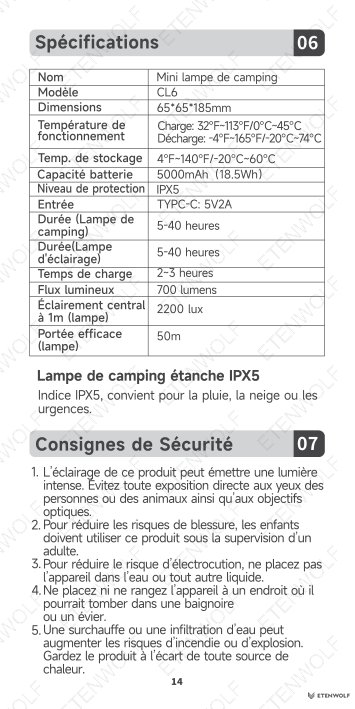

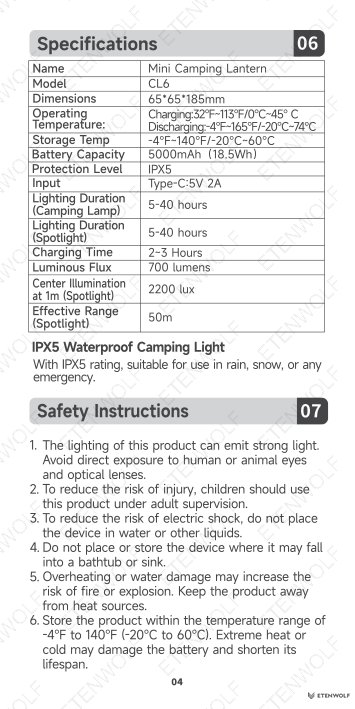

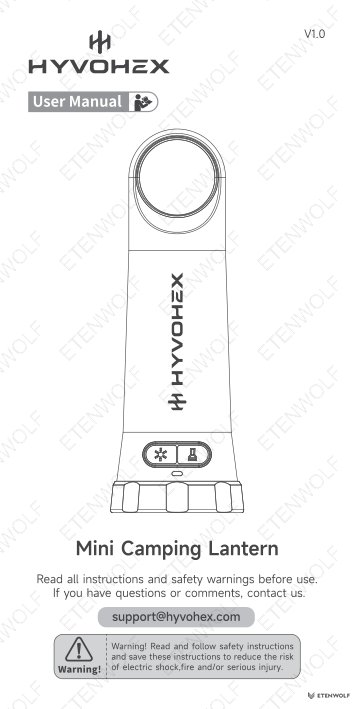

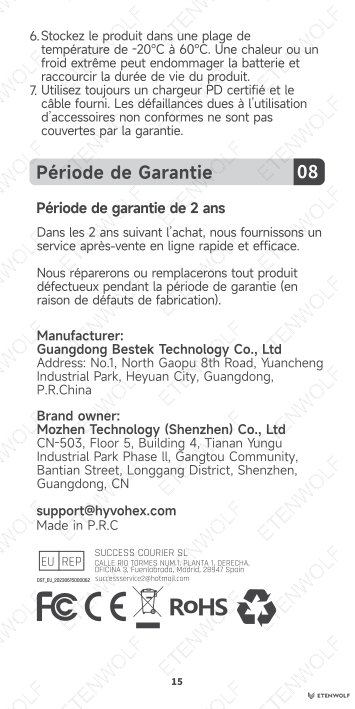

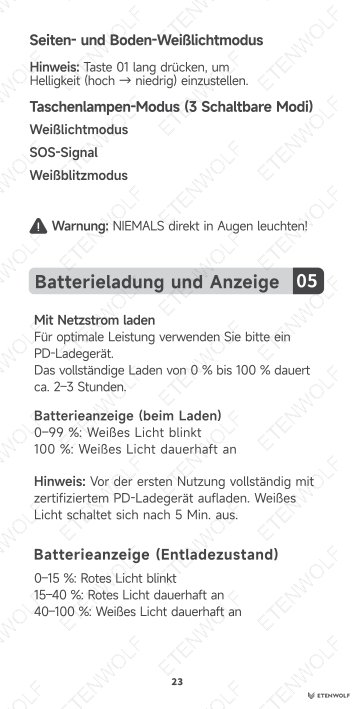

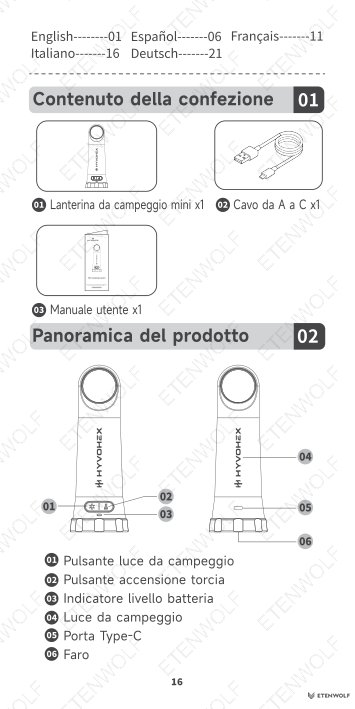

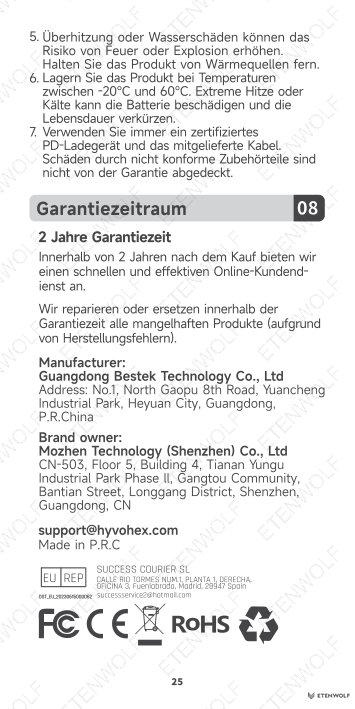

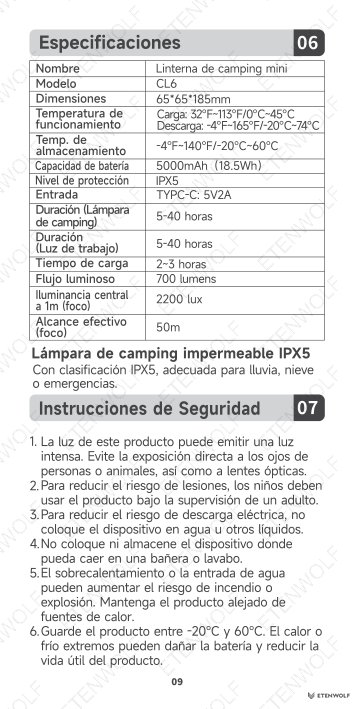

Document Pages
