ETENWOLF L1 Mini Torch UN38.3 Lithium-Ion Battery Air Transport Identification & Classification Report

Document Overview

Document Overview This is an Identification and Classification Report for Air Transport of Goods issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China). The report certifies the air transport classification of the lithium-ion battery contained within the ETENWOLF L1 Mini Torch under…

Document type
Certification Report
Prepared by
Michelle Torres
Published
Last reviewed
Topics
International Transportation: CB / MSDS / UN38.3

Document Overview

This is an Identification and Classification Report for Air Transport of Goods issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China). The report certifies the air transport classification of the lithium-ion battery contained within the ETENWOLF L1 Mini Torch under the UN38.3 standard and IATA Dangerous Goods Regulations (DGR) 66th Edition, 2025.

  • Issued Number: ARHE 2025124318
  • Report Number: PEKSZ202505278397ZP680001
  • Effective Date: 2025-05-27
  • Issuing Body: Beijing DGM Air Transport Technology Development Co., Ltd.
  • Applicant: Guangdong Bestek Technology Co., LTD
  • Regulatory Basis: IATA DGR 66th Edition, 2025

The report is valid only within the year in which the applicable IATA Dangerous Goods Regulations edition is in effect. Reproduction or transfer of this report without DGM China’s written approval is strictly prohibited.

Product Information

The subject product is the ETENWOLF L1 Mini Torch, a compact handheld lighting device containing a built-in lithium-ion battery pack. Full product and battery specifications are listed below.

Attribute Detail
Product Name (Chinese) 手持 L1 (含锂离子电池组 1S1P-1500 3.8V 1500mAh 5.7Wh)
Product Name (English) Mini Torch L1 (Containing Lithium-ion Battery Pack 1S1P-1500 3.8V 1500mAh 5.7Wh)
Manufacturer Guangdong Bestek Technology Co., LTD
Manufacturer Address No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Battery Model 1S1P-1500
Battery Type Single Cell Lithium-Ion Battery (Blue Prismatic)
Normal Voltage 3.8V
Rated Capacity 1500mAh
Watt-Hour Rating 5.7Wh
Battery Dimensions 51.5 × 22.0 × 12.0 mm
Lithium Content N/A (lithium-ion; not applicable)
Mass per Cell 31.2 g
Batteries per Package 120
Net Quantity per Package 3.744 kg

Key Details

The following table summarizes the identification and classification findings as determined by DGM China based on the sample submitted by the applicant.

Field Detail
Report / Issued Number PEKSZ202505278397
Identification Date 2020-09-27
Issued Date 2025-05-27
Nature of Goods Dangerous Goods or Not Restricted
UN/ID Number UN3481
Proper Shipping Name Lithium ion batteries contained in equipment
Packing Instruction PI 967, Section II (Passenger and Cargo Aircraft / Cargo Aircraft Only)
Classification Basis Lithium-ion/polymer battery, contained in equipment, 5.7Wh; each battery type proven to meet all requirements of UN Manual of Tests and Criteria, Part III, Sub-section 38.3

Each package is marked with the required battery mark. Batteries must be protected against short circuits, and the equipment must be equipped with an effective means of preventing accidental activation during transport.

The batteries are confirmed to:

  • Not be returned to the manufacturer for safety reasons.
  • Not be waste lithium batteries.
  • Not be lithium batteries shipped for recycling or disposal.
  • Be manufactured under a quality management program as described in UN38.3 Section 3.9.2.6.1(e).
  • Be capable of withstanding a stacking force equivalent to a 3-metre column of identical packages applied to the top surface for 24 hours.

Standards & Compliance

The ETENWOLF L1 Mini Torch battery has been tested and classified in accordance with the following standards and regulations.

Standard / Regulation Description
UN38.3 (ST/SG/AC.10/11/Rev.8) UN Manual of Tests and Criteria, Part III, Sub-section 38.3 — Lithium Battery Test Requirements
IATA DGR 66th Edition, 2025 International Air Transport Association Dangerous Goods Regulations — Packing Instruction 967, Section II

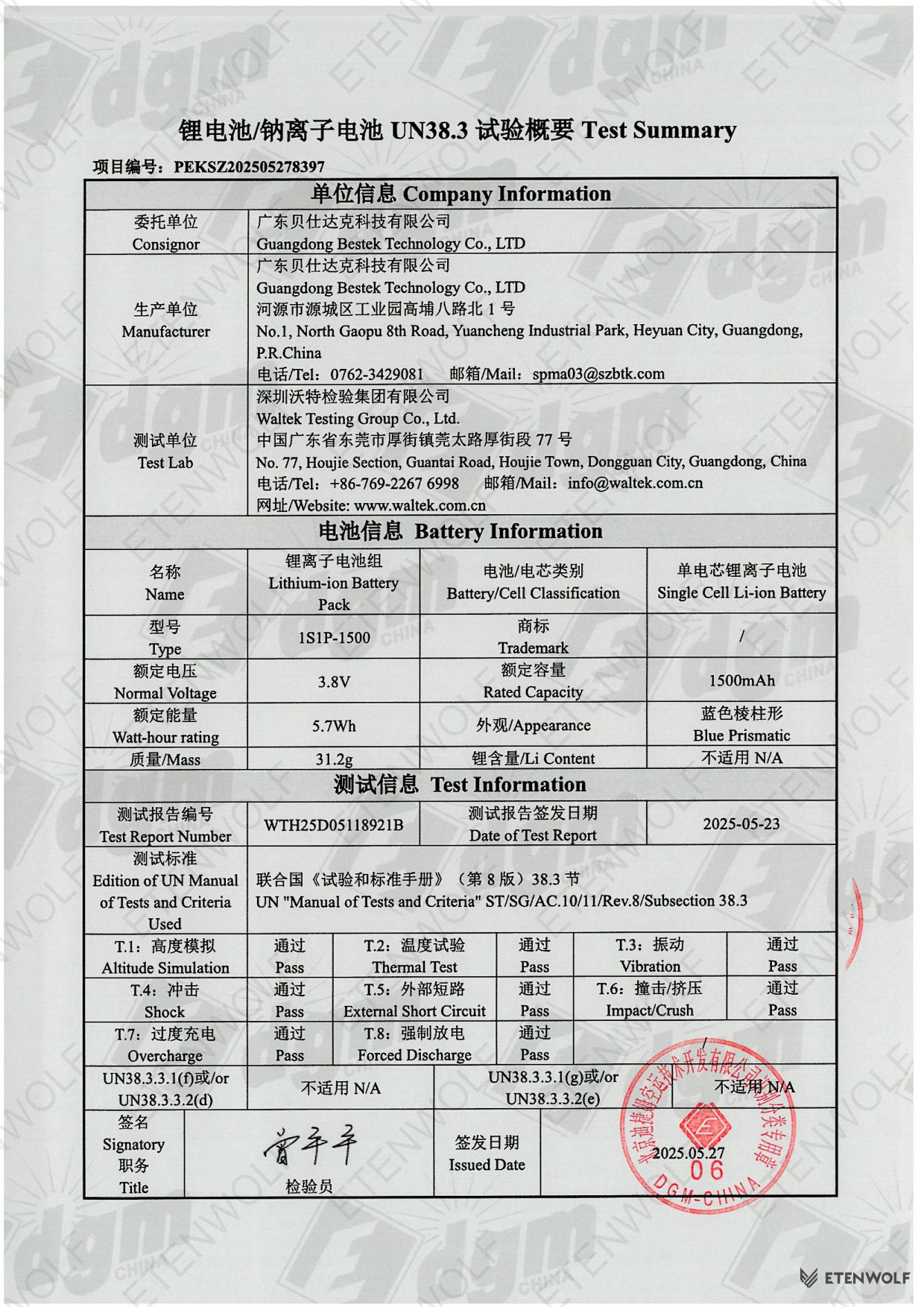

Test results summary (Test Report Number: WTH25D05118921B, Date of Test Report: 2025-05-XX):

Test Test Code Result
Altitude Simulation T.1 Pass
Thermal Test T.2 Pass
Vibration T.3 Pass
Shock T.4 Pass
External Short Circuit T.5 Pass
Impact / Crush T.6 Pass
Overcharge T.7 Pass
Forced Discharge T.8 Pass

Validity & Certification Body

This report is valid for the calendar year in which the IATA DGR 66th Edition (2025) remains in effect. It becomes invalid upon any illegal transfer, unauthorized reproduction, embezzlement, impersonation, modification, or tampering in any form or media.

Issuing Authority — DGM China:

Testing Laboratory — Waltek:

  • Full Name: Waltek Testing Group Co., Ltd.
  • Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China
  • Website: www.waltek.com.cn
  • Email: [email protected]
  • Tel: +86-769-2267-6998

The report is effective only after it has been signed by the inspector, checker, and approver, and officially stamped by DGM China.

Frequently Asked Questions

Q: What does UN38.3 certification mean for the ETENWOLF L1 Mini Torch?
UN38.3 certification means the lithium-ion battery inside the ETENWOLF L1 Mini Torch has passed all eight required tests — including altitude simulation, thermal cycling, vibration, shock, external short circuit, impact/crush, overcharge, and forced discharge — confirming it is safe for air transport as defined by the UN Manual of Tests and Criteria, Part III, Sub-section 38.3.
Q: Can the ETENWOLF L1 Mini Torch be transported on passenger aircraft?
Yes. The battery is classified under IATA DGR Packing Instruction 967, Section II, which permits transport on both passenger and cargo aircraft, provided applicable quantity and packaging requirements are met.
Q: How long is the UN38.3 report valid?
The report is valid within the calendar year in which the IATA DGR 66th Edition (2025) is in effect. A new identification report is typically required when a new edition of the IATA DGR is published, or if the product or battery specification changes.
Q: Who conducted the UN38.3 tests for the L1 battery?
The physical tests were conducted by Waltek Testing Group Co., Ltd., an independent testing laboratory based in Dongguan, Guangdong, China. The identification and classification report was issued by Beijing DGM Air Transport Technology Development Co., Ltd. (DGM China).

Related Documents

The following certification and compliance documents are recommended for the ETENWOLF L1 Mini Torch and its lithium-ion battery to support global market access and transport compliance:

  • IEC 62133 / UL 2054 — Battery safety standard for portable sealed secondary lithium cells and batteries used in portable applications. Issued by accredited safety laboratories such as TÜV, SGS, or Intertek.
  • CE Declaration of Conformity (DoC) — Required for EU market access; covers Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC) for the complete torch product.
  • FCC ID Certification — Required for the United States market if the product incorporates any radio frequency components.
  • KC Certification (KCs Mark) — Mandatory electrical safety certification for the South Korean market.
  • RoHS Compliance Certificate — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in the product and battery per EU Directive 2011/65/EU.
  • REACH SVHC Declaration — Confirms the product does not contain Substances of Very High Concern above the 0.1% threshold per EU REACH Regulation (EC) No. 1907/2006.
  • MSDS / SDS (Material Safety Data Sheet) — Recommended for all lithium battery shipments to provide handling, storage, and emergency response information.

Document Pages

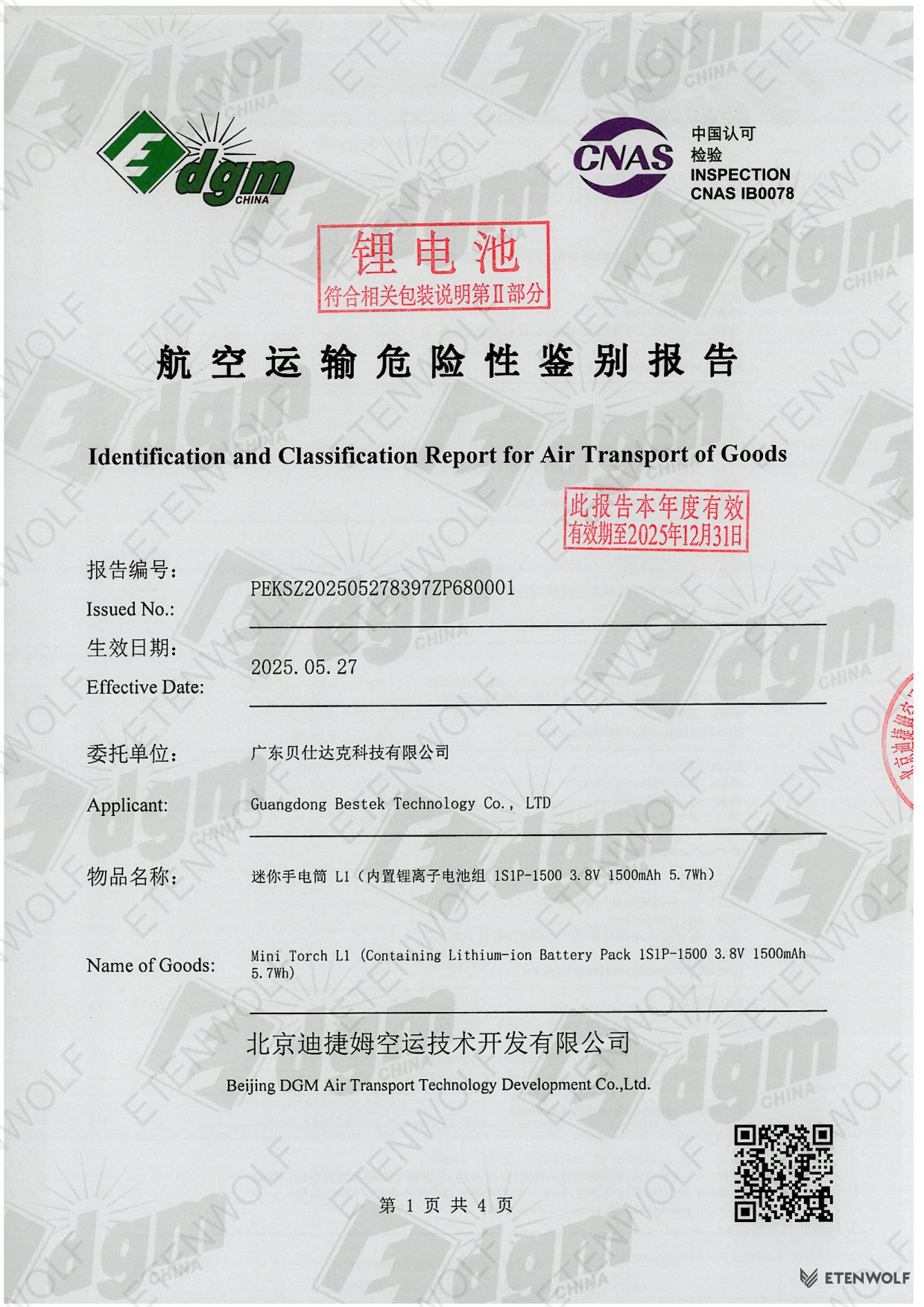

Document Page 1
Document Page 2

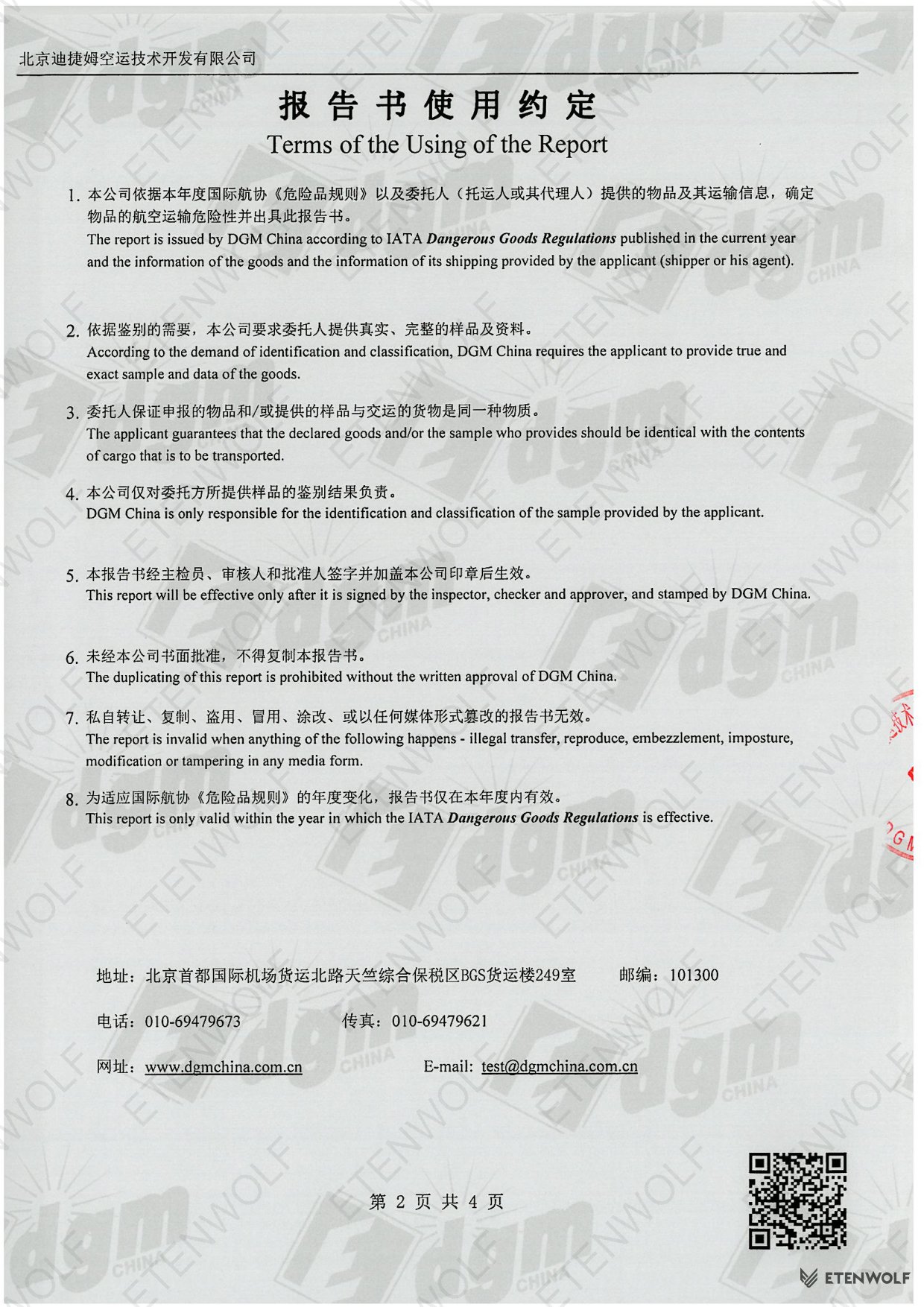

Document Page 3

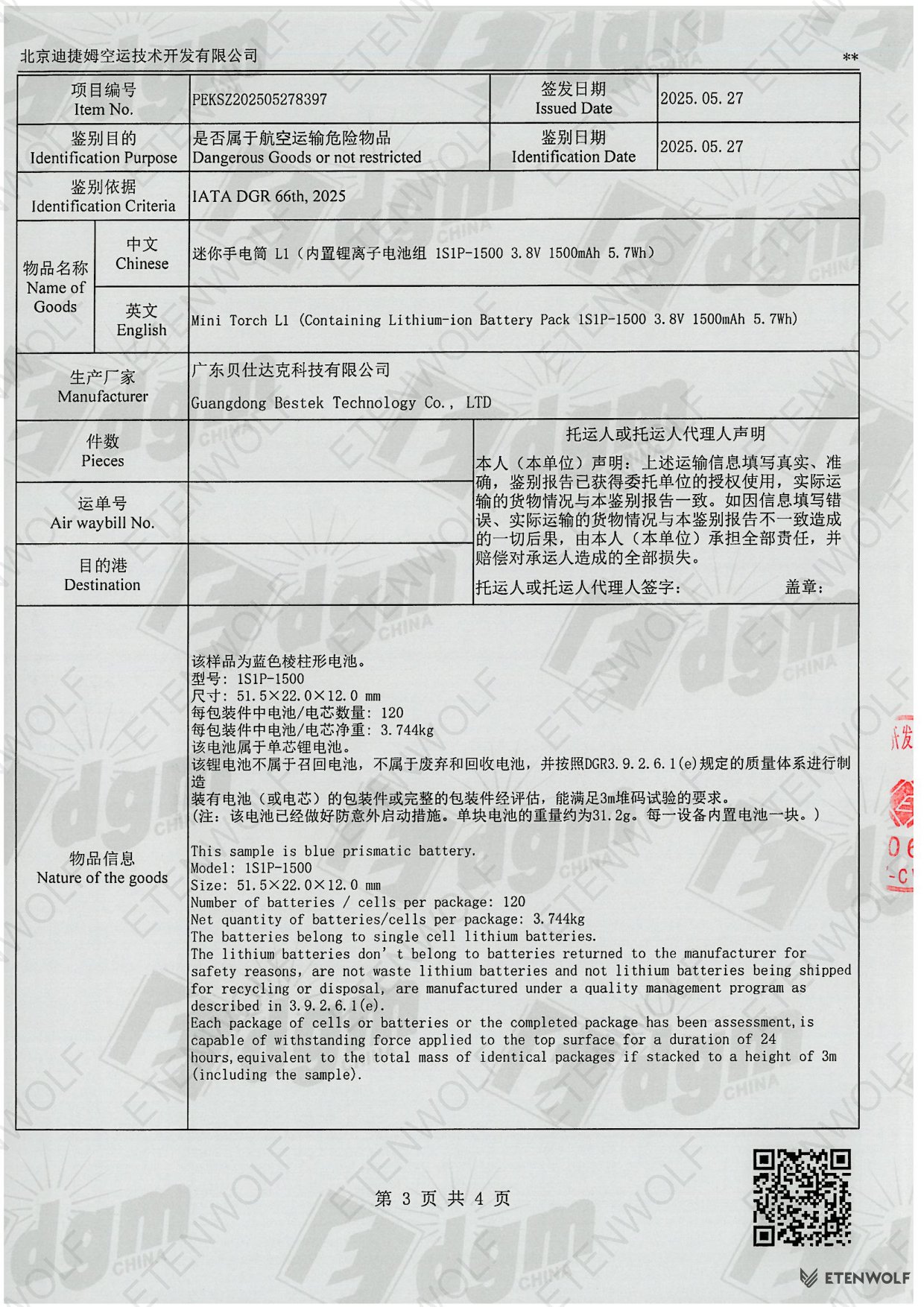

Document Page 4

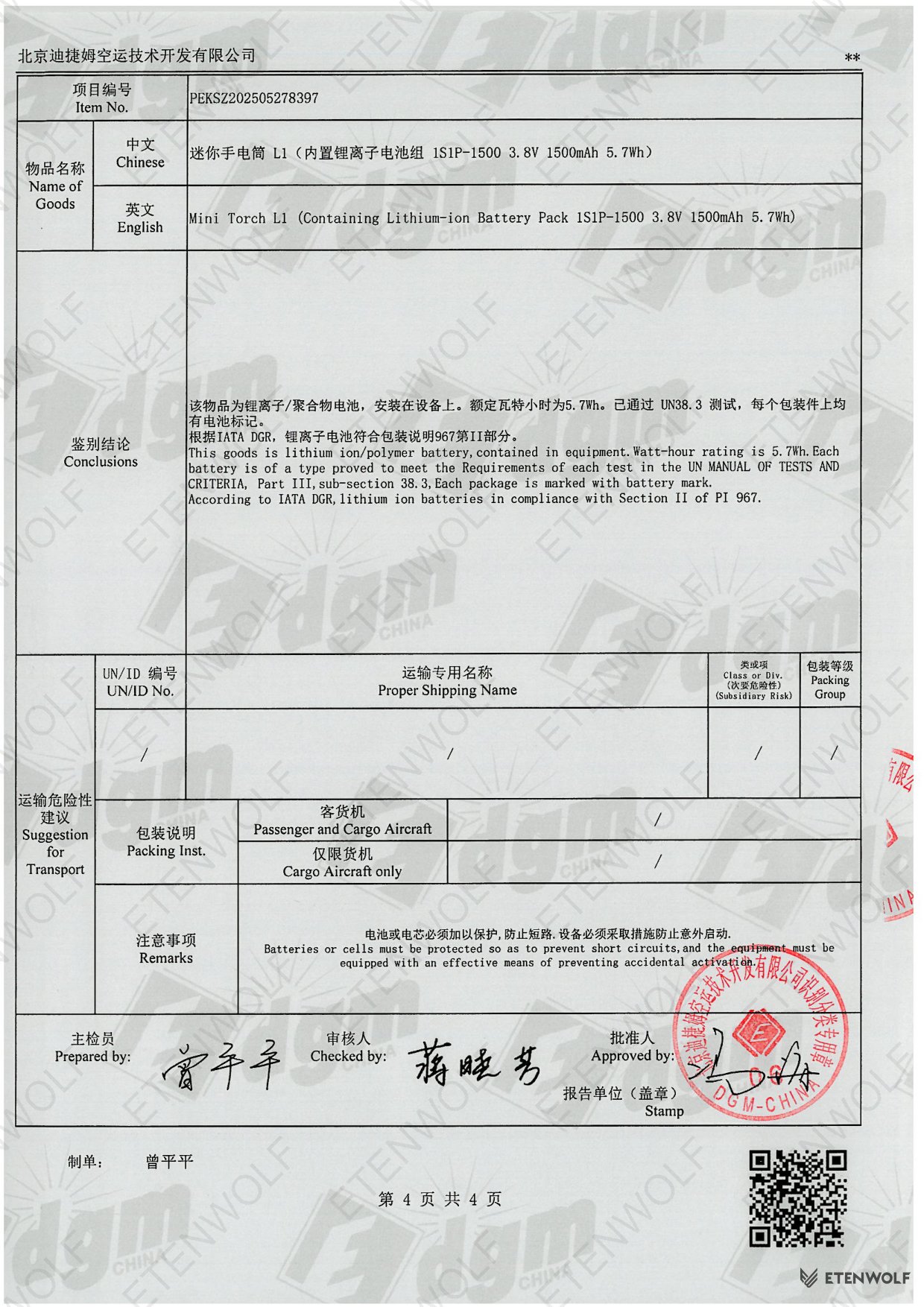

Document Page 5

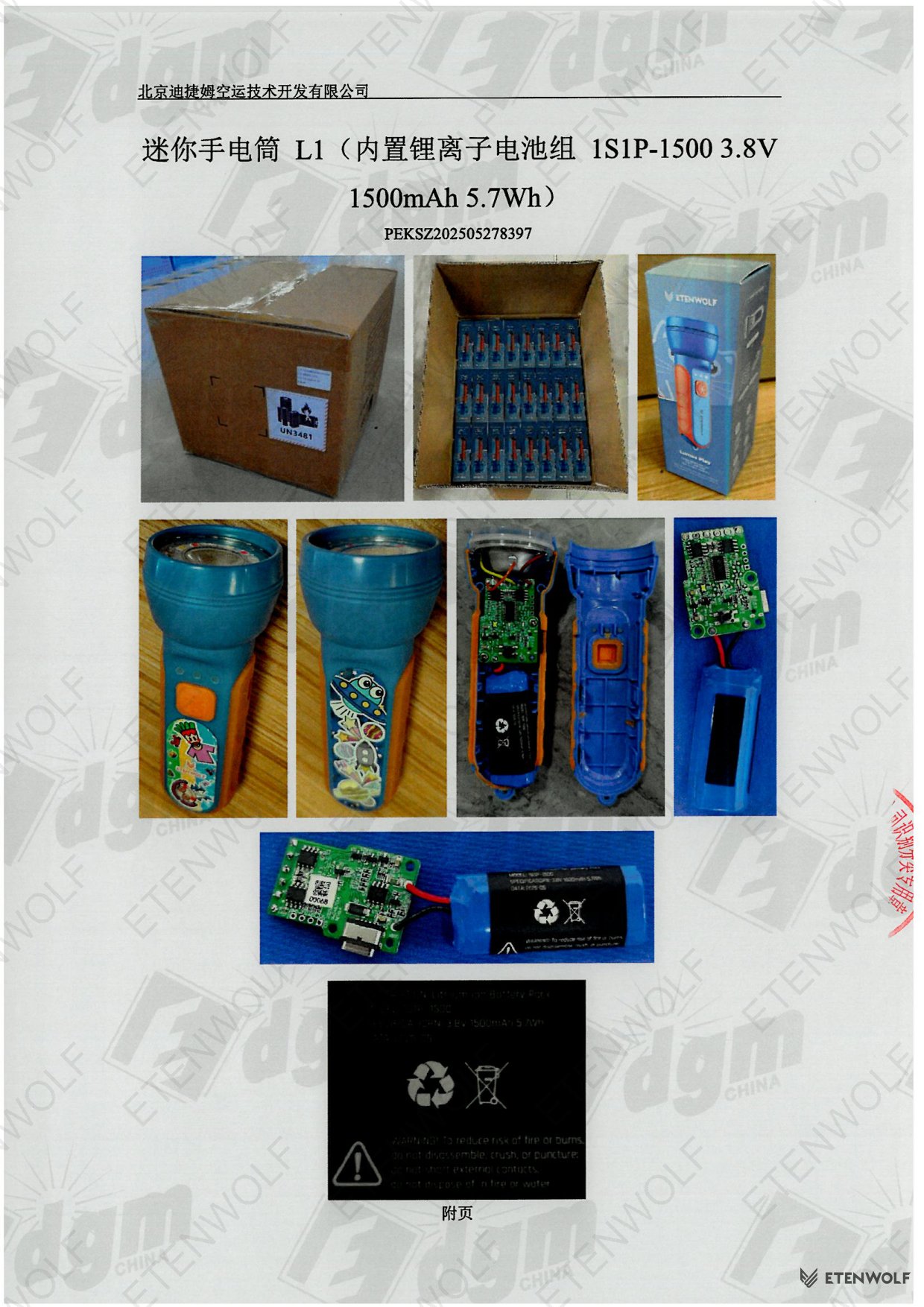

Document Page 6
