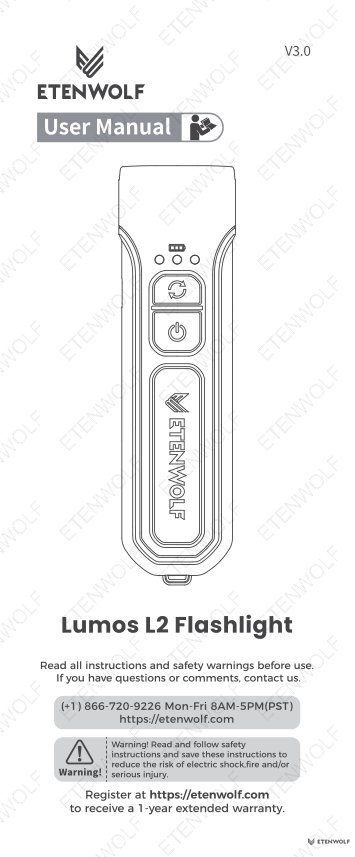

ETENWOLF Lumos L2 Flashlight User Manual — Complete Guide to Operation, Charging & Safety

Document Overview

Document Overview This page presents the official product user manual for the ETENWOLF Lumos L2 Flashlight, document version V3.0, filename L2_manual_EN_20260416.pdf. The manual is issued by ETENWOLF and covers the complete operational instructions, battery charging procedures, safety warnings, technical specifications, and warranty terms for the…

Document type: User Manual
Prepared by: Daniel Wright
Published: July 21, 2026
Last reviewed: July 21, 2026
Topics: User Manual

Document Overview

This page presents the official product user manual for the ETENWOLF Lumos L2 Flashlight, document version V3.0, filename L2_manual_EN_20260416.pdf. The manual is issued by ETENWOLF and covers the complete operational instructions, battery charging procedures, safety warnings, technical specifications, and warranty terms for the Lumos L2 handheld LED flashlight. The document is intended for end users and applies to all units sold under the ETENWOLF brand globally. Users are instructed to read all safety warnings before use and to register the product at https://etenwolf.com to receive a 1-year extended warranty on top of the standard coverage.

Field	Detail
Document Type	Product User Manual
Document Version	V3.0
Filename	L2_manual_EN_20260416.pdf
Issuing Brand	ETENWOLF
Applicable Product	Lumos L2 Flashlight
Languages Included	English, Spanish
Support Phone	(+1) 866-720-9226, Mon–Fri 8AM–5PM (PST)
Support Email	[email protected]

Product Information

The ETENWOLF Lumos L2 Flashlight is a compact, rechargeable LED work light designed for outdoor, emergency, and professional use. It features six switchable light modes, a built-in 2600mAh lithium battery charged via a USB Type-C port, and an IPX5 waterproof rating suitable for rain and snow conditions. The unit includes a Class 2R red laser with a wavelength of 650nm and a peak power below 1mW for remote indication tasks.

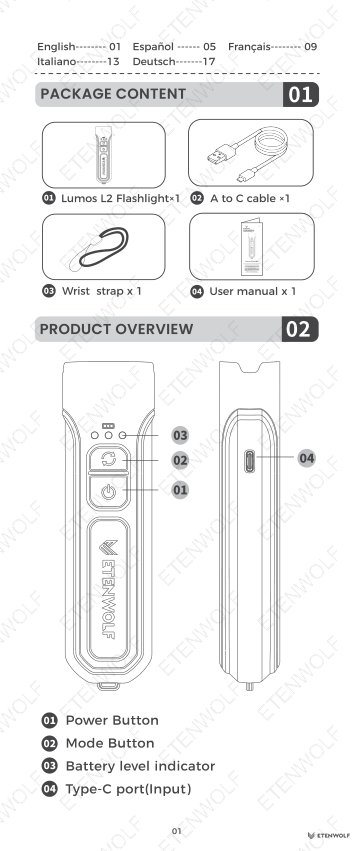

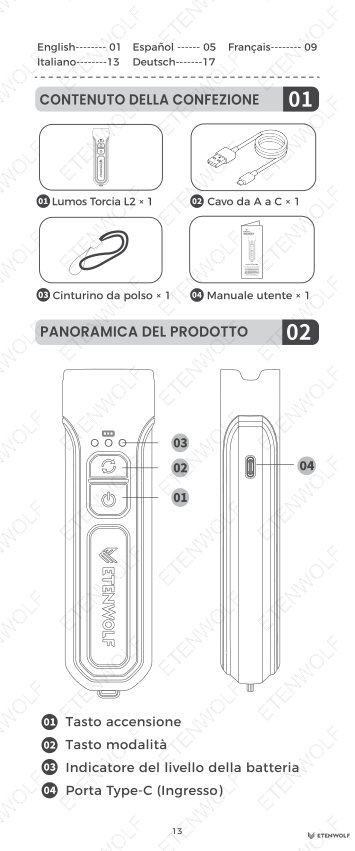

In the box, each unit ships with the following accessories:

Lumos L2 Flashlight ×1
USB-A to USB-C charging cable ×1
Wrist strap ×1
User manual ×1

The flashlight body measures 149×42×28mm and is manufactured by Guangdong Bestek Technology Co., Ltd, with ETENWOLF’s brand owner being Mozhen Technology (Shenzhen) Co., Ltd. The product is made in the People’s Republic of China and carries FCC, CE, RoHS, and other regulatory marks.

Specification	Value
Model	Lumos L2
Dimensions	149 × 42 × 28 mm
Battery Capacity	2600mAh (9.6Wh)
Input	Type-C, 5V 1A
Luminous Flux	300 lumens
Effective Range	220m
Central Illuminance (Spotlight at 1m)	1900 lux
Central Illuminance (Floodlight at 1m)	400 lux
Lighting Duration — High Brightness	~4 hours
Lighting Duration — Low Brightness	~20 hours
Charging Time	~3 hours (0% to 100%)
Protection Rating	IPX5
Laser Class	Class 2R, 650nm, peak power <1mW
Operating Temperature (Charging)	32°F–113°F / 0°C–45°C
Operating Temperature (Discharging)	-4°F–165°F / -20°C–74°C
Storage Temperature	-4°F–140°F / -20°C–60°C

Key Details

This section details the physical controls, light mode sequences, battery indicator behavior, and charging procedure as described in the manual.

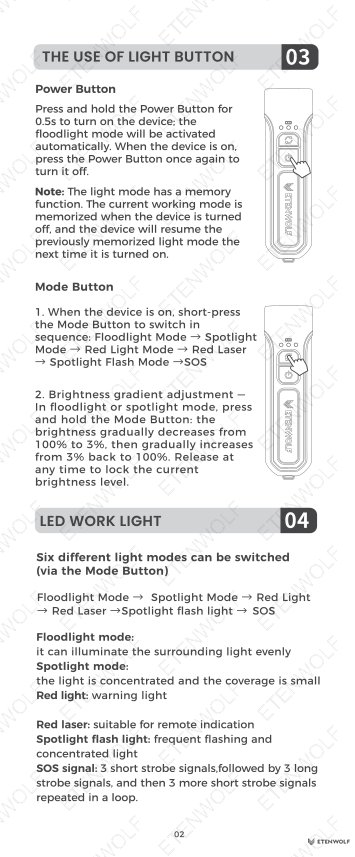

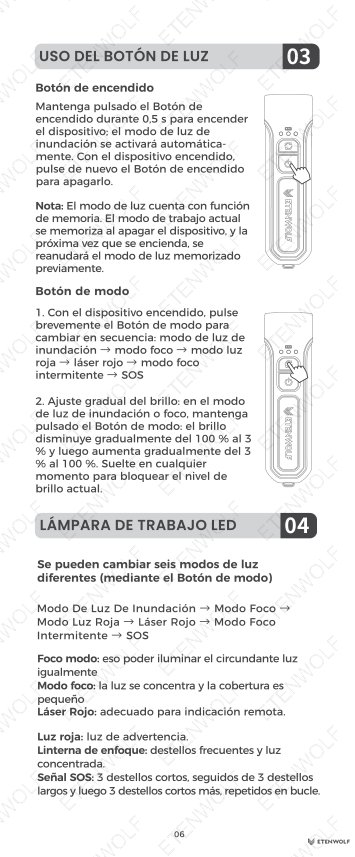

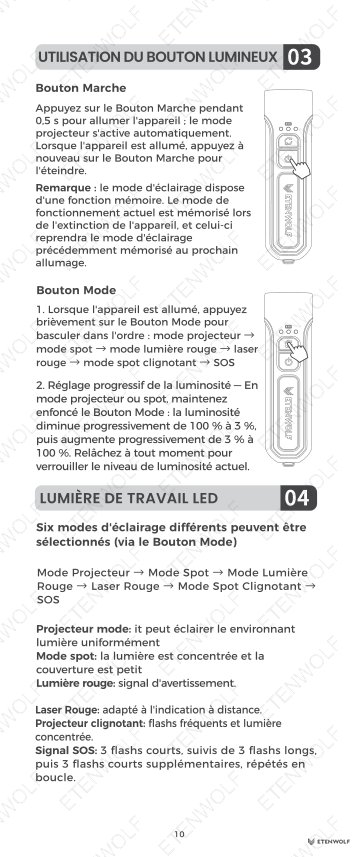

Physical Controls

The Lumos L2 has two primary controls on the body:

Power Button: Press and hold for 0.5 seconds to power on. The device automatically activates Floodlight Mode on startup. Press once while on to power off. The device has a mode memory function — it recalls the last active mode and resumes it on the next power-on.
Mode Button: Short-press to cycle through modes in sequence. Press and hold in Floodlight or Spotlight mode to gradually adjust brightness from 100% down to 3%, then back up to 100%; release at any point to lock the current brightness level.

Six Light Modes

Mode	Description
Floodlight Mode	Even wide-area illumination of surrounding space
Spotlight Mode	Concentrated beam with narrow coverage for long-range focus
Red Light Mode	Red warning light for signaling and visibility
Red Laser Mode	Class 2R red laser (650nm, <1mW) for remote indication and pointing
Spotlight Flash Mode	Rapid concentrated strobe for high-visibility alerting
SOS Mode	International SOS pattern: 3 short flashes, 3 long flashes, 3 short flashes, repeated in a loop

Auto-Off Feature

The light automatically shuts off after 1 hour of continuous use. A flashing reminder signal precedes the shutdown. Pressing the Mode Button during this flashing reminder cancels the auto-off program, and the light will remain on until the battery is fully depleted.

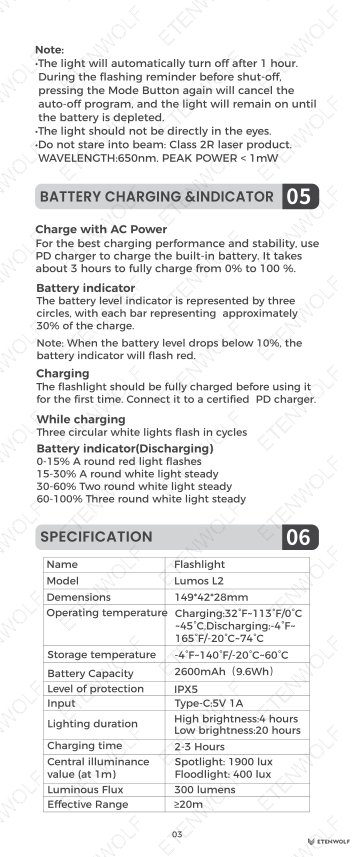

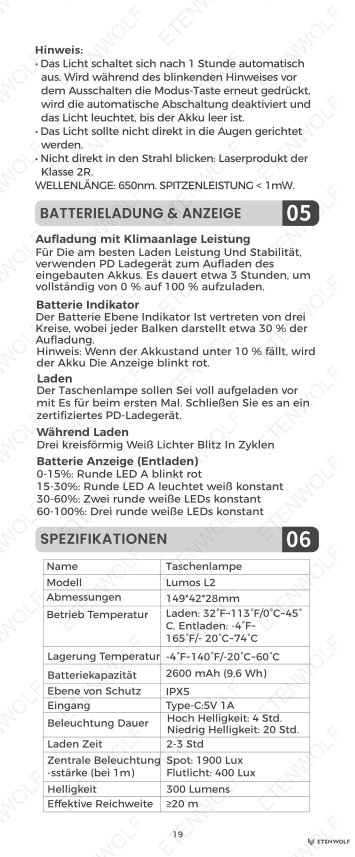

Battery Indicator States

The battery level indicator uses three circular LEDs. Each lit circle represents approximately 30% of total charge.

State	Indicator Behavior
Charging (any level)	Three circular white lights flash in cycles
Discharging: 0–15%	One red circle flashing
Discharging: 15–30%	One white circle steady on
Discharging: 30–60%	Two white circles steady on
Discharging: 60–100%	Three white circles steady on
Below 10%	Battery indicator flashes red as low-battery alert

Charging Instructions

Fully charge the flashlight before first use. Connect the included USB-A to USB-C cable to a certified PD (Power Delivery) charger and plug the Type-C end into the flashlight’s input port. Using a PD charger is recommended for best charging performance and stability. A full charge from 0% to 100% takes approximately 3 hours. The input rating is 5V 1A via Type-C.

Standards & Compliance

The ETENWOLF Lumos L2 Flashlight is manufactured and tested to comply with multiple international regulatory and safety standards. The compliance marks printed on the product and its packaging include the following:

Mark / Standard	Scope
FCC	US Federal Communications Commission electromagnetic compatibility and radio frequency compliance
CE	European Conformity marking indicating compliance with applicable EU directives including safety and EMC
RoHS	Restriction of Hazardous Substances — limits use of lead, mercury, cadmium, and other restricted materials in electrical and electronic equipment
IPX5	Ingress Protection rating per IEC 60529: protected against water jets from any direction, suitable for use in rain and snow
Class 2R Laser	Laser safety classification per IEC 60825-1: low-power visible laser (650nm, peak power <1mW); direct eye exposure should be avoided

Additional regulatory symbols visible on the product include the WEEE (Waste Electrical and Electronic Equipment) recycling symbol and the RCM mark, indicating compliance for the Australian and New Zealand markets.

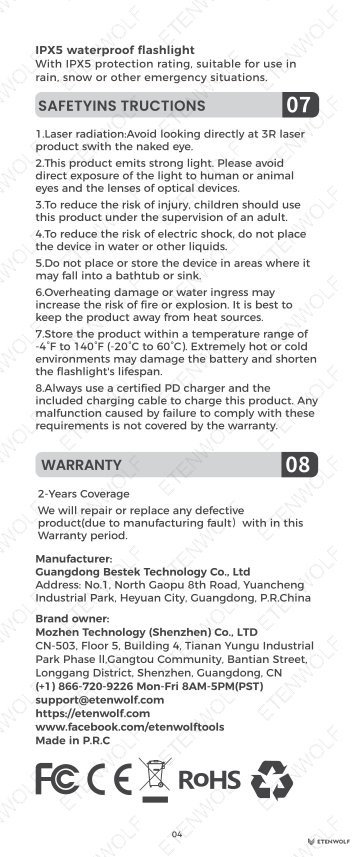

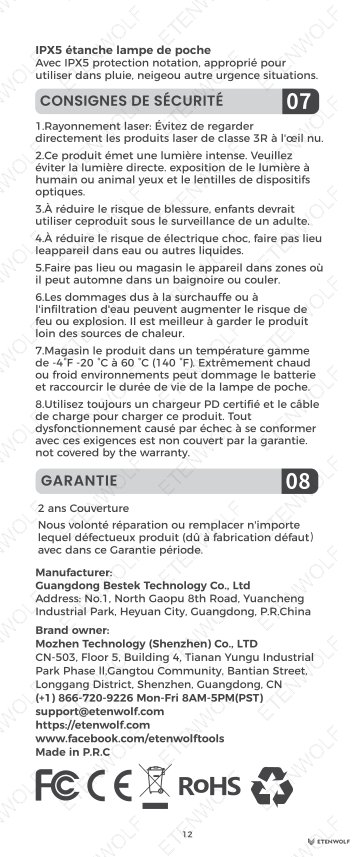

Safety warnings in the manual instruct users to avoid directing the beam or laser at human or animal eyes, to keep the device away from water immersion despite its IPX5 splash resistance, and to use only certified PD chargers. Any malfunction resulting from use of non-certified chargers is explicitly excluded from warranty coverage.

Validity & Certification Body

This user manual (version V3.0) is the current release document accompanying all shipped units of the ETENWOLF Lumos L2 Flashlight. The document carries no individual expiry date but is tied to the product lifecycle and subject to revision as regulatory requirements evolve.

Entity	Detail
Manufacturer	Guangdong Bestek Technology Co., Ltd
Manufacturer Address	No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Brand Owner	Mozhen Technology (Shenzhen) Co., Ltd
Brand Owner Address	CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China
Brand	ETENWOLF
Country of Manufacture	P.R. China
Warranty Period	2 years standard; 1 additional year (total 3 years) upon registration at https://etenwolf.com
Warranty Coverage	Repair or replacement of defective products due to manufacturing fault within the warranty period
Customer Support	(+1) 866-720-9226, Mon–Fri 8AM–5PM PST; [email protected]

The warranty does not cover damage caused by use of non-certified chargers, physical misuse, water immersion beyond the IPX5 rating, or storage outside the specified temperature range of -4°F to 140°F (-20°C to 60°C).

Frequently Asked Questions

Q: How do I switch between light modes on the Lumos L2?: A: With the flashlight powered on, short-press the Mode Button to cycle through the six modes in order: Floodlight → Spotlight → Red Light → Red Laser → Spotlight Flash → SOS. The device remembers the last active mode and resumes it automatically on the next power-on.
Q: What does it mean when the battery indicator flashes red?: A: A flashing red battery indicator means the remaining charge has dropped below 10%. You should connect the flashlight to a certified PD charger via the Type-C port as soon as possible to avoid unexpected shutdown. A full charge from 0% takes approximately 3 hours.
Q: Is the Lumos L2 safe to use in rain or wet conditions?: A: Yes. The Lumos L2 carries an IPX5 protection rating, meaning it is protected against water jets from any direction and is suitable for use in rain or snow. However, IPX5 does not mean the device is fully waterproof — do not submerge it in water or place it where it could fall into a sink, bathtub, or other body of liquid.
Q: Is it safe to look at the red laser on the Lumos L2?: A: No. The red laser is a Class 2R product operating at 650nm with a peak power below 1mW. While brief accidental exposure is unlikely to cause lasting harm, you must never stare directly into the laser beam or point it at human or animal eyes, or at the lenses of optical instruments. Keep the laser away from children unless under adult supervision.
