Document Overview
This article is based on the official product user manual for the HYVOHEX PUMP5 portable air pump, document version v2.0, filename HB3_manual_EN_20250829.pdf. The manual is issued by the brand owner Mozhen Technology (Shenzhen) Co., Ltd and covers safe operation, technical specifications, nozzle usage, charging procedures, safety warnings, and warranty terms. It is intended for end-users and retail customers worldwide. The document carries CE, RoHS, and recycling compliance marks, and lists a registered EU representative in Spain.
If you have questions about this product, contact the brand support team at [email protected].
Product Information
The HYVOHEX PUMP5 is a rechargeable portable air pump designed for inflating and deflating a wide range of consumer inflatables. It features a dual-speed motor, a built-in 8000mAh lithium battery, and a Type-C charging port, making it suitable for both indoor and outdoor use.
| Parameter | Value |
|---|---|
| Product Name | PUMP5 |
| Model | HB3 |
| Dimensions | 81 × 66 × 108 mm |
| Battery Capacity | 8000 mAh (29.6 Wh) |
| Charging Time | 3–4 hours |
| Charging Port | Type-C |
| Operating Temperature (Charging) | 0°C – 45°C / 32°F – 113°F |
| Operating Temperature (Running) | -20°C – 74°C / -4°F – 165°F |
| Storage Temperature | -20°C – 55°C / -4°F – 131°F |
| Origin | Made in P.R.C |
Key Details
Performance Specifications
| Parameter | High Speed | Low Speed |
|---|---|---|
| Pressure | 0.73 PSI / 5 KPa | 0.58 PSI / 4 KPa |
| Inflation / Deflation Speed | 18 CMF / 500 LM | 14.4 CMF / 400 LM |
Battery Indicator States
| State | Indicator Behavior | Battery Level |
|---|---|---|
| Discharging | Orange flashing | 0–10% |
| Discharging | Orange solid | 10–30% |
| Discharging | White solid | 30–100% |
| Charging | Orange flashing | 0–30% |
| Charging | White flashing | 30–99% |
| Charging | White solid | 100% (fully charged) |
| Warning | Red flashing | High temperature or overload |

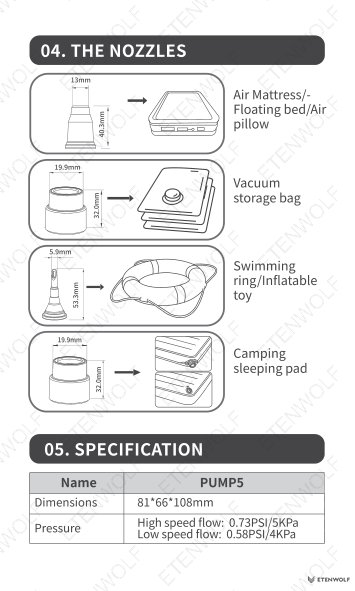

Included Nozzle Types
- Air mattress / Floating bed / Air pillow nozzle
- Vacuum storage bag nozzle
- Swimming ring / Inflatable toy nozzle
- Camping sleeping pad nozzle

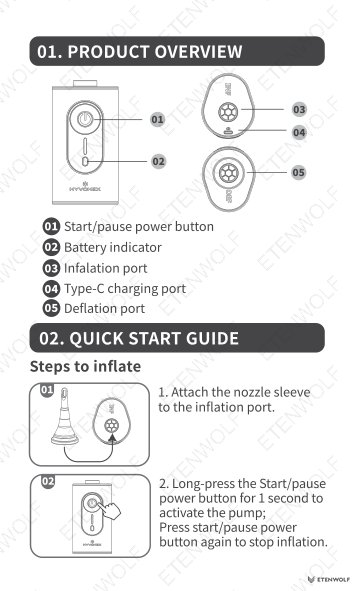

Quick Start: Inflation
- Attach the appropriate nozzle sleeve to the inflation port.
- Long-press the Start/Pause power button for 1 second to activate the pump.
- Connect the object to be inflated, then press the Start/Pause button to begin inflation.
- Press the Start/Pause button again to stop. Note: The pump does not stop automatically — always monitor pressure and check the maximum allowable pressure of the object before use. Overinflation may cause explosion.

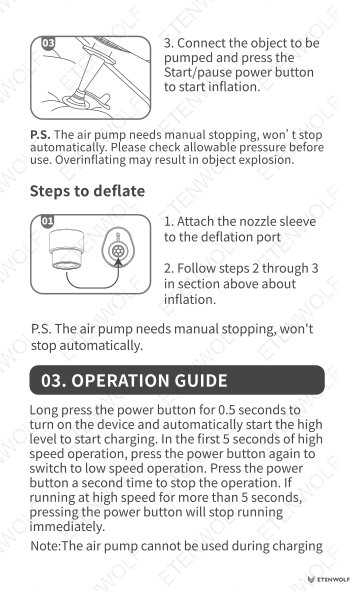

Quick Start: Deflation
- Attach the appropriate nozzle sleeve to the deflation port.
- Follow steps 2–3 from the inflation guide above.
- The pump does not stop automatically during deflation either — stop manually when done.
Operation Modes
Long-press the power button for 0.5 seconds to power on. The device starts automatically in high-speed mode. Within the first 5 seconds of high-speed operation, press the power button once to switch to low-speed mode. Press again to stop. If high-speed mode has been running for more than 5 seconds, pressing the power button will stop the pump immediately.
Important: The pump cannot be used while charging.
Standards & Compliance
The HYVOHEX PUMP5 complies with the following regulatory marks and directives as indicated on the product and in its manual:
- CE Marking — Confirms conformity with applicable EU product safety, health, and environmental requirements.
- RoHS Directive — Restriction of Hazardous Substances; confirms the product does not contain restricted levels of lead, mercury, cadmium, or other hazardous materials.
- WEEE / Recycling Symbol — Indicates the product must be disposed of separately from general household waste in accordance with EU Directive 2012/19/EU.
An EU Authorized Representative is registered at: Success Courier SL, C/ Tormes Núm., Planta 1, Derecha, Fuenlabrada, Madrid, 28941, Spain.
No specific IEC, ISO, UN38.3, FCC, or KC test report numbers are cited in this version of the manual. For full certification documentation, contact [email protected].

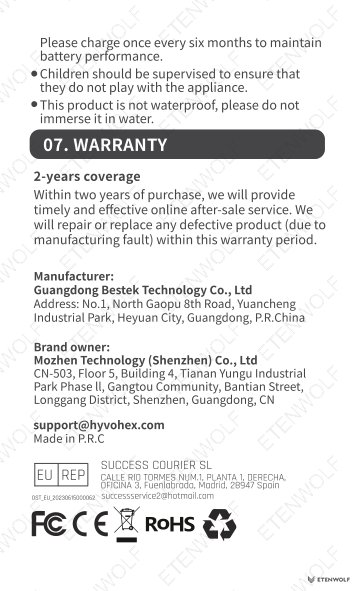

Validity & Certification Body
This user manual is version v2.0, associated with document file HB3_manual_EN_20250829.pdf (dated August 29, 2025). No expiration date is specified for the manual itself.
Manufacturer:
Guangdong Bestek Technology Co., Ltd
No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Brand Owner:
Mozhen Technology (Shenzhen) Co., Ltd
CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China
EU Authorized Representative:
Success Courier SL, C/ Tormes Núm., Planta 1, Derecha, Fuenlabrada, Madrid, 28941, Spain
Warranty Period: 2 years from date of purchase. Within this period, the manufacturer will repair or replace any product found to be defective due to manufacturing faults, with timely online after-sale service provided.
Frequently Asked Questions
- Q: Does the HYVOHEX PUMP5 stop automatically when the target pressure is reached?
- A: No. The PUMP5 does not stop automatically during inflation or deflation. You must monitor the object being inflated and press the Start/Pause button manually to stop the pump. Always check the maximum allowable pressure of your inflatable before use to avoid overinflation and potential damage or injury.
- Q: Can I use the pump while it is charging?
- A: No. The HYVOHEX PUMP5 cannot be operated during charging. Wait until charging is complete before using the pump.
- Q: What does a red flashing light mean?
- A: A red flashing indicator light signals either a high-temperature warning or an overload condition. Stop use immediately and check that the ventilation holes are not blocked. Allow the unit to cool before attempting to use it again.
- Q: How often should I charge the battery if the pump is in storage?
- A: To maintain battery performance, charge the PUMP5 at least once every six months during periods of storage or non-use.
Related Documents
The following certification and compliance documents are recommended for the HYVOHEX PUMP5 to support retailer onboarding, marketplace listings, and regulatory submissions:
- CE Declaration of Conformity — Required for EU/EEA market distribution; confirms compliance with applicable EU directives.
- RoHS Test Report — Laboratory analysis confirming restriction of hazardous substances in product materials.
- UN38.3 Battery Safety Test Report — Required for air freight shipping of the built-in 8000mAh lithium-ion battery.
- IEC 62368-1 Safety Test Report — Audio/video, information, and communication technology equipment safety standard applicable to battery-powered consumer devices.
- FCC Declaration of Conformity — Required for sale in the United States market.
- REACH Compliance Statement — Confirms the product does not contain substances of very high concern (SVHCs) above threshold limits under EU REACH regulation.
Document Pages
