Document Overview This page presents the official user manual for the Lumos Play L1 flashlight, published by ETENWOLF under document version V2.4, filename L1_manual_EN_20251114.pdf, dated November 14, 2025. The manual covers safe operation, light mode switching, brightness level configuration, battery charging procedures, technical specifications, and…
- Document type
- User Manual
- Prepared by
- Daniel Wright
- Published
- Last reviewed
- Topics
- User Manual
Document Overview
This page presents the official user manual for the Lumos Play L1 flashlight, published by ETENWOLF under document version V2.4, filename L1_manual_EN_20251114.pdf, dated November 14, 2025. The manual covers safe operation, light mode switching, brightness level configuration, battery charging procedures, technical specifications, and warranty terms for end users and caregivers. It is intended for all purchasers of the Lumos Play L1 and applies to both the English and Spanish language variants included in the printed insert.
Brand owner: Mozhen Technology (Shenzhen) Co., LTD. Manufacturer: Guangdong Bestek Technology Co., Ltd. Product support is available via (+1) 866-720-9226, Monday–Friday 8 AM–5 PM PST, or at [email protected]. Extended warranty registration is available at https://etenwolf.com.
Product Information
The Lumos Play L1 is a rechargeable multi-mode flashlight designed for family and outdoor use, featuring a child-friendly DIY cartoon picture panel on the front face. It combines a spotlight and floodlight in a single compact body, with additional red and green light modes and an SOS strobe function.
| Attribute | Detail |
|---|---|
| Product Name | Lumos Play L1 Flashlight |
| Model | Lumos Play L1 |
| Dimensions | 125 × 44 × 44 mm |
| Battery Capacity | 1500 mAh (5.7 Wh) |
| Input | Type-C: 5V 1A |
| Charging Time | Approximately 2 hours (0% to 100%) |
| Lighting Duration – High | 4 hours |
| Lighting Duration – Low | 20 hours |
| Operating Temperature (Charging) | 32°F to 113°F (0°C to 45°C) |
| Operating Temperature (Discharging) | -4°F to 165°F (-20°C to 74°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Water Resistance | IPX5 |
| Certifications | FCC, CE, RoHS |
| Made In | P.R. China |

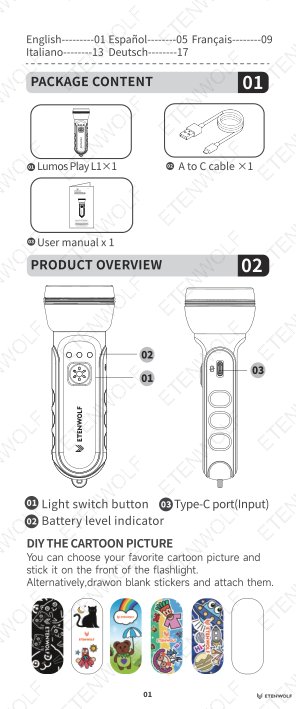

Package contents include: one Lumos Play L1 flashlight, one A-to-C USB charging cable, and one printed user manual.
Key Details

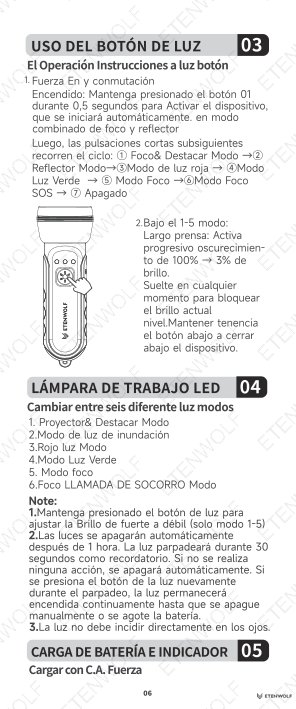

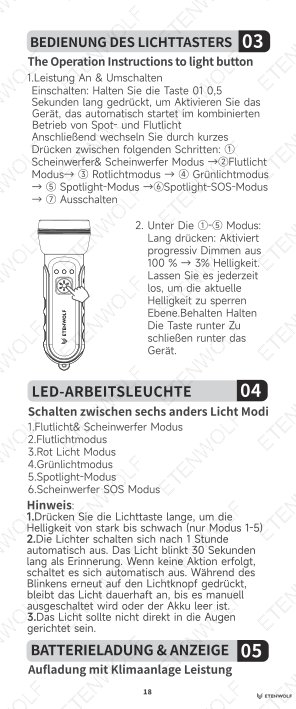

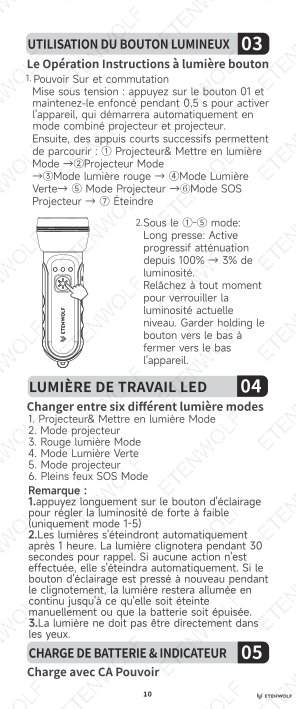

Light Modes
The Lumos Play L1 cycles through six distinct modes via sequential short presses of the light button after power-on:
- Floodlight & Spotlight Mode – Combined default mode activated at startup.
- Floodlight Mode – Wide-area illumination only.
- Red Light Mode – Low-visibility red illumination for night vision preservation.
- Green Light Mode – Green illumination suitable for map reading or signaling.
- Spotlight Mode – Focused beam for long-distance use.
- Spotlight SOS Mode – International distress signal strobe pattern.

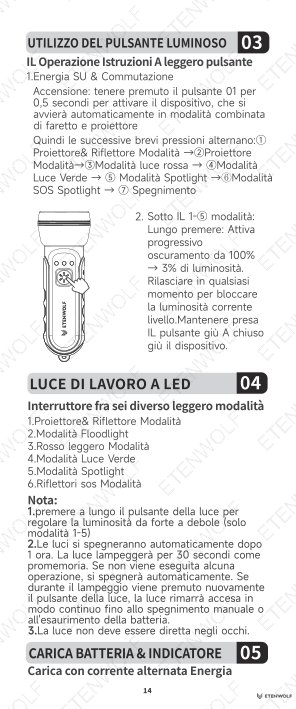

Power On / Off & Brightness Adjustment
- Power On: Long-press the light button for 0.5 seconds. The device starts in combined Floodlight & Spotlight Mode.
- Mode Cycling: Short press to cycle through modes 1–6, then power off.
- Brightness Dimming (Modes 1–5): Long-press during operation to progressively dim from 100% down to 3%. Release at any point to lock the current brightness level. Continue holding to shut down.
- Auto-Off: The light automatically turns off after 1 hour. It flashes for 30 seconds as a warning. Pressing the button during this window resets the timer and keeps the light on until manually switched off or the battery is depleted.

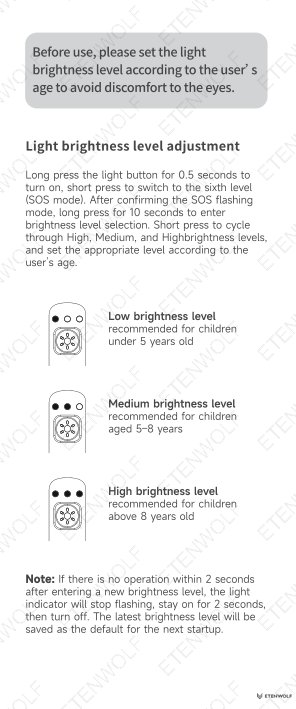

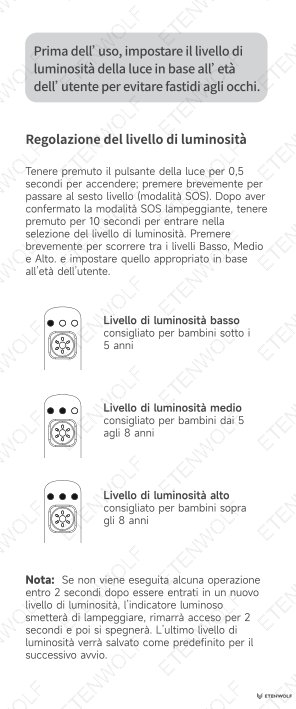

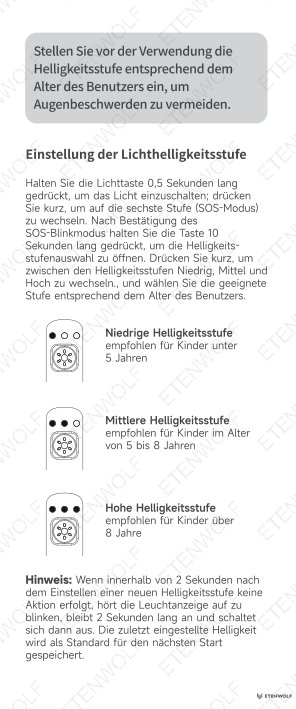

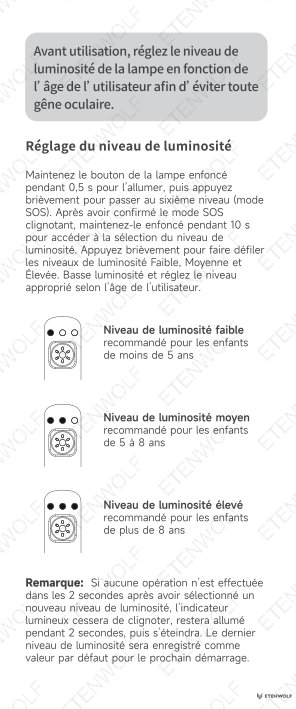

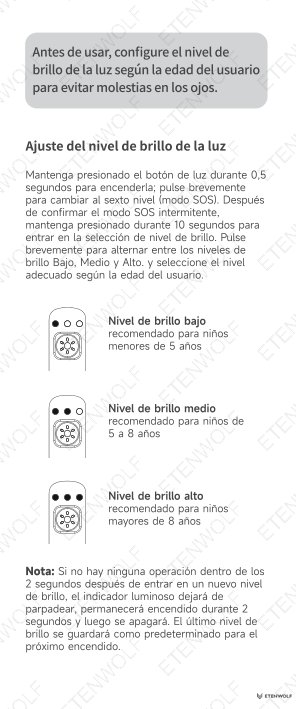

Child Safety Brightness Level Configuration
To protect younger users, the manual specifies a brightness level selection workflow:
- Turn on the device, then short-press to reach SOS mode (sixth level).
- After confirming SOS flash, long-press for 10 seconds to enter brightness level selection.
- Short-press to cycle through Low, Medium, and High brightness presets.
- The selected level is saved as the default startup brightness if no further input is made within 2 seconds.
| Brightness Level | Recommended Age Group |
|---|---|
| Low | Children under 5 years old |
| Medium | Children aged 5–8 years |
| High | Children above 8 years old and adults |

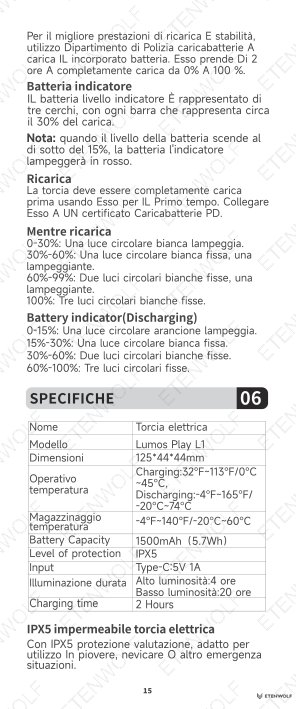

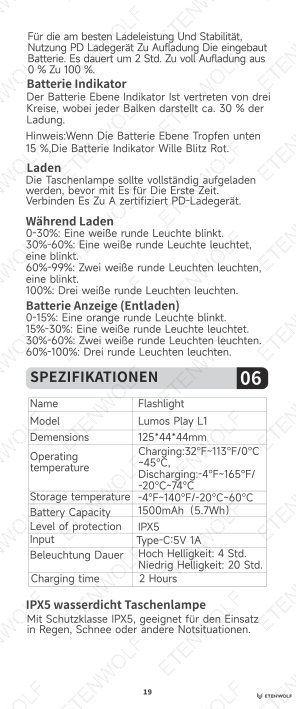

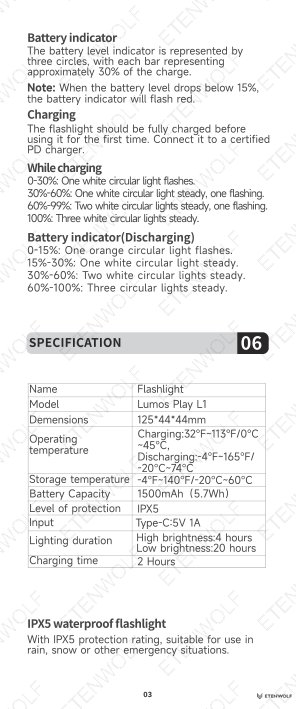

Battery Charging Indicator
| Charge Level | Indicator Behavior (Charging) |
|---|---|
| 0%–30% | One white circular light flashing |
| 30%–60% | One white circular light steady, one flashing |
| 60%–99% | Two white circular lights steady, one flashing |
| 100% | Three white circular lights steady |
Battery Discharge Indicator
| Charge Level | Indicator Behavior (In Use) |
|---|---|
| 0%–15% | One orange circular light flashing (low battery warning) |
| 15%–30% | One white circular light steady |
| 30%–60% | Two white circular lights steady |
| 60%–100% | Three circular lights steady |
Standards & Compliance
The Lumos Play L1 carries the following regulatory certifications and compliance markings as indicated on the product and in the user manual:
- FCC – Federal Communications Commission certification for the United States market. Confirms the device meets electromagnetic interference limits. See fcc.gov.
- CE – Conformité Européenne marking, indicating compliance with applicable EU health, safety, and environmental protection directives. See European Commission CE Marking.
- RoHS – Restriction of Hazardous Substances compliance, confirming the product does not contain restricted levels of lead, mercury, cadmium, hexavalent chromium, PBB, or PBDE. See RoHS Directive.
- IPX5 – Water resistance rating per IEC 60529, confirming protection against low-pressure water jets from any direction. Suitable for use in rain, snow, and similar outdoor conditions.
The product is manufactured by Guangdong Bestek Technology Co., Ltd, located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China.
Validity & Certification Body
The user manual version documented here is V2.4, associated with filename L1_manual_EN_20251114.pdf and effective as of November 14, 2025. No expiry date is stated for the manual itself; it remains valid for all Lumos Play L1 units shipped with this version of the document.

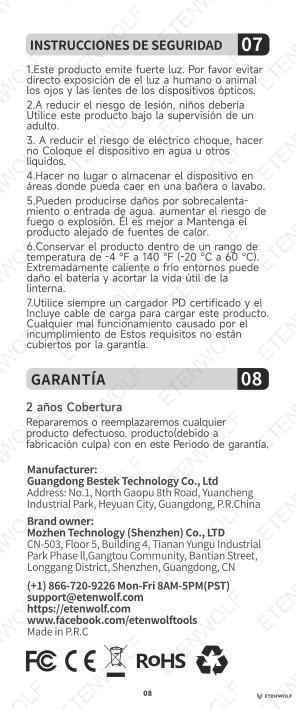

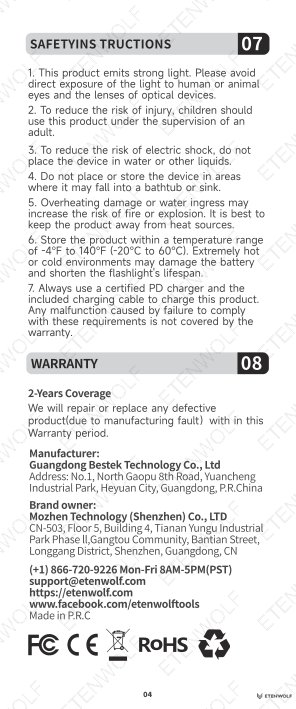

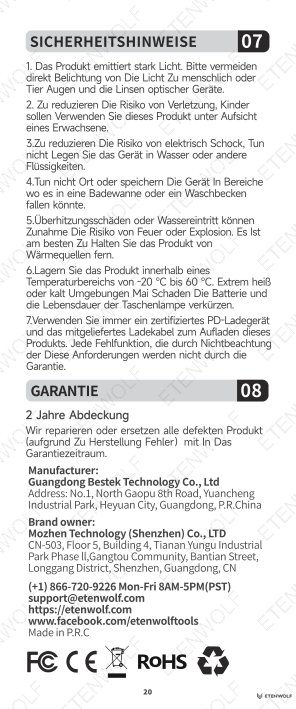

Warranty Coverage
The Lumos Play L1 is covered by a 2-year limited warranty against manufacturing defects. ETENWOLF will repair or replace any defective unit within this period. Damage caused by failure to use a certified PD charger or the included cable is explicitly excluded from warranty coverage.
- Standard Warranty: 2 years from date of purchase.
- Extended Warranty: Register at https://etenwolf.com to receive an additional 1-year extension (total 3 years).
Brand & Manufacturer Information
| Role | Entity | Address |
|---|---|---|
| Brand Owner | Mozhen Technology (Shenzhen) Co., LTD | CN-503, Floor 5, Building 4, Tianan Yungu Industrial Park Phase II, Gangtou Community, Bantian Street, Longgang District, Shenzhen, Guangdong, China |
| Manufacturer | Guangdong Bestek Technology Co., Ltd | No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
Customer support: (+1) 866-720-9226, Monday–Friday 8 AM–5 PM PST | [email protected] | www.facebook.com/etenwolftools
Frequently Asked Questions
- How do I adjust the brightness level on the Lumos Play L1 for a young child?
-
Turn on the flashlight and short-press the button until you reach SOS mode (the sixth mode). Once you see the SOS flash confirmed, long-press the button for 10 seconds to enter the brightness level selection menu. Short-press to cycle through Low, Medium, and High presets, then stop pressing. The level you land on will be saved automatically as the default startup brightness after 2 seconds of inactivity.
- What charger should I use with the Lumos Play L1?
-
Always use a certified PD (Power Delivery) charger paired with the included A-to-C cable. The input specification is 5V 1A via the Type-C port. Using non-certified chargers may affect performance and will void the warranty. A full charge from 0% takes approximately 2 hours.
- Is the Lumos Play L1 waterproof? Can I use it in the rain?
-
Yes. The Lumos Play L1 carries an IPX5 water resistance rating, meaning it is protected against low-pressure water jets from any direction. It is safe to use in rain, snow, and similar wet outdoor conditions. However, IPX5 does not cover submersion, so avoid dropping the flashlight into standing water.
- How long does the battery last, and what do the indicator lights mean?
-
On high brightness the battery lasts approximately 4 hours; on low brightness it extends to around 20 hours. The three circular indicator lights show charge status: three steady white lights means fully charged, while a single flashing orange light means the battery is below 15% and needs charging soon. The flashlight also auto-shuts off after 1 hour of continuous use, with a 30-second flashing warning before shutdown.
Related Documents
For full regulatory and safety confidence in the Lumos Play L1, the following supplementary documents are relevant and may be requested from ETENWOLF or the manufacturer:
- FCC Declaration of Conformity – Confirms electromagnetic compatibility for the US market. Typically references the FCC ID assigned to the device.
- CE Declaration of Conformity – EU market compliance document covering applicable directives (e.g., LVD, EMC, RoHS).
- RoHS Compliance Report – Laboratory test report confirming restricted substance levels meet EU RoHS Directive 2011/65/EU thresholds.
- IEC 60529 IPX5 Test Report – Third-party laboratory report validating the water ingress protection rating.
- UN 38.3 Battery Safety Report – Required transport safety certification for the 1500 mAh lithium-ion battery. See UNECE for standard details.
- REACH Compliance Statement – Confirms the product does not contain substances of very high concern (SVHCs) above threshold limits under EU REACH Regulation (EC) No 1907/2006.
- Quick Start Guide / Safety Card – Condensed reference card for first-time users, often included as a separate insert.
