Document Overview
This page presents the FCC Supplier’s Declaration of Conformity (SDoC) test report for the ETENWOLF L2 Tactical Flashlight. The report was issued under Reference No. WTH25H05114734E by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited electromagnetic compatibility (EMC) testing laboratory located in Longgang District, Shenzhen, Guangdong, China.
- Document Type: FCC Supplier’s Declaration of Conformity (SDoC) – Test Report
- Test Report Form No.: TRF FCC CFR 47 Part 15 Subpart B-EMC-001-V01
- Internal Lab Reference: HCT/RF-23-21
- Date of Sample Receipt: 2025-05-06
- Date of Test: 2025-05-08
- Date of Issue: 2025-05-19
- Test Result: Pass
- Scope: Conducted Emission and Radiated Emission testing per FCC CFR 47 Part 15 Subpart B
Product Information
The Equipment Under Test (EUT) evaluated in this report is the ETENWOLF L2 Tactical Flashlight, a portable lighting device manufactured by Guangdong Bestek Technology Co., Ltd.
| Field | Details |
|---|---|
| Product Name | Tactical Flashlight |
| Model No. | L2 |
| Trade Mark | N/A |
| Applicant | GUANGDONG BESTEK TECHNOLOGY CO., LTD |
| Manufacturer | GUANGDONG BESTEK TECHNOLOGY CO., LTD |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Operating Modes | Mode 1: Discharge; Mode 2: (additional modes per full report) |
The L2 is a tactical flashlight designed for professional and outdoor use, distributed globally under the ETENWOLF brand. The product operates on battery power and is subject to unintentional radiator requirements under FCC rules.
Key Details
The test report covers two primary EMC test categories: Conducted Emission and Radiated Emission. Both were evaluated against the applicable FCC limits, and the EUT passed all measurements.

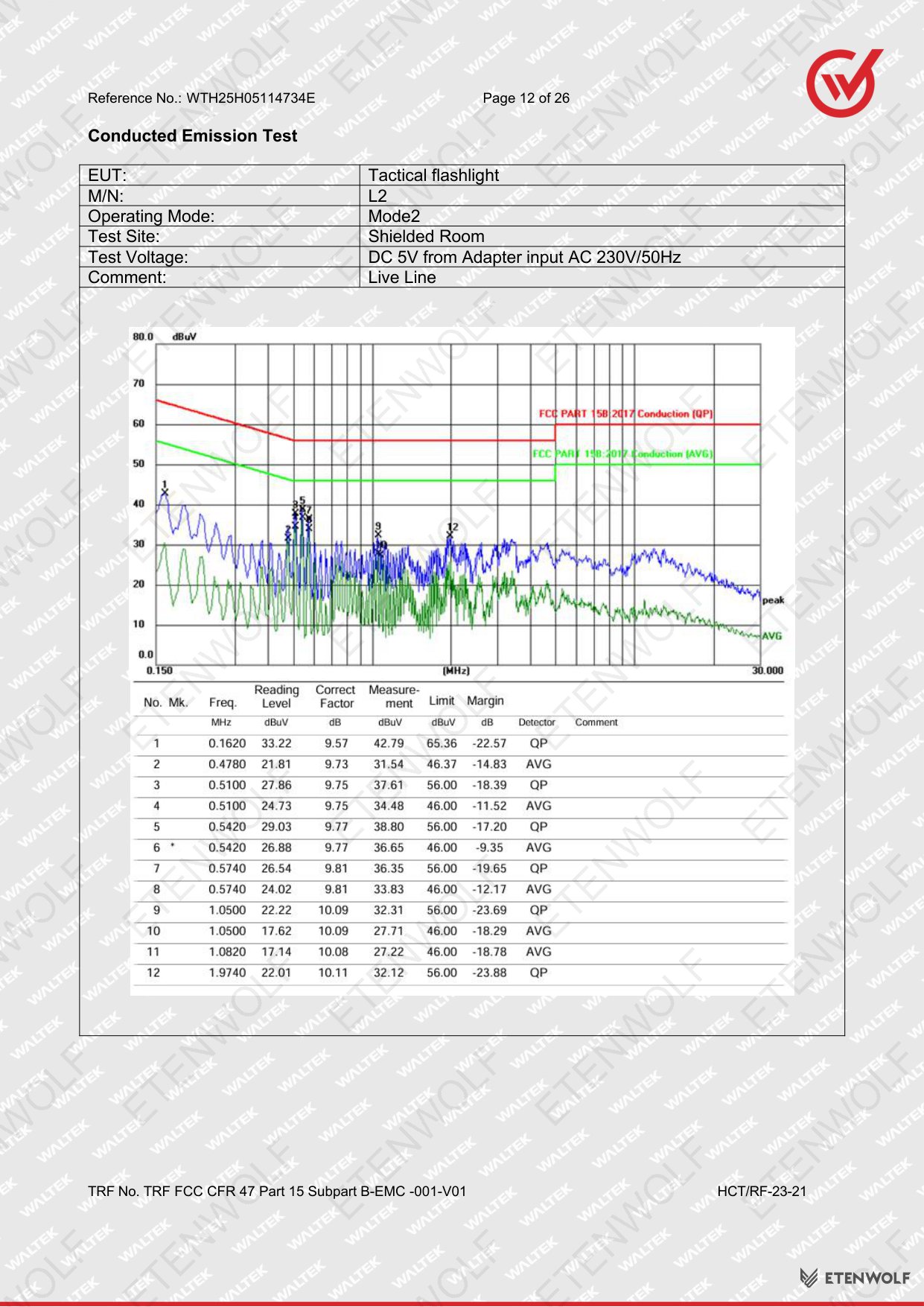

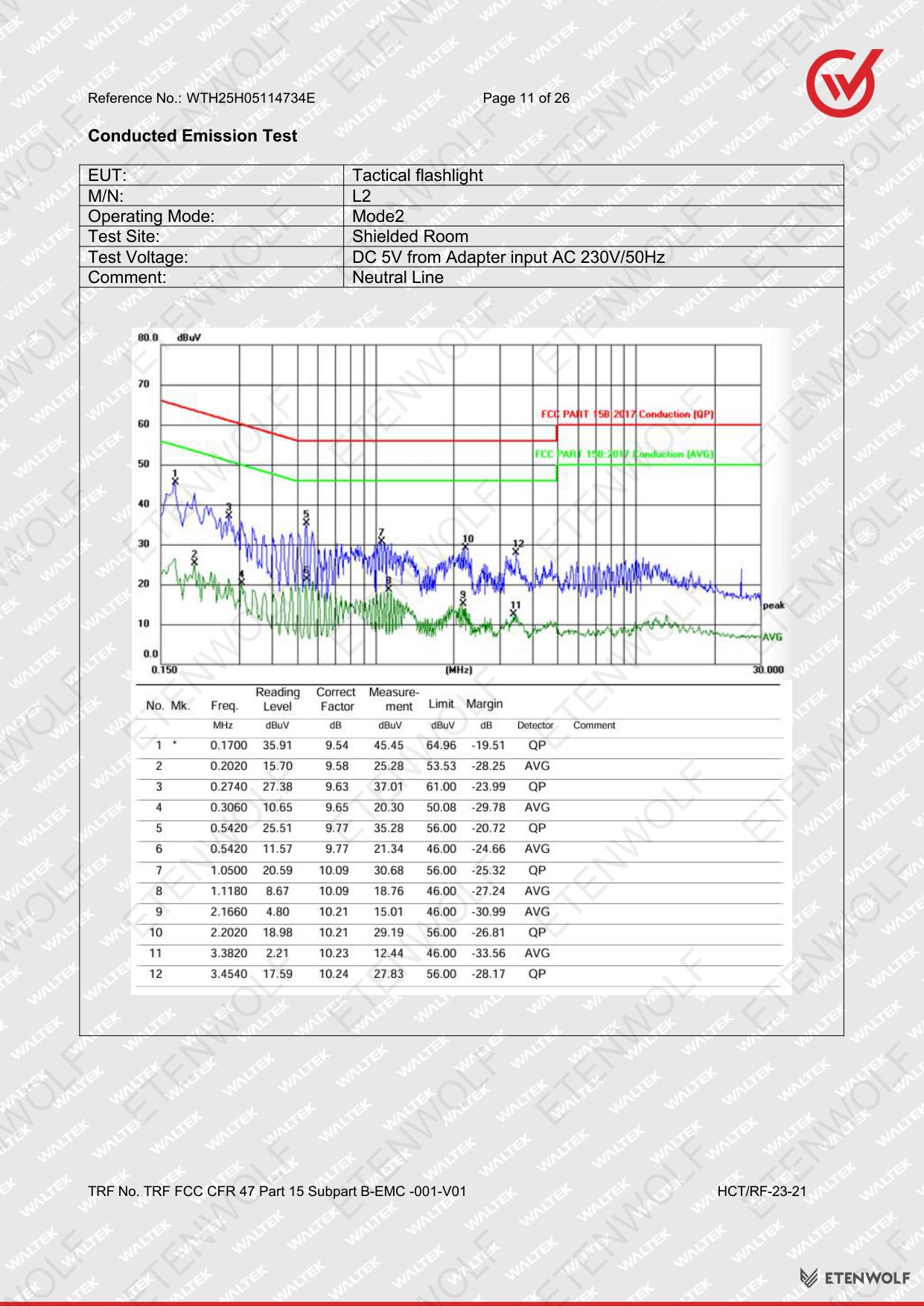

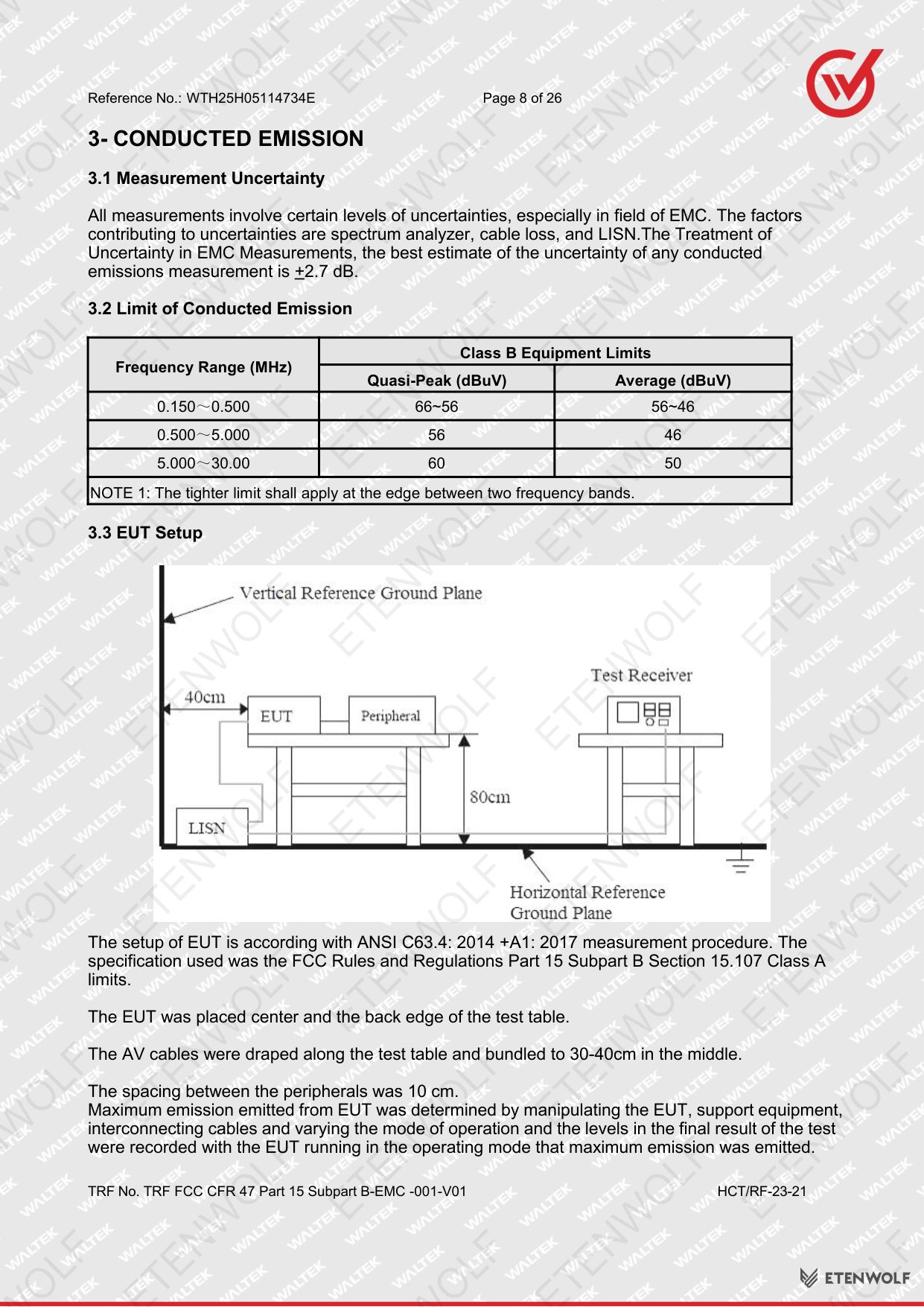

Conducted Emission
- Measurement uncertainty was documented per laboratory accreditation requirements.

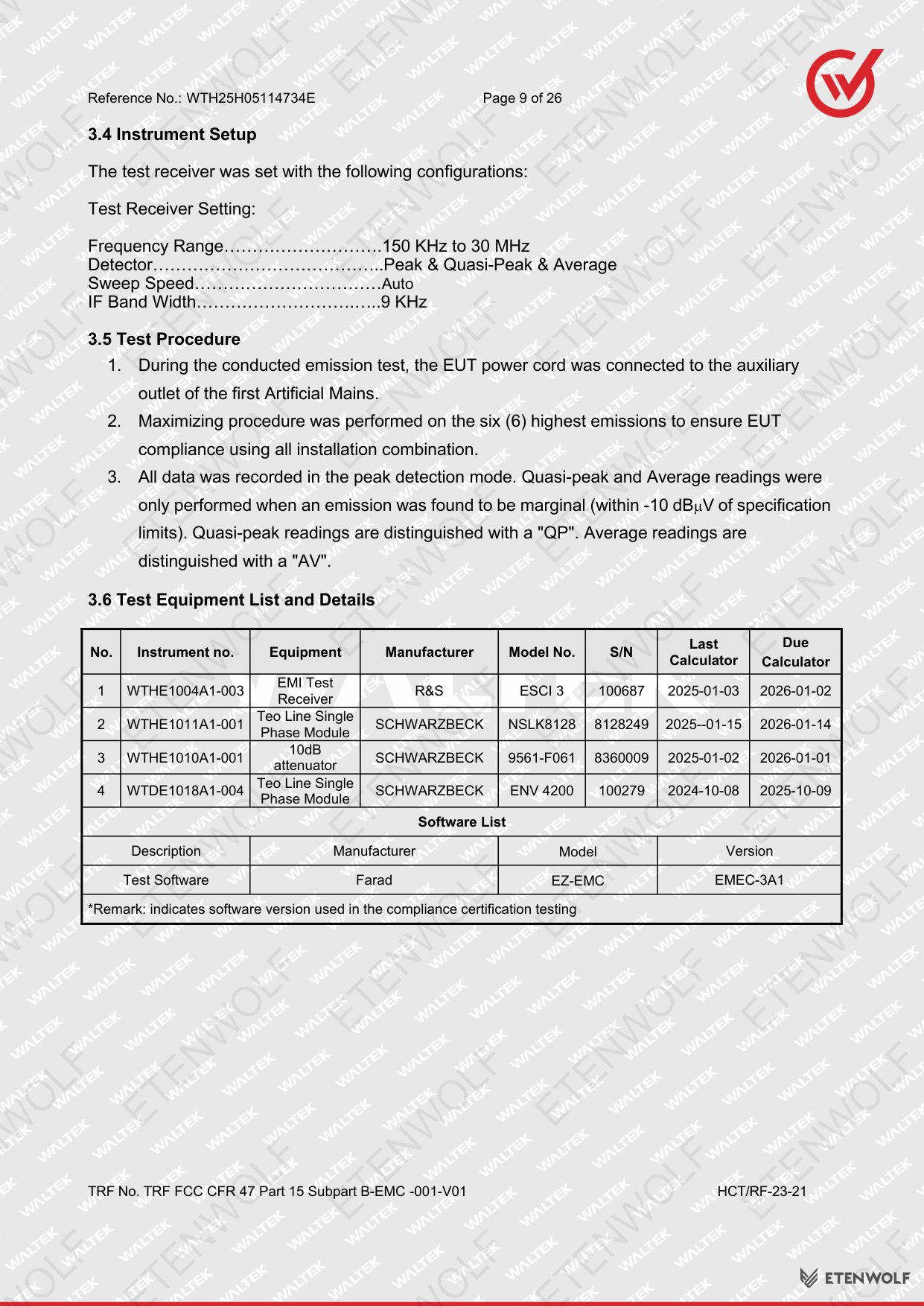

- EUT setup and instrument setup were configured in accordance with FCC CFR 47 Part 15 Subpart B procedures.

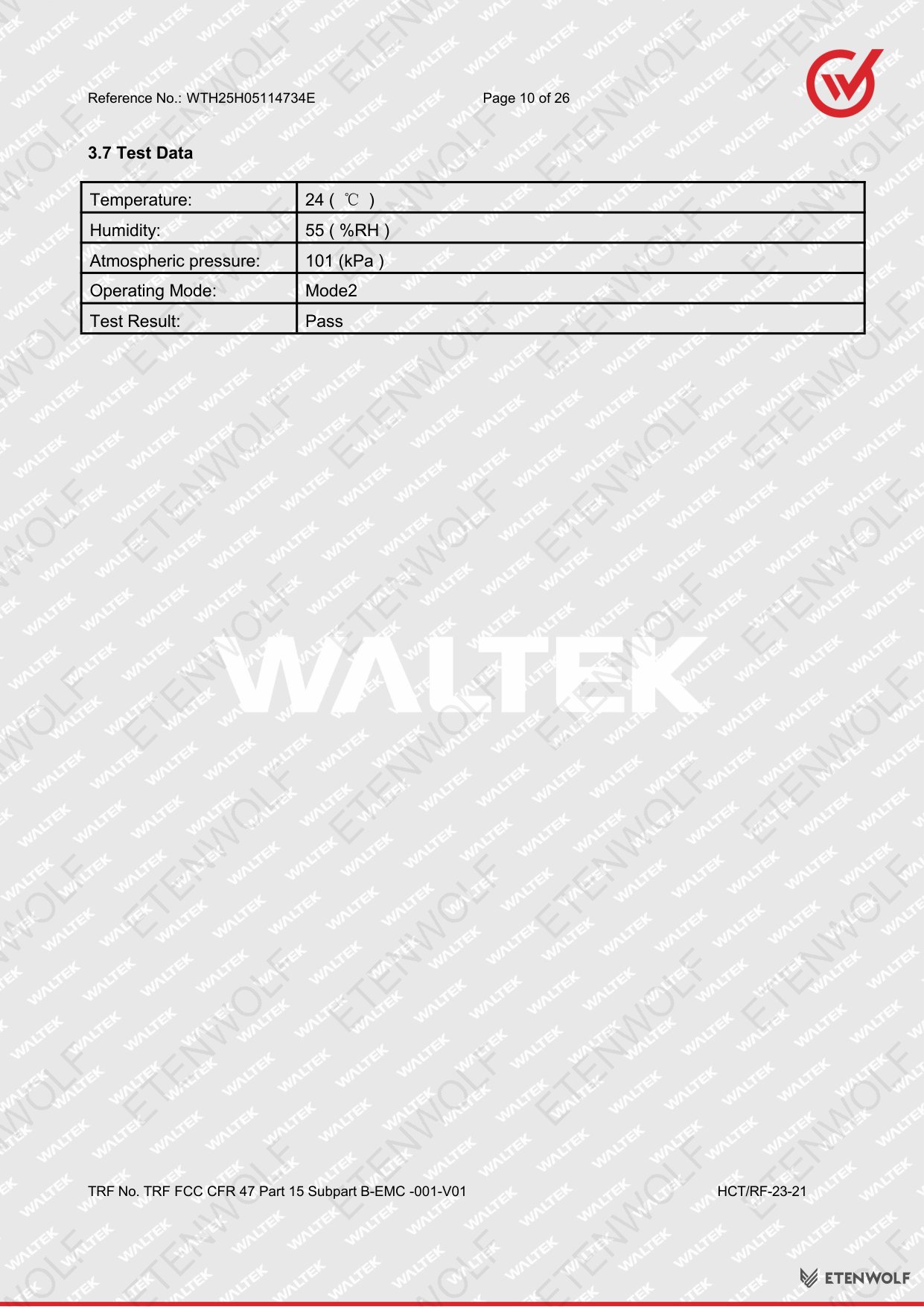

- Test data is recorded across the required frequency range.
- Result: Pass

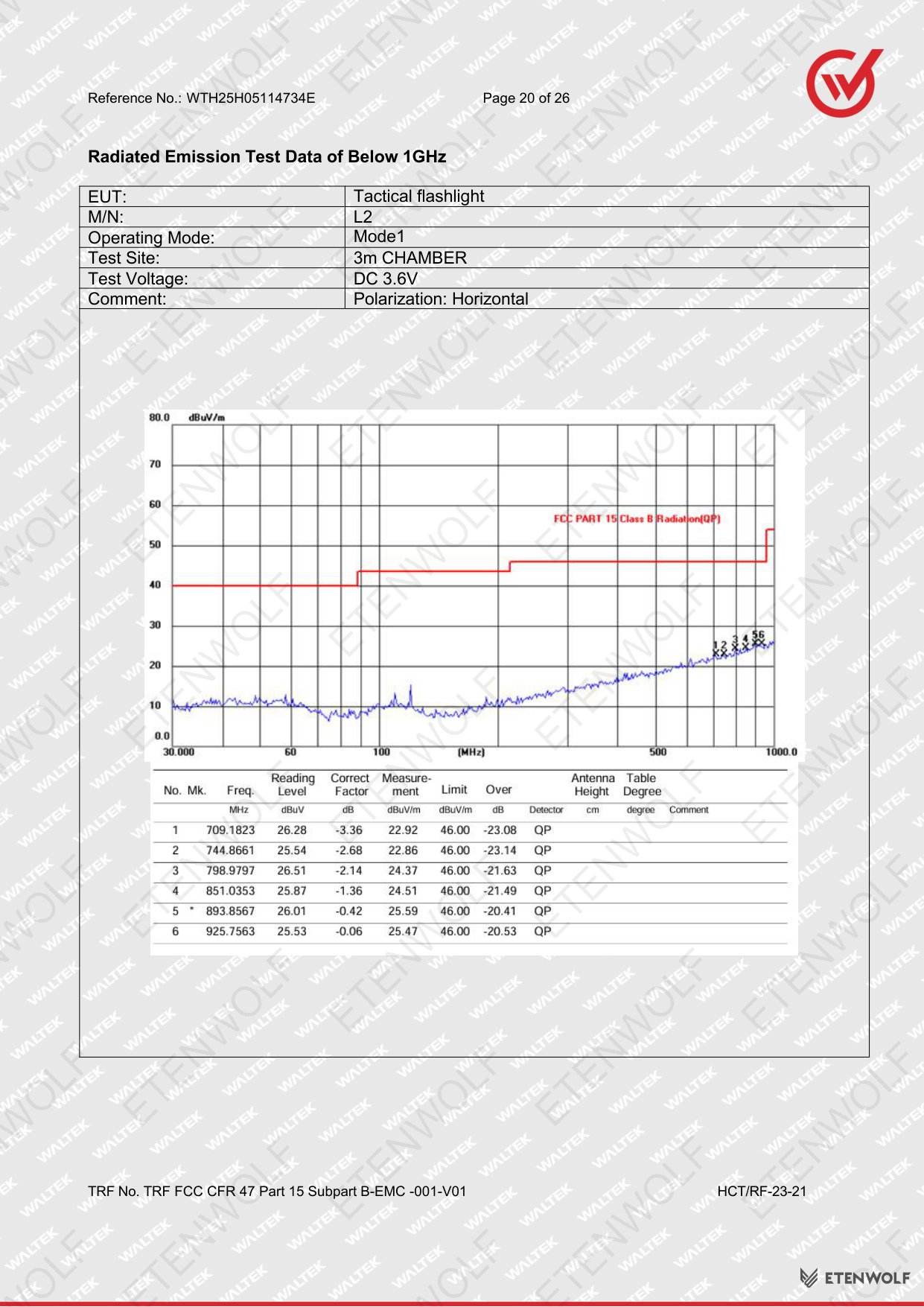

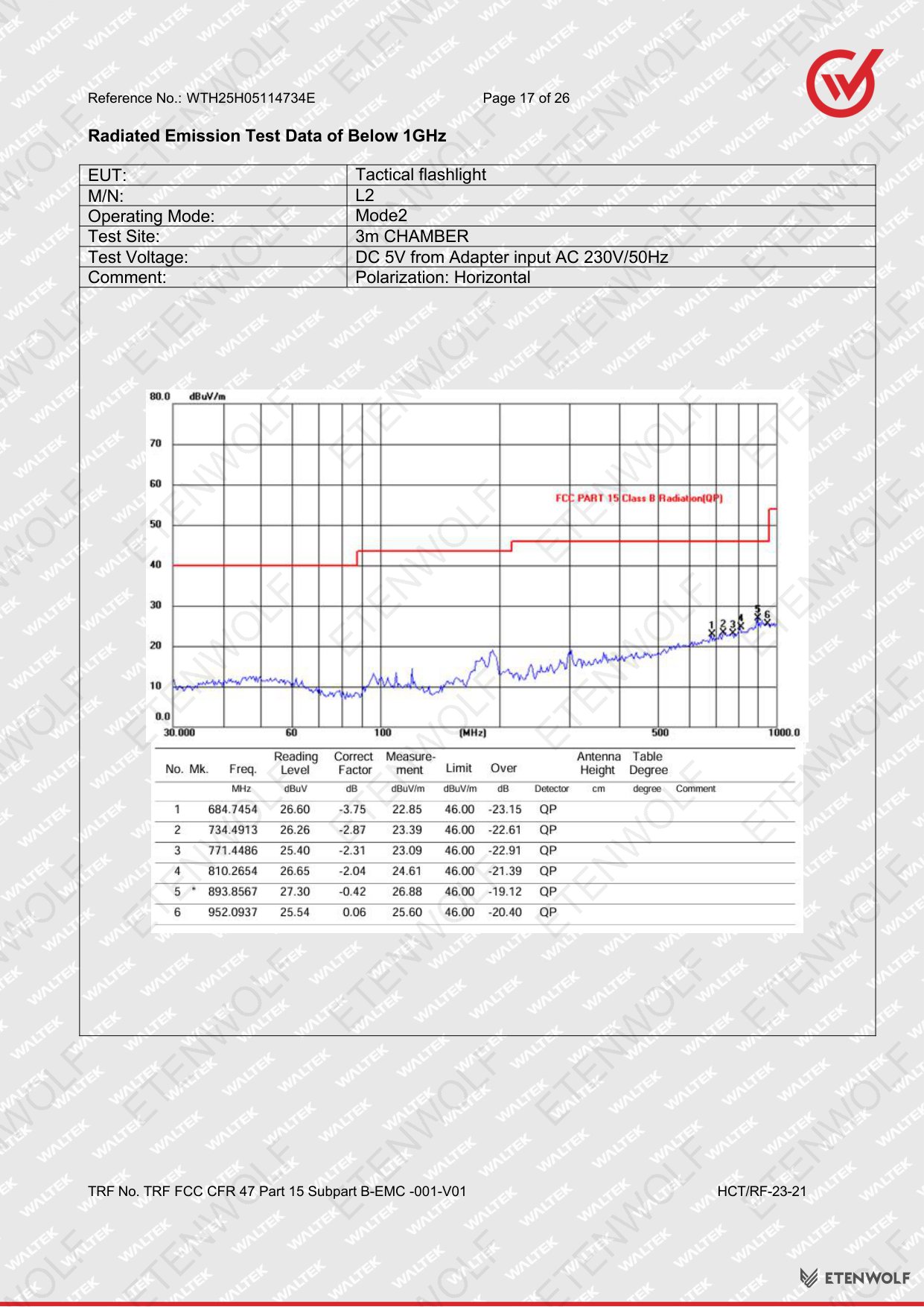

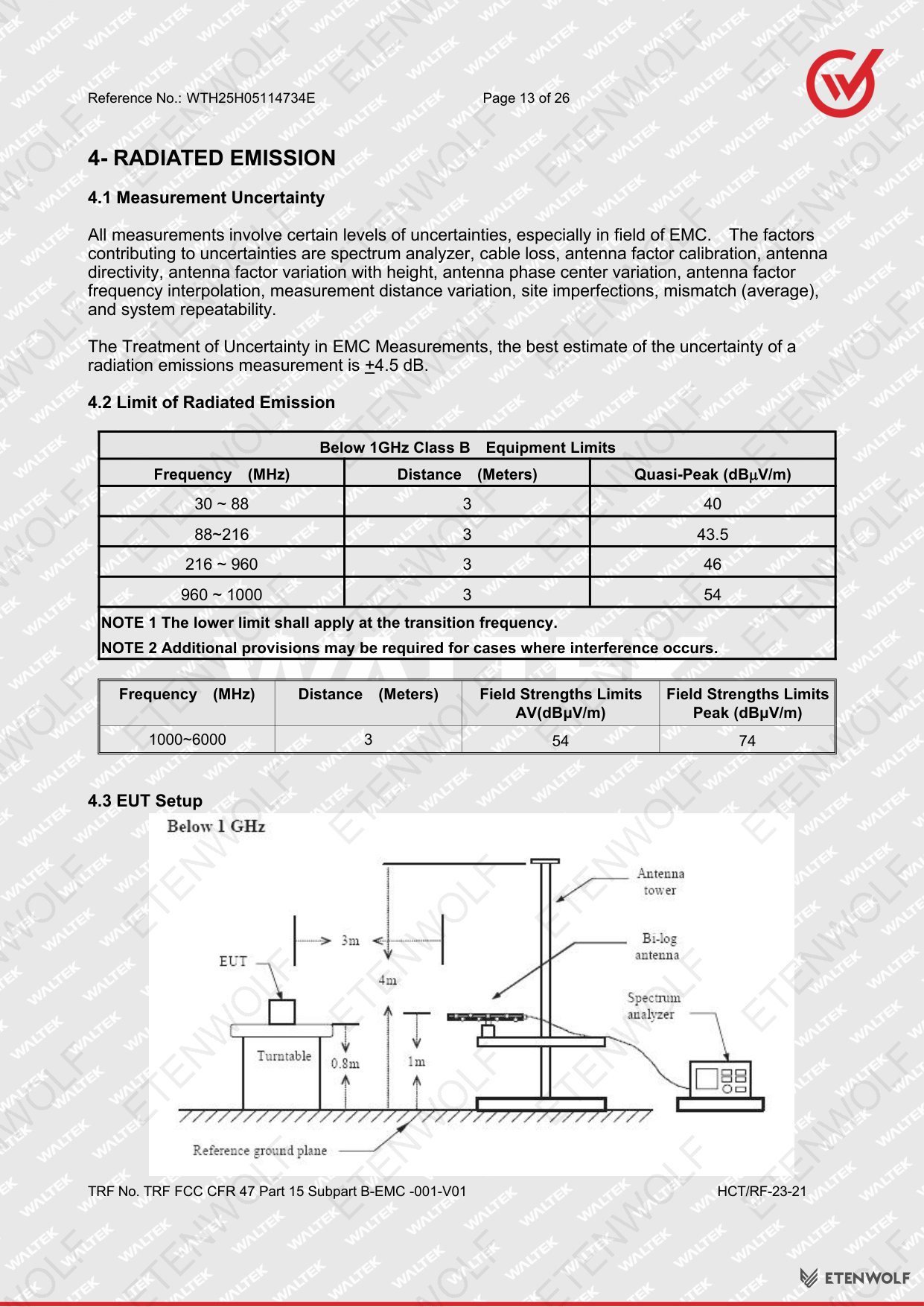

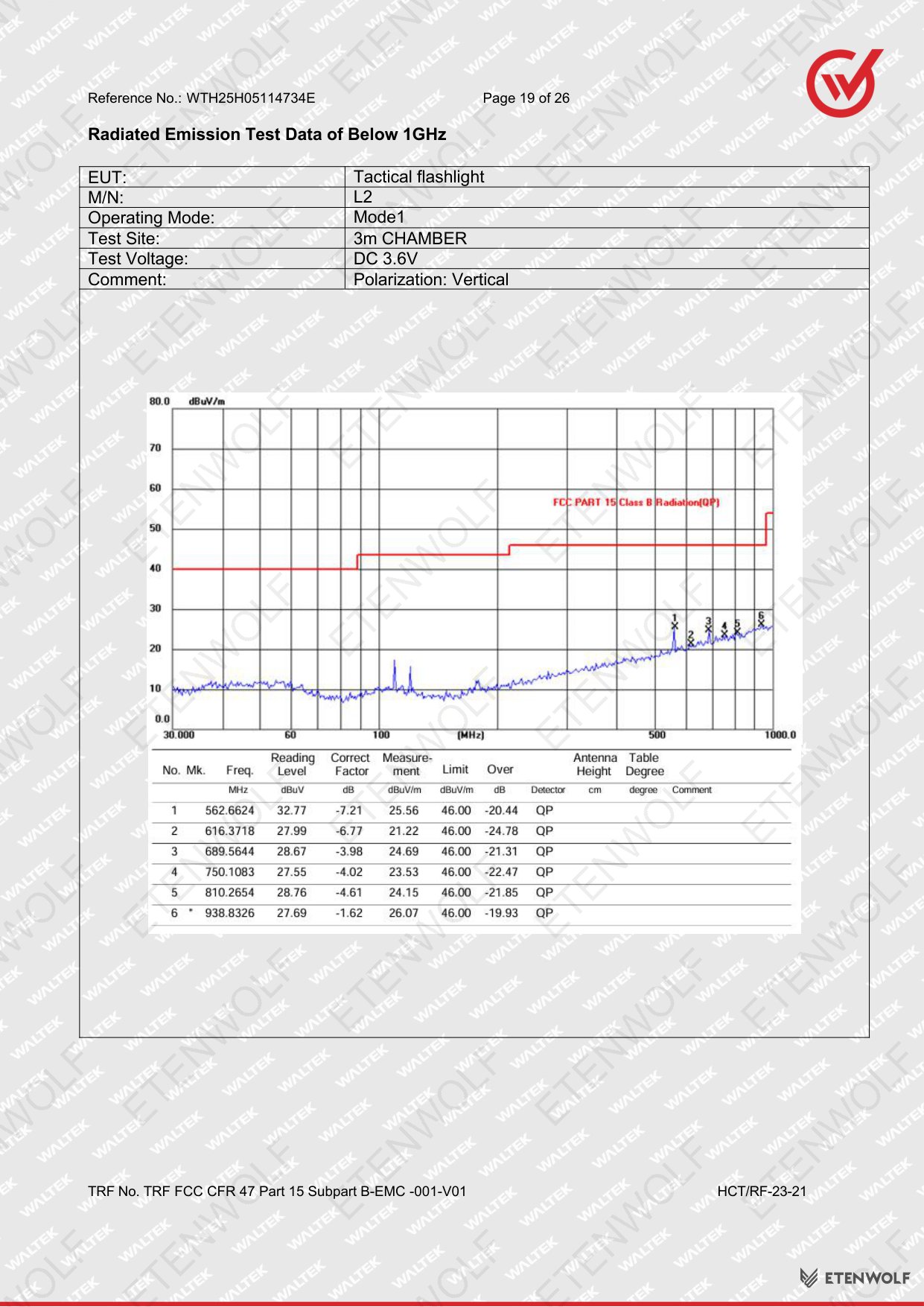

Radiated Emission

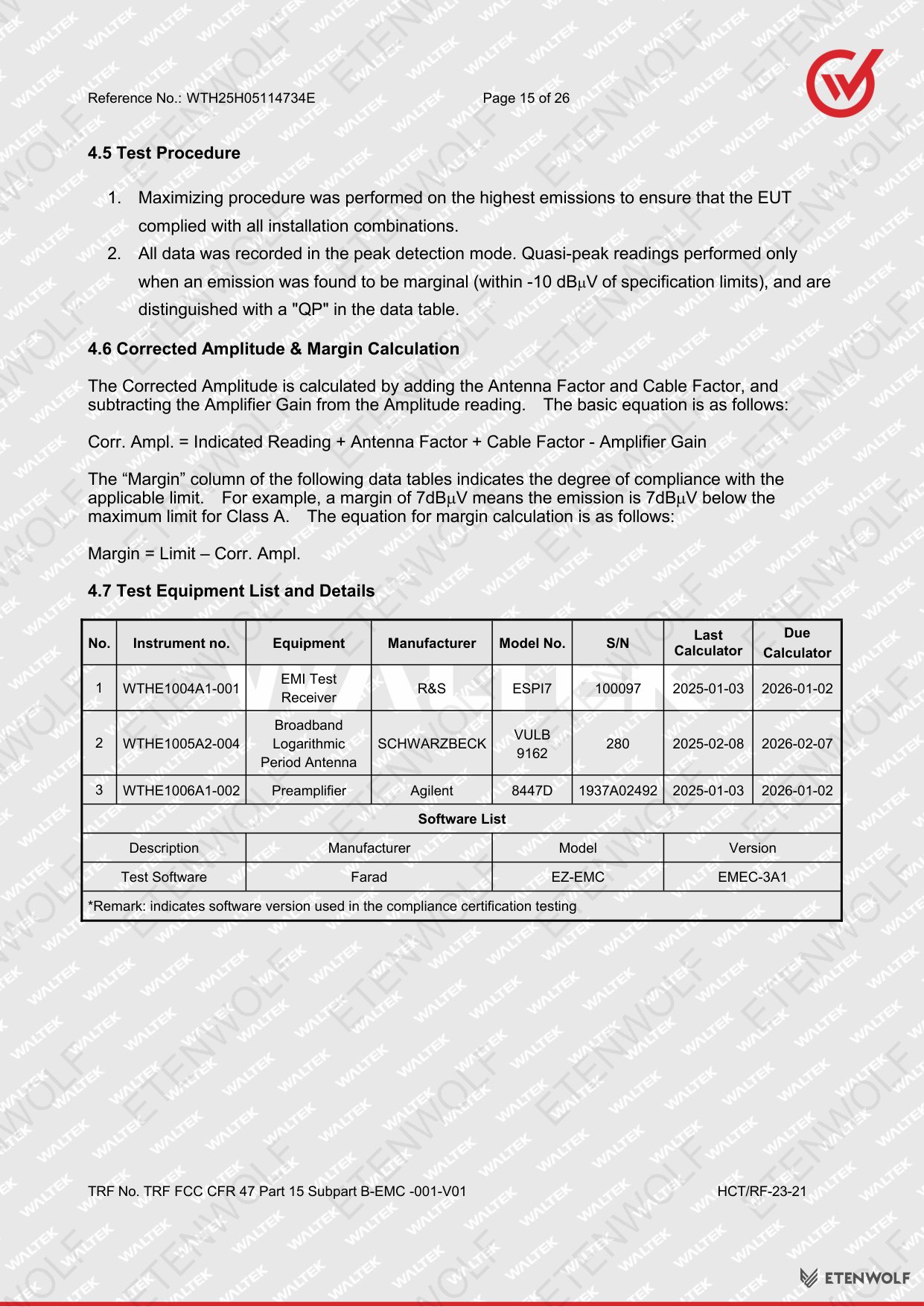

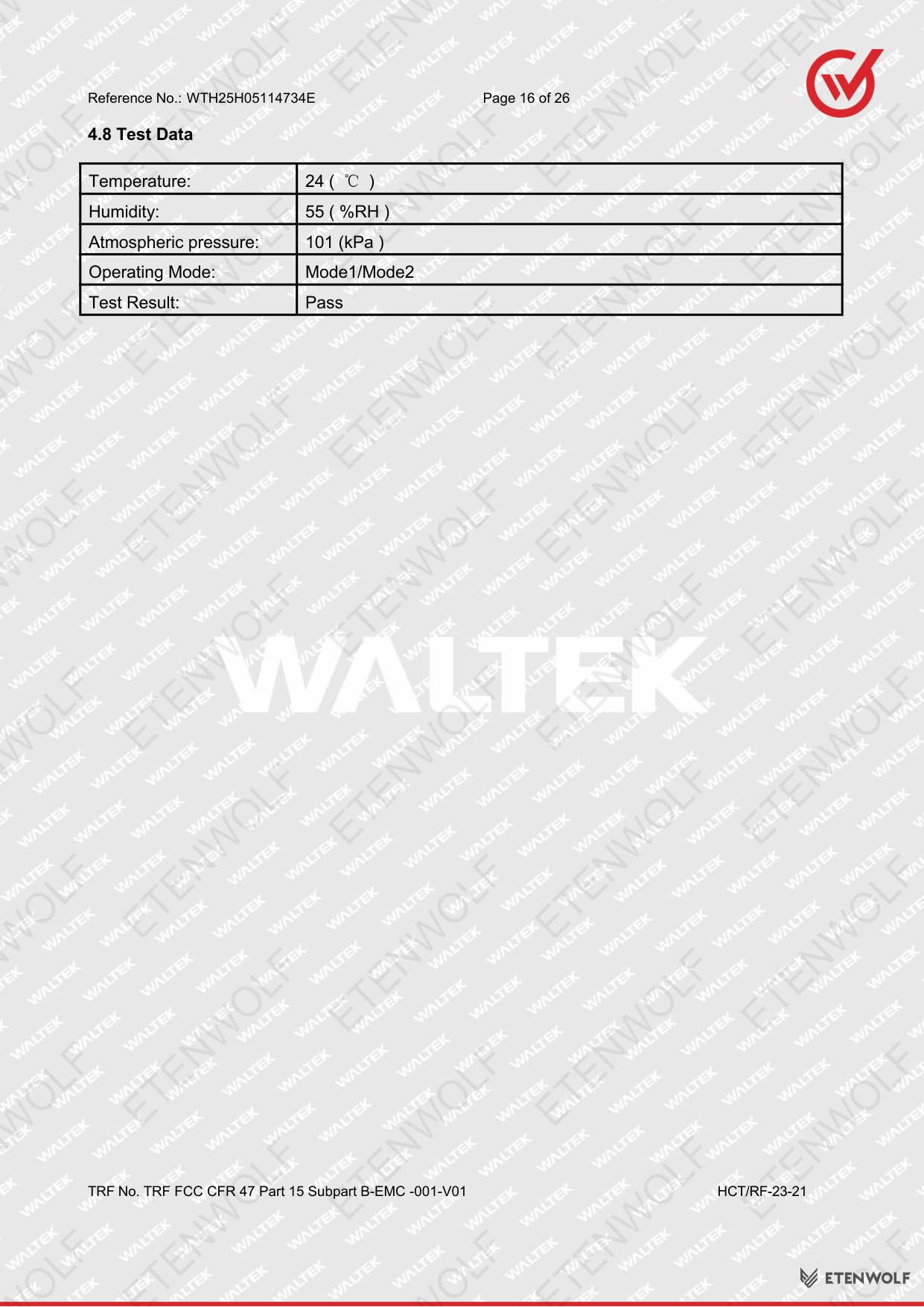

- Corrected amplitude and margin calculations were performed for all measured frequencies.
- EUT was tested in its standard operating configuration.
- Test receiver setup and test procedures followed TRF FCC CFR 47 Part 15 Subpart B-EMC-001-V01.
- Result: Pass

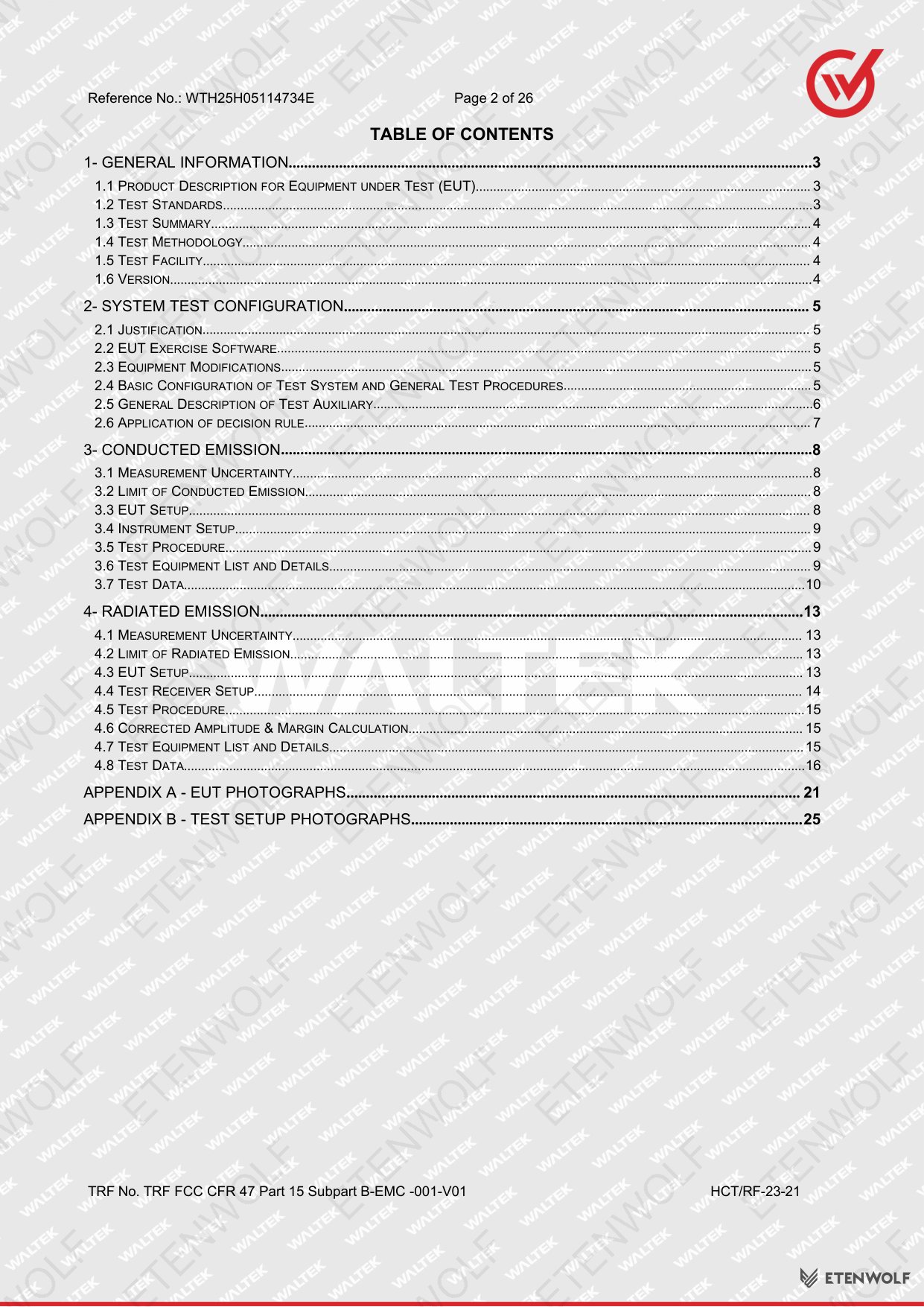

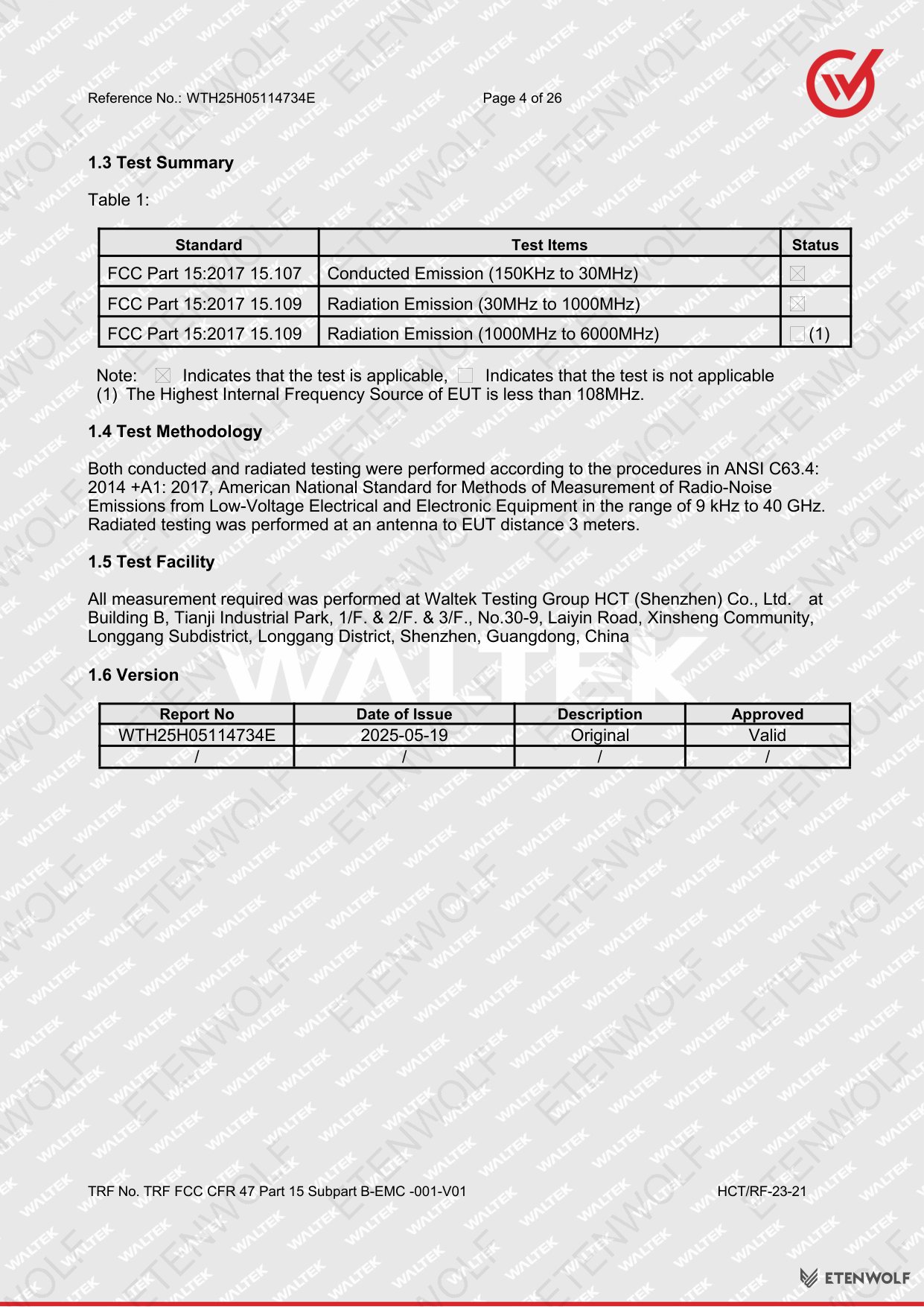

Test Report Structure Summary
| Section | Description |
|---|---|

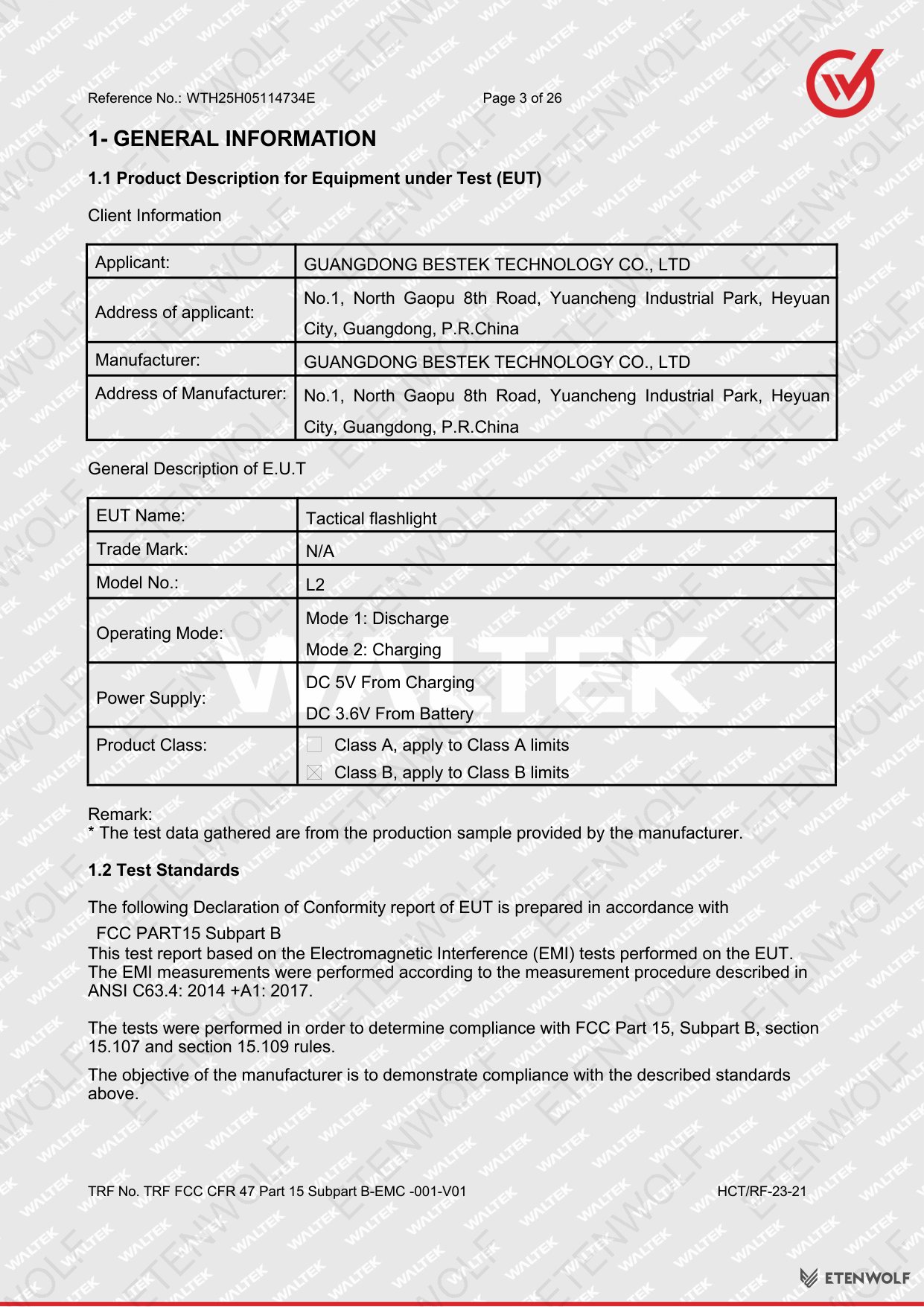

| Section 1 | General Information – EUT description, test standards, methodology, facility |

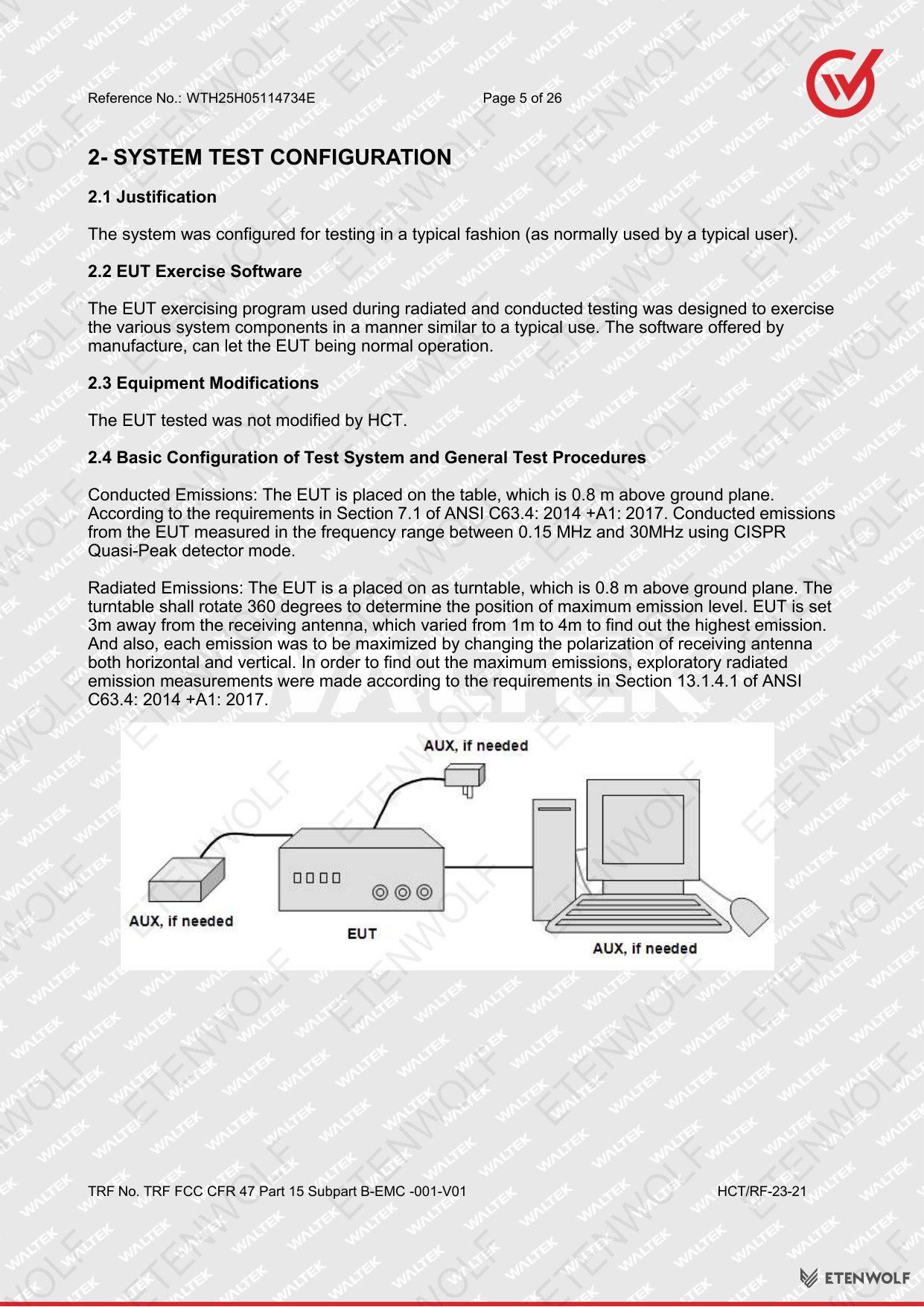

| Section 2 | System Test Configuration – justification, EUT software, equipment modifications |
| Section 3 | Conducted Emission – limits, setup, procedure, test data |

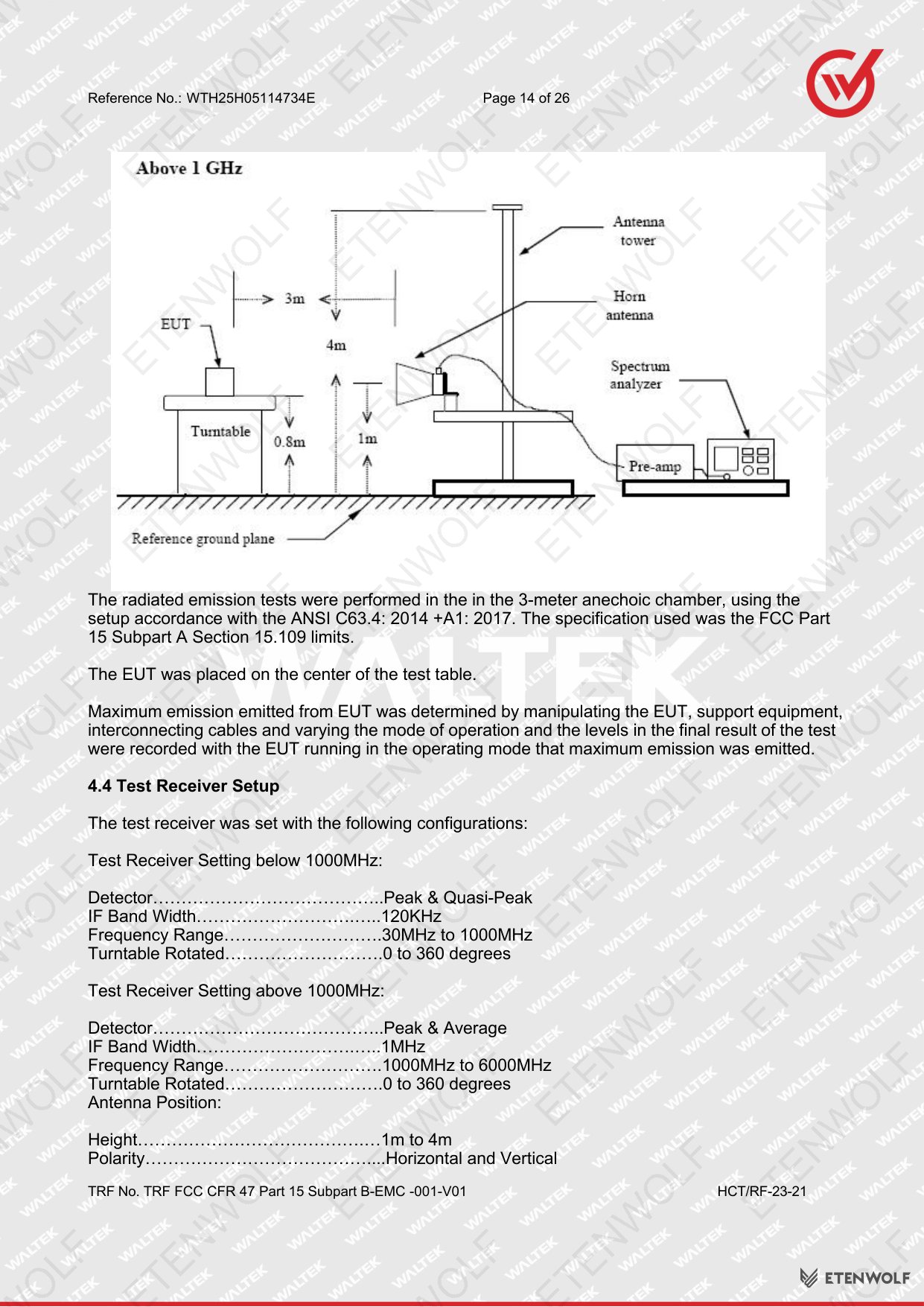

| Section 4 | Radiated Emission – limits, setup, procedure, corrected amplitudes, test data |

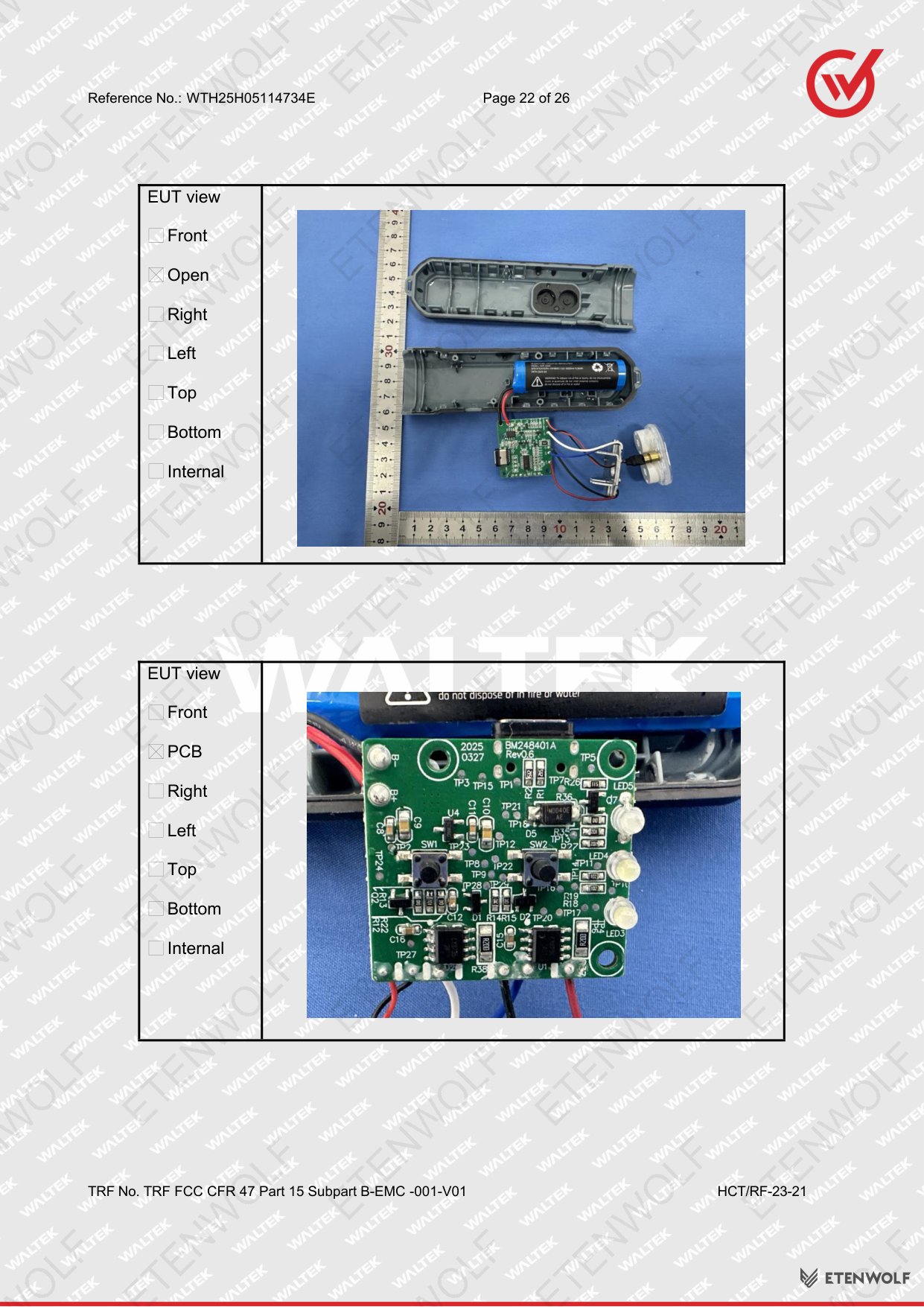

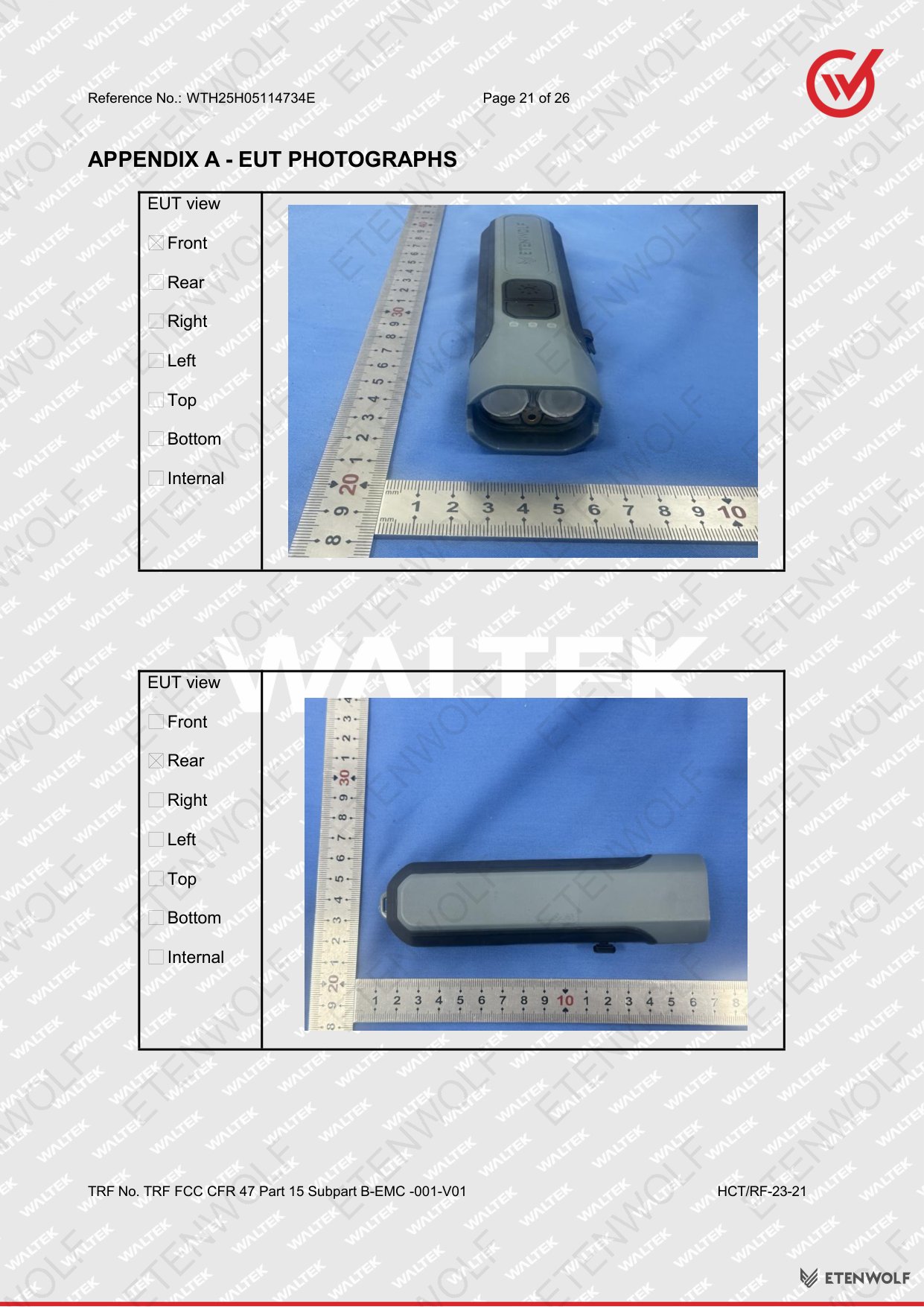

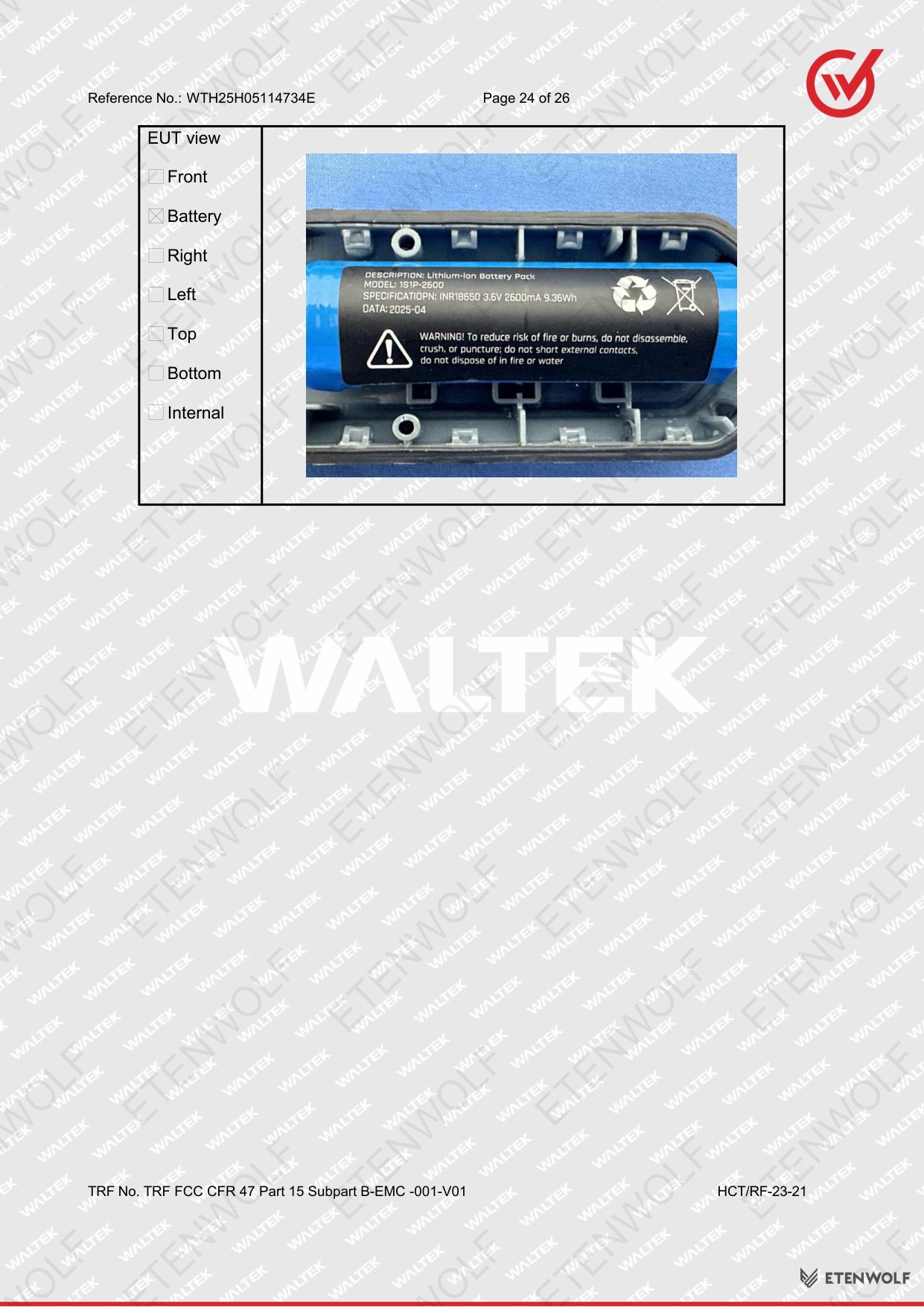

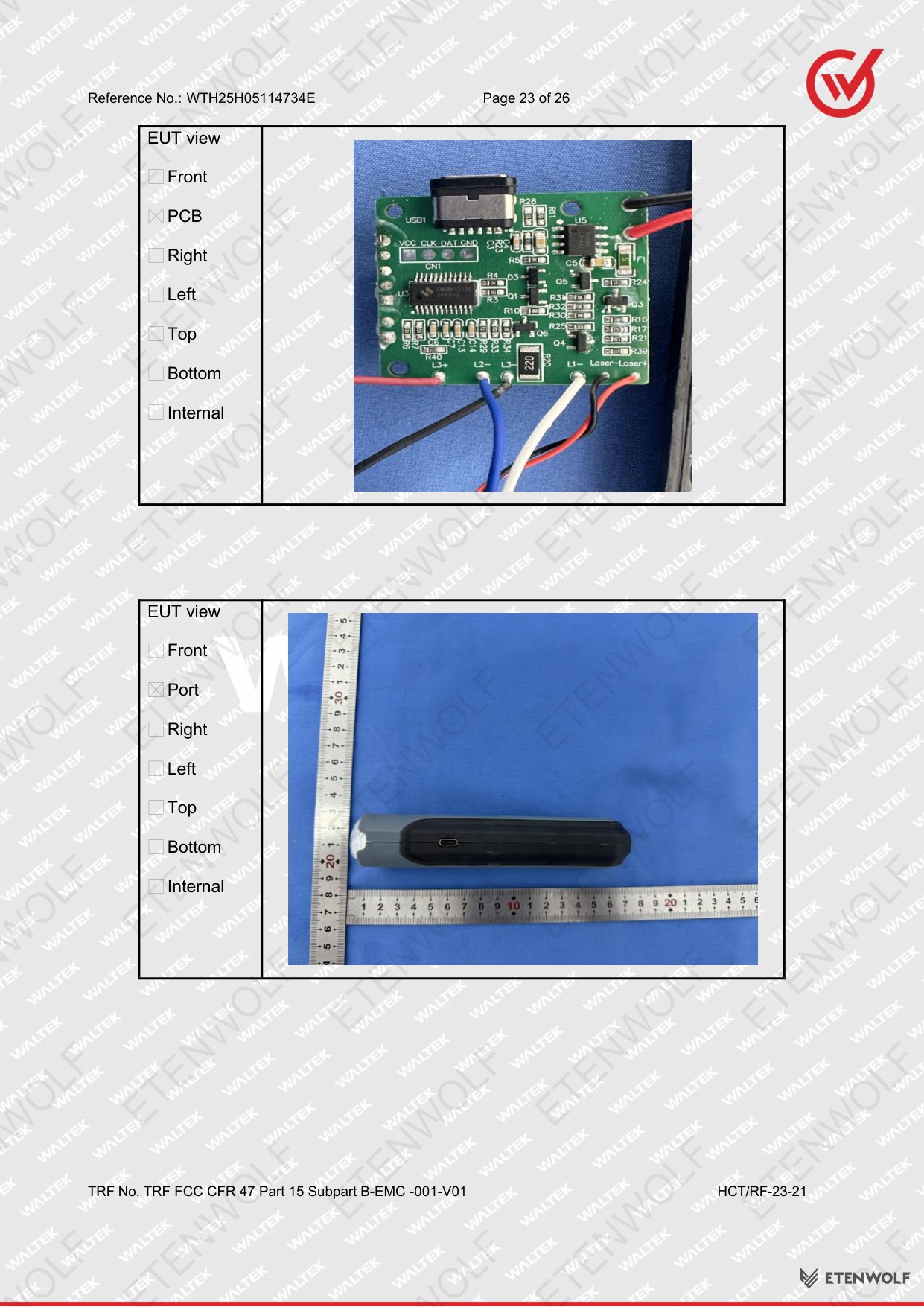

| Appendix A | EUT Photographs |

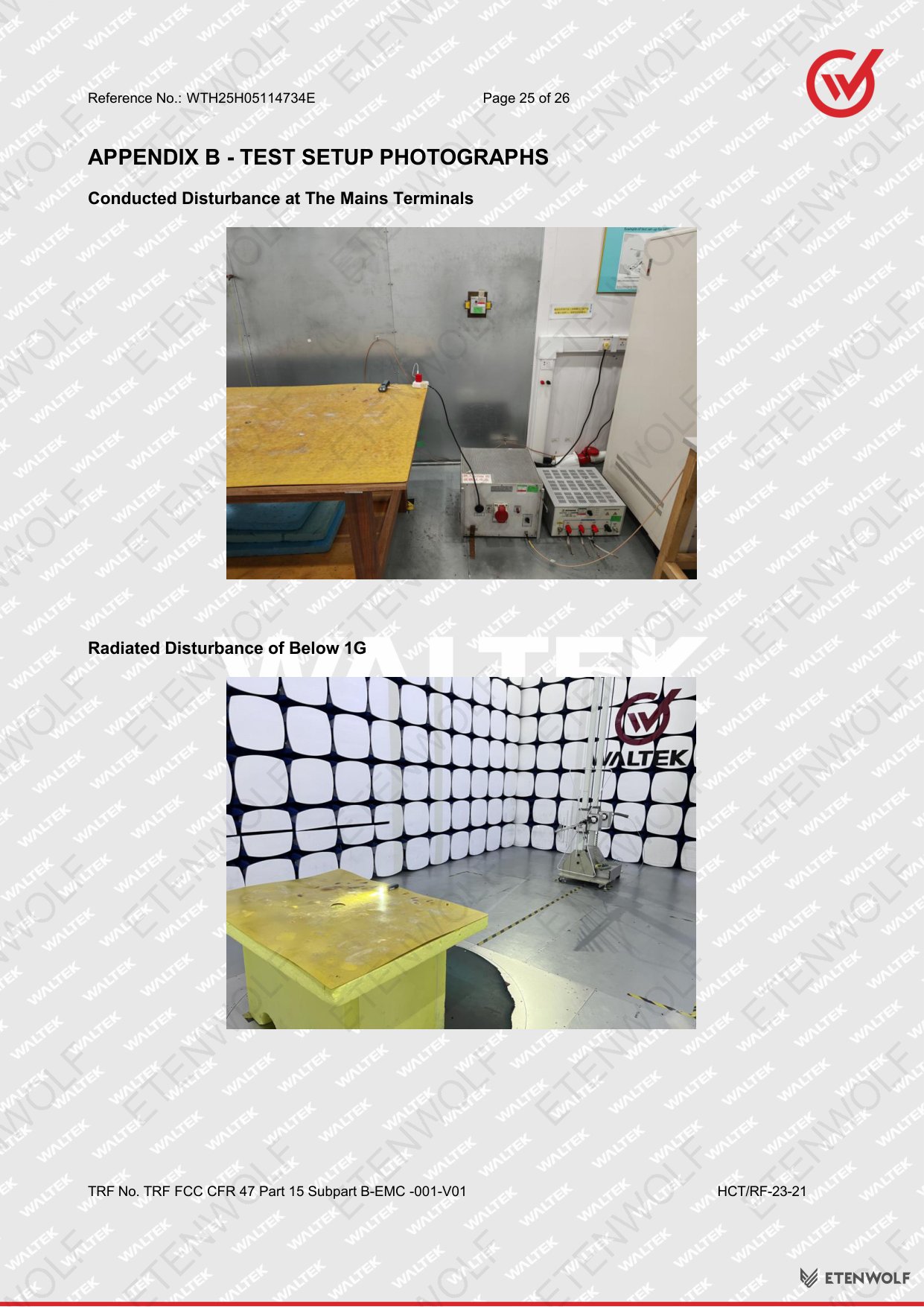

| Appendix B | Test Setup Photographs |
Standards & Compliance
The ETENWOLF L2 Tactical Flashlight was tested in accordance with the following standard:
- FCC CFR 47 Part 15 Subpart B – Unintentional Radiators: This subpart sets the technical standards for devices that may unintentionally emit radio frequency energy. Compliance ensures the L2 flashlight does not cause harmful interference to other electronic equipment or radio communications.

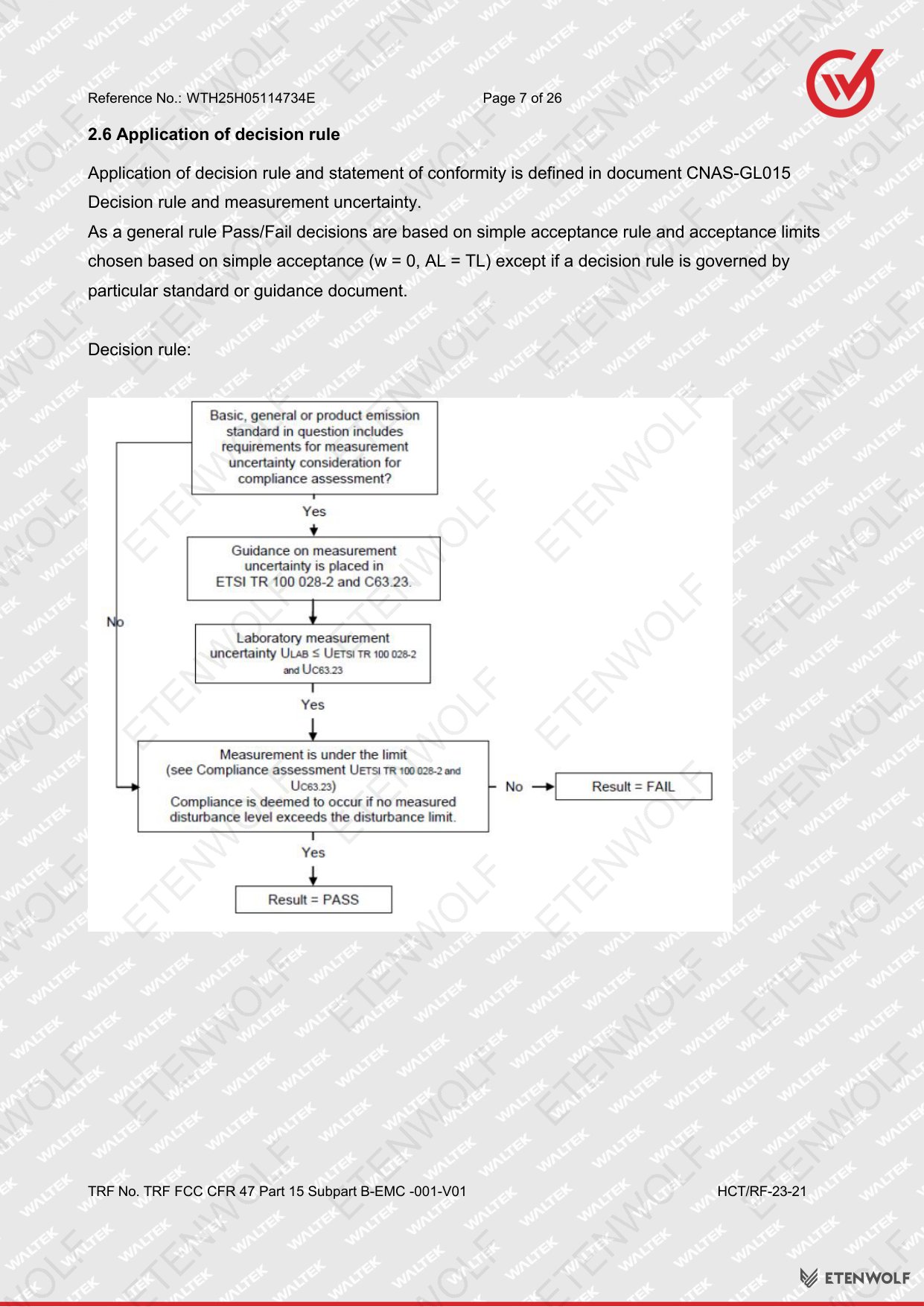

The test methodology followed the published Test Report Form TRF FCC CFR 47 Part 15 Subpart B-EMC-001-V01, covering both conducted and radiated emissions across the applicable frequency ranges. A decision rule was applied to all measurement data to account for measurement uncertainty before determining pass/fail outcomes.
As an FCC SDoC product, the L2 does not require FCC ID assignment but must be accompanied by a supplier’s declaration and test evidence, both of which are provided through this report.
Validity & Certification Body
The test report was prepared and issued by:
- Laboratory: Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Address: Building B, Tianji Industrial Park, 1/F, 2/F & 3/F, No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China
- Tel: 0755-84616666
- Service Tel: 400-0066-989
- Email: [email protected]
- Tested By: Snow Zeng
- Approved By: Tony Wu
The report reference number WTH25H05114734E serves as the unique identifier for this test record. FCC SDoC declarations do not carry an expiration date but remain valid as long as the product design remains unchanged. Any modification to the EUT’s hardware, firmware, or operating configuration may require re-testing.
Waltek Testing Group HCT is an accredited EMC and RF testing laboratory operating under international quality management standards, providing third-party compliance testing services for global markets.
Frequently Asked Questions
- Q: What does FCC SDoC mean for the ETENWOLF L2 Tactical Flashlight?
- FCC SDoC (Supplier’s Declaration of Conformity) means the manufacturer has tested the L2 Tactical Flashlight and confirmed it meets the electromagnetic emission limits set by the FCC under CFR 47 Part 15 Subpart B. Unlike FCC ID certification, SDoC does not require FCC pre-approval but does require documented test evidence from an accredited laboratory.
- Q: What was the test result for the L2 under FCC Part 15 Subpart B?
- The ETENWOLF L2 Tactical Flashlight passed all conducted emission and radiated emission tests as recorded in report WTH25H05114734E, issued on 2025-05-19 by Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Q: Which laboratory conducted the FCC testing for the L2 flashlight?
- Testing was conducted by Waltek Testing Group HCT (Shenzhen) Co., Ltd., located in Longgang District, Shenzhen, China. The report was tested by Snow Zeng and approved by Tony Wu.
- Q: Does FCC SDoC compliance allow the L2 to be sold in the United States?
- Yes. FCC Part 15 Subpart B SDoC compliance allows unintentional radiator devices like the L2 Tactical Flashlight to be legally marketed and sold in the United States, provided the declaration and test report are kept on file and the product is labelled according to FCC requirements.
Related Documents
The following certification and compliance documents are typically associated with a tactical flashlight product such as the ETENWOLF L2 and may be available or applicable:
- CE EMC Declaration – Electromagnetic compatibility compliance for the European market under EN 55032 / EN 55035 directives.
- CE LVD (Low Voltage Directive) – Safety certification for electrically powered equipment sold within the EU.
- RoHS Compliance Report – Confirms restriction of hazardous substances per EU RoHS Directive 2011/65/EU.
- REACH Compliance Declaration – Substance safety documentation per EU REACH Regulation (EC) No 1907/2006.
- UN 38.3 Battery Transport Test Report – Required for products containing lithium batteries, certifying safe air and ground transport per UN Manual of Tests and Criteria.
- KC Certification (Korea) – Required for electronic products distributed in the Republic of Korea market.
- IEC 60598 / IEC 62560 – International safety standards applicable to lighting products under IEC frameworks.
