Document Overview

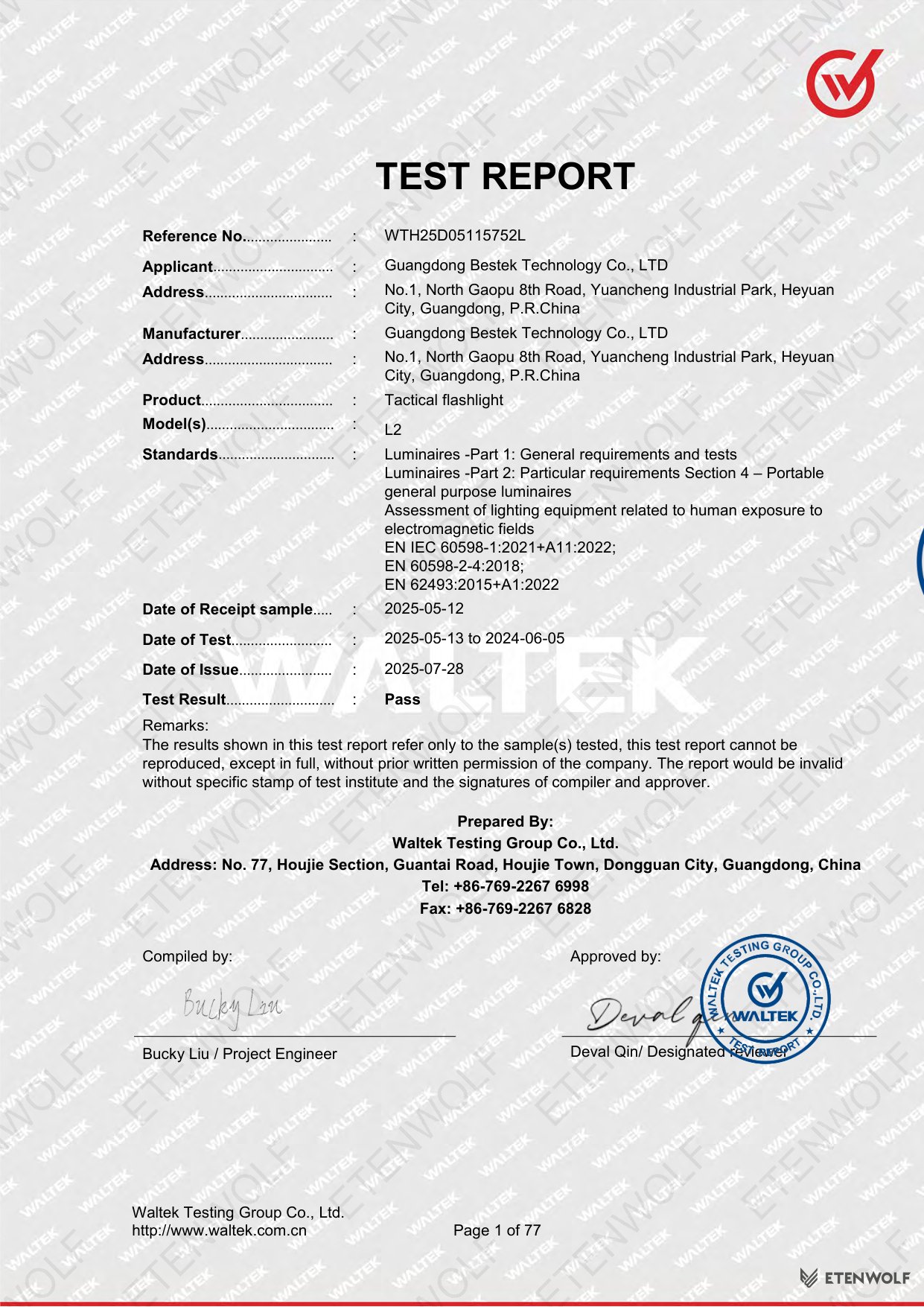

This article covers the official CE Low Voltage Directive (LVD) test report issued for the ETENWOLF L2 tactical flashlight. The report was prepared by Waltek Testing Group Co., Ltd., an accredited third-party testing laboratory based in Dongguan City, Guangdong, China.
| Field | Details |
|---|---|
| Reference Number | WTH25D05115752L |
| Document Type | CE-LVD Test Report |
| Issuing Body | Waltek Testing Group Co., Ltd. |
| Date of Sample Receipt | 2025-05-12 |
| Date of Testing | 2025-05-13 to 2025-06-05 |
| Date of Issue | 2025-07-28 |
| Overall Test Result | Pass |
The scope of this report covers mandatory safety and electromagnetic field exposure testing required for CE marking under the Low Voltage Directive. All results apply exclusively to the sample(s) submitted for testing and the report may not be partially reproduced without prior written permission from the issuing laboratory.
Product Information
The product evaluated in this report is the ETENWOLF L2 tactical flashlight, designed and manufactured by Guangdong Bestek Technology Co., Ltd. It is a Class III portable luminaire intended exclusively for indoor use, powered by a rechargeable battery and connected to a power supply via a Type C port.
| Attribute | Value |
|---|---|
| Product Name | Tactical Flashlight |
| Model | L2 |
| Trade Mark | N/A |
| Rated Voltage | 5 V |
| Rated Current | 1 A |
| Rated Power | 5 W |
| Ambient Temperature (ta) | 25 °C |
| IP Rating | IP20 |
| Safety Class | Class III |
| Supply Connection | Type C |
| Classification of Use | Portable, Indoor Use Only |
| Applicant / Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |

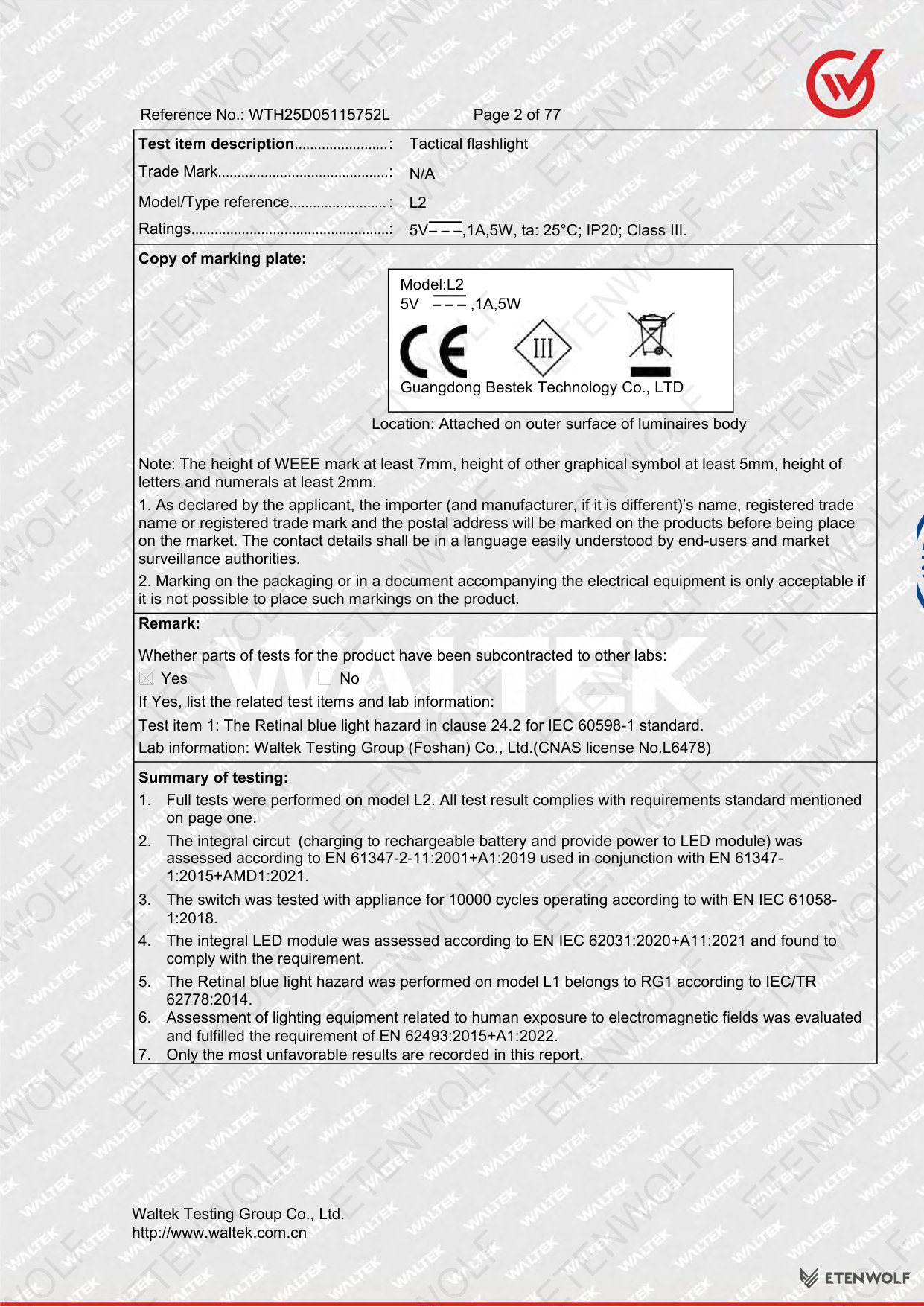

The marking label is attached to the outer surface of the luminaire body. Per the report, the WEEE mark height is at least 7 mm, graphical symbols are at least 5 mm, and letters and numerals are at least 2 mm in height, complying with marking requirements.
Key Details
Full tests were performed on the ETENWOLF L2 model. The following summarizes the key testing activities and their outcomes:
| Test Item | Standard Applied | Verdict |
|---|---|---|
| General luminaire requirements and tests | EN IEC 60598-1:2021+A11:2022 | Pass |

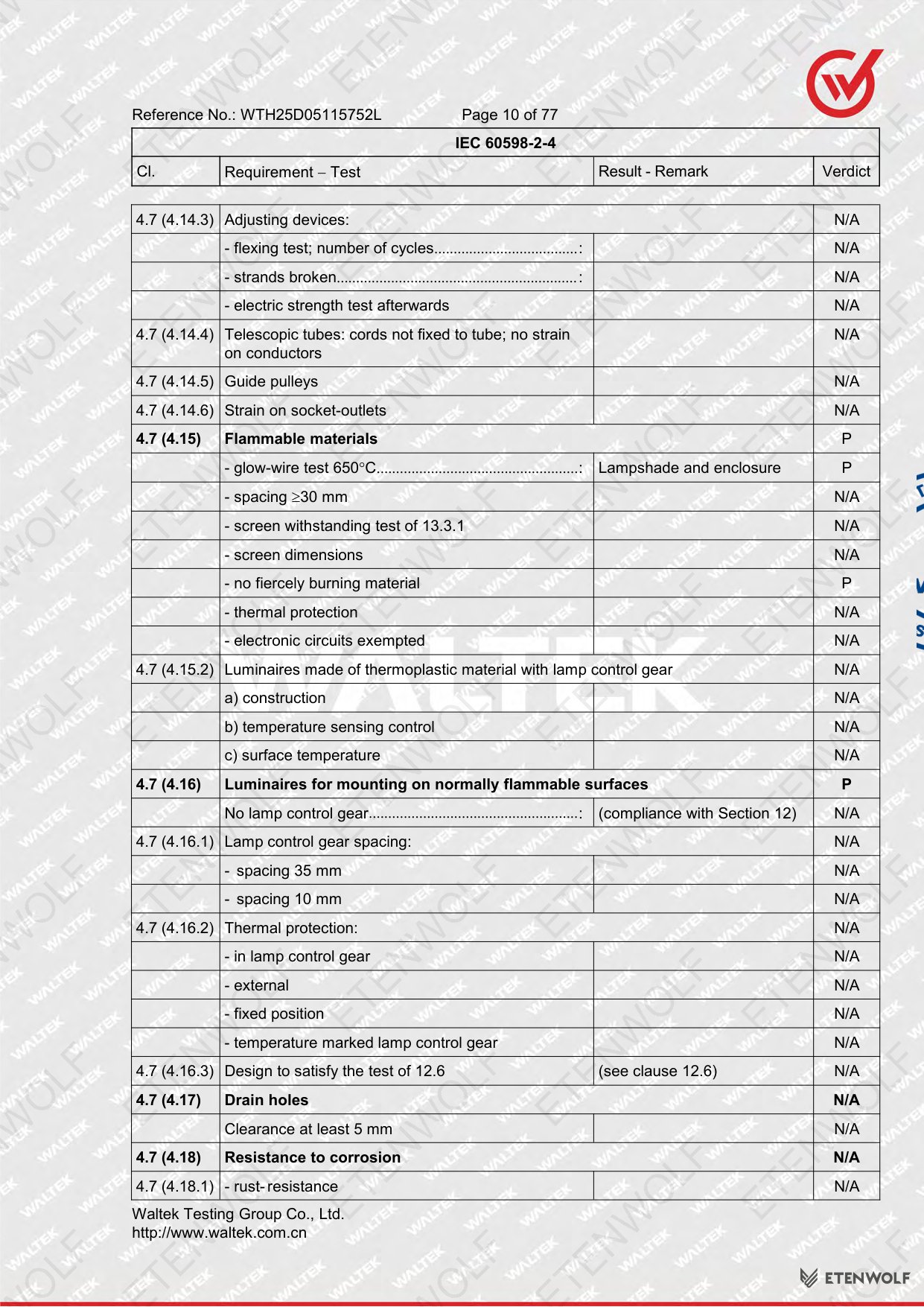

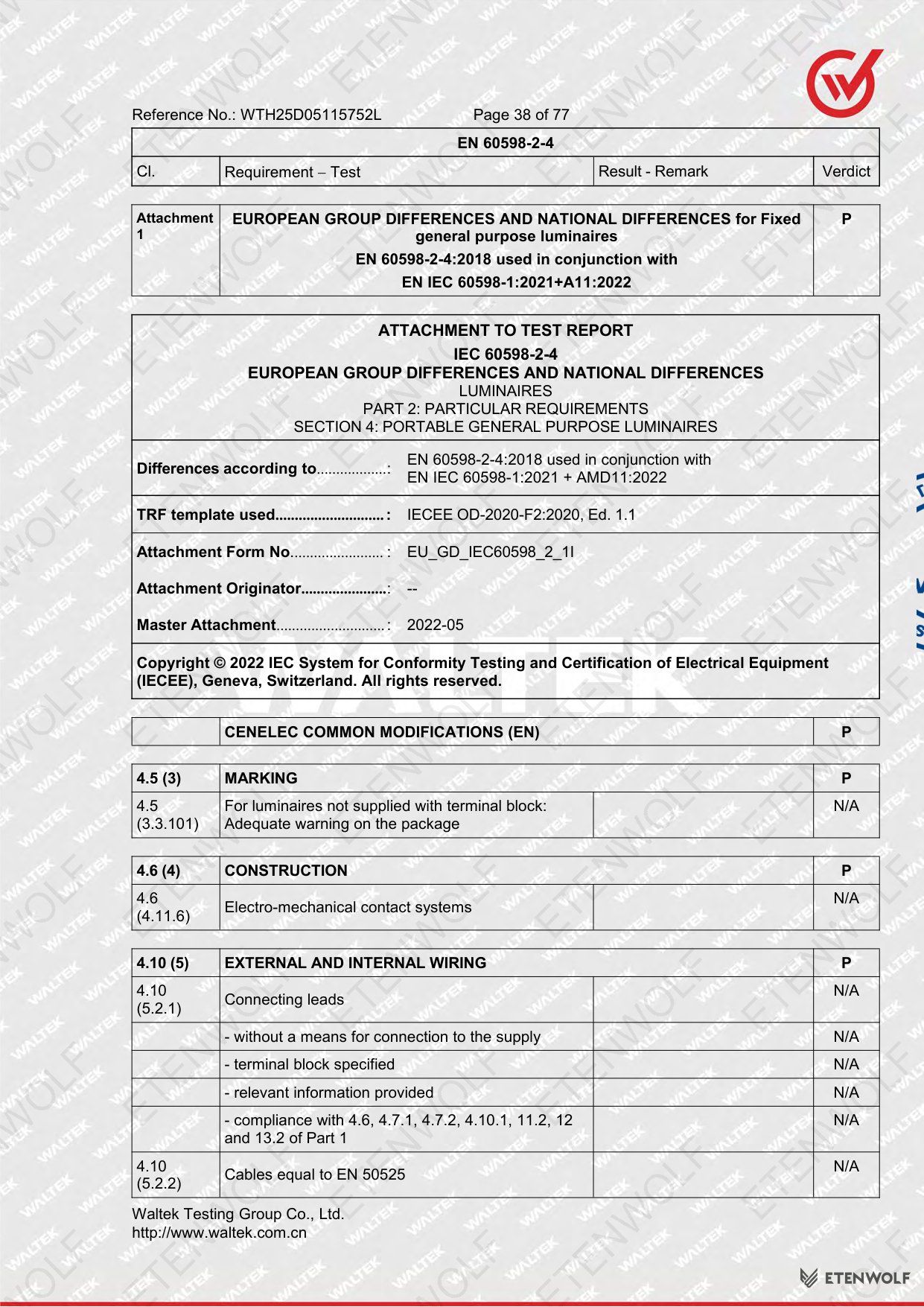

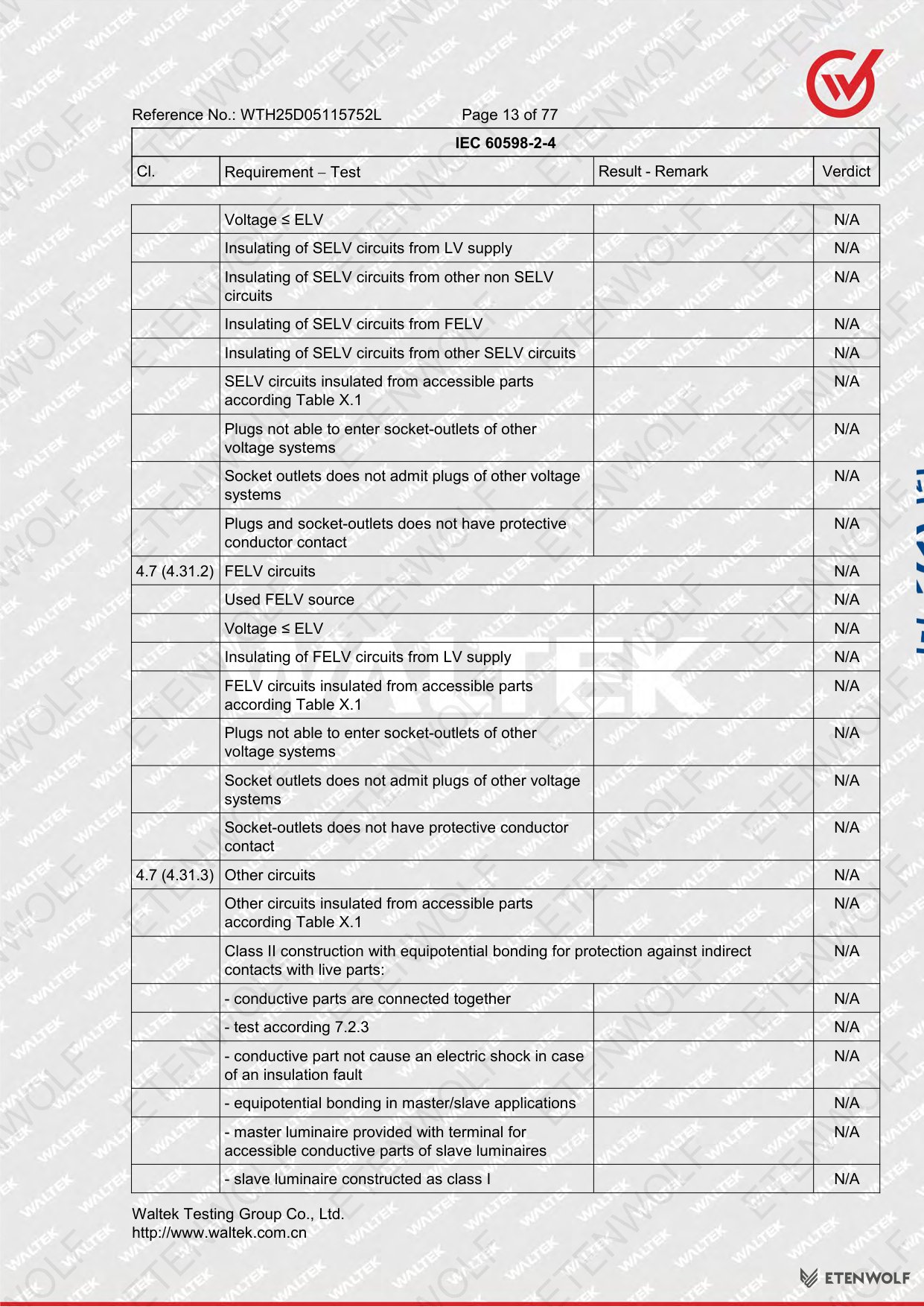

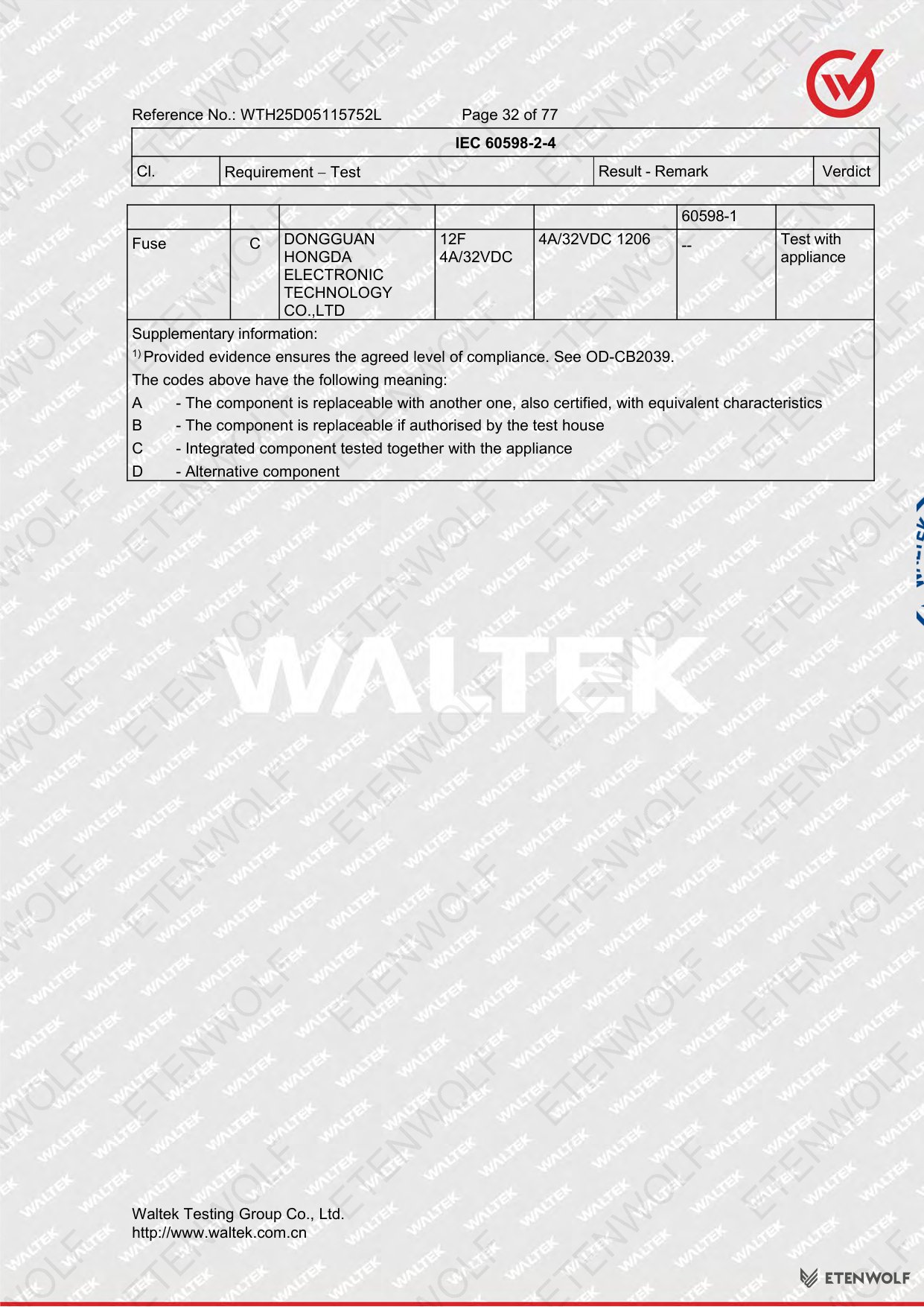

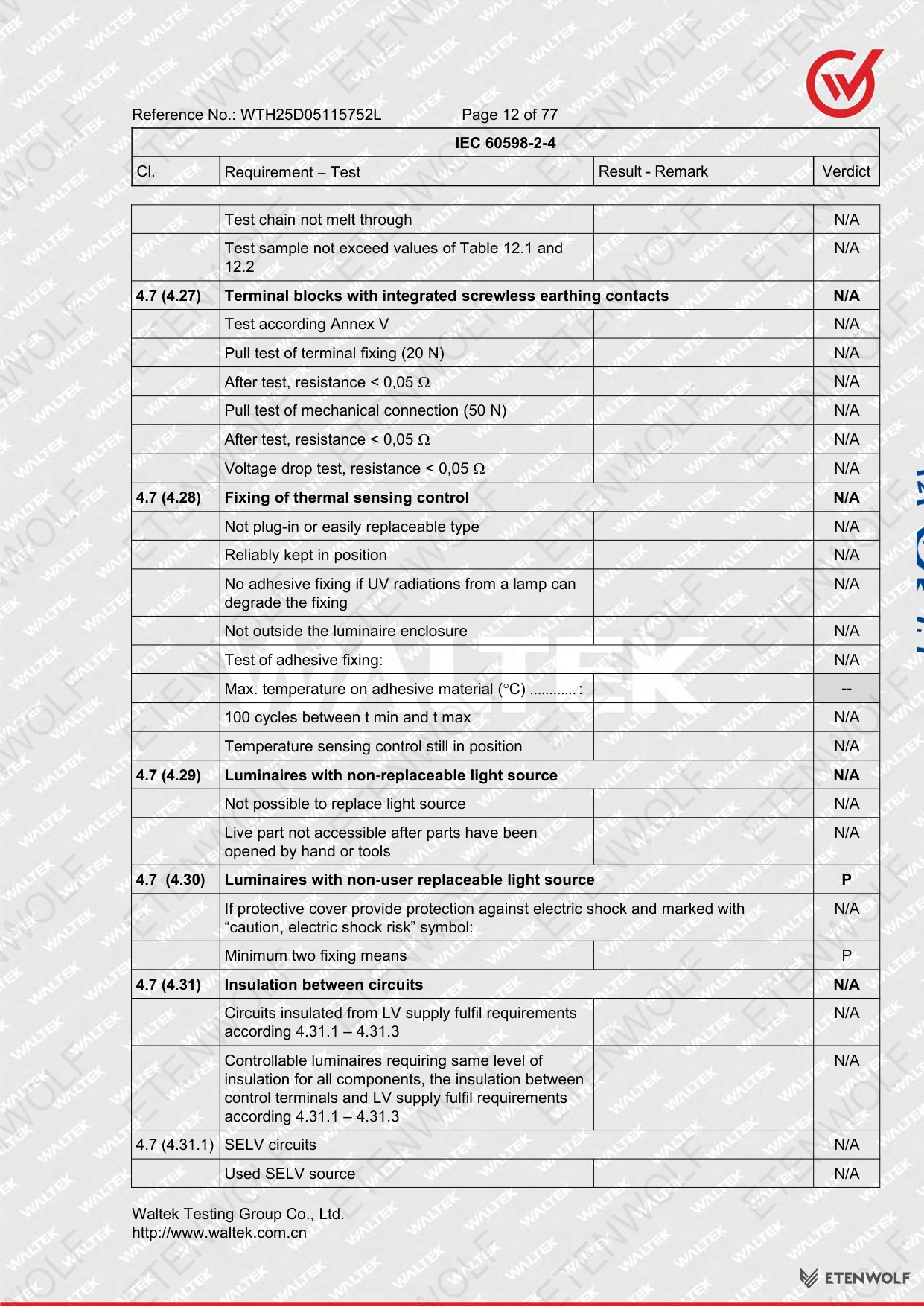

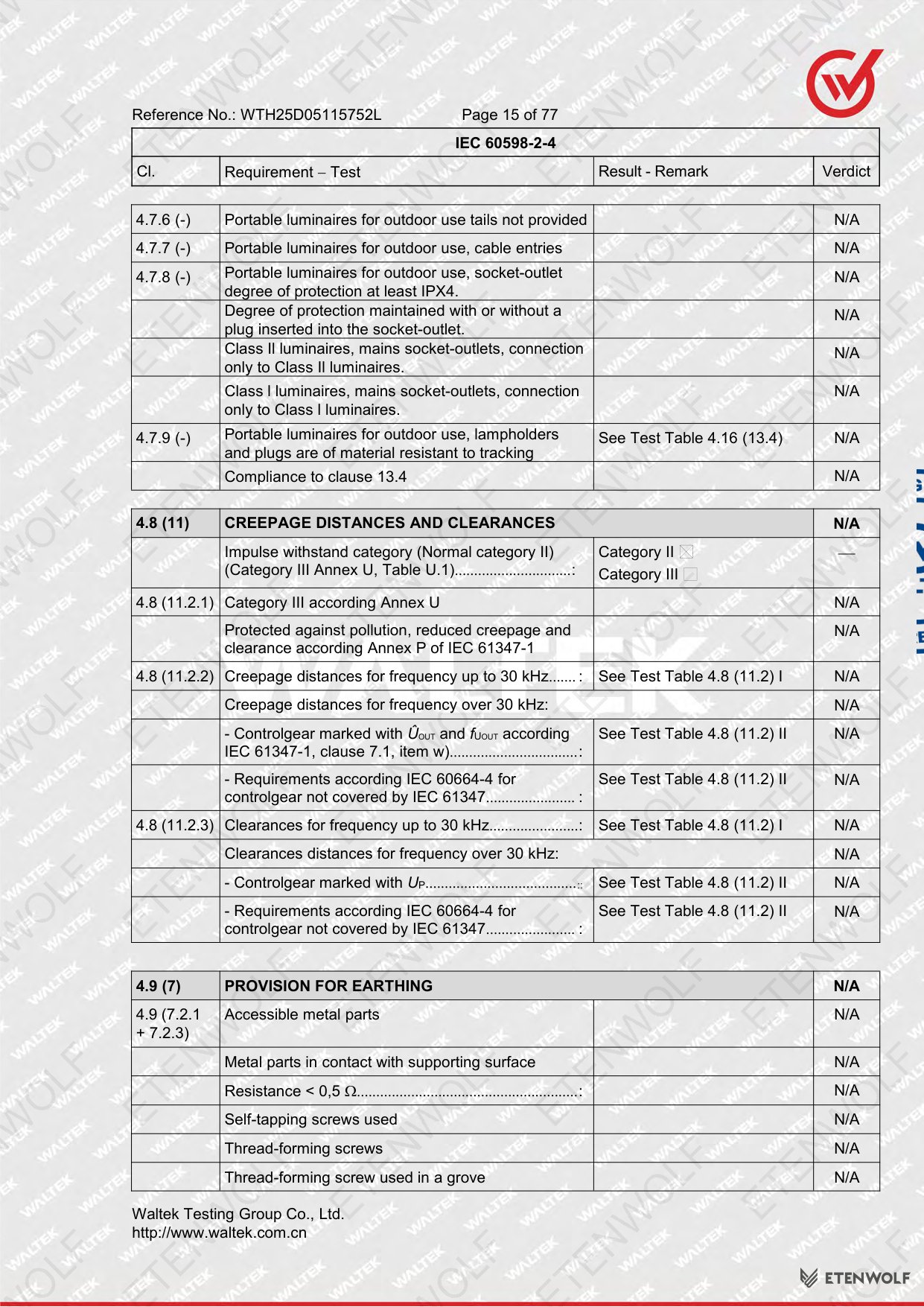

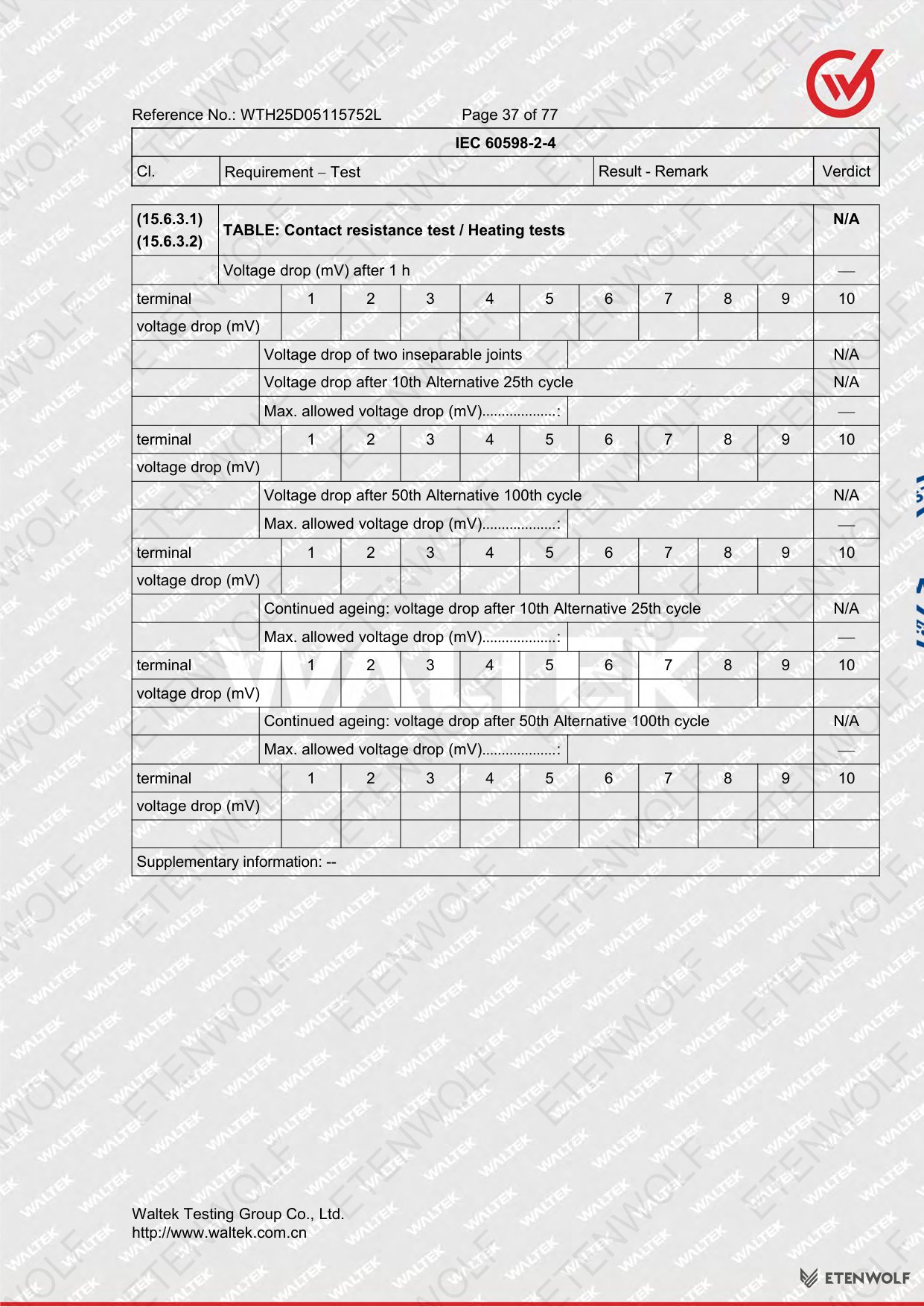

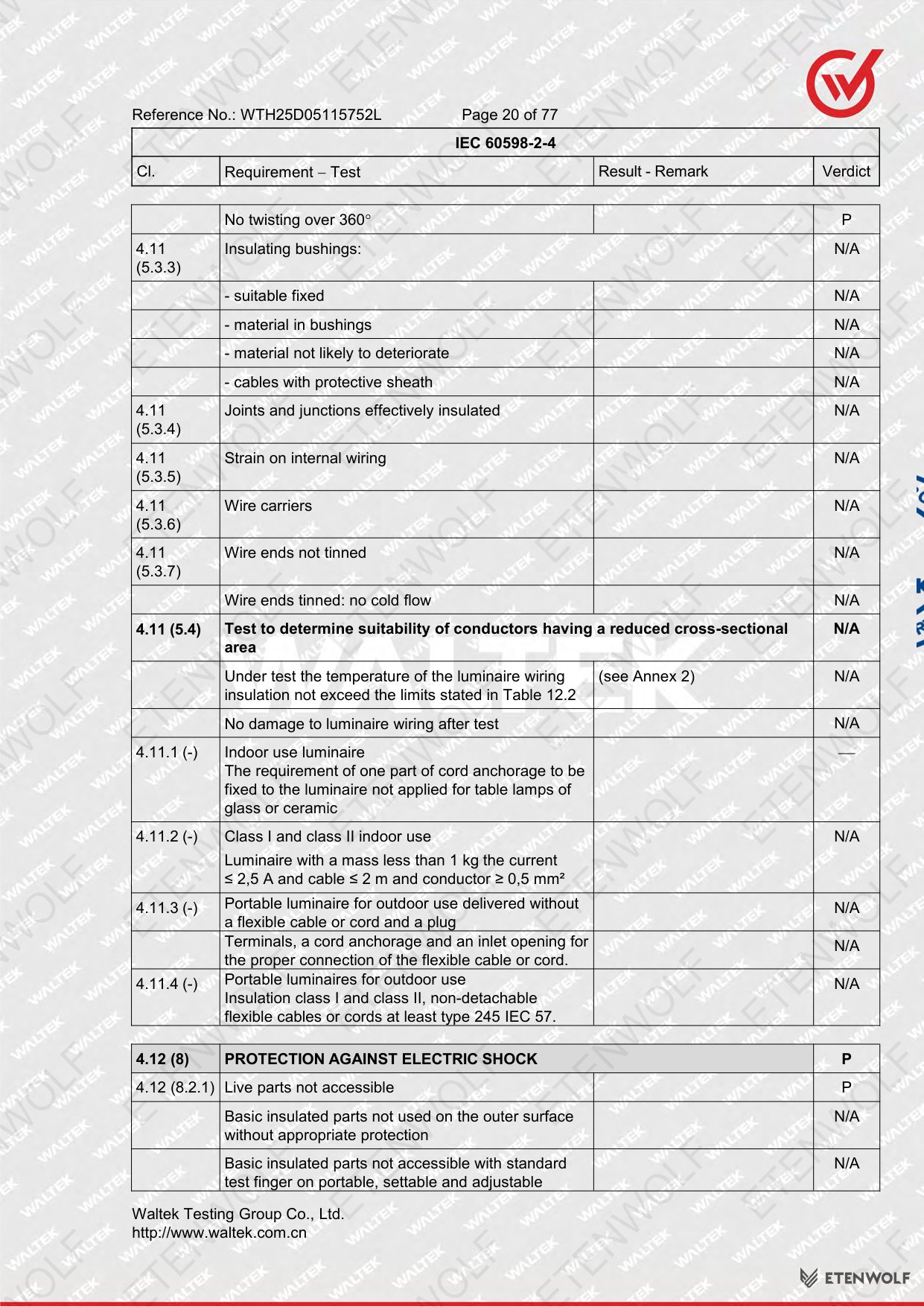

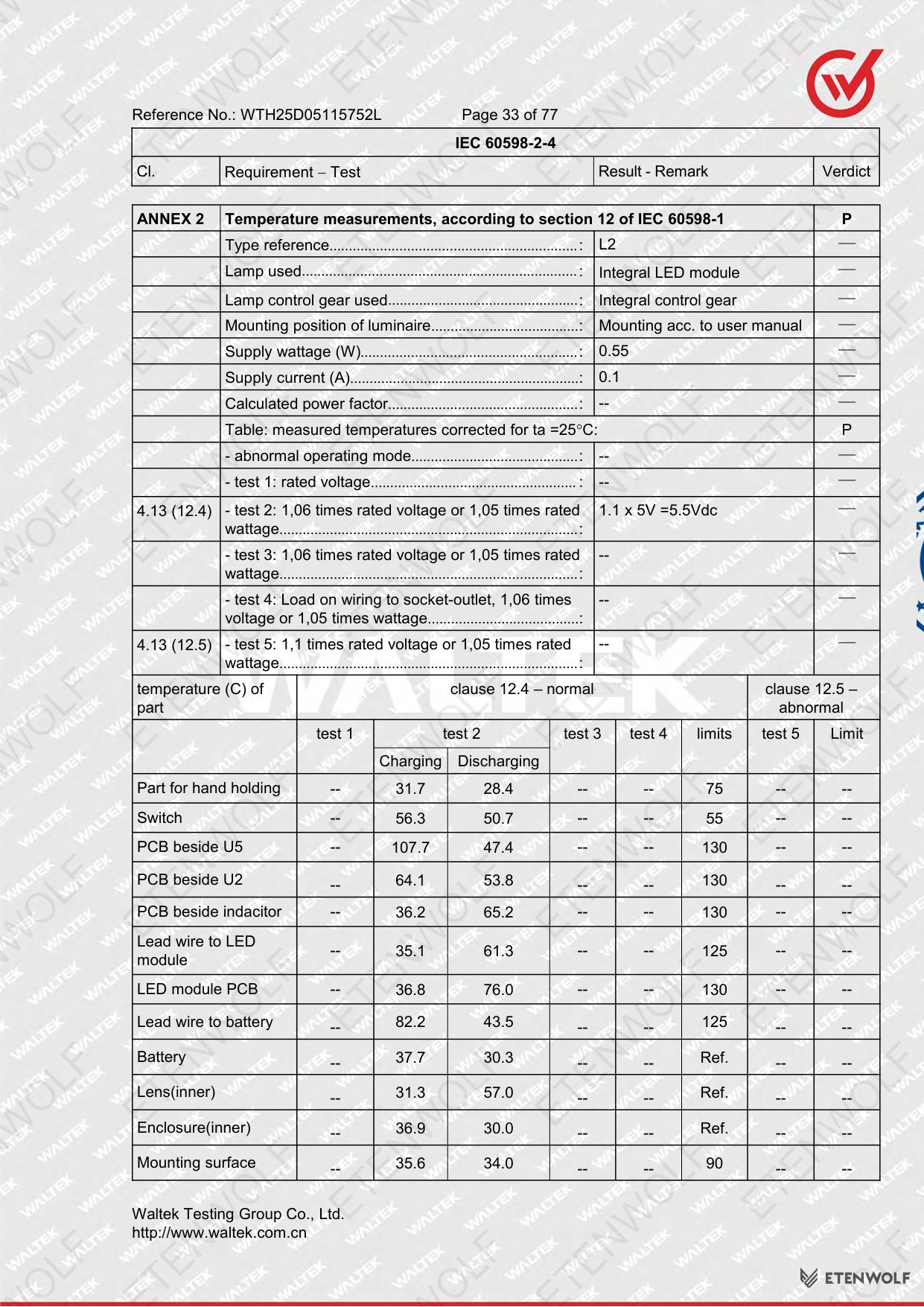

| Portable general purpose luminaires (Part 2, Section 4) | EN 60598-2-4:2018 | Pass |
| Human exposure to electromagnetic fields | EN 62493:2015+A1:2022 | Pass |

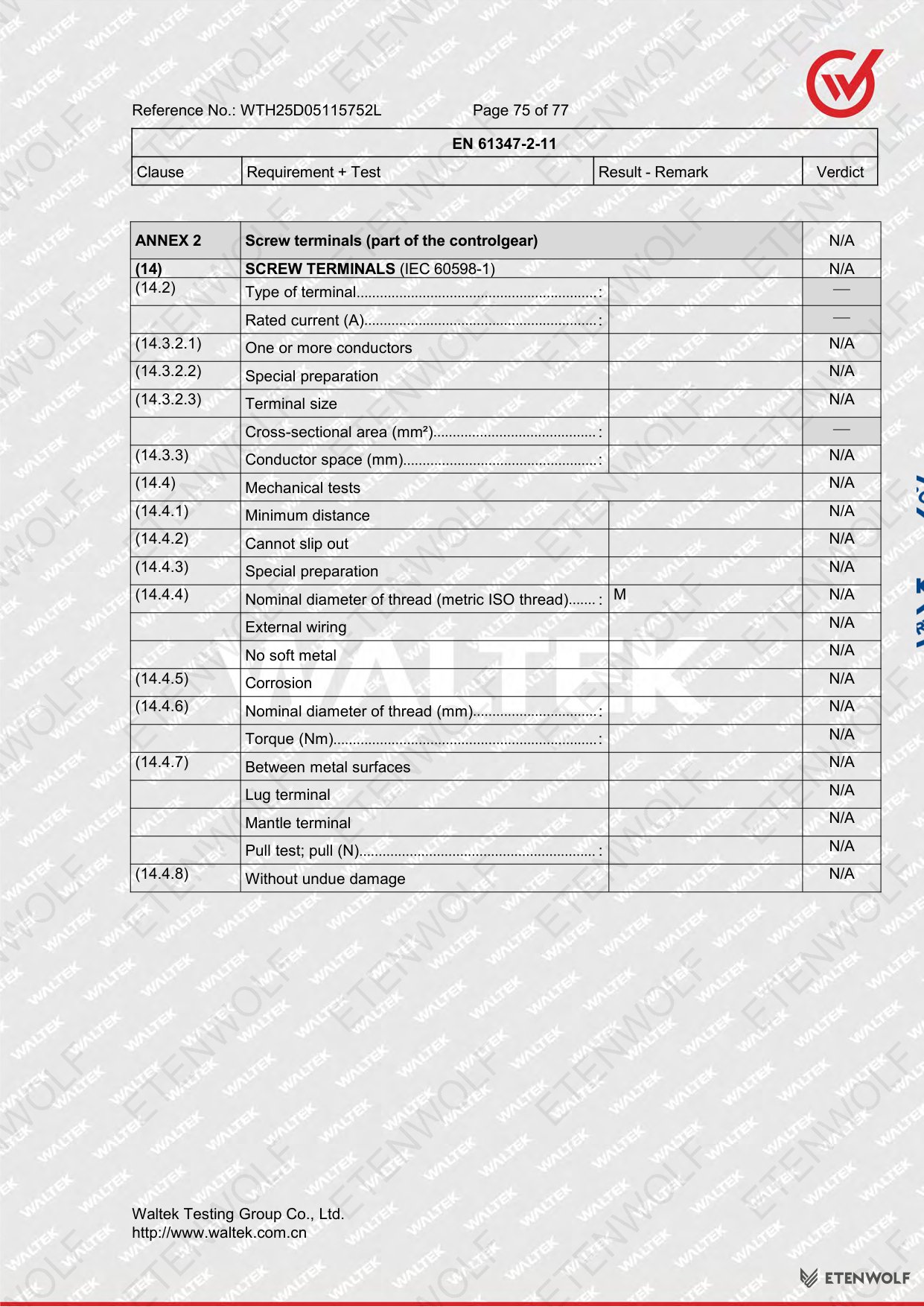

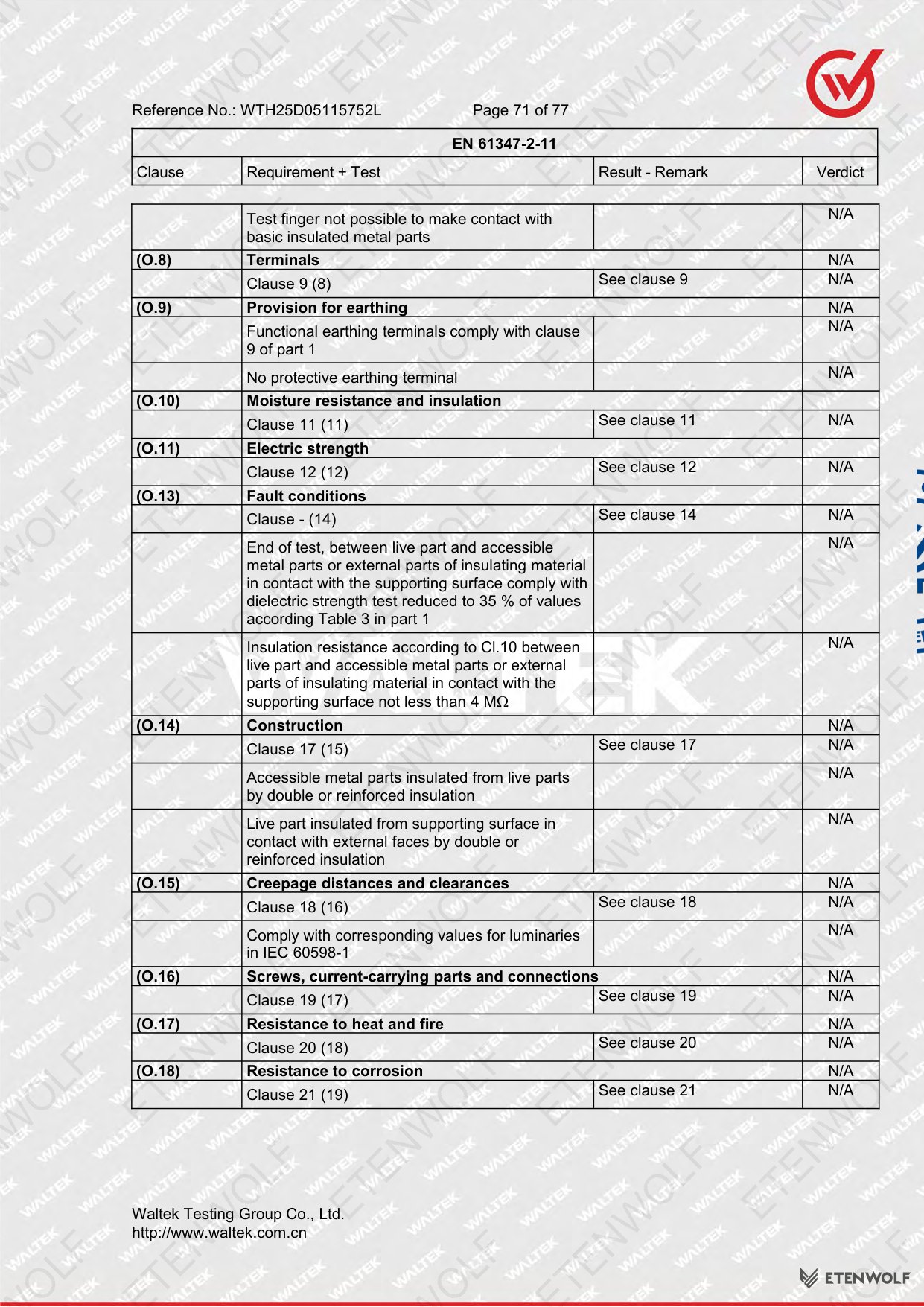

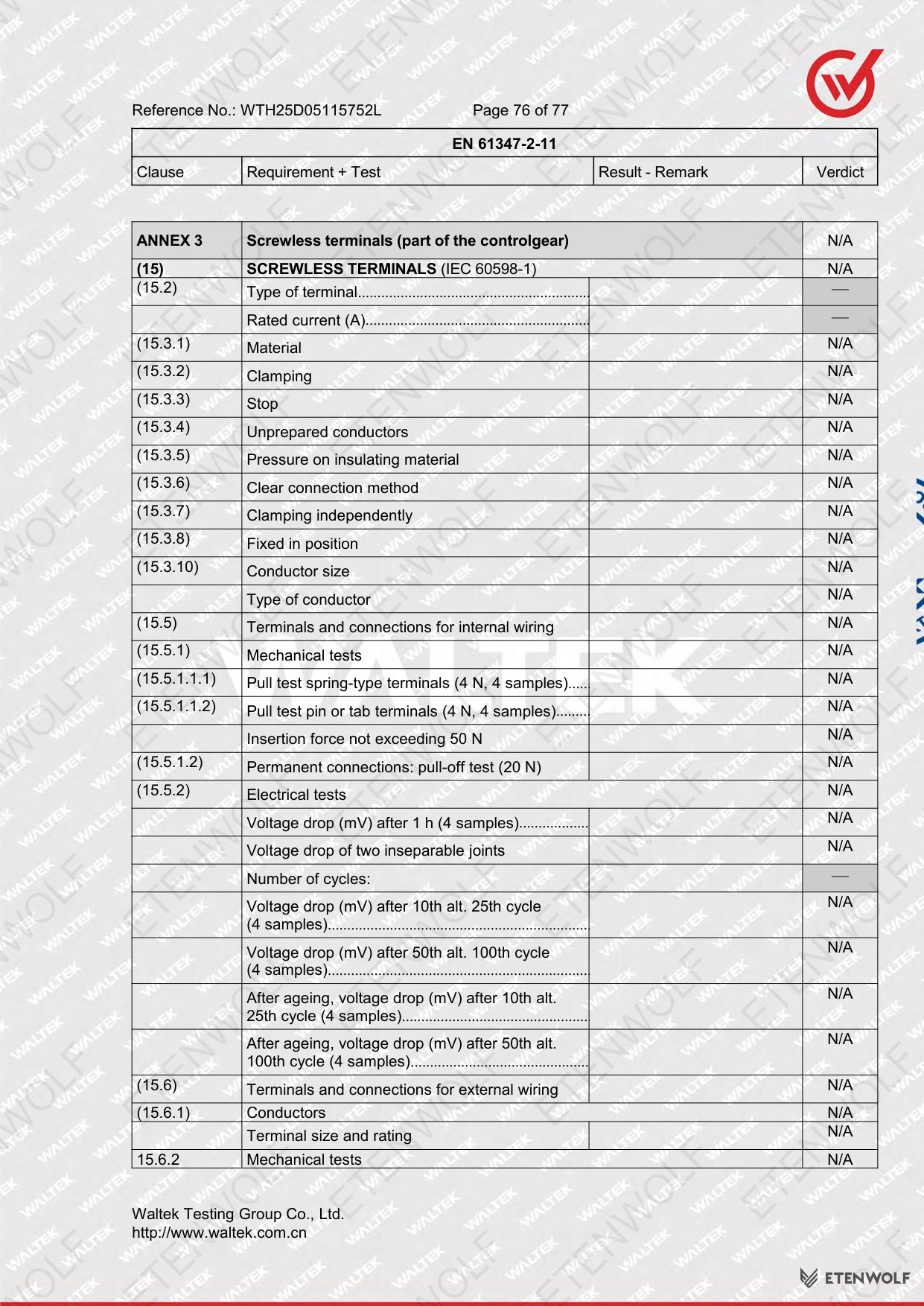

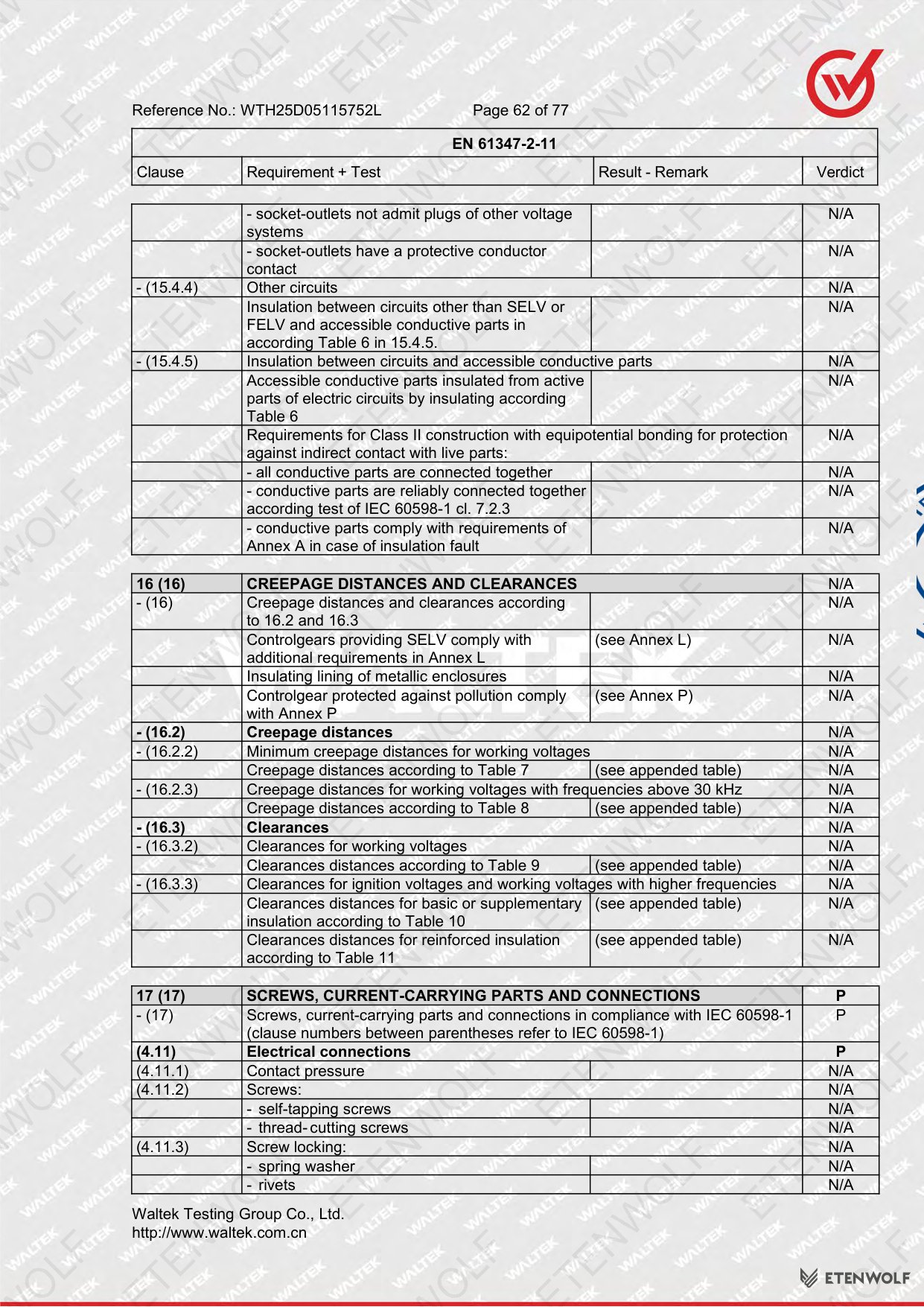

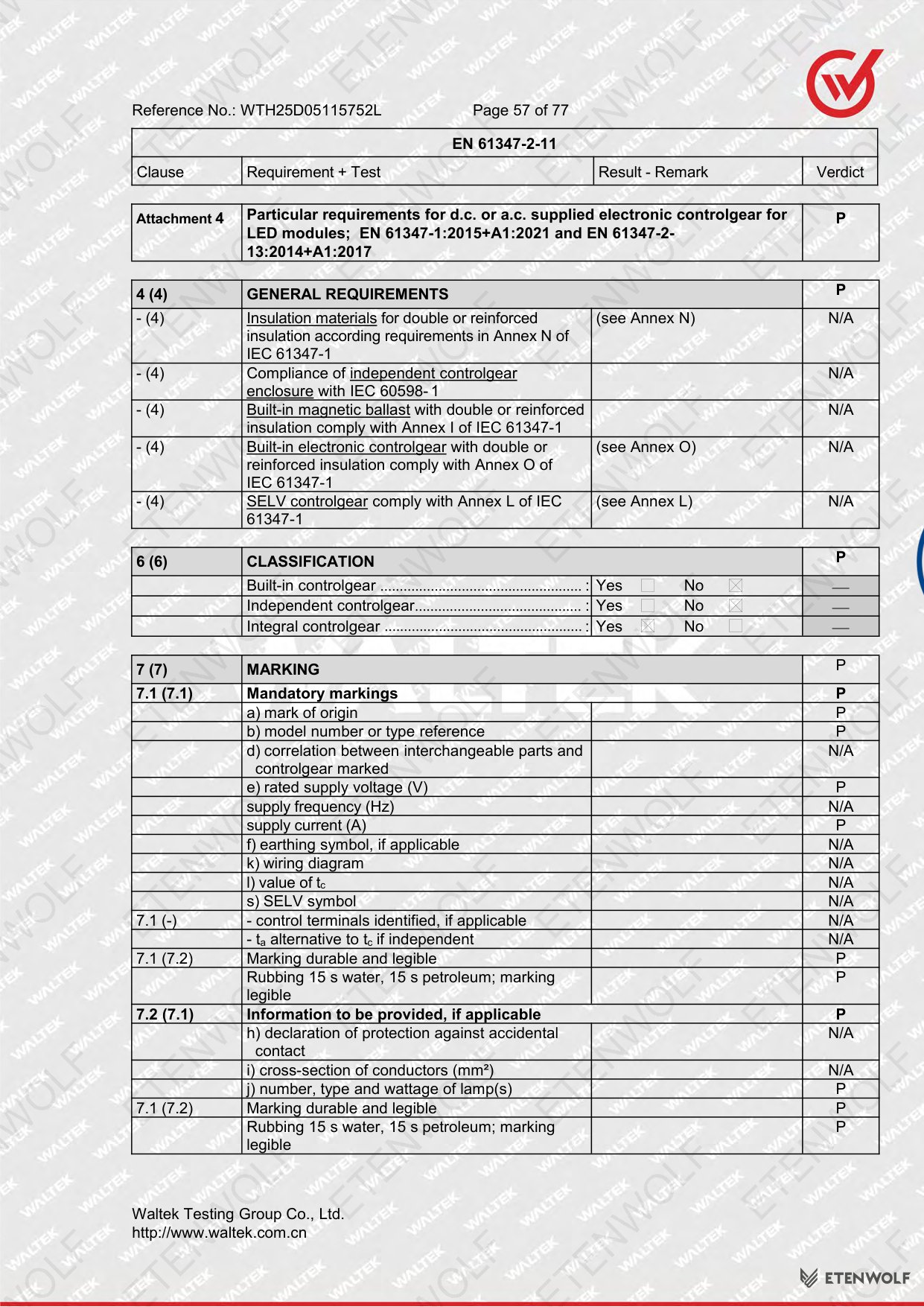

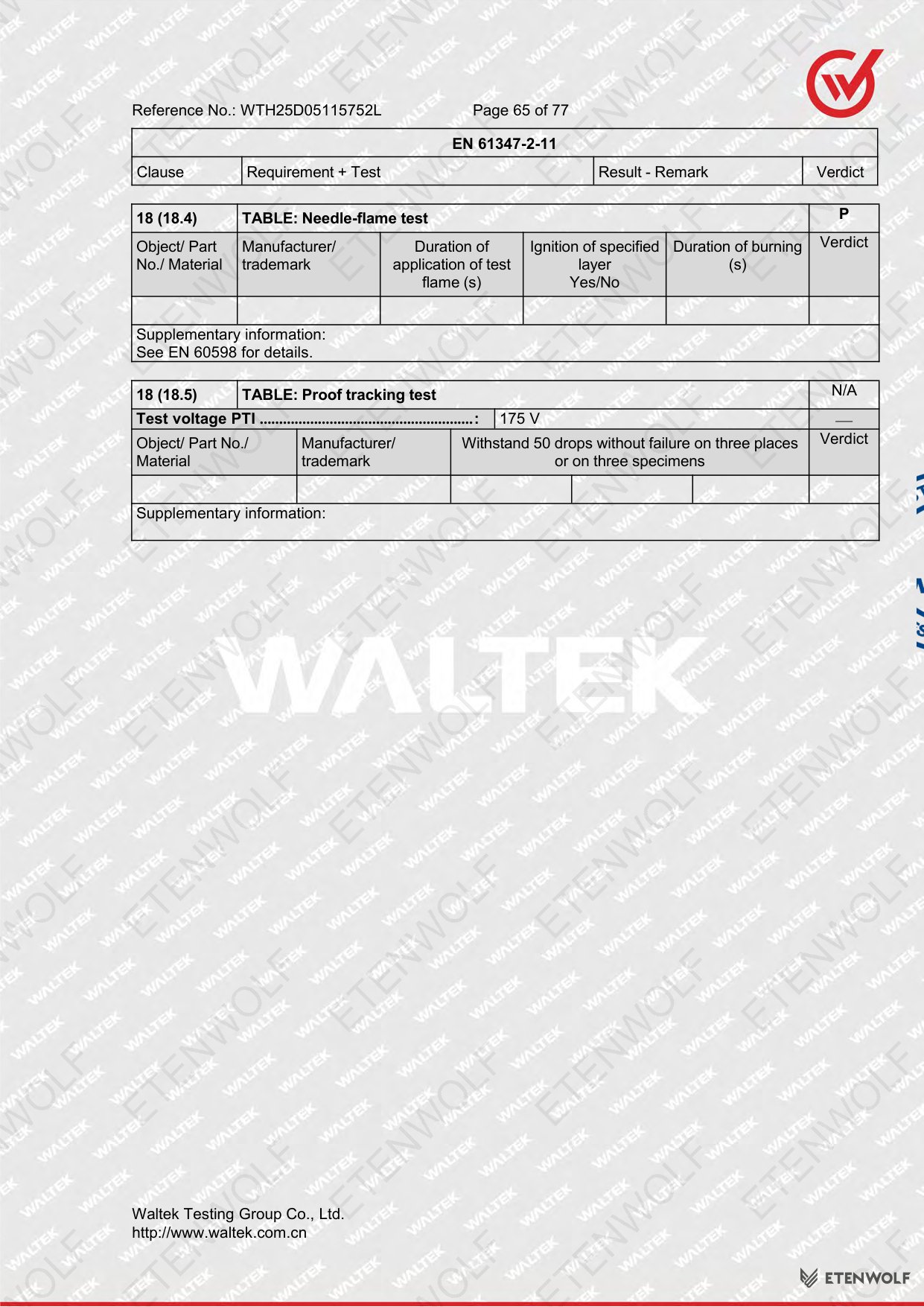

| Integral circuit (charging and LED power supply) | EN 61347-2-11:2001+A1:2019 with EN 61347-1:2015+AMD1:2021 | Pass |
| Switch endurance (10,000 operating cycles) | EN IEC 61058-1:2018 | Pass |

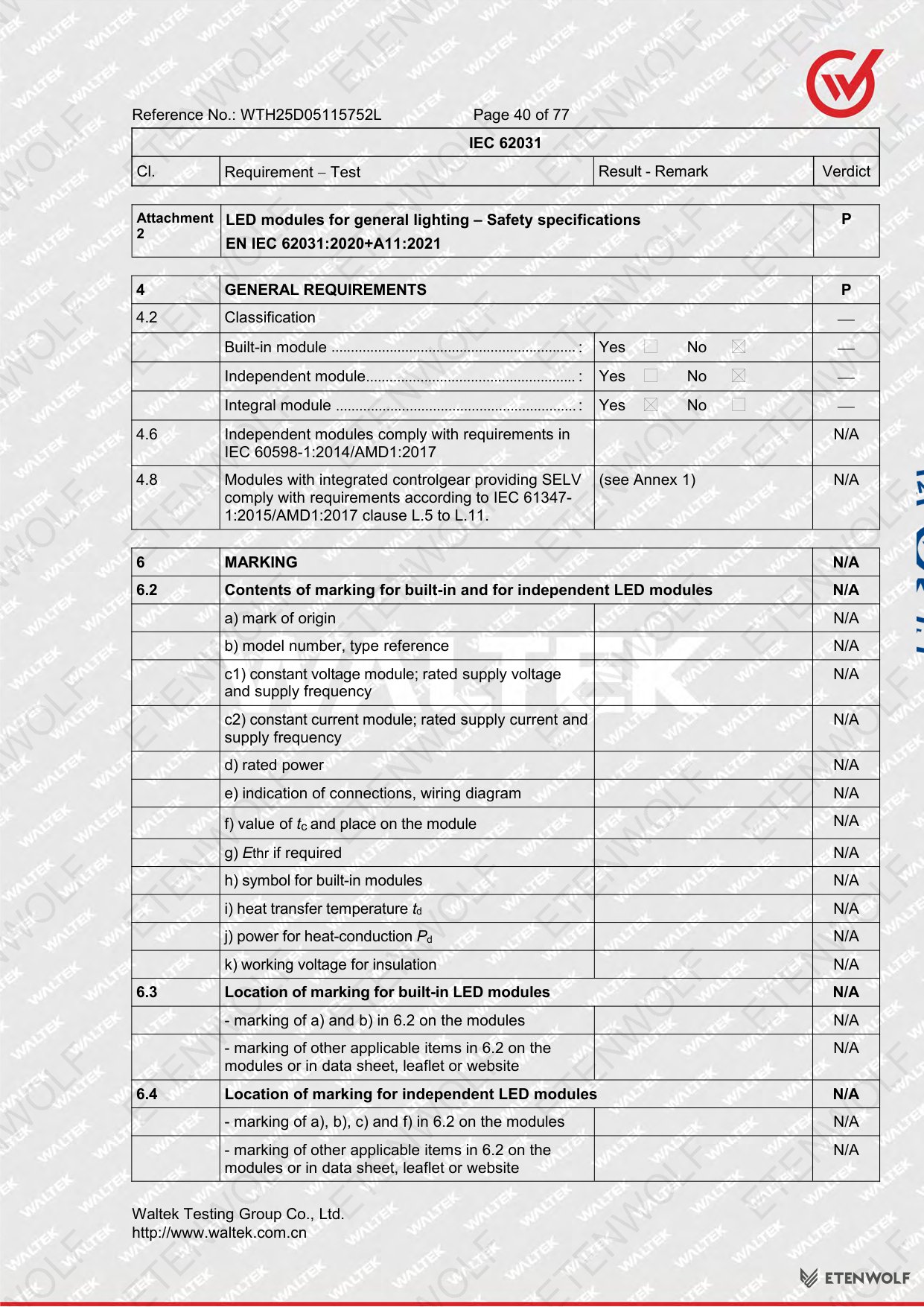

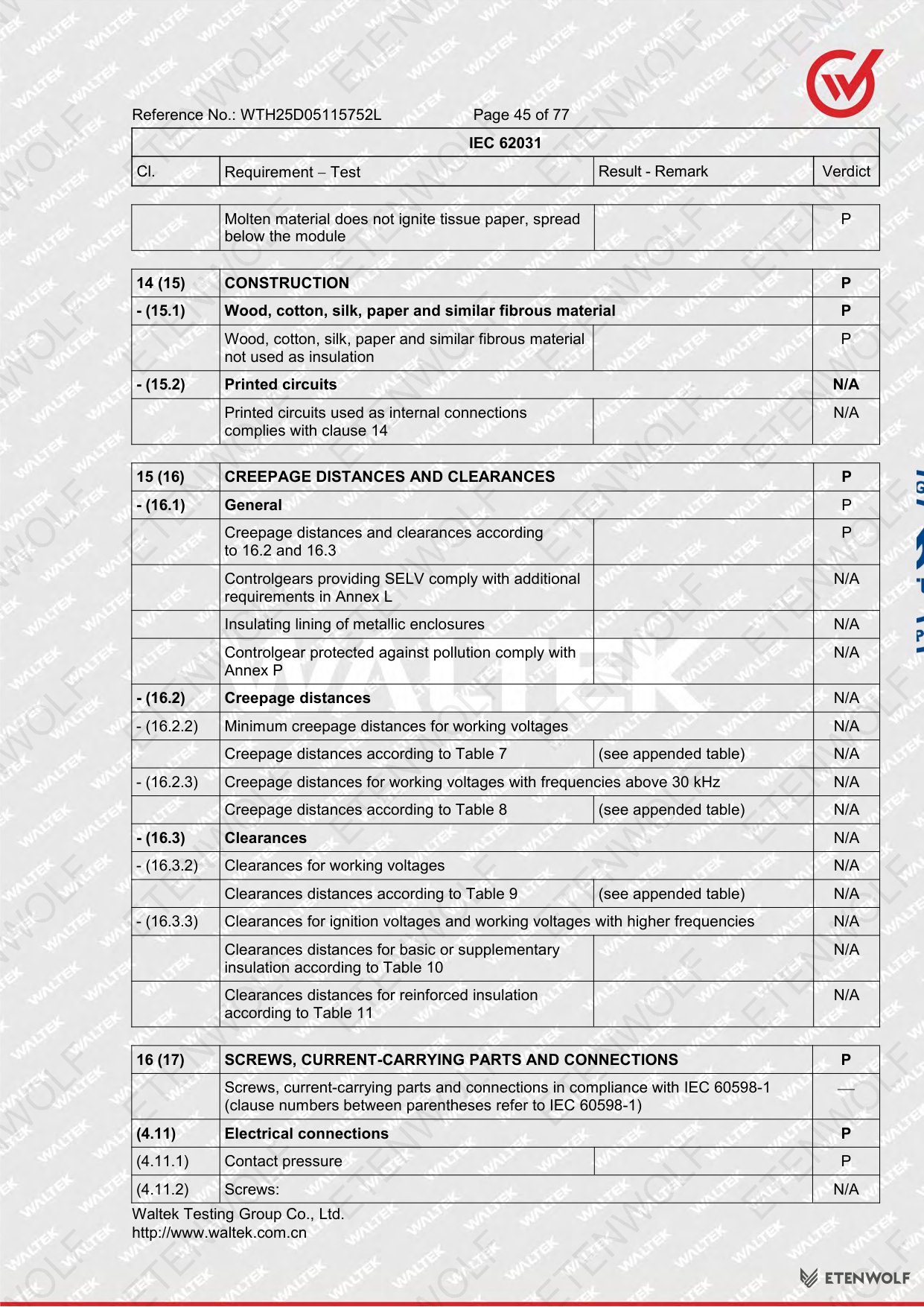

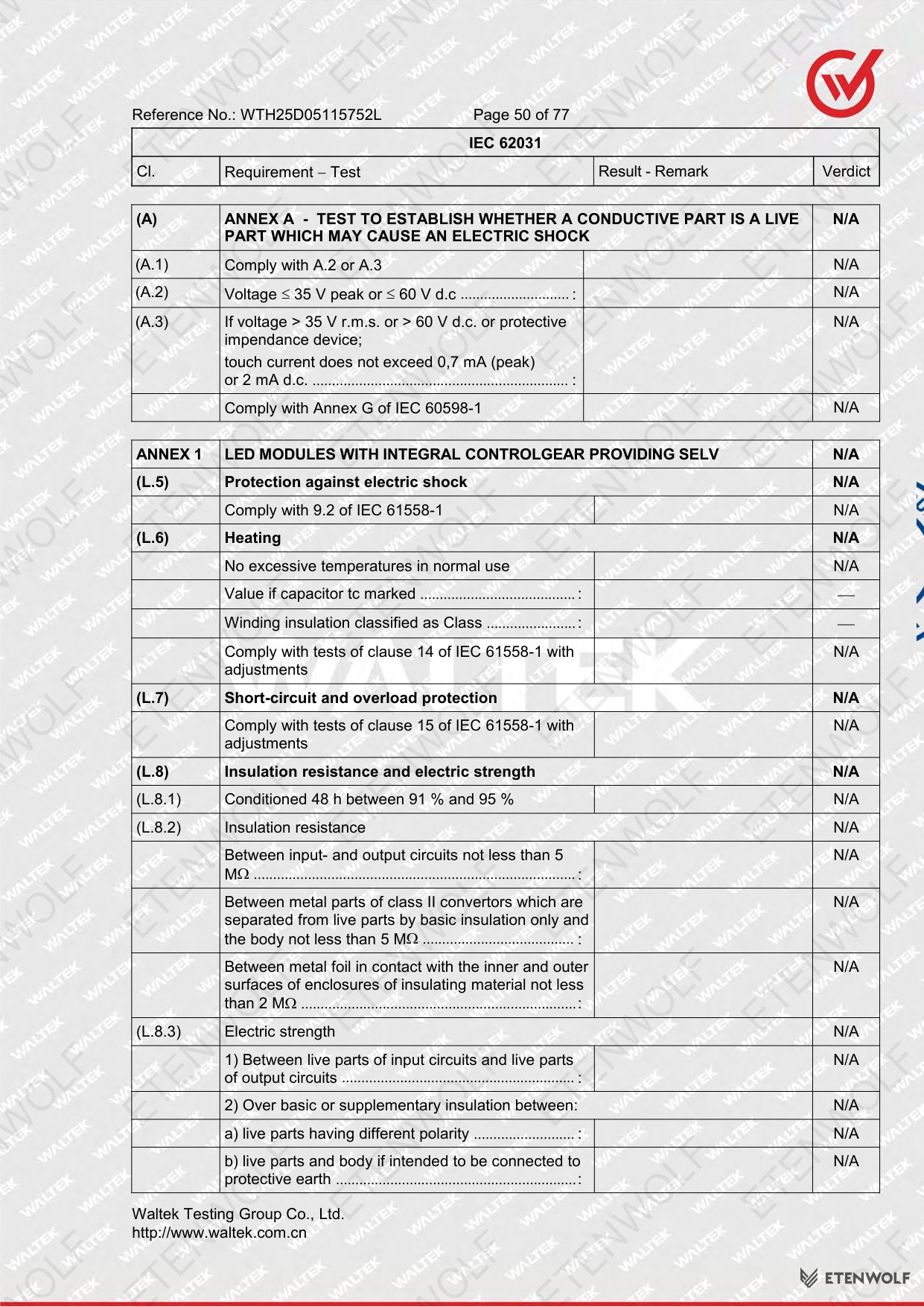

| Integral LED module assessment | EN IEC 62031:2020+A11:2021 | Pass |

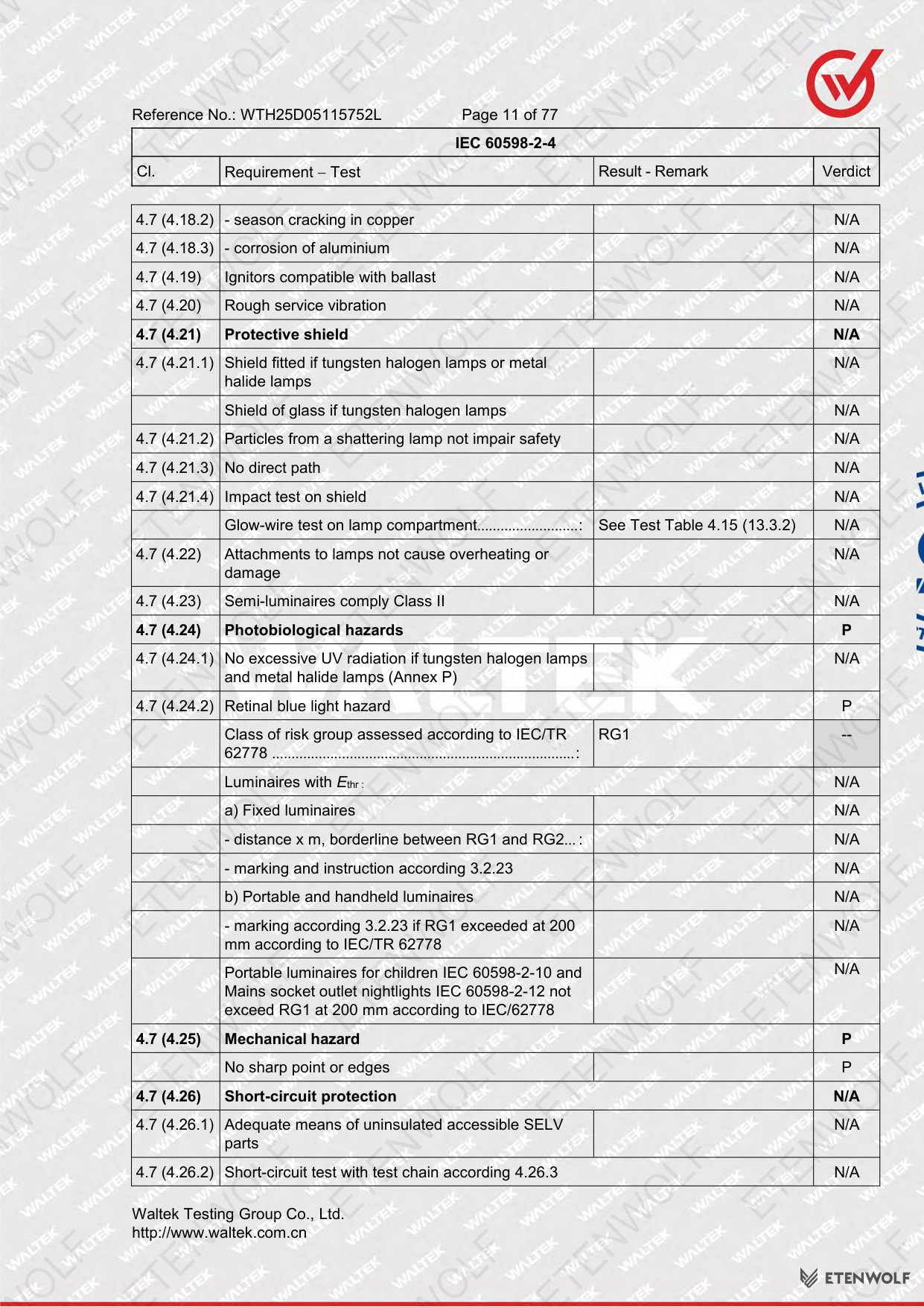

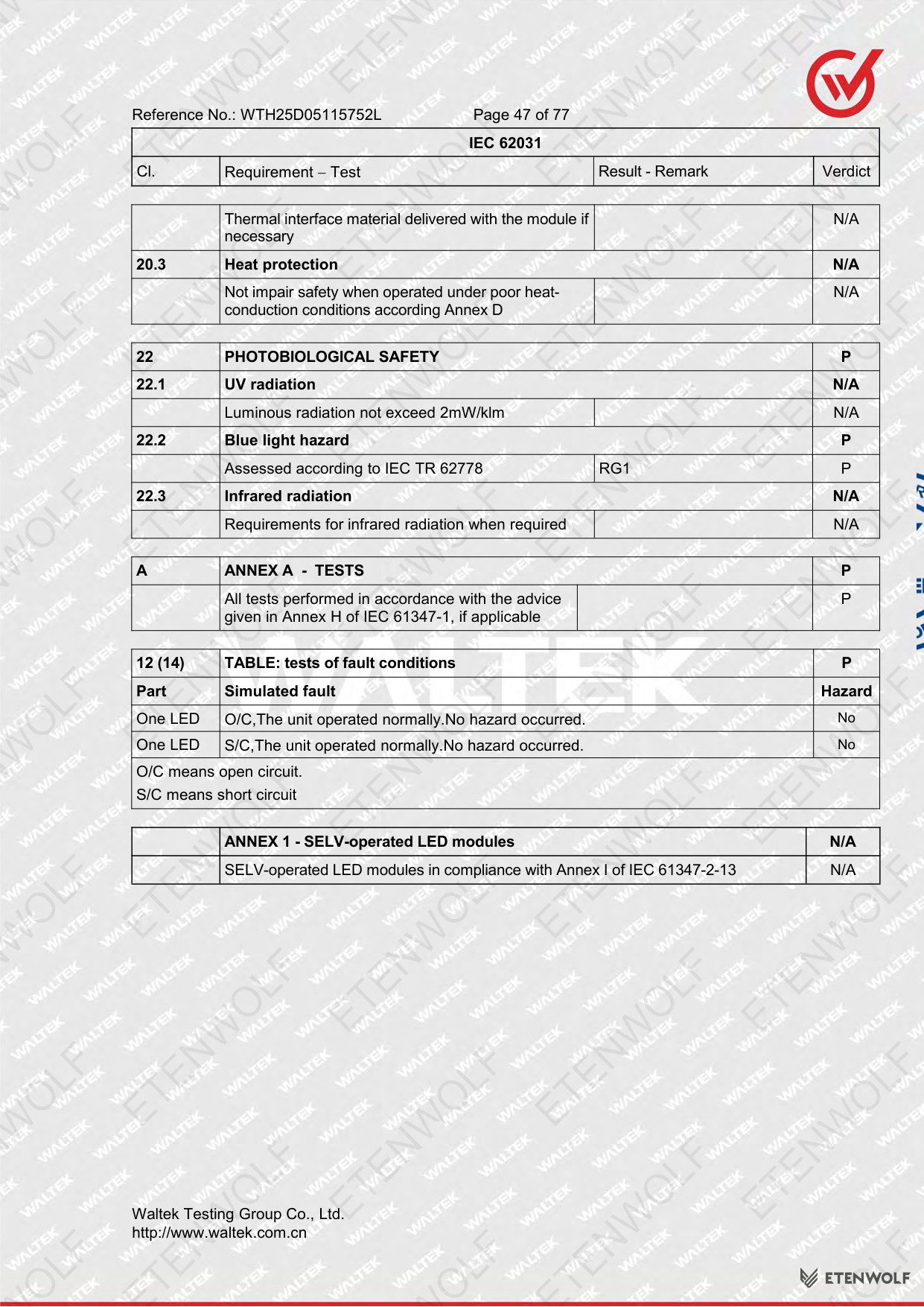

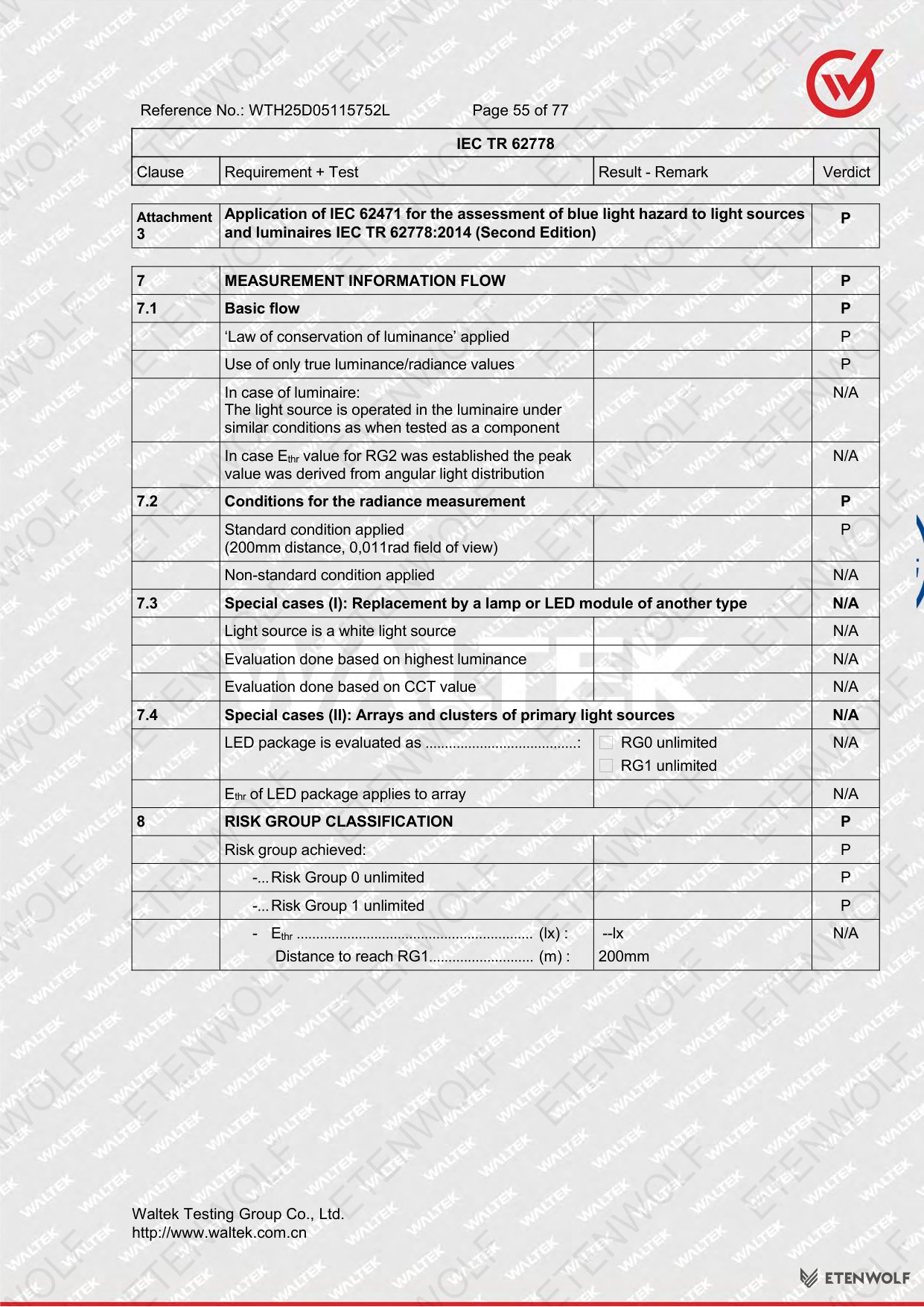

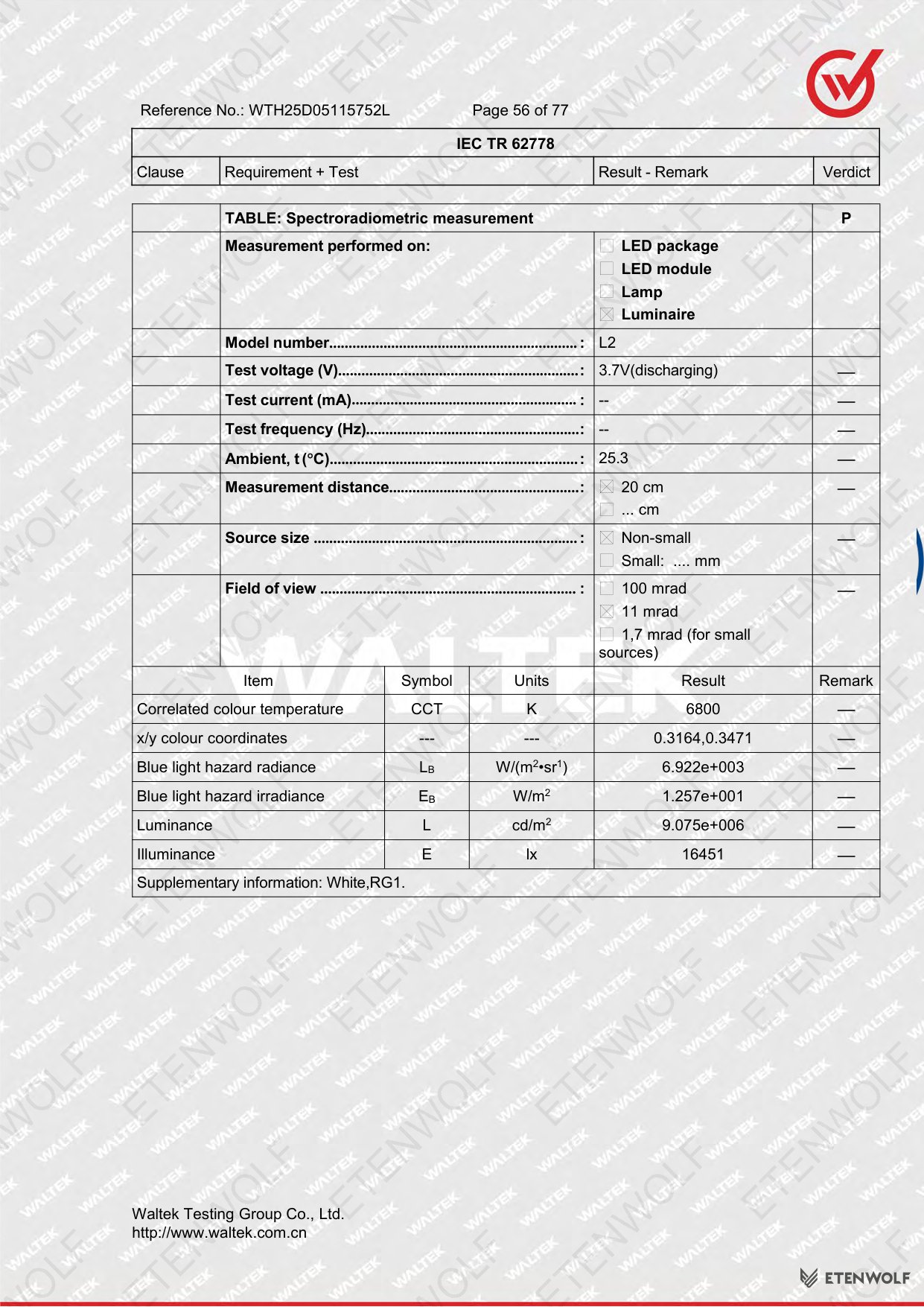

| Retinal blue light hazard (Risk Group classification) | IEC/TR 62778:2014 | RG1 (Pass) |

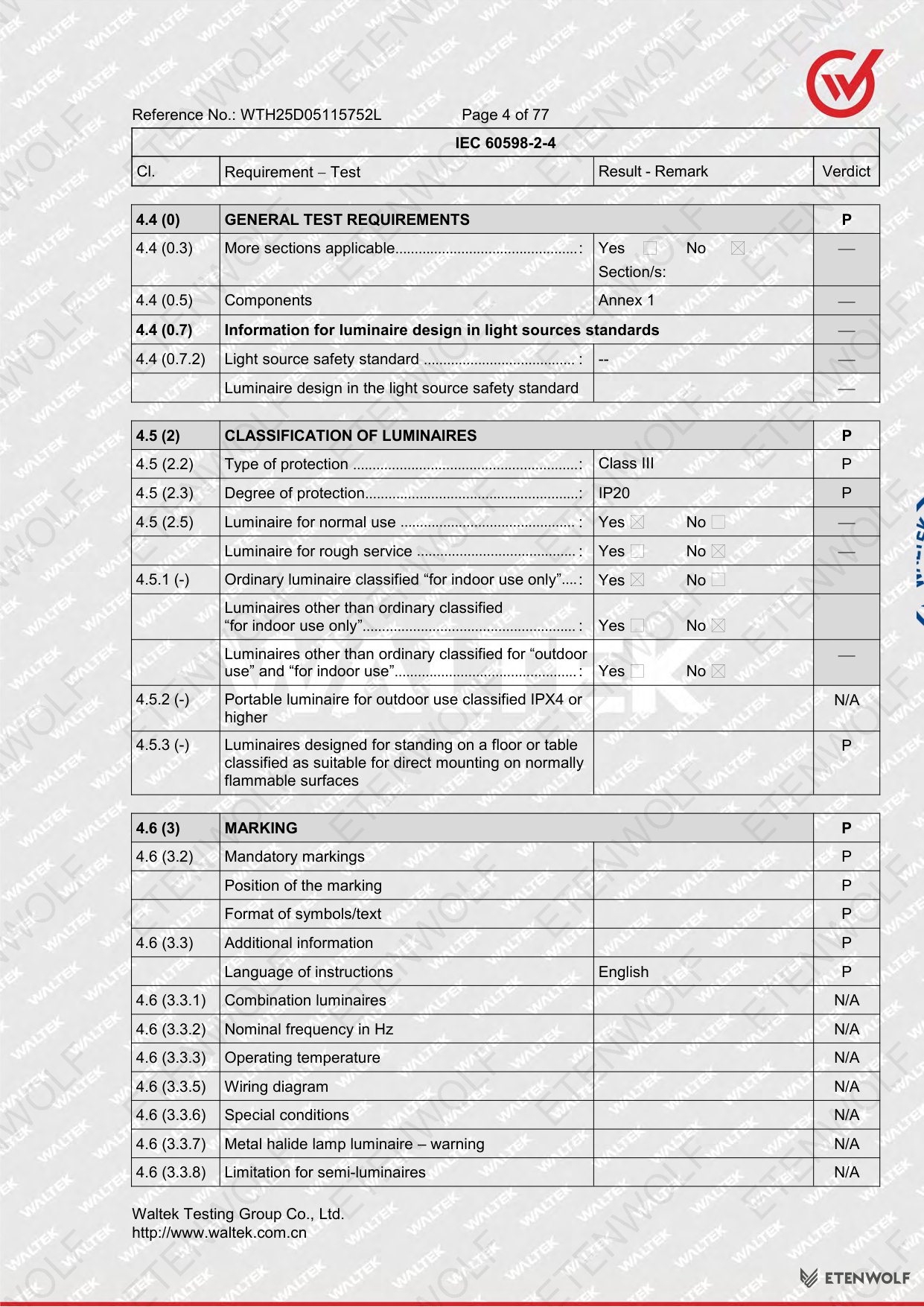

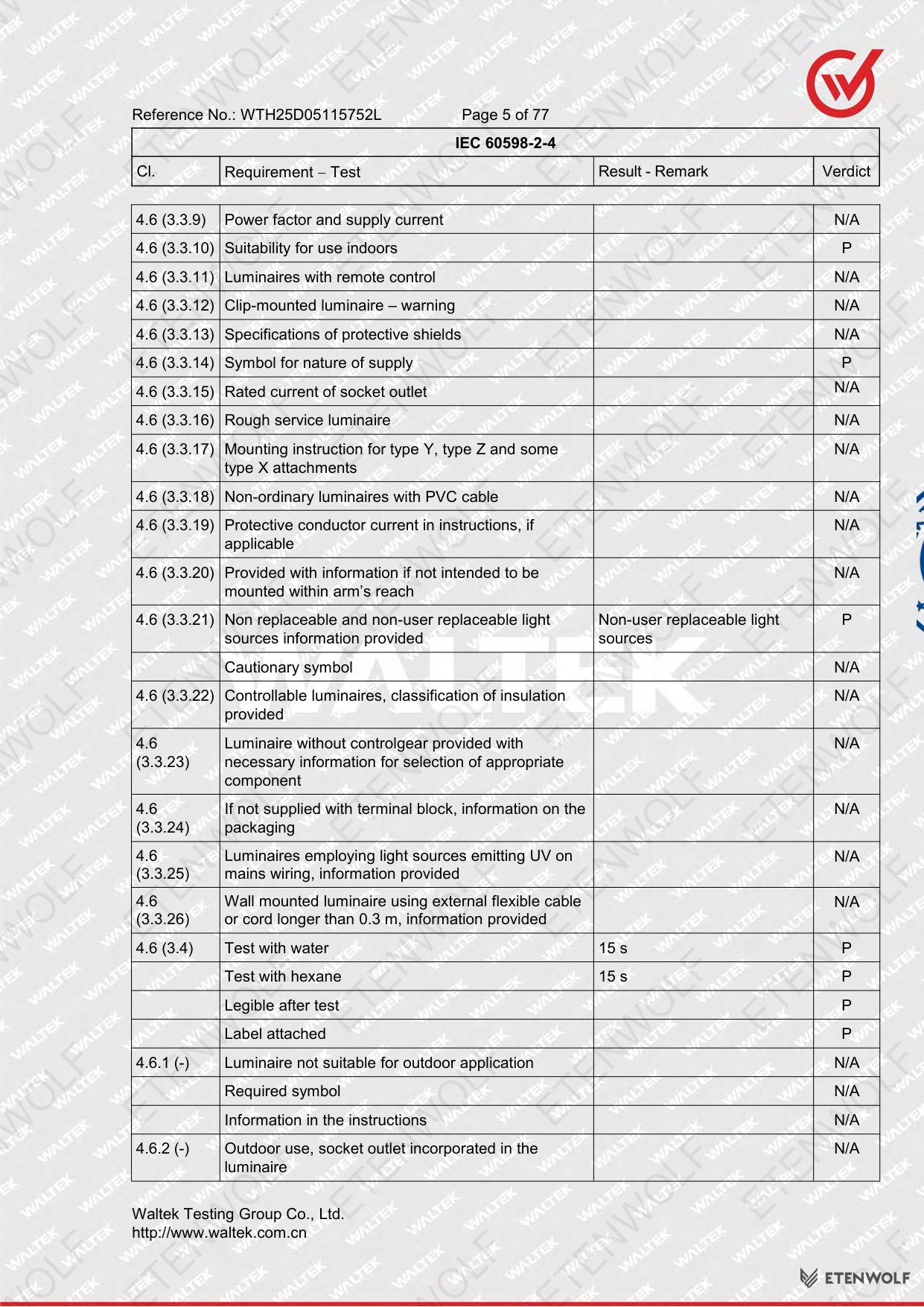

Selected classification and marking results from the IEC 60598-2-4 assessment are detailed below:
| Clause | Requirement | Verdict |
|---|---|---|
| 4.5 (2.2) | Type of protection: Class III | Pass |
| 4.5 (2.3) | Degree of protection: IP20 | Pass |
| 4.5.1 | Ordinary luminaire classified for indoor use only | Pass |
| 4.5.3 | Suitable for direct mounting on normally flammable surfaces | Pass |
| 4.6 (3.2) | Mandatory markings (position and format) | Pass |
| 4.6 (3.3) | Additional information and language of instructions (English) | Pass |
| 4.6 (3.3.10) | Suitability for use indoors | Pass |
| 4.6 (3.3.14) | Symbol for nature of supply | Pass |
The retinal blue light hazard subtest was subcontracted to Waltek Testing Group (Foshan) Co., Ltd. (CNAS License No. L6478). Only the most unfavorable results are recorded in this report.
Standards & Compliance
The ETENWOLF L2 tactical flashlight was evaluated against the following European harmonized standards and technical references, all relevant to CE-LVD compliance:
- EN IEC 60598-1:2021+A11:2022 — Luminaires Part 1: General requirements and tests
- EN 60598-2-4:2018 — Luminaires Part 2: Particular requirements, Section 4 – Portable general purpose luminaires
- EN 62493:2015+A1:2022 — Assessment of lighting equipment related to human exposure to electromagnetic fields
- EN 61347-2-11:2001+A1:2019 — Lamp controlgear Part 2-11: Particular requirements for miscellaneous electronic circuits used with luminaires (assessed with EN 61347-1:2015+AMD1:2021)
- EN IEC 61058-1:2018 — Switches for appliances Part 1: General requirements (switch endurance, 10,000 cycles)
- EN IEC 62031:2020+A11:2021 — LED modules for general lighting: Safety specifications
- IEC/TR 62778:2014 — Application of IEC 62471 for the assessment of blue light hazard to light sources and luminaires
The product passed all applicable clauses under these standards. Non-applicable clauses were marked N/A in the test report and did not affect the overall pass verdict.
Validity & Certification Body
The test report reference number WTH25D05115752L was issued on 2025-07-28 by Waltek Testing Group Co., Ltd. Test results are valid for the specific sample(s) tested and are subject to the conditions stated in the report.
| Field | Details |
|---|---|
| Report Reference No. | WTH25D05115752L |
| Date of Issue | 2025-07-28 |
| Testing Laboratory | Waltek Testing Group Co., Ltd. |
| Lab Address | No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China |
| Lab Website | http://www.waltek.com.cn |
| Lab Telephone | +86-769-2267 6998 |
| Lab Fax | +86-769-2267 6828 |
| Compiled by | Bucky Liu, Project Engineer |
| Approved by | Deval Qin, Designated Reviewer |
| Subcontracted Lab (Blue Light) | Waltek Testing Group (Foshan) Co., Ltd., CNAS License No. L6478 |
The report is valid only with the specific stamp of the test institute and the signatures of the compiler and approver. Partial reproduction is not permitted without prior written consent from Waltek Testing Group Co., Ltd.
Frequently Asked Questions
- What does the CE-LVD test report WTH25D05115752L confirm for the ETENWOLF L2?
- It confirms that the ETENWOLF L2 tactical flashlight was tested by an accredited third-party laboratory (Waltek Testing Group) and passed all applicable requirements under the European Low Voltage Directive, covering general luminaire safety, portable luminaire requirements, LED module safety, switch endurance, and human EMF exposure limits.
- Which safety class and IP rating does the ETENWOLF L2 carry?
- The ETENWOLF L2 is classified as Class III (SELV — Safety Extra-Low Voltage) with an IP20 ingress protection rating. It operates at 5 V / 1 A / 5 W and is intended for indoor use only.
- What is the blue light risk group classification of the ETENWOLF L2?
- The retinal blue light hazard assessment performed in accordance with IEC/TR 62778:2014 classified the ETENWOLF L2 as Risk Group 1 (RG1), indicating a low blue light hazard under normal usage conditions.
- How many operating cycles was the switch of the ETENWOLF L2 tested for?
- The switch was endurance-tested for 10,000 operating cycles in accordance with EN IEC 61058-1:2018, and it passed the requirement, confirming long-term mechanical reliability.
Related Documents
The following certification and compliance documents are relevant to the ETENWOLF L2 tactical flashlight and are recommended to accompany this CE-LVD test report for a complete compliance package:
- CE-EMC Test Report — Electromagnetic compatibility assessment under Directive 2014/30/EU, covering radiated and conducted emissions for portable luminaires.
- CE Declaration of Conformity (DoC) — Formal declaration by the manufacturer confirming conformity with all applicable CE directives and harmonized standards.
- RoHS Compliance Report — Verification that the product meets RoHS Directive 2011/65/EU restrictions on hazardous substances in electrical and electronic equipment.
- REACH SVHC Declaration — Confirmation of compliance with REACH Regulation (EC) No 1907/2006 regarding substances of very high concern.
- UN 38.3 Battery Test Report — Safety testing for the rechargeable lithium battery used in the L2, required for transport classification under UN 38.3 regulations.

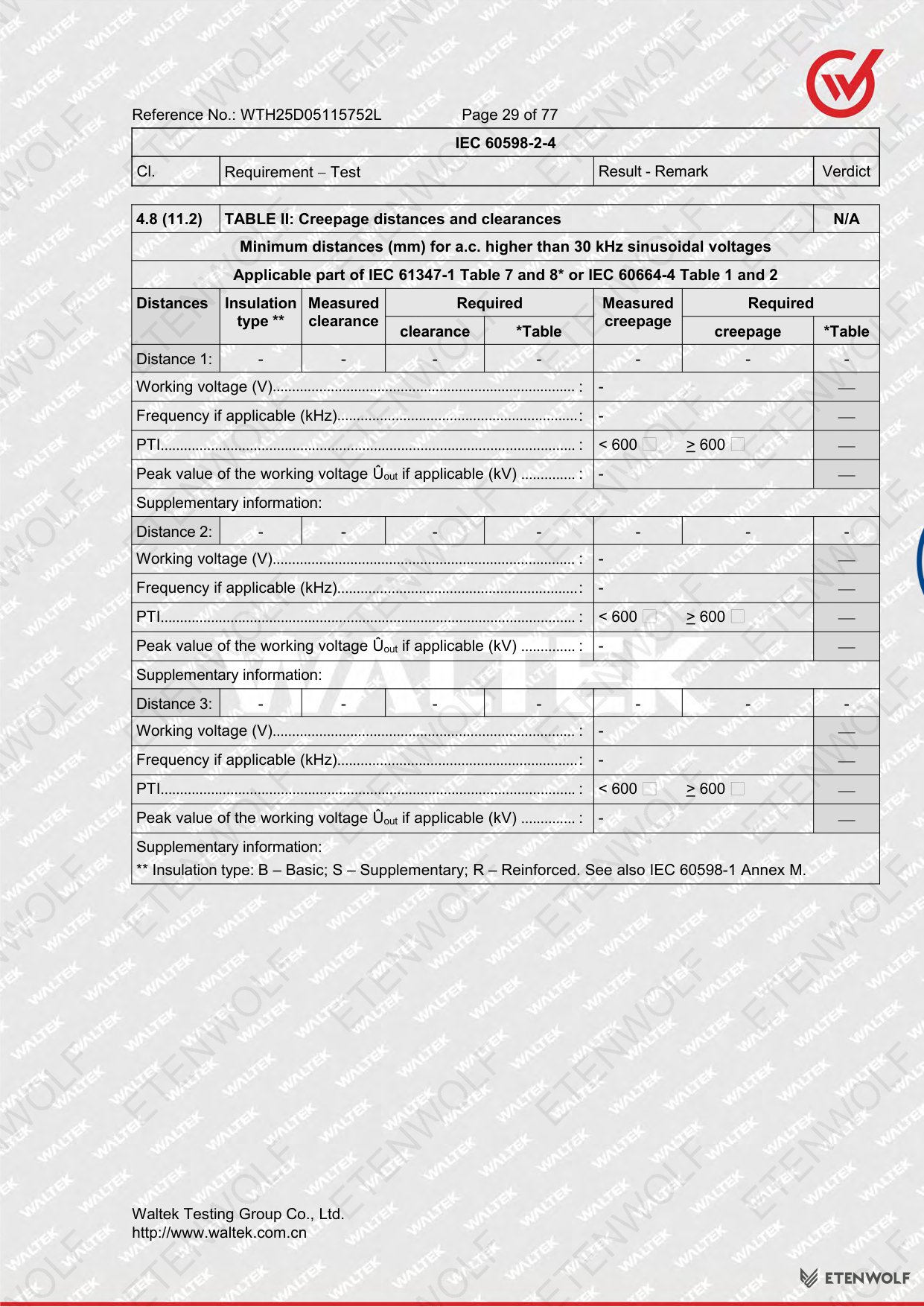

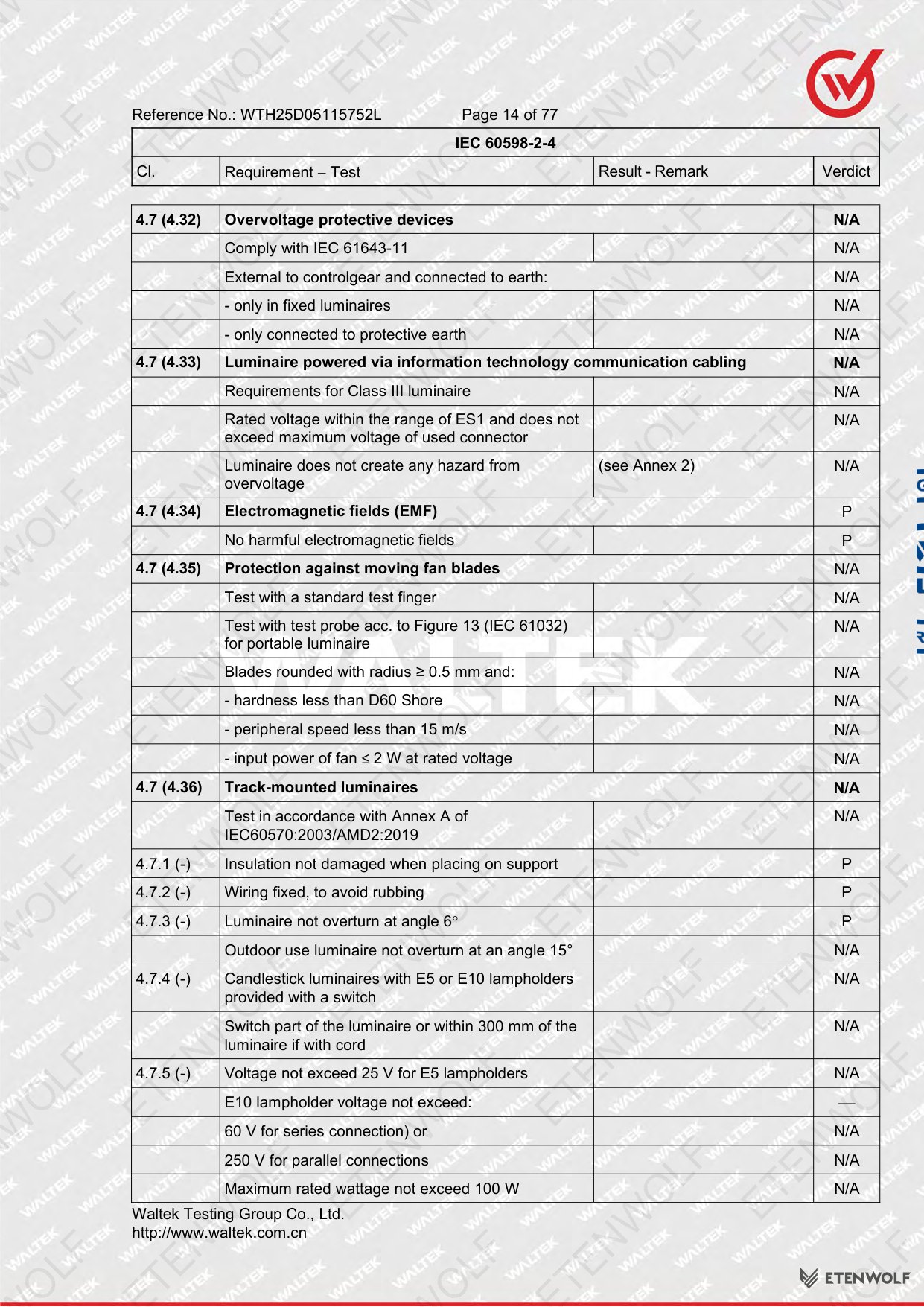

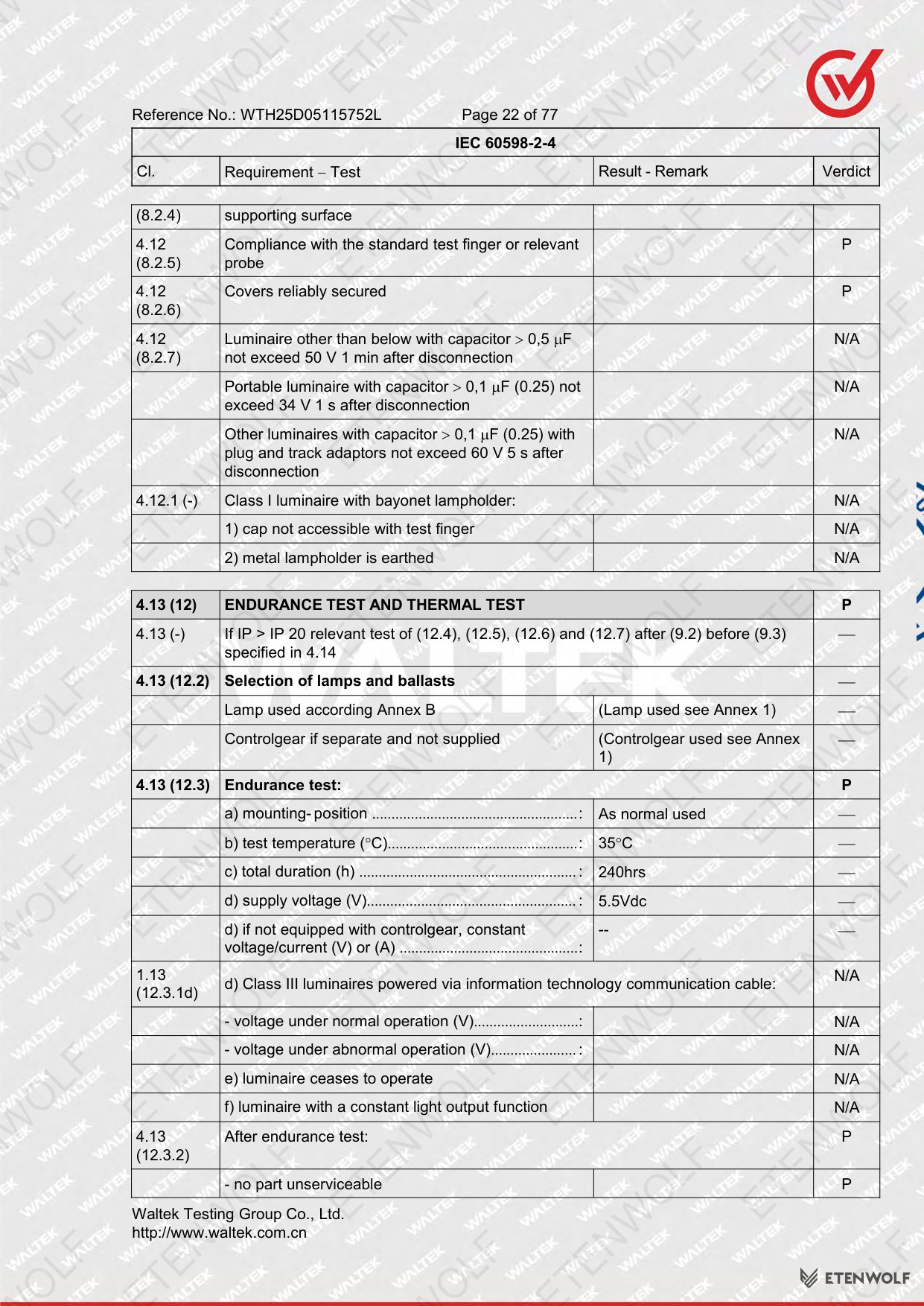

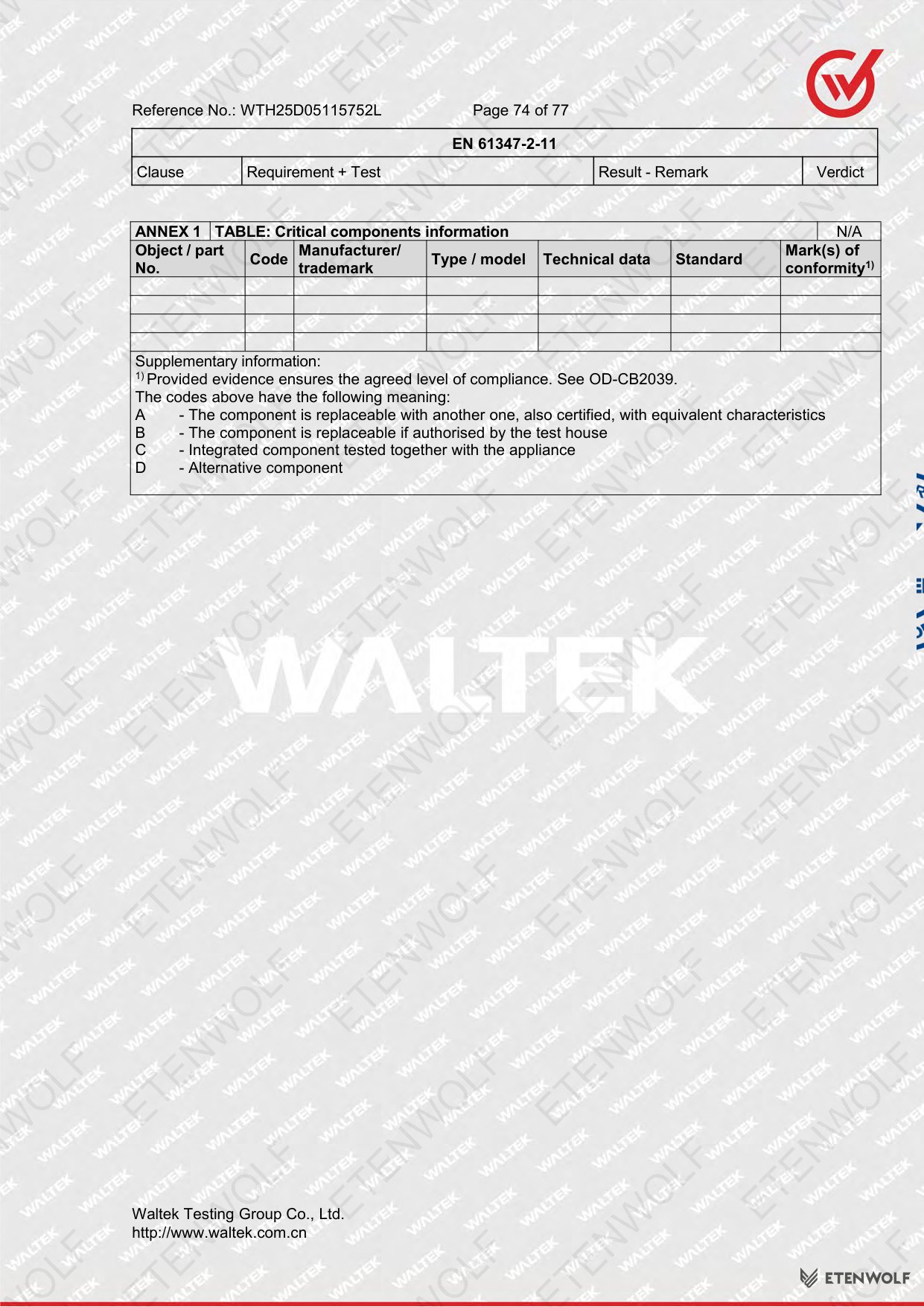

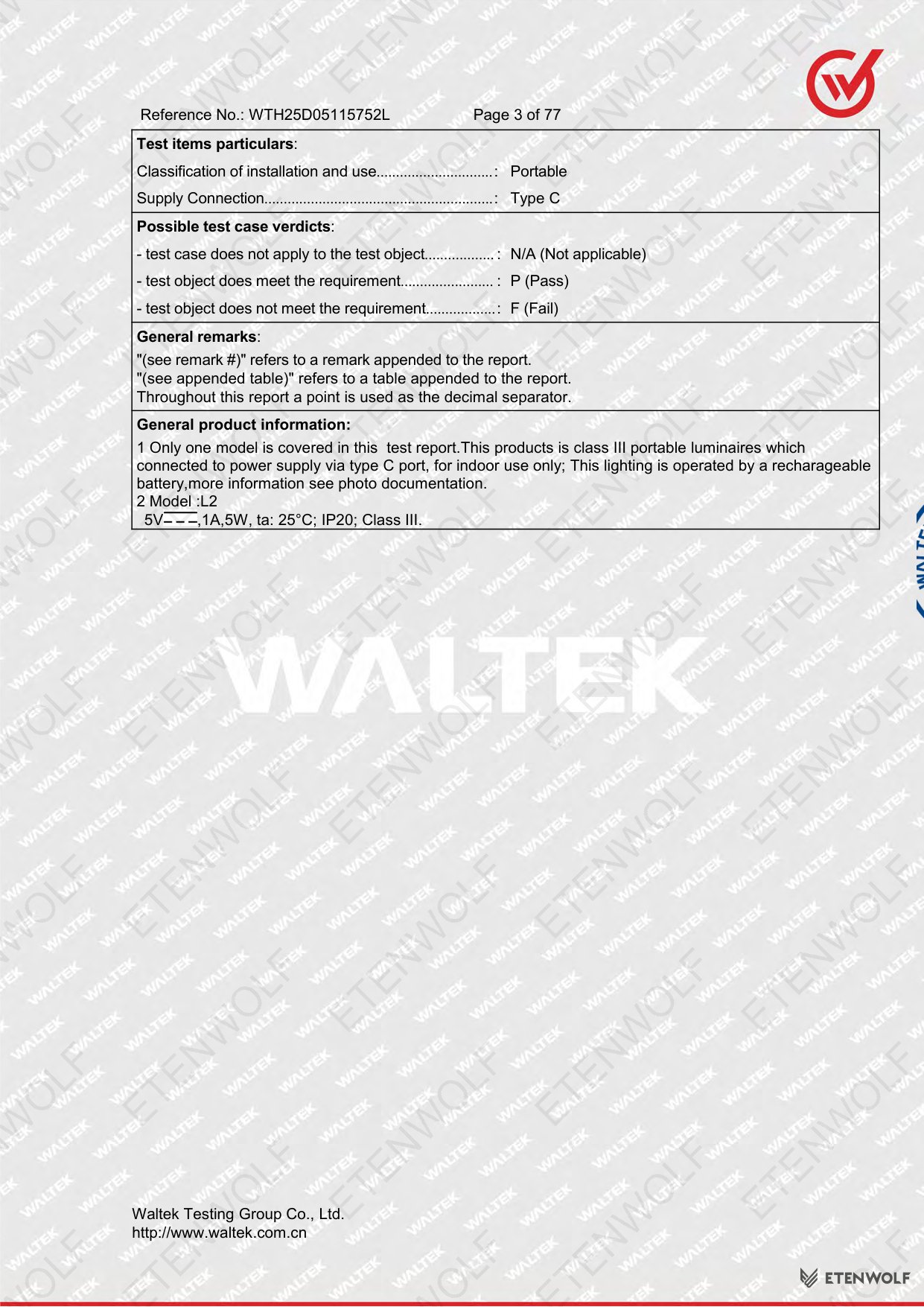

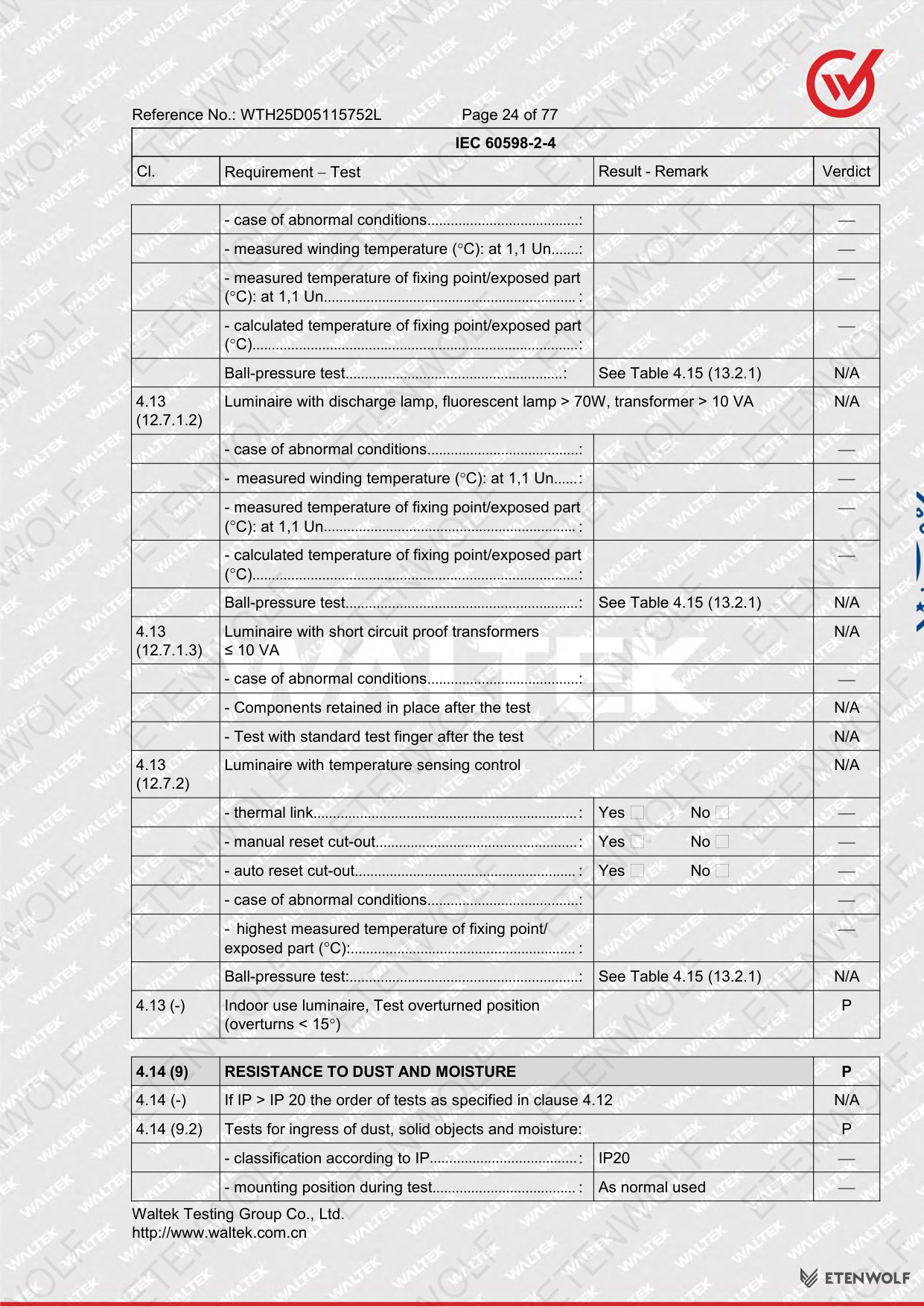

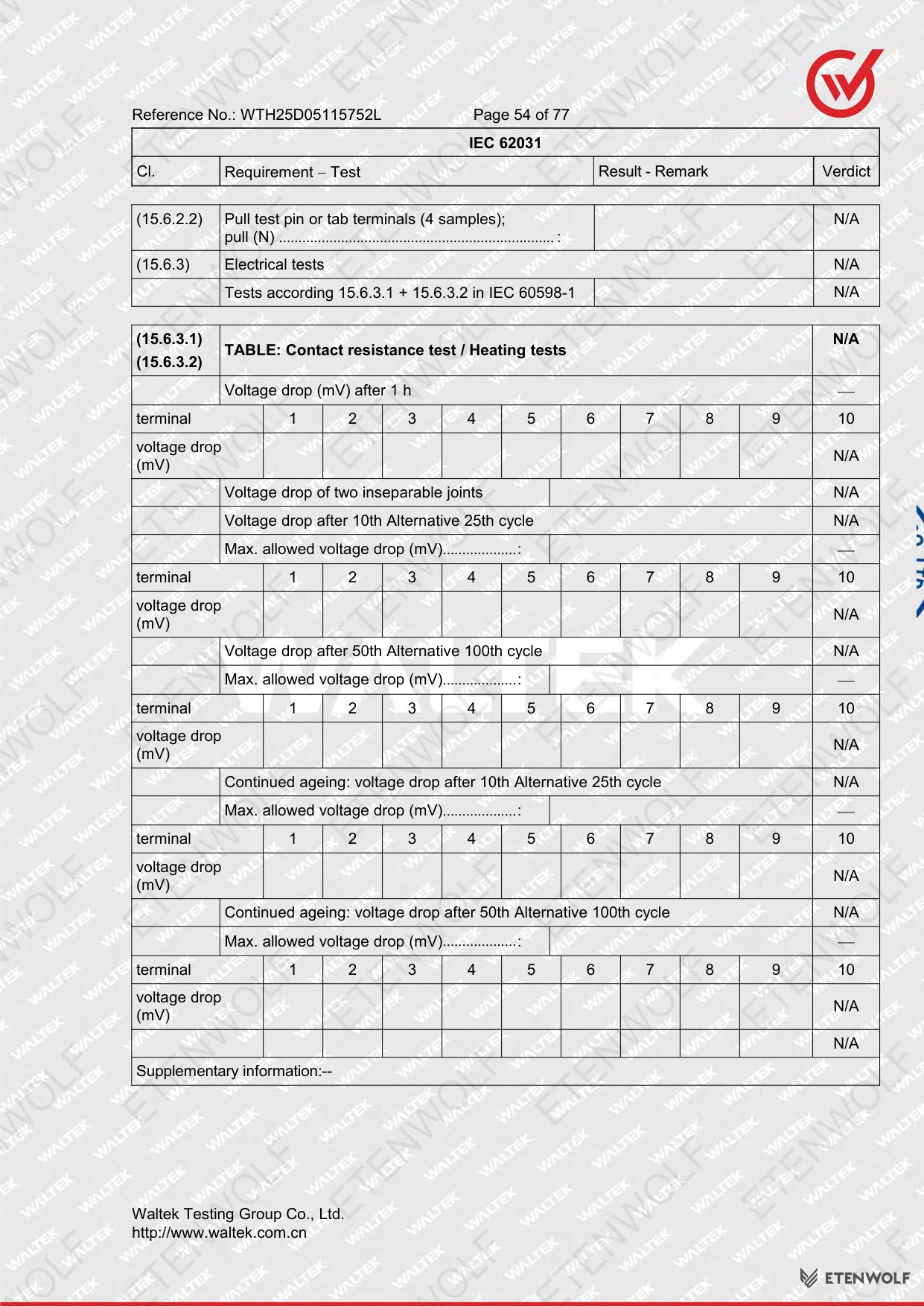

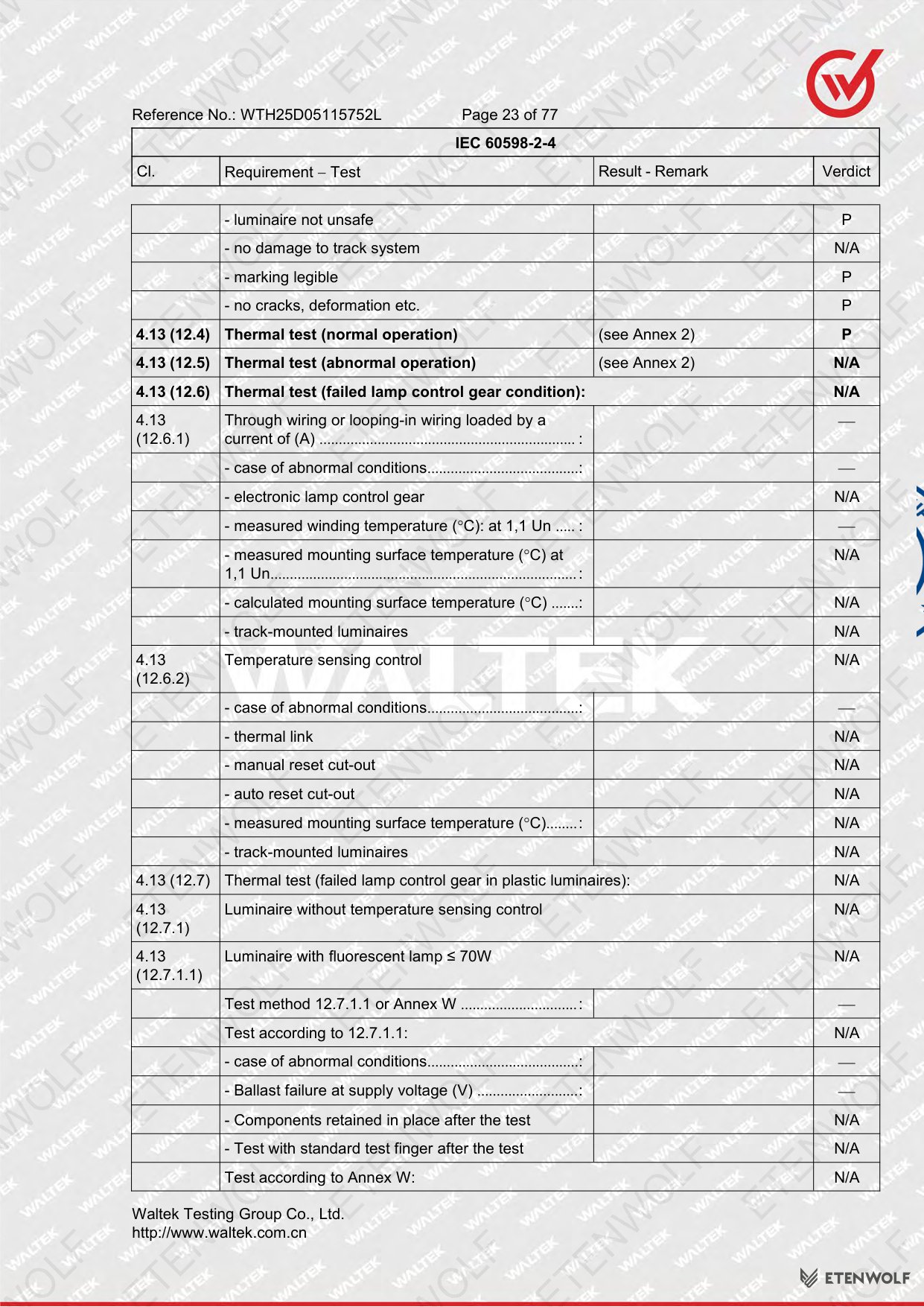

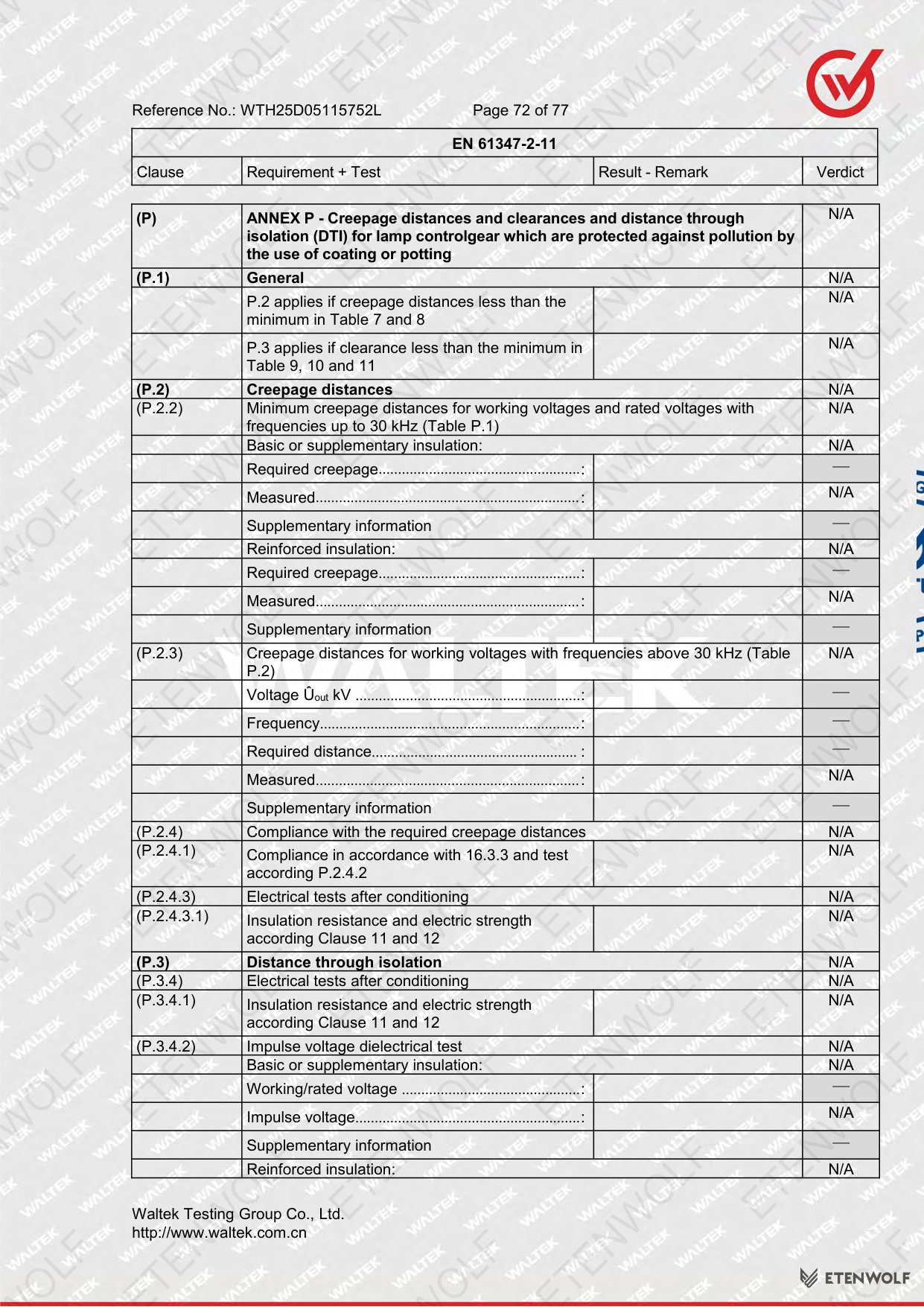

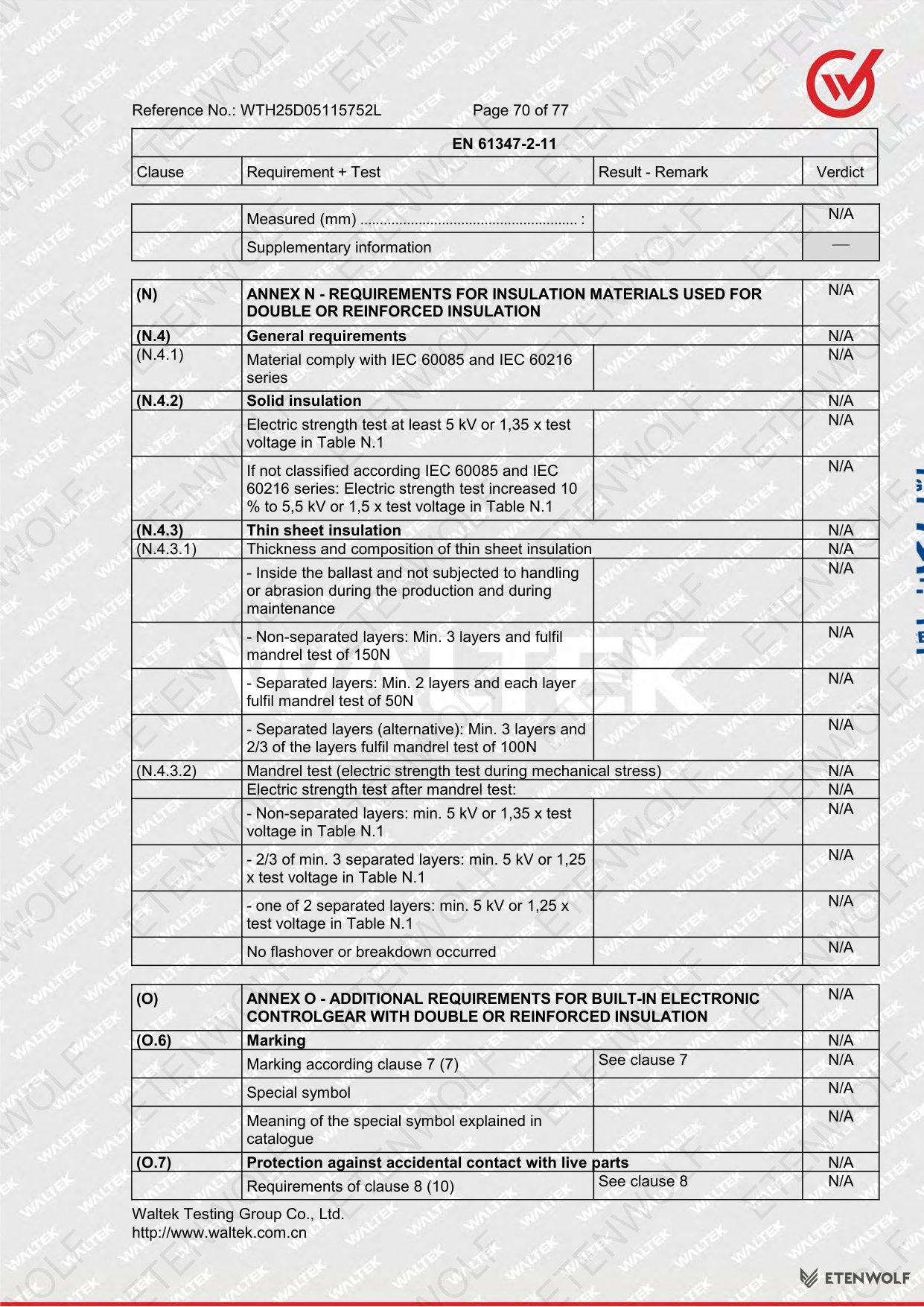

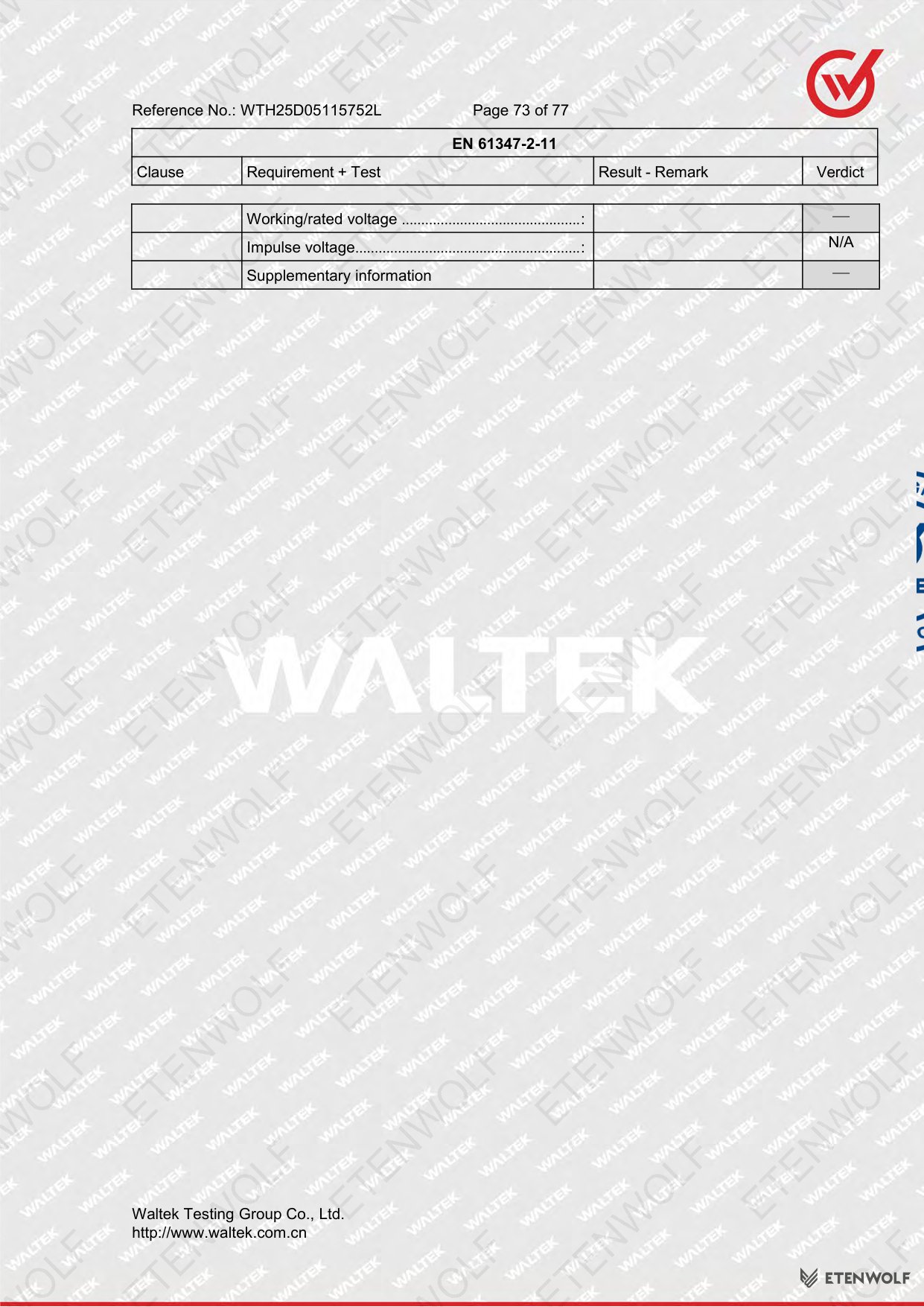

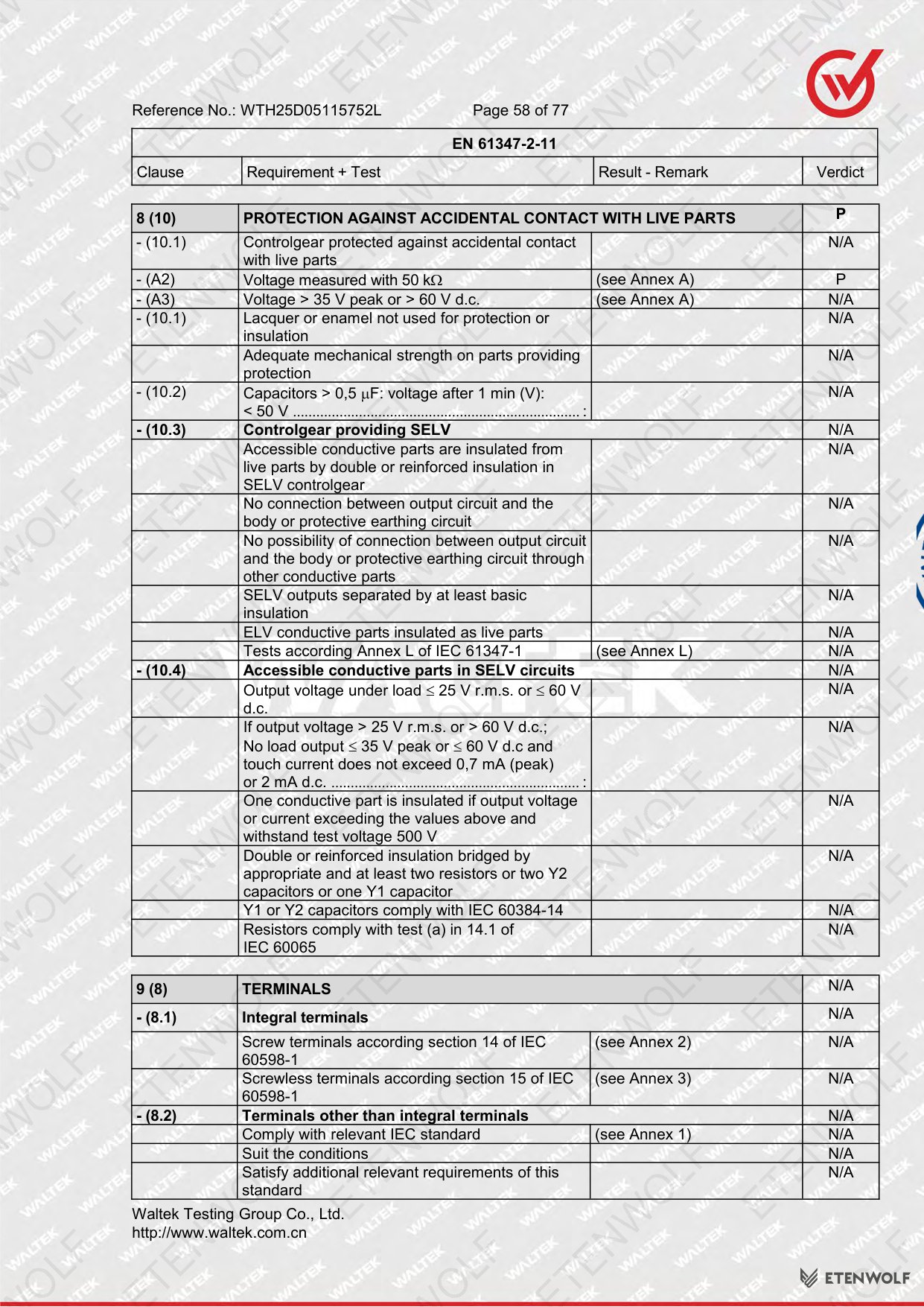

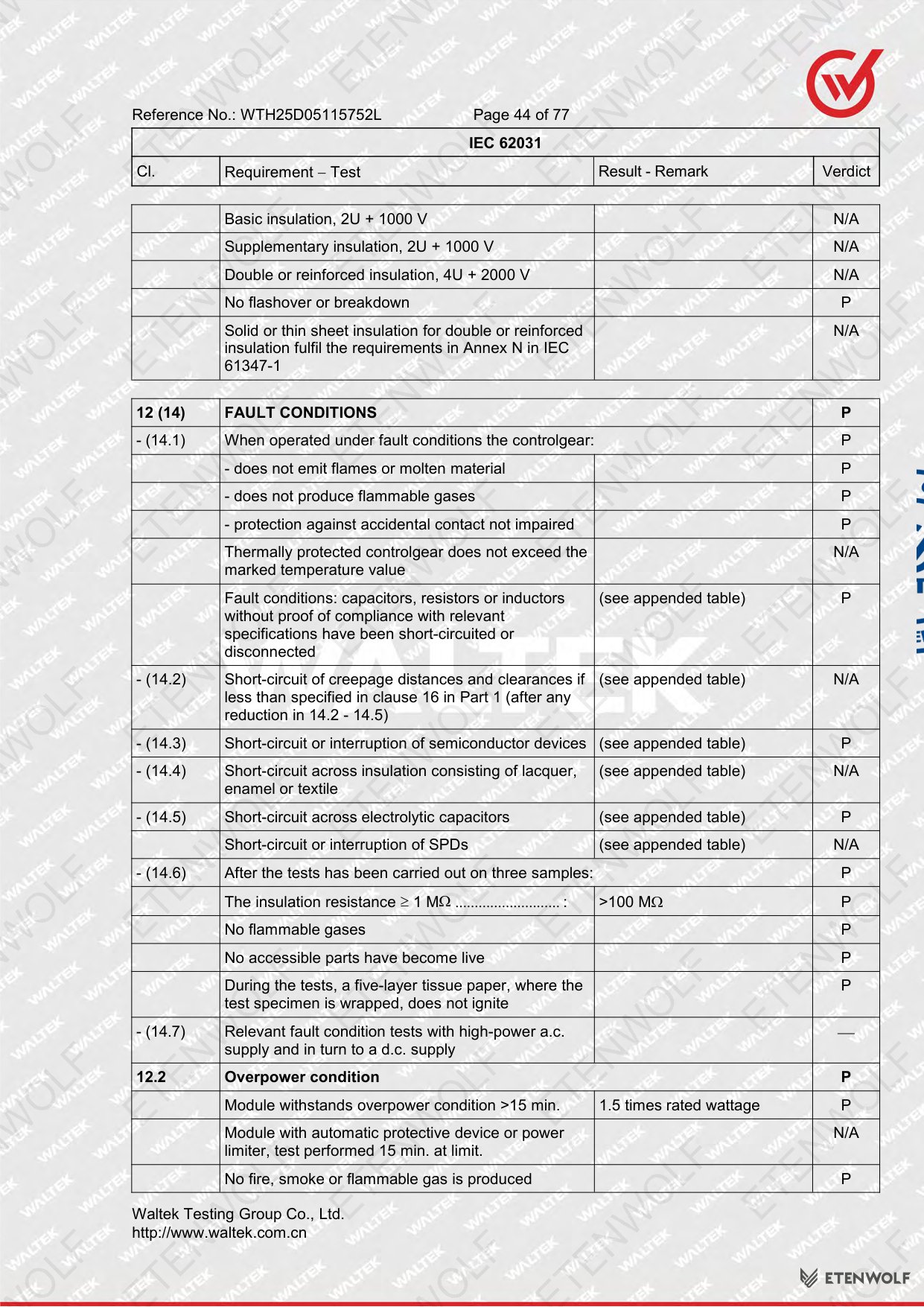

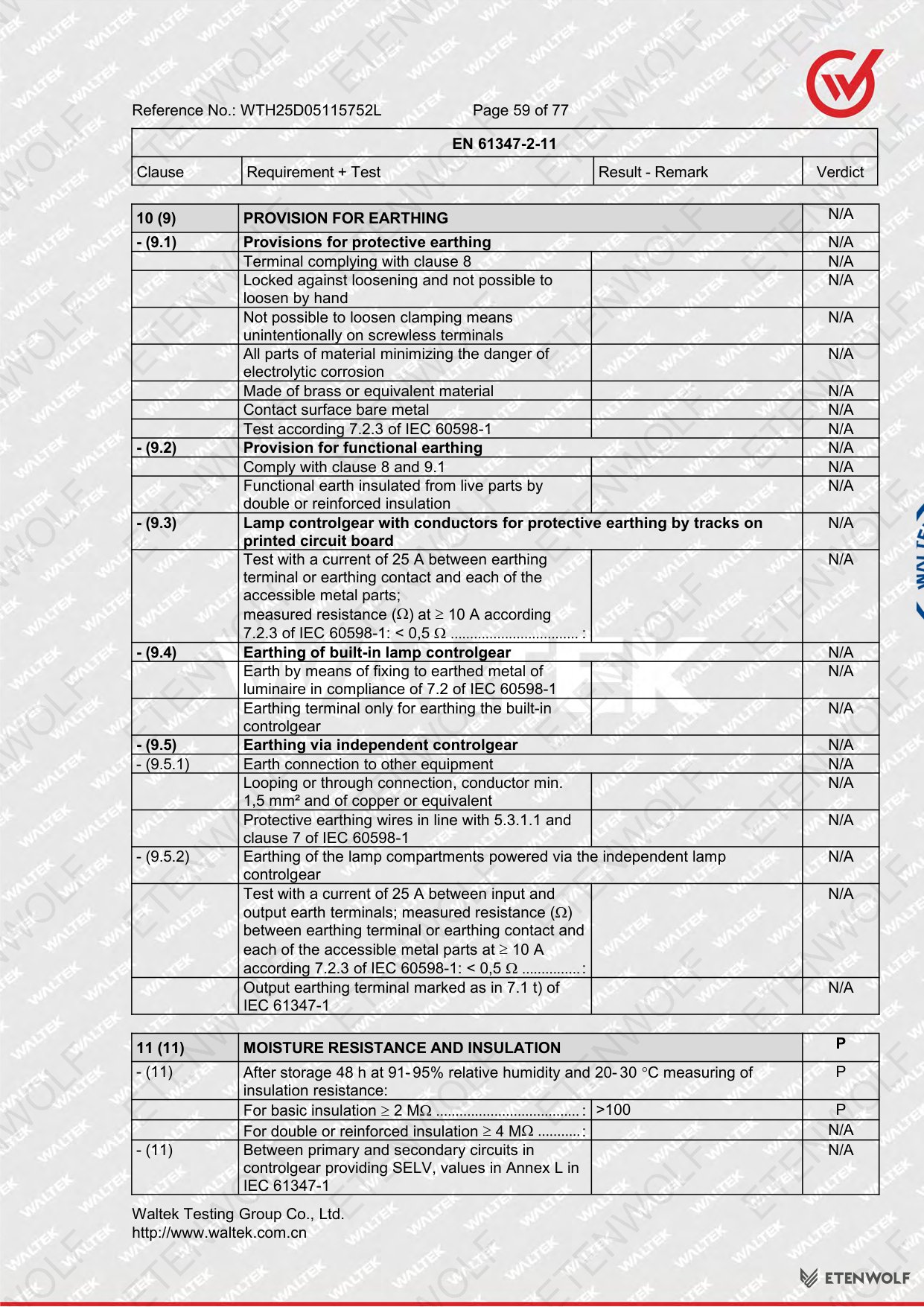

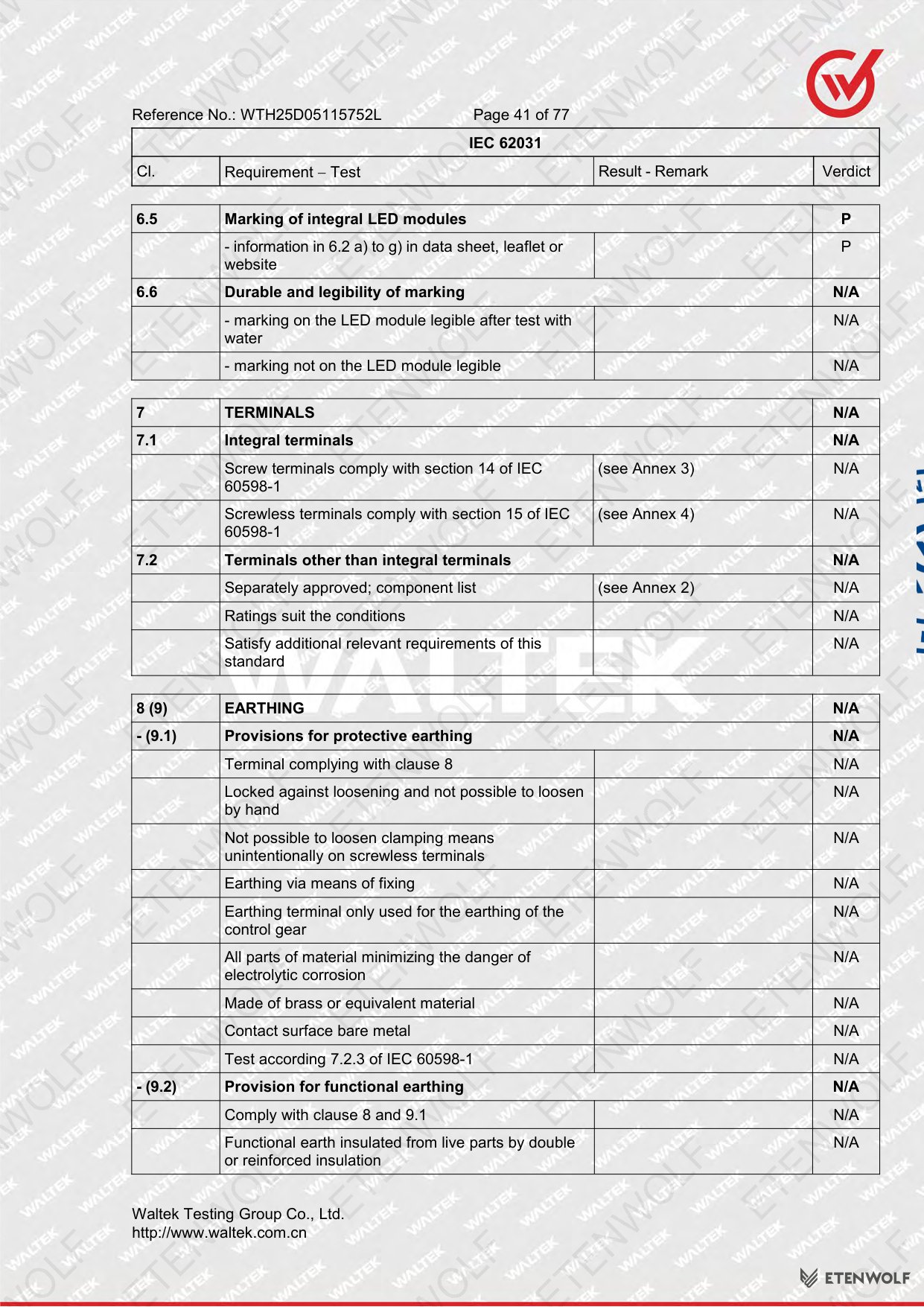

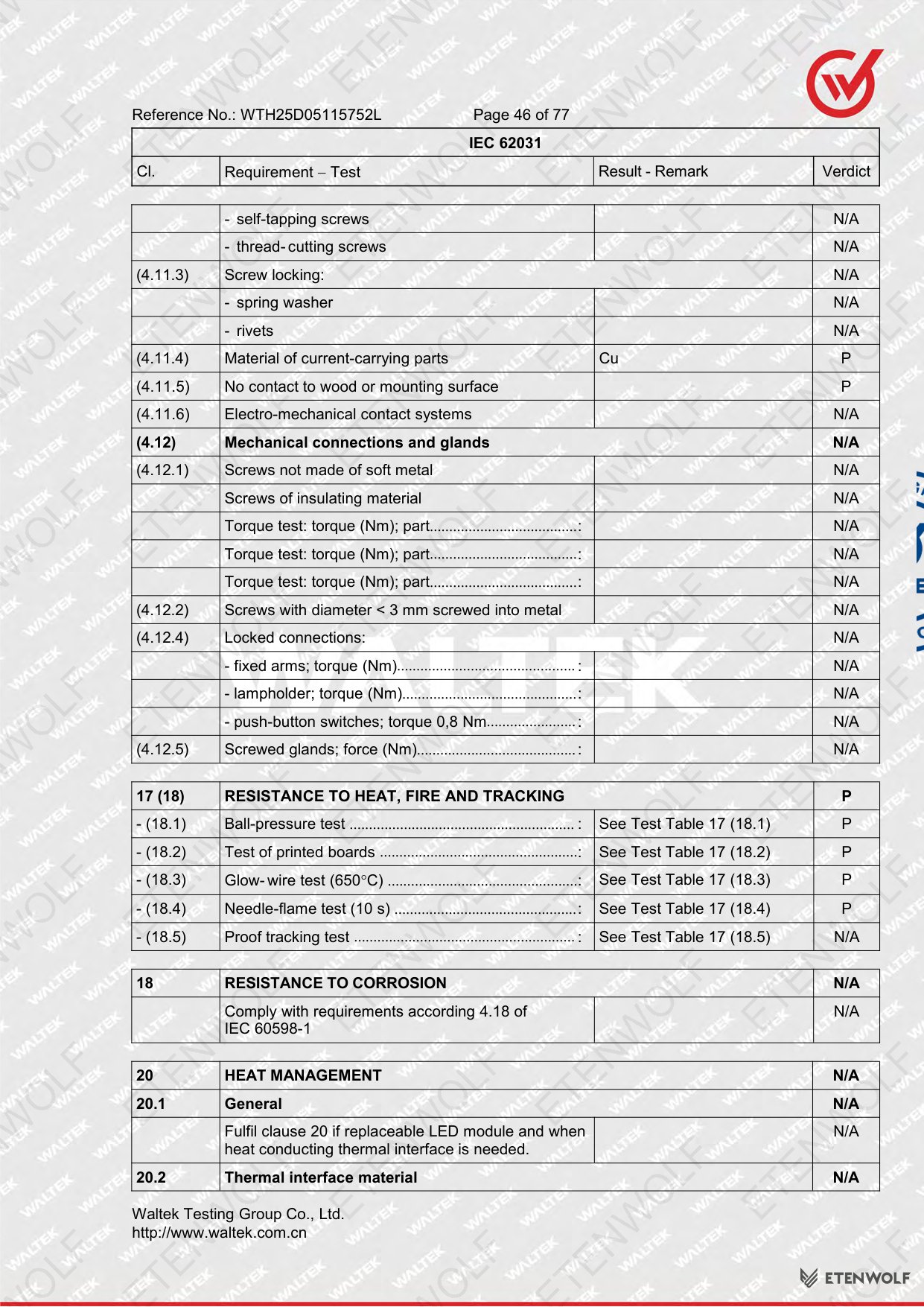

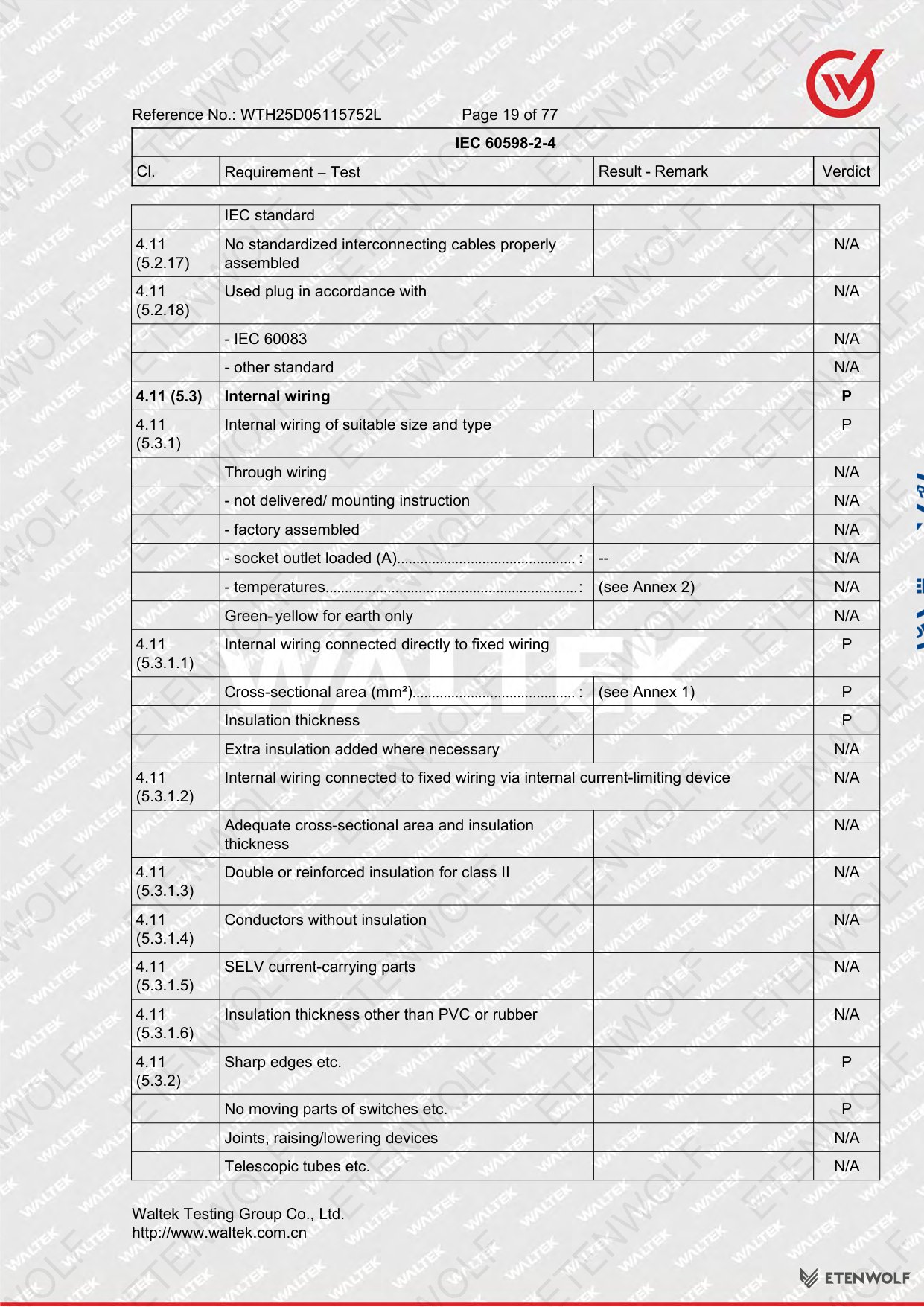

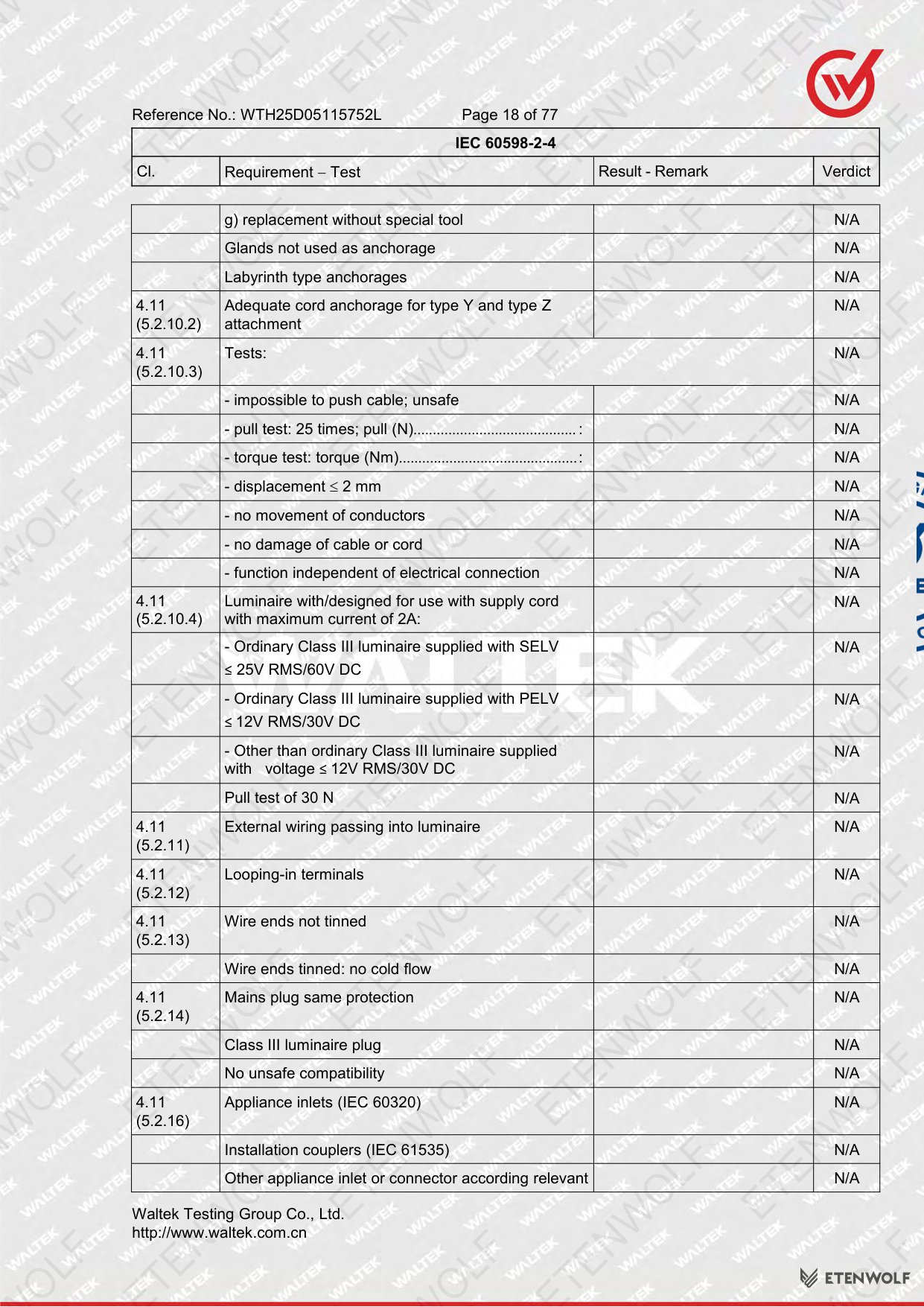

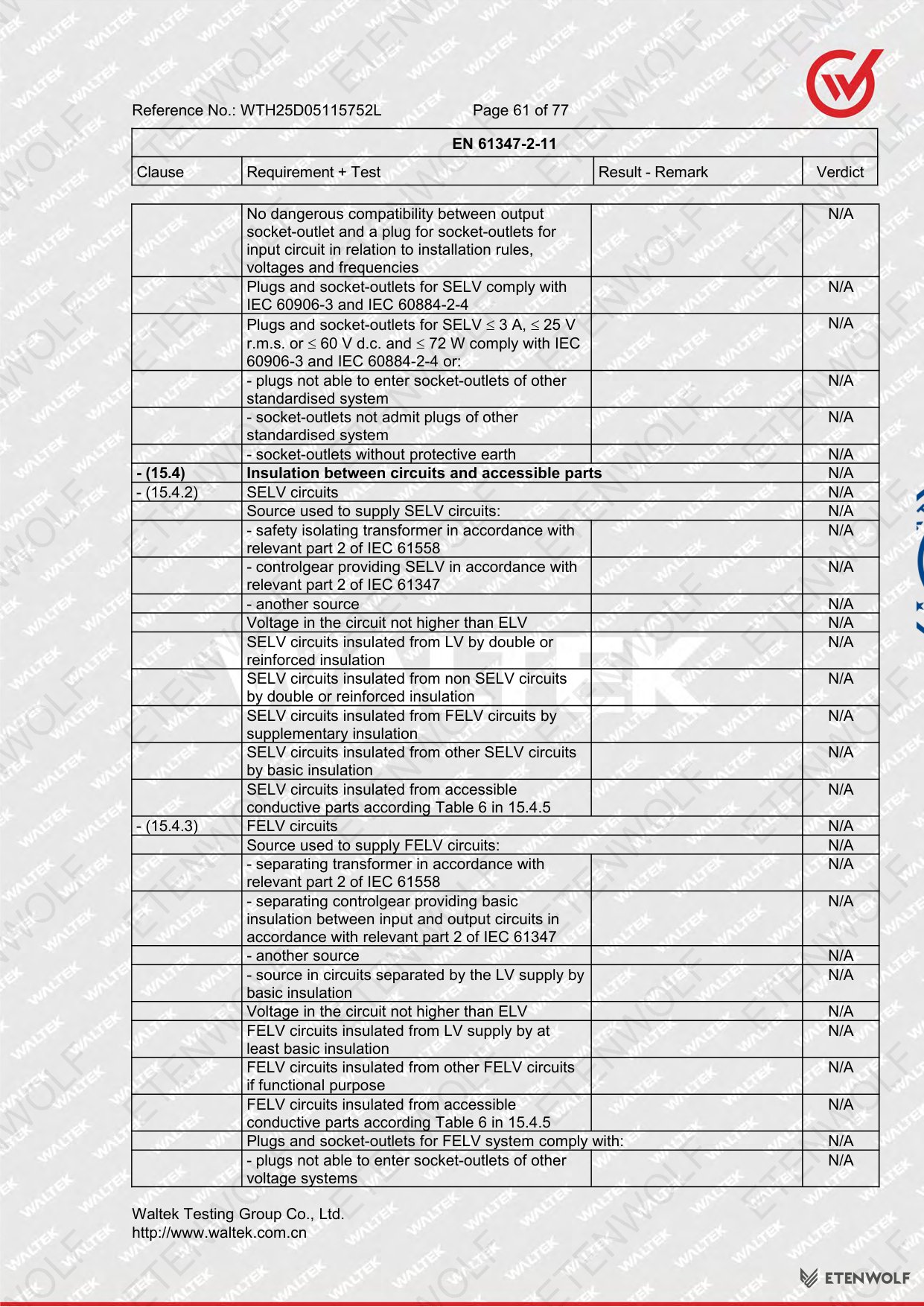

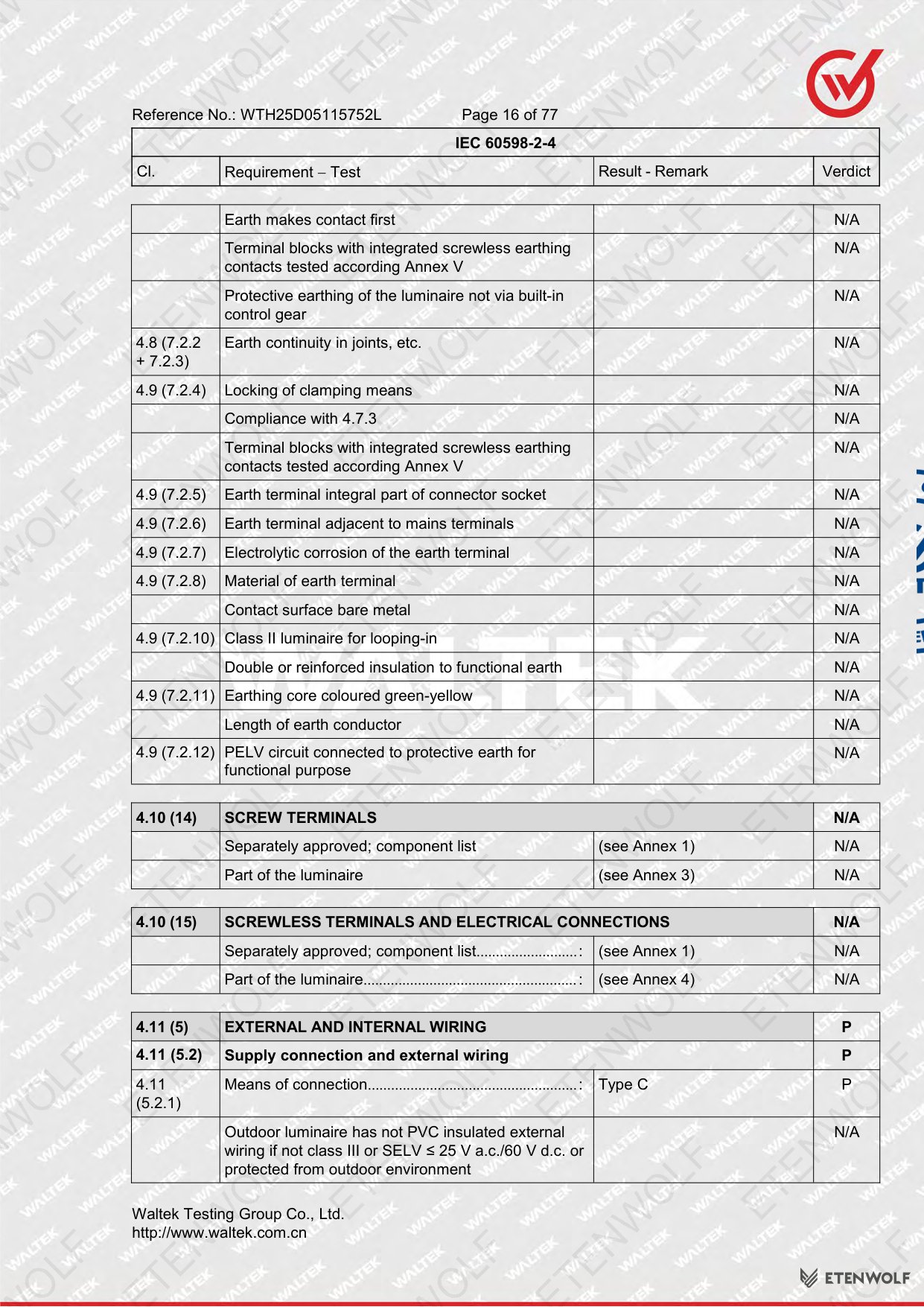

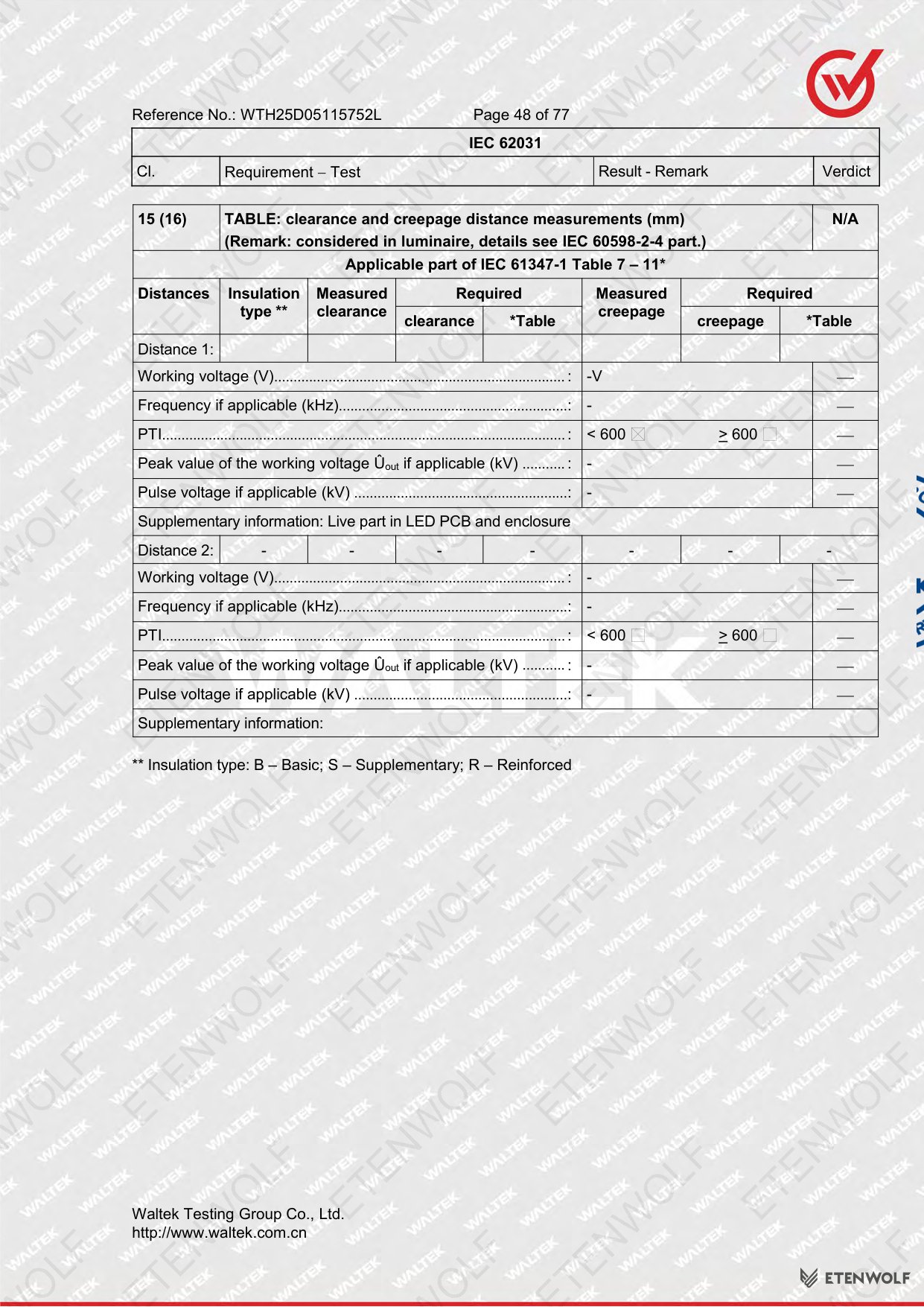

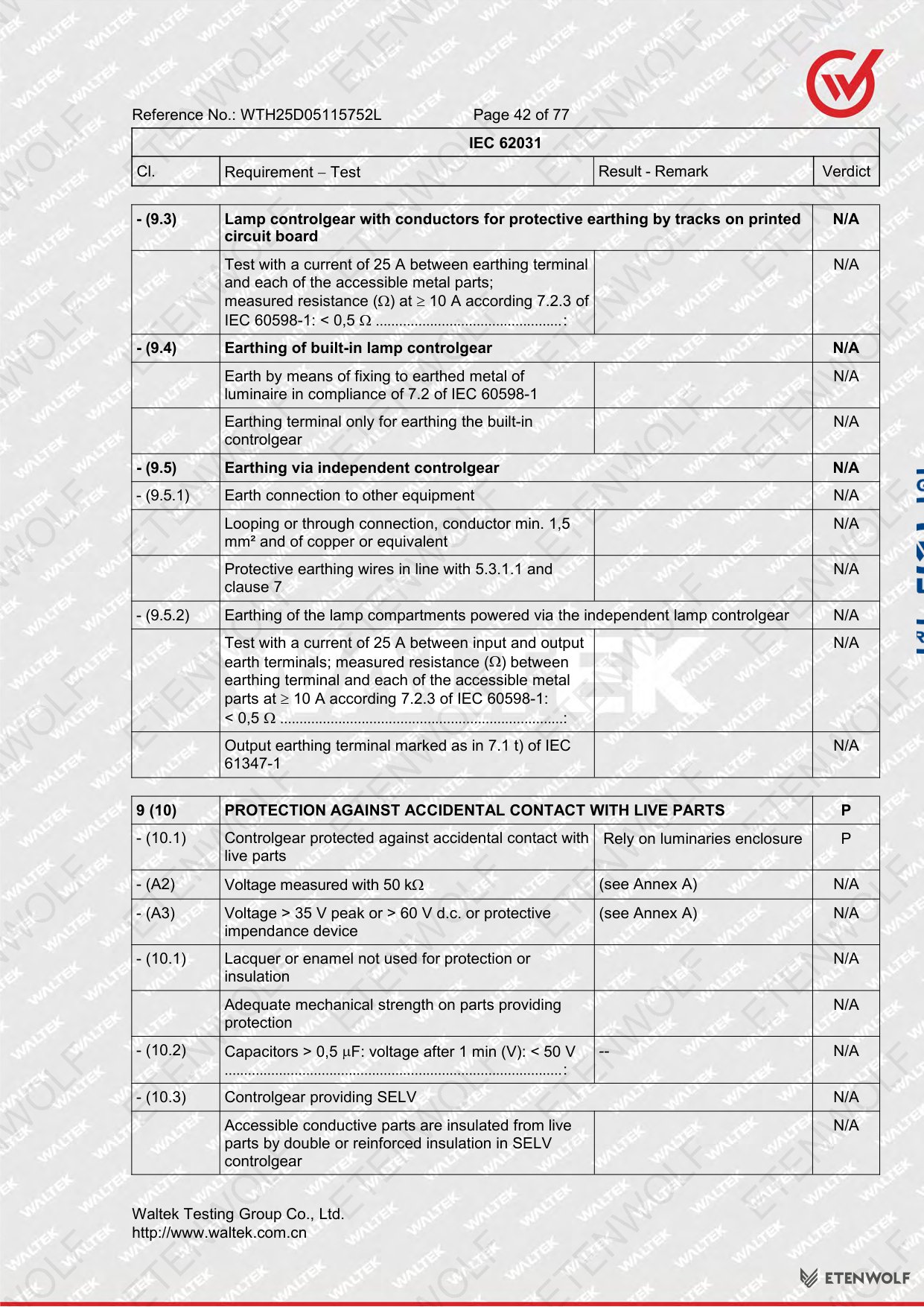

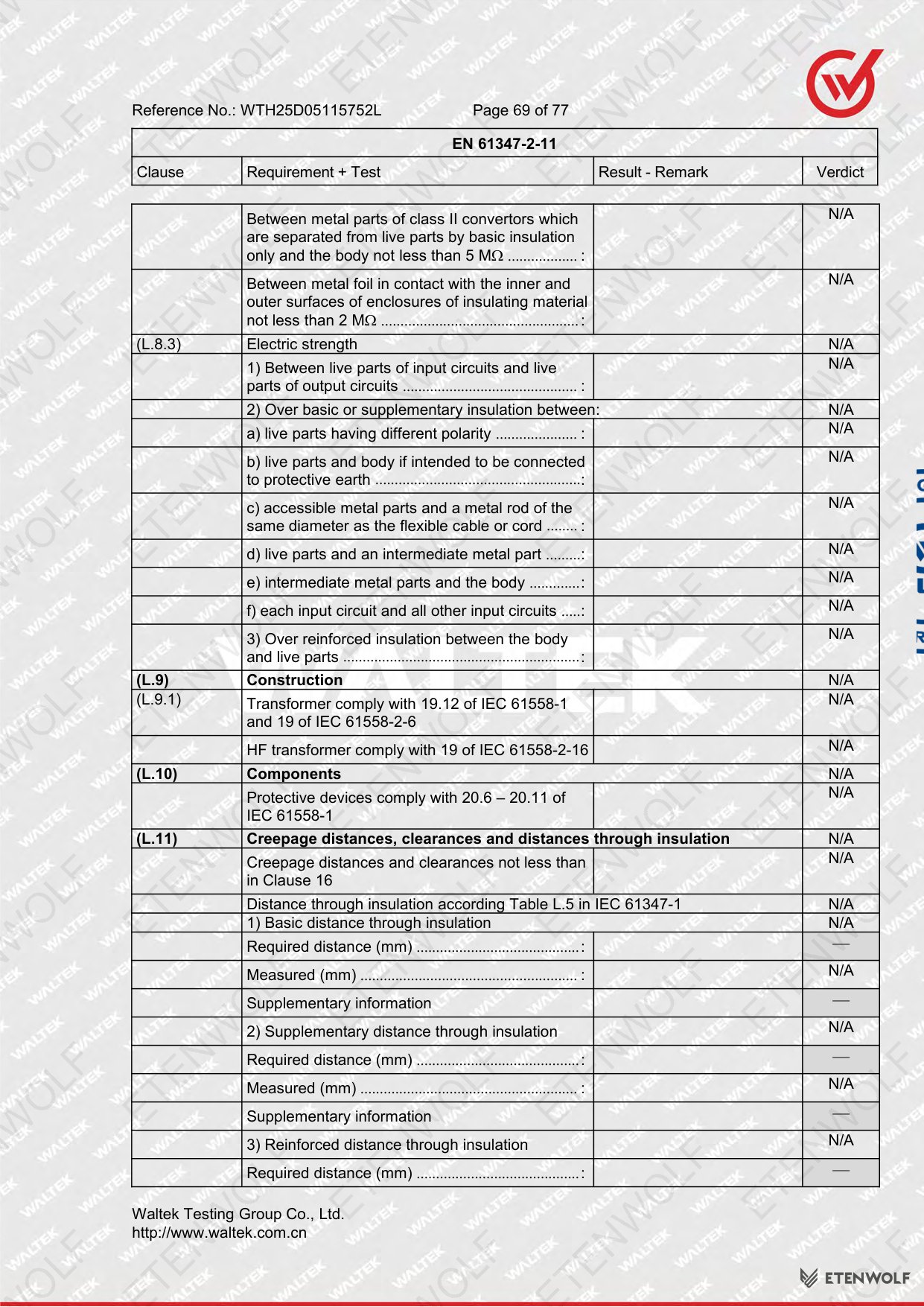

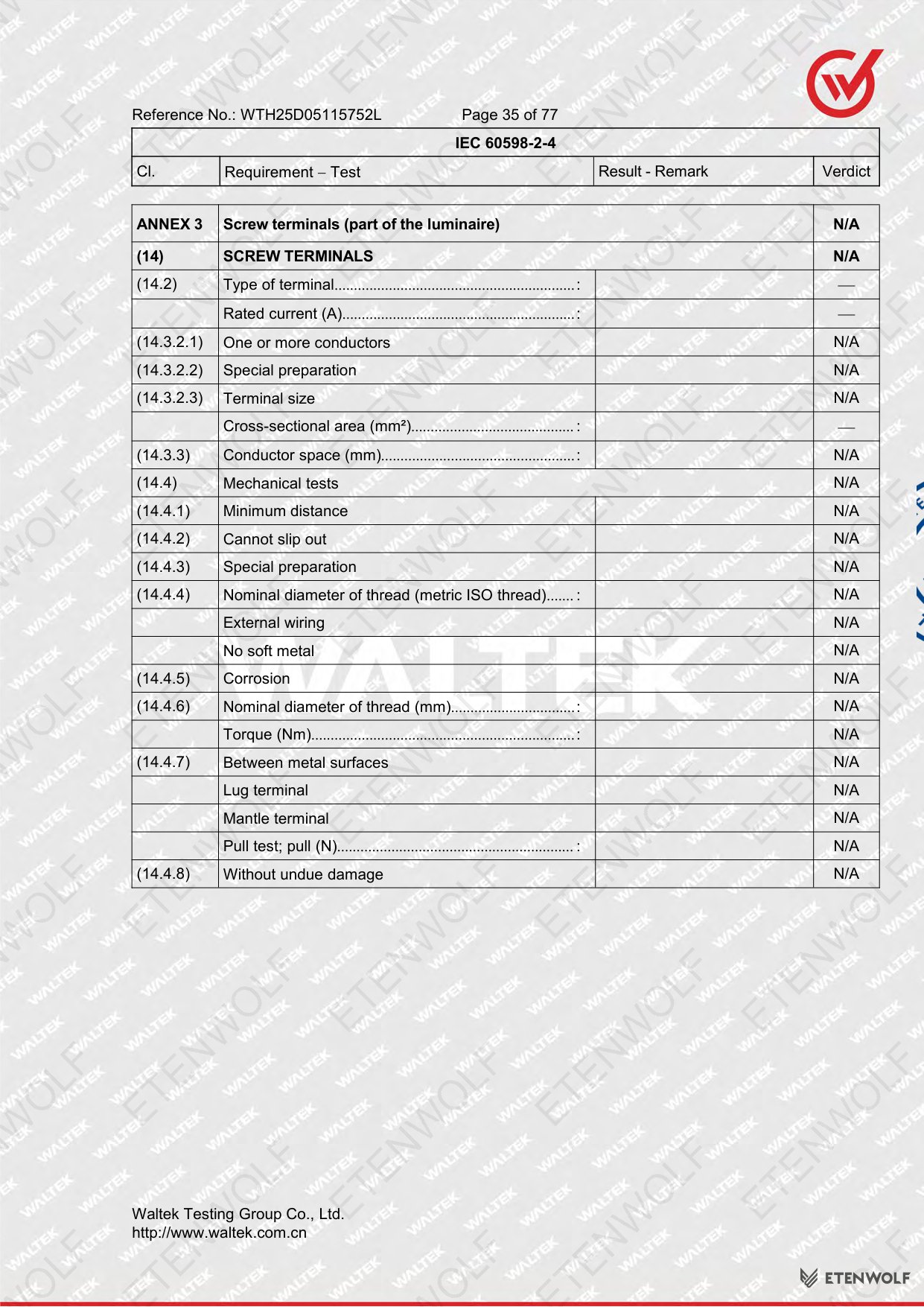

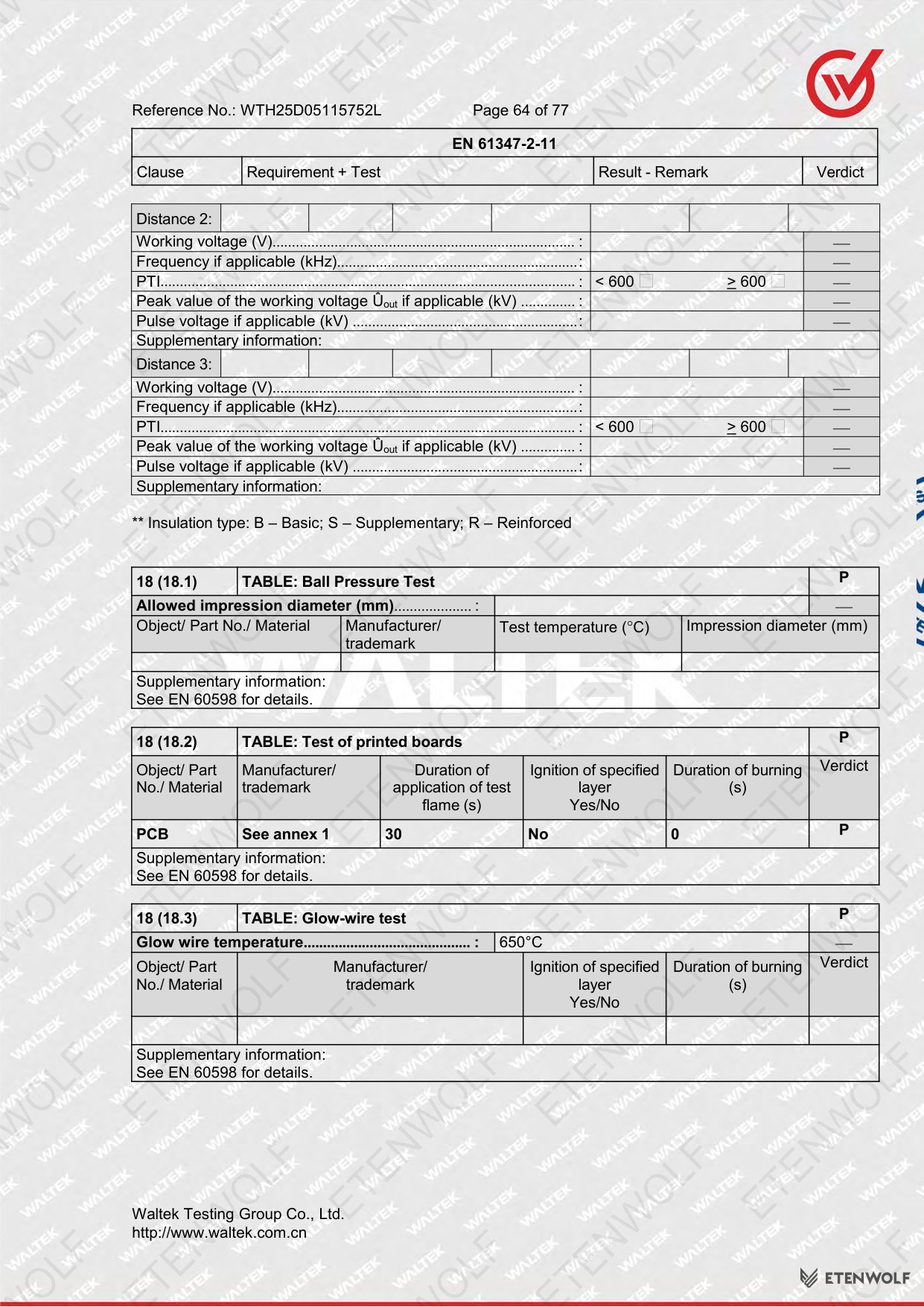

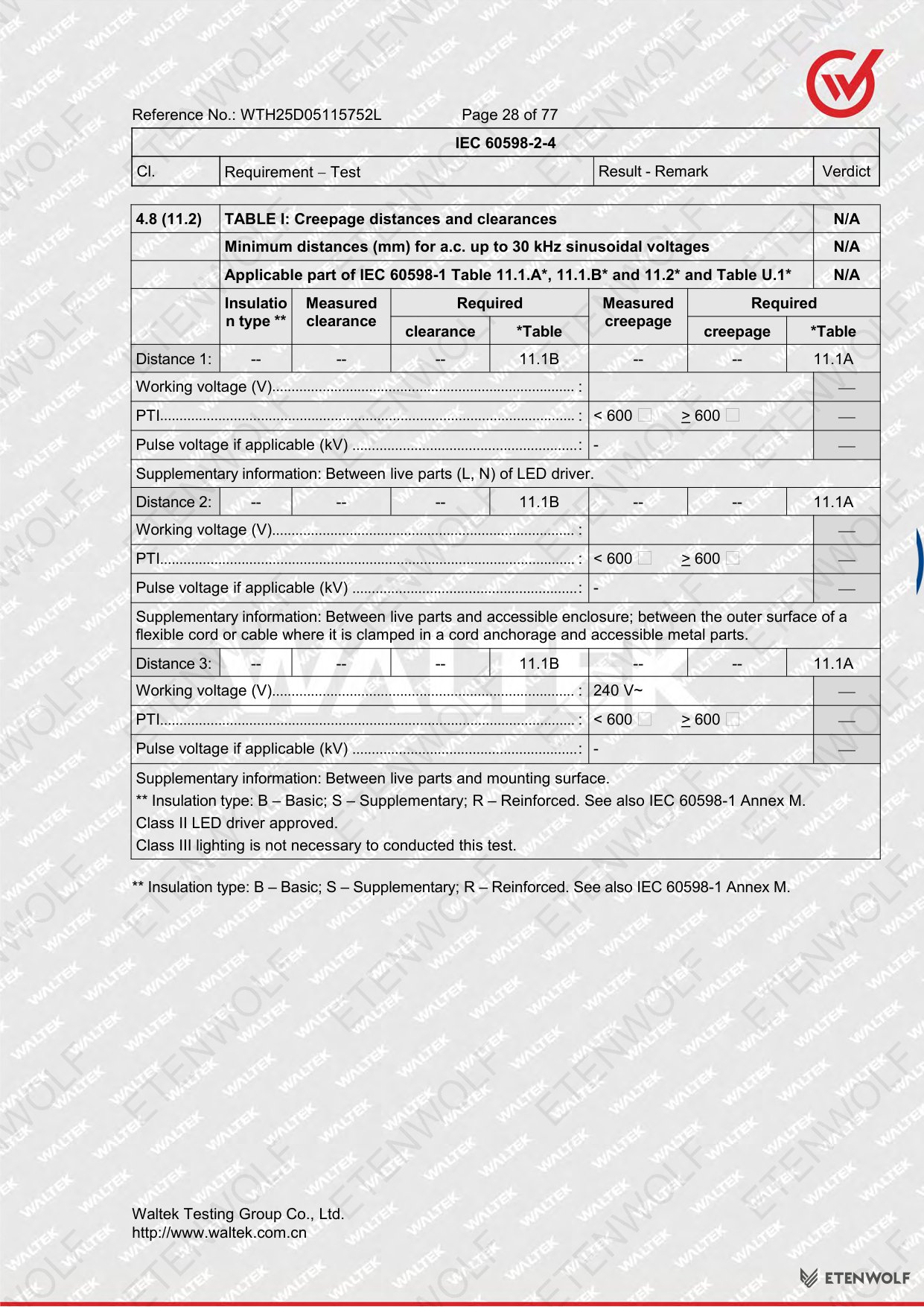

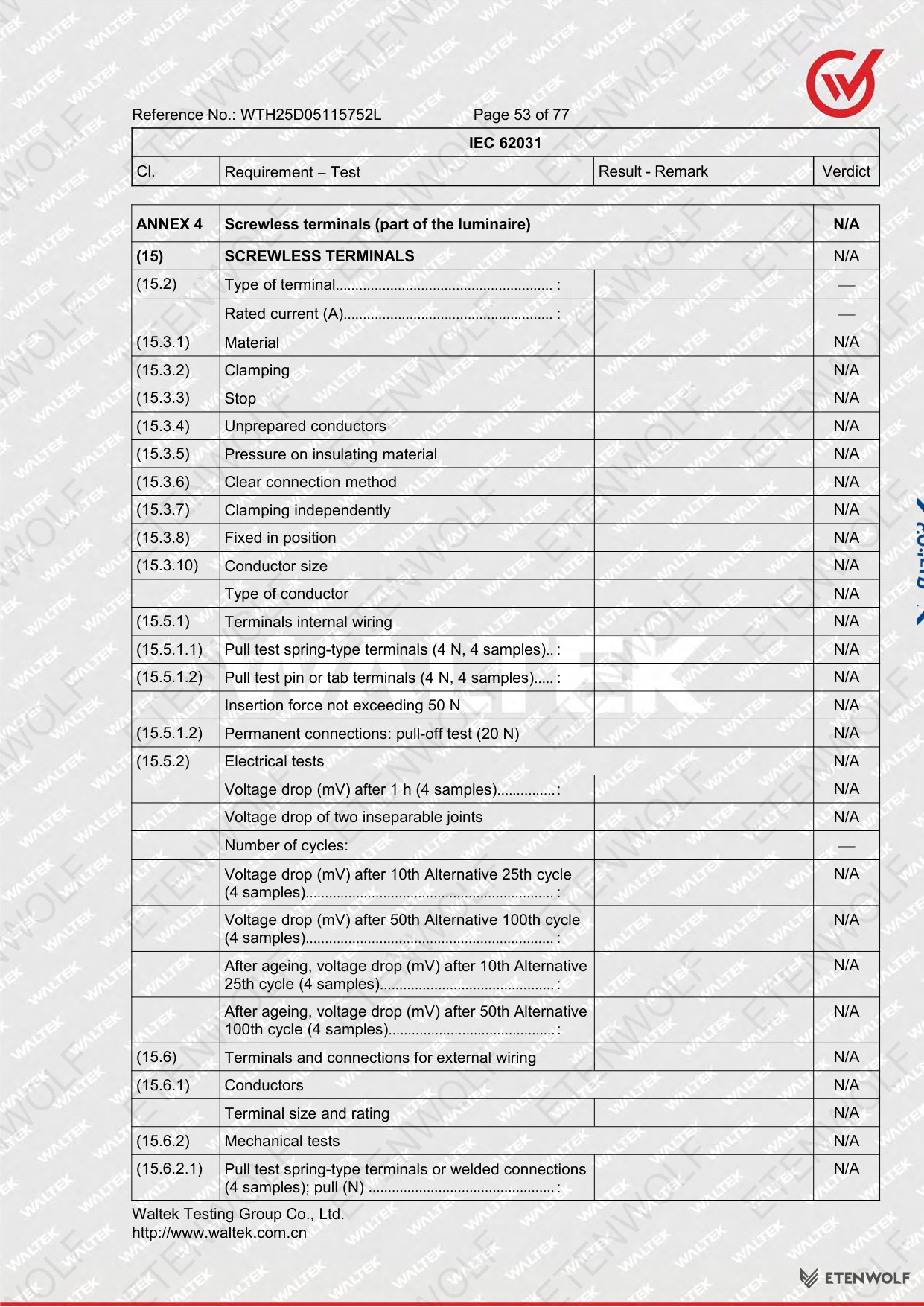

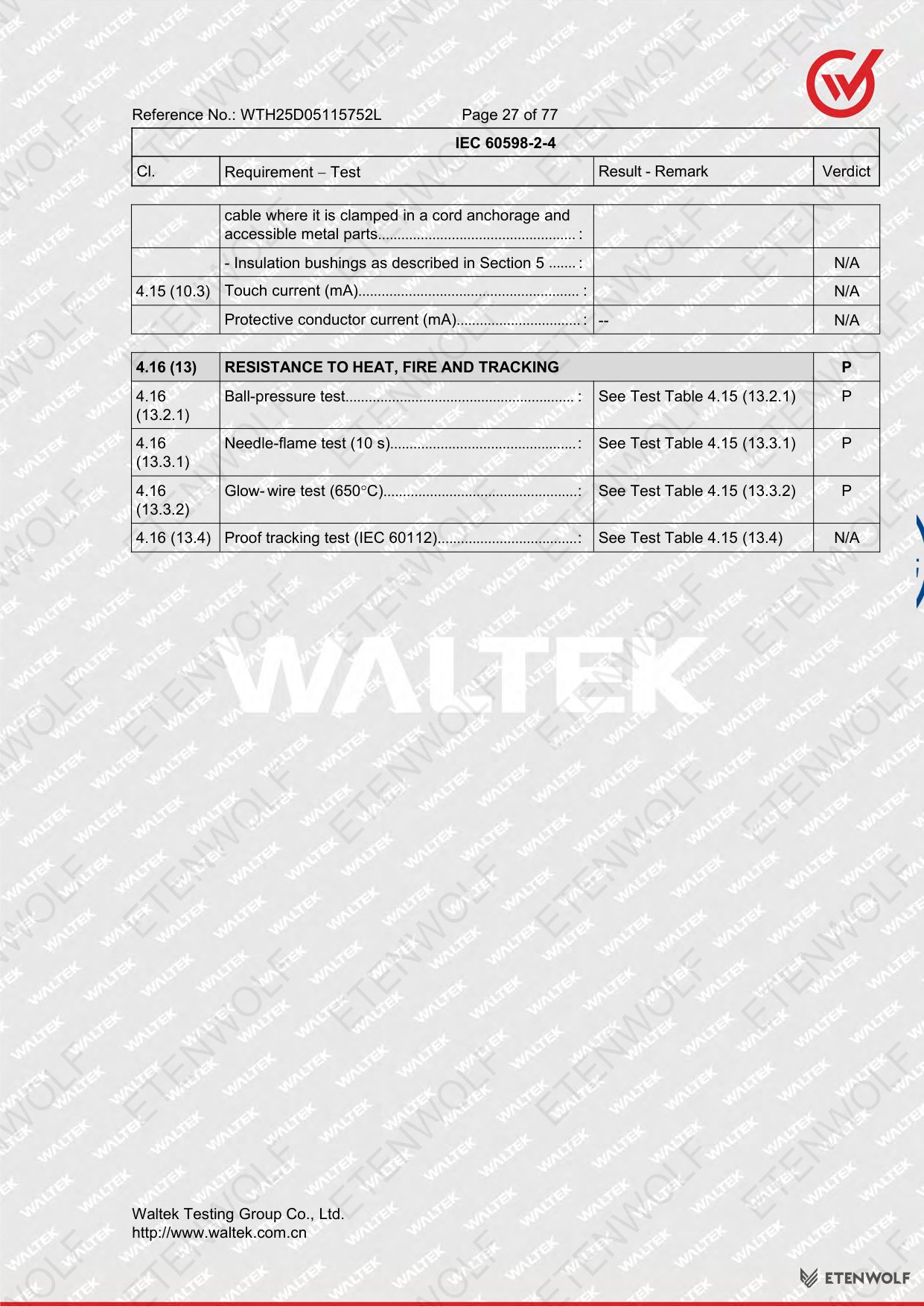

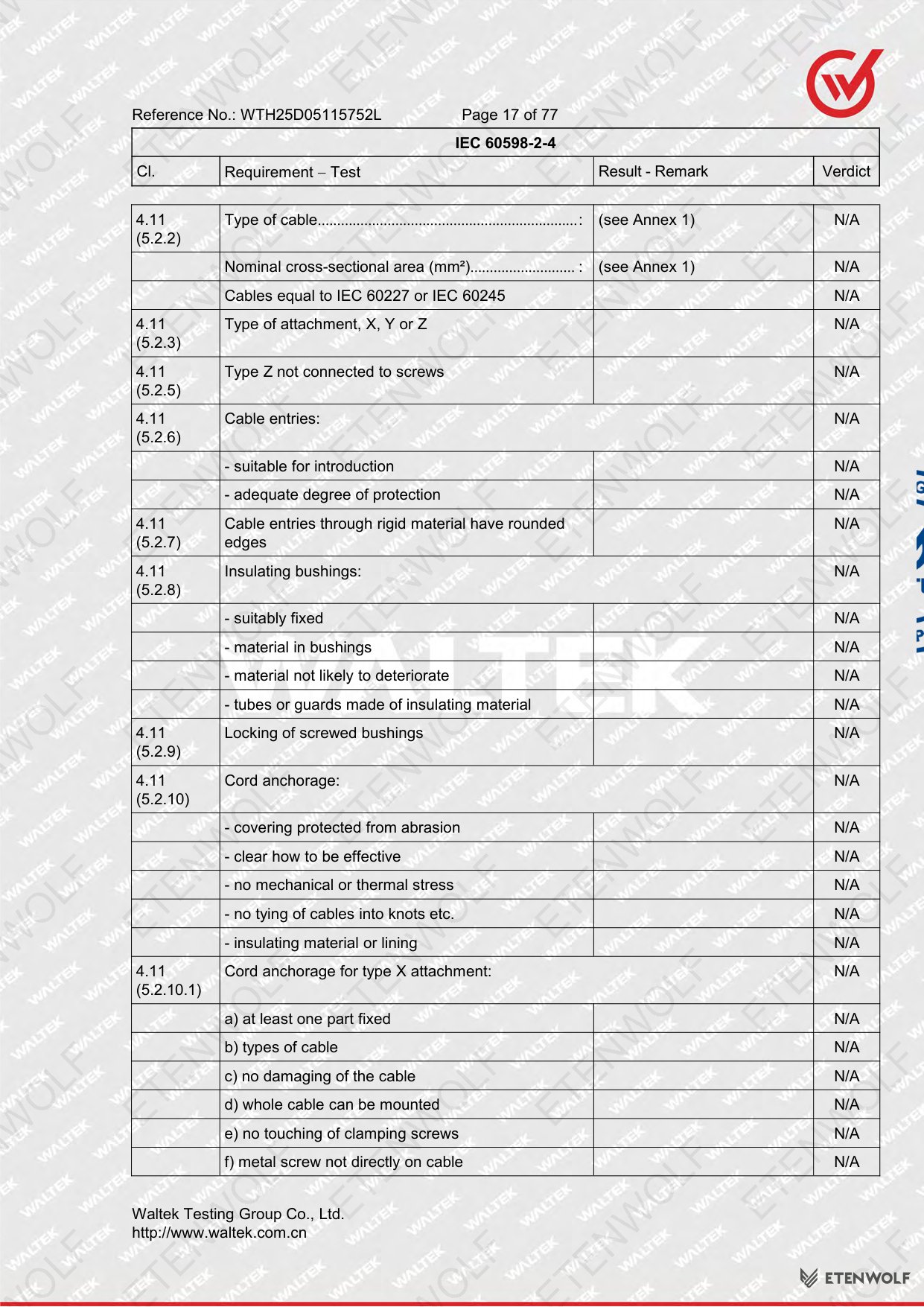

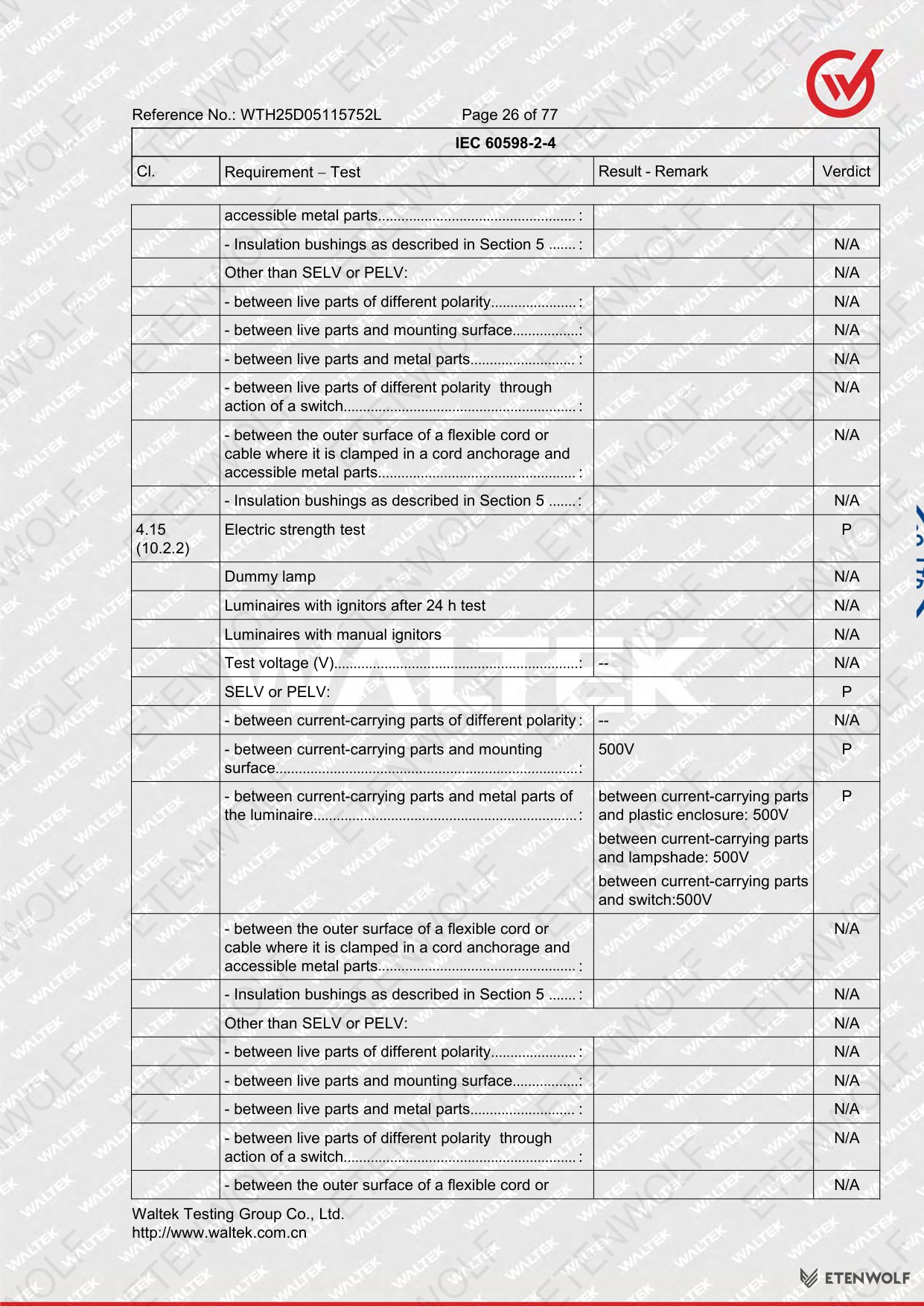

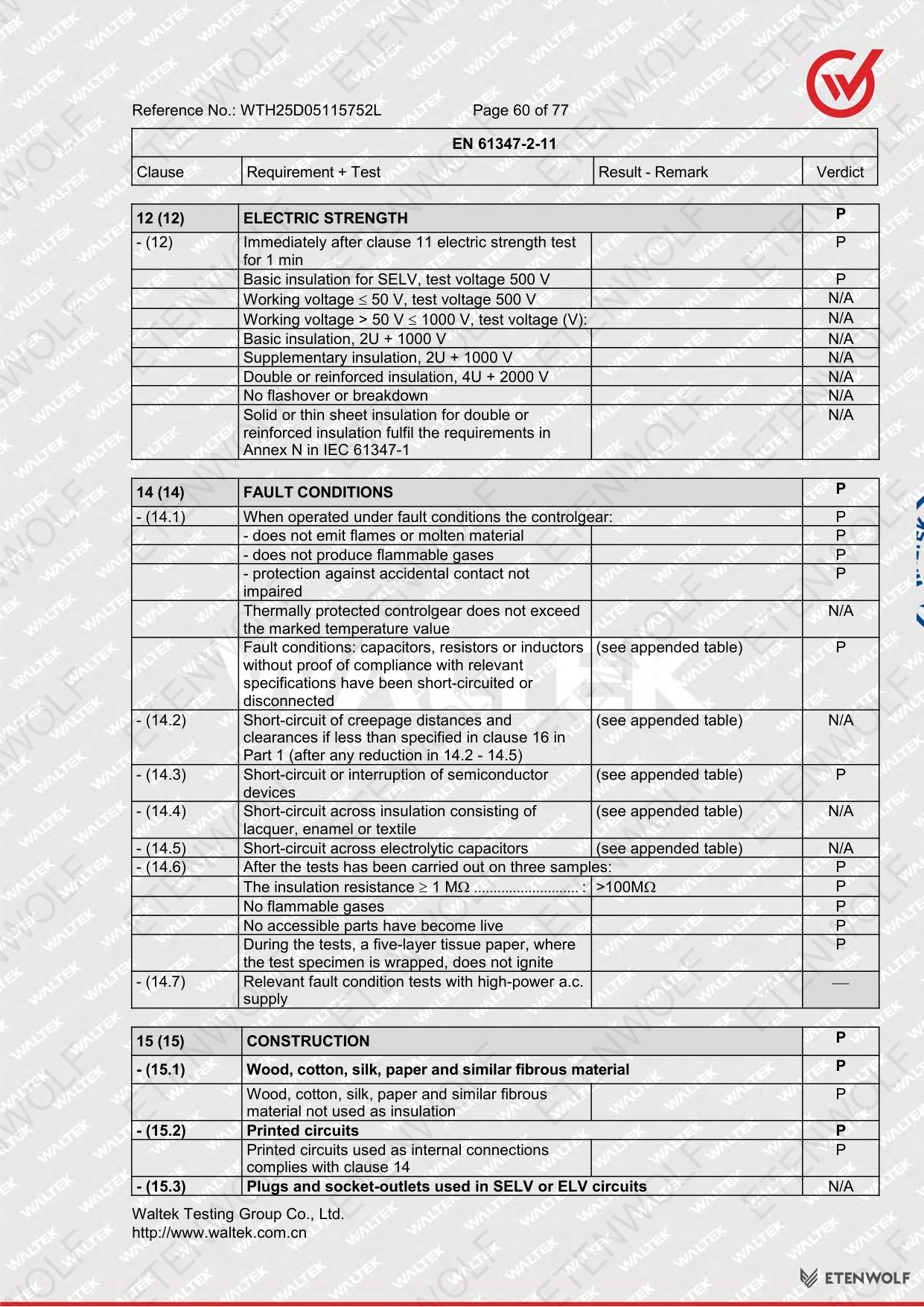

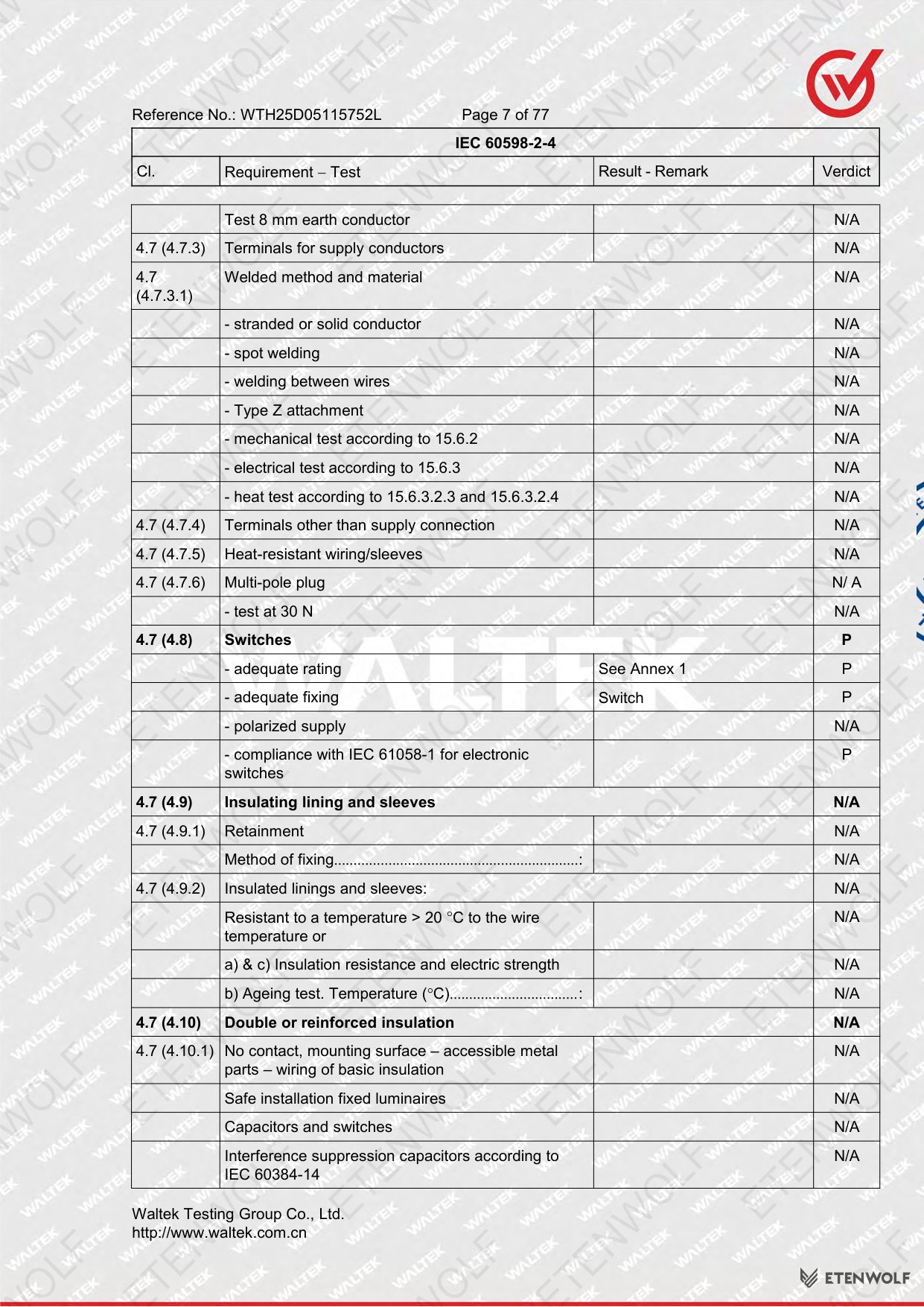

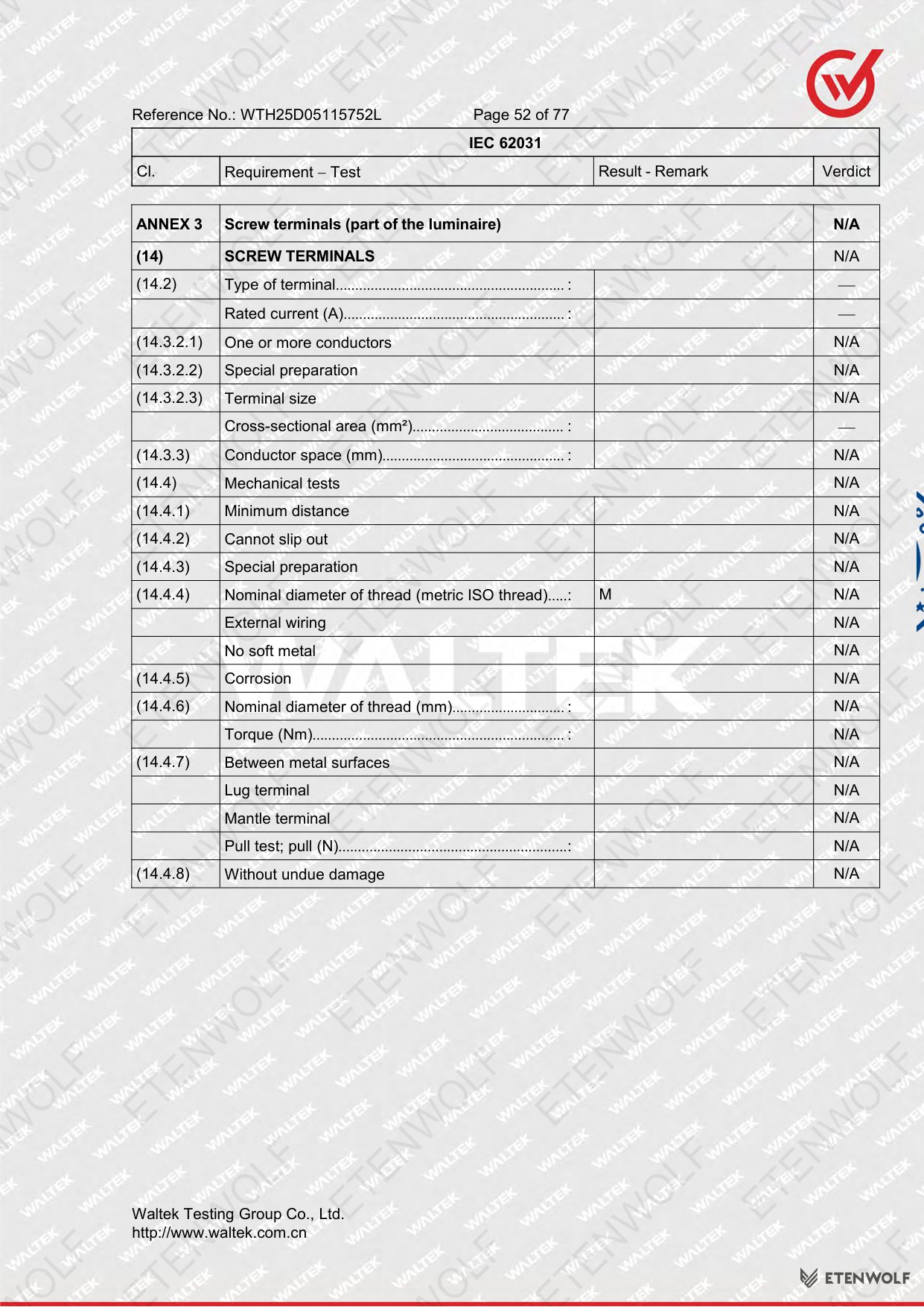

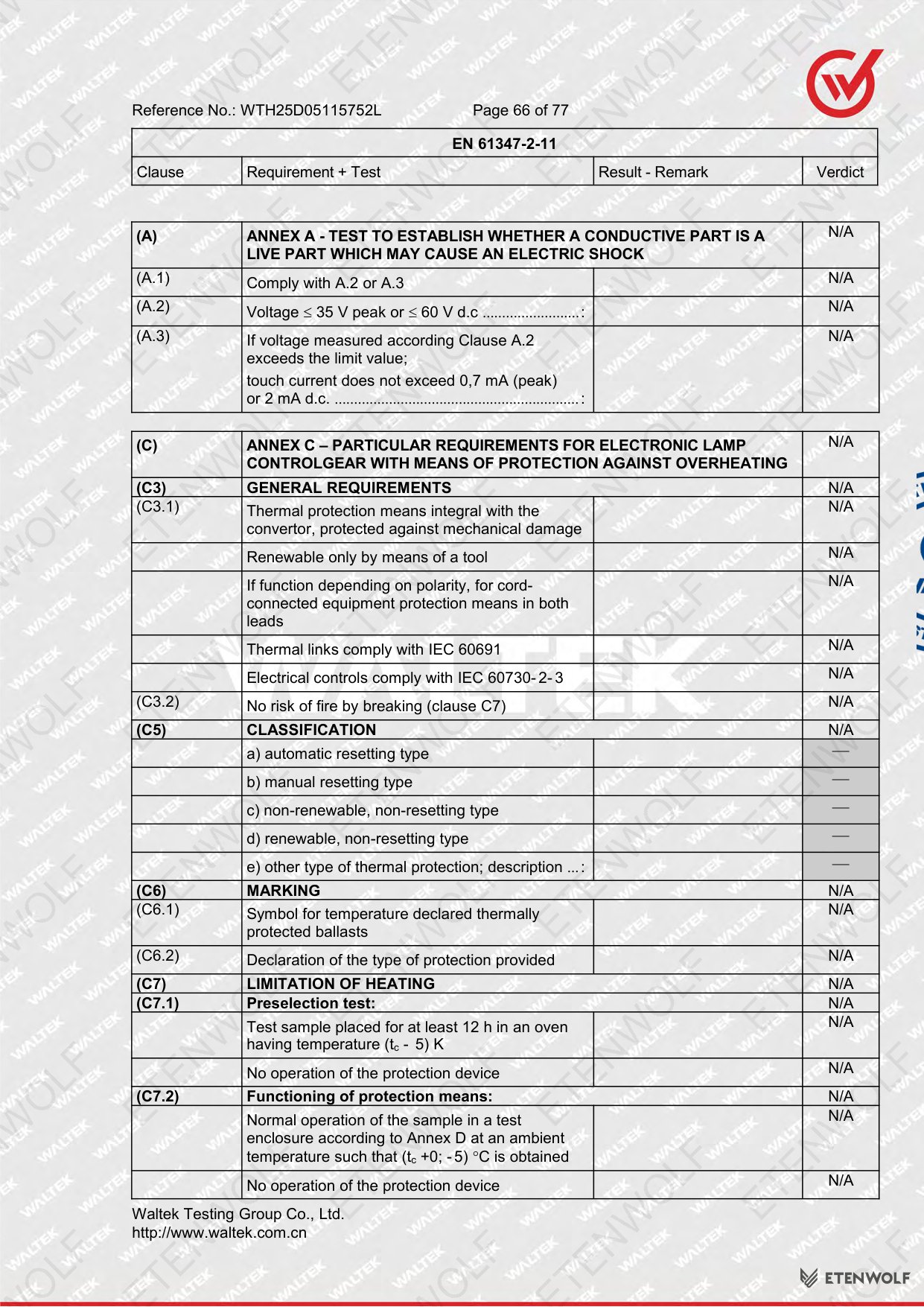

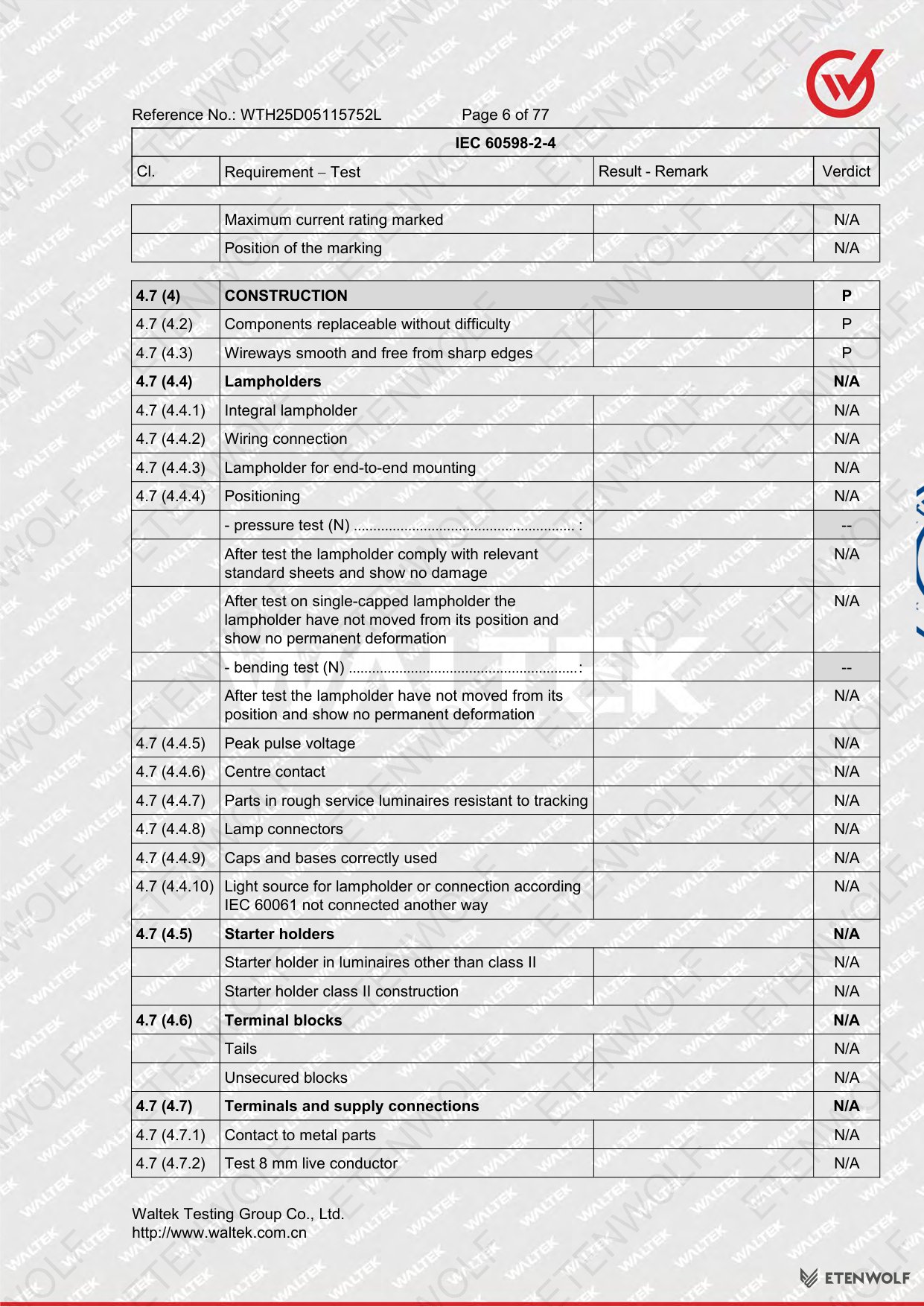

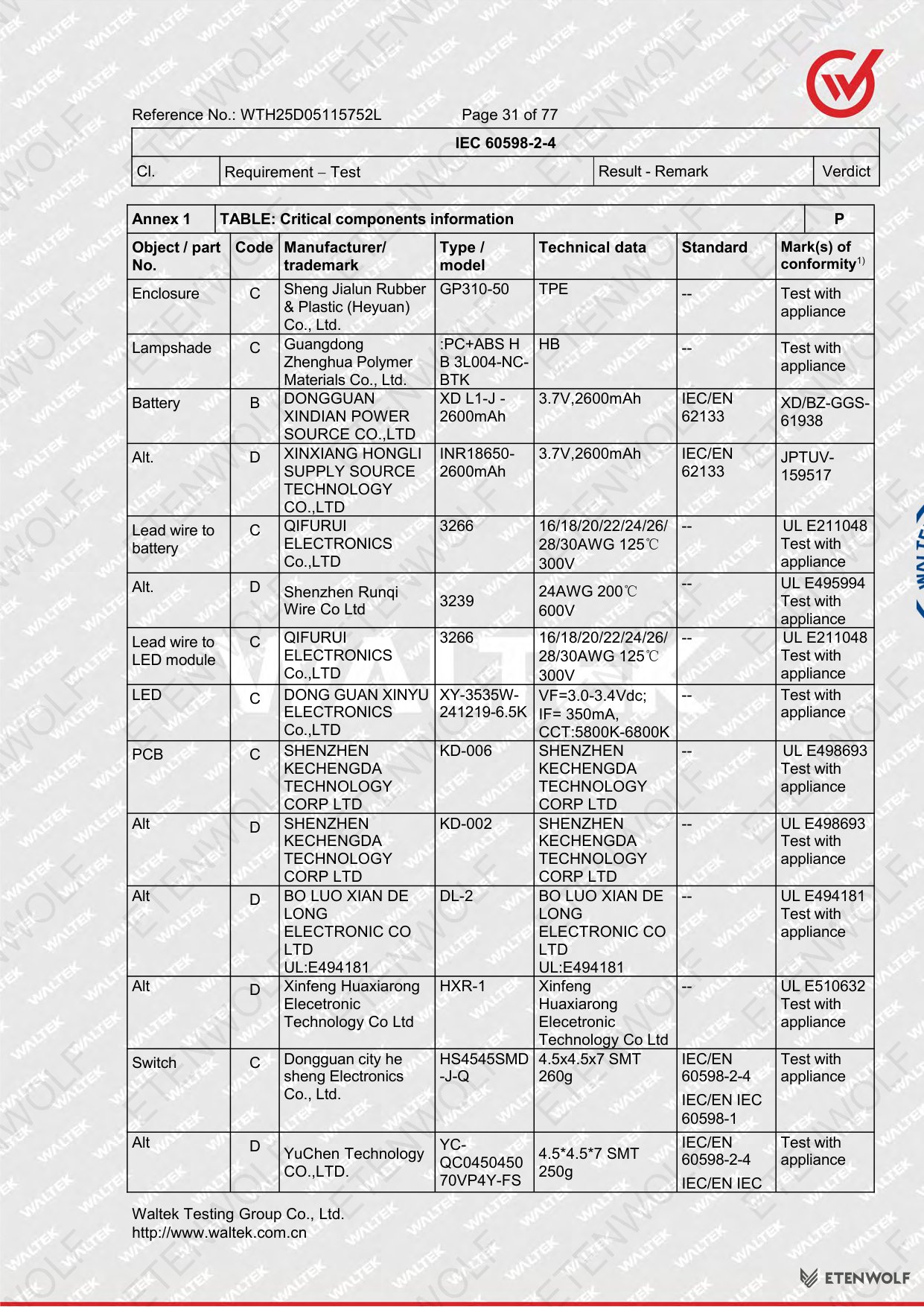

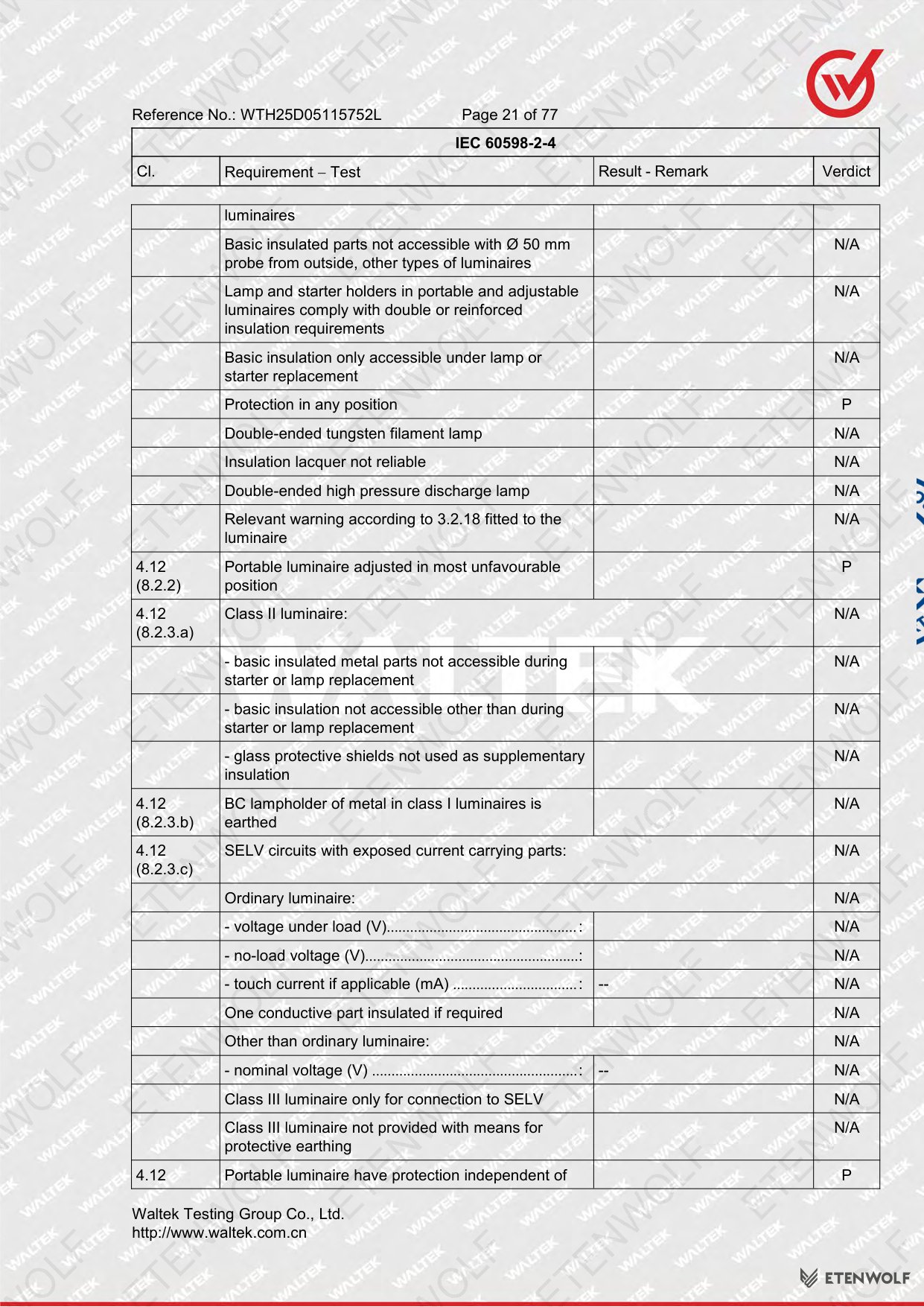

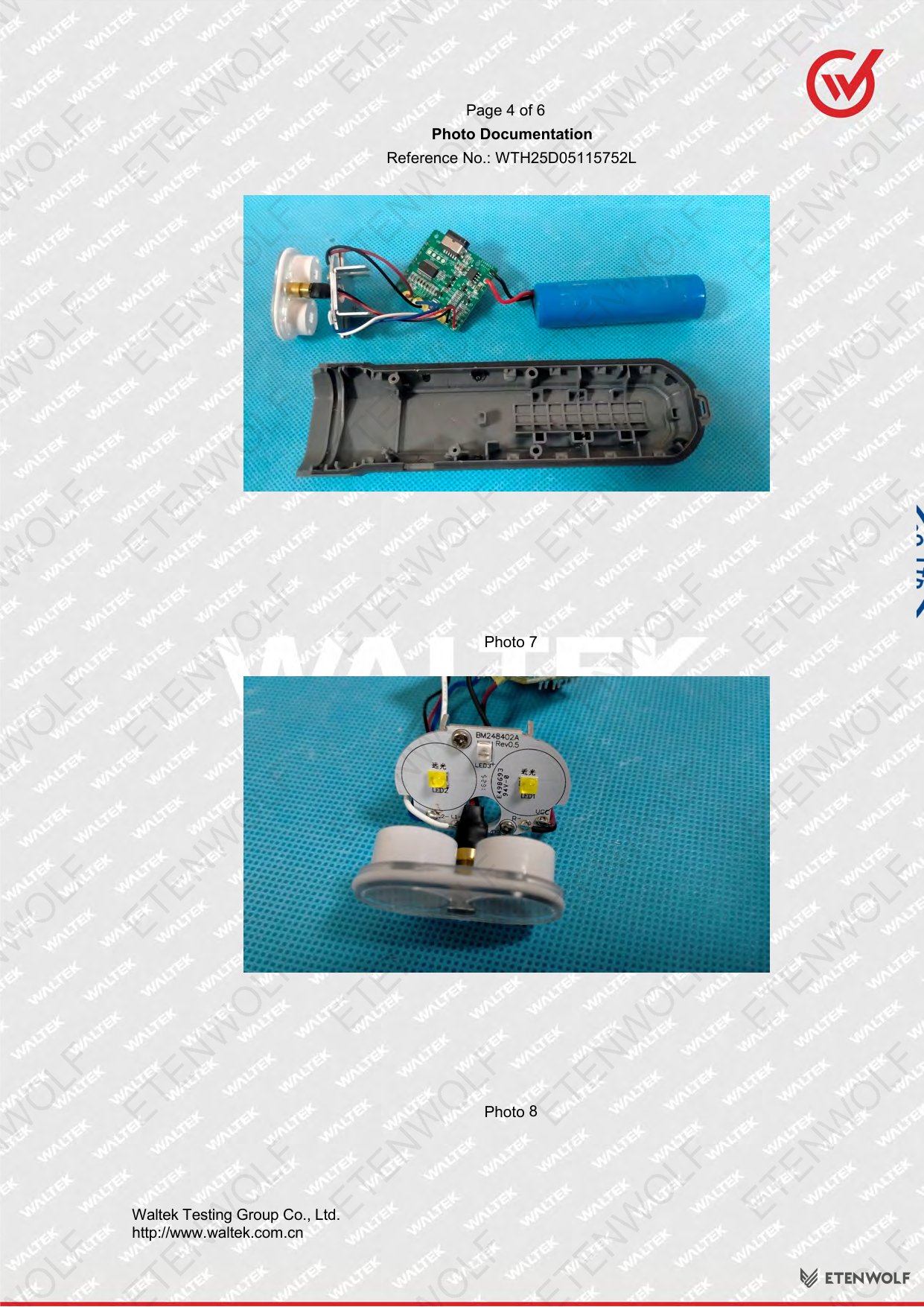

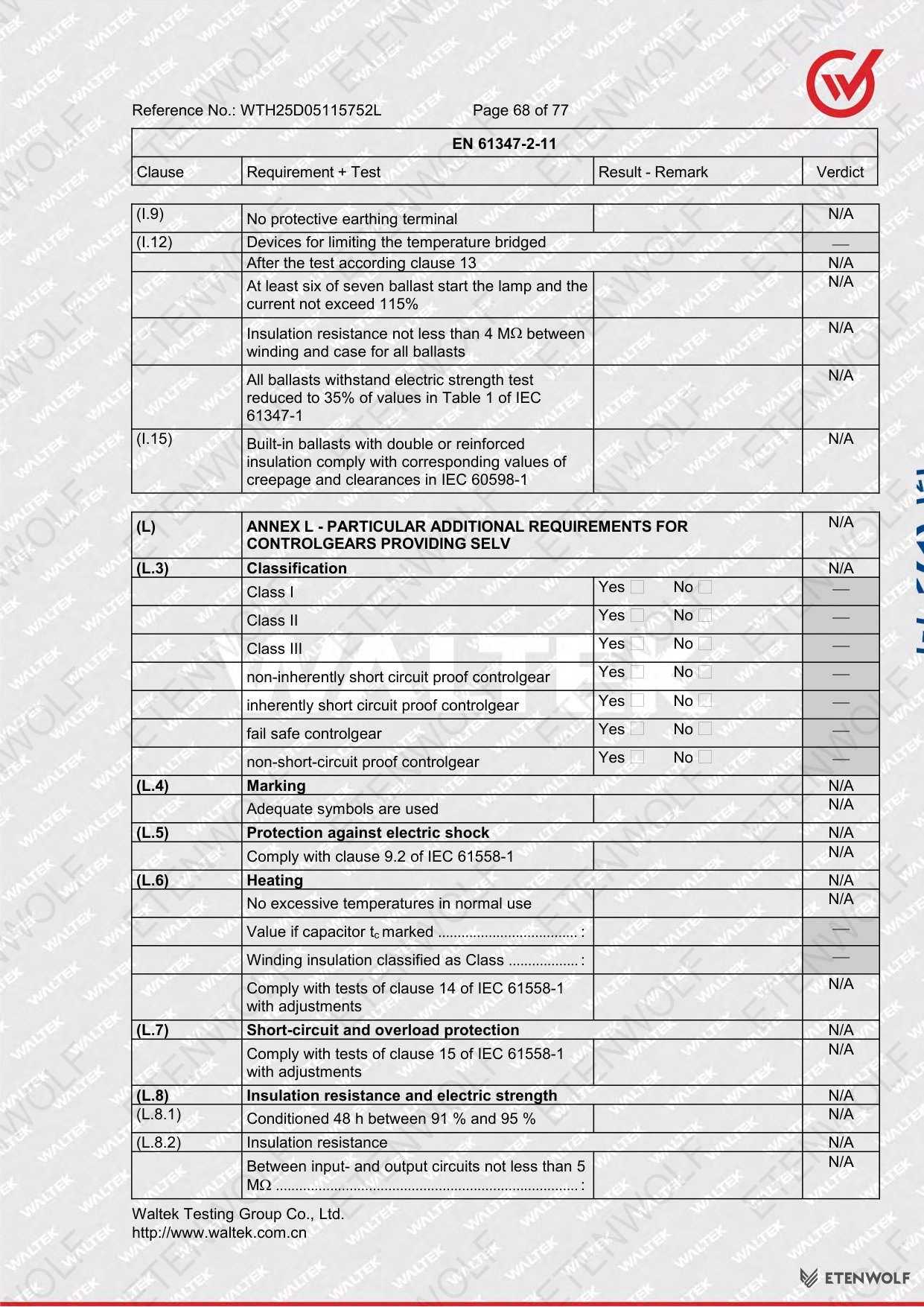

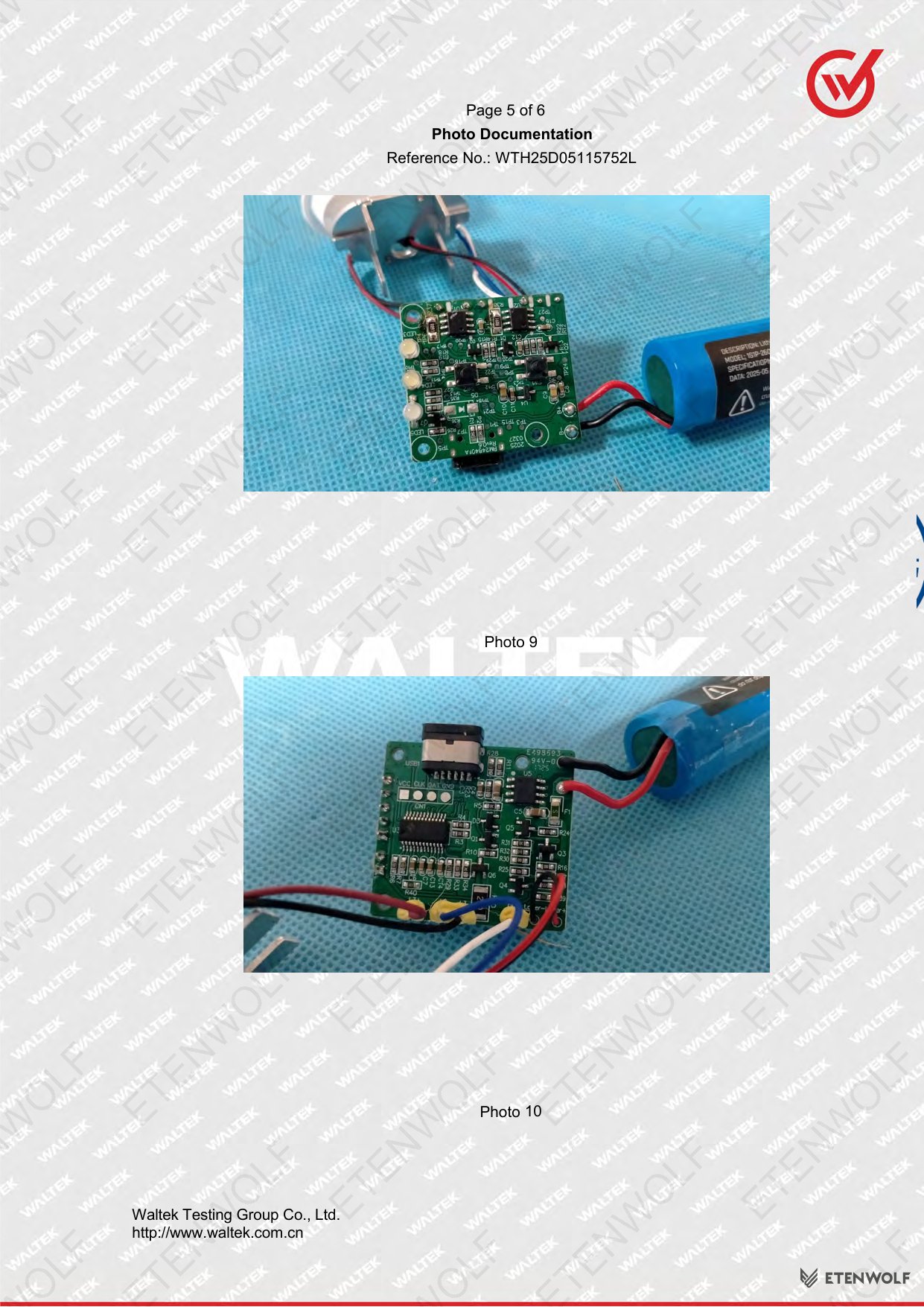

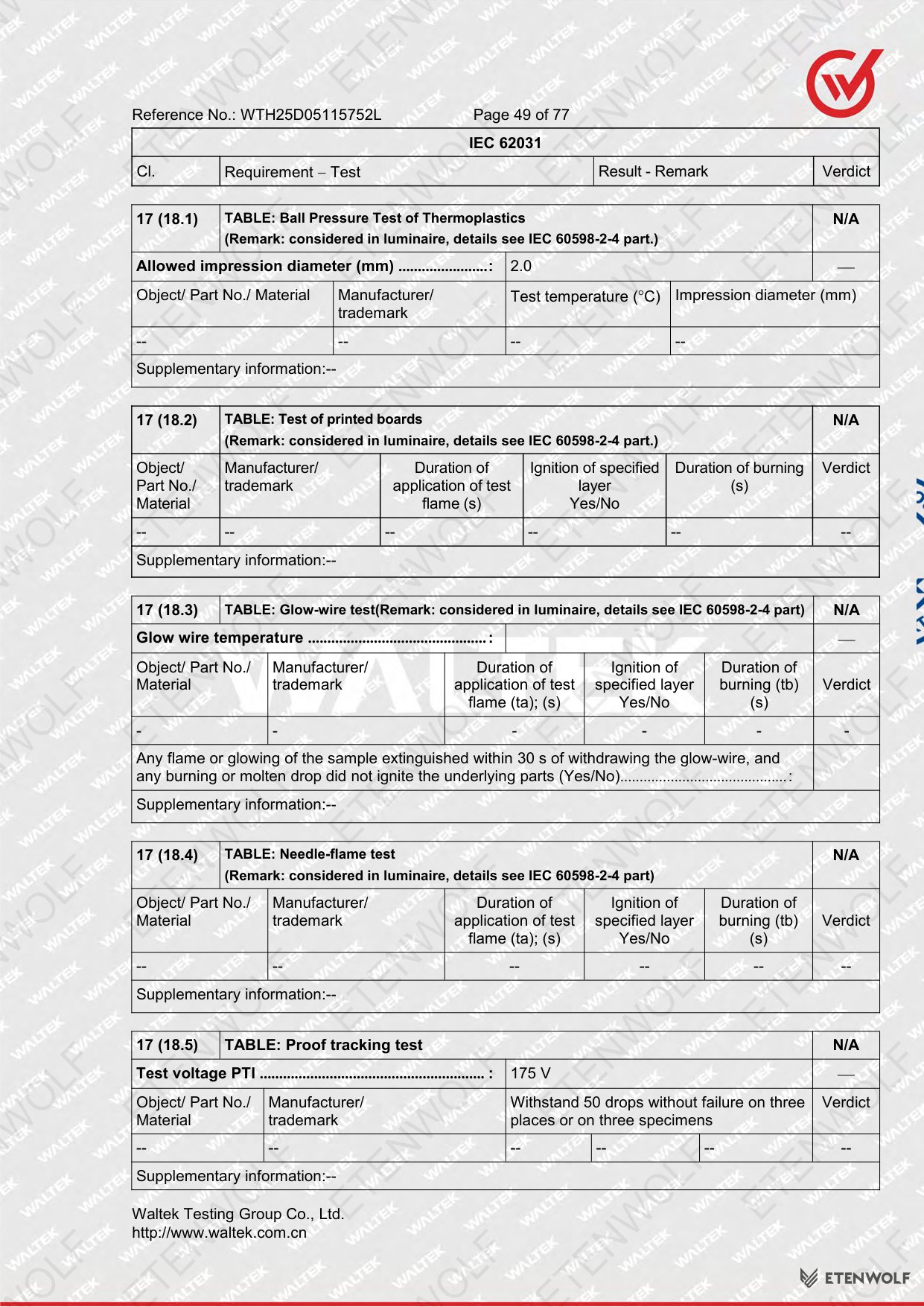

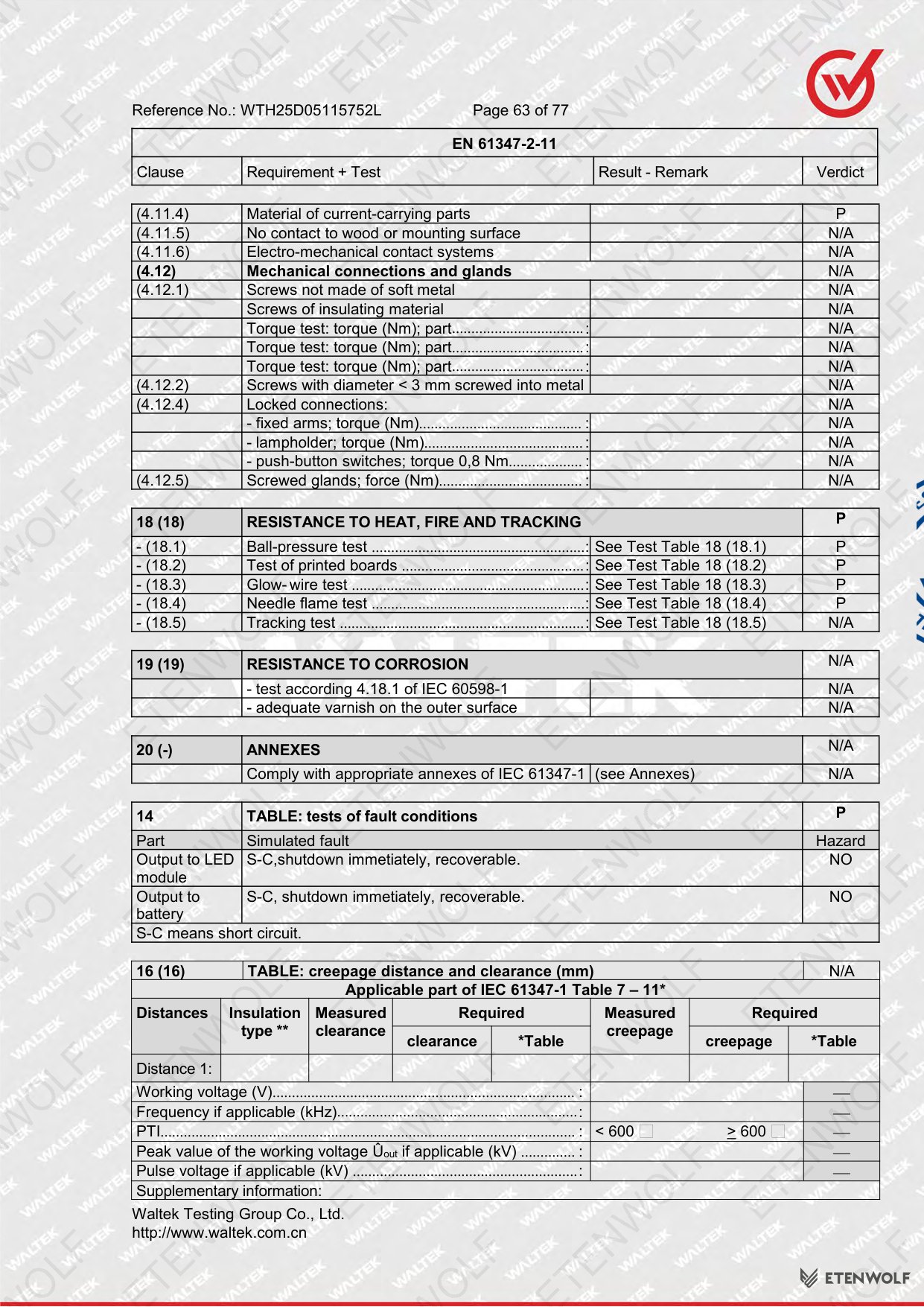

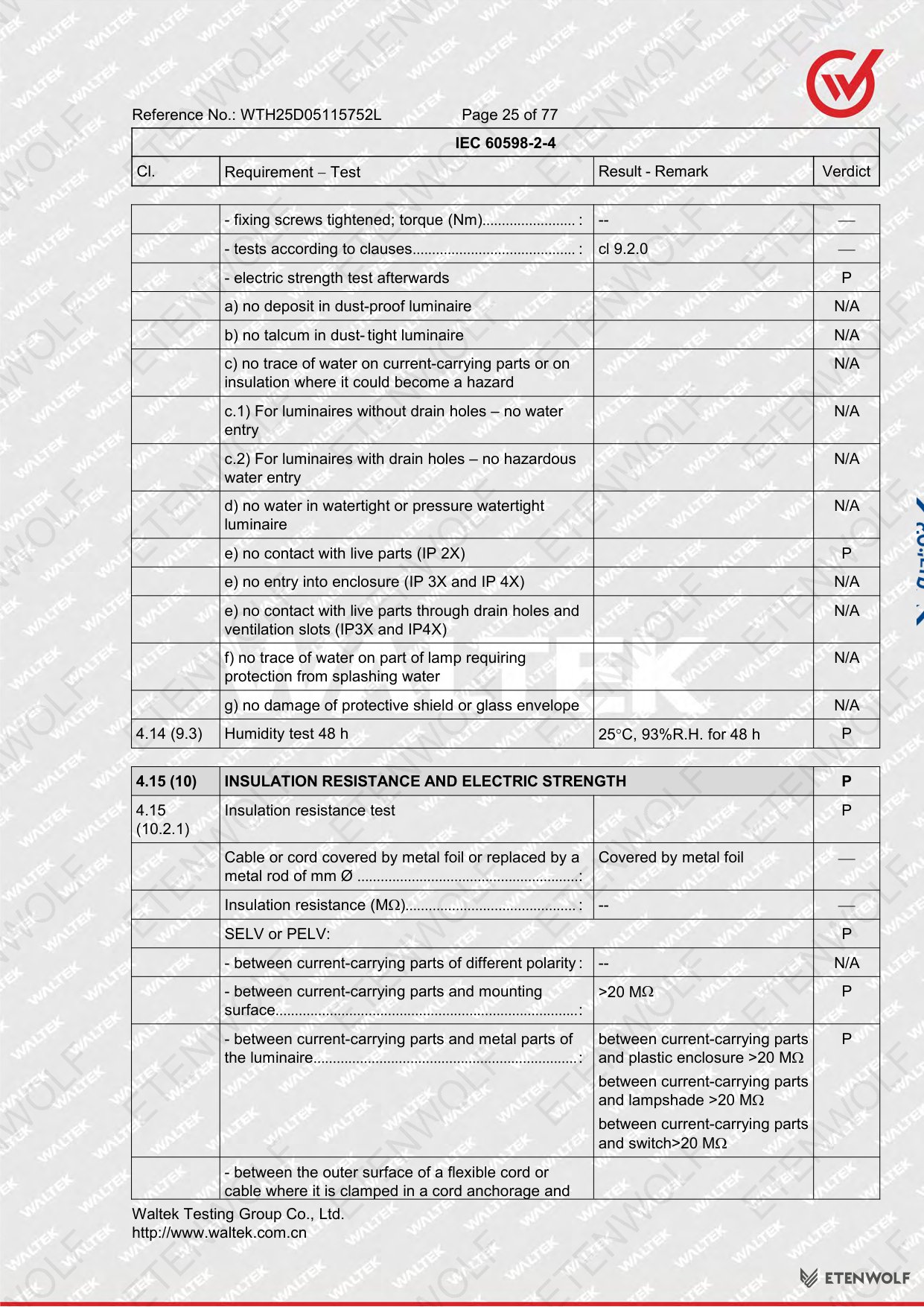

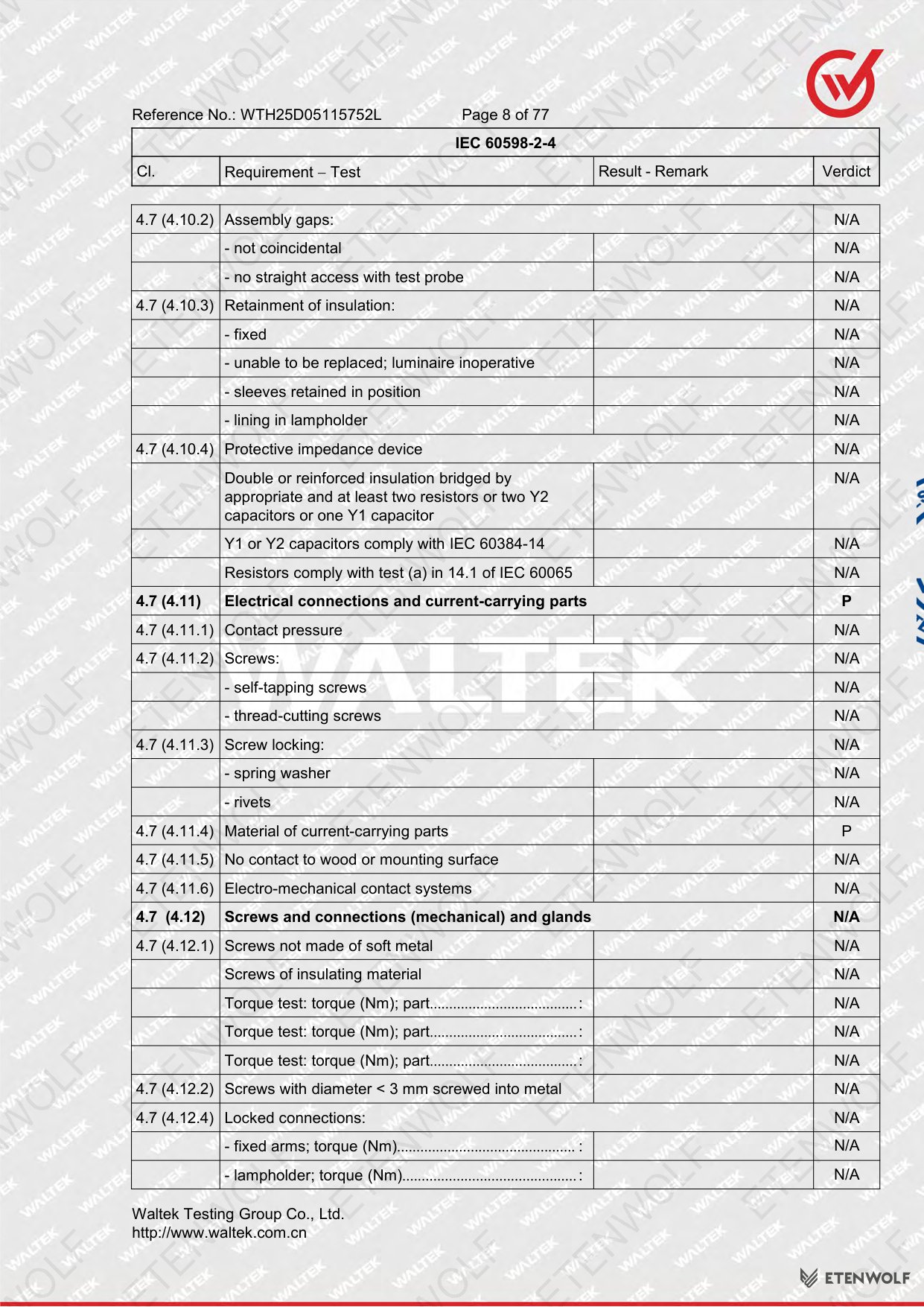

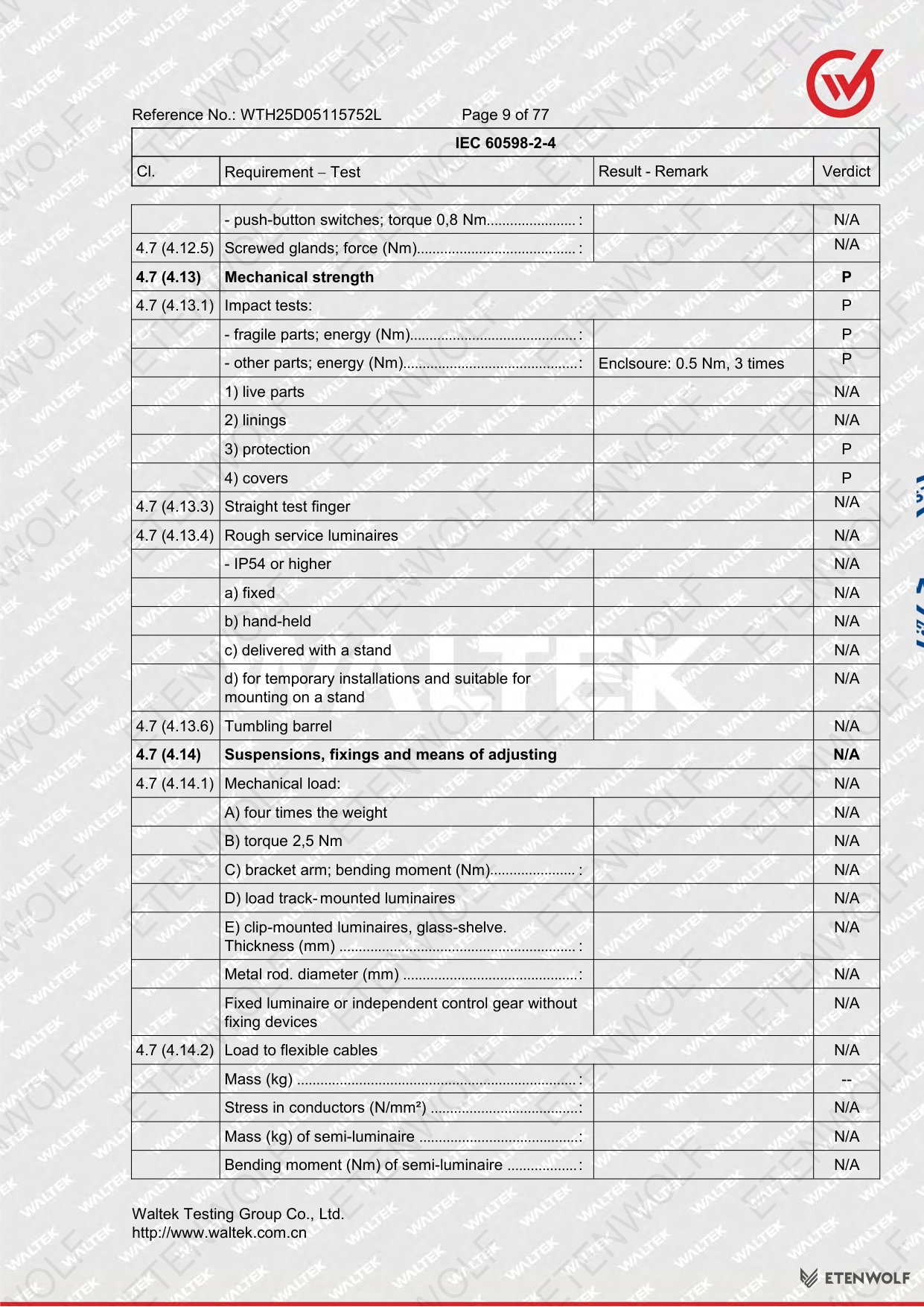

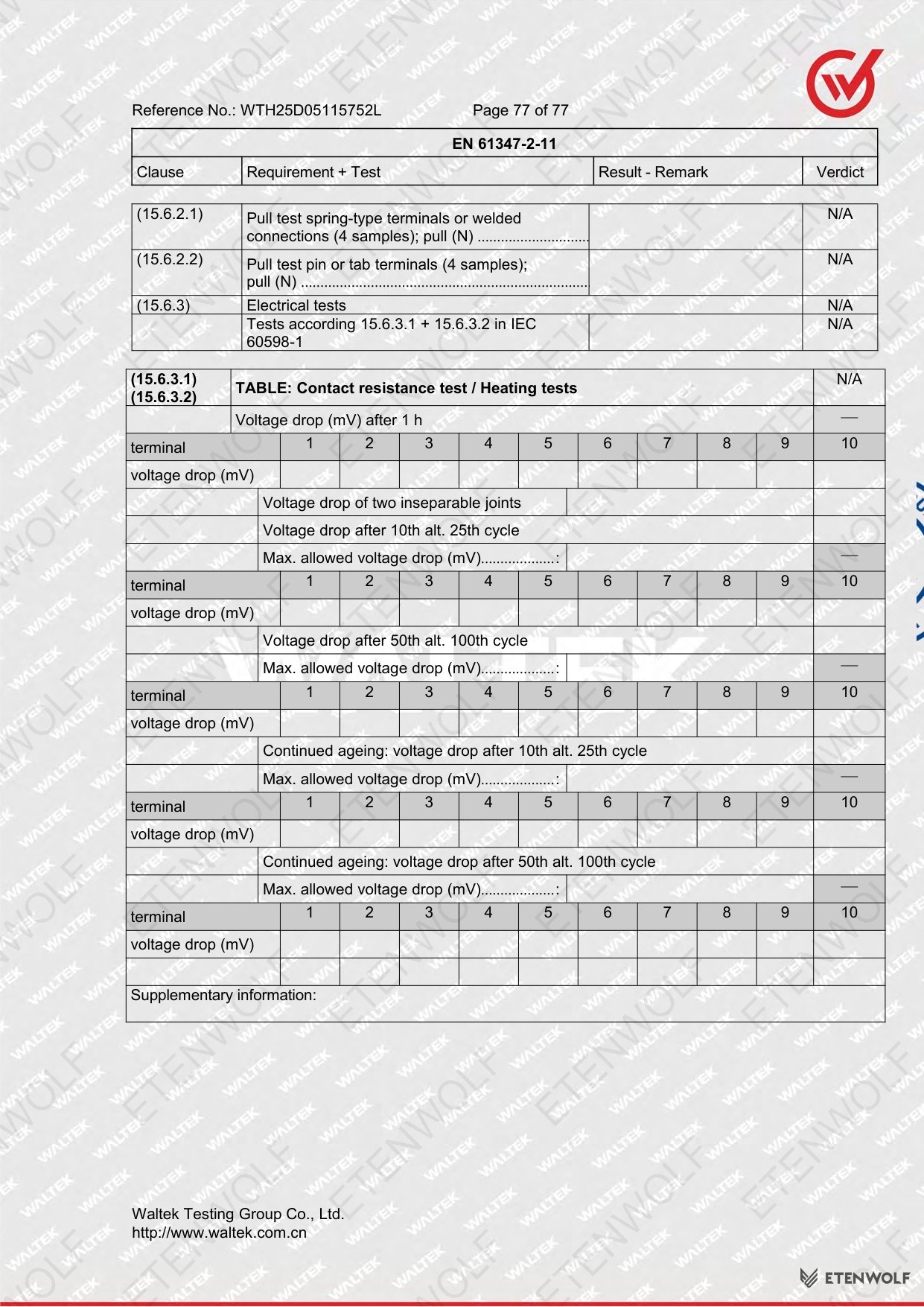

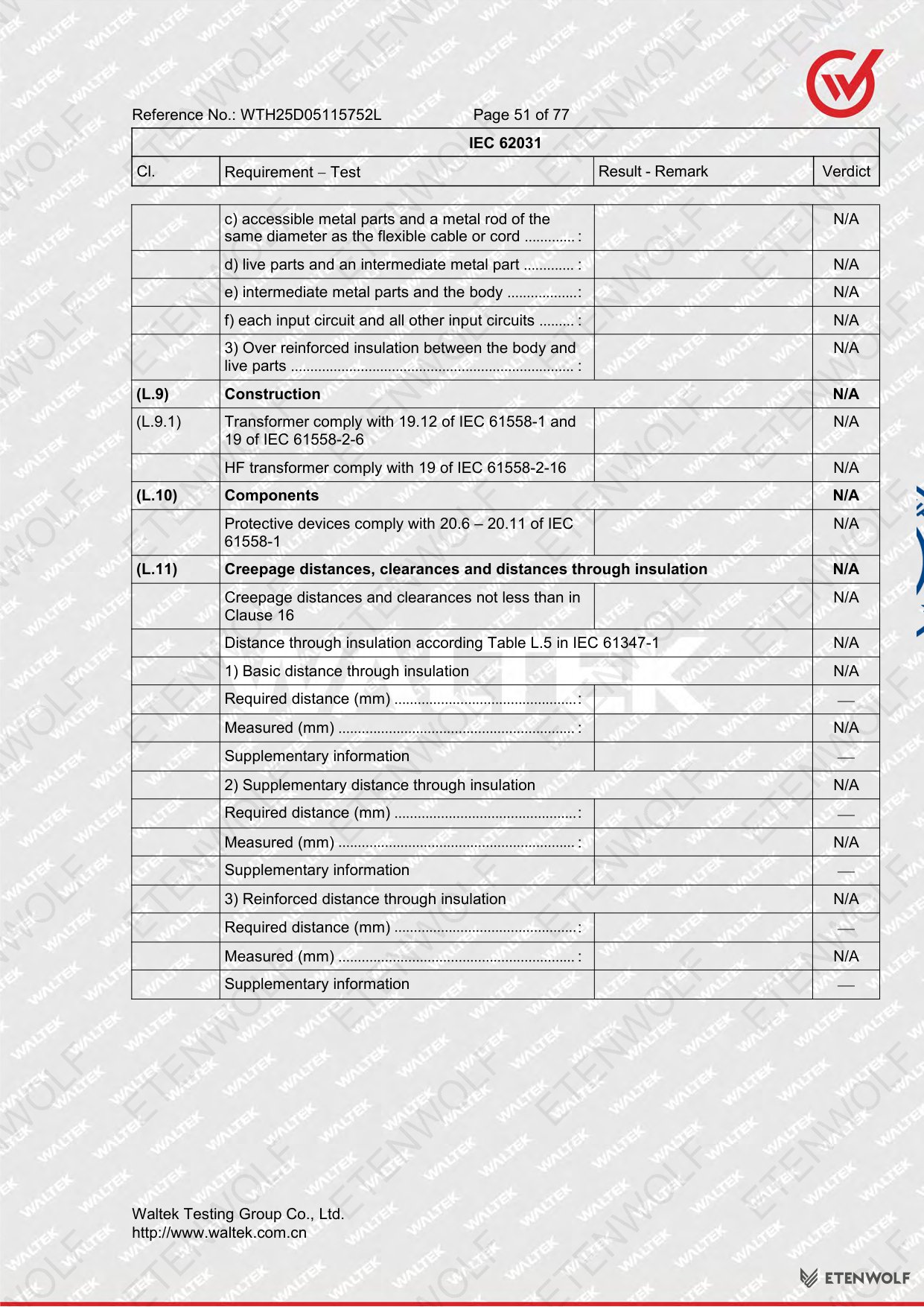

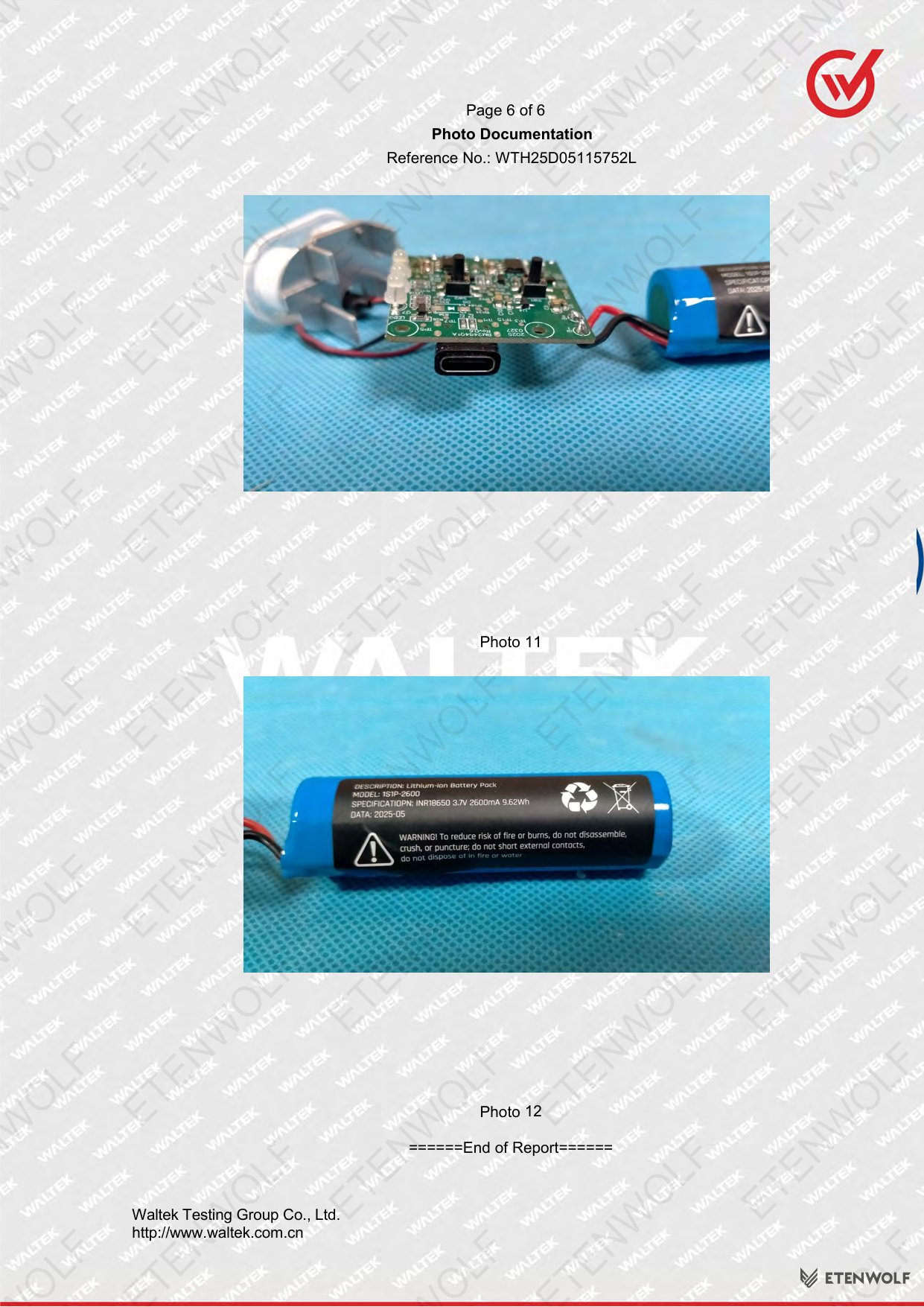

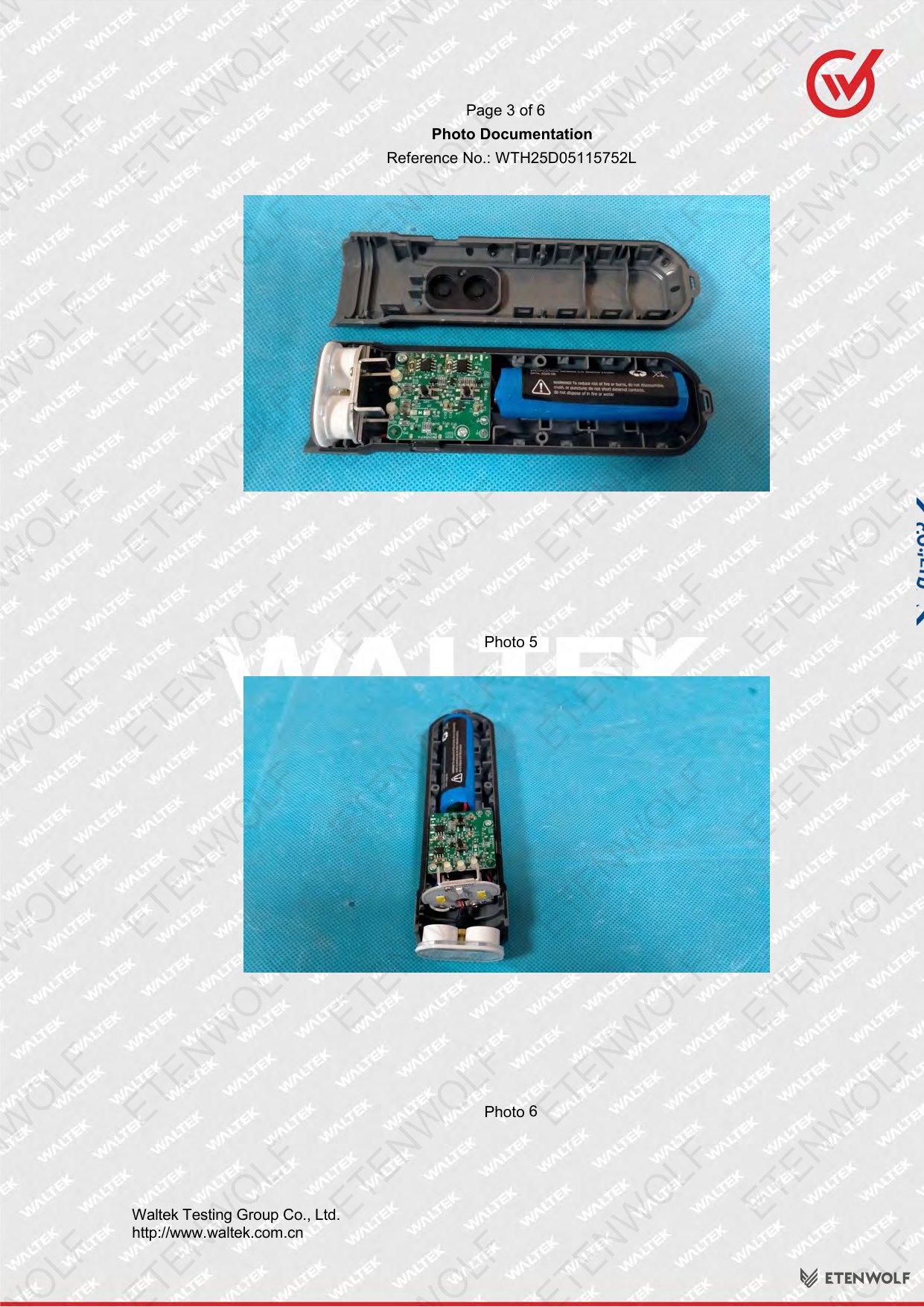

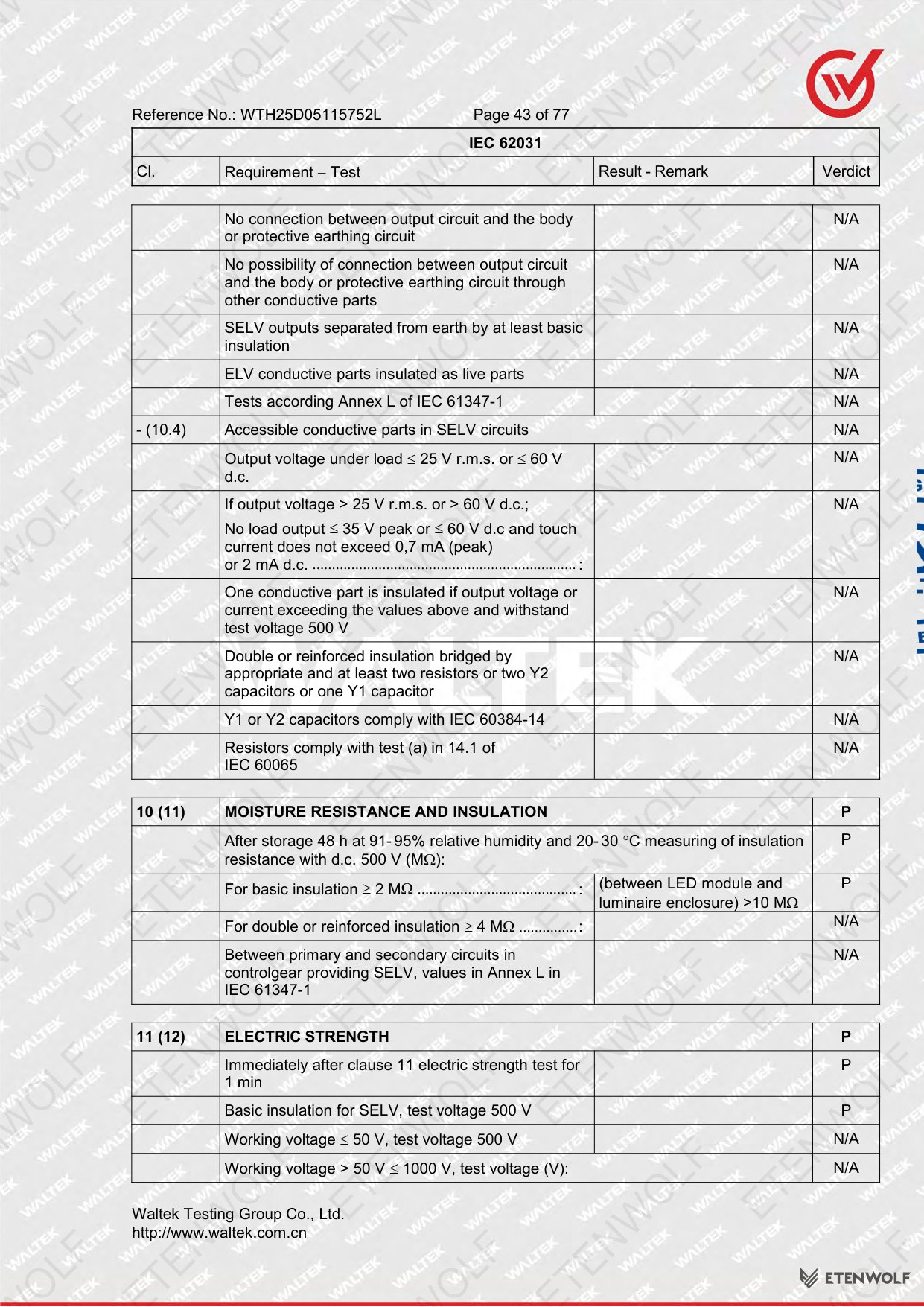

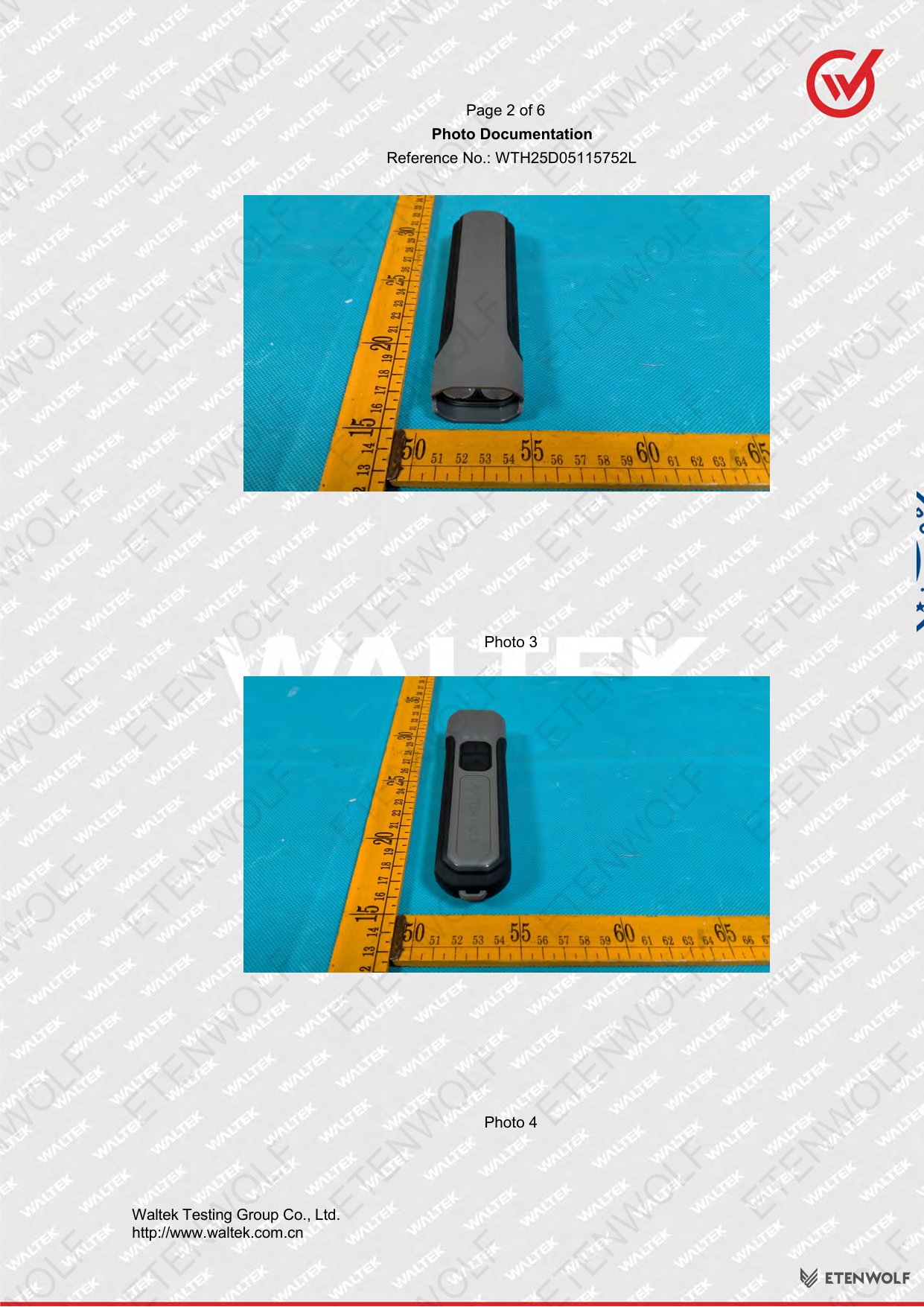

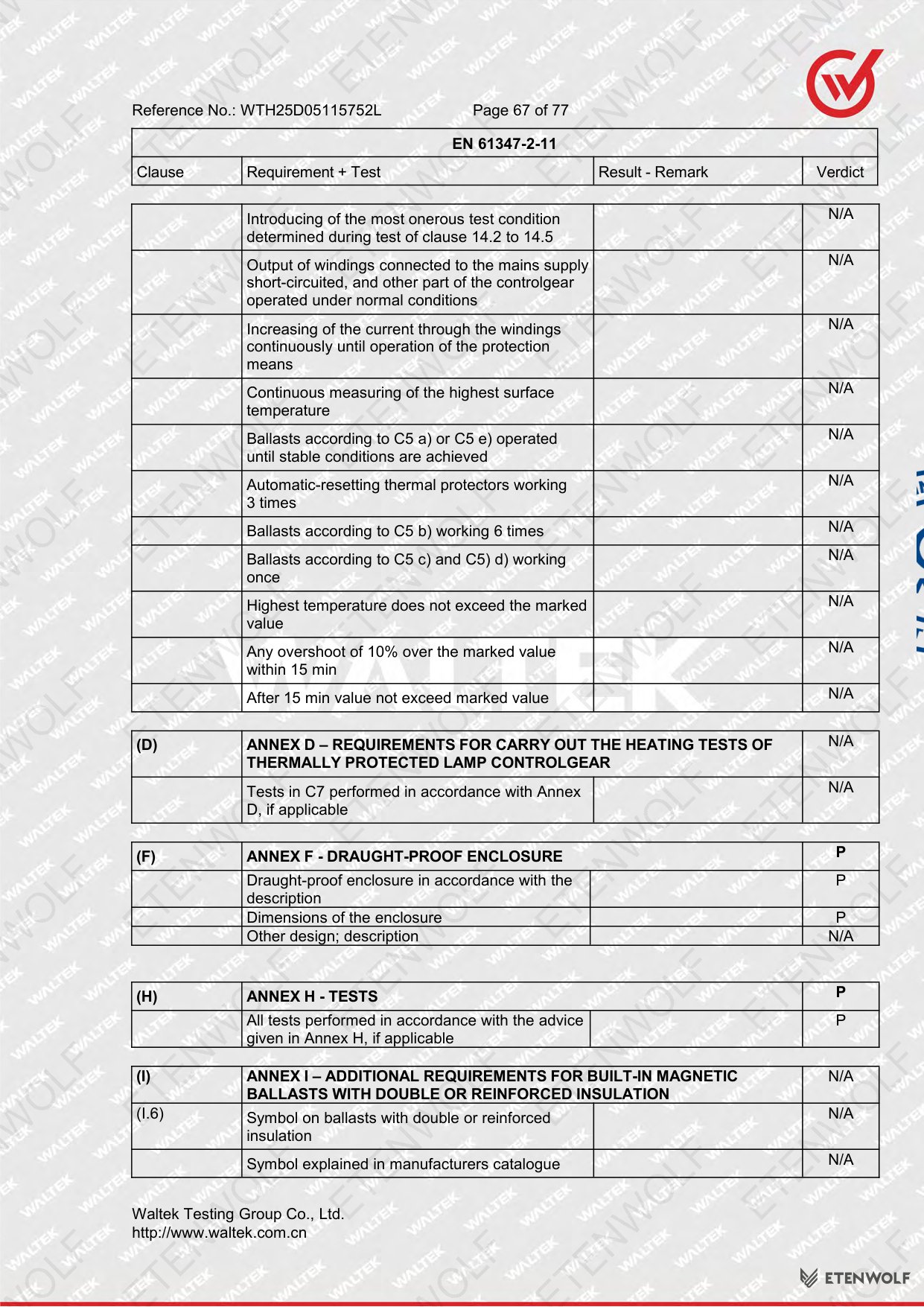

Document Pages
