Document Overview
This page presents the CE Electromagnetic Compatibility (EMC) test report issued for the ETENWOLF L2 Tactical Flashlight. The report was prepared by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited third-party electromagnetic compatibility laboratory operating under internal form reference HCT/RF-23-21.
| Field | Details |
|---|---|
| Reference Number | WTH25H05114119E |
| Document Type | CE-EMC Test Report |
| Test Report Form No. | TRF EN IEC 55015:2019+A11:2020-EMC-001-V01 |
| Issuing Body | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Date of Sample Receipt | 2025-05-06 |
| Date of Test | 2025-05-08 |
| Date of Issue | 2025-05-19 |
| Overall Test Result | Pass |
The scope of this report covers conducted disturbance voltage at mains terminals, radiated electromagnetic disturbance, and radiated disturbance measurements, all evaluated against the applicable European harmonised standards listed below.

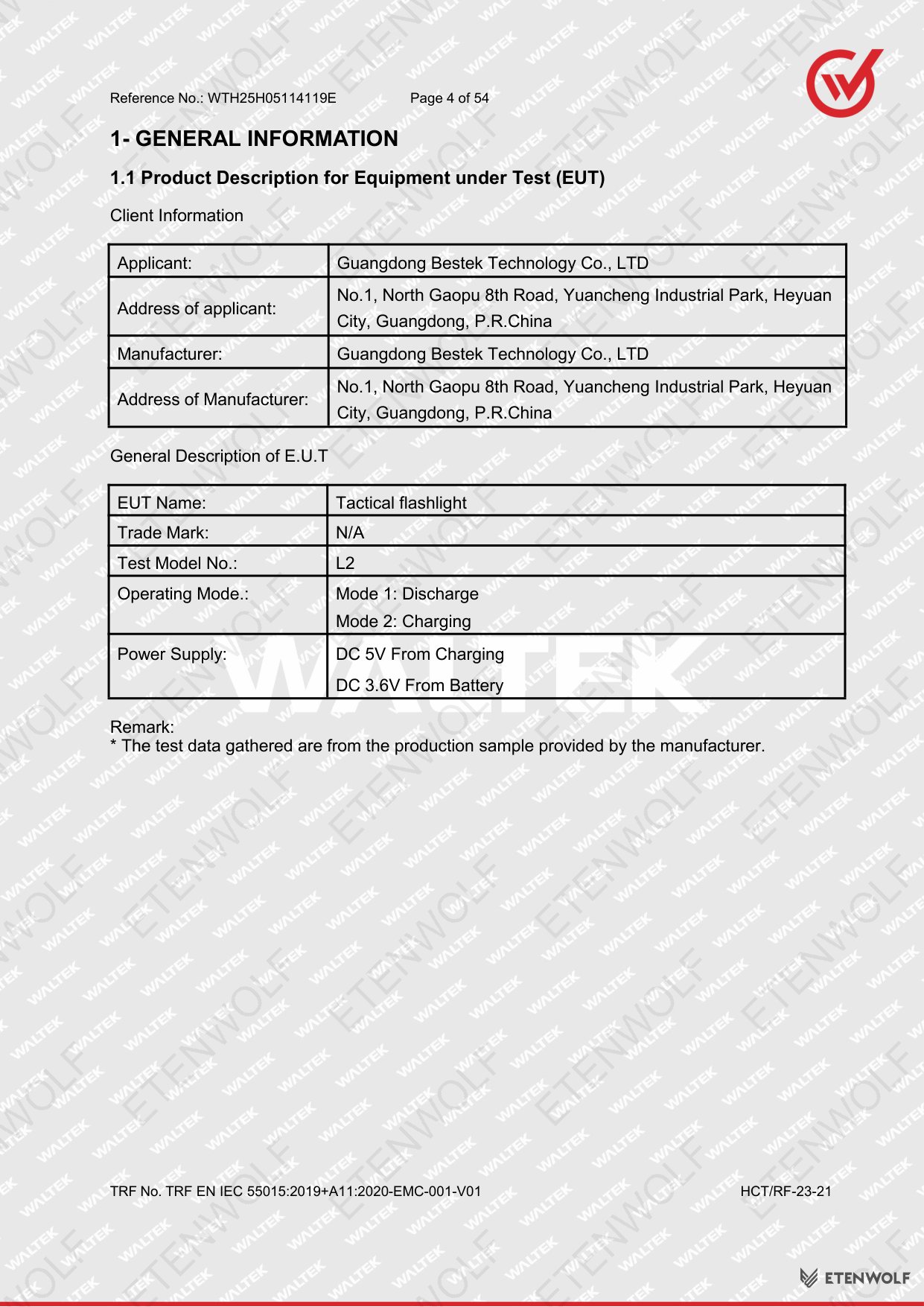

Product Information

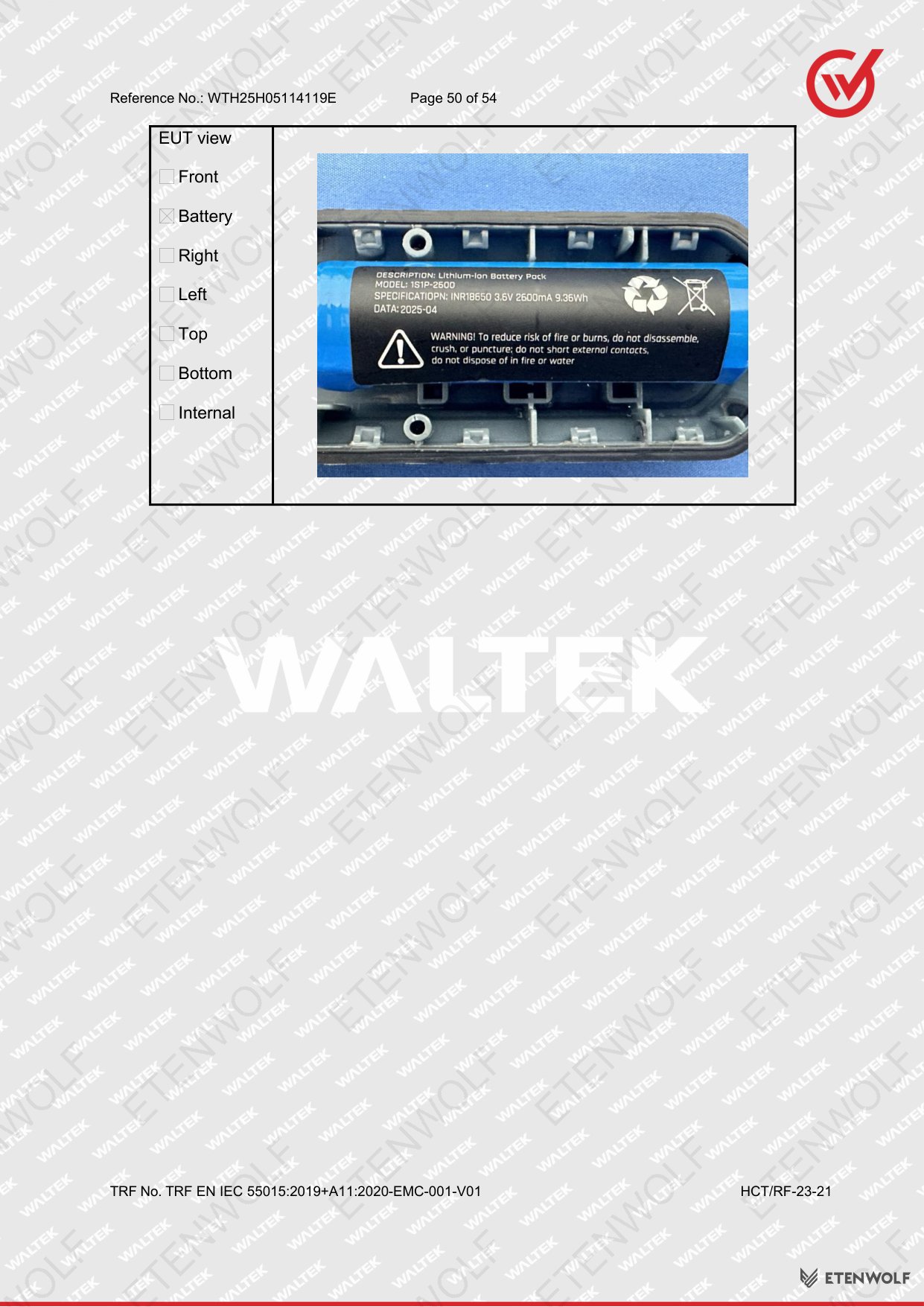

The Equipment Under Test (EUT) assessed in this report is the ETENWOLF L2 Tactical Flashlight, a portable lighting product designed and manufactured for professional and consumer use. The product is marketed globally under the ETENWOLF brand.
| Field | Details |
|---|---|
| Product Name | Tactical Flashlight |
| Model Number | L2 |
| Brand | ETENWOLF |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
The L2 is a tactical flashlight product falling within the scope of lighting equipment regulations. Its electromagnetic emissions were evaluated to confirm it does not cause harmful interference to other devices and meets the requirements necessary for CE marking in the European Economic Area.
Key Details
The test laboratory conducted a full EMC emissions assessment covering three primary measurement categories. All measurements were performed with the EUT operating under normal functional conditions as specified by the manufacturer.

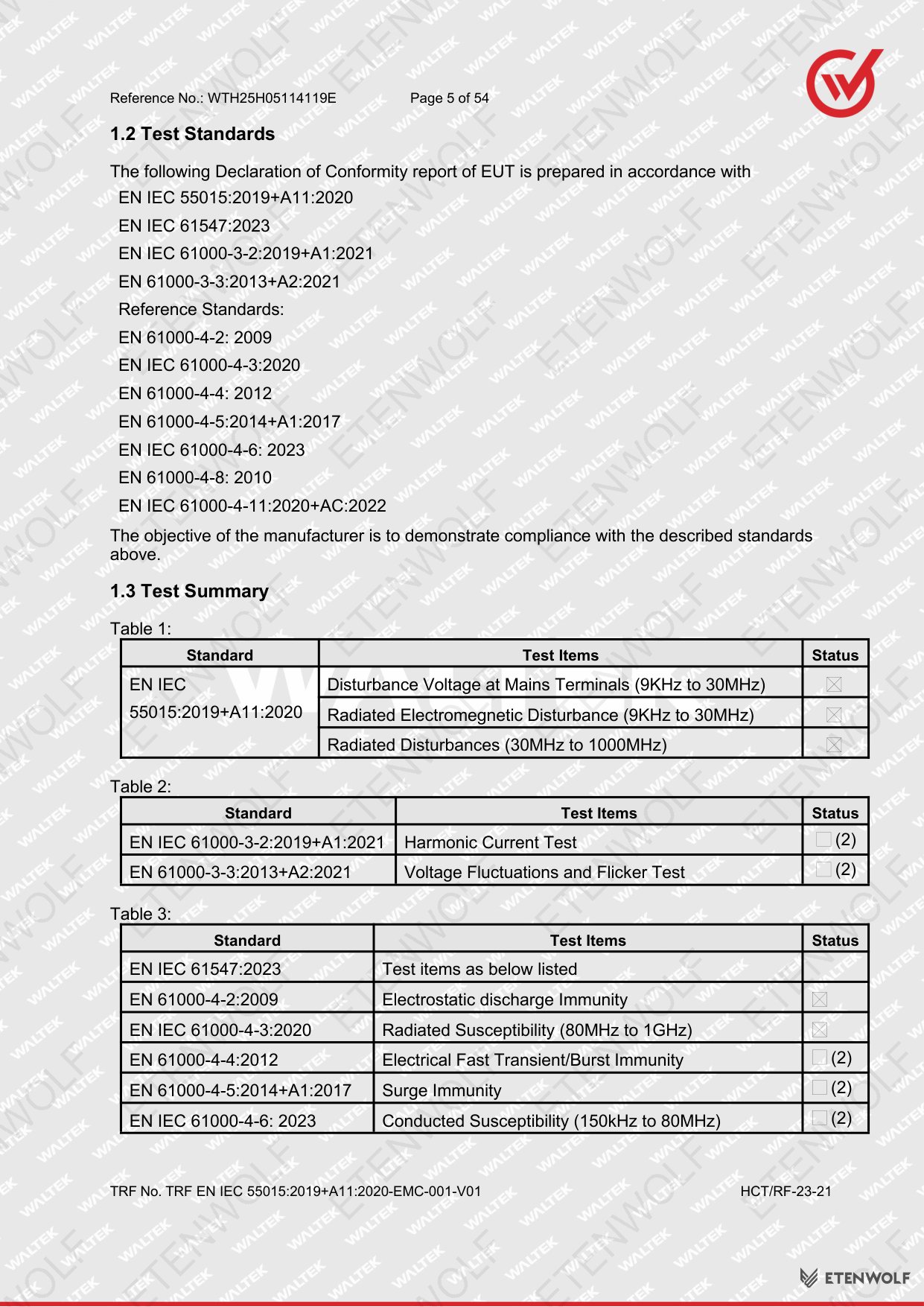

| Test Category | Applicable Standard | Result |
|---|---|---|
| Disturbance Voltage at Mains Terminals | EN IEC 55015:2019+A11:2020 | Pass |

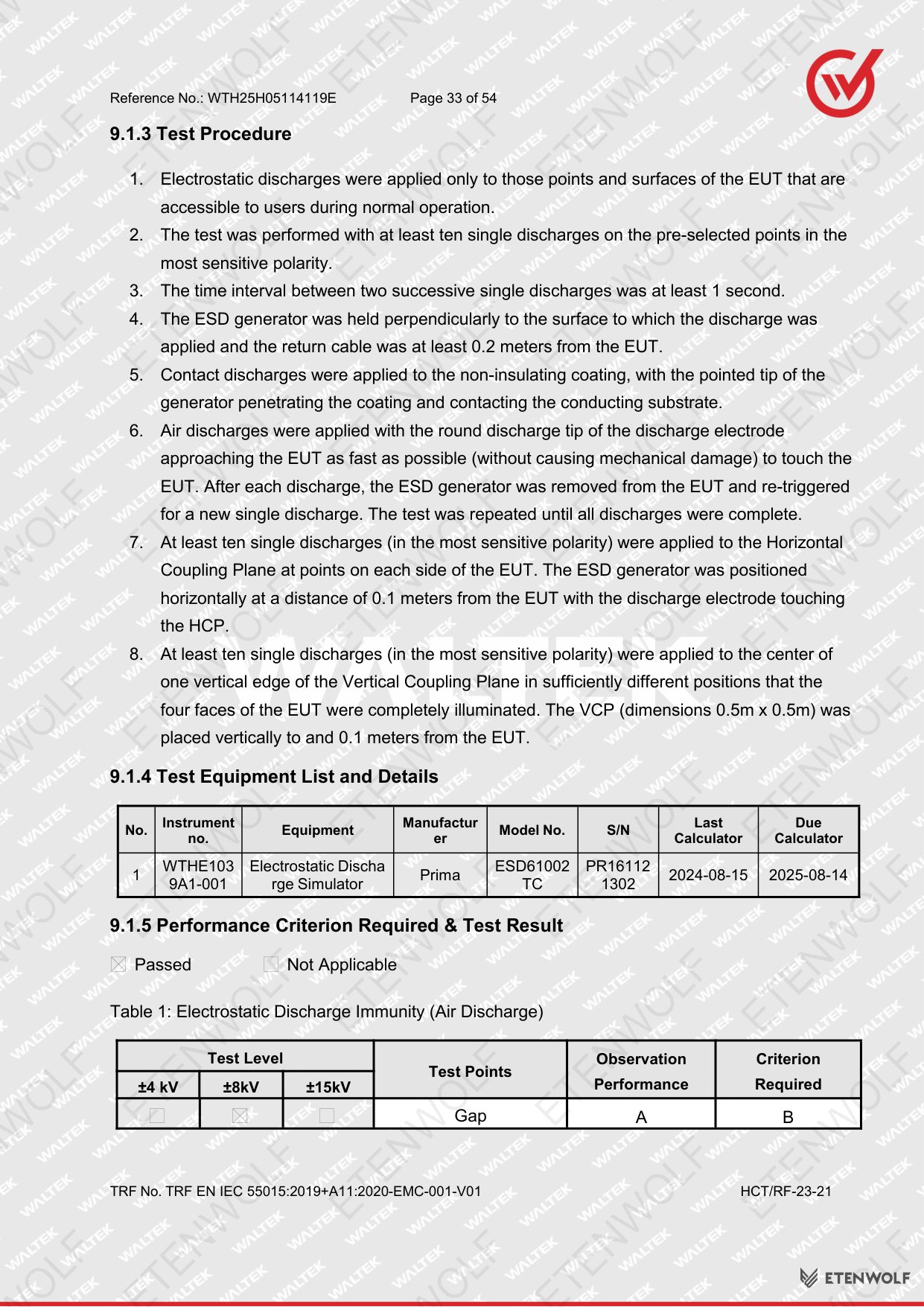

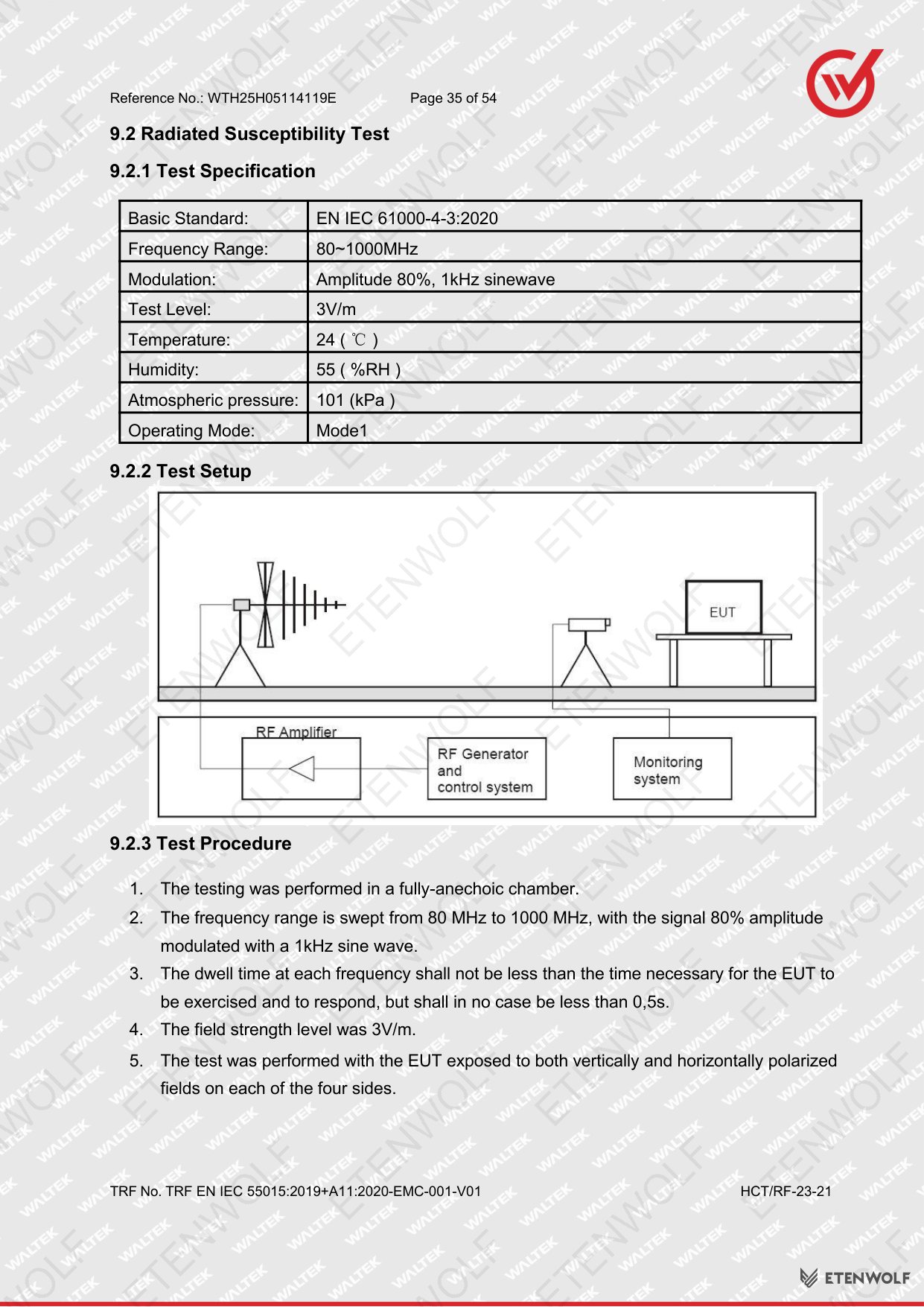

| Immunity for Lighting Equipment | EN IEC 61547:2023 | Pass |

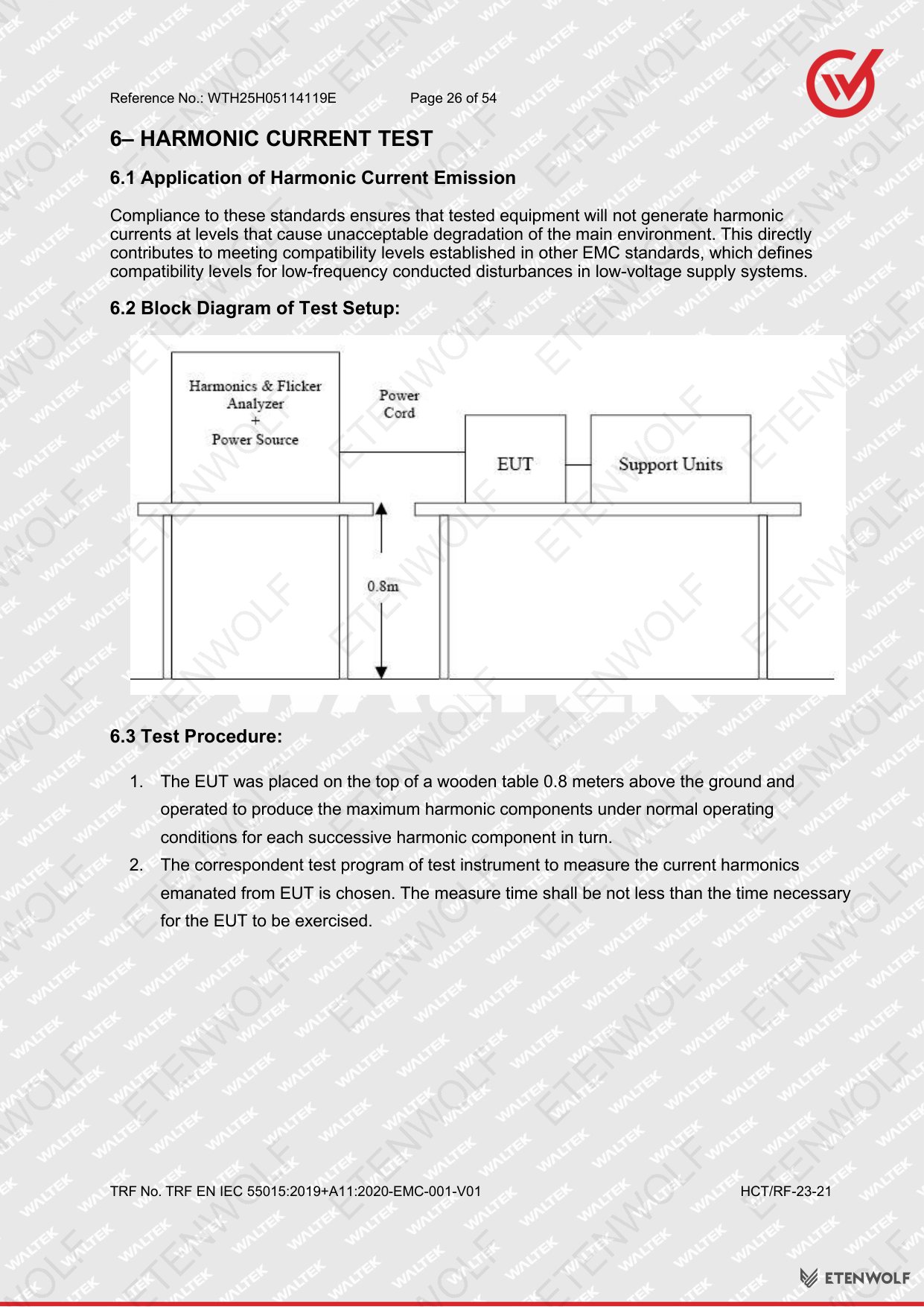

| Harmonic Current Emissions | EN IEC 61000-3-2:2019+A1:2021 | Pass |

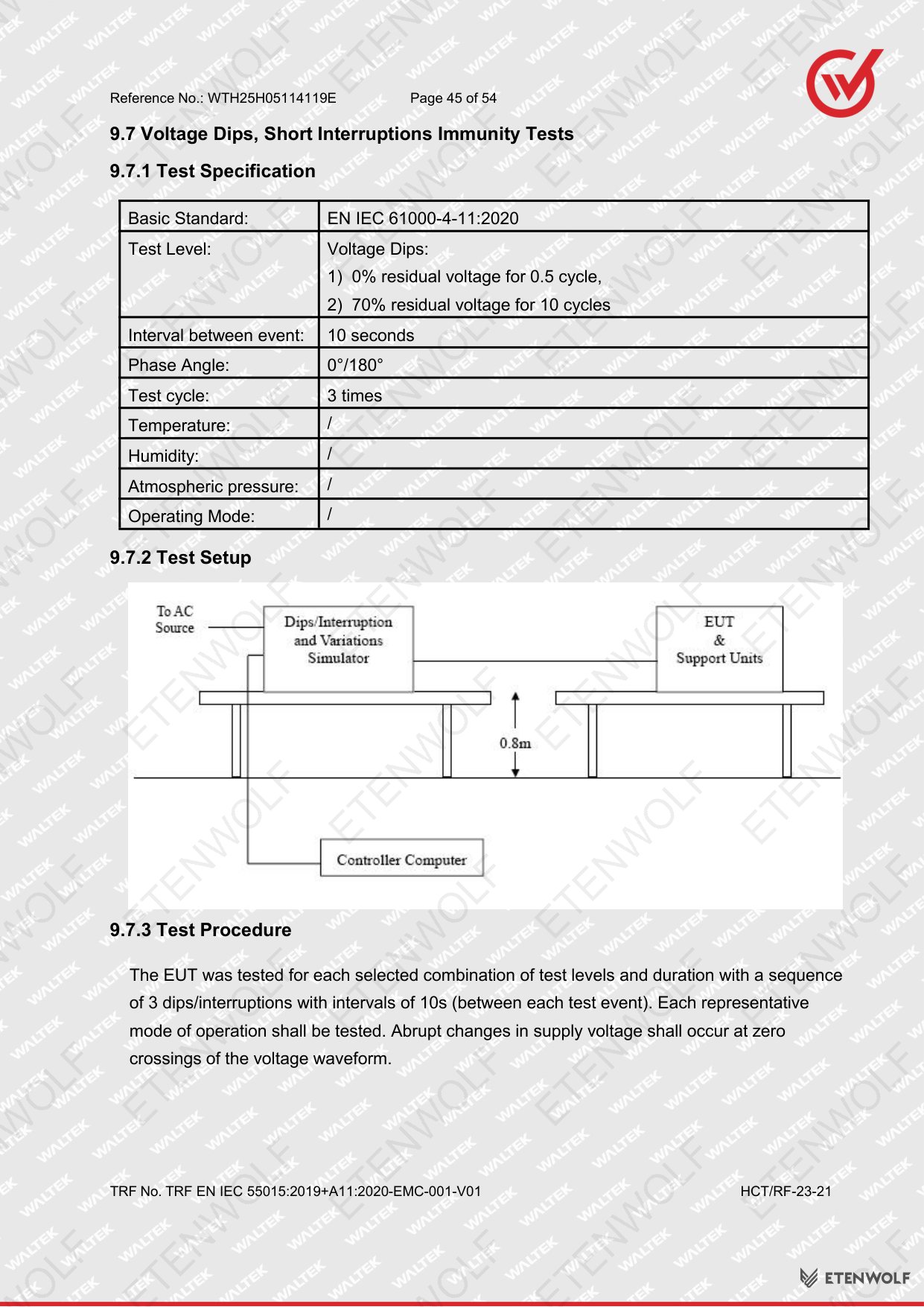

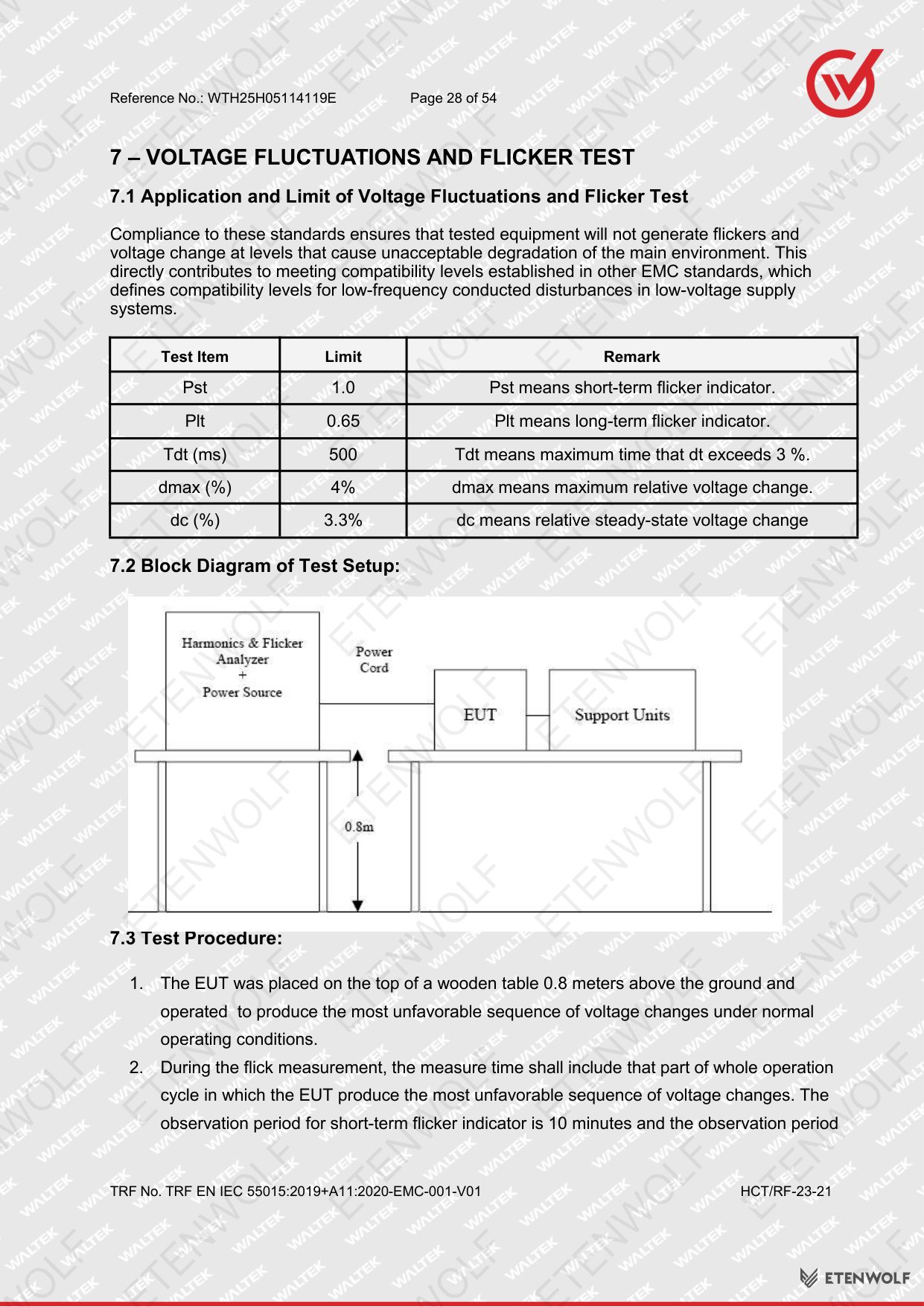

| Voltage Fluctuations and Flicker | EN 61000-3-3:2013+A2:2021 | Pass |

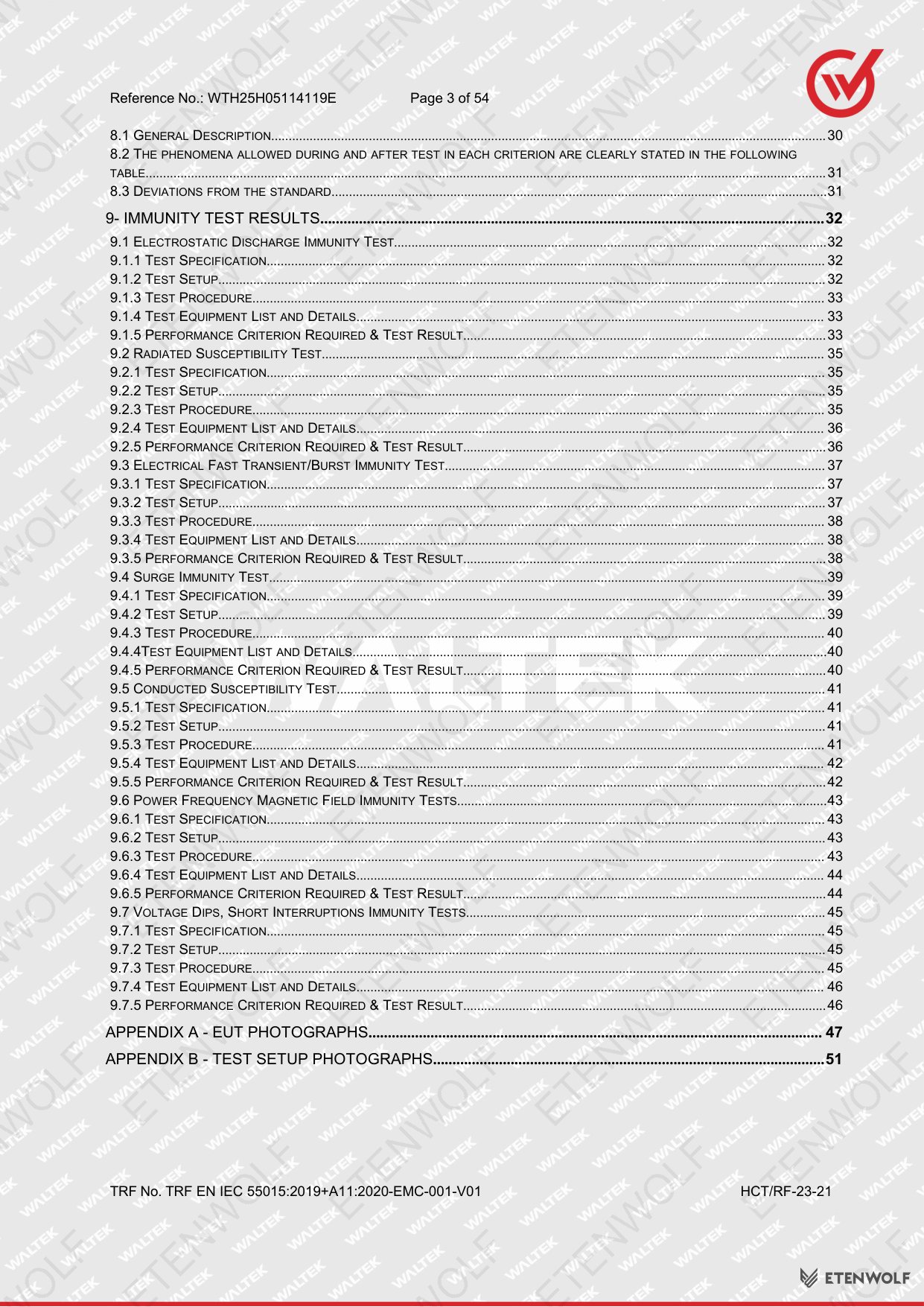

Key test phases documented in the full report include:

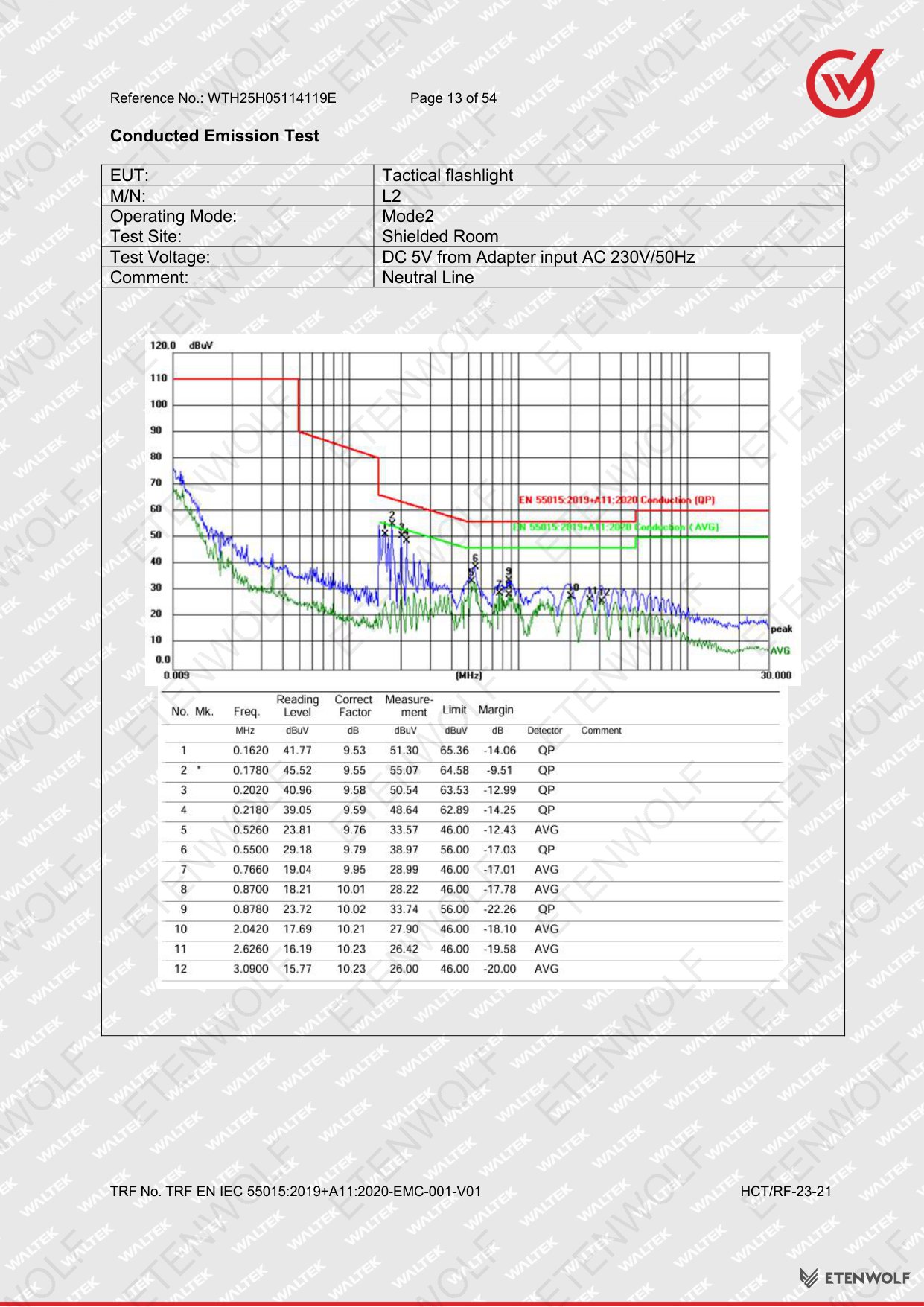

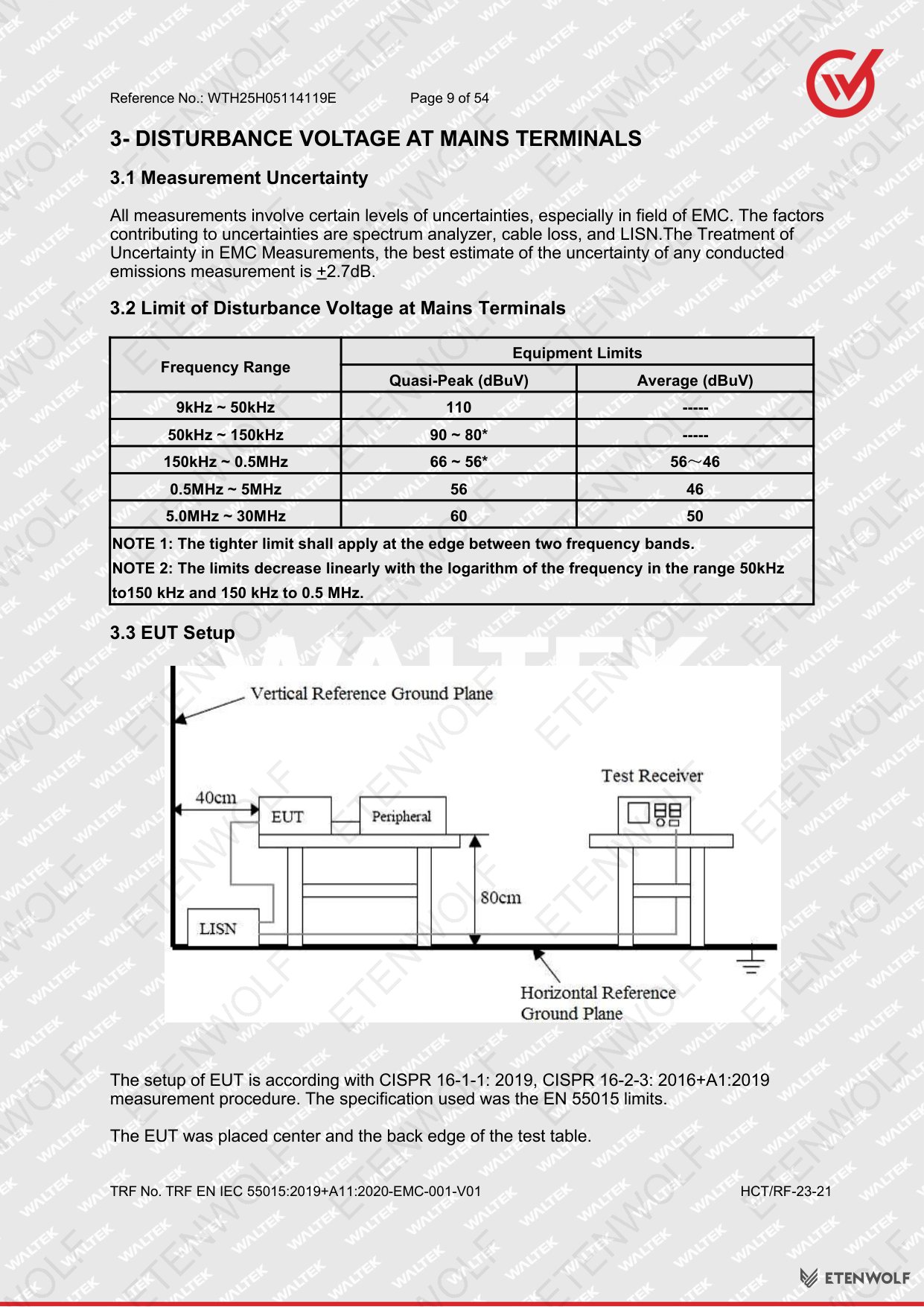

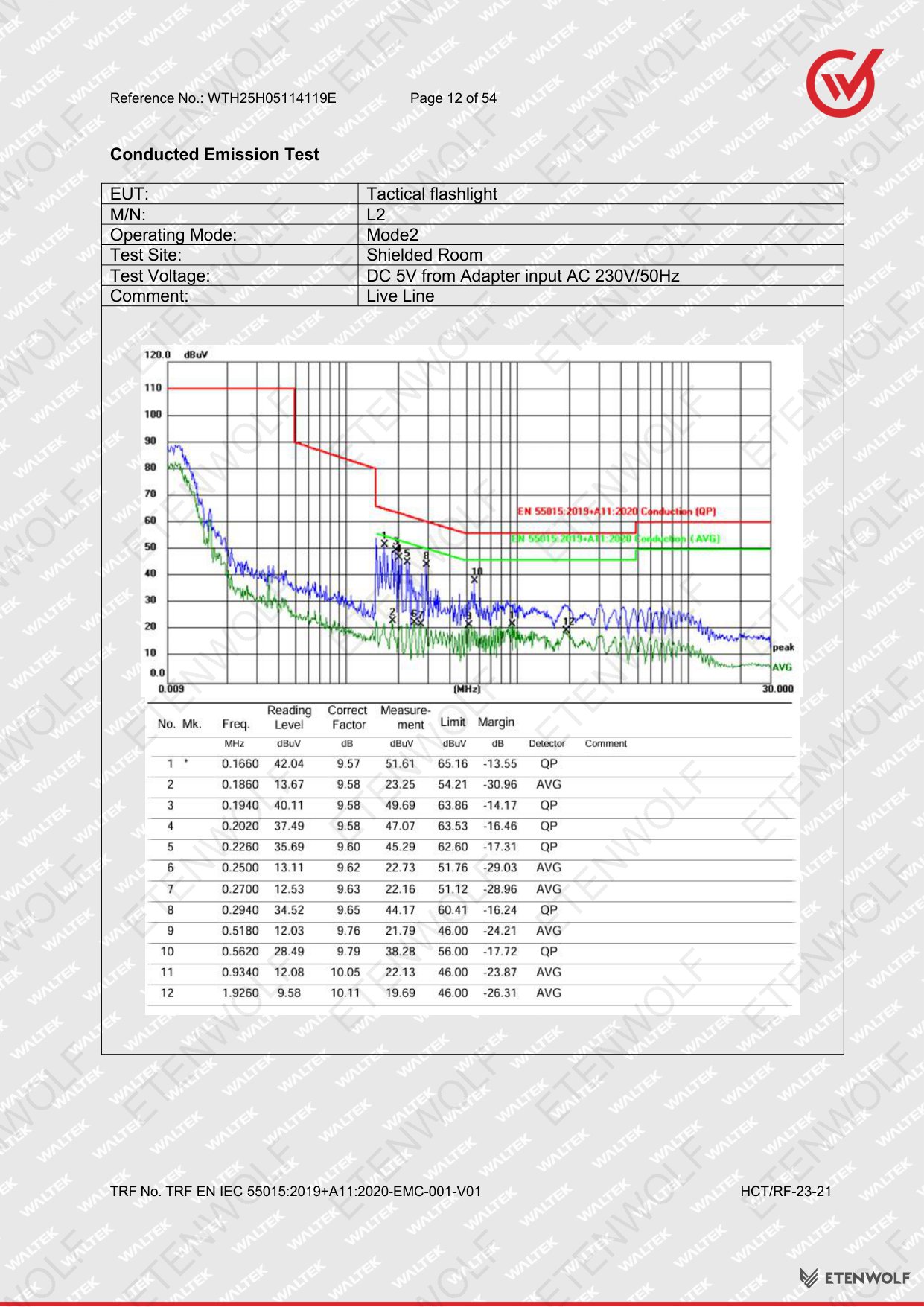

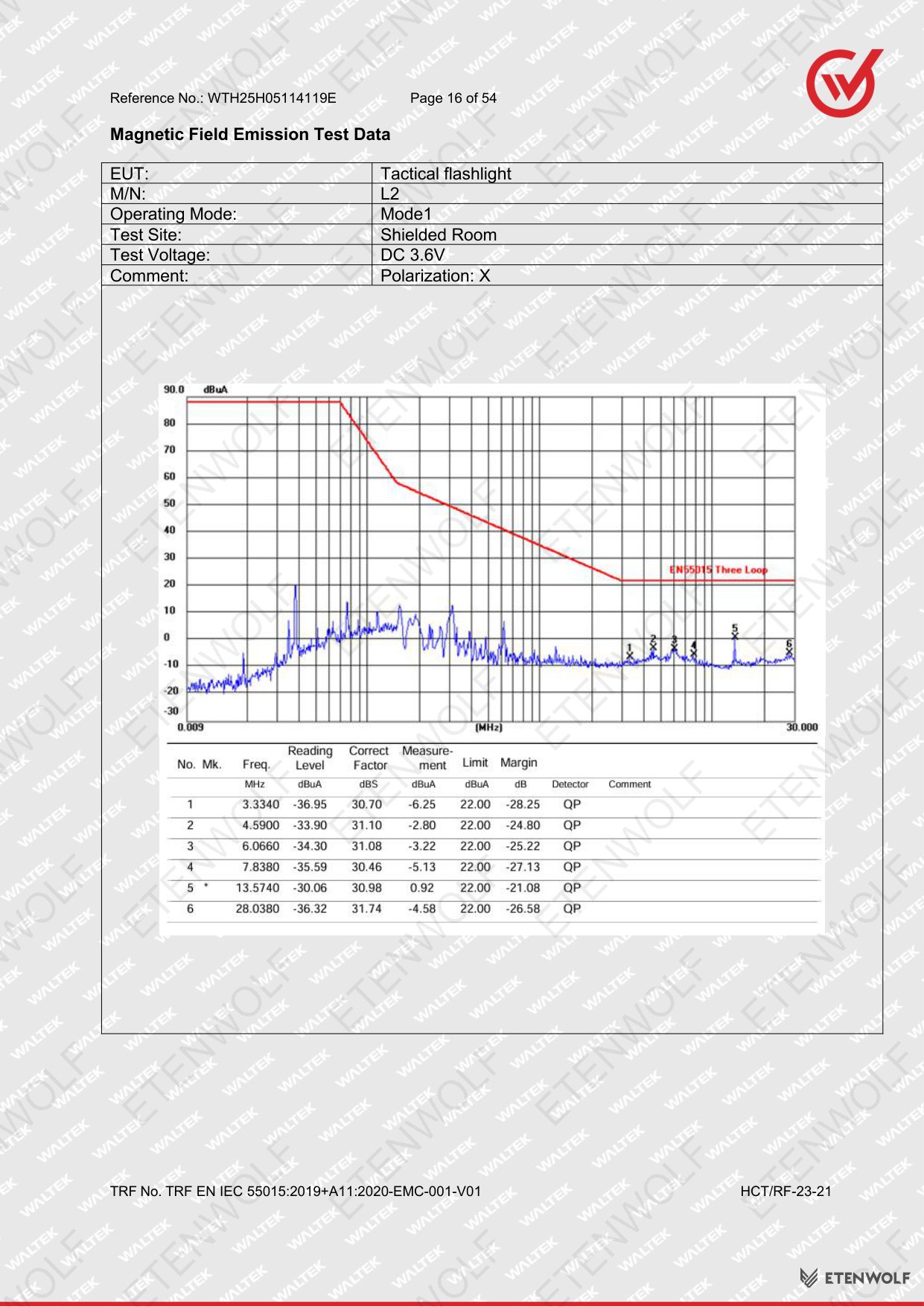

- Section 3: Disturbance Voltage at Mains Terminals — conducted emissions limits, instrument setup, EUT configuration, and corrected measurement data.

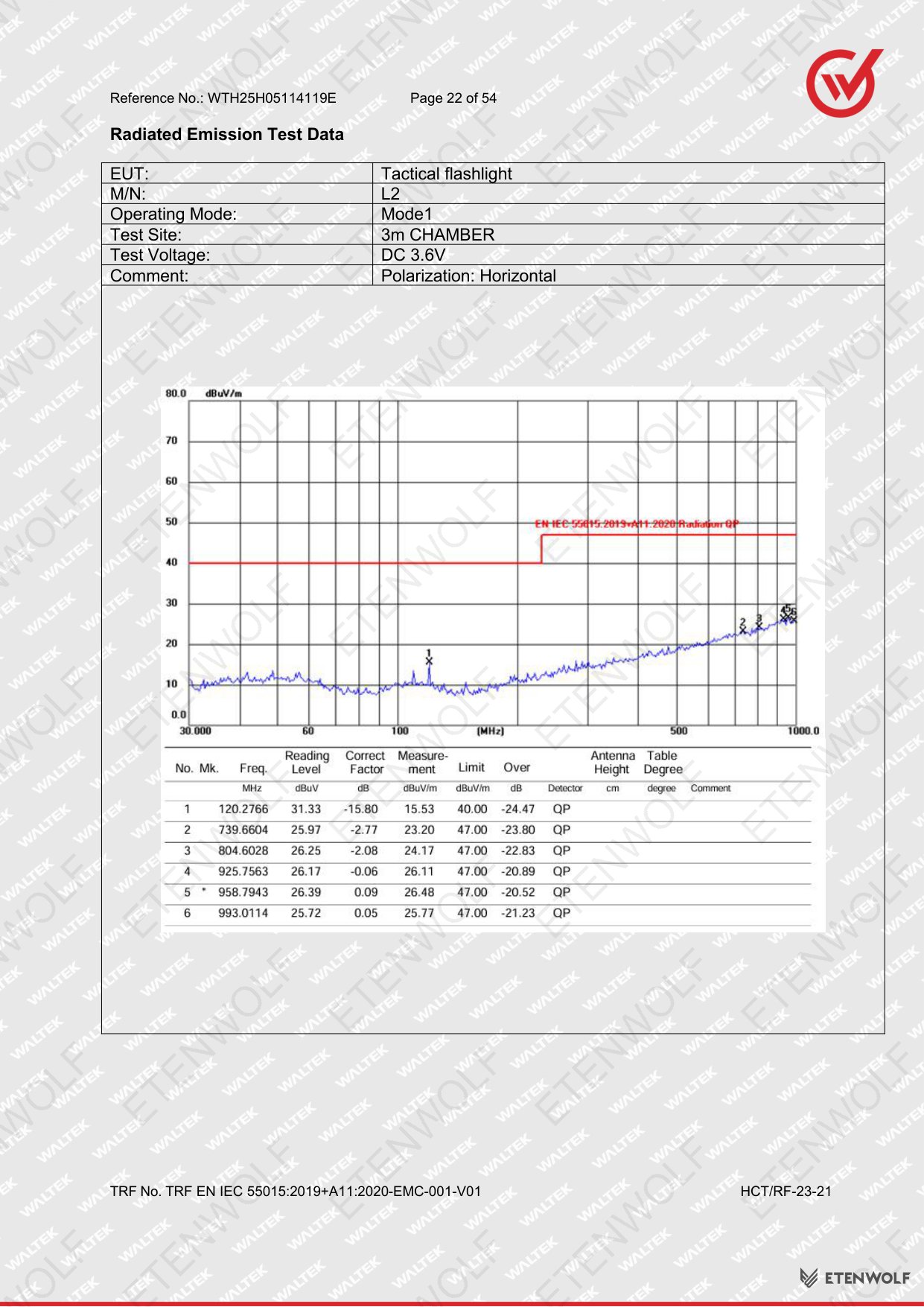

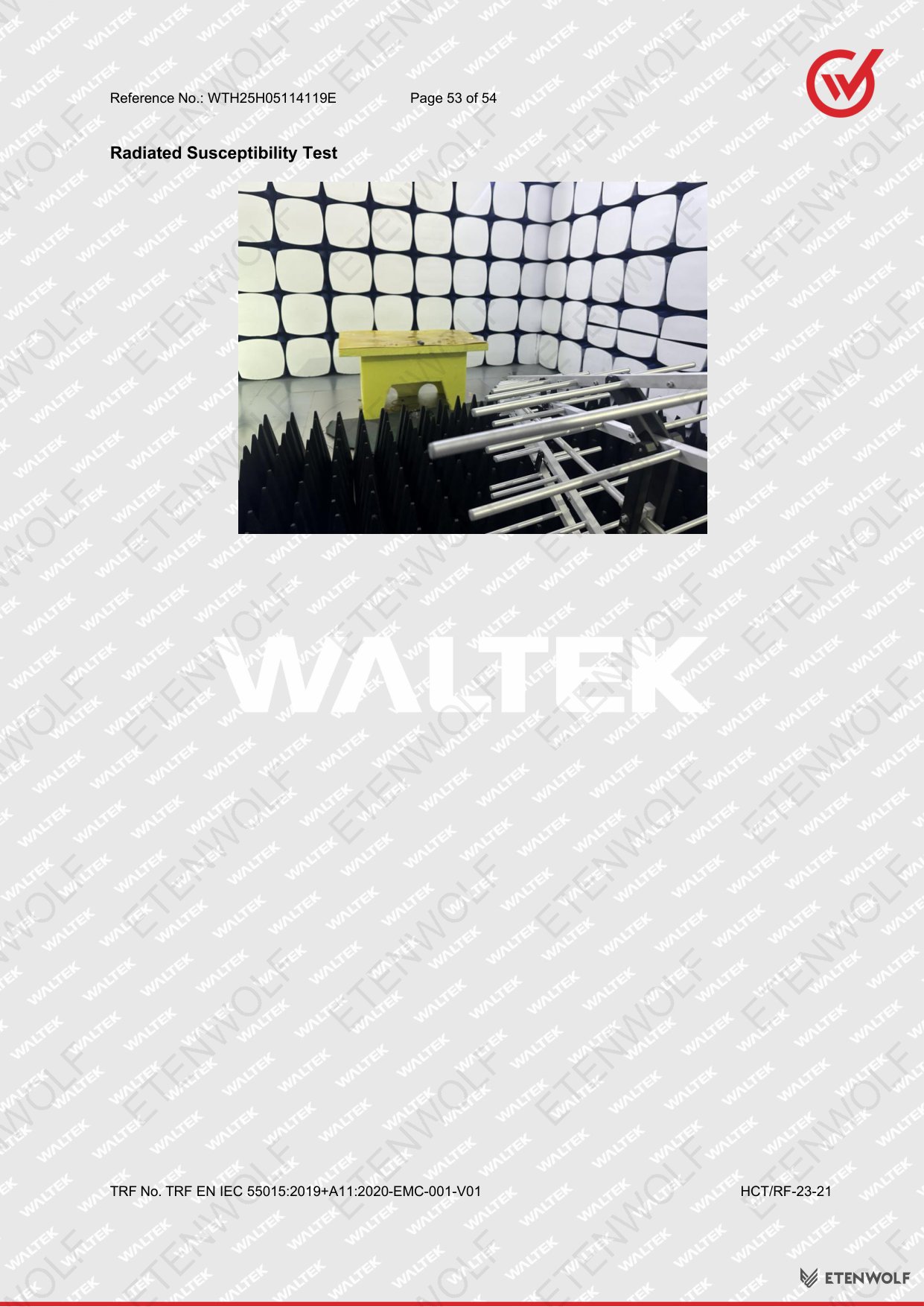

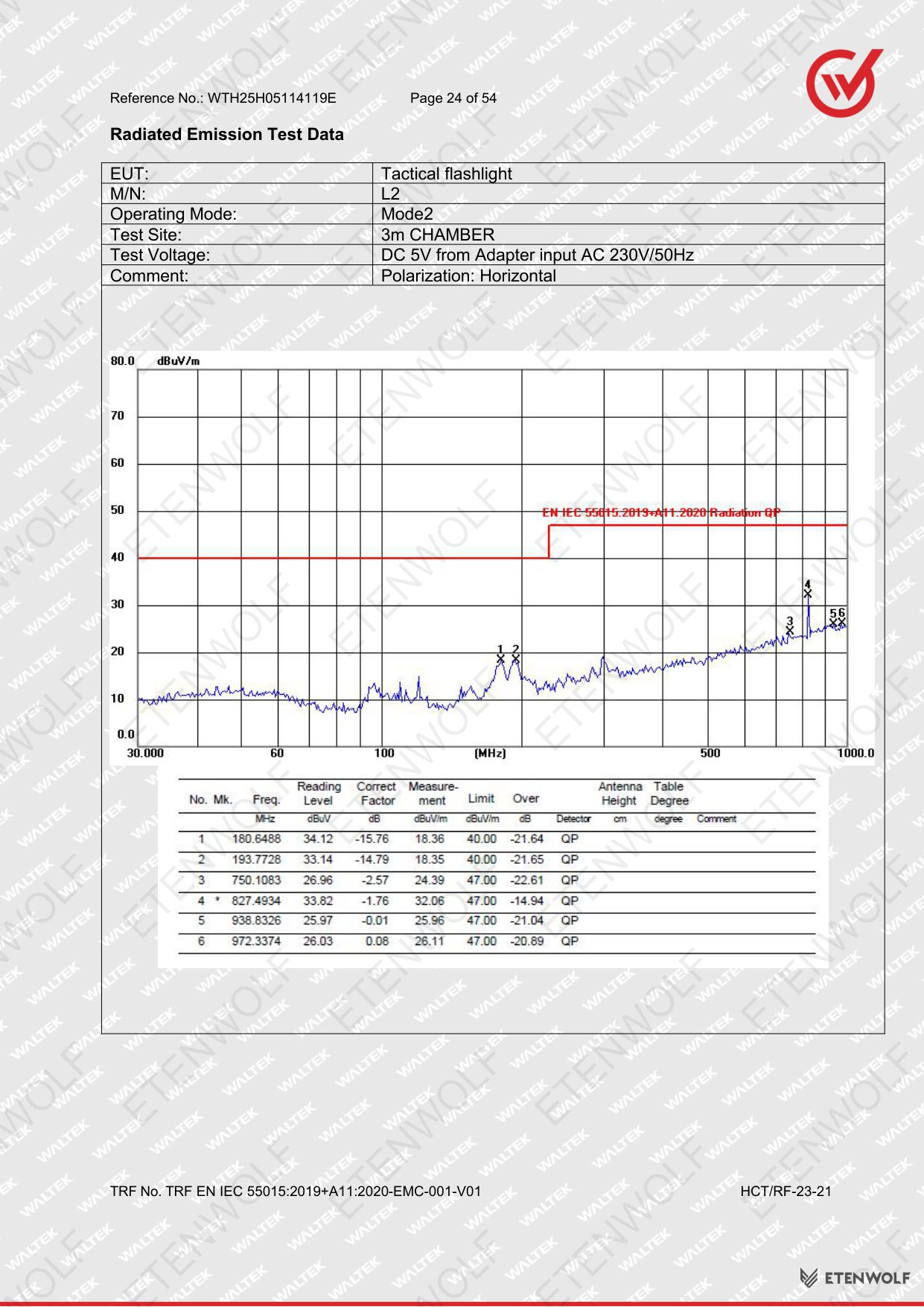

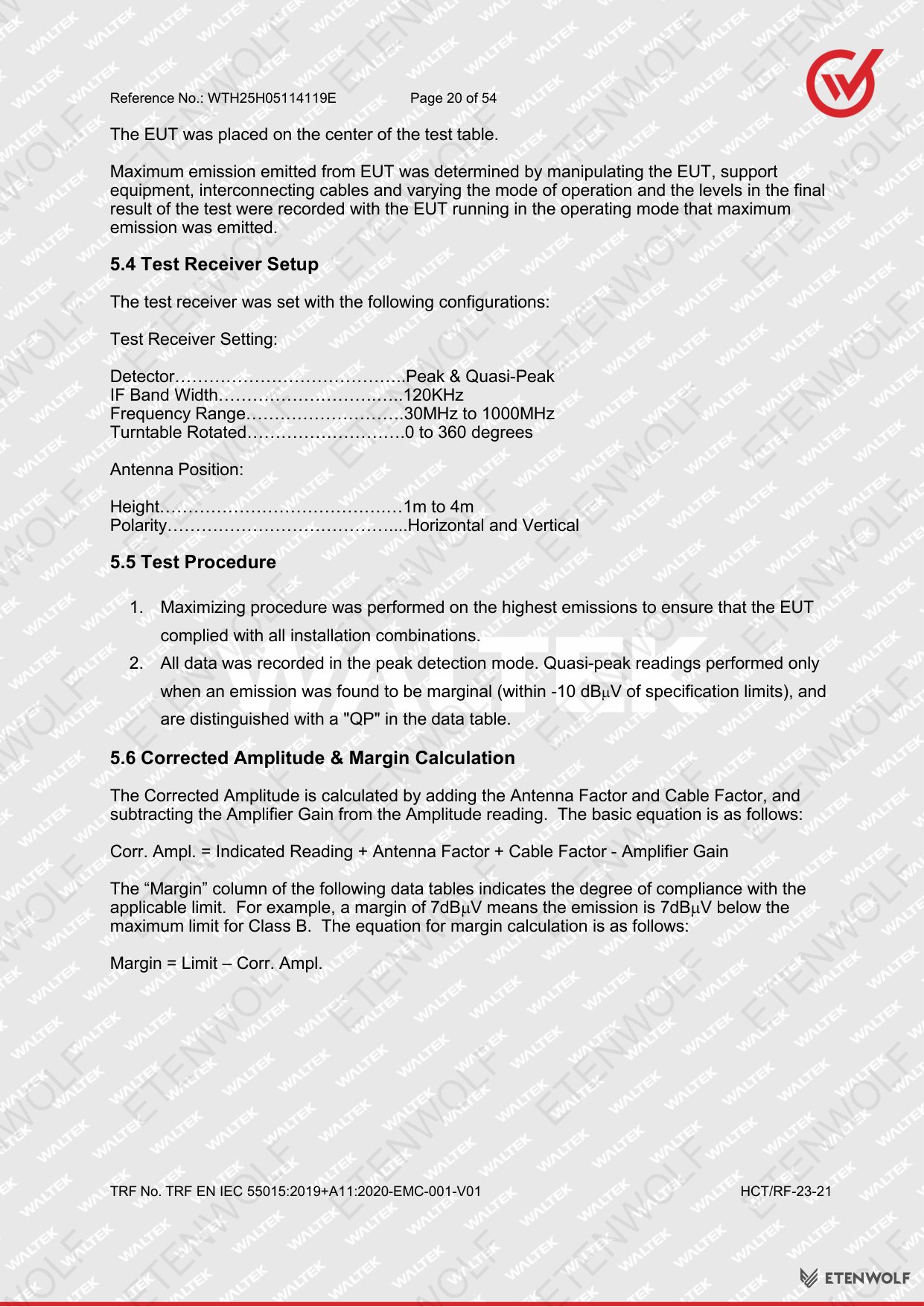

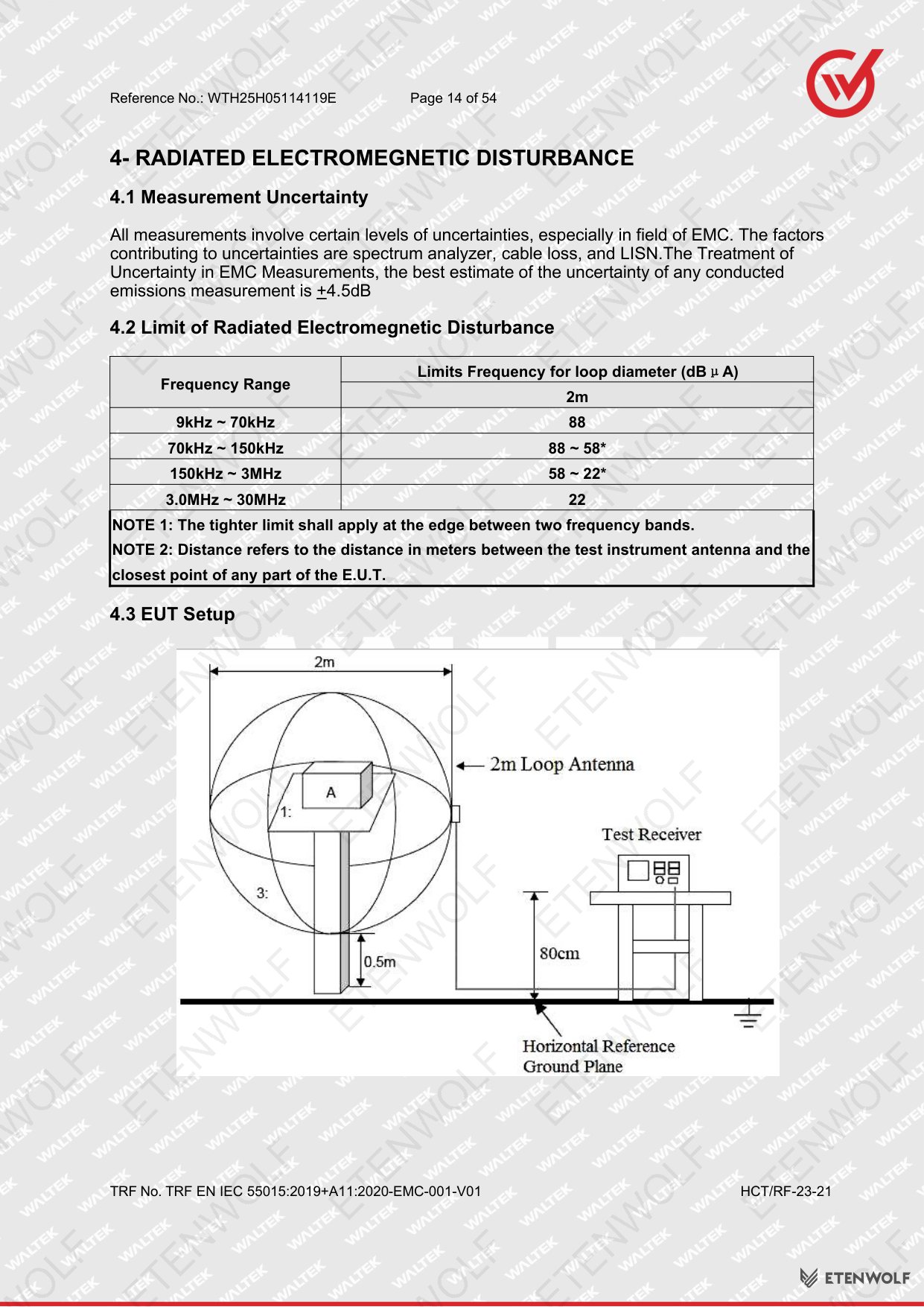

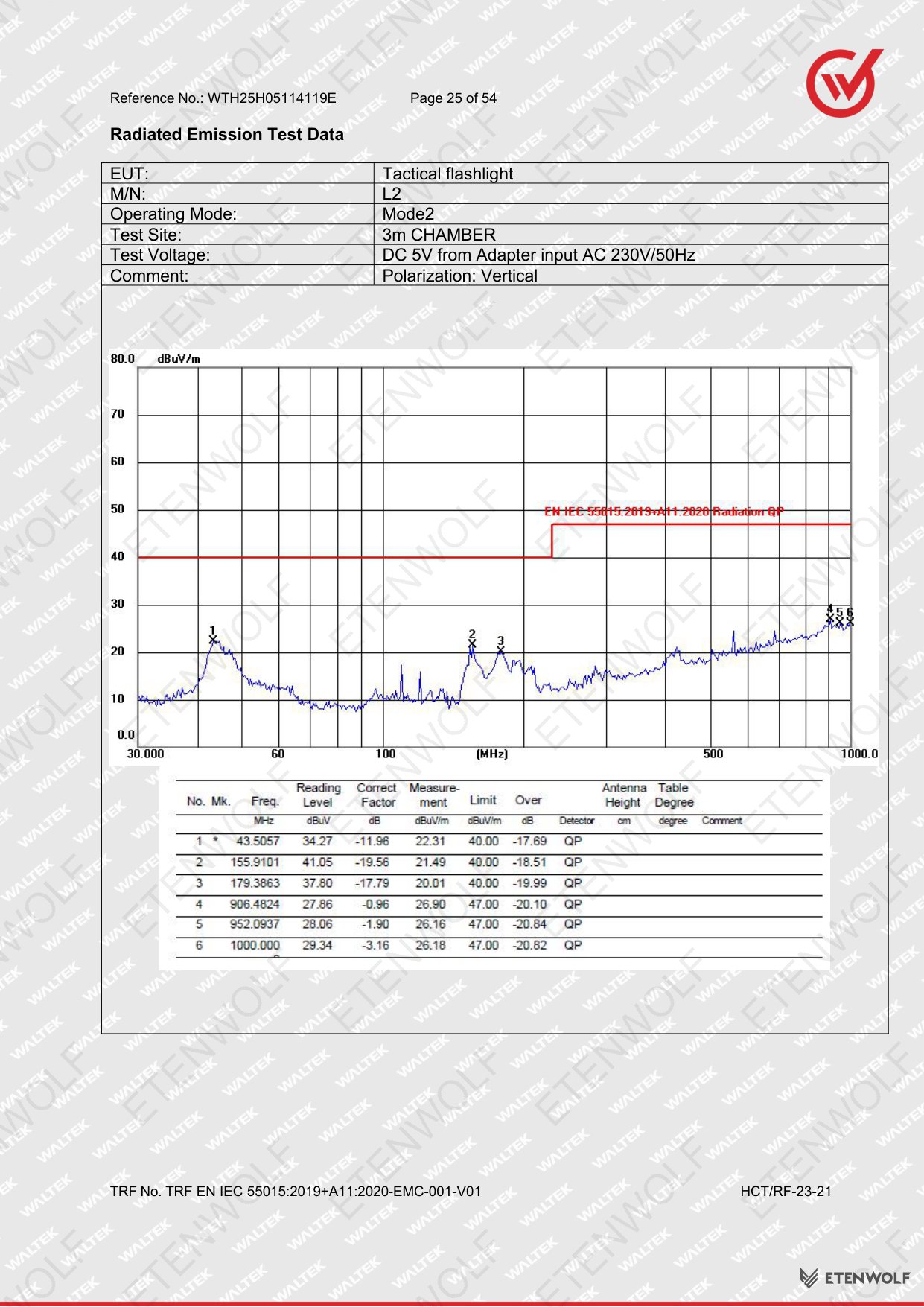

- Section 4: Radiated Electromagnetic Disturbance — measurement uncertainty, limit table, test setup, and recorded data across the applicable frequency range.

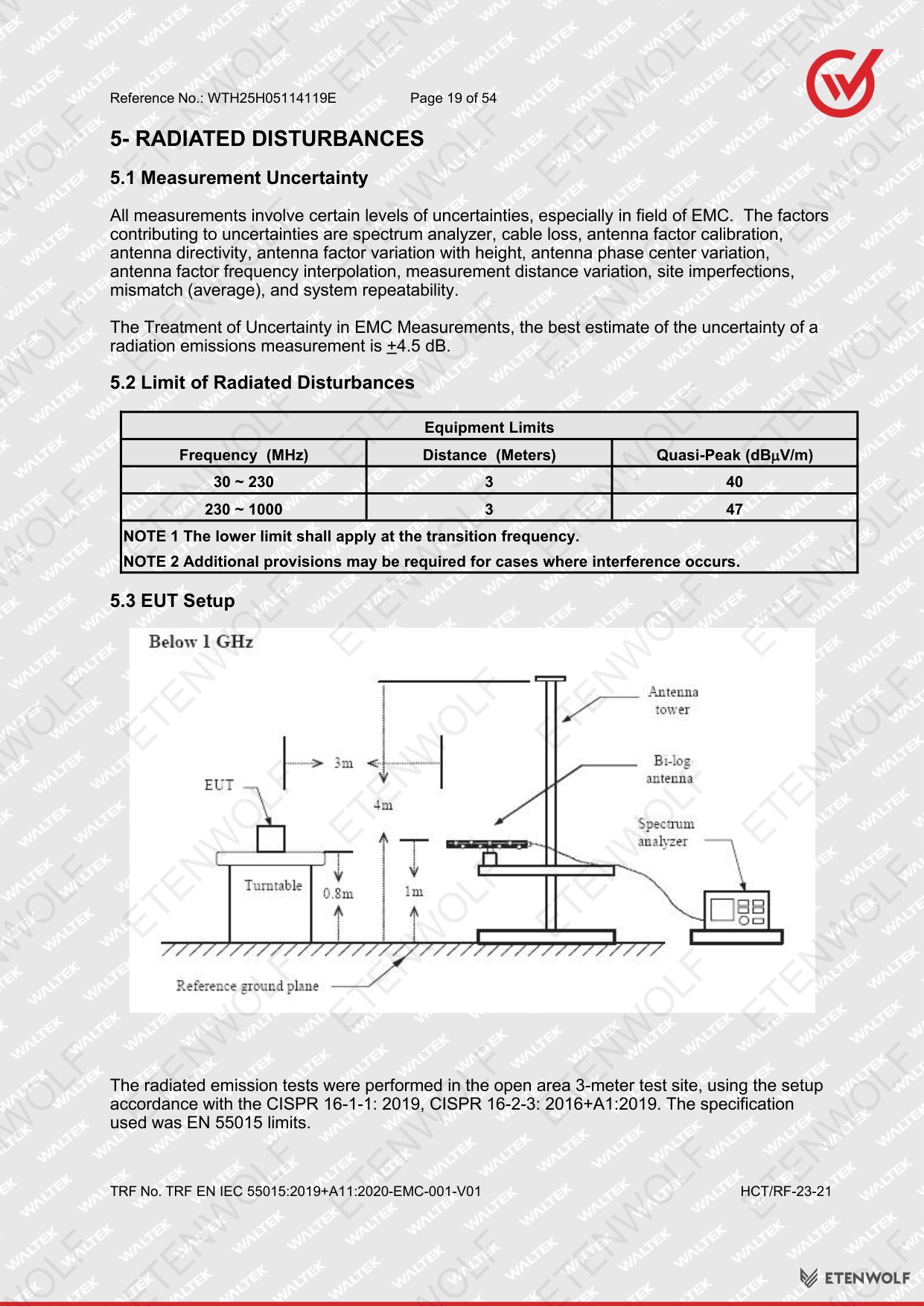

- Section 5: Radiated Disturbances — corrected amplitude and margin calculations confirming compliance with the limits defined in EN IEC 55015:2019+A11:2020.
The report was tested by Snow Zeng and approved by Tony Wu at the Waltek Testing Group HCT facility.
Standards & Compliance
The ETENWOLF L2 Tactical Flashlight was evaluated against the following European harmonised standards, which support the CE marking directive for lighting equipment:
| Standard | Title | Scope |
|---|---|---|
| EN IEC 55015:2019+A11:2020 | Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment | Conducted and radiated emissions limits for lighting equipment |
| EN IEC 61547:2023 | Equipment for general lighting purposes — EMC immunity requirements | Immunity requirements for general lighting equipment |
| EN IEC 61000-3-2:2019+A1:2021 | Electromagnetic Compatibility — Limits for harmonic current emissions | Harmonic current limits for equipment with input current up to 16 A per phase |
| EN 61000-3-3:2013+A2:2021 | Electromagnetic Compatibility — Limitation of voltage changes, voltage fluctuations and flicker | Voltage fluctuation and flicker limits for equipment with rated current up to 16 A |
The test report form used is TRF EN IEC 55015:2019+A11:2020-EMC-001-V01, confirming the procedural framework applied during measurement. Measurement uncertainty was documented for each test category in accordance with laboratory accreditation requirements. The CE marking framework requires that all listed standards be met for the product to be legally placed on the European market.

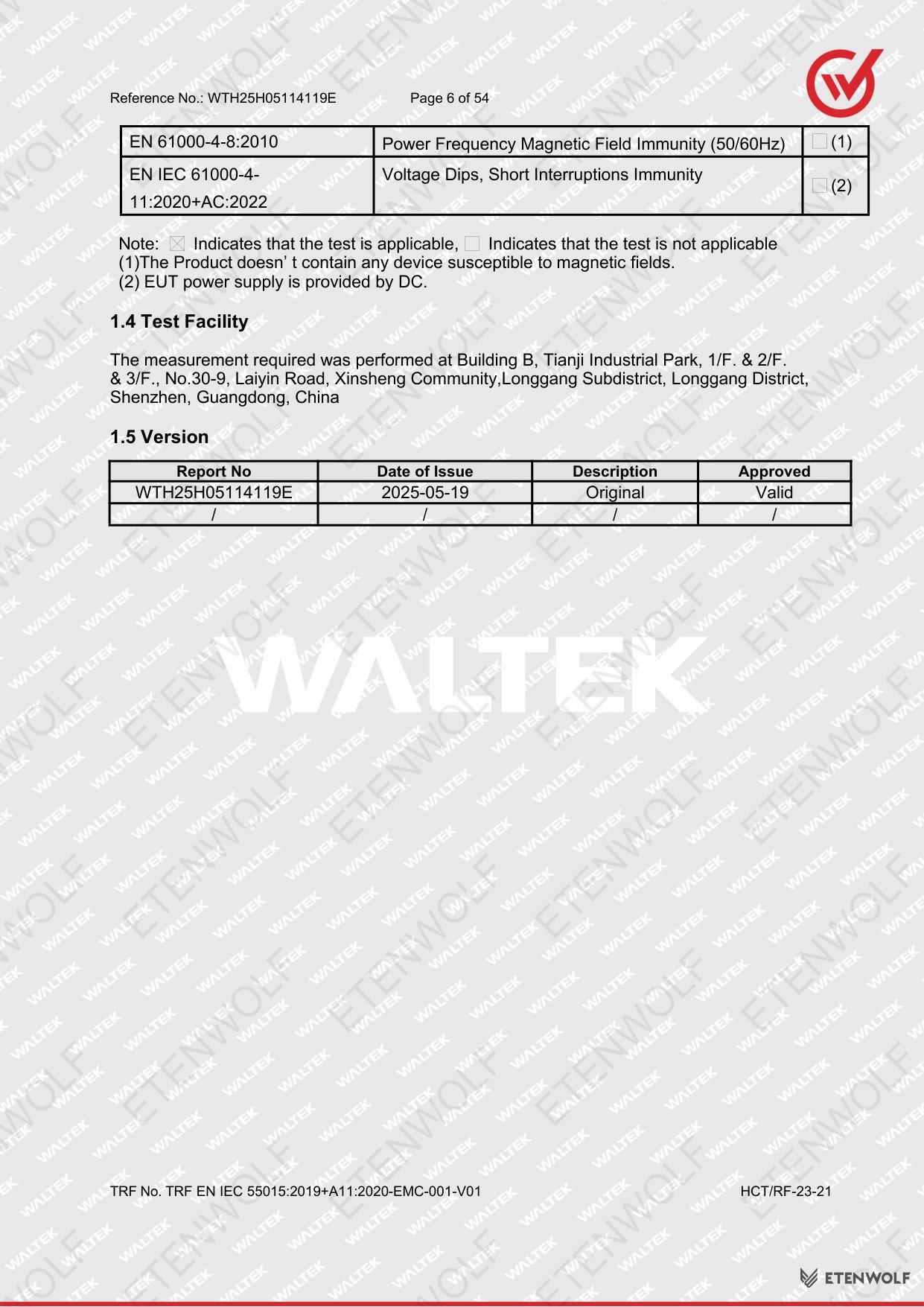

Validity & Certification Body
This test report was issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an independent accredited testing laboratory based in Shenzhen, China. The laboratory operates under rigorous quality management procedures applicable to EMC and safety testing for global market access.
| Field | Details |
|---|---|
| Laboratory Name | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Laboratory Address | Building B, Tianji Industrial Park, 1/F. & 2/F. & 3/F., No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China |
| Internal Form Reference | HCT/RF-23-21 |
| Report Reference Number | WTH25H05114119E |
| Date of Issue | 2025-05-19 |
| Tested By | Snow Zeng |
| Approved By | Tony Wu |
| Contact | Tel: 0755-84616666 | Service: 400-0066-989 | Email: [email protected] |
Test reports issued by accredited laboratories such as Waltek Testing Group HCT support the Declaration of Conformity (DoC) process required for CE marking. The validity of this report is tied to the product configuration tested; any design modification to the L2 may necessitate re-testing to maintain compliance status.
Frequently Asked Questions
- What does CE-EMC certification mean for the ETENWOLF L2 Tactical Flashlight?
-
CE-EMC certification confirms that the ETENWOLF L2 Tactical Flashlight meets the electromagnetic compatibility requirements set by European harmonised standards. This means the product does not emit electromagnetic interference beyond permitted levels and is sufficiently immune to external electromagnetic disturbances, allowing it to be legally sold throughout the European Economic Area.
- Which standards were used to test the L2 Tactical Flashlight?
-
The L2 was tested against four standards: EN IEC 55015:2019+A11:2020 for conducted and radiated emissions, EN IEC 61547:2023 for immunity, EN IEC 61000-3-2:2019+A1:2021 for harmonic current emissions, and EN 61000-3-3:2013+A2:2021 for voltage fluctuations and flicker.
- Who conducted the CE-EMC testing and when was the report issued?
-
Testing was carried out by Waltek Testing Group HCT (Shenzhen) Co., Ltd. The sample was received on 2025-05-06, testing was performed on 2025-05-08, and the report (reference WTH25H05114119E) was issued on 2025-05-19. The report was tested by Snow Zeng and approved by Tony Wu.
- Does a change in product design require a new CE-EMC test?
-
Yes. CE-EMC test reports are valid for the specific product configuration that was submitted and tested. Any hardware or firmware modification to the ETENWOLF L2 that could affect electromagnetic emissions or immunity — such as changes to the driver circuit, LED module, or enclosure — would require a new assessment to maintain valid CE marking status.
Related Documents
For a complete compliance dossier supporting the CE marking Declaration of Conformity for the ETENWOLF L2 Tactical Flashlight, the following related certification and test documents are typically required or recommended:
- CE-LVD (Low Voltage Directive) Test Report — Covers electrical safety testing under EN 60598 or EN 62471 for lighting products sold in the EU.
- CE-RED (Radio Equipment Directive) Certificate — Required if the L2 incorporates any wireless or radio frequency components.
- RoHS Compliance Report — Confirms restriction of hazardous substances including lead, mercury, cadmium, and hexavalent chromium as required by EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Documents compliance with REACH Regulation (EC) No 1907/2006 regarding substances of very high concern.
- UN 38.3 Battery Transport Test Report — Required if the L2 ships with a lithium-ion battery, confirming safe air and ground transport compliance.
- FCC Part 15 Test Report — Required for market access in the United States, covering unintentional radiator emissions limits analogous to those tested under EN IEC 55015.

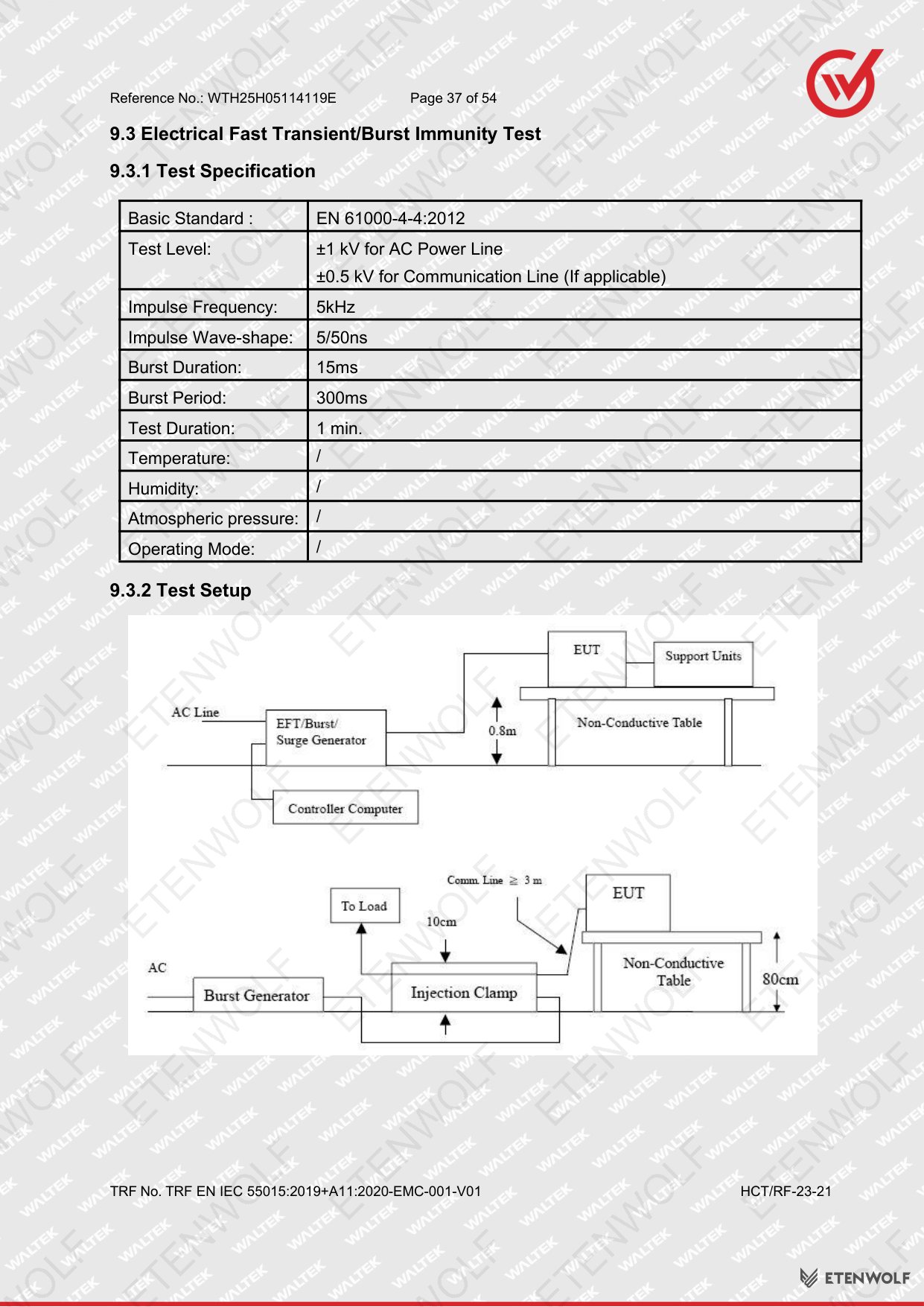

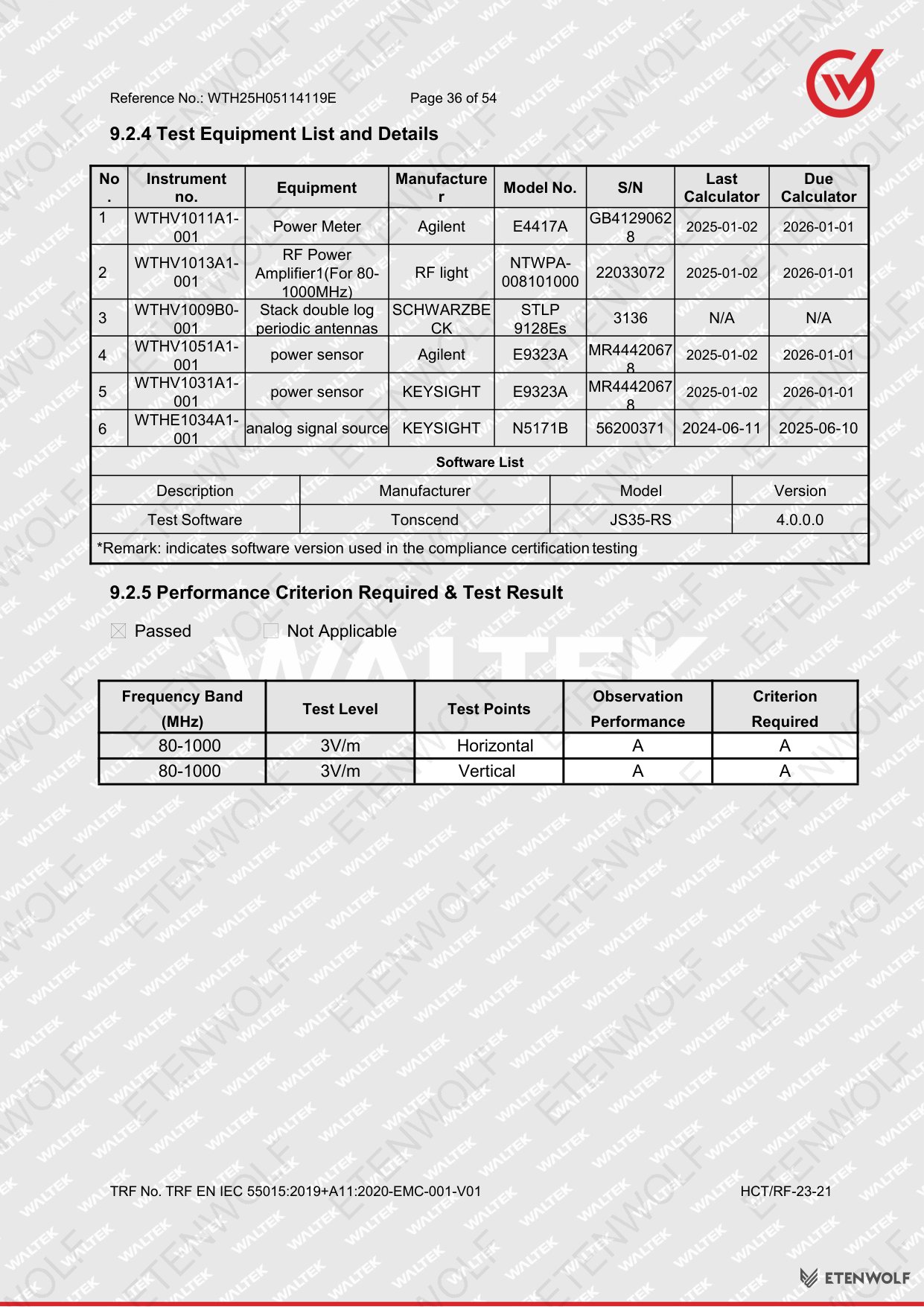

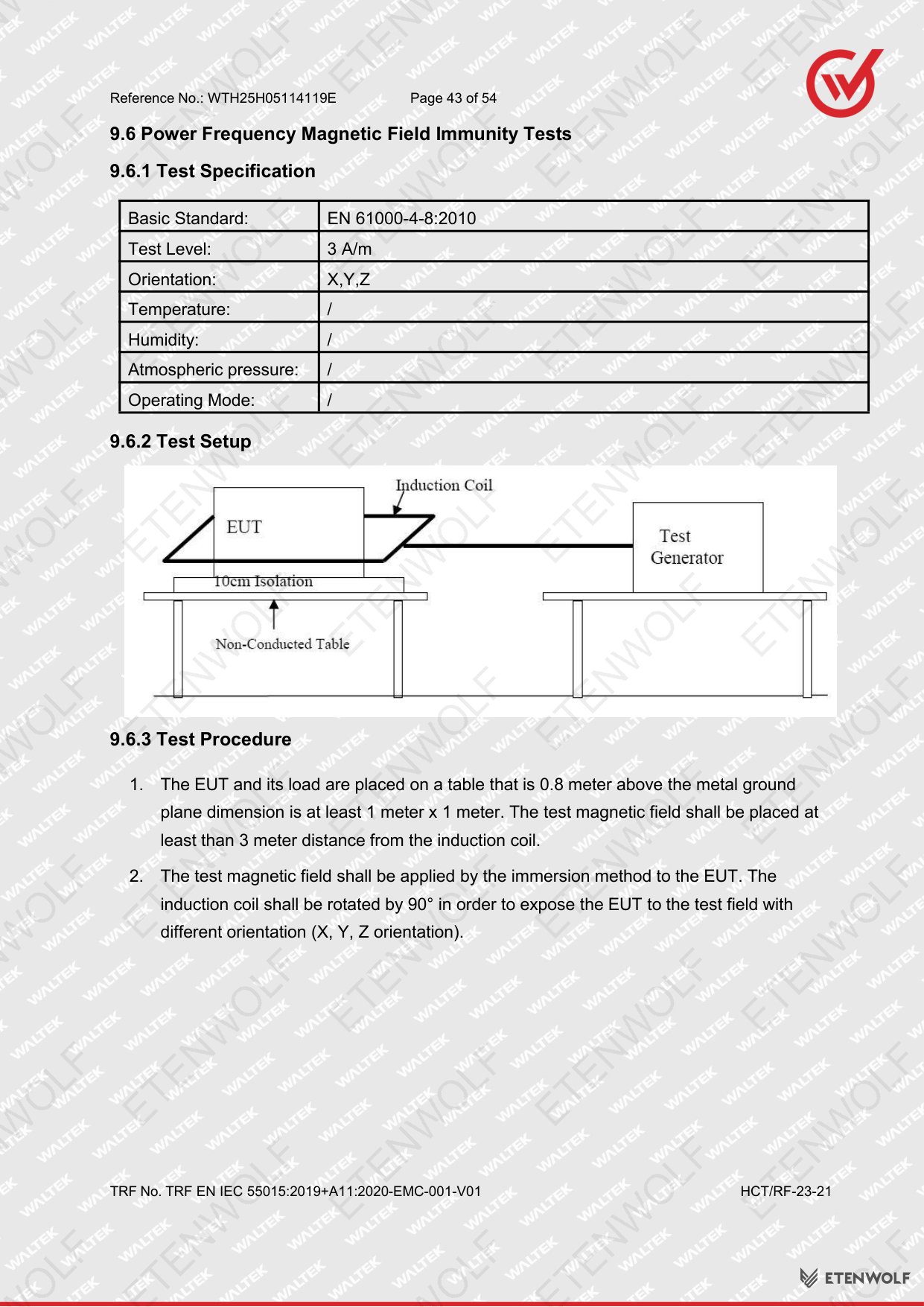

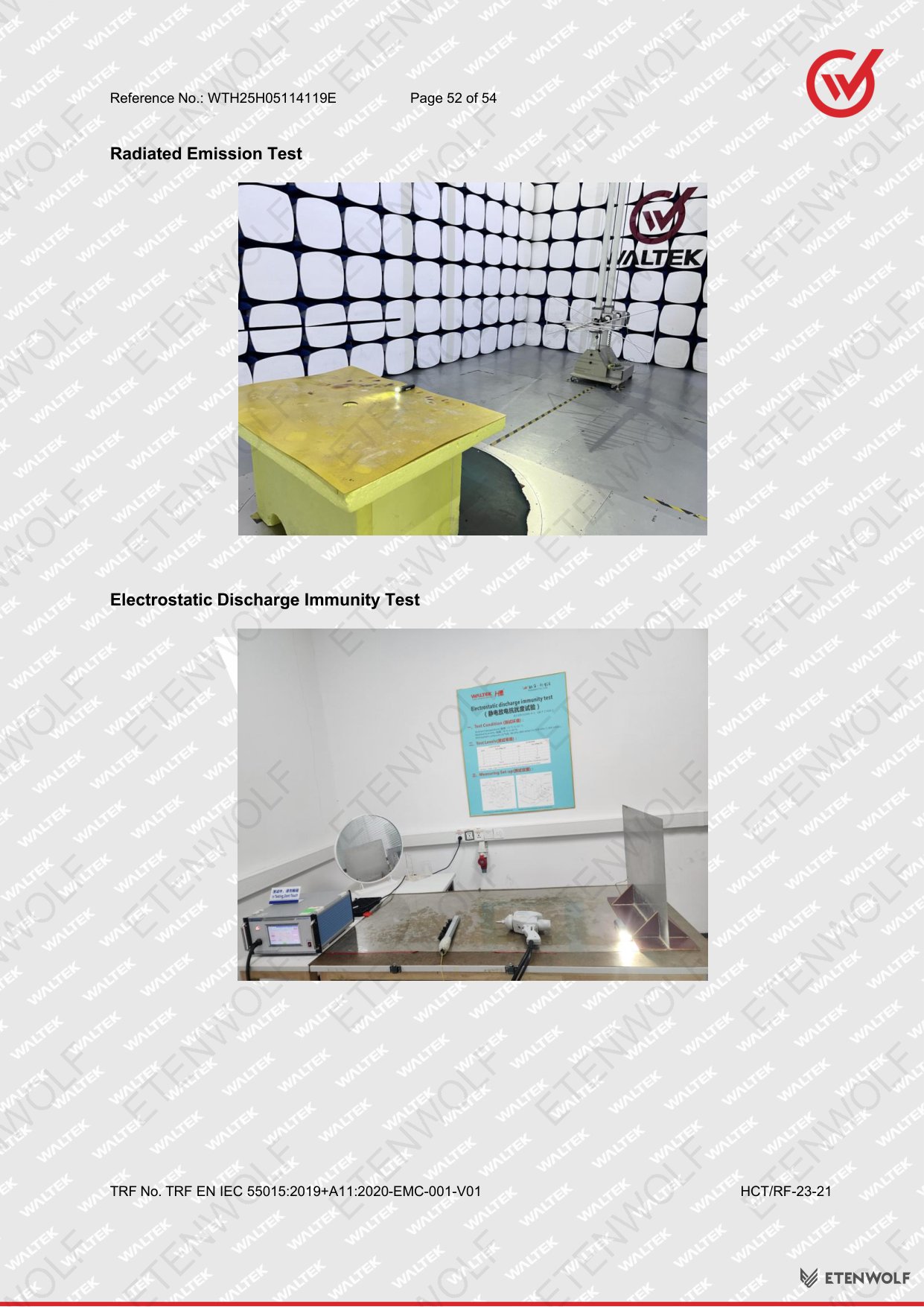

Document Pages
