Document Overview

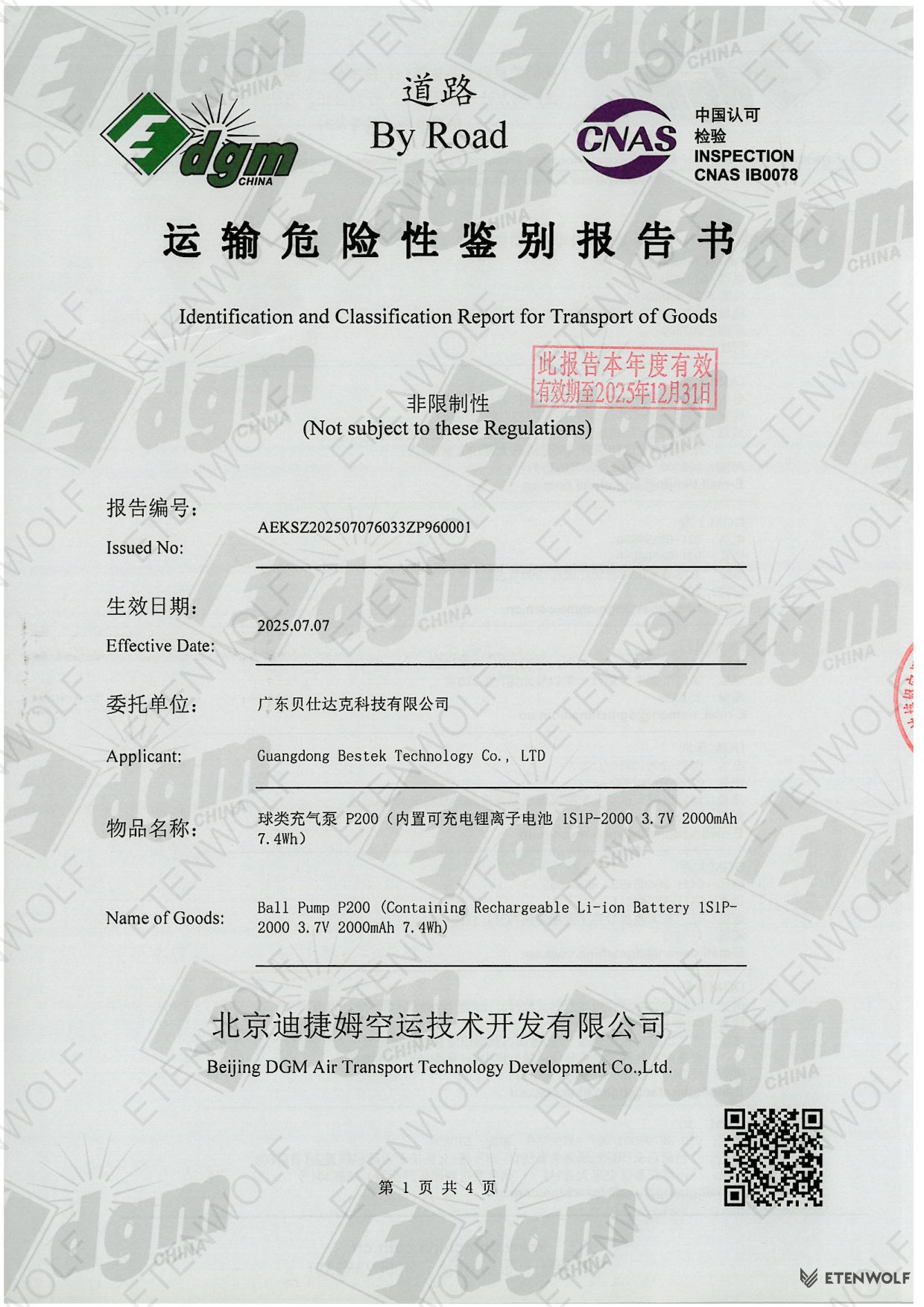

This document is an Identification and Classification Report for Transport of Goods issued under the UN Manual of Tests and Criteria Part III, Sub-section 38.3. The certification was issued by Beijing DGM Air Transport Technology Development Co., Ltd., a recognized testing authority for dangerous goods transport compliance.

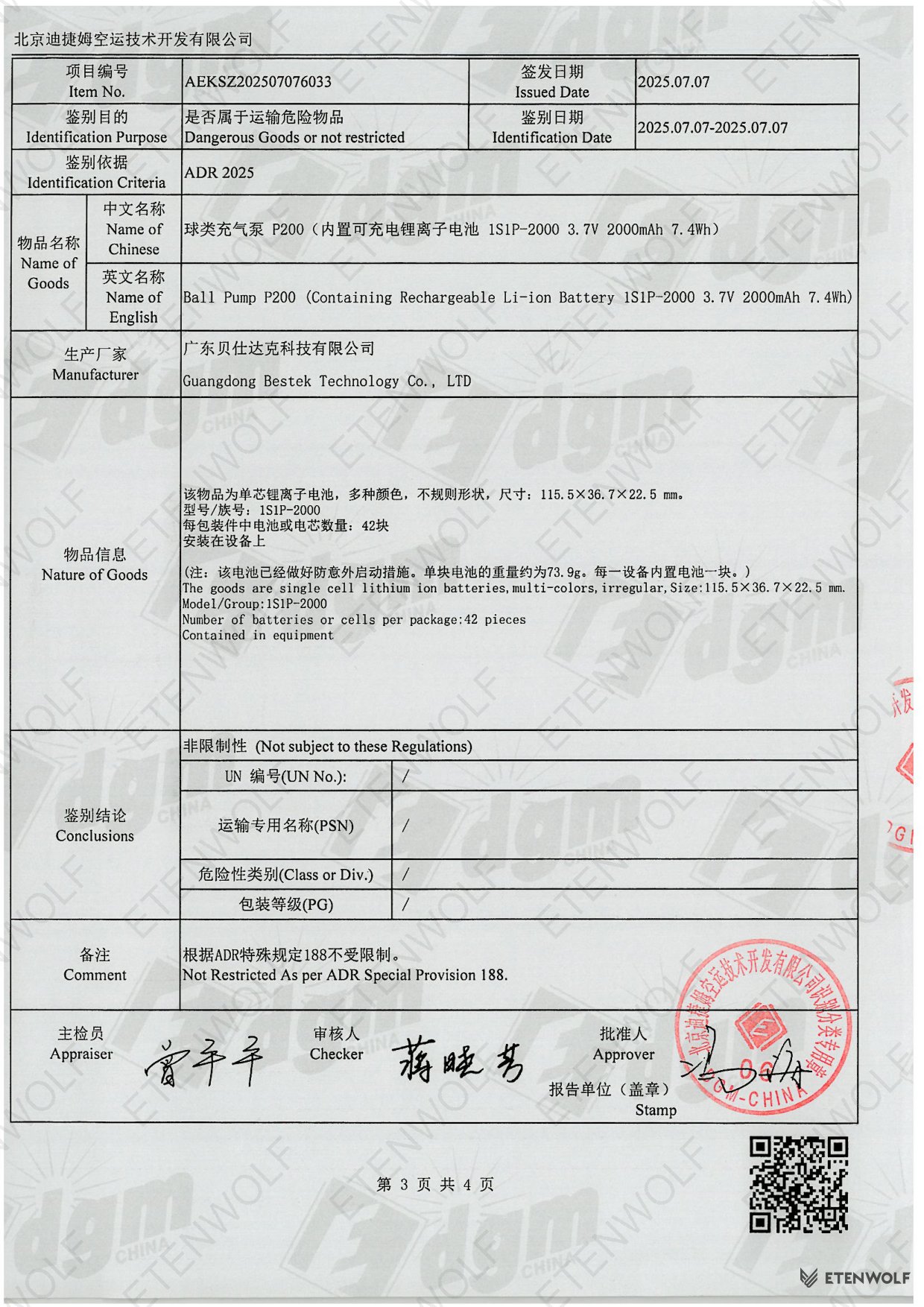

Report Number: AEKSZ202507076033ZP960001
Effective Date: July 7, 2025
Identification Criteria: ADR 2025
Classification Result: Not subject to these Regulations – the product is not classified as dangerous goods for transport purposes when properly packaged and documented according to ADR Special Provision 188.
Product Information

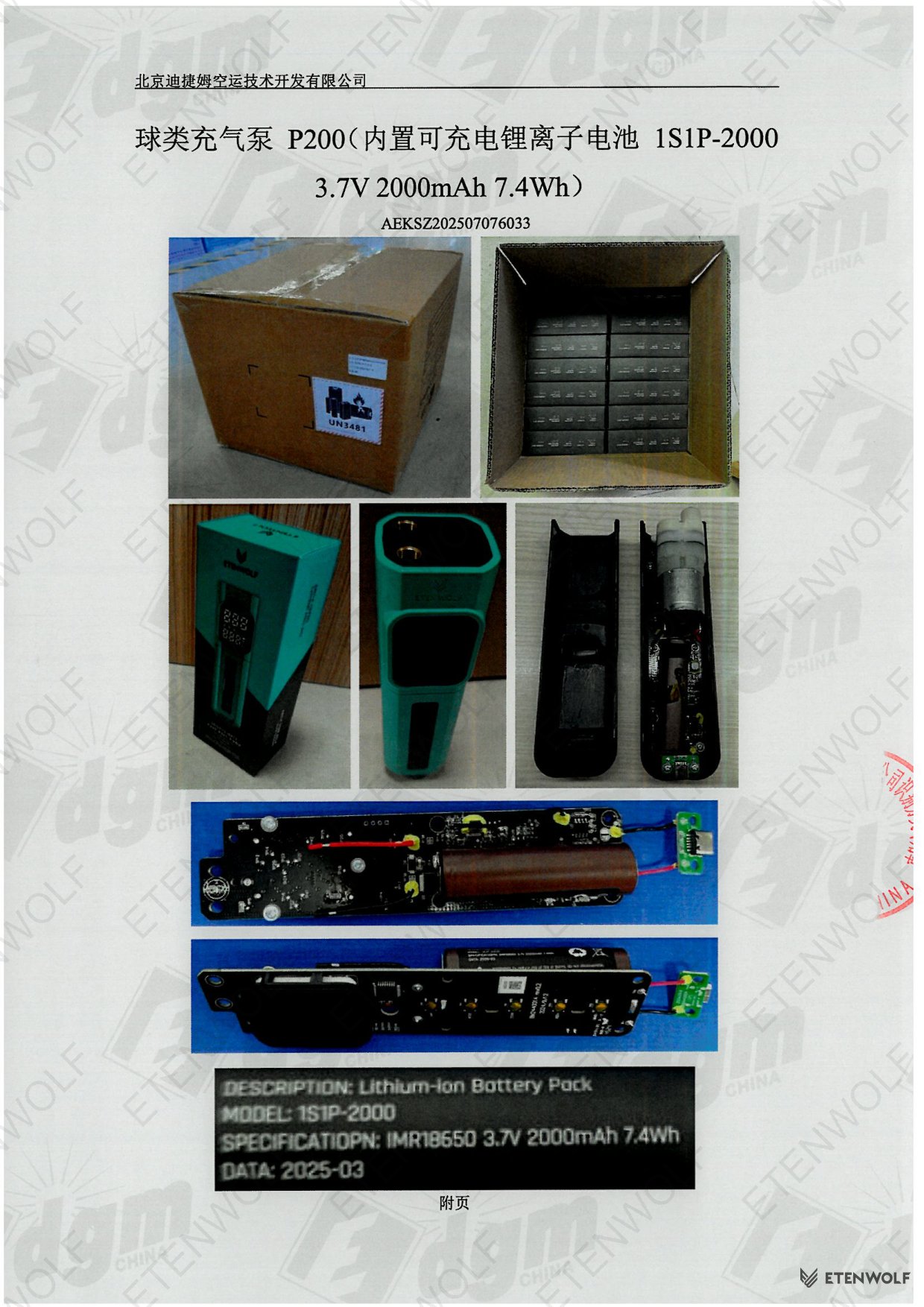

The certified product is the ETENWOLF P200 electric ball pump, a portable inflation device containing an integrated rechargeable lithium-ion battery.
| Specification | Value |
|---|---|
| Product Model | P200 |
| Battery Model | 1S1P-2000 |
| Battery Type | Rechargeable Li-ion Battery |
| Voltage | 3.7V |
| Capacity | 2000mAh |
| Watt-hour Rating | 7.4Wh |
| Physical Dimensions | 115.5 × 36.7 × 22.5 mm |
| Configuration | Battery contained in equipment |
| Package Quantity | 42 pieces per package |
Manufacturer: Guangdong Bestek Technology Co., LTD
Applicant: Guangdong Bestek Technology Co., LTD
Key Details
The UN38.3 inspection results demonstrate full compliance with international transport safety requirements for lithium-ion batteries. Below are the critical findings from the certification process:

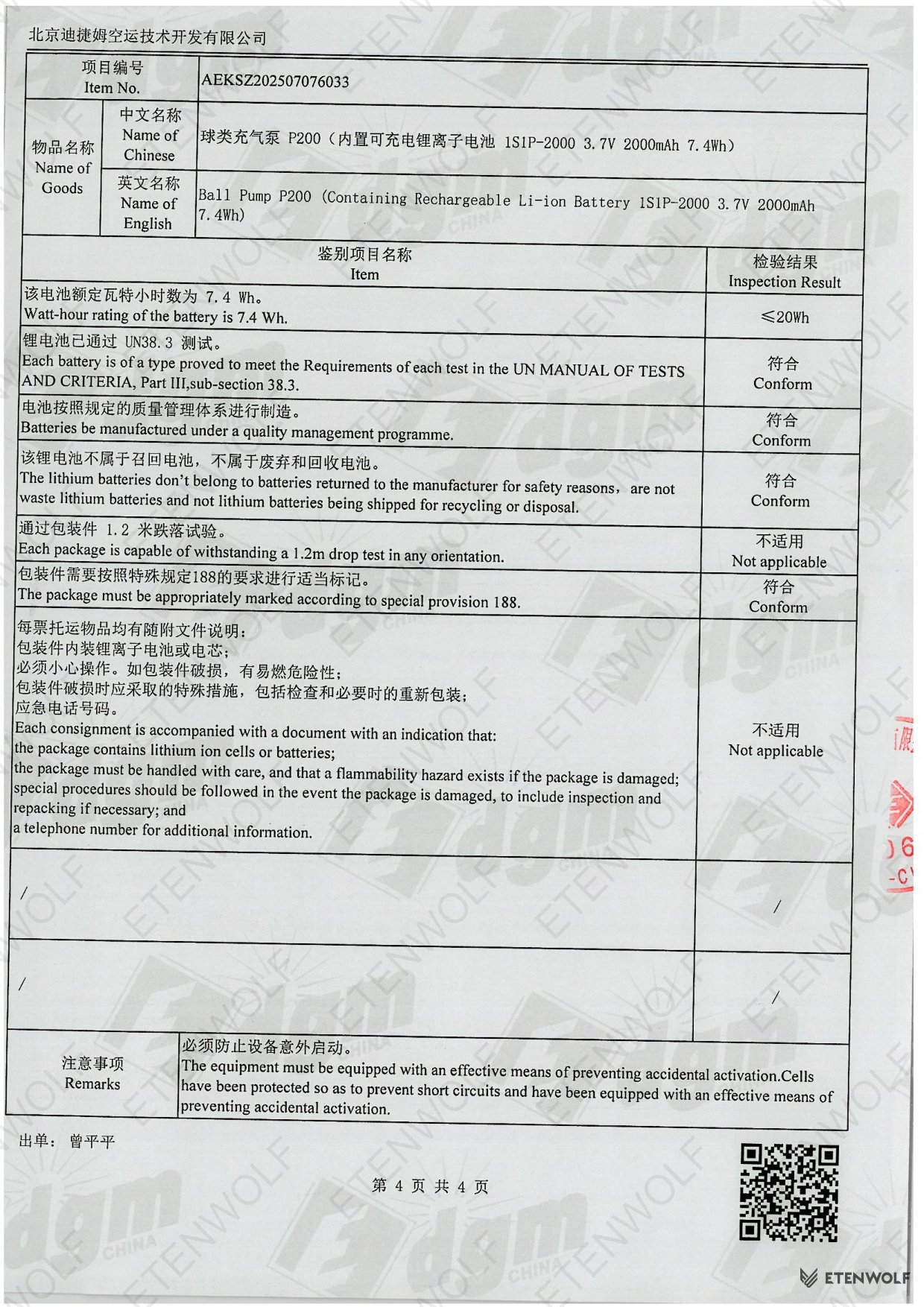

| Inspection Item | Result |
|---|---|
| Watt-hour rating verification | 7.4 Wh (less than 20Wh threshold) – Pass |
| UN38.3 test requirements | Each battery meets all requirements of UN Manual of Tests and Criteria, Part III, Sub-section 38.3 – Conform |
| Quality management programme | Manufactured under quality management programme – Conform |
| Battery status verification | Not recalled, waste, or for recycling/disposal – Conform |
| 1.2m drop test capability | Package withstands 1.2m drop in any orientation – Not applicable |
| Marking requirements (SP 188) | Package appropriately marked per Special Provision 188 – Conform |
| Documentation requirements | Consignment includes required documentation – Conform |
Final Classification: The P200 Ball Pump is not subject to dangerous goods regulations when transported according to ADR Special Provision 188. This exemption applies because the lithium-ion battery has a watt-hour rating below 20Wh and is contained within the equipment.
Standards & Compliance
The certification evaluation was conducted according to internationally recognized standards and regulatory frameworks for the transport of lithium batteries:

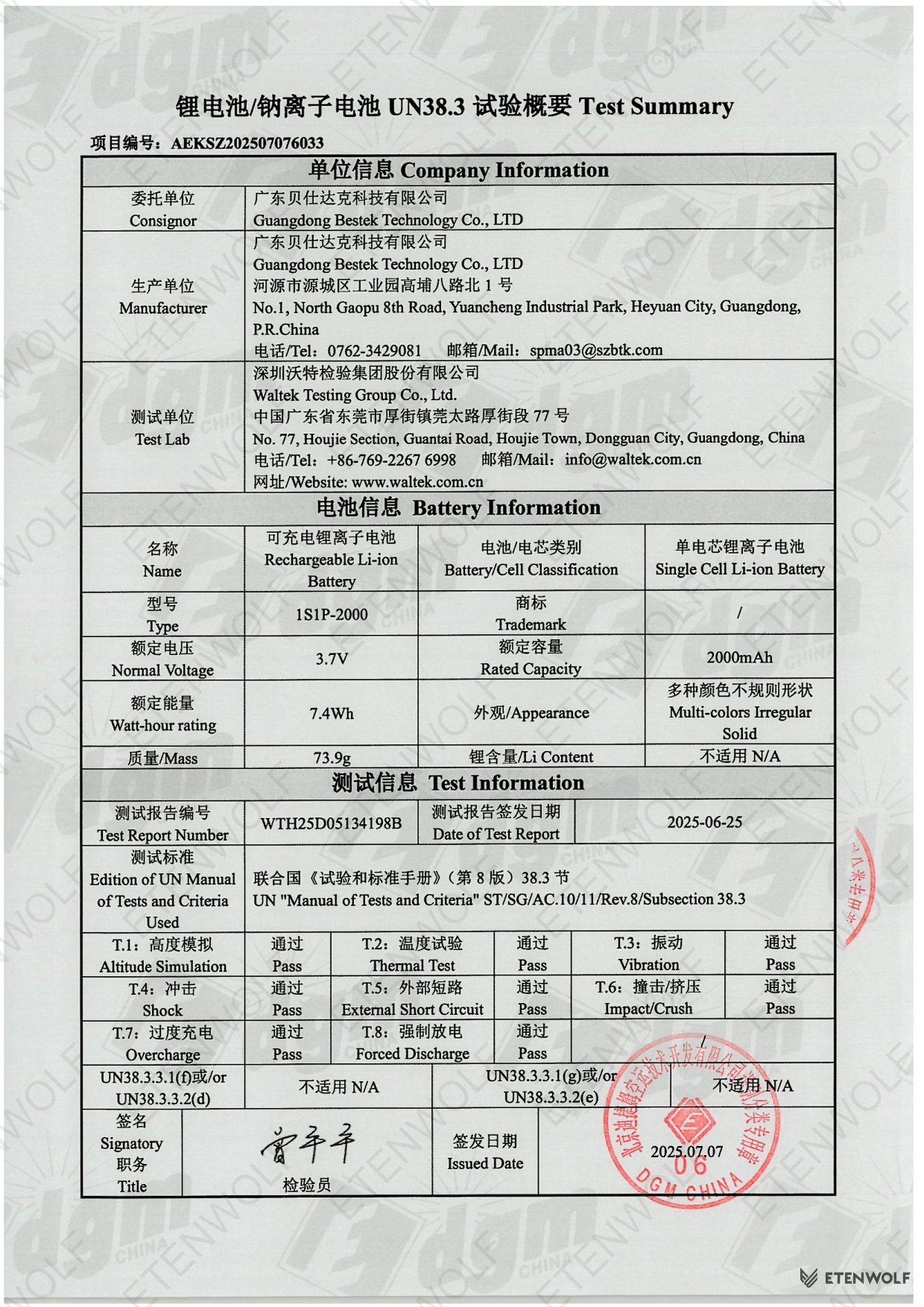

- UN Manual of Tests and Criteria, Part III, Sub-section 38.3: This standard establishes mandatory test requirements for lithium batteries to ensure they can withstand conditions normally encountered during transport, including altitude simulation, thermal testing, vibration, shock, external short circuit, impact, overcharge, and forced discharge tests.
- ADR 2025 (European Agreement concerning the International Carriage of Dangerous Goods by Road): The identification criteria used for classification. Special Provision 188 allows certain small lithium batteries contained in equipment to be exempted from full dangerous goods requirements when specific conditions are met.
- Quality Management Requirements: The manufacturer maintains a documented quality management programme ensuring consistent production standards and traceability for all battery cells and equipment.
- Packaging Standards: The packaging meets the 1.2-meter drop test requirement, demonstrating adequate protection during normal transport handling.
Inspection Date: July 7, 2025
Test Method: Visual inspection, documentation review, and verification of UN38.3 test report completion
Validity & Certification Body
Issuing Authority: Beijing DGM Air Transport Technology Development Co., Ltd.
Address: Building 249, No. 184, Yongfeng North Road, Haidian District, Beijing 101300, China
Contact Information:
- Phone: 010-69479673
- Fax: 010-69479621
- Website: www.dgmchina.com.cn
- Email: [email protected]

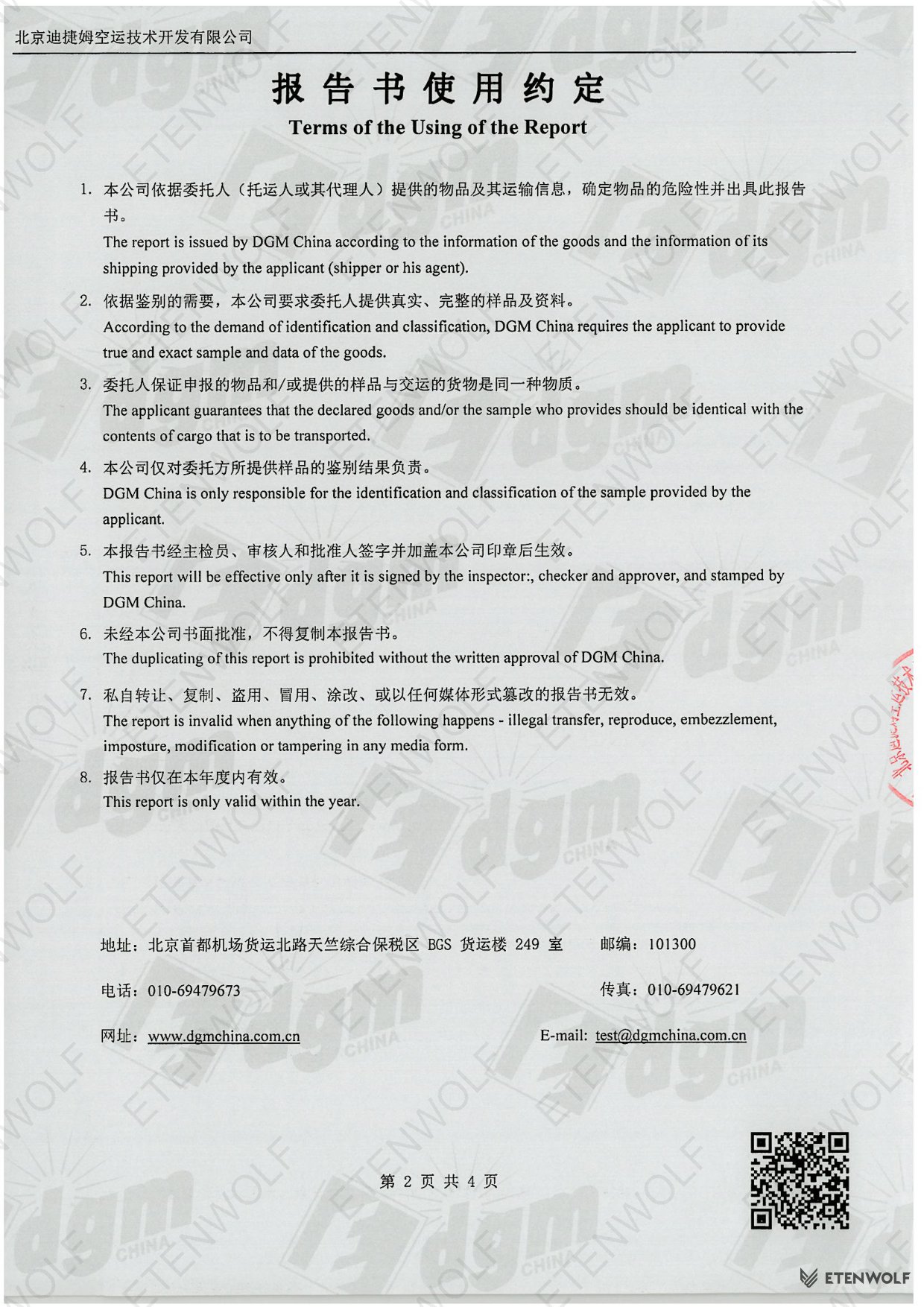

Certificate Validity: This report is valid for one year from the effective date (July 7, 2025 to July 6, 2026). The report becomes invalid if illegally transferred, reproduced, embezzled, forged, modified, or tampered with in any form.
Authorization: The report is signed by the inspector, checker, and approver, and bears the official stamp of DGM China, confirming its authenticity and validity.
Duplication Notice: Reproduction of this report is prohibited without written approval from DGM China.
Frequently Asked Questions
What does ‘Not subject to these Regulations’ mean for the P200?
This classification means the ETENWOLF P200 is exempt from full dangerous goods transport requirements under ADR Special Provision 188. Since the battery has a watt-hour rating of only 7.4Wh (well below the 20Wh threshold) and is contained within the equipment, it can be transported with simplified documentation and packaging requirements. However, packages must still be properly marked and include documentation indicating the presence of lithium batteries and handling precautions.
Is the P200 safe to transport by air?
Yes, the P200 has passed all required UN38.3 tests, which are specifically designed to simulate conditions encountered during air transport. The tests include altitude simulation, thermal cycling, vibration, shock, and various safety scenarios. The certification confirms the battery meets international air transport safety standards when properly packaged and documented.
How many P200 units can be shipped in one package?
According to the certification documentation, up to 42 pieces can be shipped per package. Each package must be capable of withstanding a 1.2-meter drop test in any orientation and must be appropriately marked according to Special Provision 188 requirements, including warnings about lithium battery content and flammability hazards if the package is damaged.
Does the P200 require special handling during transport?
While the P200 is exempt from full dangerous goods regulations, packages must still be handled with care. Each consignment must be accompanied by documentation indicating the package contains lithium-ion batteries, must be handled with care, and that a flammability hazard exists if the package is damaged. The batteries are not recalled items, waste batteries, or batteries being shipped for recycling or disposal.
