Document Overview

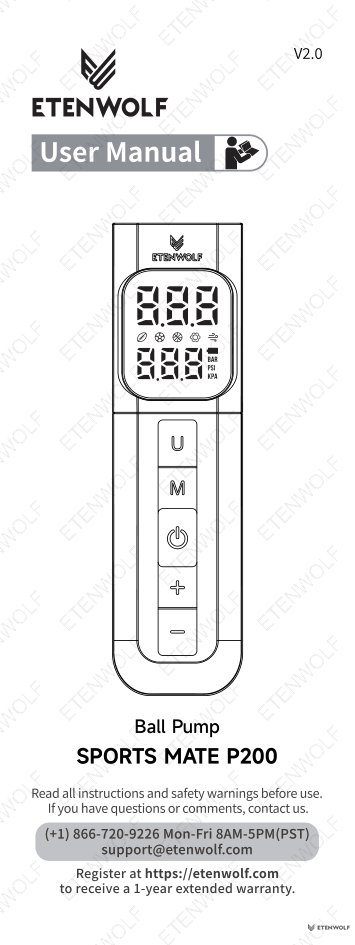

This article is based on the official user manual for the ETENWOLF Sports Mate P200 electric ball pump, document version V2.0, published by ETENWOLF on November 5, 2025 (filename: P200_manual_EN_20251105.pdf). The manual covers all aspects of safe operation, including inflation and deflation procedures, button functions, pressure reference data, battery charging, troubleshooting, and full technical specifications. It is intended for end users aged 16 and above. The governing executive standard for this product is ANSI 8407.
Product Information
The ETENWOLF Sports Mate P200 is a portable, rechargeable electric ball pump designed for inflating and deflating sports balls including American footballs, soccer balls, and basketballs. Below is a summary of key specifications.
| Attribute | Detail |
|---|---|
| Product Name | Ball Pump |
| Model | Sports Mate P200 |
| Executive Standard | ANSI 8407 |
| Dimensions | 170.4 mm × 46.9 mm × 44.0 mm |
| Gauge Pressure Range | 0.13–1.17 psi / 2.0–17.0 bar |
| Operating Temperature (Charging) | 32°F–113°F / 0°C–45°C |
| Operating Temperature (Discharging) | -4°F–158°F / -20°C–70°C |
| Storage Temperature | -4°F–113°F / -20°C–45°C |
| Battery Capacity | 2,000 mAh (7.4 Wh) |
| Working Noise | Lower than 70 dB within 1 meter |
| Input | 5V / 2A |
| Input Port | USB Type-C |
| Charging Time | 1–2 hours |
| Sensor Accuracy | ±0.3 psi |
The package includes: Sports Mate P200 ball pump × 1, inflation needles × 2, drawstring bag × 1, and user manual × 1. A USB charger is not included; please use a certified 5V/2A USB charger.

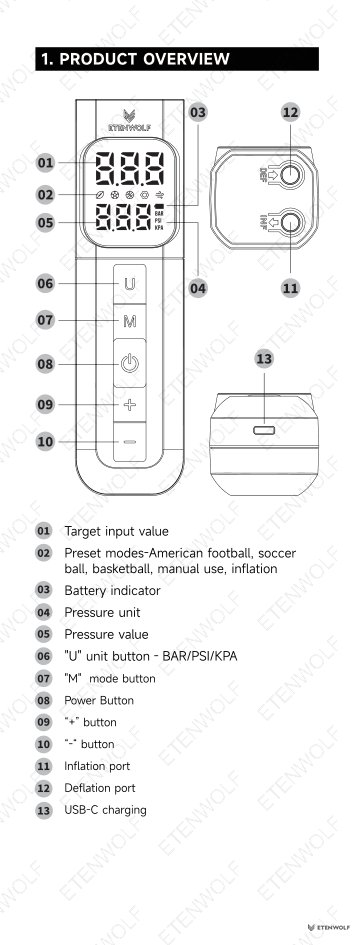

The unit features a digital display showing target pressure, battery indicator, and pressure unit. The interface includes a Power button, Mode button (M), Unit button (U), and Plus/Minus (+/−) pressure adjustment buttons. It has a dedicated inflation port and a separate deflation port, along with a USB-C charging port.
Key Details

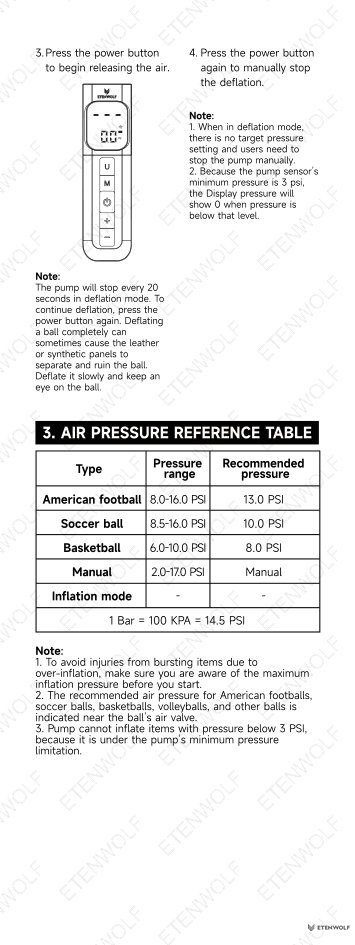

Air Pressure Reference Table
| Ball Type | Pressure Range | Recommended Pressure |
|---|---|---|
| American Football | 8.0–16.0 PSI | 13.0 PSI |
| Soccer Ball | 8.5–16.0 PSI | 10.0 PSI |
| Basketball | 6.0–10.0 PSI | 8.0 PSI |
| Manual Mode | 2.0–170 PSI | User-defined |
| Inflation Mode | — | — |
Unit conversion reference: 1 bar = 100 kPa = 14.5 PSI.

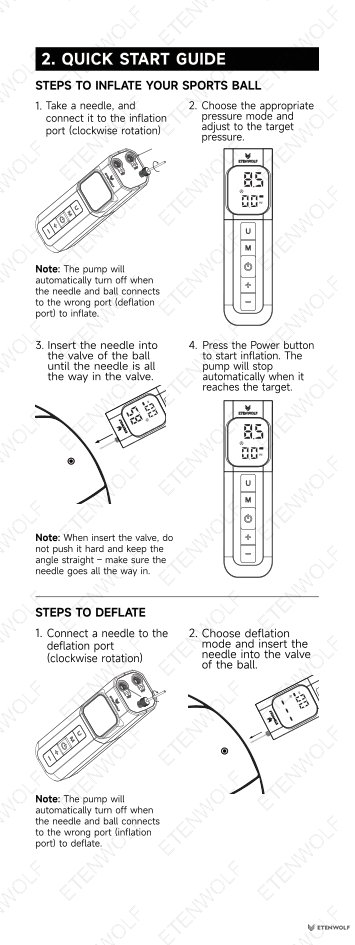

Steps to Inflate a Sports Ball
- Take a needle and connect it to the inflation port by rotating it clockwise.
- Choose the appropriate pressure mode using the M button and adjust to your target pressure using the +/− buttons.
- Insert the needle fully and straight into the valve of the ball. Do not force it; keep the angle straight until the needle is all the way in.
- Press the Power button to start inflation. The pump will stop automatically when the target pressure is reached.
Note: The pump will automatically turn off if the needle is accidentally connected to the deflation port during inflation, as a safety measure.
Steps to Deflate a Sports Ball
- Connect a needle to the deflation port by rotating it clockwise.
- Select deflation mode using the M button, then insert the needle into the valve of the ball.
- Press the Power button to begin releasing air.
- Press the Power button again to manually stop deflation when the desired pressure is reached.
Notes on deflation: There is no target pressure setting in deflation mode — users must stop the pump manually. The pump will pause every 20 seconds in deflation mode; press Power again to continue. Deflating a ball completely may cause leather or synthetic panels to separate and damage the ball. Deflate slowly and monitor the ball throughout the process. The display will show 0 when pressure falls below the sensor’s minimum threshold of 3 PSI.

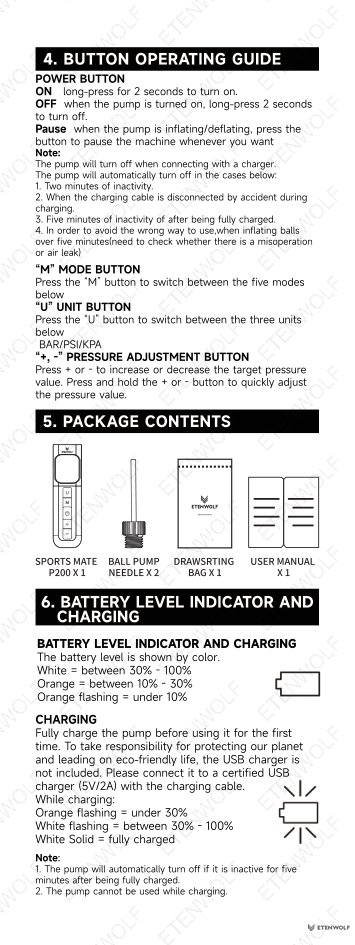

Button Operating Guide
| Button | Action | Function |
|---|---|---|
| Power | Long-press 2 seconds (pump off) | Turn on |
| Power | Long-press 2 seconds (pump on) | Turn off |
| Power | Short press during operation | Pause inflation or deflation |
| M (Mode) | Press | Cycle through 5 modes: American football, soccer ball, basketball, manual, inflation |
| U (Unit) | Press | Toggle between BAR / PSI / KPA |
| + / − | Press or hold | Increase or decrease target pressure; hold for rapid adjustment |
The pump will automatically turn off in the following situations: (1) two minutes of inactivity; (2) charging cable is disconnected during charging; (3) five minutes of inactivity after being fully charged; (4) inflation exceeds five minutes (to guard against misoperation or air leak).
Battery Indicator and Charging
| LED Color / State | Meaning |
|---|---|
| White solid (standby) | 30%–100% charge |
| Orange solid (standby) | 10%–30% charge |
| Orange flashing (standby) | Below 10% charge |
| Orange flashing (charging) | Below 30% charge |
| White flashing (charging) | 30%–100% charge |
| White solid (charging) | Fully charged |
Fully charge the P200 before first use. Connect to a certified USB charger rated at 5V/2A using the included USB-C cable. The USB charger is not included in the package. The pump cannot be used while charging and will turn off automatically upon connection to a charger.
Standards & Compliance
The ETENWOLF Sports Mate P200 is manufactured in compliance with the following executive standard:
- ANSI 8407 — The applicable American National Standards Institute standard governing the design and performance requirements for this product category.

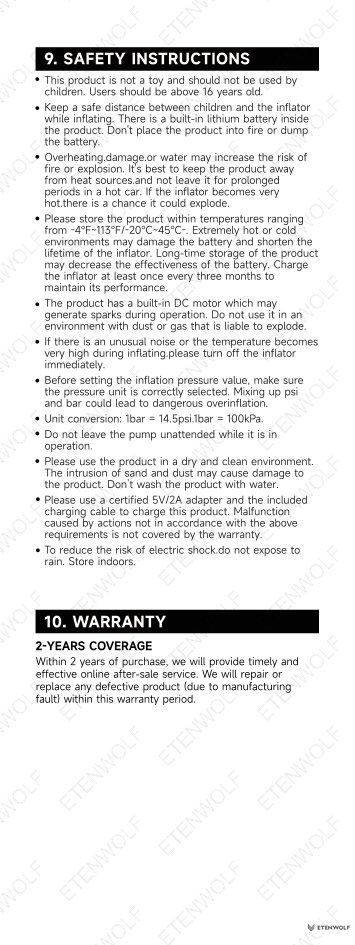

Users are advised to ensure the correct pressure unit is selected before inflating. Mixing PSI and bar settings can result in dangerous over-inflation. The built-in sensor has a minimum detectable pressure of 3 PSI; pressure readings below this threshold will display as zero. The product contains a built-in DC motor that may generate sparks during operation and must not be used near explosive dust or gas environments.
For reference on international unit standards and conversion:
- 1 bar = 14.5 PSI
- 1 bar = 100 kPa
Validity & Certification Body
This user manual (version V2.0) was issued by ETENWOLF and is current as of November 5, 2025. There is no third-party certification document associated with this manual; it is an original equipment manufacturer (OEM) product documentation file.

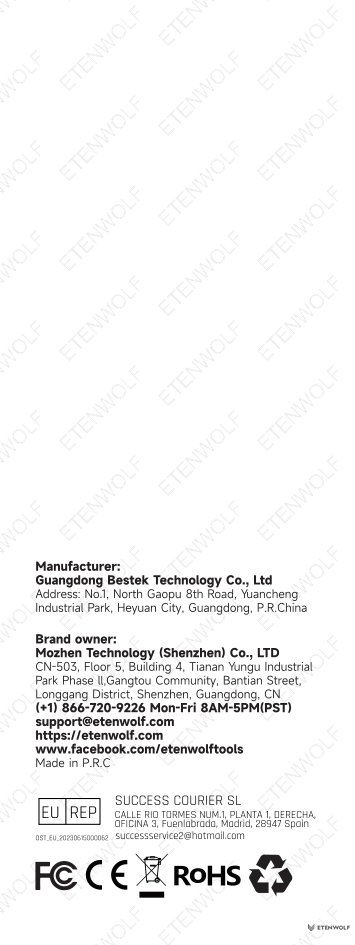

ETENWOLF provides a standard manufacturer’s warranty. Users can register at https://etenwolf.com to receive a 1-year extended warranty on the P200. For warranty claims, technical support, or product questions, contact ETENWOLF directly:
- Phone: (+1) 866-720-9226, Monday–Friday, 8AM–5PM PST
- Email: [email protected]
The lithium battery (2,000 mAh / 7.4 Wh) is a built-in component and is subject to standard lithium battery handling and disposal regulations. To maintain battery performance during long-term storage, charge the device at least once every three months.

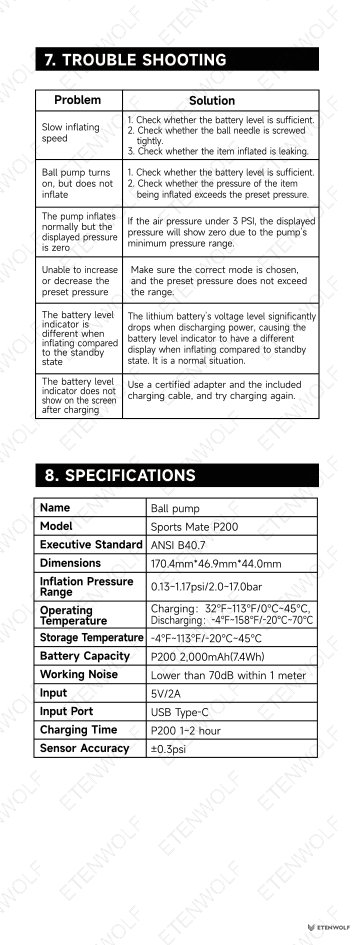

Frequently Asked Questions
- Q: Why does the display show 0 PSI even though there is clearly air in the ball?
- A: The P200’s pressure sensor has a minimum detection threshold of 3 PSI. Any pressure reading below this level will display as 0 on the screen. This is normal behavior and not a defect. Once the pressure exceeds 3 PSI, the display will show the correct reading.
- Q: Why does the pump stop every 20 seconds during deflation?
- A: The P200 is designed to pause automatically every 20 seconds in deflation mode as a safety feature. Since there is no target pressure setting for deflation, this pause is intended to prevent accidental over-deflation. Simply press the Power button again to resume deflation.
- Q: The pump turns on but does not inflate — what should I check?
- A: First, verify that the battery level is sufficient. Second, confirm that the preset target pressure has not already been reached or exceeded by the current ball pressure. Third, ensure the needle is connected to the correct inflation port (not the deflation port) and is fully inserted into the ball’s valve at a straight angle.
- Q: Can I use any USB charger to charge the P200?
- A: You must use a certified USB charger rated at 5V/2A. Using an uncertified or higher-voltage adapter may damage the battery or create a safety hazard. The pump cannot be operated while it is charging, and it will turn off automatically when a charger is connected.
Related Documents
The following document types are relevant to the ETENWOLF Sports Mate P200 and may be available upon request or regulatory requirement:
- UN 38.3 Battery Transport Test Report — Required for the built-in 2,000 mAh lithium-ion battery for air and sea shipping compliance.
- FCC Declaration of Conformity — Applicable if the product emits unintentional radiation in the US market; confirms compliance with FCC Part 15 rules.
- CE Declaration of Conformity — Required for sale in the European Economic Area; covers Low Voltage Directive and electromagnetic compatibility under CE marking requirements.
- RoHS Compliance Certificate — Confirms restriction of hazardous substances in the product’s electronic components per RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Documents compliance with REACH regulations on substances of very high concern.
- Quick Start Guide / Condensed Reference Card — A single-page reference for pressure modes and charging status indicators suitable for retail packaging inserts.
