ETENWOLF P300 Smart Ball Pump User Manual: Complete Guide to Features, Specifications & Safety

Document Overview

Document Overview This is the official product user manual for the ETENWOLF P300 and P300 Plus Smart Ball Pump, version 5.0, published April 10, 2026. The manual provides comprehensive operating instructions, safety guidelines, and technical specifications for users of this professional-grade sports ball inflation device.…

Document type: User Manual
Prepared by: Daniel Wright
Published: July 27, 2026
Last reviewed: July 27, 2026
Topics: User Manual

Document Overview

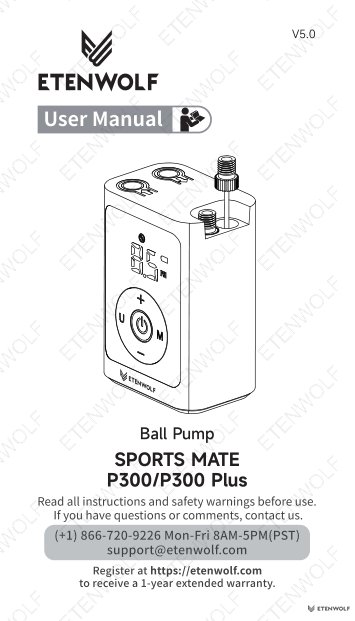

This is the official product user manual for the ETENWOLF P300 and P300 Plus Smart Ball Pump, version 5.0, published April 10, 2026. The manual provides comprehensive operating instructions, safety guidelines, and technical specifications for users of this professional-grade sports ball inflation device.

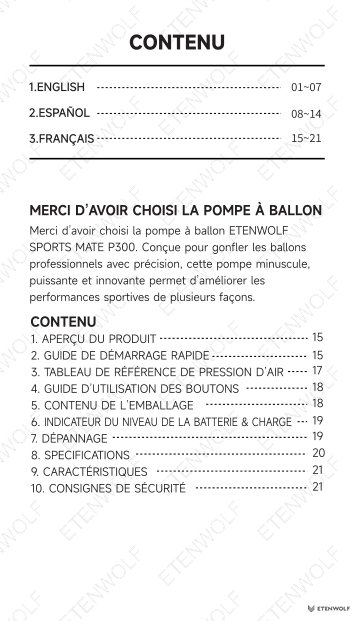

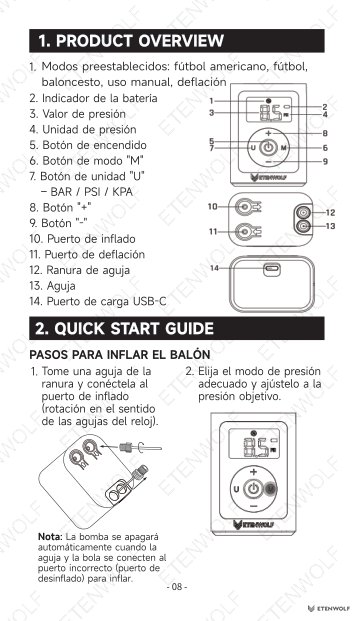

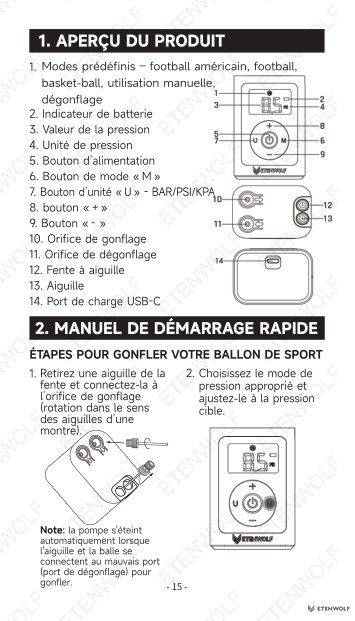

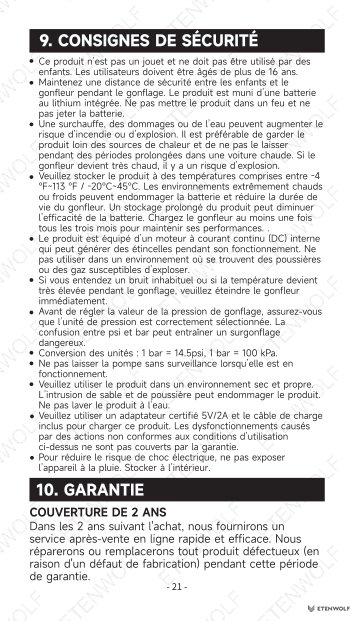

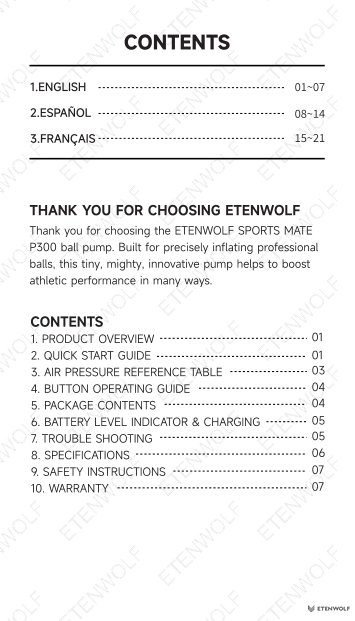

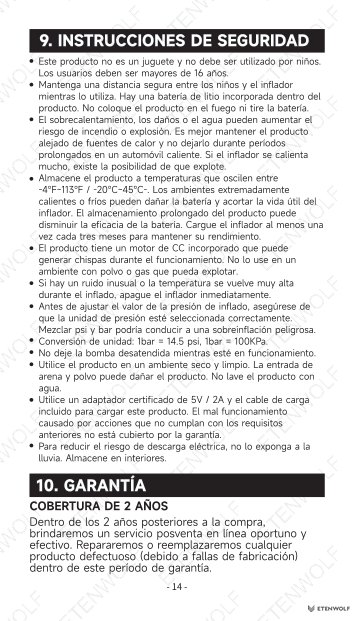

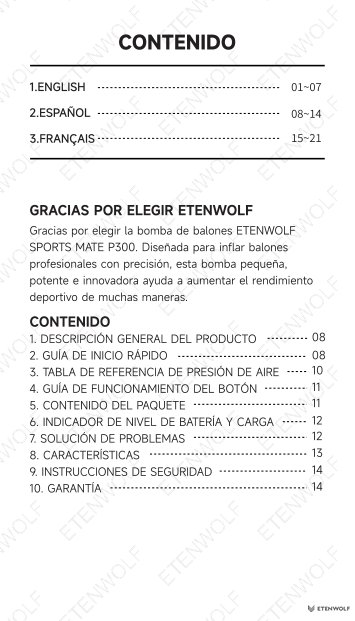

The document is issued by ETENWOLF, a global inflation tools and lighting gear brand, and covers all aspects of product setup, operation, maintenance, and warranty information. It includes multi-language support in English, Spanish, and French.

Product Information

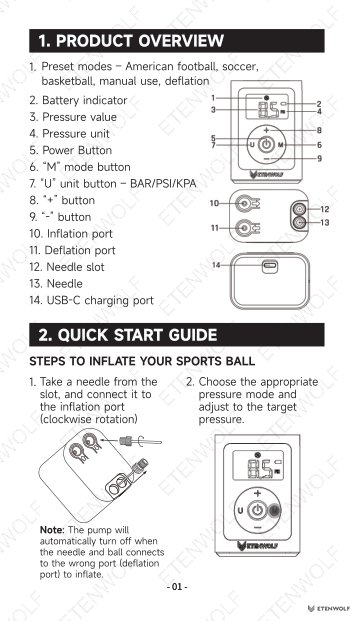

The ETENWOLF SPORTS MATE P300 is a compact, intelligent ball pump designed for precisely inflating professional sports balls. The device features preset inflation modes for American football, soccer, basketball, manual use, and deflation capabilities.

Key Features:

Digital pressure display with three unit options (BAR/PSI/KPA)
Automatic shut-off when target pressure is reached

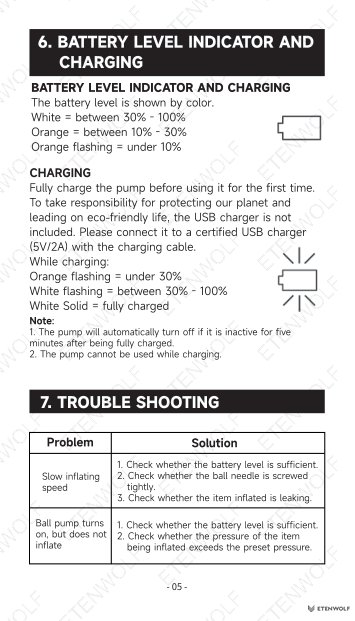

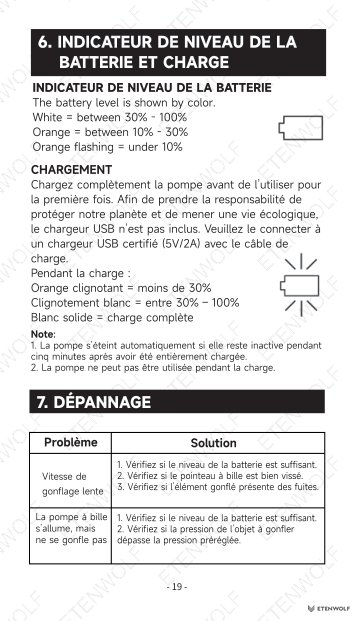

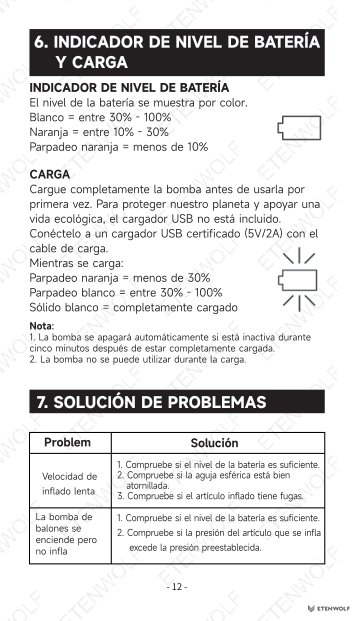

Battery level indicator with color-coded status
USB Type-C charging port
Dual ports for inflation and deflation
Pressure range: 2-17 PSI / 0.13-1.17 BAR
Compact dimensions: 3.54″ × 2.46″ × 1.71″ (90mm × 62.4mm × 43.5mm)

Model Variants:

P300: 2,600mAh battery capacity (9.6Wh), 1.2 hour charge time
P300 Plus: 3,200mAh battery capacity (11.84Wh), 2 hour charge time

Key Details

Component	Description
Preset Modes	American football, soccer, basketball, manual use, deflation
Display Features	Battery indicator, pressure value, pressure unit

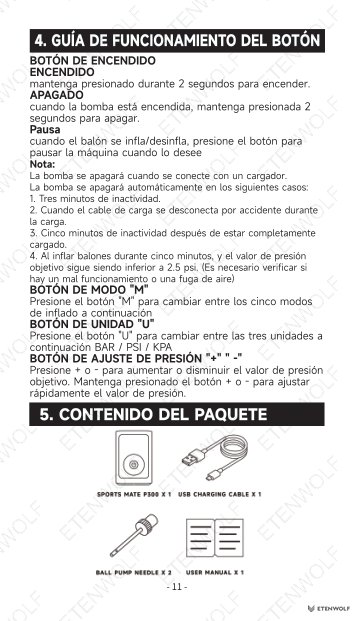

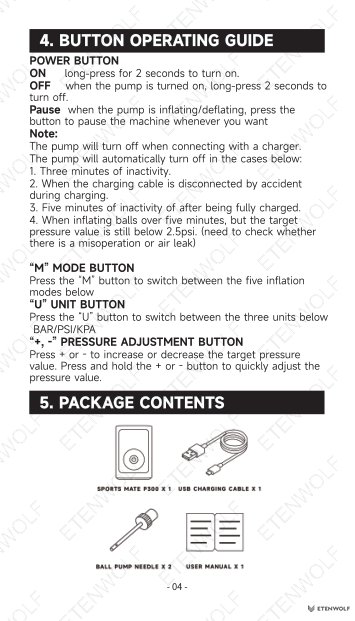

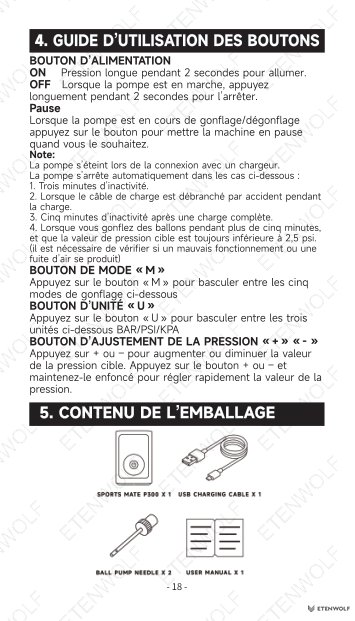

Control Buttons	Power button, Mode (M) button, Unit (U) button, Pressure adjustment (+/-)
Ports	Inflation port, deflation port, USB-C charging port
Accessories	Needle slot with included needle, charging cable

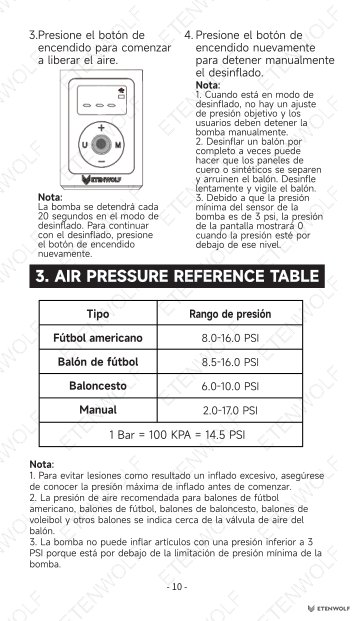

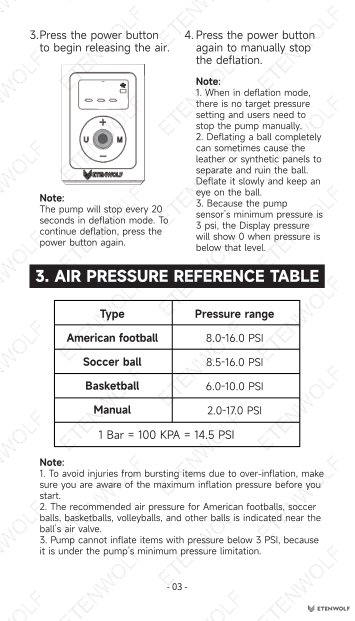

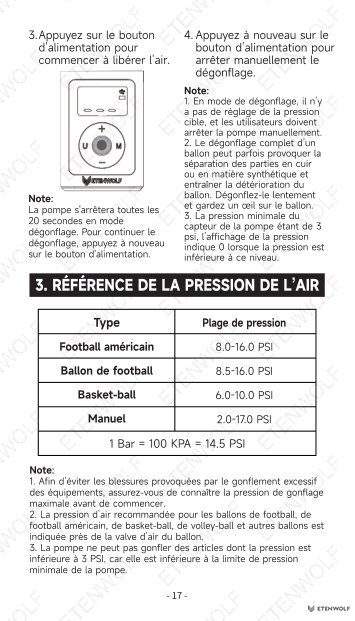

Recommended Pressure Ranges:

Ball Type	Pressure Range
American Football	8.0-16.0 PSI
Soccer Ball	8.5-16.0 PSI
Basketball	6.0-10.0 PSI
Manual Mode	2.0-17.0 PSI

Unit Conversion: 1 Bar = 100 KPA = 14.5 PSI

Standards & Compliance

The ETENWOLF P300 ball pump is manufactured according to the ANSI B40.7 standard, which governs pressure gauge accuracy and performance requirements.

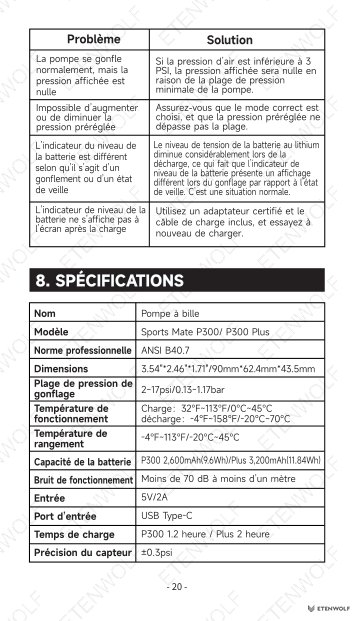

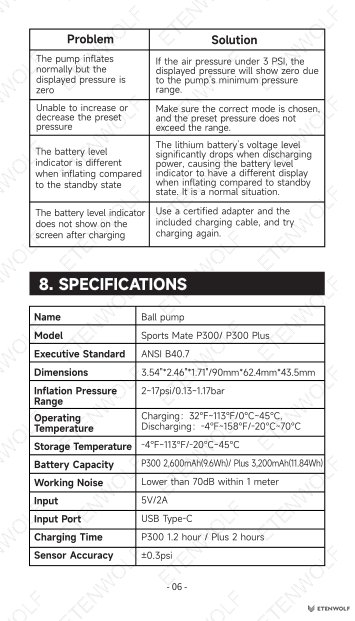

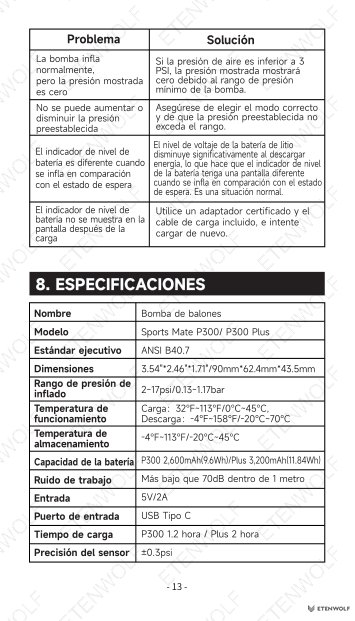

Technical Specifications:

Sensor Accuracy: ±0.3 PSI
Operating Temperature: Charging: 32°F-115°F (0°C-45°C); Discharging: -4°F-158°F (-20°C-70°C)
Storage Temperature: -4°F-113°F (-20°C-45°C)
Working Noise: Lower than 70dB within 1 meter
Input Voltage: 5V/2A via USB Type-C

The device includes built-in safety features such as automatic shut-off for wrong port connection, overpressure protection, and thermal monitoring to prevent overheating during operation.

Validity & Certification Body

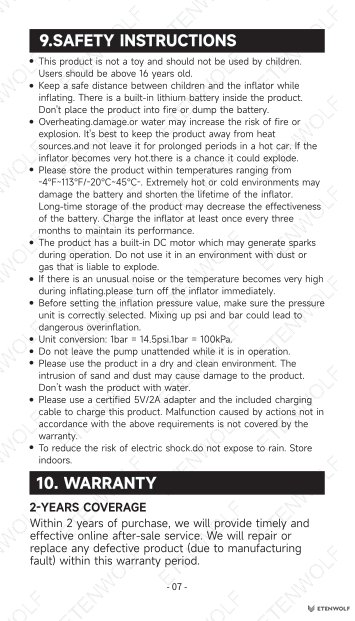

This user manual (Version 5.0) is the official documentation published by ETENWOLF on April 10, 2026. The product comes with a standard 2-year manufacturer warranty from the date of purchase.

Warranty Coverage: Within 2 years of purchase, ETENWOLF provides timely and effective online after-sales service. The company will repair or replace any defective product due to manufacturing faults within this warranty period.

Extended Warranty: Users can register their product at https://etenwolf.com to receive an additional 1-year extended warranty, bringing total coverage to 3 years.

Customer Support:

Phone: (+1) 866-720-9226 (Mon-Fri 8AM-5PM PST)
Email: [email protected]

The warranty does not cover malfunctions caused by improper use, unauthorized modifications, use of non-certified charging adapters, or failure to follow safety instructions outlined in this manual.

Frequently Asked Questions

Why does the pump show zero pressure when inflating?

If the air pressure is under 3 PSI, the displayed pressure will show zero due to the pump’s minimum pressure range limitation. This is normal behavior. The pump cannot inflate items with pressure below 3 PSI because it is under the device’s minimum pressure detection threshold.

Why does the battery indicator show different levels during inflation versus standby?

The lithium battery’s voltage level significantly drops when discharging power, causing the battery level indicator to display differently when inflating compared to standby state. This is a normal situation and does not indicate a malfunction. The battery indicator provides accurate information for each operating mode.

Can I use the pump while it’s charging?

No, the P300 pump cannot be used while charging. The pump will automatically turn off when connected to a charger. You must disconnect the charging cable before operating the device. Fully charge the pump before first use for optimal performance.

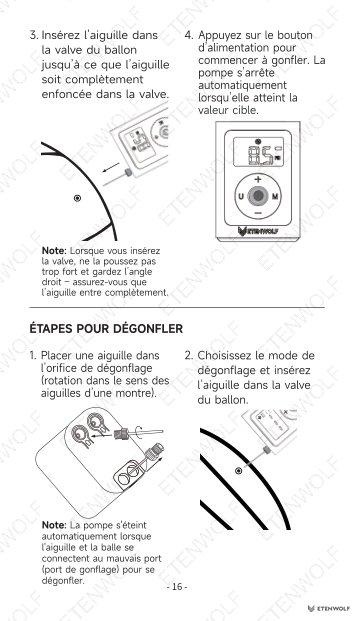

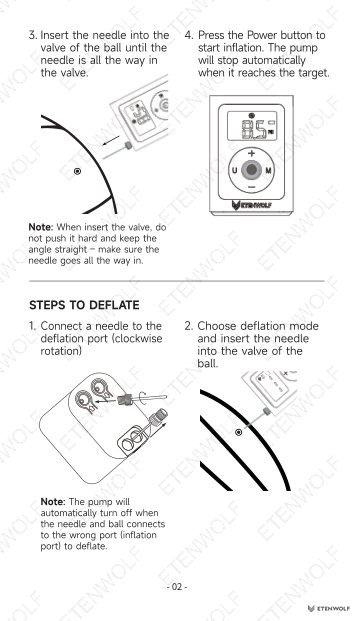

How do I prevent damaging my ball during deflation?

Deflate slowly and monitor the ball carefully. Complete deflation can sometimes cause leather or synthetic panels to separate and ruin the ball. The pump stops every 20 seconds in deflation mode—press the power button again to continue. There is no target pressure setting in deflation mode, so you must stop the pump manually when desired pressure is reached.
