Document Overview
This UN38.3 test report certifies the transportation safety of the rechargeable lithium-ion battery used in the ETENWOLF P200 electric ball pump. The report, issued by Waltek Testing Group Co., Ltd., confirms compliance with international transportation regulations for lithium batteries.

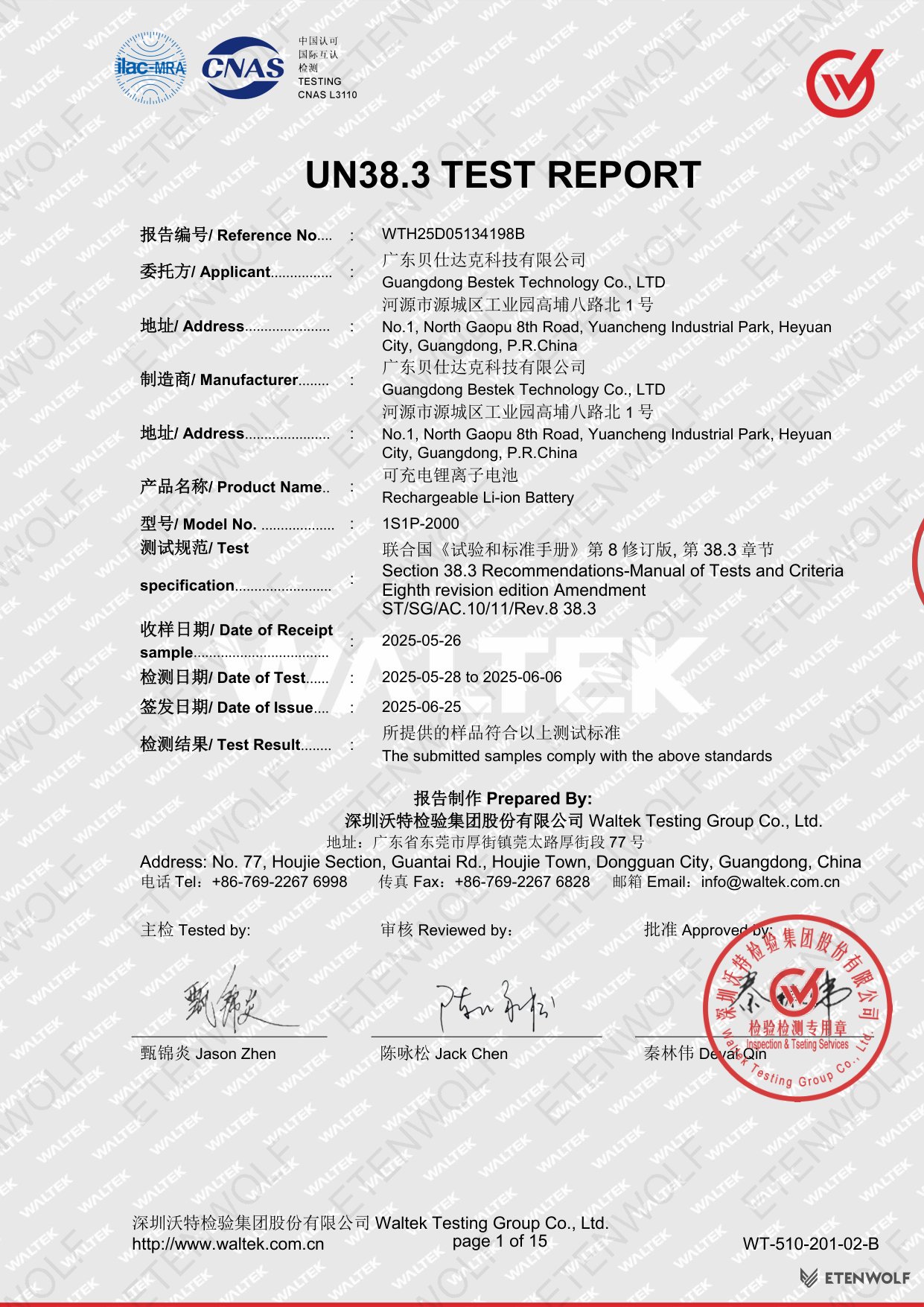

| Report Number | WTH25D05134198B |
|---|---|
| Document Type | UN38.3 Transportation Safety Test Report |
| Issuing Laboratory | Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司) |
| Issue Date | June 25, 2025 |
| Test Period | May 28, 2025 to June 6, 2025 |
| Test Result | PASS – Samples comply with all tested standards |

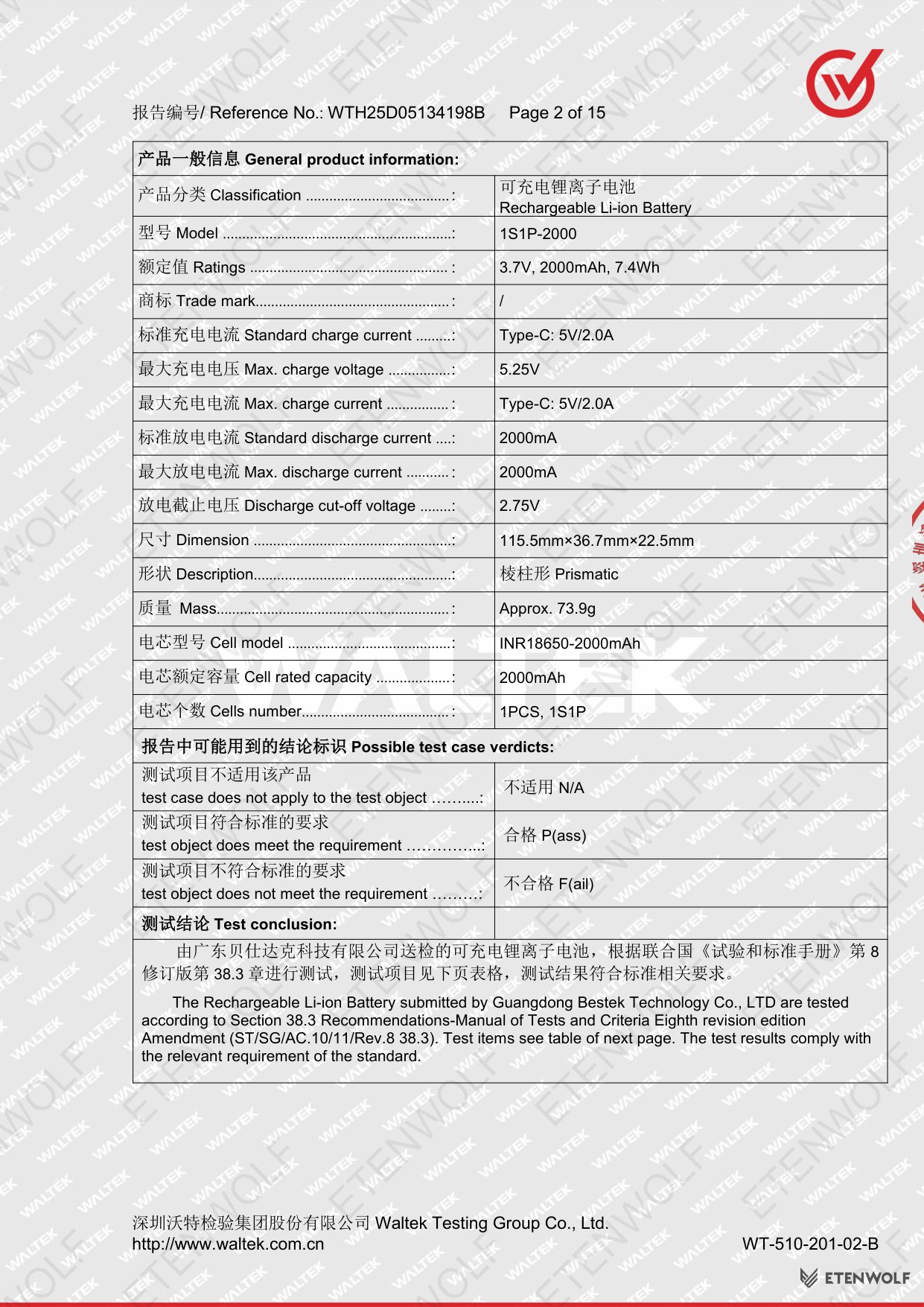

Product Information
The tested battery is manufactured by Guangdong Bestek Technology Co., LTD for use in the P200 electric ball pump. This rechargeable lithium-ion battery pack provides reliable power for portable inflation applications.
| Parameter | Specification |
|---|---|
| Product Name | Rechargeable Li-ion Battery |
| Battery Model | 1S1P-2000 |
| Nominal Voltage | 3.7V |
| Rated Capacity | 2000mAh |
| Energy | 7.4Wh |
| Cell Type | INR18650-2000mAh (1 cell, 1S1P configuration) |
| Charging Input | Type-C: 5V/2.0A |
| Max Charge Voltage | 5.25V |
| Standard Discharge Current | 2000mA |
| Discharge Cut-off Voltage | 2.75V |
| Dimensions | 115.5mm × 36.7mm × 22.5mm |
| Weight | Approximately 73.9g |
| Form Factor | Prismatic |
Key Details
The UN38.3 testing protocol evaluates battery safety under various conditions that simulate transportation scenarios. The P200 battery underwent comprehensive testing across eight test items (T1-T8) with multiple samples at different charge states and cycle counts.

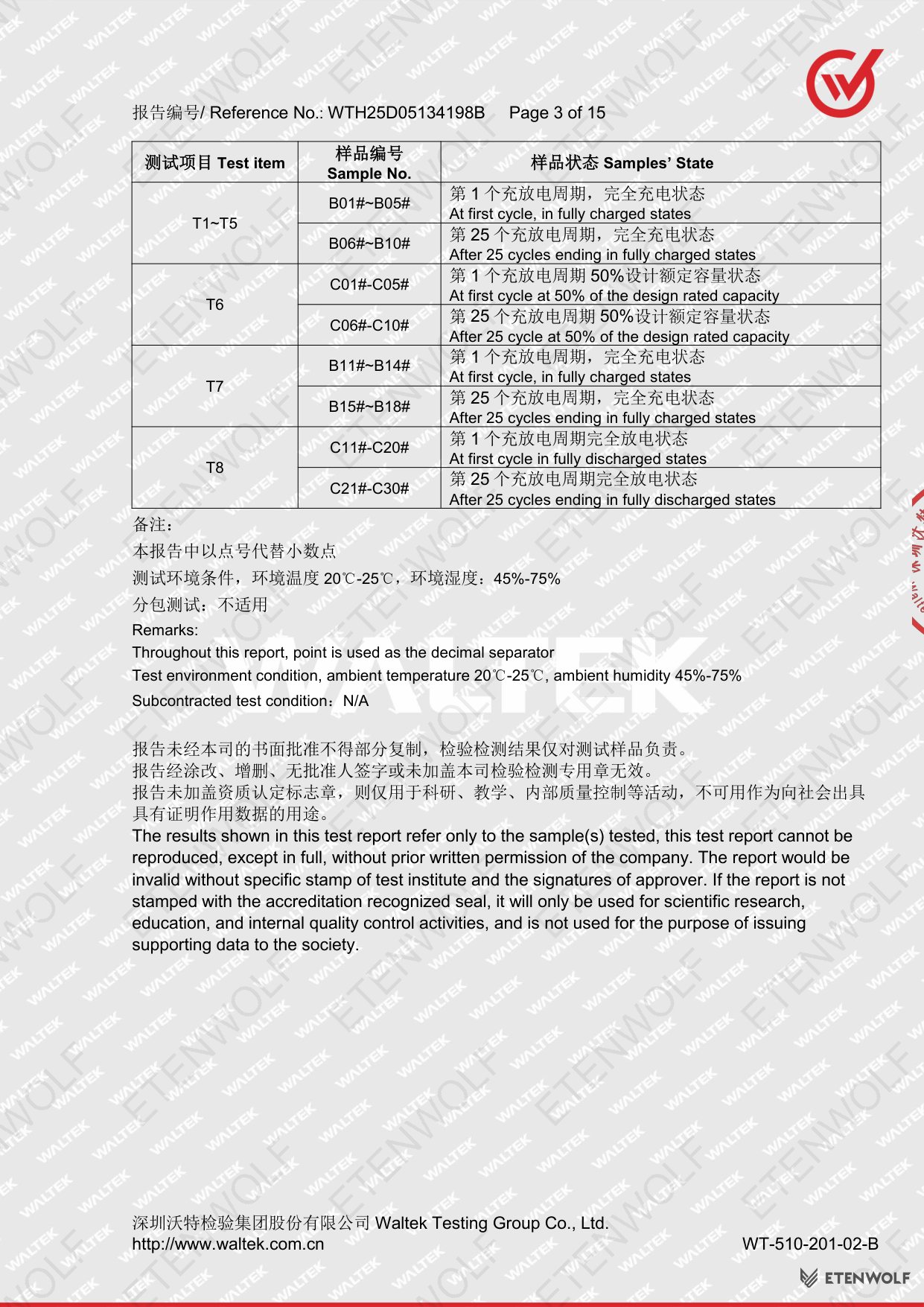

| Test Item | Sample Numbers | Sample State Description |
|---|---|---|
| T1 – T5 | B01# – B05# | First cycle, fully charged state |
| B06# – B10# | After 25 cycles, fully charged state | |
| T6 | C01# – C05# | First cycle at 50% of design rated capacity |
| C06# – C10# | After 25 cycles at 50% of design rated capacity | |
| T7 | B11# – B14# | First cycle, fully charged state |
| B15# – B18# | After 25 cycles, fully charged state | |
| T8 | C11# – C20# | First cycle, fully discharged state |
| C21# – C30# | After 25 cycles, fully discharged state |
Test Environment Conditions:
- Ambient Temperature: 20°C – 25°C
- Ambient Humidity: 45% – 75%
- Subcontracted Testing: Not applicable

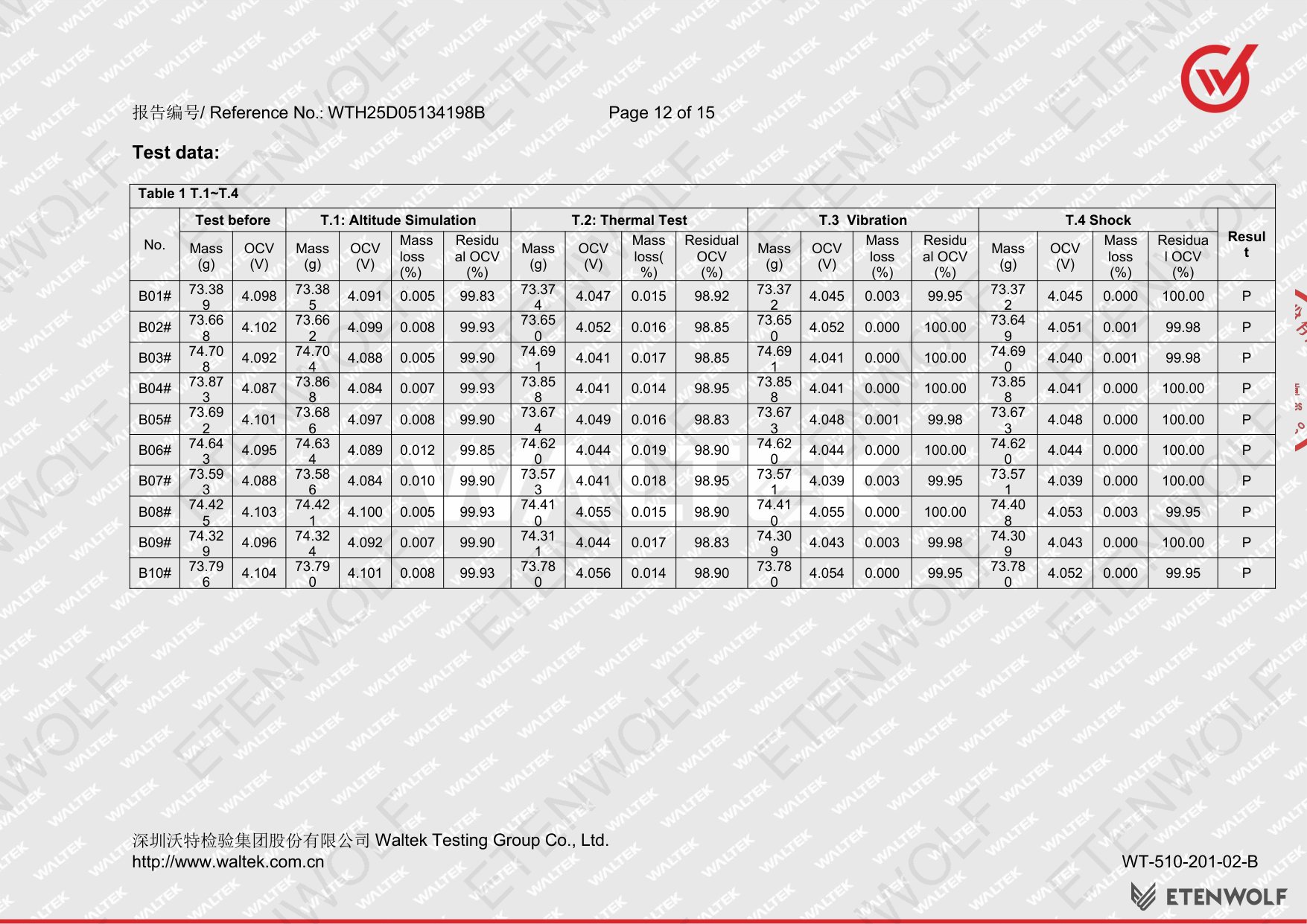

All samples passed the required tests, demonstrating the battery’s safety for transportation under the conditions specified in UN regulations.
Standards & Compliance
This certification verifies compliance with international standards for the safe transport of lithium batteries by air, sea, road, and rail.
| Standard | Description |
|---|---|
| UN38.3 | Section 38.3 of the UN Manual of Tests and Criteria, Eighth Revision Edition Amendment (ST/SG/AC.10/11/Rev.8) |
Test Categories Covered:

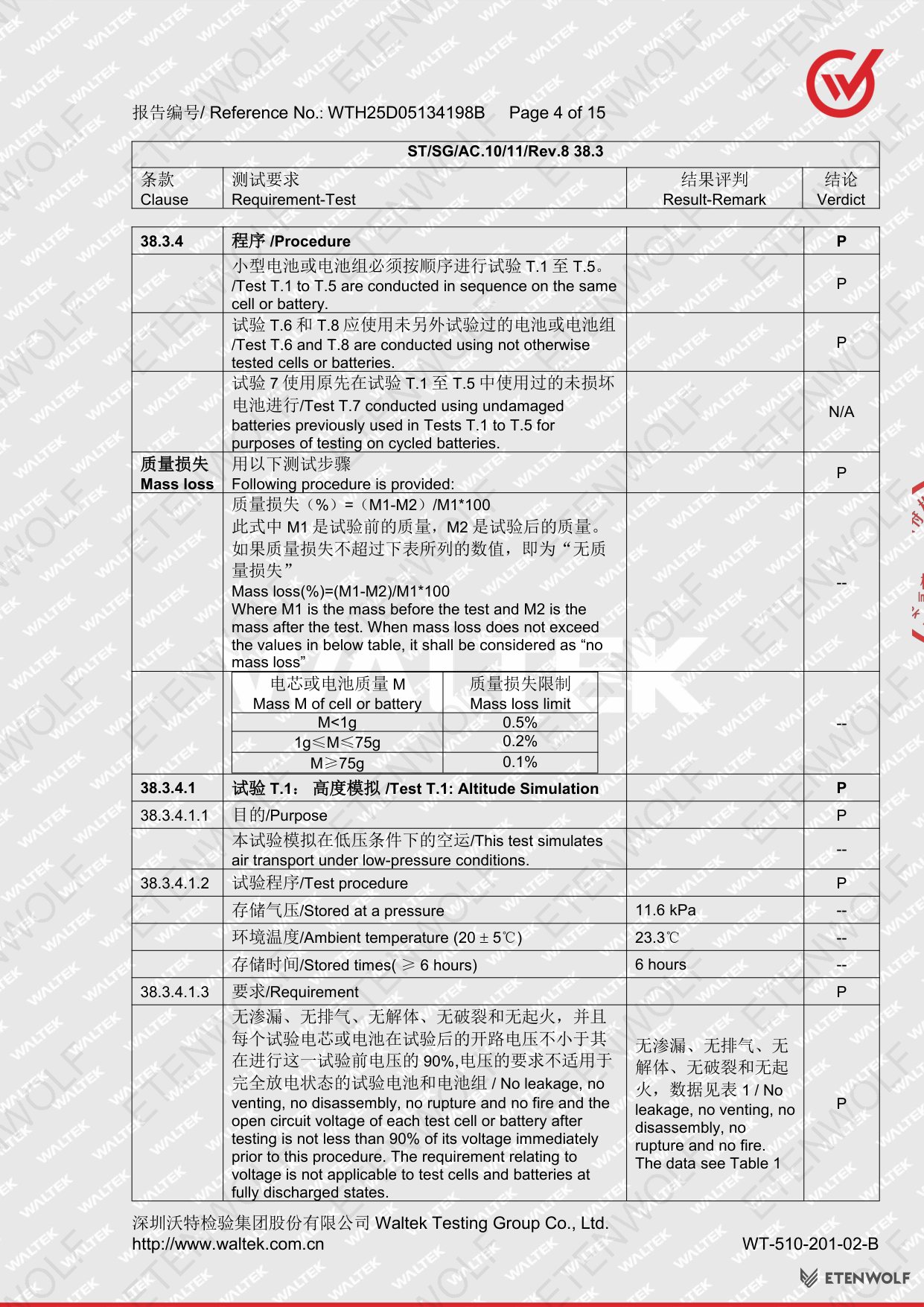

- T1: Altitude Simulation

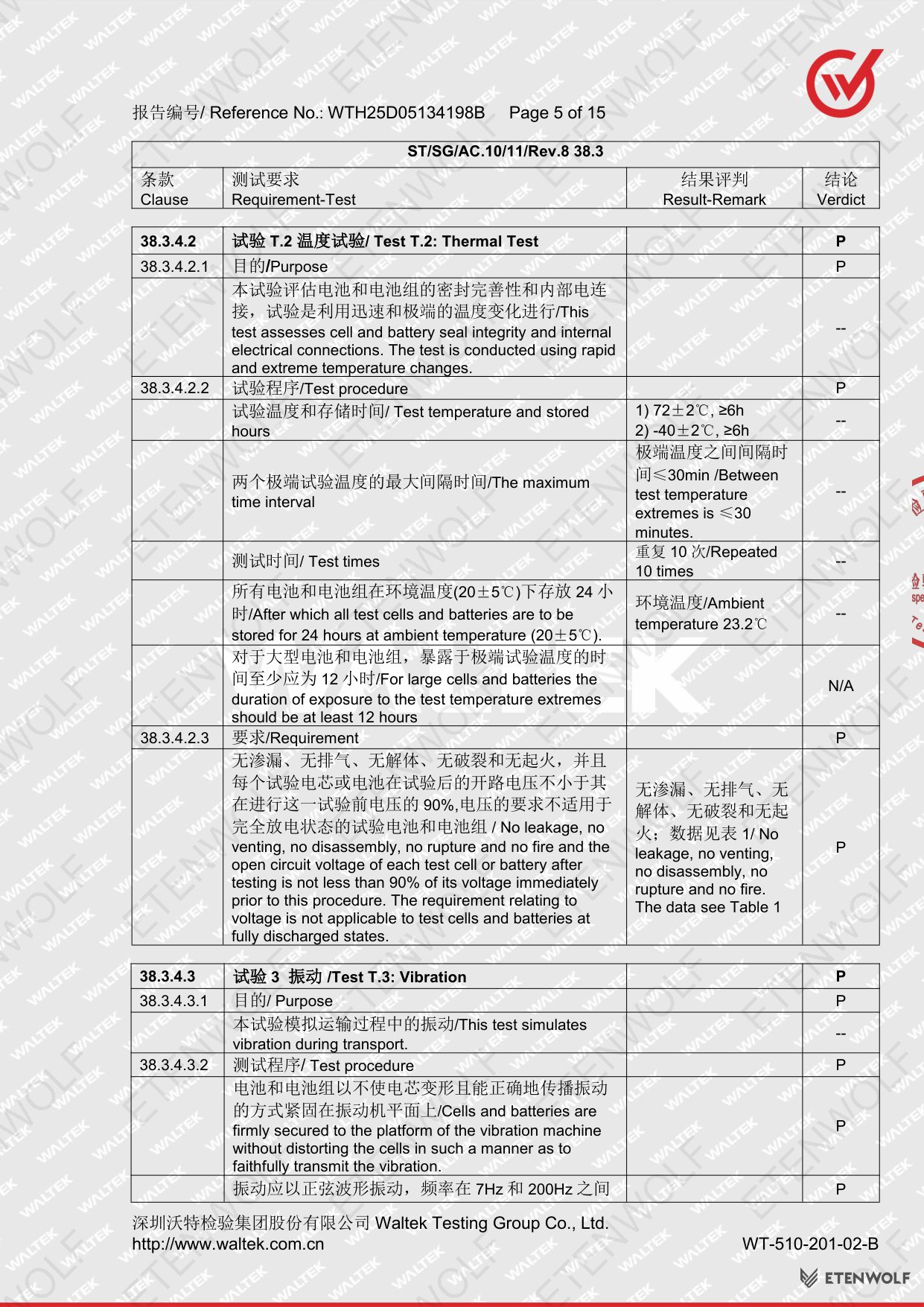

- T2: Thermal Test

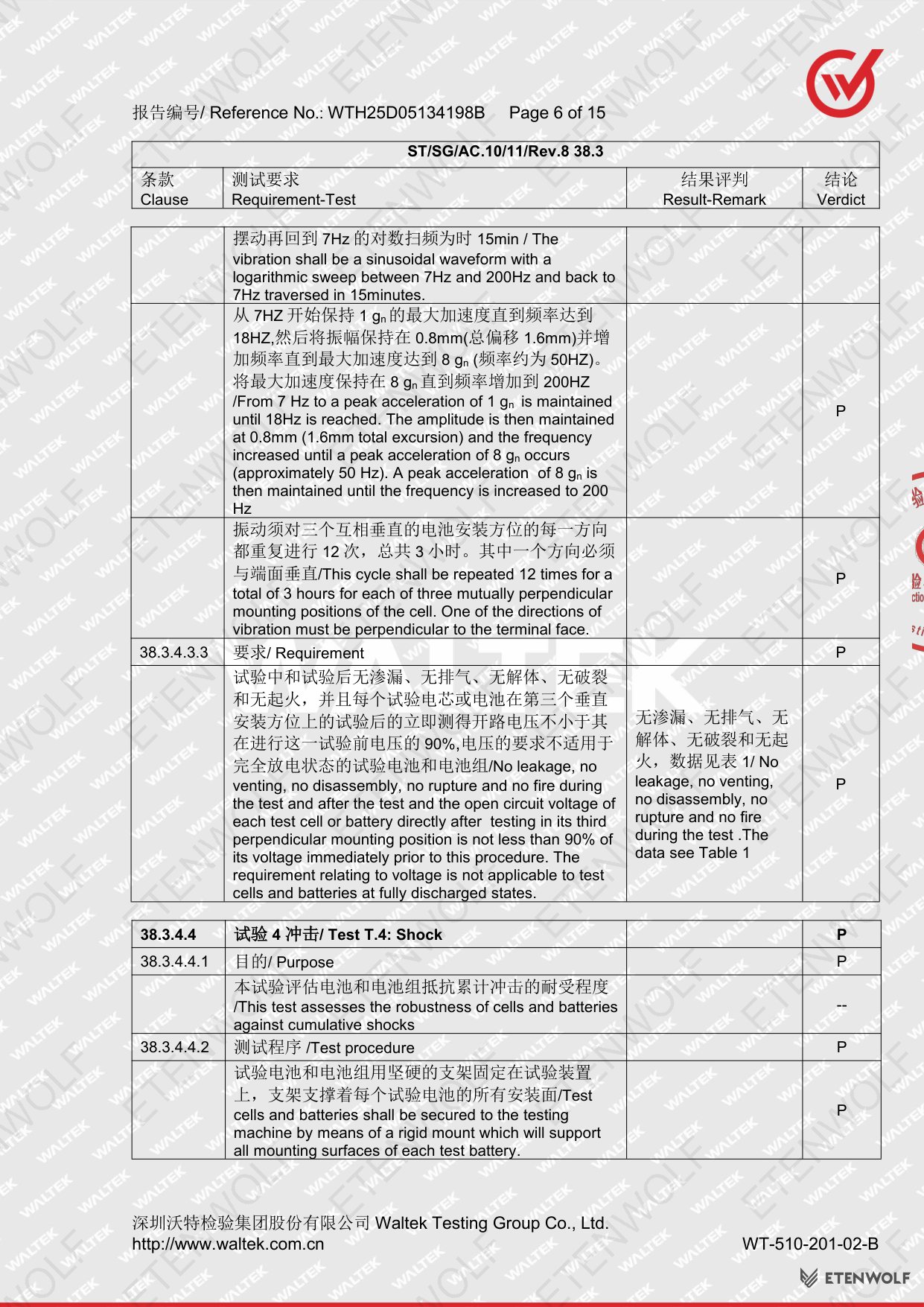

- T3: Vibration

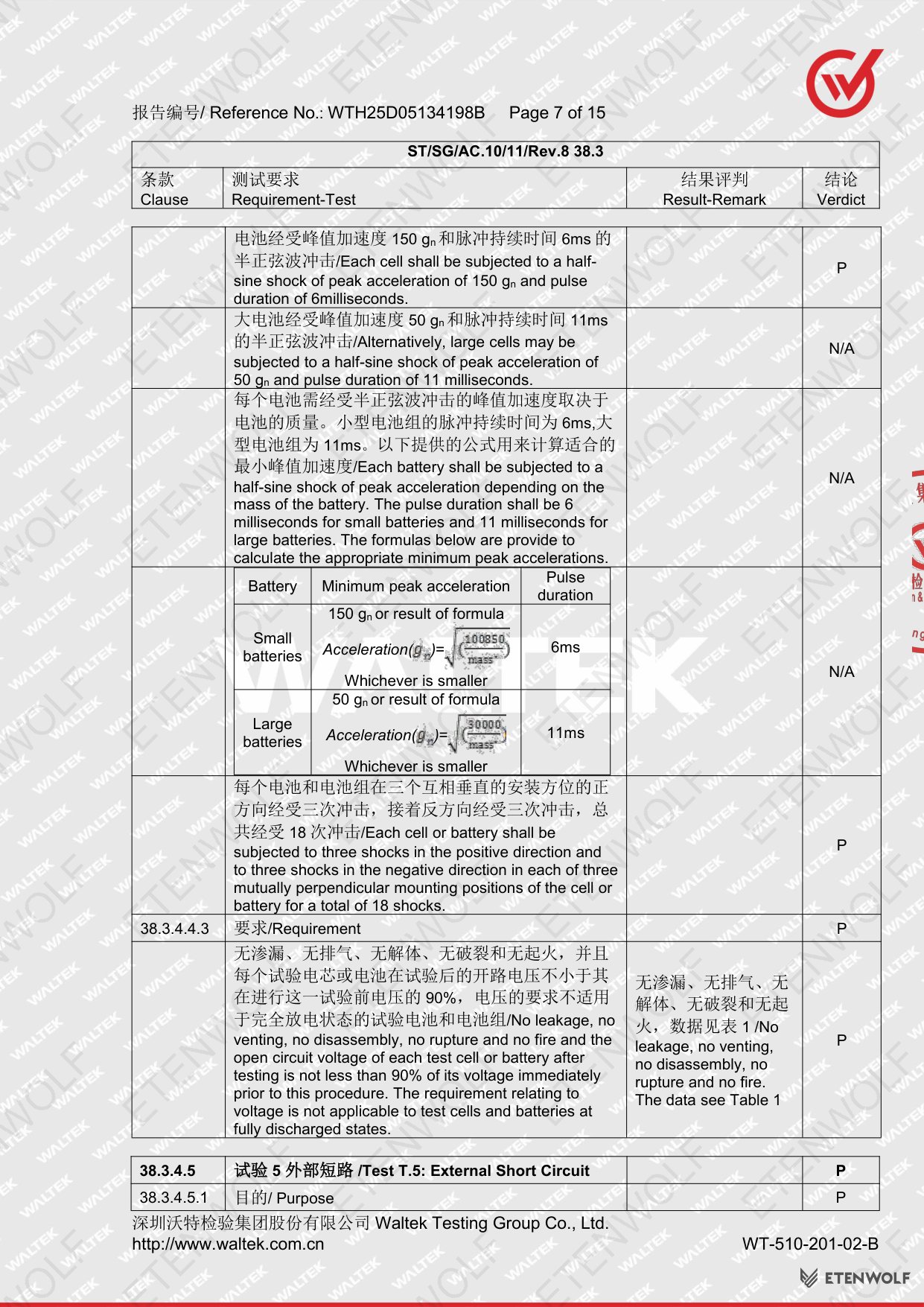

- T4: Shock

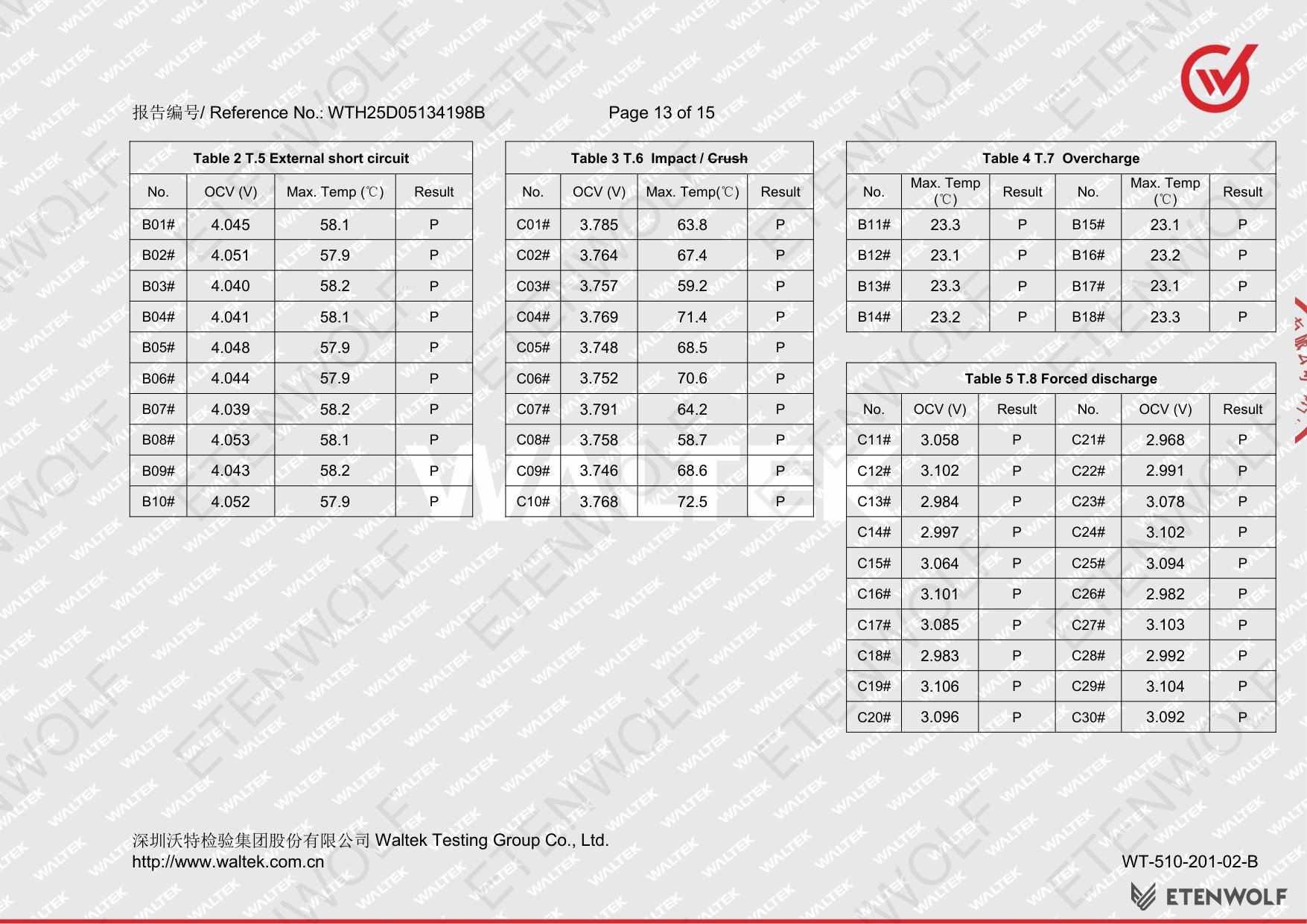

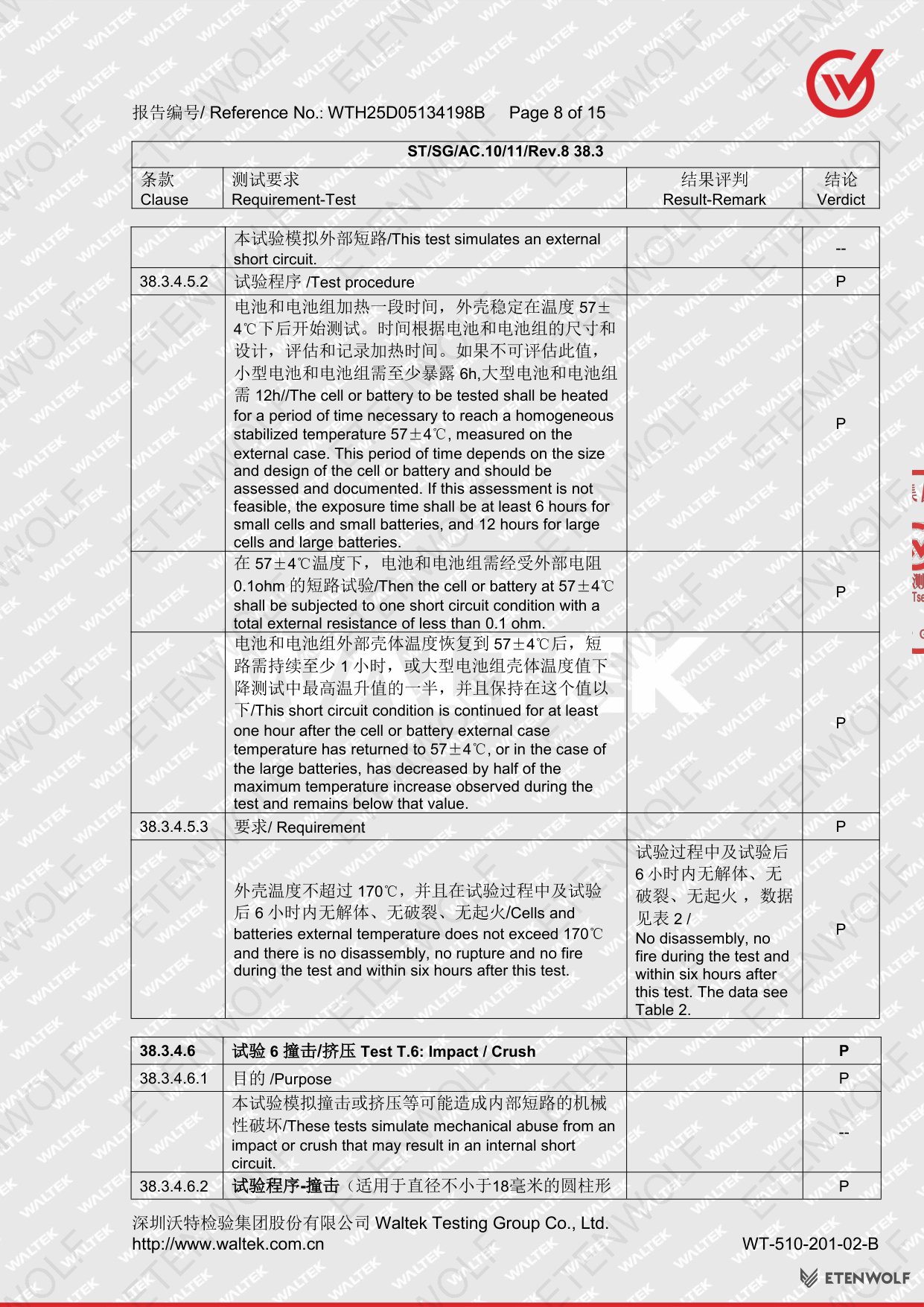

- T5: External Short Circuit

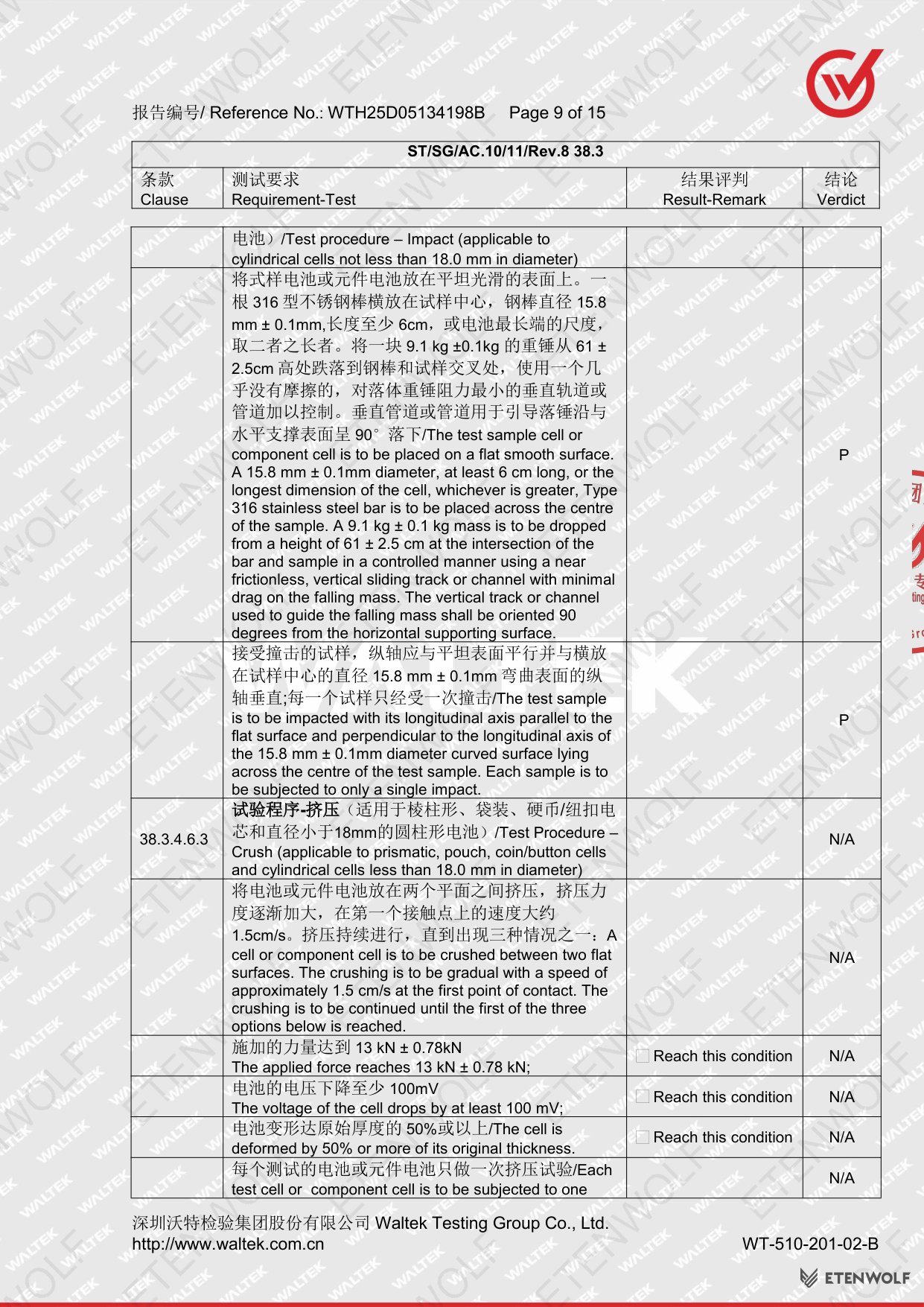

- T6: Impact/Crush

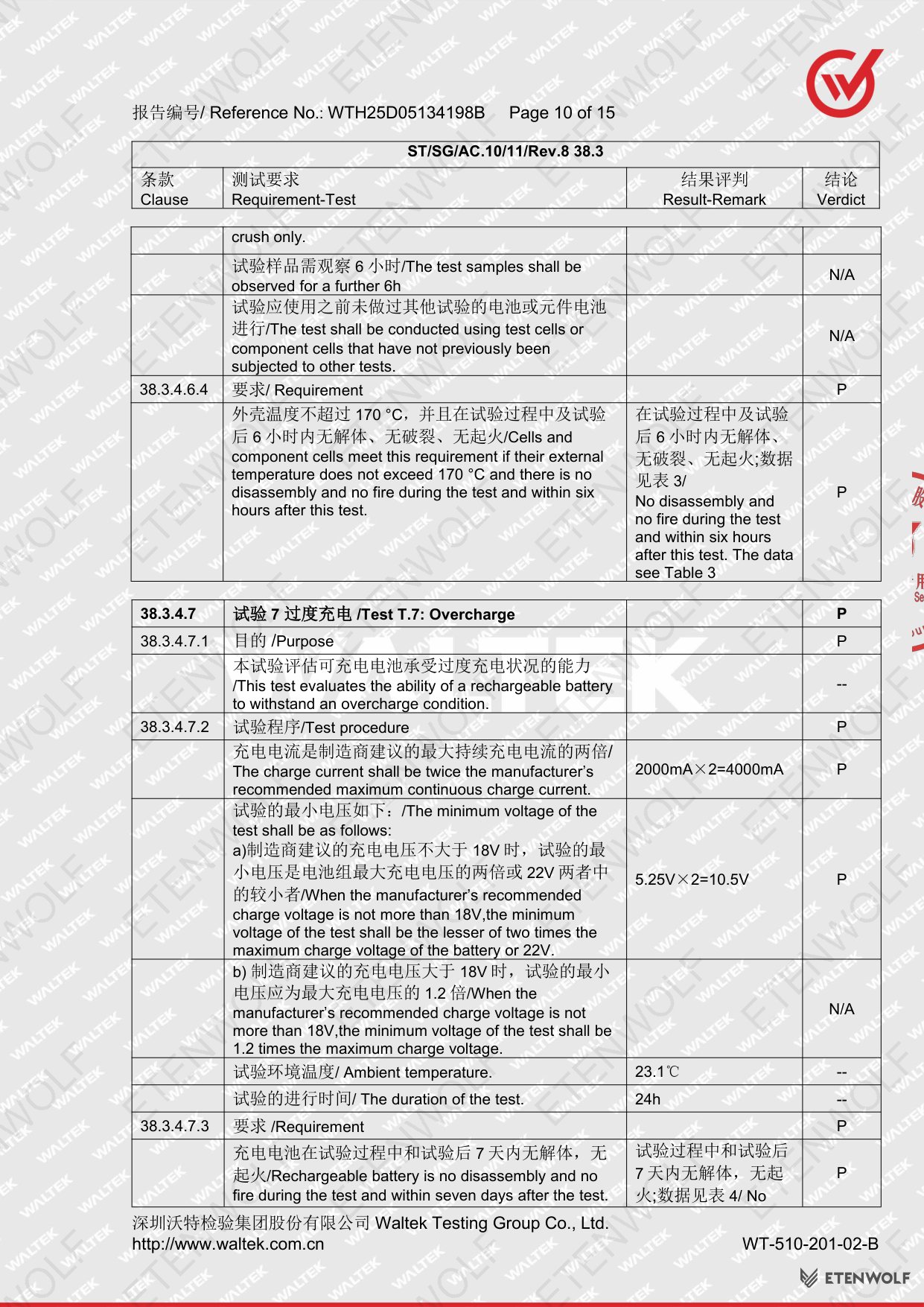

- T7: Overcharge

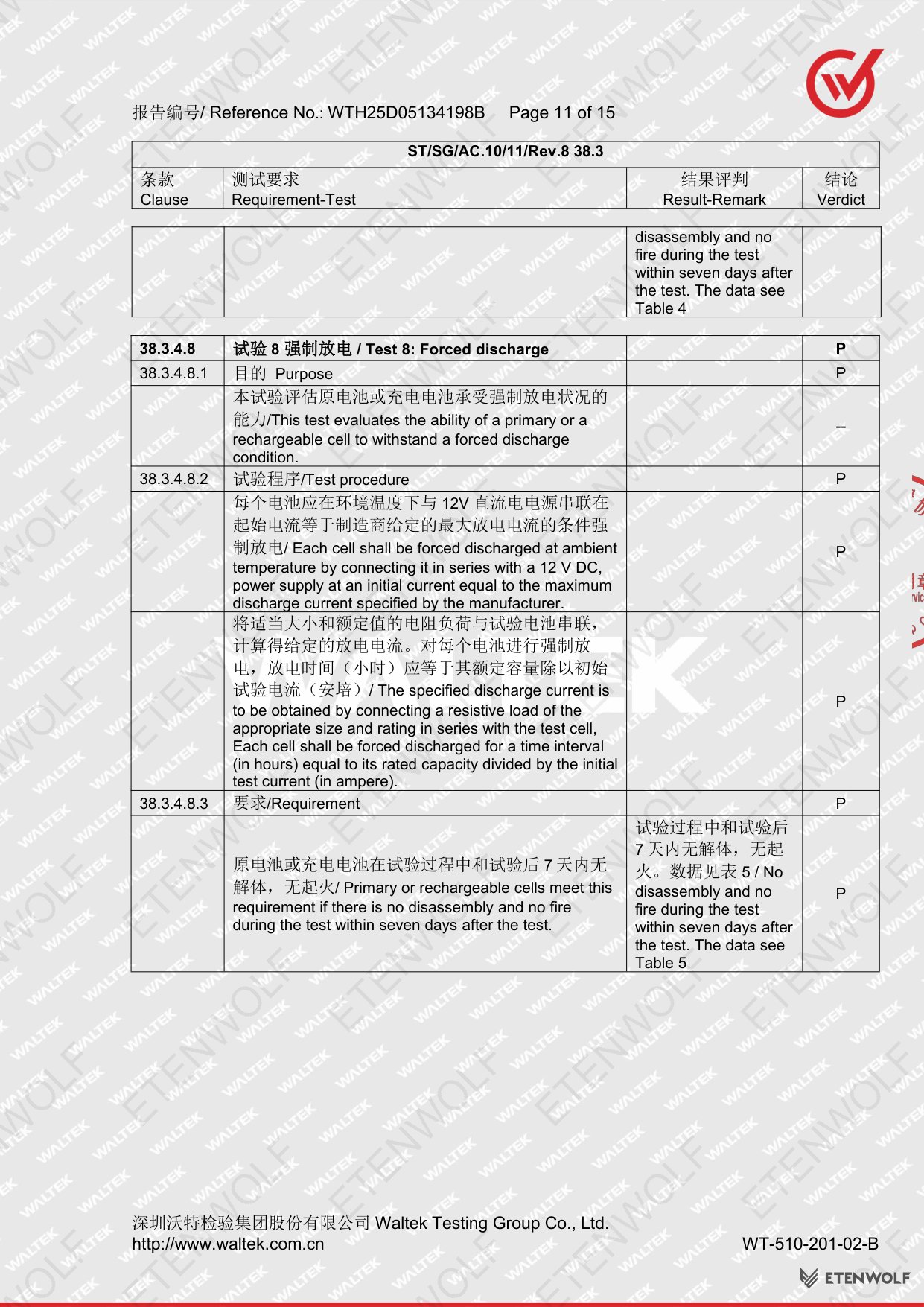

- T8: Forced Discharge
The P200 battery successfully passed all applicable test items, confirming its safety for global transportation and shipping compliance.
Validity & Certification Body
Testing Laboratory: Waltek Testing Group Co., Ltd. (深圳沃特检验集团股份有限公司)
Laboratory Address: No. 77, Houjie Section, Guantai Rd., Houjie Town, Dongguan City, Guangdong, China
Contact Information:
- Phone: +86-769-2267 6998
- Fax: +86-769-2267 6828
- Email: [email protected]
- Website: http://www.waltek.com.cn
Test Personnel:
- Tested by: Jason Zhen (甄锦炎)
- Reviewed by: Jack Chen (陈咏松)
- Approved by: Deval Qin (秦林伟)
Manufacturer: Guangdong Bestek Technology Co., LTD
Manufacturer Address: No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China
Important Notes:
- This report cannot be reproduced in part without prior written permission from Waltek Testing Group
- Test results apply only to the specific samples tested
- The report is invalid without the official seal and authorized signatures
- This certification demonstrates the P200 meets international shipping safety requirements
Frequently Asked Questions
What is UN38.3 certification and why is it required?
UN38.3 is an international safety standard that tests lithium batteries for safe transportation. It is mandatory for shipping lithium batteries or products containing lithium batteries by air, sea, rail, or road. The ETENWOLF P200 battery has passed all UN38.3 tests, ensuring it meets global transportation safety requirements.
What tests are included in UN38.3 certification?
UN38.3 includes eight rigorous tests: altitude simulation (T1), thermal cycling (T2), vibration (T3), shock (T4), external short circuit (T5), impact/crush (T6), overcharge (T7), and forced discharge (T8). These tests simulate extreme conditions that batteries may encounter during transportation to verify they will not pose safety risks such as fire, explosion, or dangerous gas release.
How long is the UN38.3 certification valid?
UN38.3 test reports remain valid as long as the battery design, chemistry, and manufacturing process remain unchanged. If there are any modifications to the battery specifications, dimensions, capacity, or cell configuration, new testing may be required. The P200 battery certification (WTH25D05134198B) was issued on June 25, 2025, and remains valid for the specified 1S1P-2000 battery model.
Can I ship the P200 internationally with this certification?
Yes, the UN38.3 certification allows the P200 electric ball pump to be shipped internationally by air, sea, and ground transportation. However, you must still comply with additional shipping requirements such as proper packaging, labeling, and documentation as specified by IATA (air transport) or other relevant transportation authorities.
Related Documents
For comprehensive product compliance, the ETENWOLF P200 may also have the following related certifications:
- CE Certification – European conformity marking for product safety and market access in the EU
- FCC Certification – US Federal Communications Commission approval for electromagnetic compliance
- IEC 62133 – International standard for safety of portable sealed secondary cells and batteries
- REACH Compliance – European chemical safety regulation documentation
- RoHS Certification – Restriction of Hazardous Substances compliance for electronic products
- MSDS (Material Safety Data Sheet) – Chemical safety information for the lithium-ion battery
- Battery Safety Test Reports – Additional safety testing per IEC standards
For questions about additional certifications or to request certification documents, please contact ETENWOLF customer support.
Document Pages
