Document Overview
This page presents the official CE Electromagnetic Compatibility (EMC) test report issued for the ETENWOLF P300 PLUS inflator pump. The report was prepared by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited third-party electromagnetic compatibility laboratory located in Longgang District, Shenzhen, Guangdong, China.
| Field | Detail |
|---|---|
| Reference Number | WTH25H09255944E |
| Document Type | EMC Test Report |
| Test Report Form No. | TRF EN IEC 55014-1: 2021-EMC-001-V01 |
| Internal Form Reference | HCT/RF-23-21 |
| Issuing Laboratory | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Date of Sample Receipt | 2025-09-23 |
| Date of Test | 2025-09-25 to 2025-09-28 |
| Date of Issue | 2025-09-30 |
| Overall Test Result | Pass |
The report covers conducted disturbance at mains terminals, disturbance power in the frequency range, and radiated disturbances, fully addressing the requirements for CE marking under the EMC Directive.

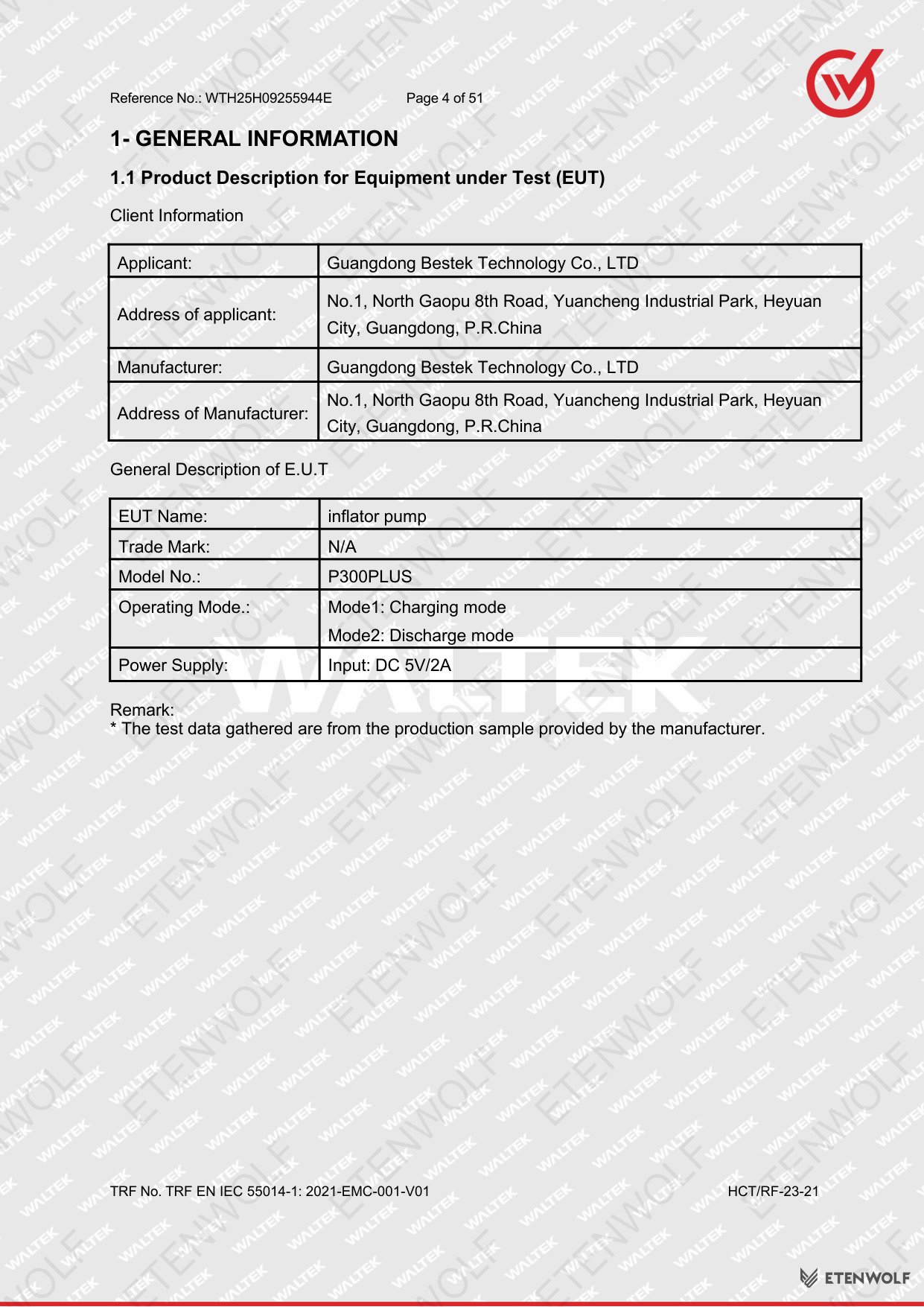

Product Information

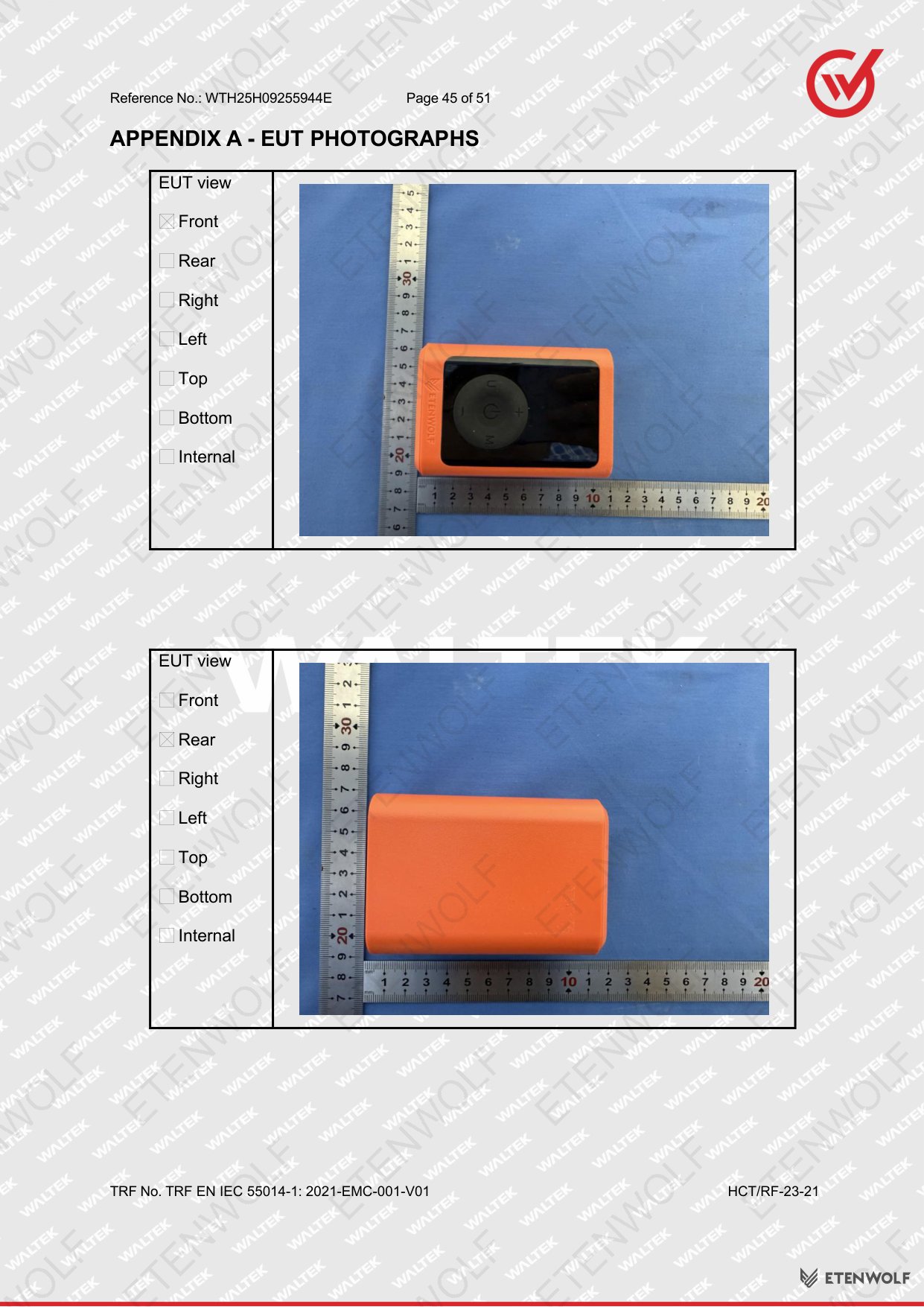

The Equipment Under Test (EUT) evaluated in this report is the ETENWOLF P300 PLUS inflator pump, a portable electric inflation tool designed for automotive tyres, bicycles, sports equipment, and inflatable accessories.
| Attribute | Detail |
|---|---|
| Product Name | Inflator Pump |
| Model Number | P300PLUS |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Certificate Scope | CE-EMC |
The P300 PLUS is engineered to deliver accurate, fast inflation with digital pressure control. Its motor-driven pump system generates the electromagnetic emissions that are the subject of this compliance evaluation.
Key Details
The test report covers four primary EMC measurement categories. All tests were conducted at the Waltek Testing Group HCT (Shenzhen) laboratory under controlled conditions, with the EUT operated in its normal functional configuration.
| Test Category | Applicable Standard | Result |
|---|---|---|

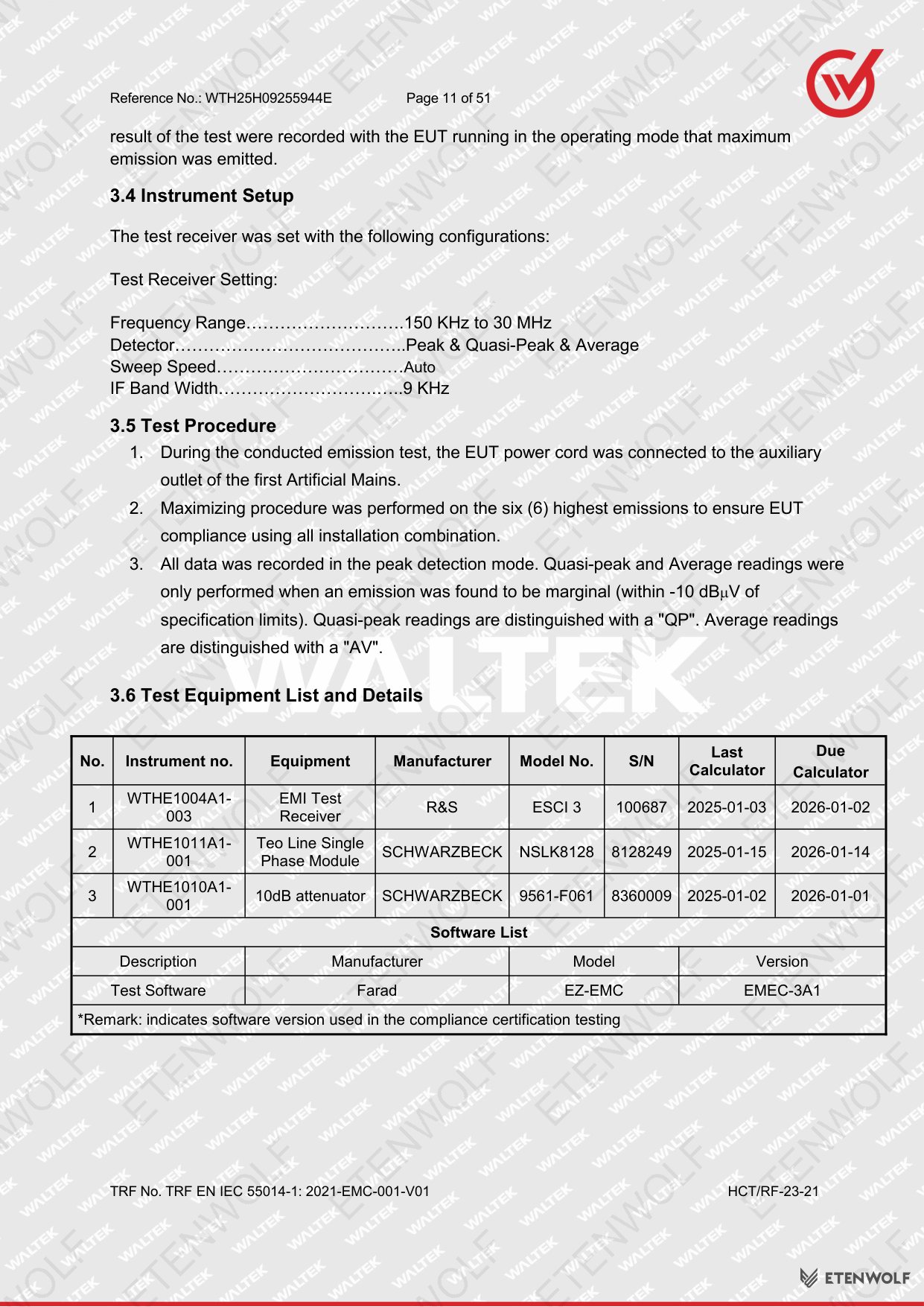

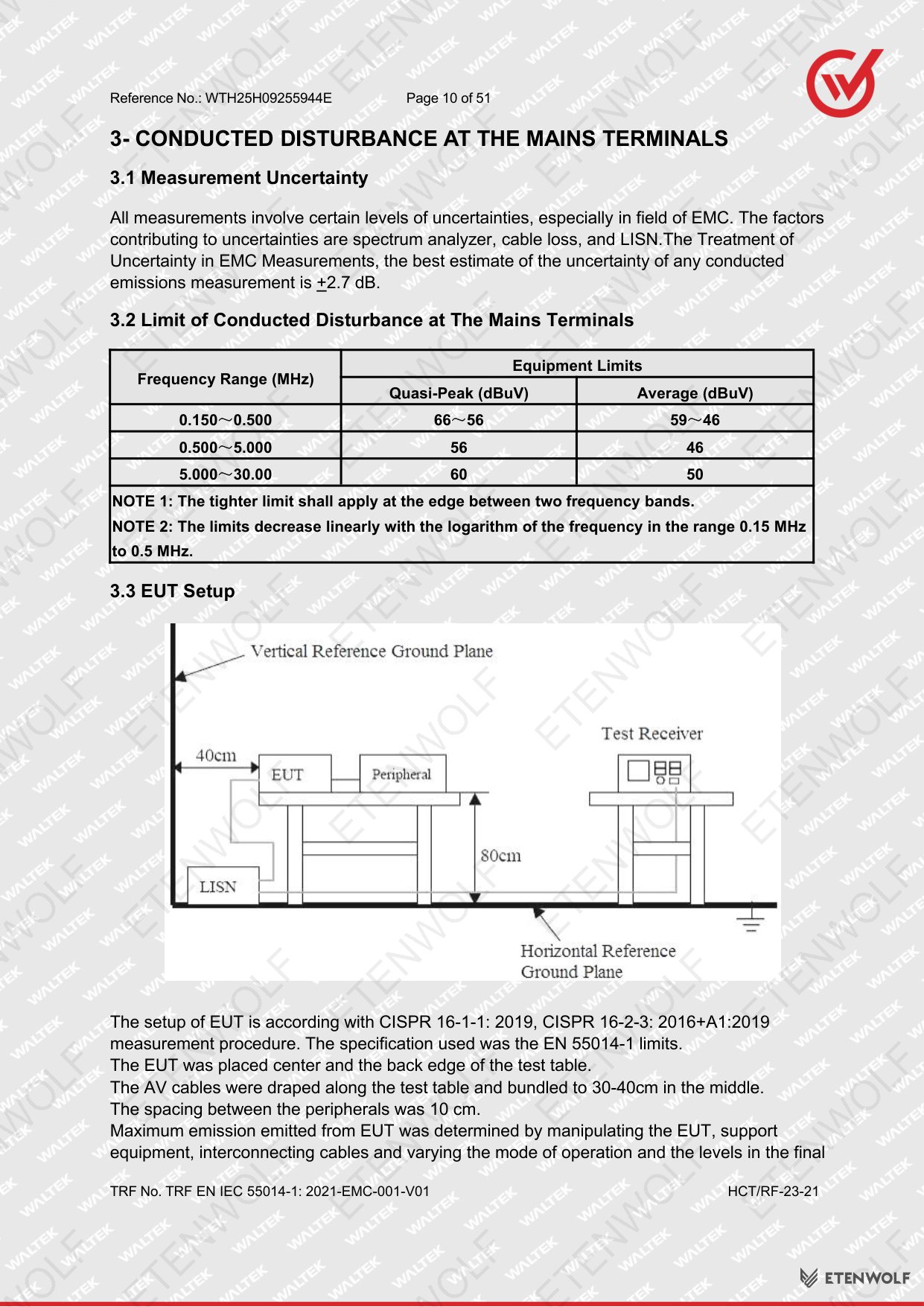

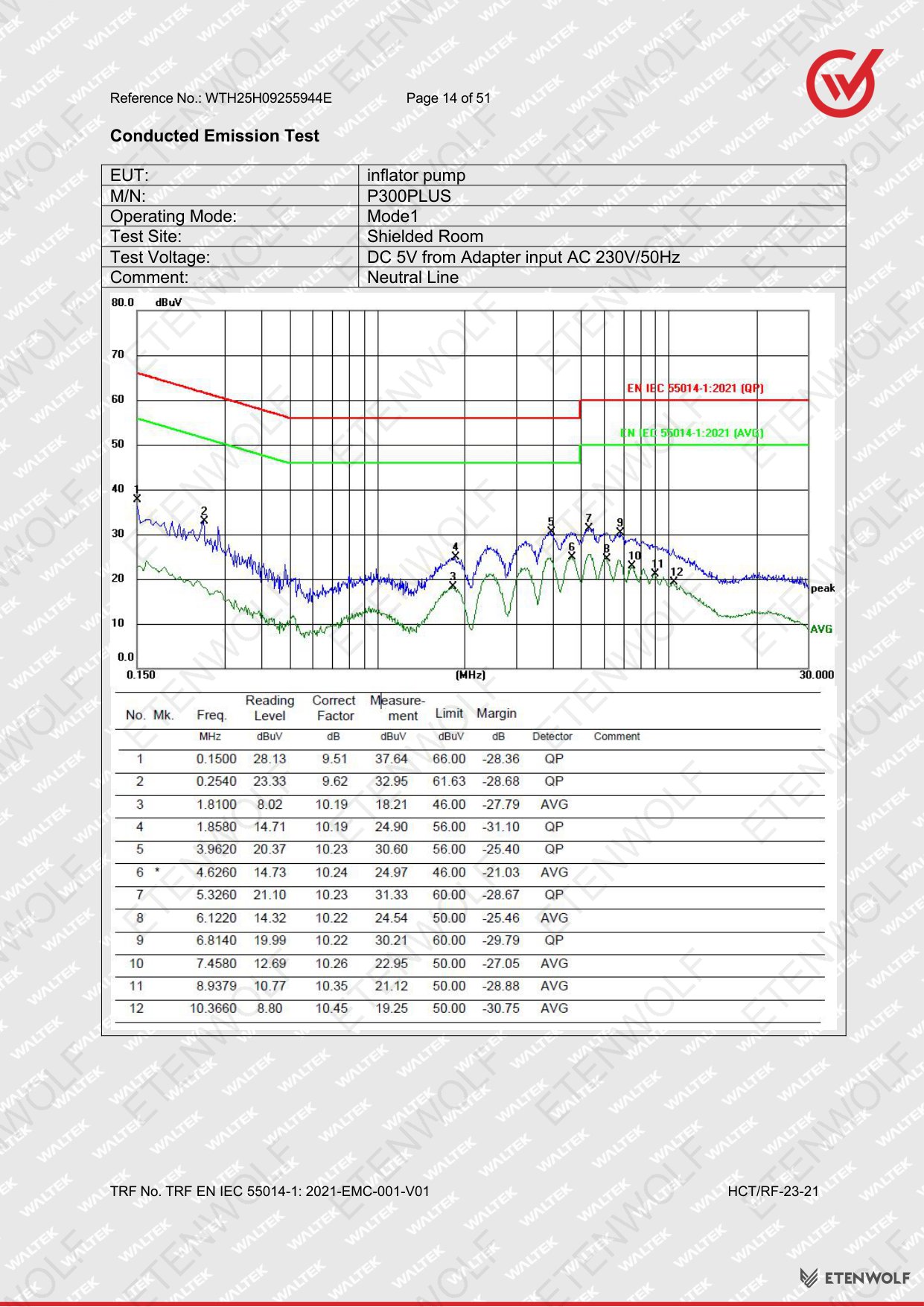

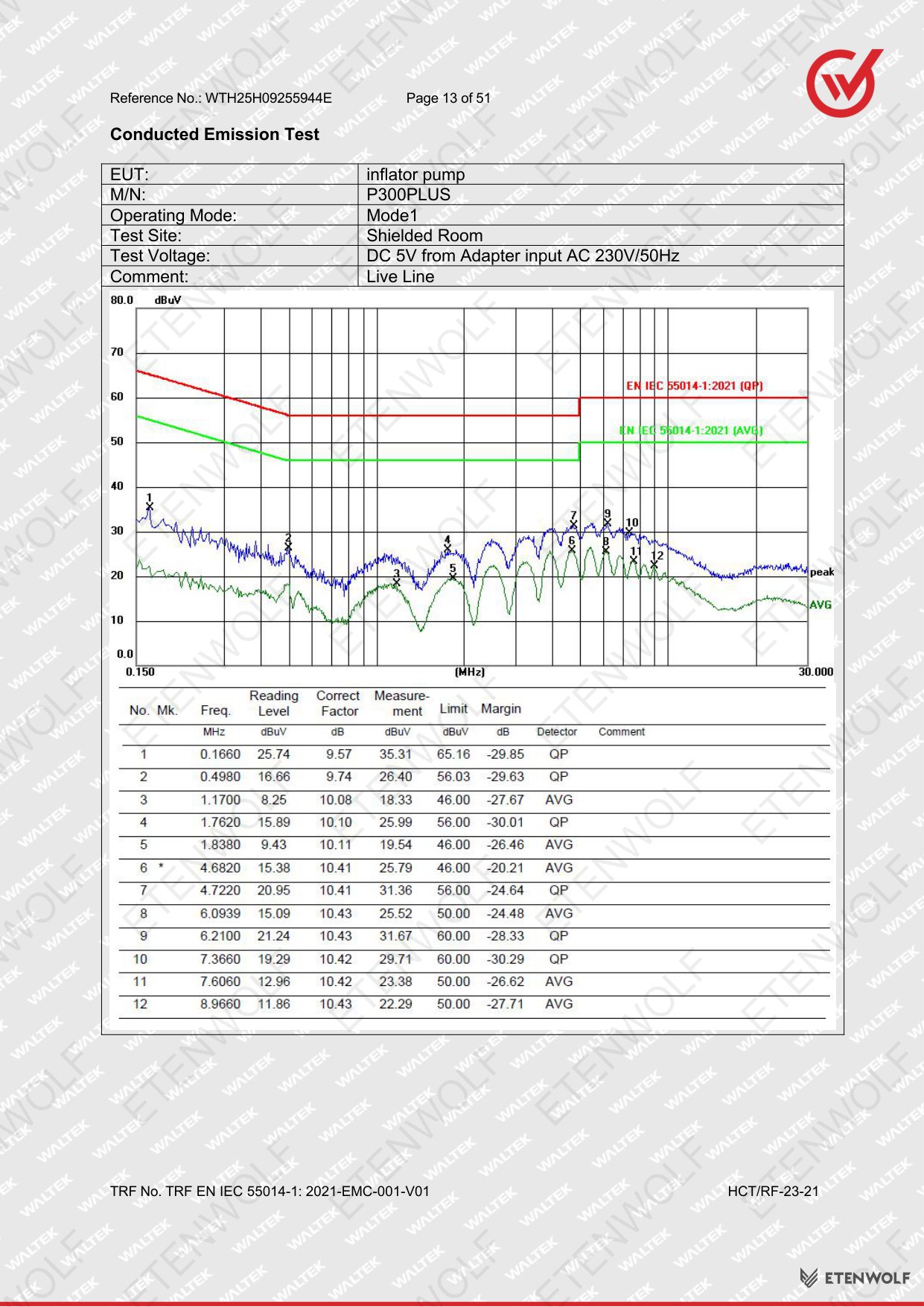

| Conducted Disturbance at Mains Terminals | EN IEC 55014-1: 2021 | Pass |

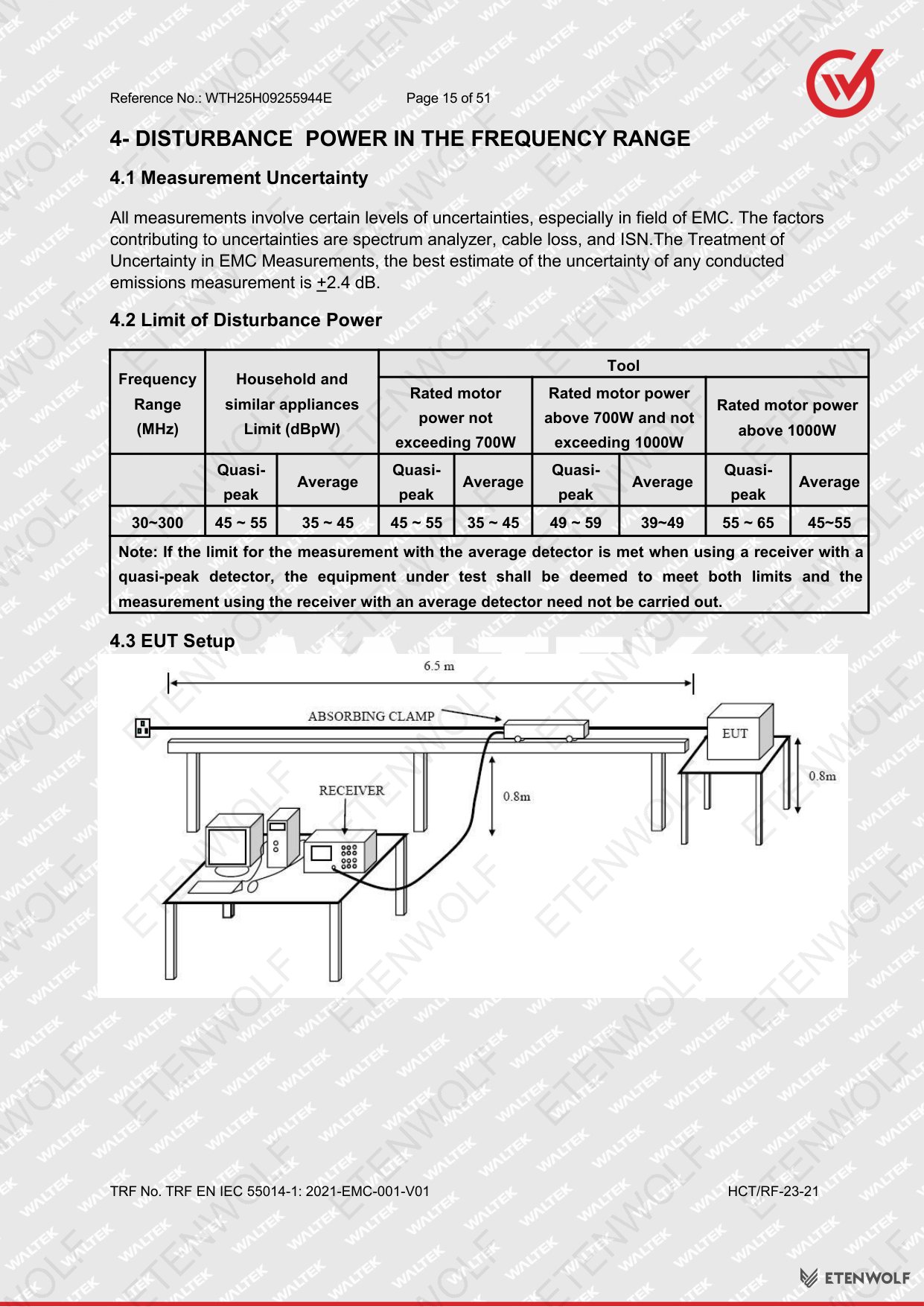

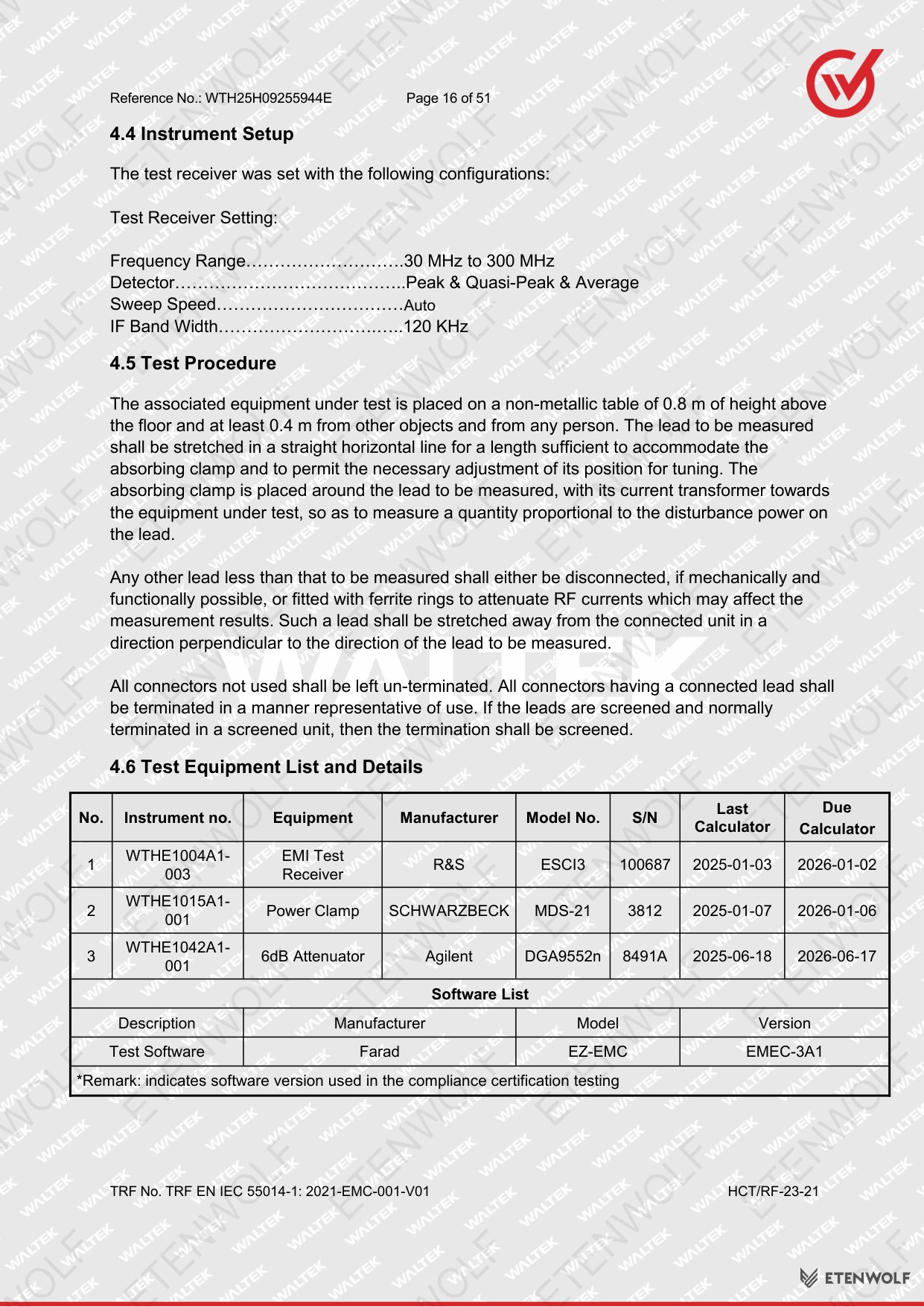

| Disturbance Power in the Frequency Range | EN IEC 55014-1: 2021 | Pass |

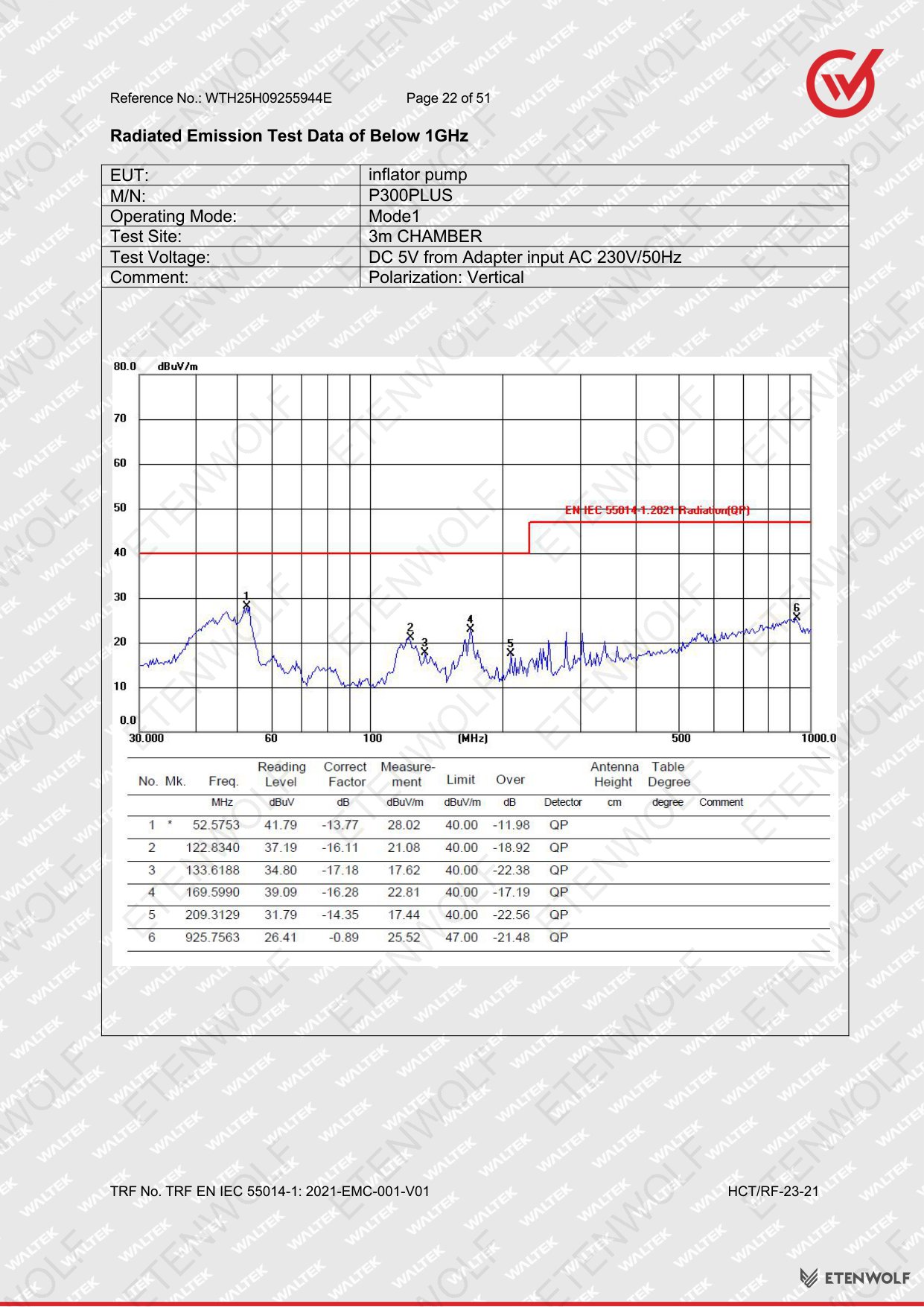

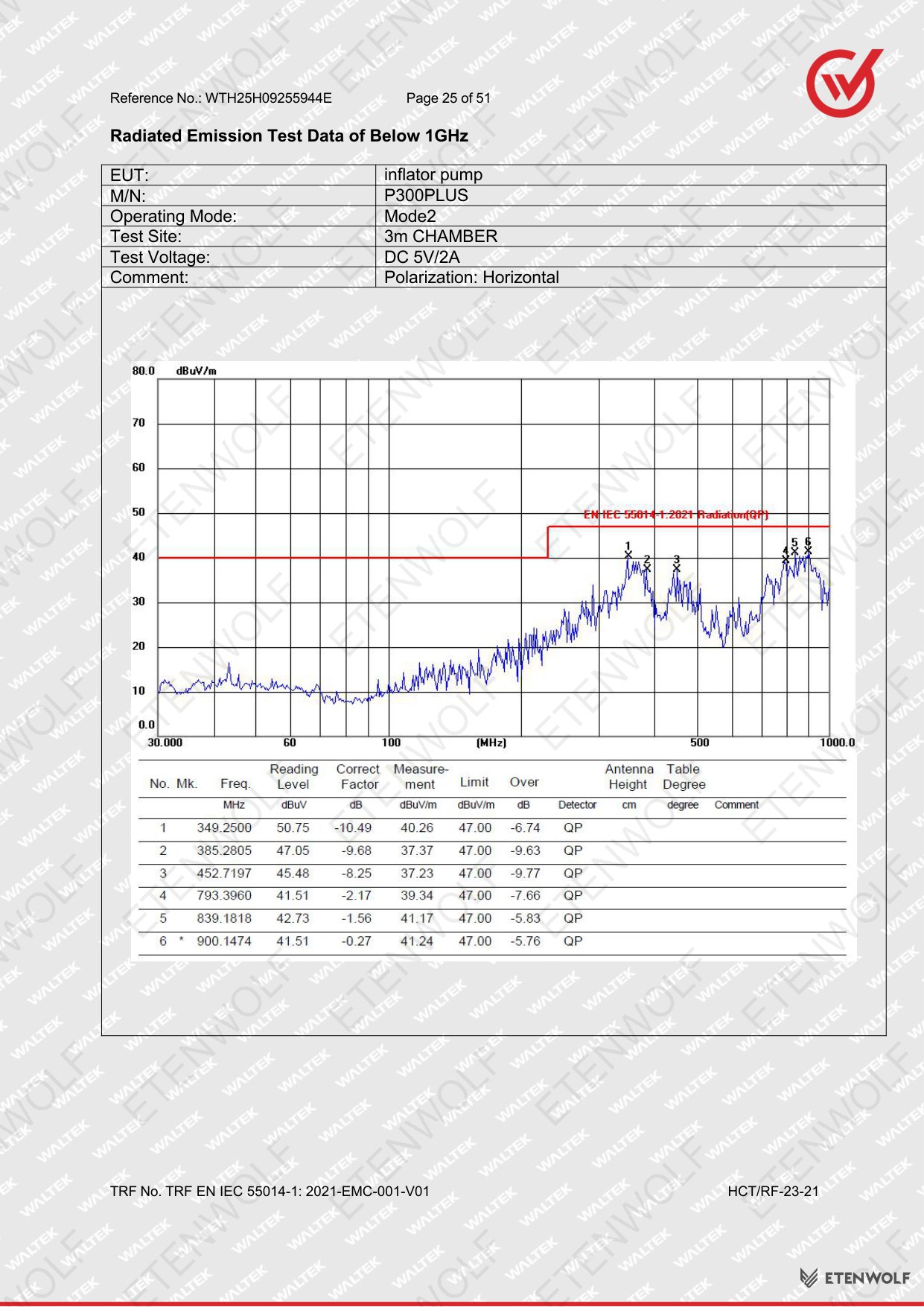

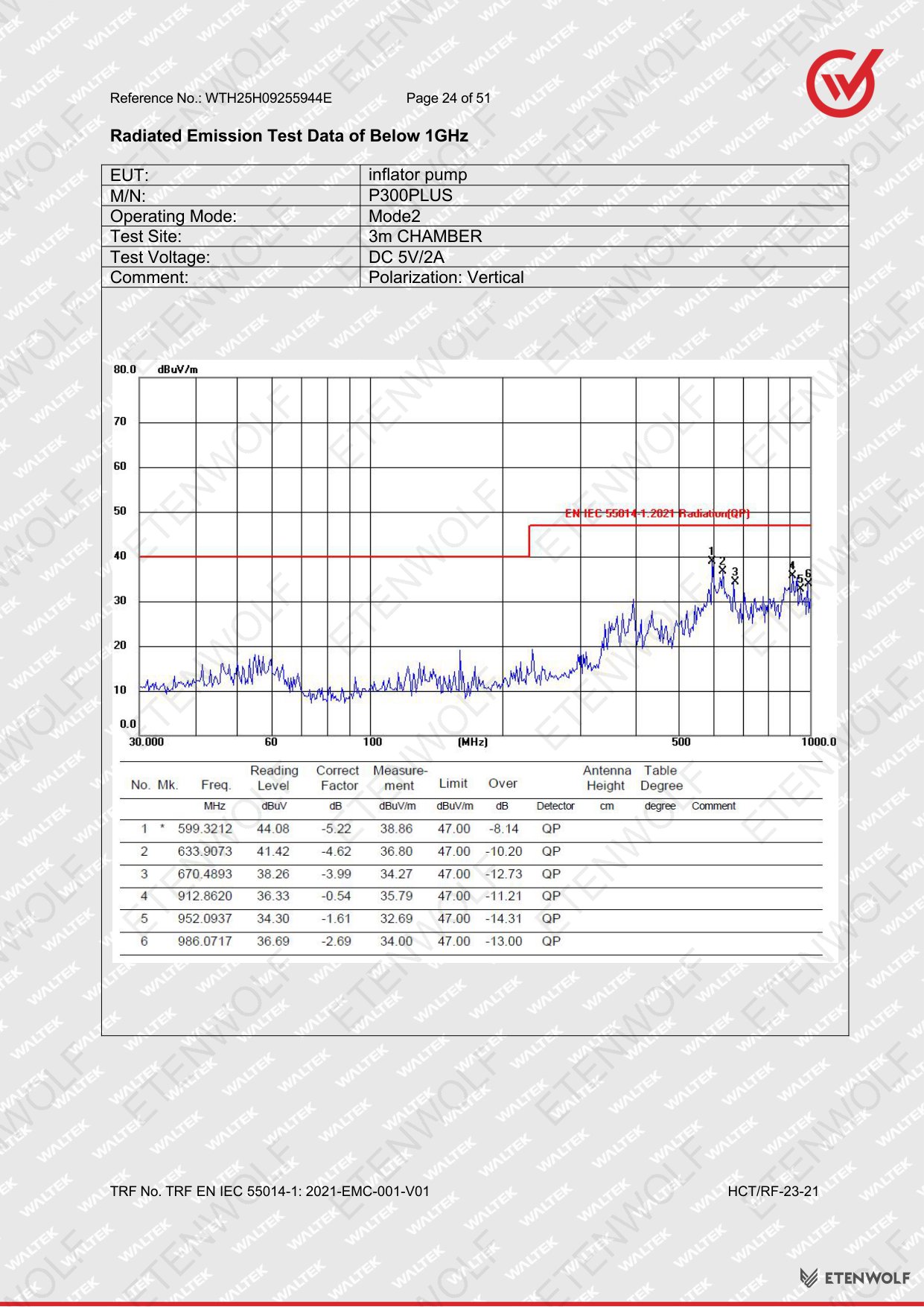

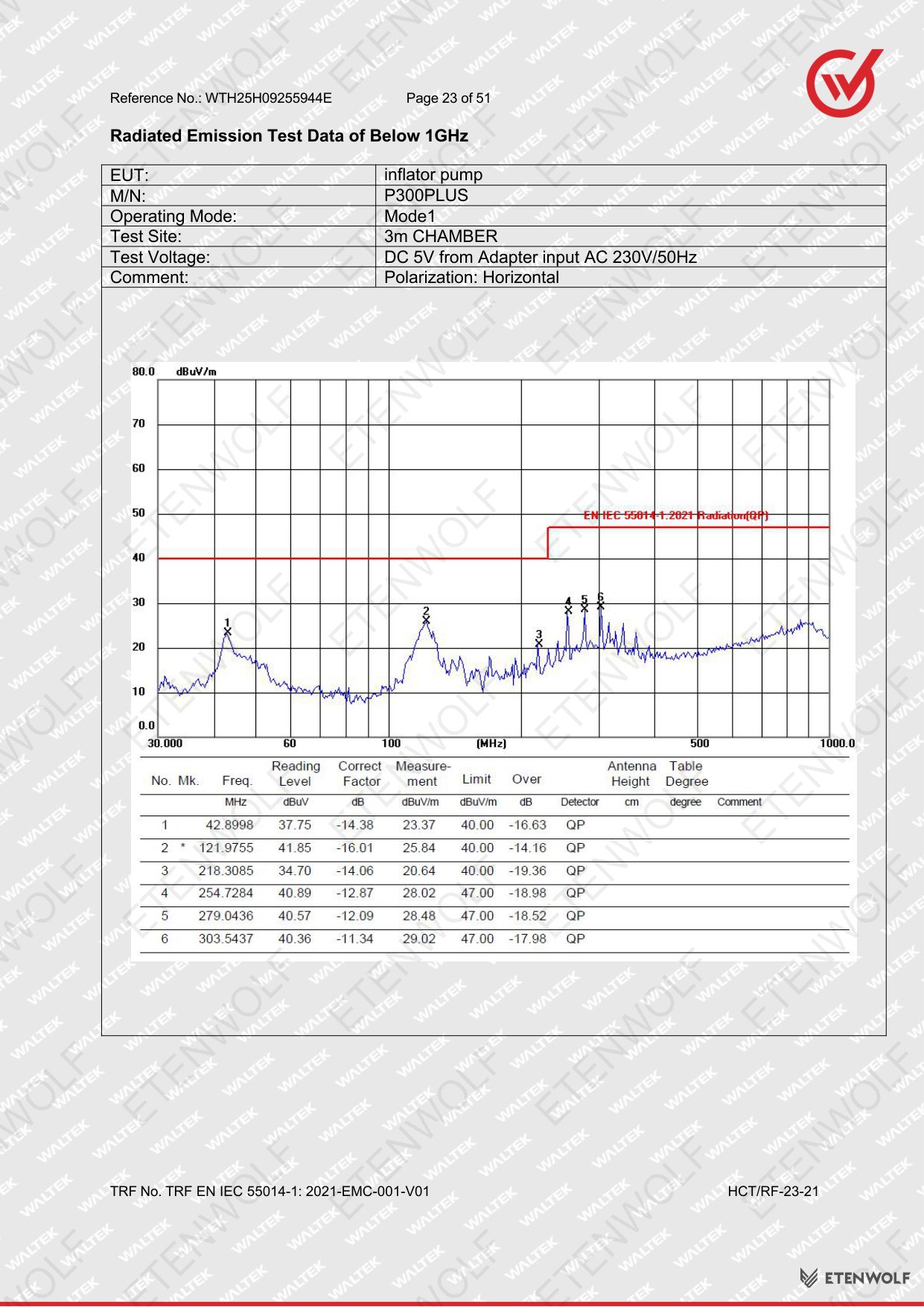

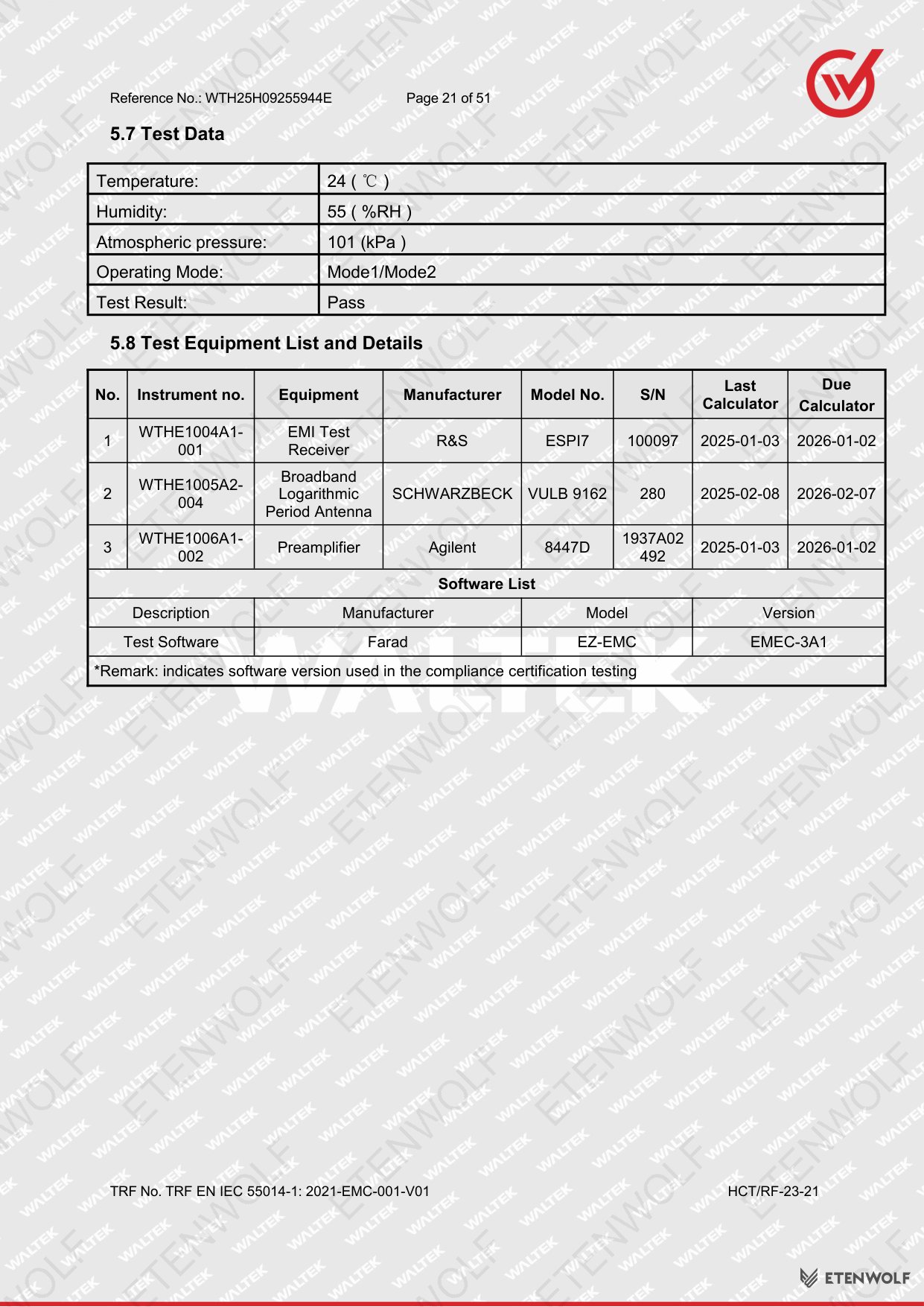

| Radiated Disturbances | EN IEC 55014-1: 2021 | Pass |

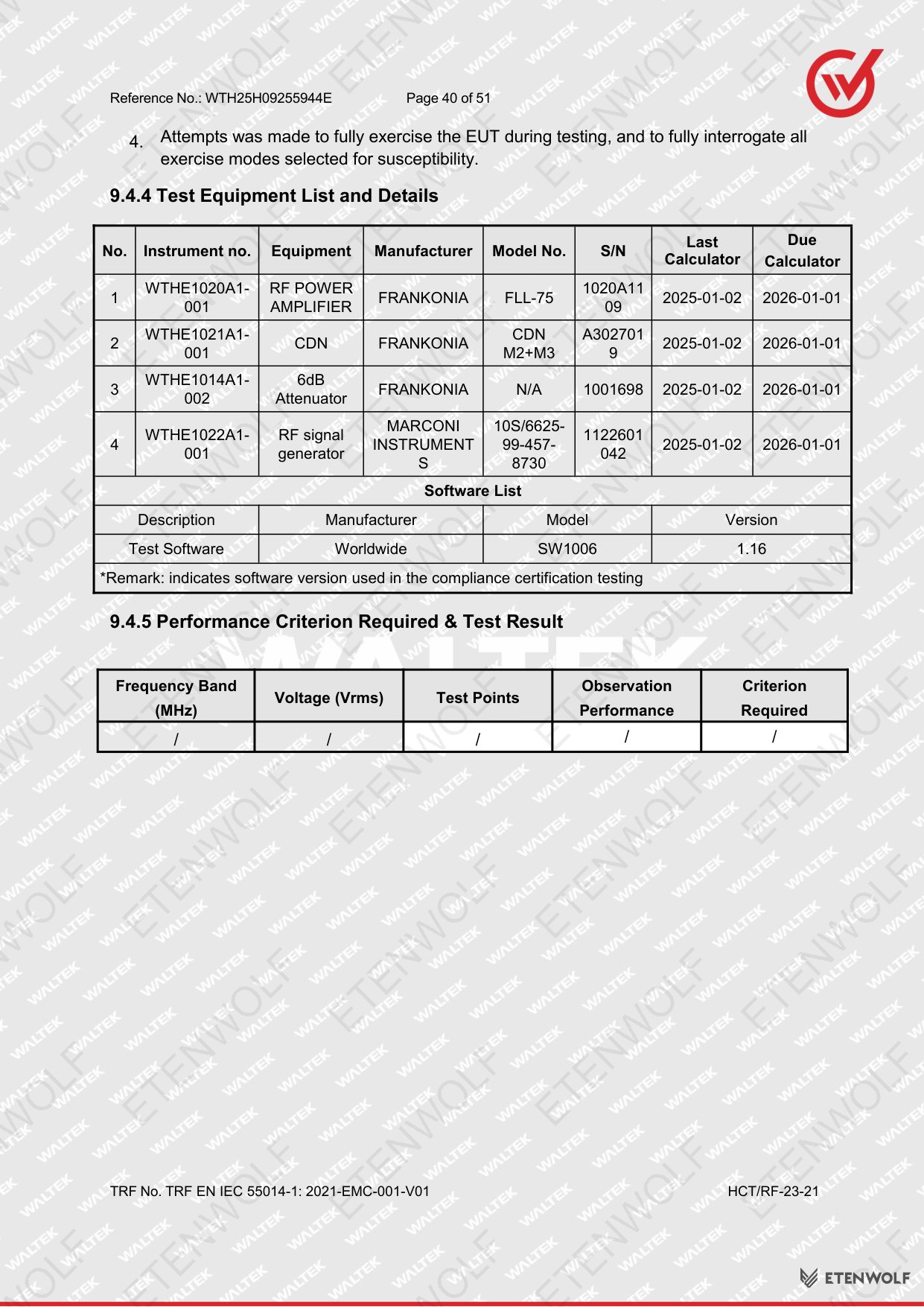

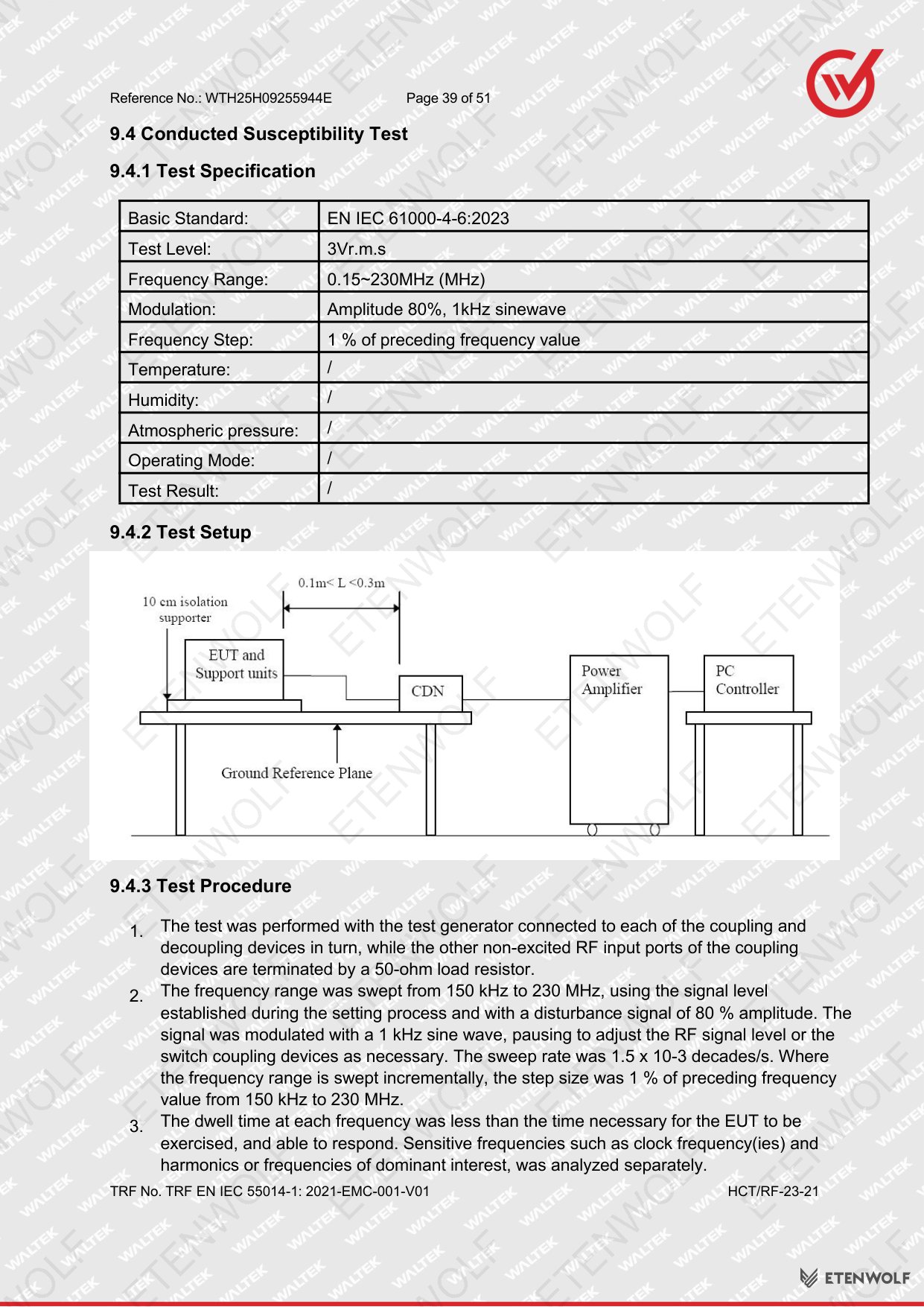

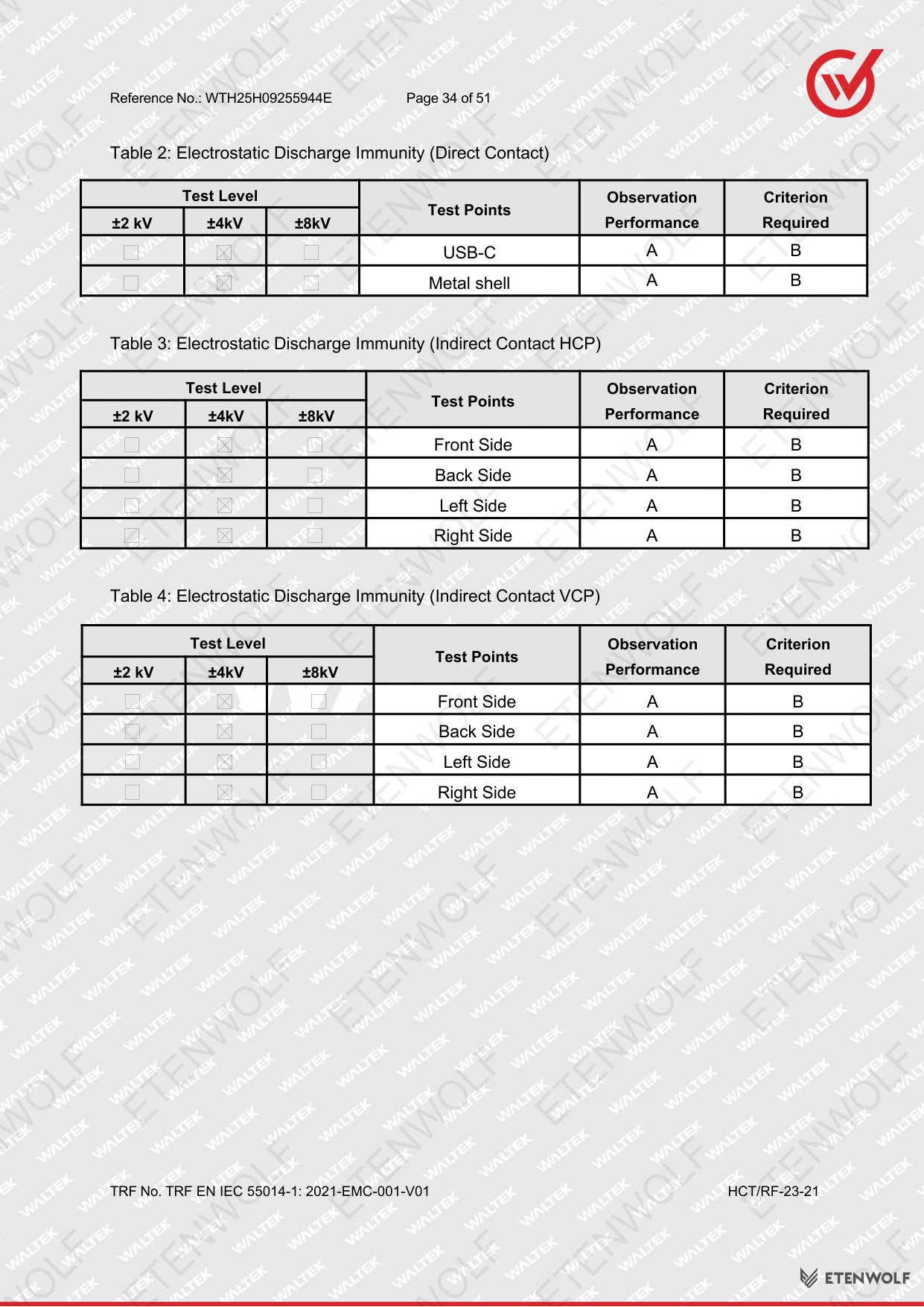

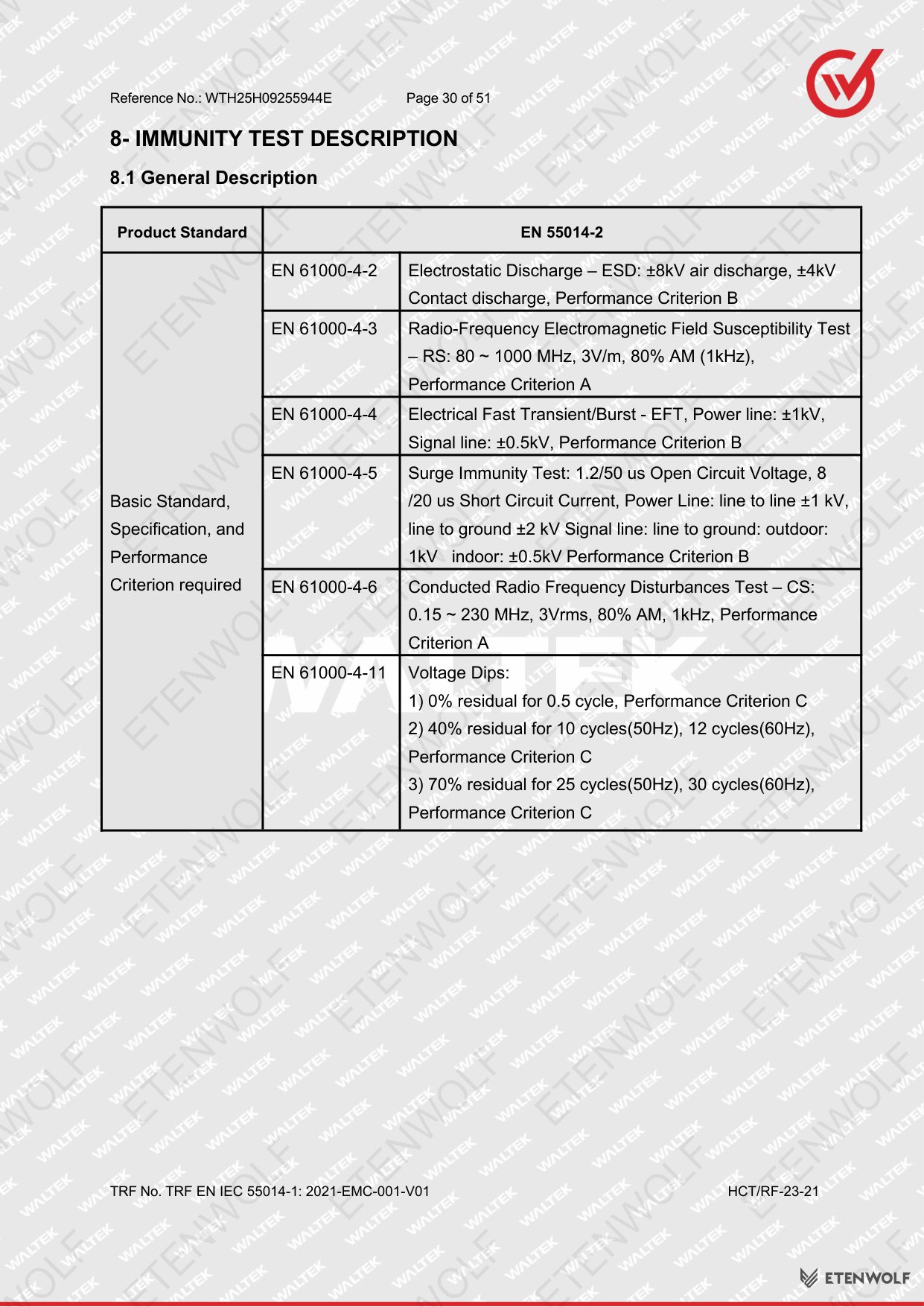

| Immunity Requirements | EN IEC 55014-2: 2021 | Pass |

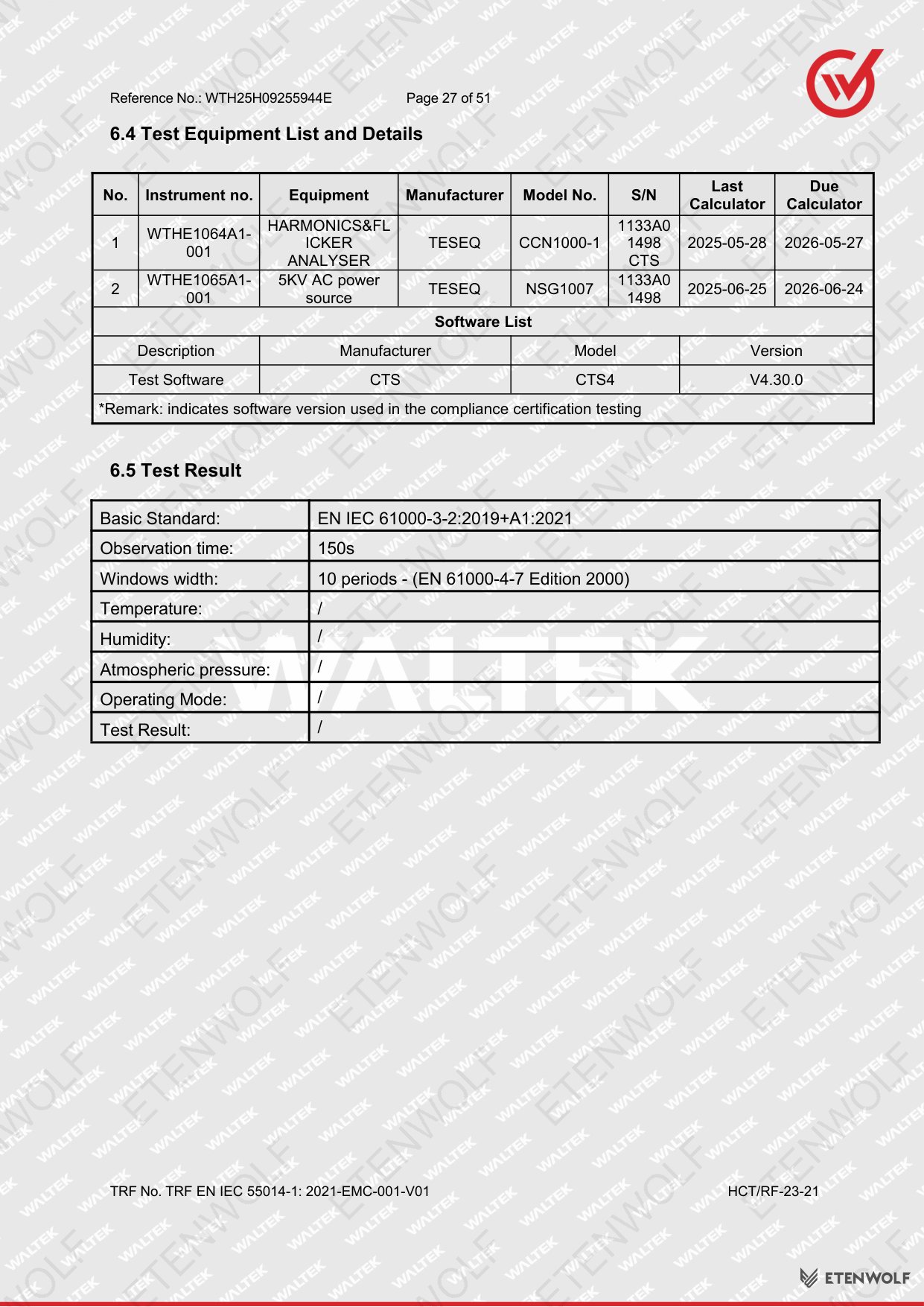

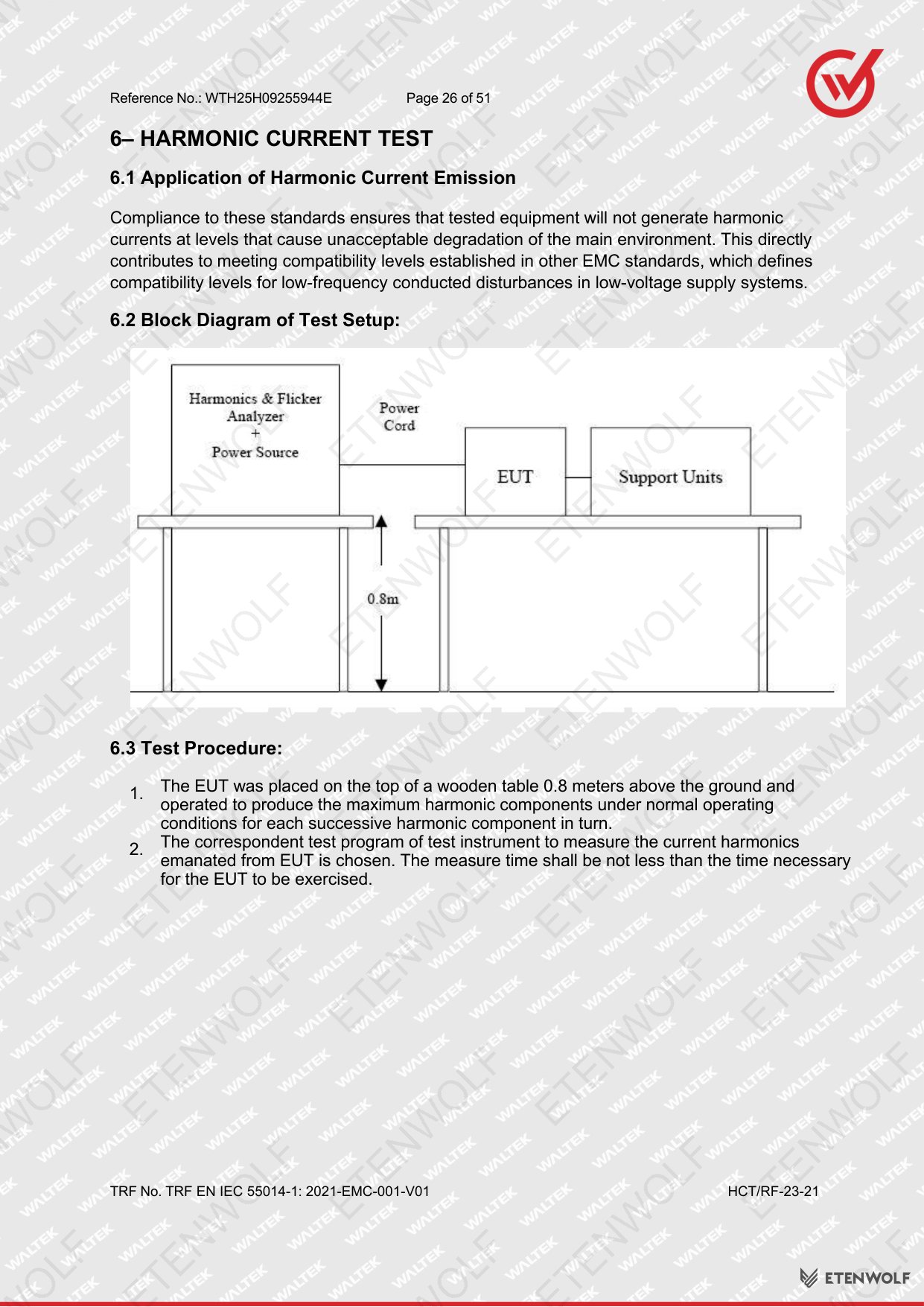

| Harmonic Current Emissions | EN IEC 61000-3-2: 2019+A1:2021 | Pass |

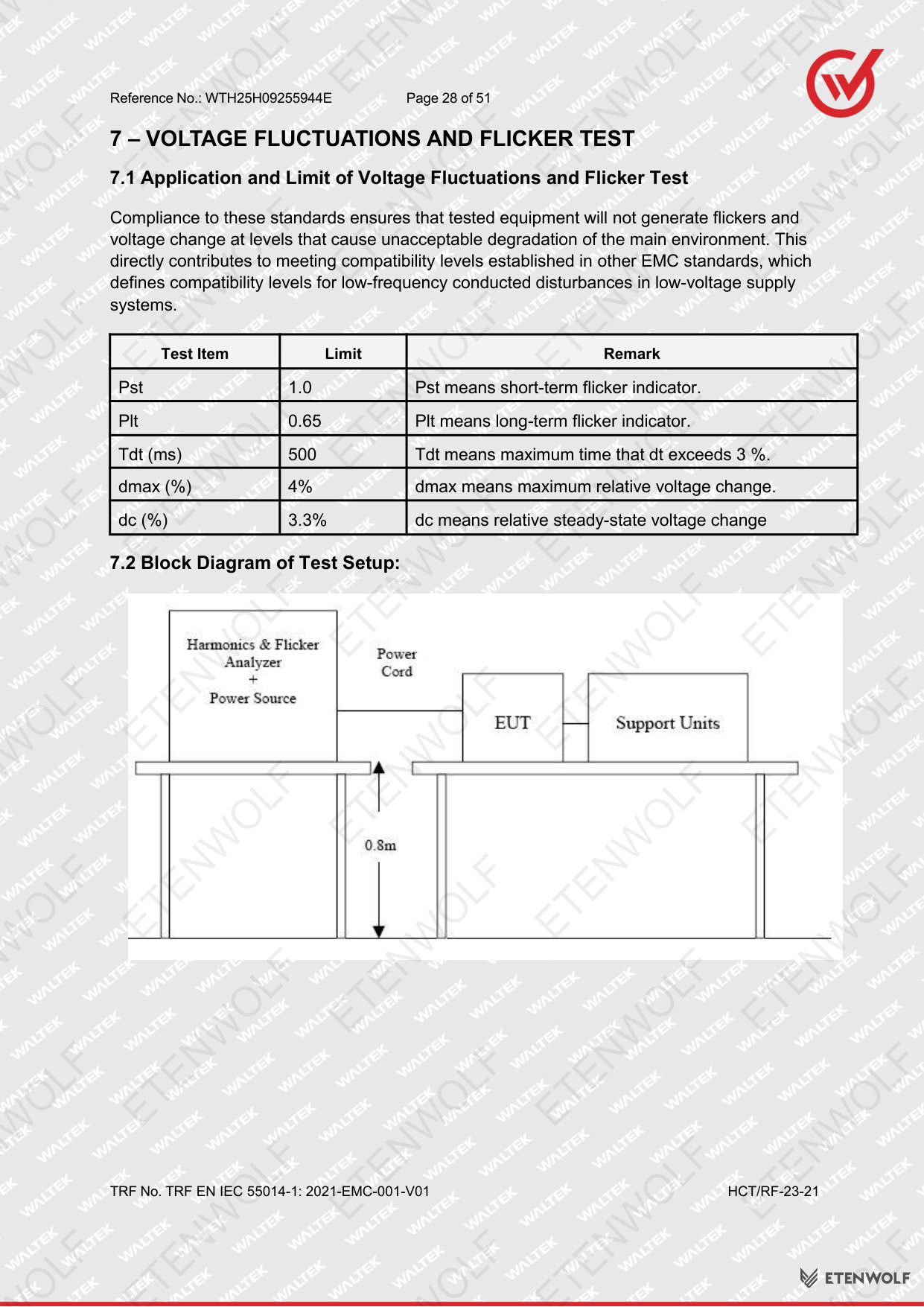

| Voltage Fluctuations and Flicker | EN 61000-3-3: 2013+A2:2021 | Pass |

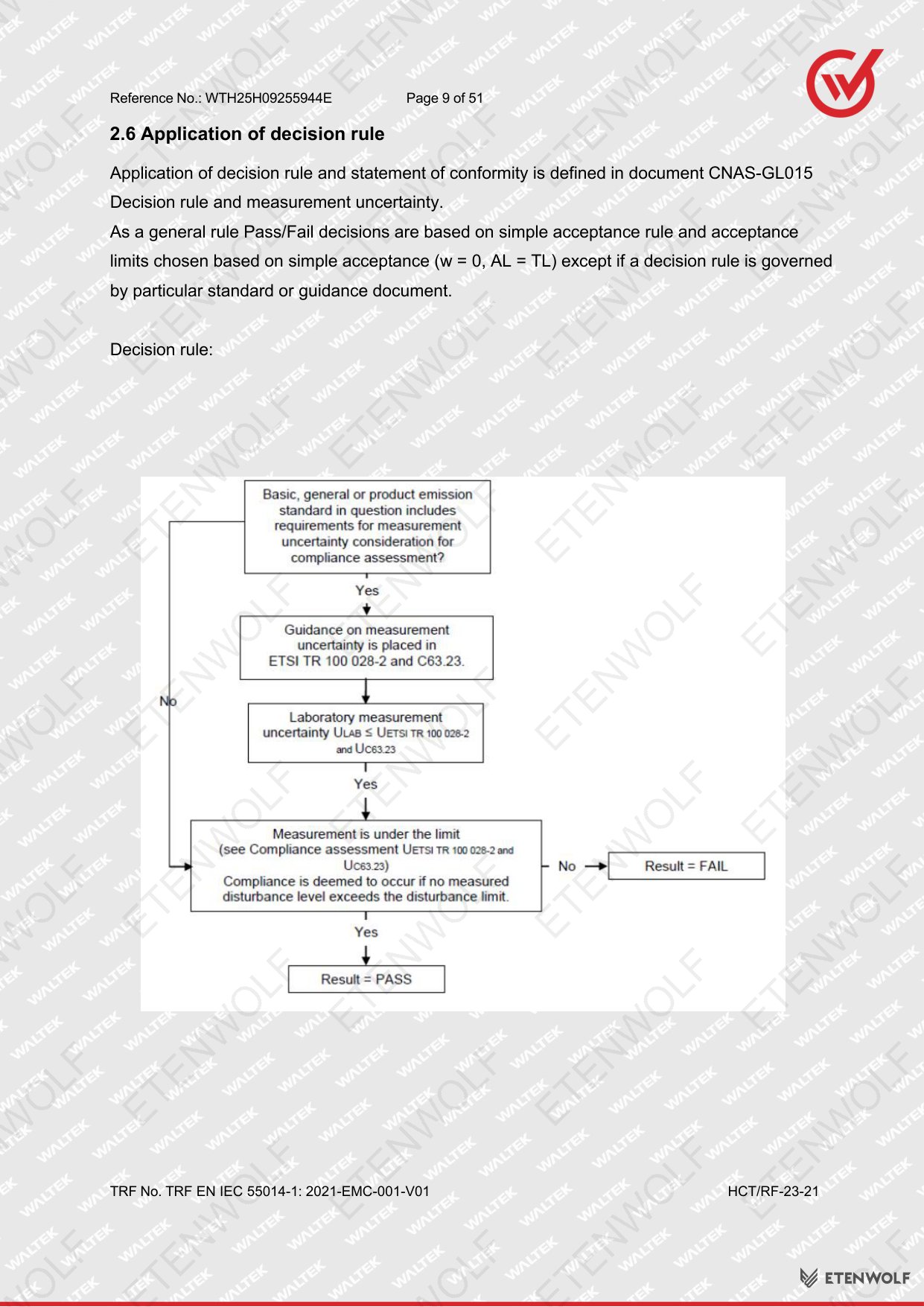

Measurement uncertainty was recorded and applied in accordance with CISPR 16-4-2 and the laboratory’s accredited uncertainty budget. A decision rule was applied to all limit comparisons to ensure conservative, compliant outcomes.
Standards & Compliance

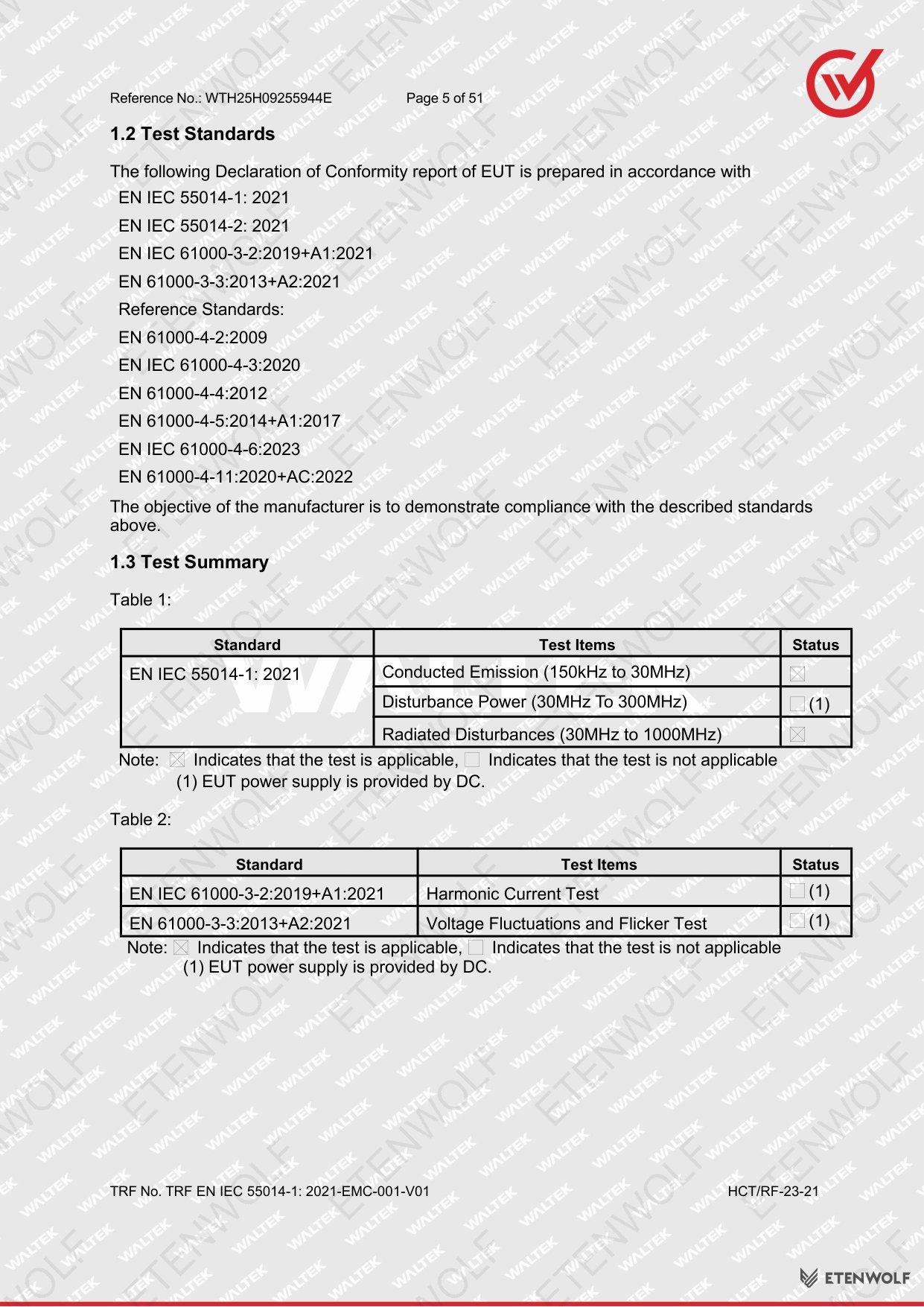

The ETENWOLF P300 PLUS was evaluated against the following harmonised European standards, which support the CE marking requirements under the EU EMC Directive 2014/30/EU:
- EN IEC 55014-1: 2021 — Electromagnetic disturbances requirements for household appliances, electric tools, and similar apparatus. Part 1: Emission.
- EN IEC 55014-2: 2021 — Electromagnetic disturbances requirements for household appliances, electric tools, and similar apparatus. Part 2: Immunity.
- EN IEC 61000-3-2: 2019+A1:2021 — Limits for harmonic current emissions (equipment input current up to and including 16 A per phase).
- EN 61000-3-3: 2013+A2:2021 — Limitation of voltage changes, voltage fluctuations, and flicker in public low-voltage supply systems.
Test Report Form No. TRF EN IEC 55014-1: 2021-EMC-001-V01 was used as the structured framework for recording all measurement data, limit comparisons, and test configurations throughout the evaluation.
Validity & Certification Body
This test report was issued on 2025-09-30 by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited electromagnetic compatibility and product safety testing laboratory.
| Field | Detail |
|---|---|
| Laboratory Name | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Laboratory Address | Building B, Tianji Industrial Park, 1/F. & 2/F. & 3/F., No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China |
| Telephone | 0755-84616666 |
| Service Hotline | 400-0066-989 |
| [email protected] | |
| Prepared By | Snow Zeng |
| Approved By | Tony Wu |
| Report Reference No. | WTH25H09255944E |
| Date of Issue | 2025-09-30 |
Test reports issued by accredited laboratories such as Waltek Testing Group HCT support the manufacturer’s Declaration of Conformity and are valid as technical documentation for CE market access within the European Economic Area. The report remains valid as long as the product design, components, and intended use remain unchanged from the tested configuration.
Frequently Asked Questions
- What does the CE-EMC test report WTH25H09255944E confirm?
- Report WTH25H09255944E confirms that the ETENWOLF P300 PLUS inflator pump passed all electromagnetic compatibility (EMC) tests required for CE marking under the EU EMC Directive 2014/30/EU. The tests covered conducted and radiated emissions, immunity, harmonic current emissions, and voltage flicker.
- Which standards were used to test the P300 PLUS?
- The P300 PLUS was tested against EN IEC 55014-1: 2021, EN IEC 55014-2: 2021, EN IEC 61000-3-2: 2019+A1:2021, and EN 61000-3-3: 2013+A2:2021. These are harmonised European standards specifically applicable to household appliances and electric tools.
- Who conducted the EMC testing for the P300 PLUS inflator pump?
- The testing was conducted by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an independent accredited laboratory based in Longgang District, Shenzhen, China. The report was prepared by Snow Zeng and approved by Tony Wu.
- Is the P300 PLUS safe to use in Europe?
- Yes. The passing result on report WTH25H09255944E means the P300 PLUS meets the electromagnetic compatibility requirements for the European market. This report forms part of the technical file supporting the CE Declaration of Conformity, allowing legal sale and use across EU and EEA member states.
Related Documents
The following certification and compliance documents are typically associated with a product like the ETENWOLF P300 PLUS inflator pump and complement this CE-EMC report:
- CE-LVD (Low Voltage Directive) Test Report — Covers electrical safety requirements under EU Directive 2014/35/EU, typically tested to EN 62368-1 or EN 60335 series.
- CE Declaration of Conformity (DoC) — The formal manufacturer declaration referencing all applicable directives and harmonised standards, including this EMC report.
- FCC Part 15 Report — Required for market access in the United States, covering radiated and conducted emissions for the North American market.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) in accordance with EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Documents compliance with REACH Regulation (EC) No 1907/2006 regarding substances of very high concern.
- UN 38.3 Battery Transport Test Report — Required if the P300 PLUS includes a lithium-ion battery, covering transport safety under UN 38.3 recommendations.
