Document Overview
This article covers the official CE Electromagnetic Compatibility (EMC) test report issued for the ETENWOLF P200 electric ball pump. The report was prepared by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited third-party testing laboratory, under internal form number HCT/RF-23-21.
- Reference Number: WTH25H05134192E
- Test Report Form No.: TRF EN IEC 55014-1: 2021-EMC-001-V01
- Document Type: CE / CE-EMC Test Report
- Issuing Body: Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Date of Issue: 2025-06-04
- Scope: Electromagnetic disturbance limits and immunity requirements for household and similar electrical appliances — specifically conducted disturbances, disturbance power, radiated disturbances, and harmonic current emissions for the P200 ball pump operating on mains power.

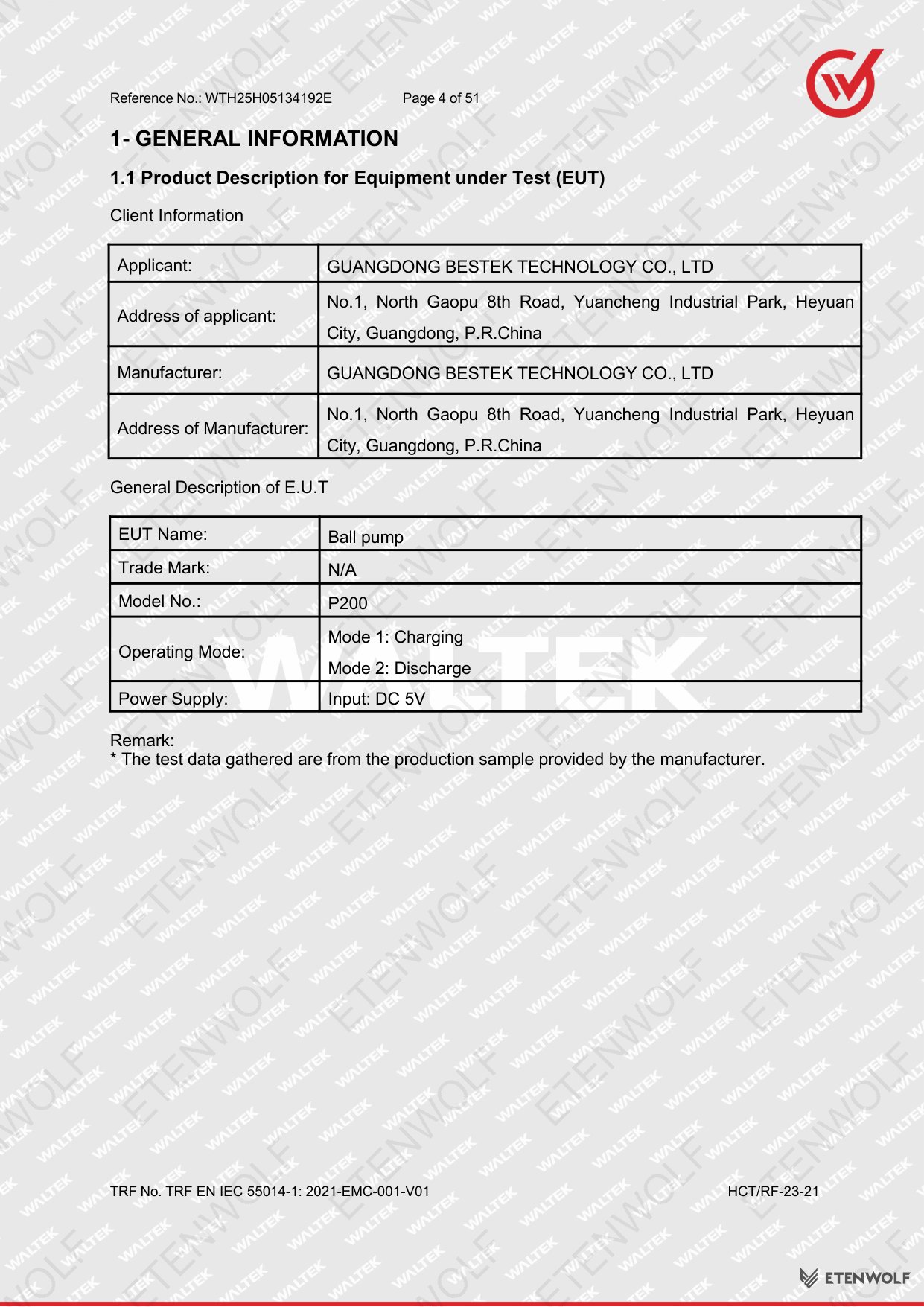

Product Information

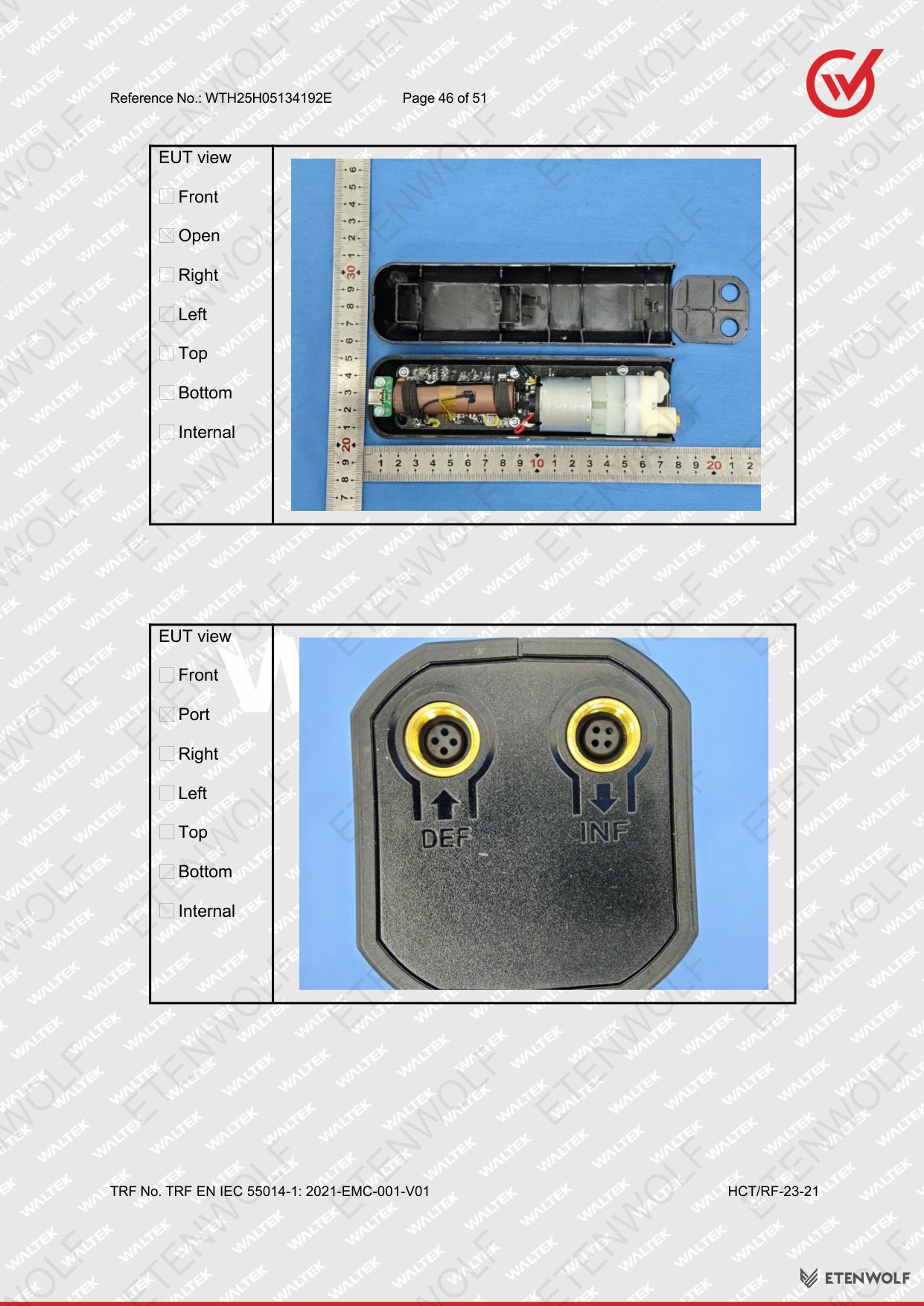

The Equipment Under Test (EUT) evaluated in this report is the ETENWOLF P200 electric ball pump, manufactured and distributed by GUANGDONG BESTEK TECHNOLOGY CO., LTD.
| Field | Detail |
|---|---|
| Product Name | Ball Pump |
| Model Number | P200 |
| Applicant | GUANGDONG BESTEK TECHNOLOGY CO., LTD |
| Manufacturer | GUANGDONG BESTEK TECHNOLOGY CO., LTD |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Sample Receipt Date | 2025-05-26 |
| Test Period | 2025-05-26 to 2025-05-29 |
| Overall Test Result | Pass |
The ETENWOLF P200 is an electric ball pump designed for rapid inflation of sports balls and similar inflatables. As a mains-powered motorized appliance, it is subject to CE EMC requirements before it can be placed on the European market.
Key Details
The report covers four primary EMC test categories as defined by the applicable standards. All sections were evaluated and the product achieved a passing result across every category.

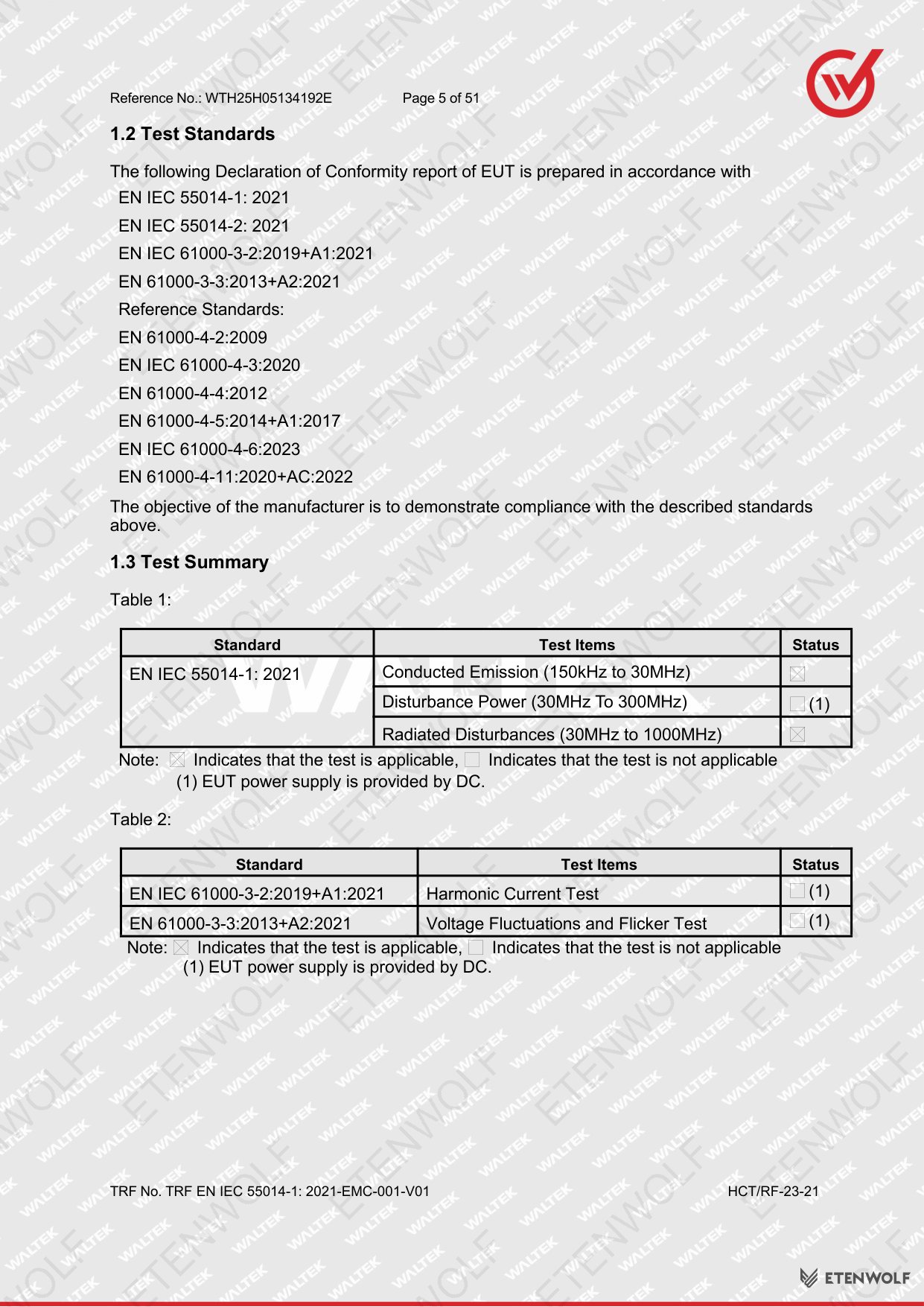

| Test Section | Test Category | Standard Applied | Result |
|---|---|---|---|

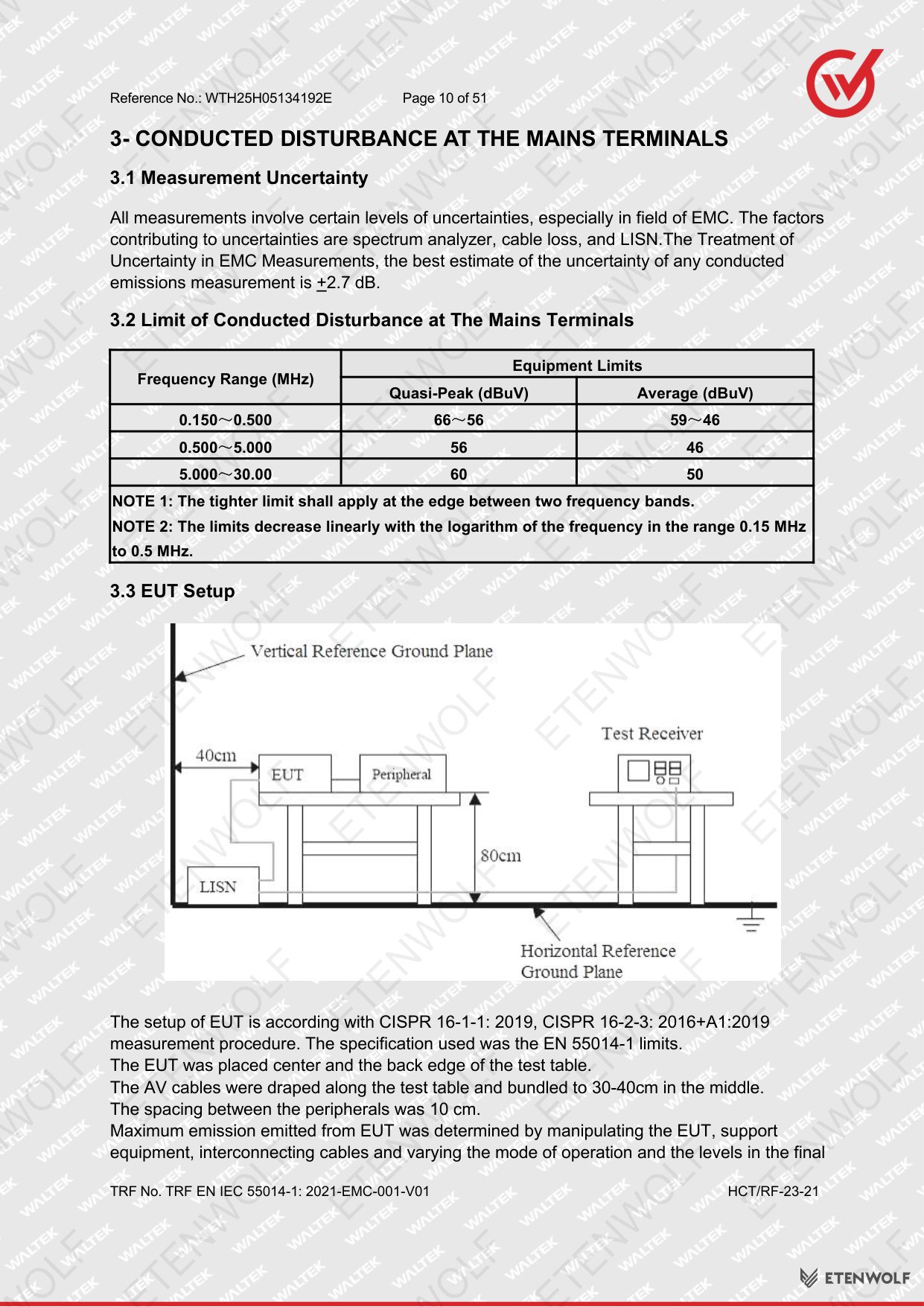

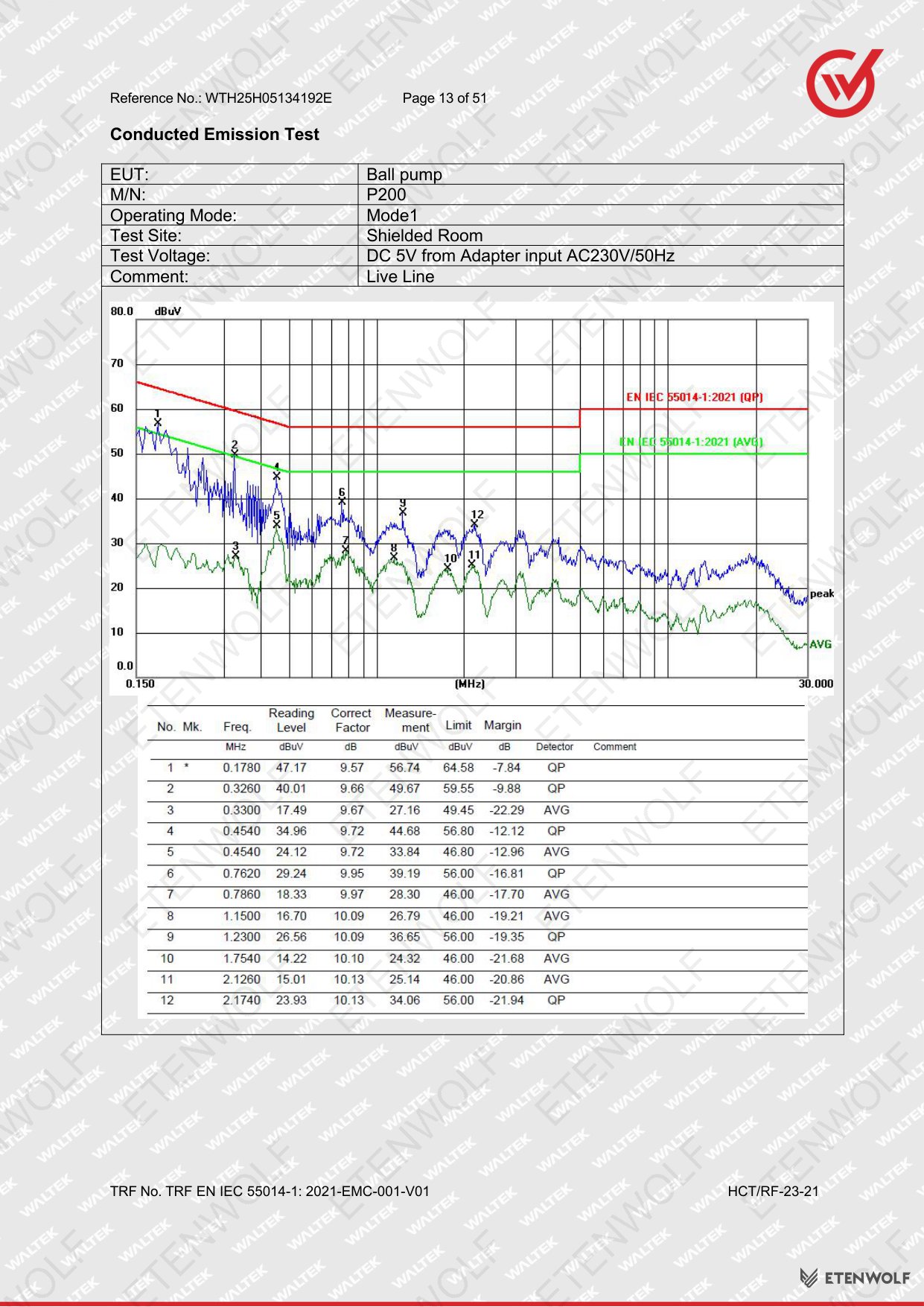

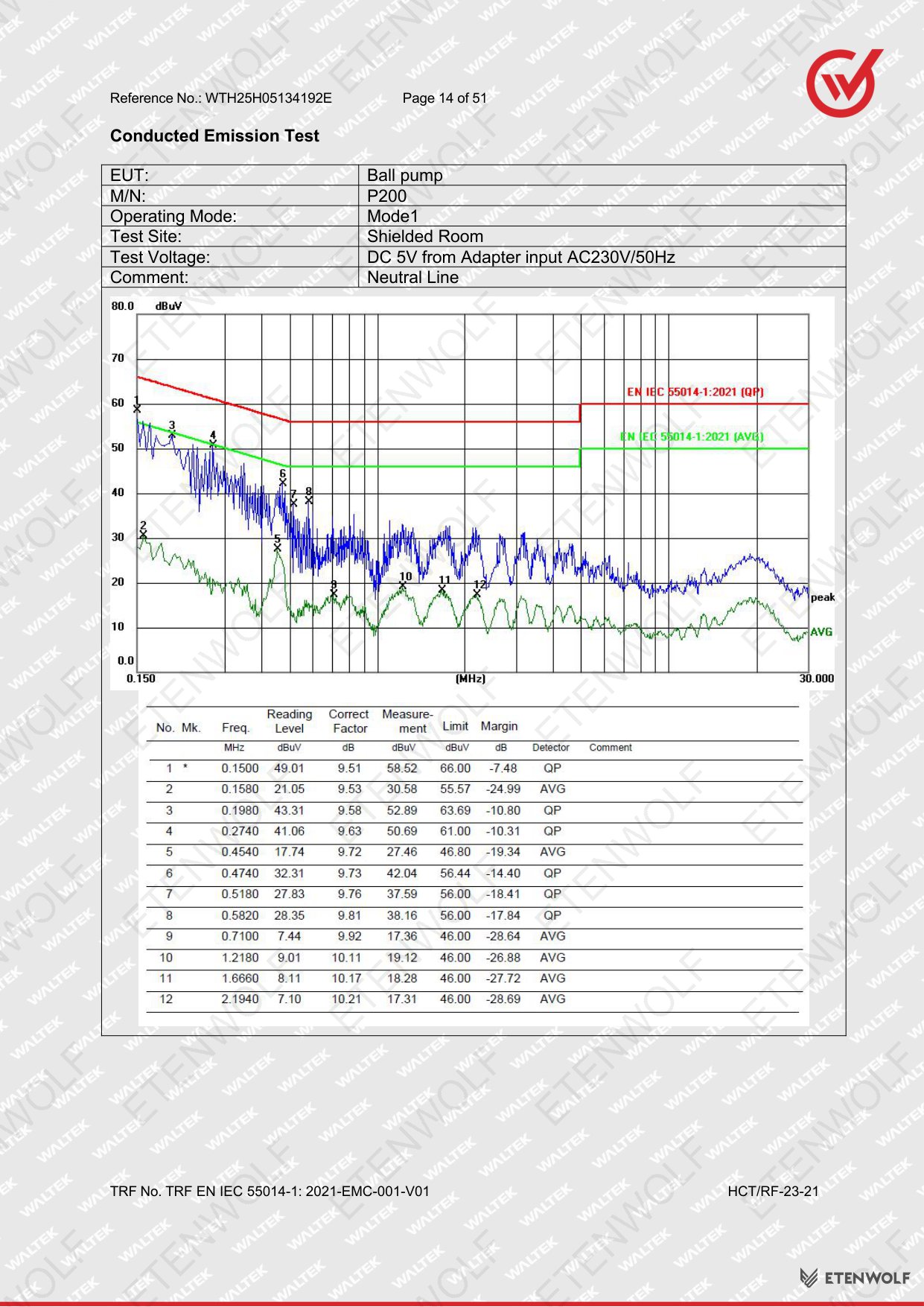

| Section 3 | Conducted Disturbance at Mains Terminals | EN IEC 55014-1: 2021 | Pass |

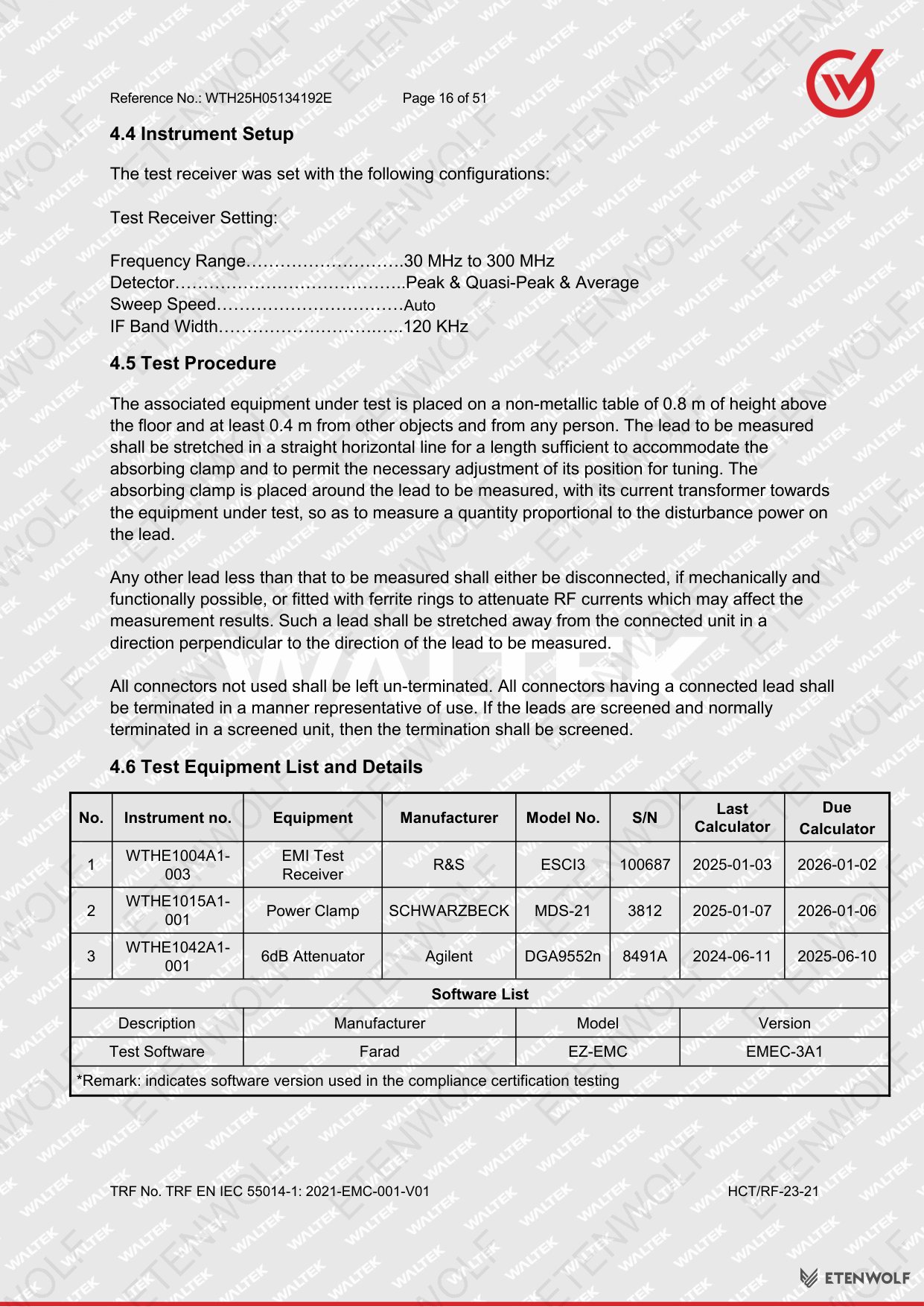

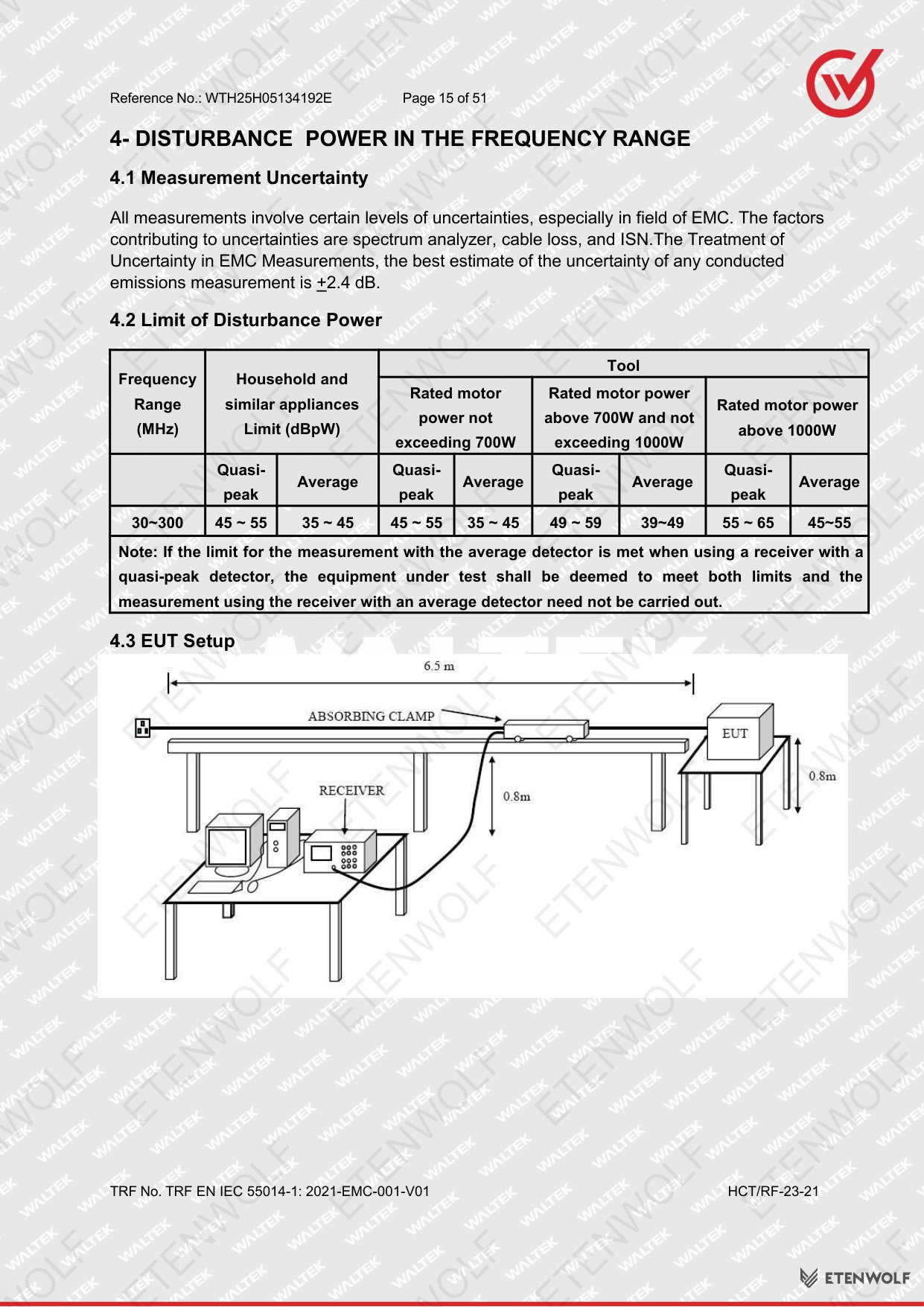

| Section 4 | Disturbance Power in the Frequency Range | EN IEC 55014-1: 2021 | Pass |

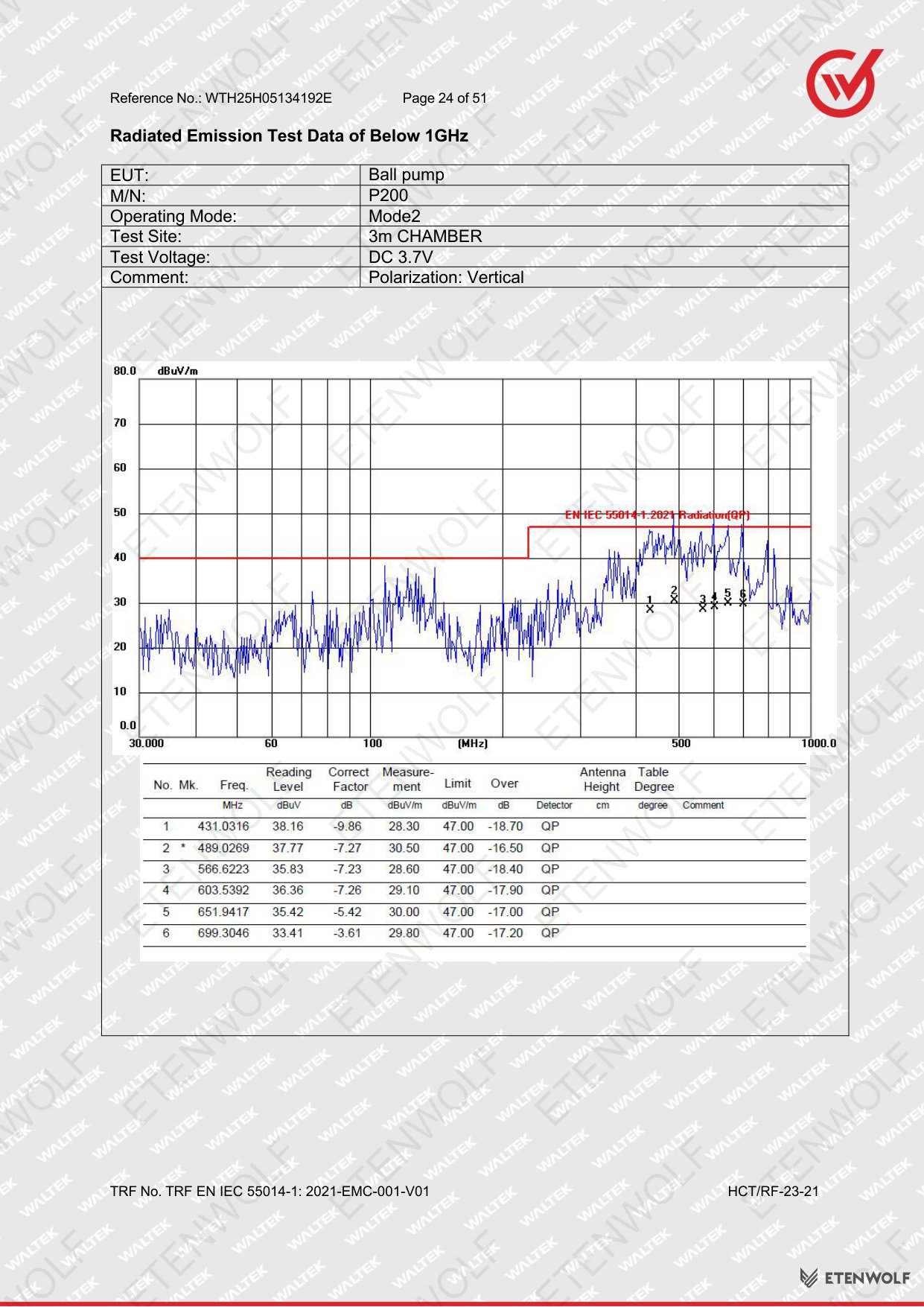

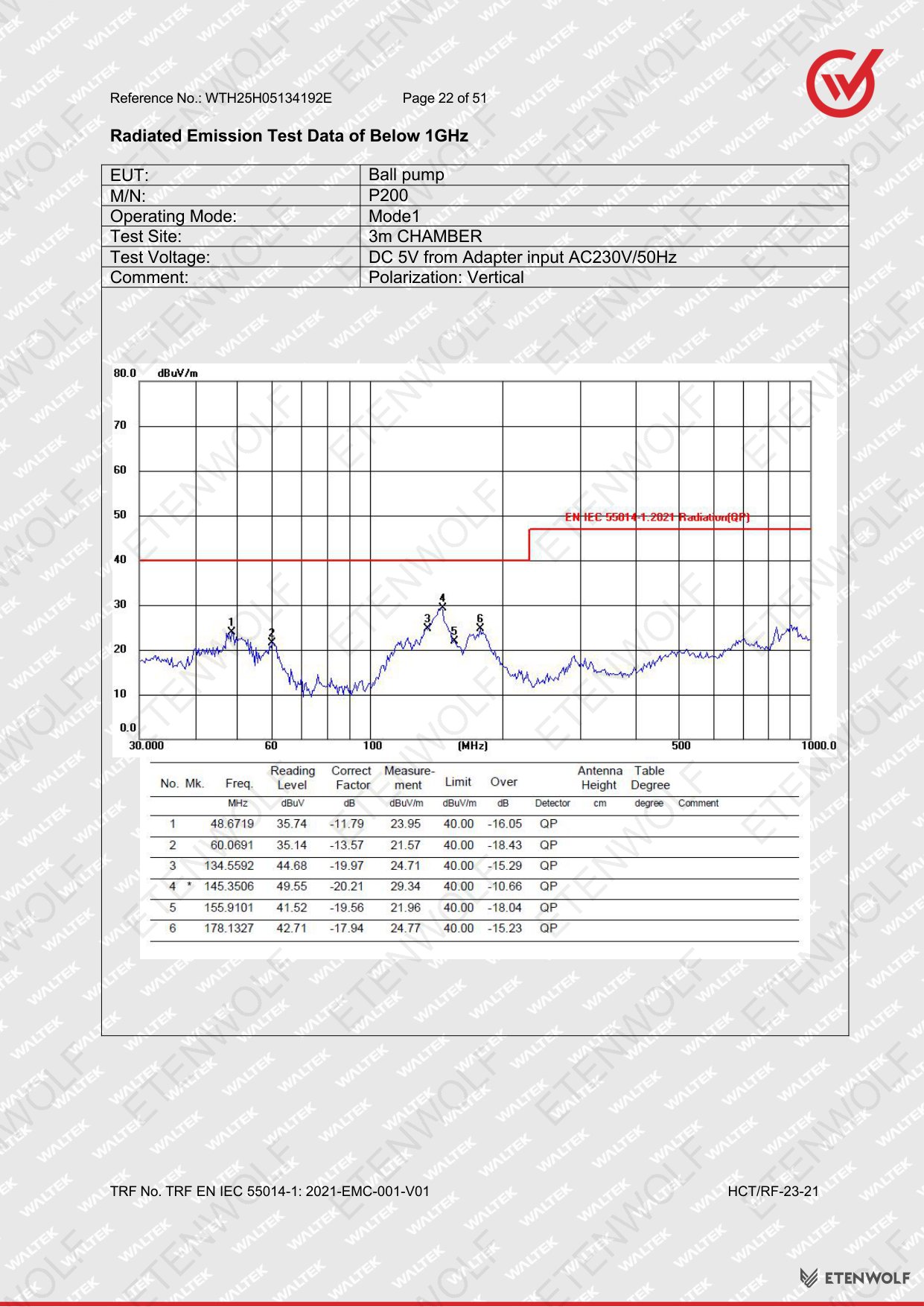

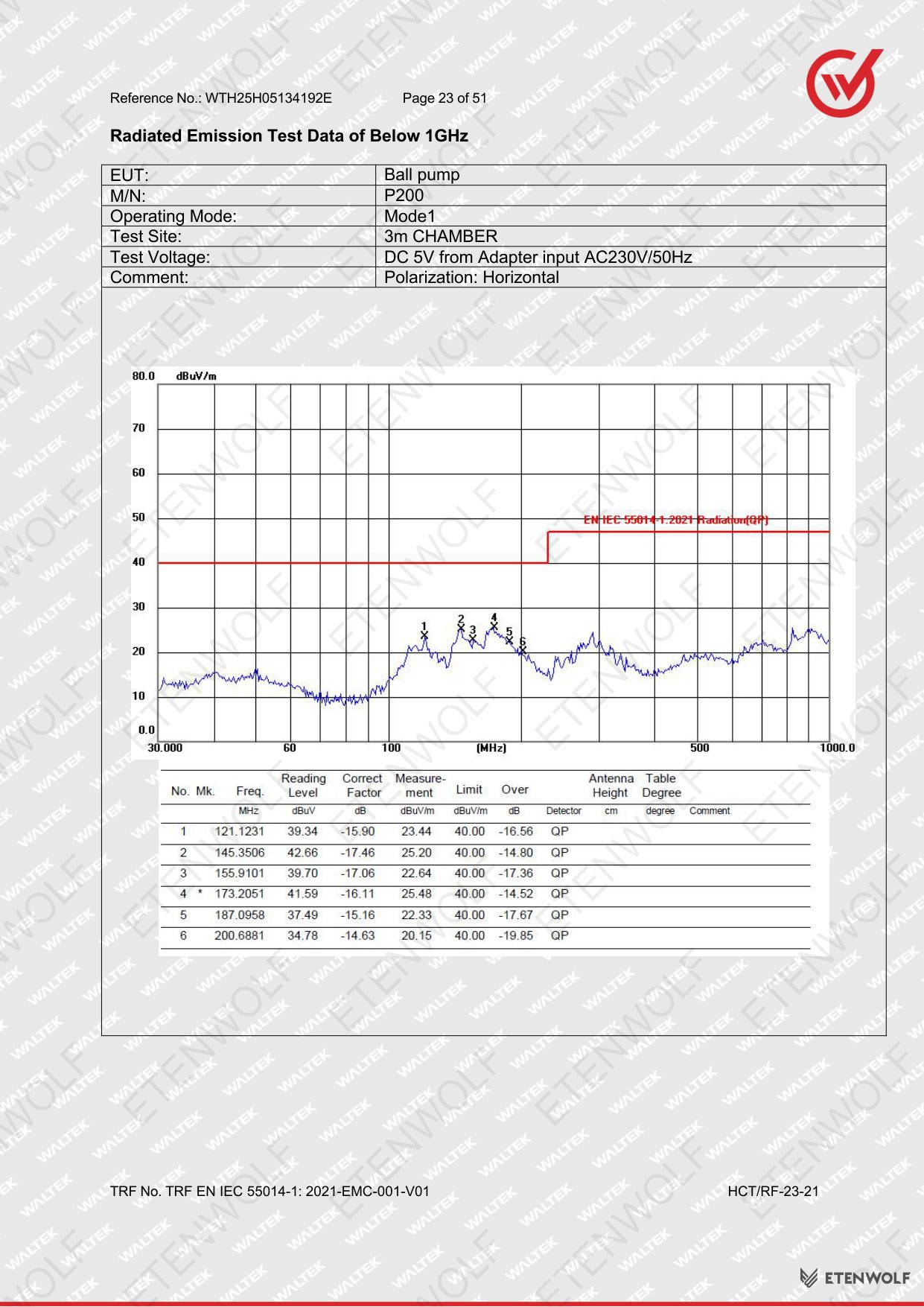

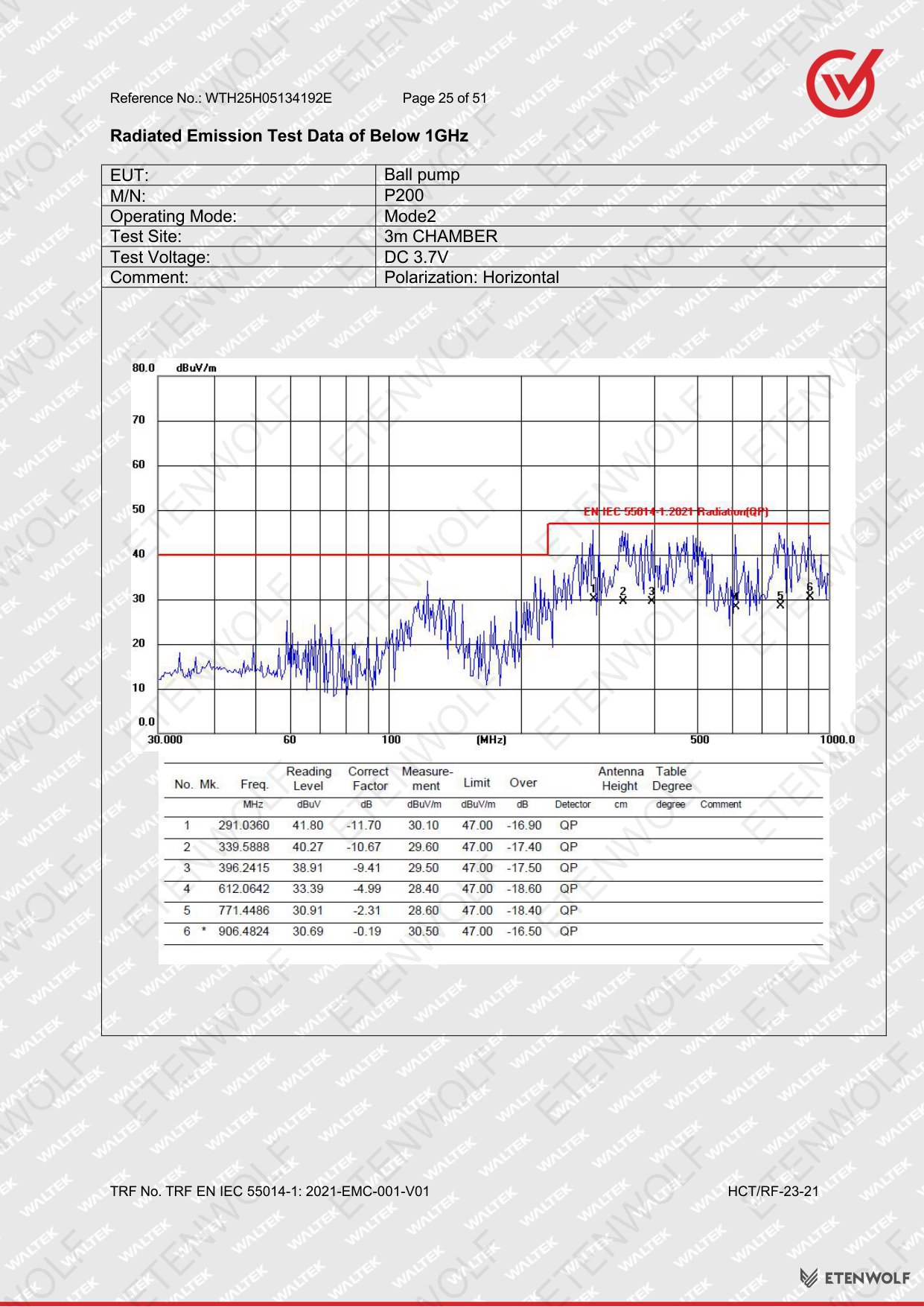

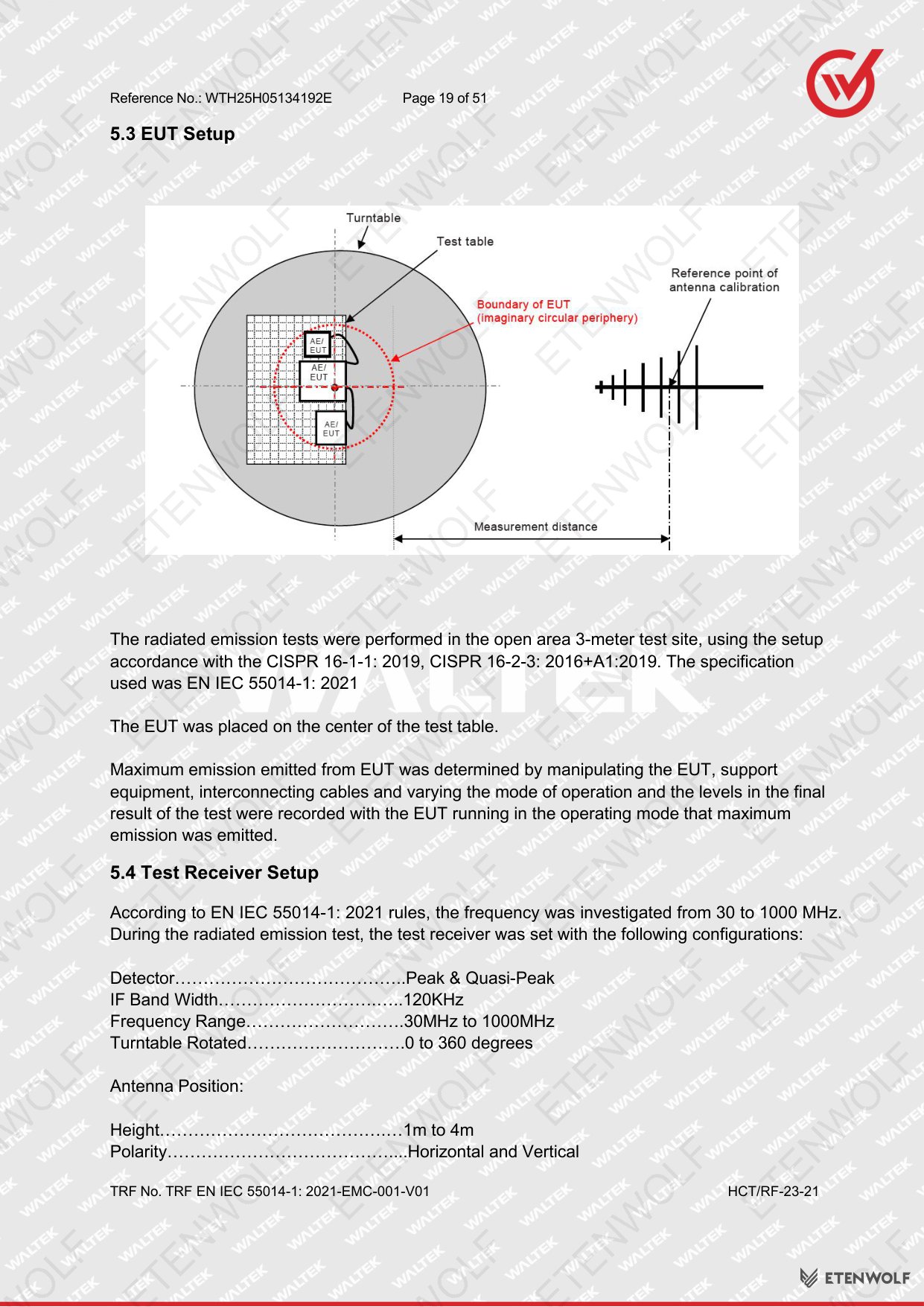

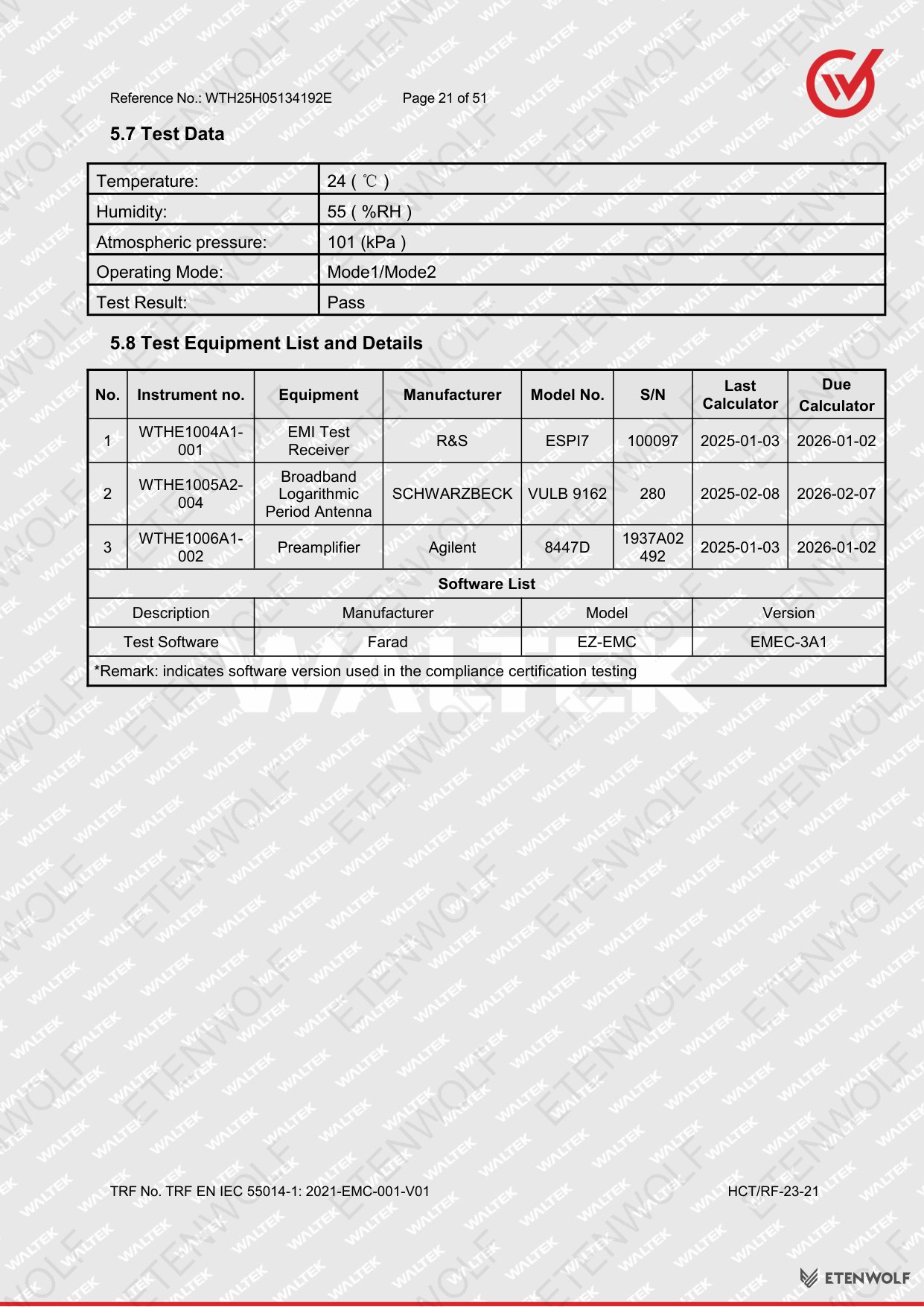

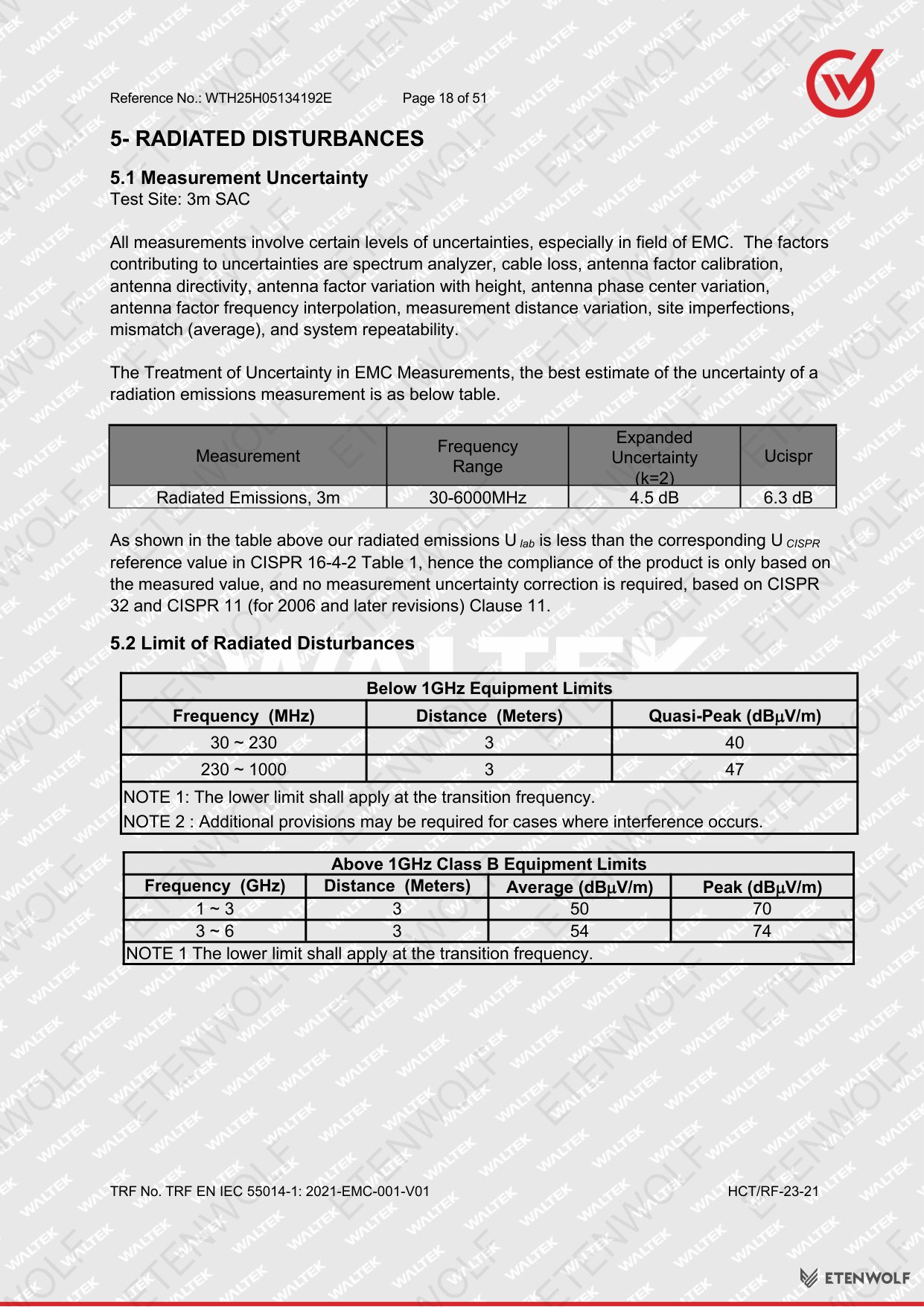

| Section 5 | Radiated Disturbances | EN IEC 55014-1: 2021 | Pass |

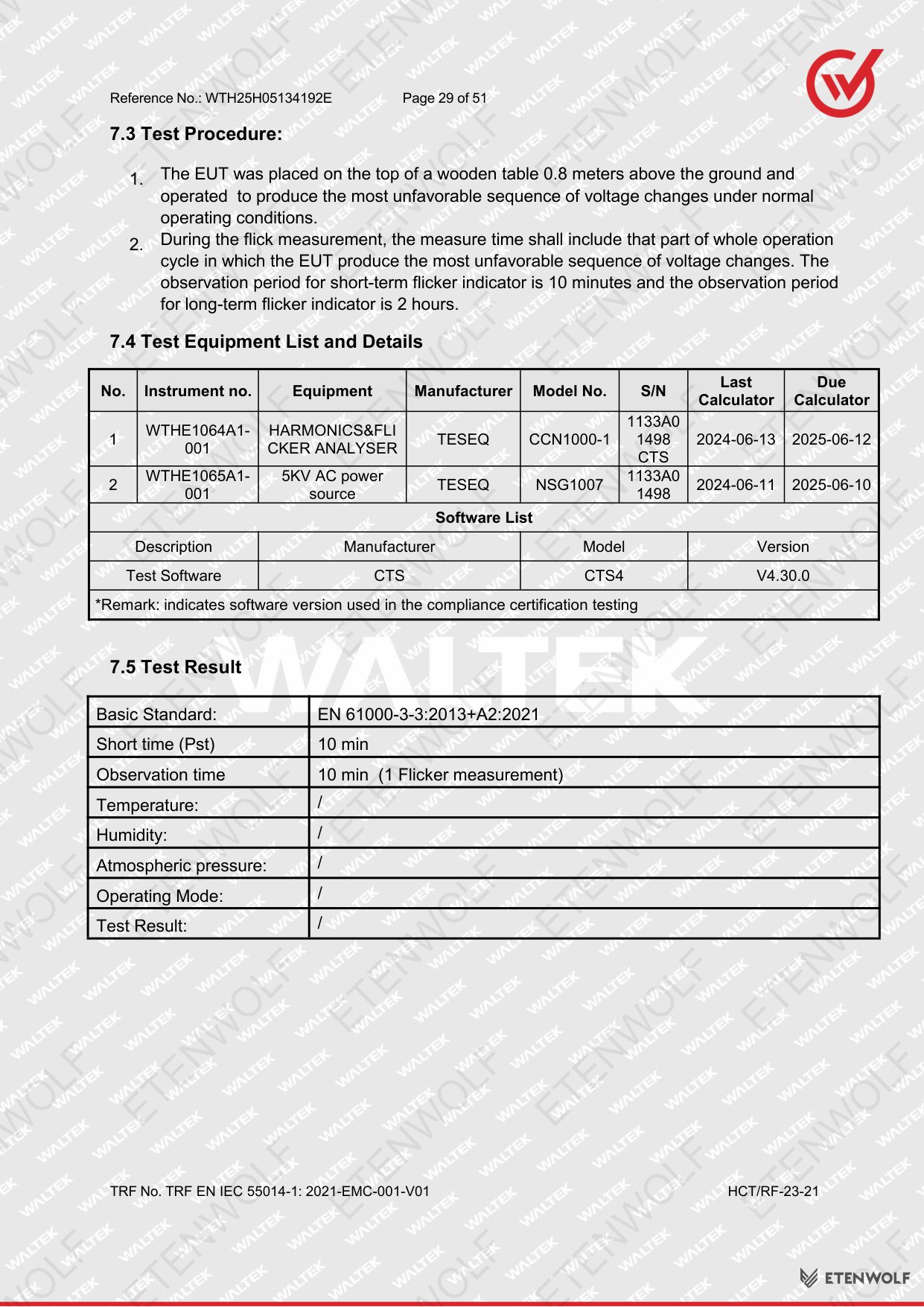

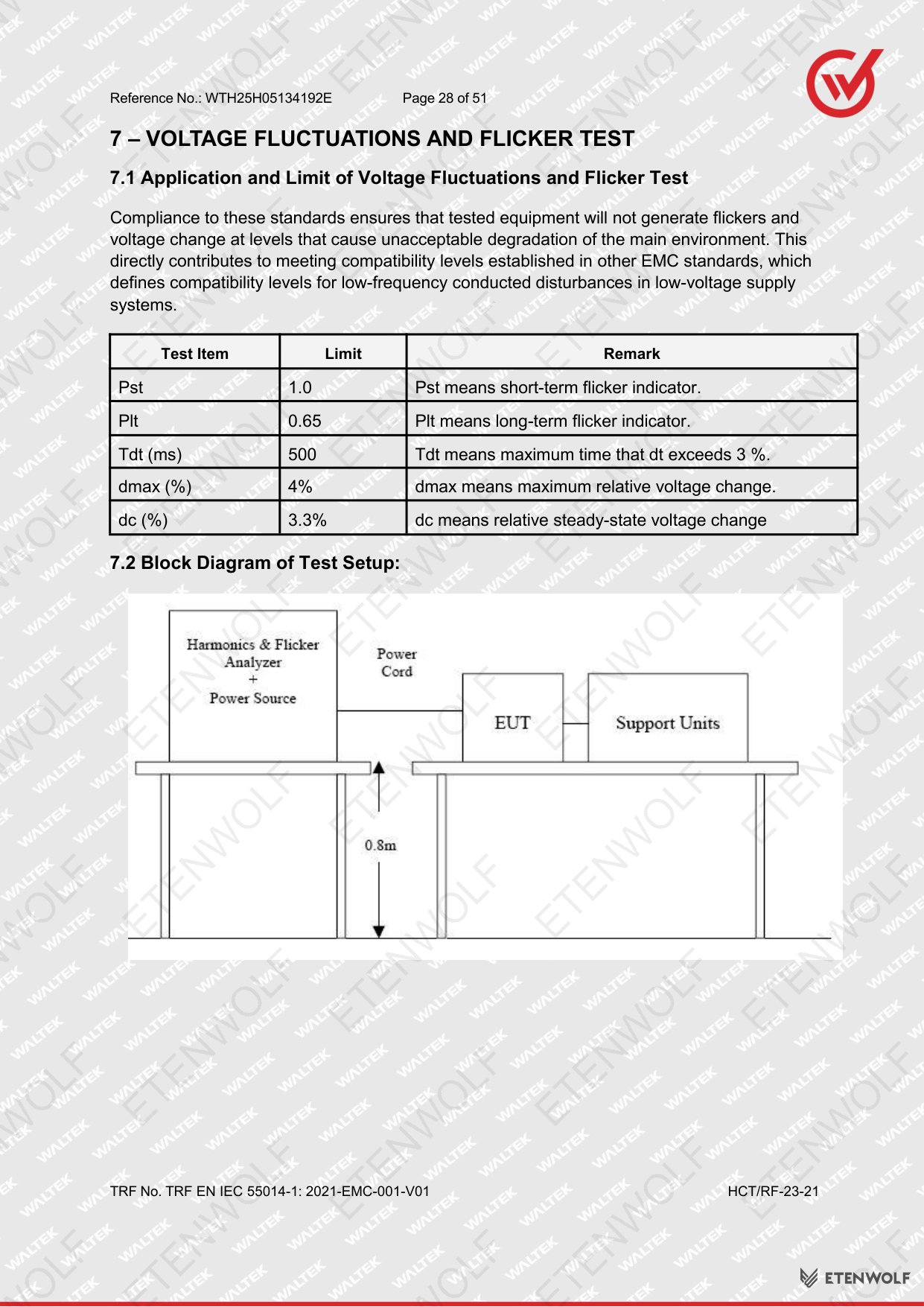

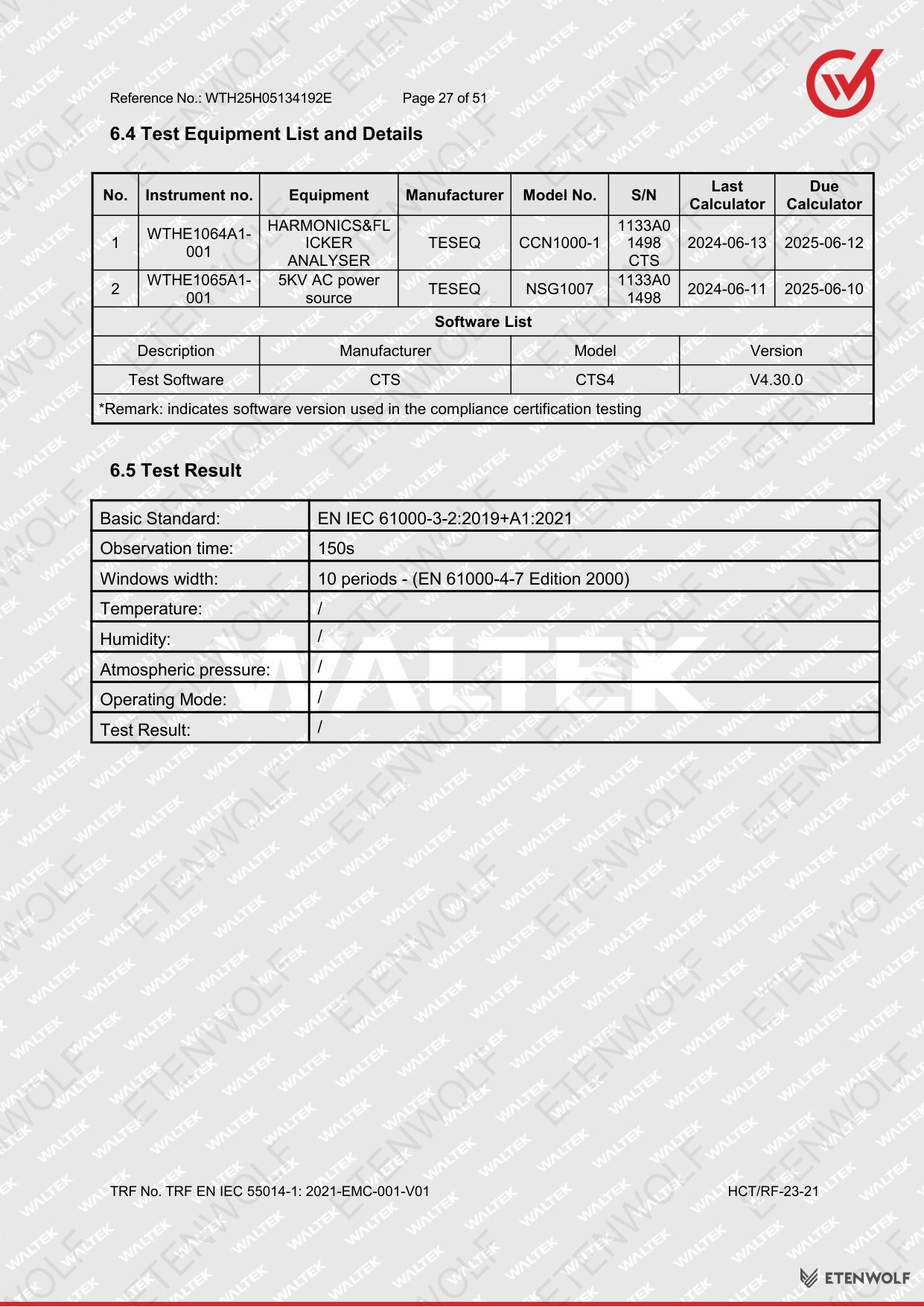

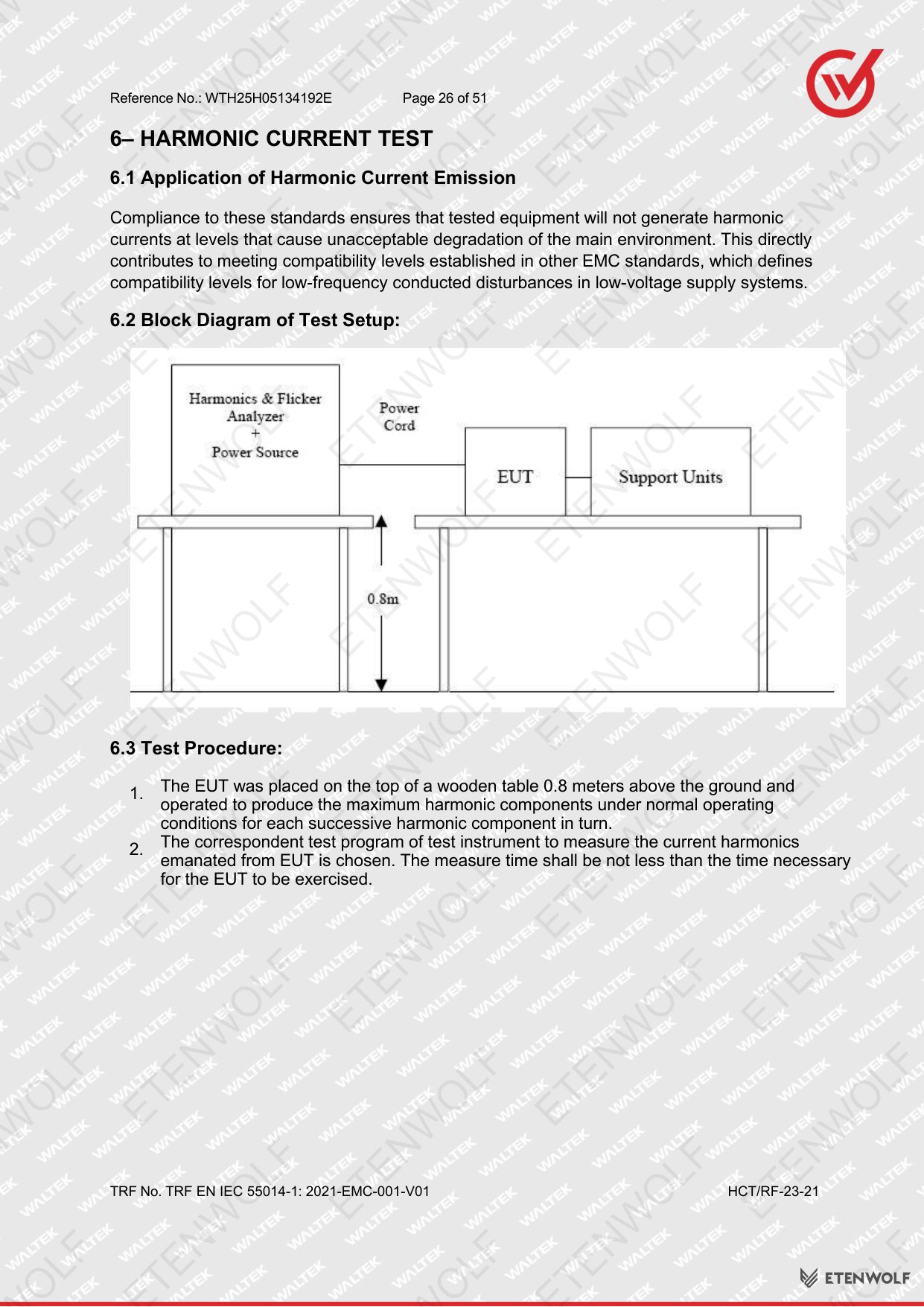

| Section 6–7 | Harmonic Current Emissions & Voltage Fluctuations / Flicker | EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021 | Pass |

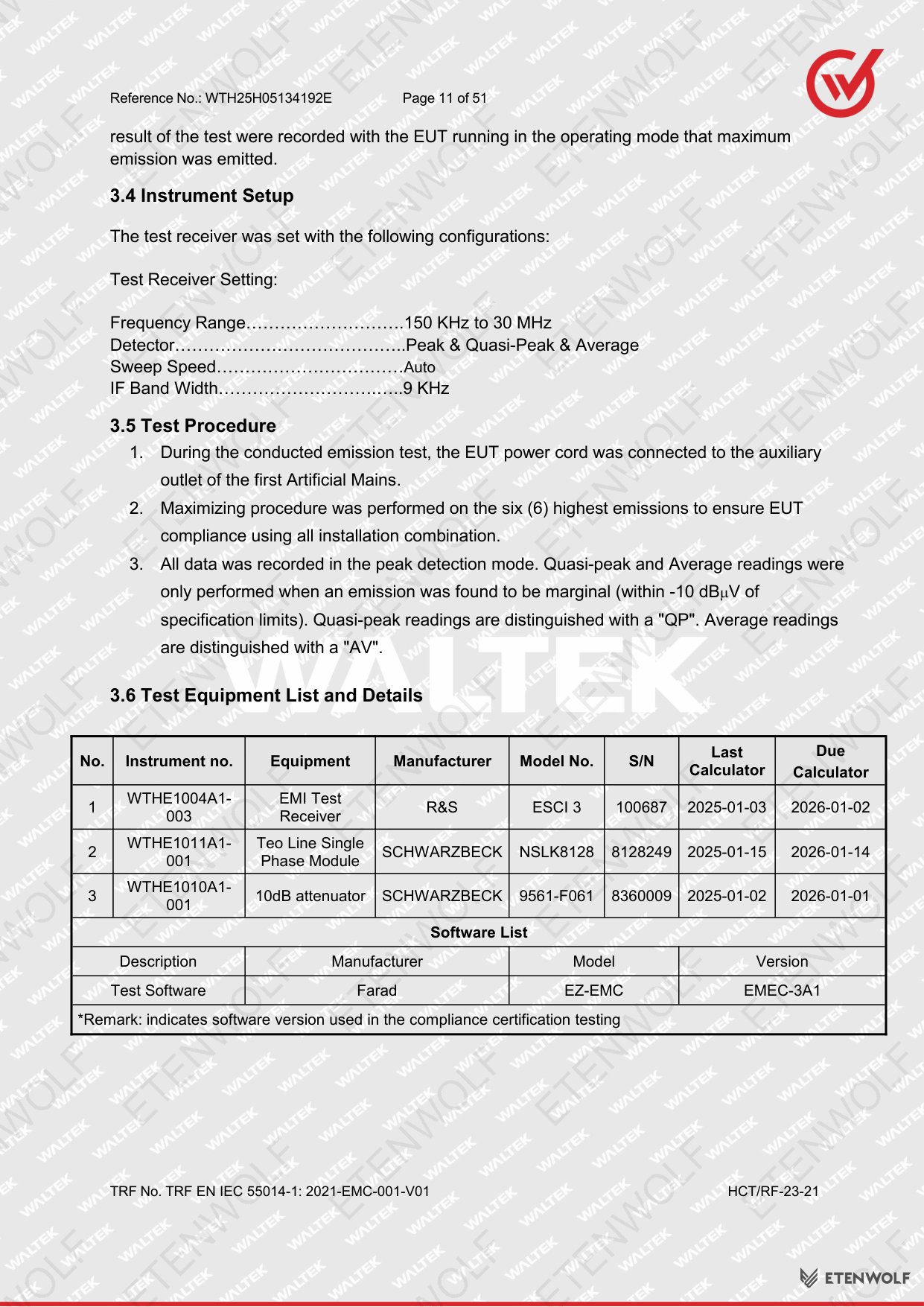

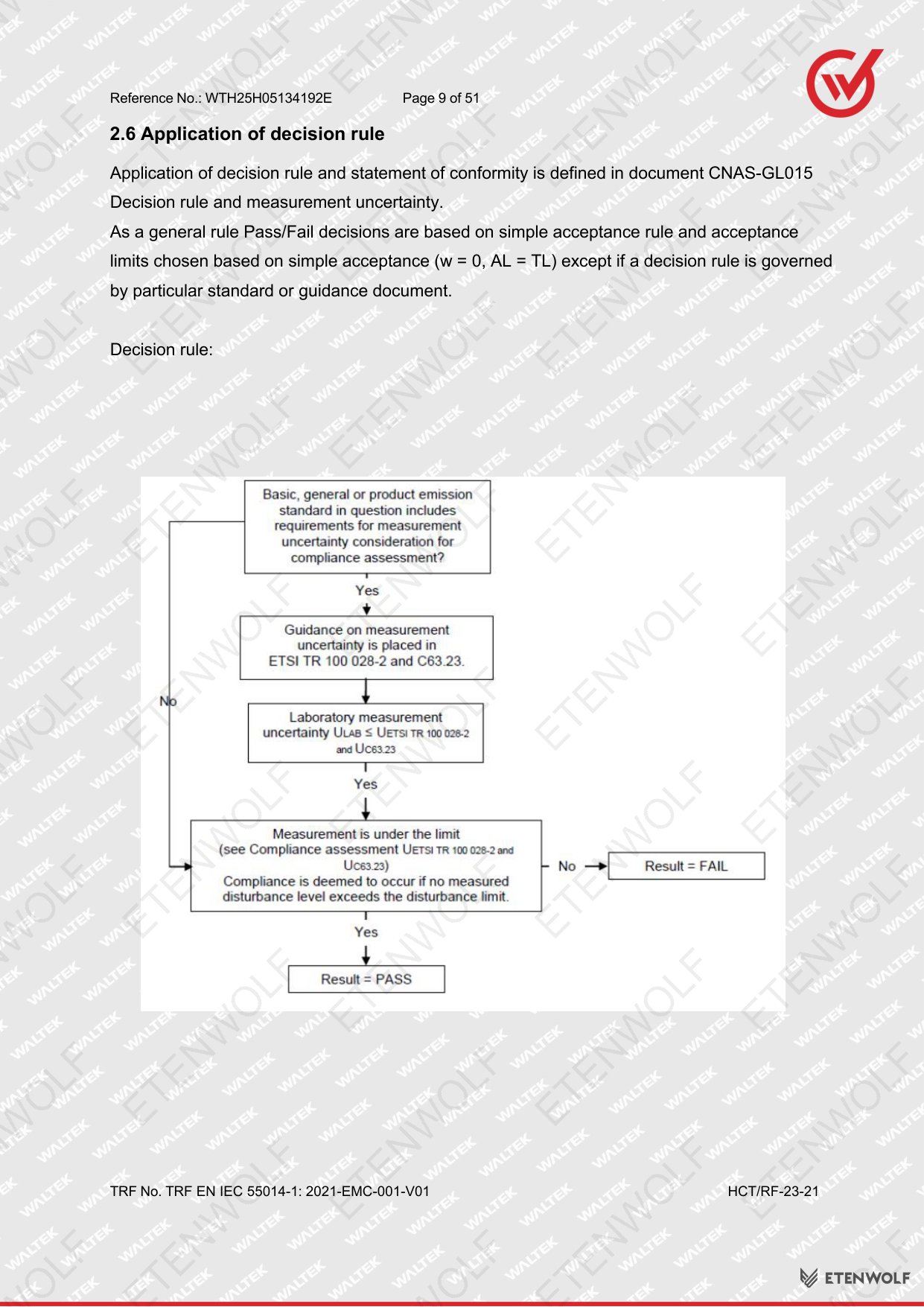

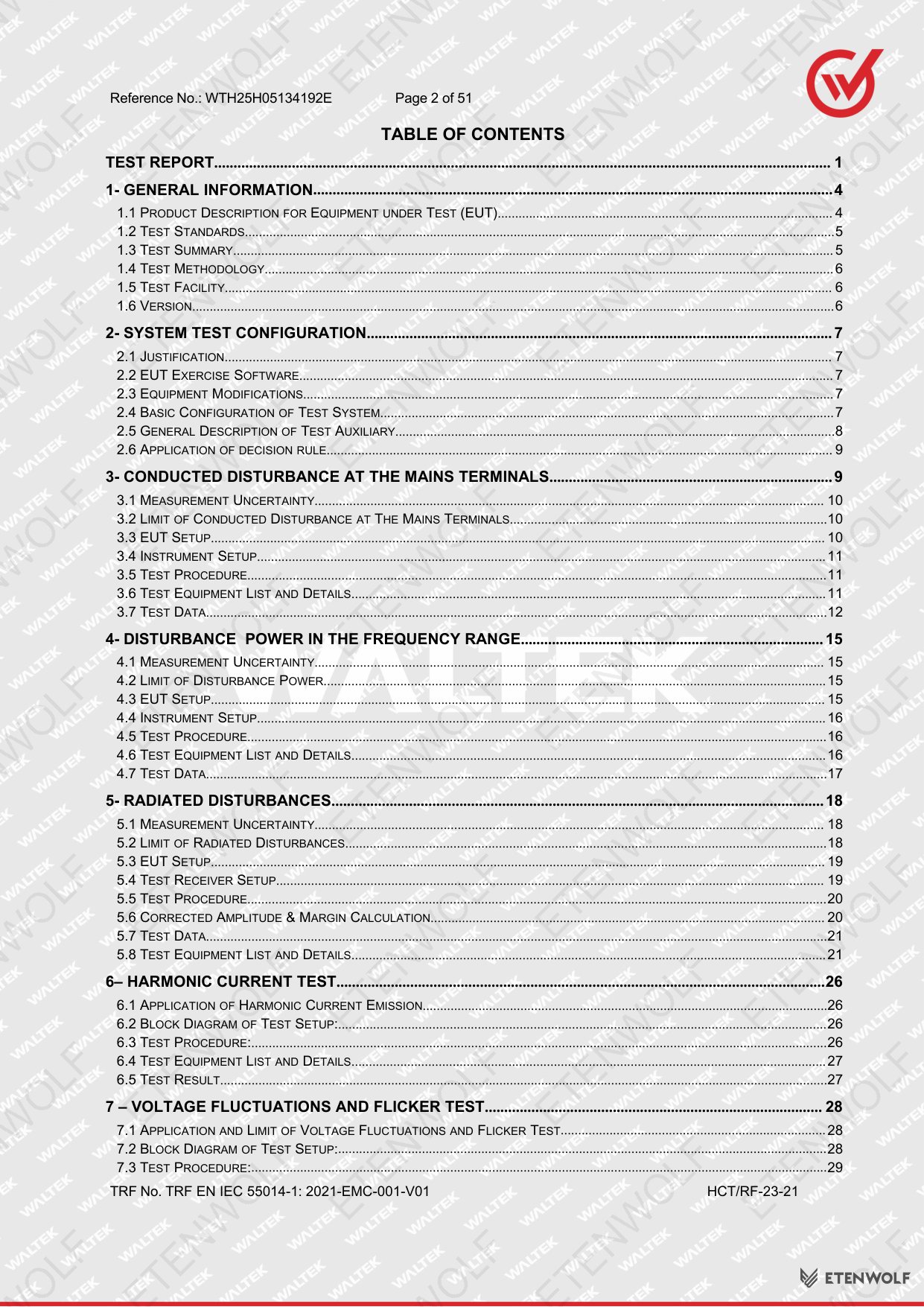

Each test section included a dedicated measurement uncertainty assessment, EUT setup description, instrument setup, test procedure, and full test data. The laboratory applied the decision rule as documented under Section 2.6 of the report, in alignment with accreditation requirements.
Standards & Compliance
The ETENWOLF P200 was tested against the following European harmonized EMC standards, which support the CE marking declaration under the EU EMC Directive 2014/30/EU:
- EN IEC 55014-1: 2021 — Electromagnetic disturbances from household appliances, electric tools, and similar apparatus: Emission standard.

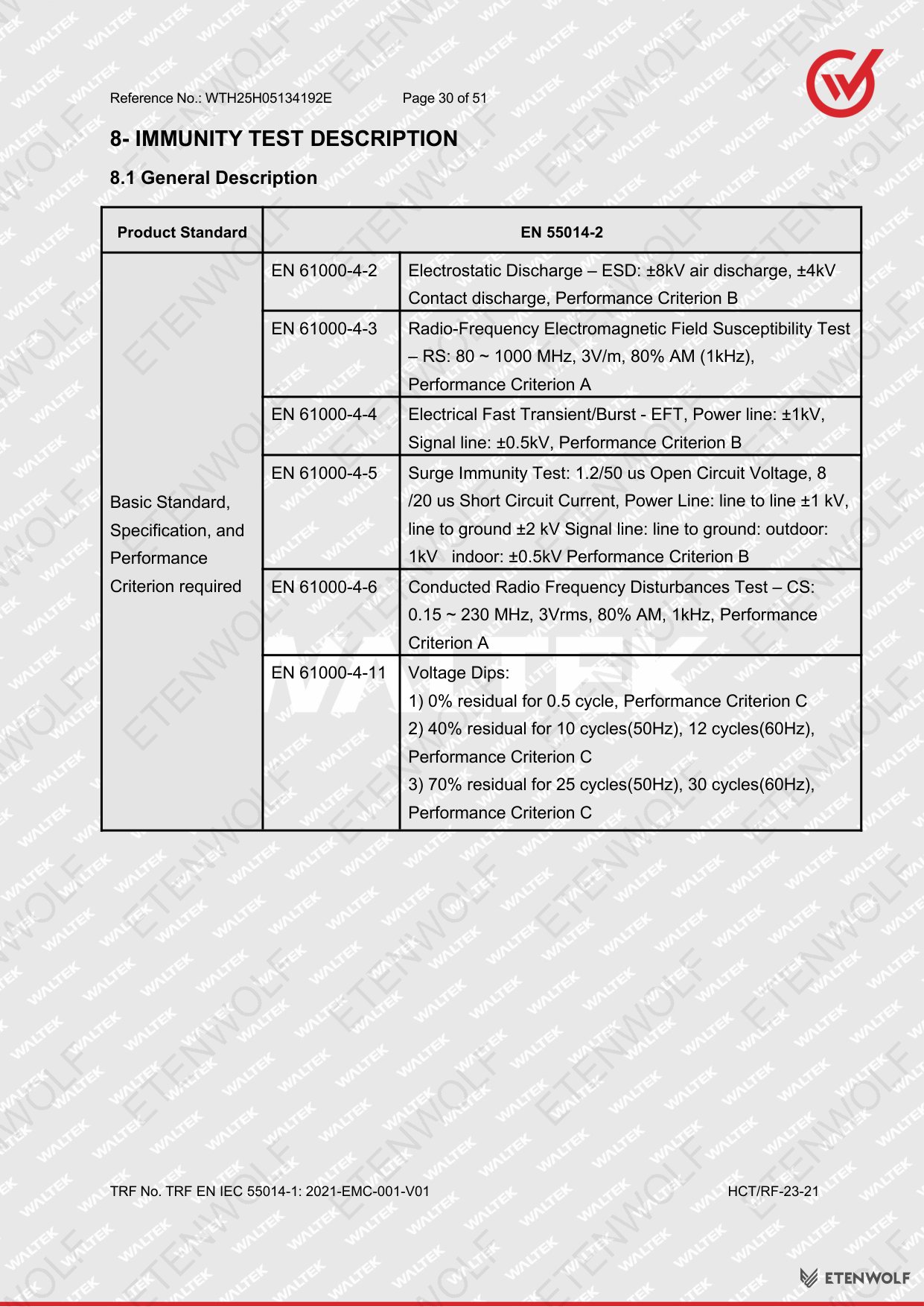

- EN IEC 55014-2: 2021 — Immunity requirements for household appliances, electric tools, and similar apparatus.
- EN IEC 61000-3-2:2019+A1:2021 — Limits for harmonic current emissions (equipment input current ≤16 A per phase).
- EN 61000-3-3:2013+A2:2021 — Limitation of voltage changes, voltage fluctuations, and flicker in public low-voltage supply systems.
Compliance with these standards confirms that the ETENWOLF P200 does not exceed the prescribed electromagnetic emission limits and meets the required immunity thresholds for lawful sale across EU and EEA member states.
Validity & Certification Body
The test report was prepared and approved by the following personnel at the issuing laboratory:
- Prepared by: Snow Zeng
- Approved by: Tony Wu
Testing Laboratory: Waltek Testing Group HCT (Shenzhen) Co., Ltd.
Building B, Tianji Industrial Park, 1/F. & 2/F. & 3/F., No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China.
Tel: 0755-84616666 | Service Tel: 400-0066-989 | Email: [email protected]
This report (Reference No. WTH25H05134192E) was issued on 2025-06-04. As a test report rather than a certificate, its validity supports the manufacturer’s Declaration of Conformity (DoC) for CE marking purposes. The DoC and CE mark remain valid as long as the product design and production process remain unchanged. Any design modification affecting EMC performance would require re-testing.
Frequently Asked Questions
- What does the CE EMC test result mean for the ETENWOLF P200?
- A passing result under CE EMC testing confirms that the ETENWOLF P200 meets the electromagnetic emission and immunity limits set by EU harmonized standards. This allows the product to carry the CE mark and be legally sold throughout the European Union and EEA.
- Which standards were used to test the P200 ball pump?
- The P200 was tested against EN IEC 55014-1: 2021, EN IEC 55014-2: 2021, EN IEC 61000-3-2:2019+A1:2021, and EN 61000-3-3:2013+A2:2021, covering emission limits, immunity, harmonic currents, and voltage fluctuations.
- Who conducted the EMC testing for the P200?
- Testing was carried out by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited third-party EMC laboratory located in Shenzhen, Guangdong, China. The report was prepared by Snow Zeng and approved by Tony Wu.
- What is the report reference number and when was it issued?
- The official reference number is WTH25H05134192E, issued on 2025-06-04. The test period ran from 2025-05-26 to 2025-05-29, with the sample received on 2025-05-26.
Related Documents
The following certification and compliance documents are typically associated with a product like the ETENWOLF P200 electric ball pump and complement this CE EMC report:
- CE LVD Test Report — Low Voltage Directive safety testing under EN 60335-1 and relevant Part 2 standard for motor-operated appliances.
- EU Declaration of Conformity (DoC) — The manufacturer’s formal declaration referencing this EMC report and all applicable directives.
- RoHS Compliance Report — Confirms restriction of hazardous substances per EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Substance of Very High Concern assessment per REACH Regulation (EC) No 1907/2006.
- FCC ID / SDOC Report — If the product is sold in the US market, an FCC Supplier’s Declaration of Conformity under Part 15 may be required.
