Document Overview
This document is a CE Electromagnetic Compatibility (CE-EMC) certification issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd., a third-party testing laboratory. The certificate confirms that the product was evaluated against the 2014/30/EU EMC Directive and found to be in full compliance. The certification authorizes the use of the CE marking on the product to demonstrate conformity with EU electromagnetic compatibility requirements.
- Registration No.: WTH25H05134192
- Reference No.: WTH25H05134192E
- Issuing Body: Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Issue Date: June 4, 2025
- Directive: 2014/30/EU European Electromagnetic Compatibility Directive
- Scope: Electromagnetic emissions, immunity, harmonic current, and voltage fluctuation compliance for a DC-powered ball pump
Product Information
The certified product is the ETENWOLF P200 Electric Ball Pump, a compact DC-powered inflation tool designed for inflating sports balls and similar equipment. The product is manufactured and distributed by Guangdong Bestek Technology Co., LTD.
| Field | Details |
|---|---|
| Product Name | Ball Pump |
| Model | P200 |
| Trade Mark | N/A |
| Input Rating | DC 5V |
| Applicant / Holder | Guangdong Bestek Technology Co., LTD |
| Manufacturer | Guangdong Bestek Technology Co., LTD |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
Key Details
The P200 was tested against four EMC standards covering both emissions and immunity. The table below summarizes each standard and its scope as stated in the certificate.
| Standard | Description | Scope |
|---|---|---|
| EN IEC 55014-1: 2021 | EMC — Requirements for household appliances, electric tools and similar apparatus — Part 1: Emission (CISPR 14-1:2016 + COR1:2016) | Electromagnetic emissions from the device |
| EN IEC 55014-2: 2021 | EMC — Requirements for household appliances, electric tools and similar apparatus — Part 2: Immunity — Product family standard (CISPR 14-2:2015) | Immunity of the device to external electromagnetic disturbances |
| EN IEC 61000-3-2: 2019+A1:2021 | EMC — Part 3-2: Limits for harmonic current emissions (equipment input current ≤16 A per phase) | Harmonic current emissions control |
| EN 61000-3-3: 2013+A2:2021 | EMC — Part 3-3: Limitation of voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current ≤16 A per phase and not subject to conditional connection | Voltage fluctuation and flicker limitation |
All four tests were completed and the product was found compliant with each standard. The certificate was signed by Tony Wu, General Manager of Waltek Testing Group HCT (Shenzhen) Co., Ltd.
Standards & Compliance
The ETENWOLF P200 satisfies the essential requirements of the EU EMC Directive 2014/30/EU through compliance with the following harmonized European standards:
- EN IEC 55014-1: 2021 — Controls conducted and radiated emissions from household and similar electrical appliances and tools, ensuring the P200 does not generate electromagnetic interference that could affect other devices.
- EN IEC 55014-2: 2021 — Defines immunity requirements, confirming the P200 can operate correctly in the presence of electromagnetic disturbances typical in home and office environments.
- EN IEC 61000-3-2: 2019+A1:2021 — Limits harmonic currents injected into the public supply network by equipment drawing up to 16 A per phase, applicable to the P200’s DC 5V input profile.
- EN 61000-3-3: 2013+A2:2021 — Restricts voltage changes and flicker caused by the device on the low-voltage public supply, protecting grid stability and other connected equipment.
Compliance with these harmonized standards provides presumption of conformity with the essential requirements of the EMC Directive. The CE marking may therefore be affixed to the product following preparation of the required technical documentation and Declaration of Conformity.
Validity & Certification Body
This certificate was issued on June 4, 2025 and is based on a single-sample evaluation of the P200. It does not constitute an assessment of the entire production batch. Ongoing production compliance remains the responsibility of the manufacturer.
| Field | Details |
|---|---|
| Certificate Reference No. | WTH25H05134192E |
| Registration No. | WTH25H05134192 |
| Issue Date | June 4, 2025 |
| Signed By | Tony Wu, General Manager |
| Issuing Laboratory | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Laboratory Tel | 0755-84616666 |
| Service Tel | 400-0066-989 |
| Laboratory Email | [email protected] |
| Applicable Directive | 2014/30/EU EMC Directive |
| Evaluation Basis | Single sample; does not imply whole-production assessment |
Frequently Asked Questions
- What does the CE EMC certificate for the P200 mean for consumers?
- It means the ETENWOLF P200 has been independently tested and confirmed to comply with EU electromagnetic compatibility rules. The product neither generates harmful interference nor is it unduly susceptible to interference from other devices, making it safe and legal to sell across the European Economic Area.
- Which specific EMC standards did the P200 pass?
- The P200 was tested and passed four harmonized standards: EN IEC 55014-1: 2021 (emissions), EN IEC 55014-2: 2021 (immunity), EN IEC 61000-3-2: 2019+A1:2021 (harmonic current limits), and EN 61000-3-3: 2013+A2:2021 (voltage fluctuation and flicker limits), all under the 2014/30/EU EMC Directive.
- Who issued the CE EMC certificate and is the lab accredited?
- The certificate (Reference No. WTH25H05134192E) was issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd., a professional third-party testing and certification laboratory based in Shenzhen, China, with service contact available at [email protected] and 400-0066-989.
- Does this certificate cover all P200 units produced?
- No. As stated in the certificate, the evaluation was conducted on a single product sample. It provides presumption of compliance for that sample but does not constitute an assessment of the entire production run. The manufacturer, Guangdong Bestek Technology Co., LTD, is responsible for ensuring ongoing production consistency.
Related Documents
The following certification and compliance documents are typically associated with a product like the ETENWOLF P200 Electric Ball Pump and are recommended to complete its full compliance portfolio:
- CE LVD Certificate — Low Voltage Directive (2014/35/EU) certification covering electrical safety of the device and its power supply components.
- CE Declaration of Conformity (DoC) — The manufacturer’s self-declaration referencing all applicable directives and harmonized standards, required before CE marking is affixed.
- RoHS Compliance Report — Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) per EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration — Verifies that substances of very high concern under REACH Regulation (EC) No 1907/2006 do not exceed threshold levels.
- FCC ID / FCC Part 15 Report — Required for sale in the United States market, covering radio frequency emissions under FCC regulations.
- UN 38.3 Battery Transport Test Report — If the P200 includes or is sold with a lithium battery, a UN 38.3 test report is required for safe transport compliance.

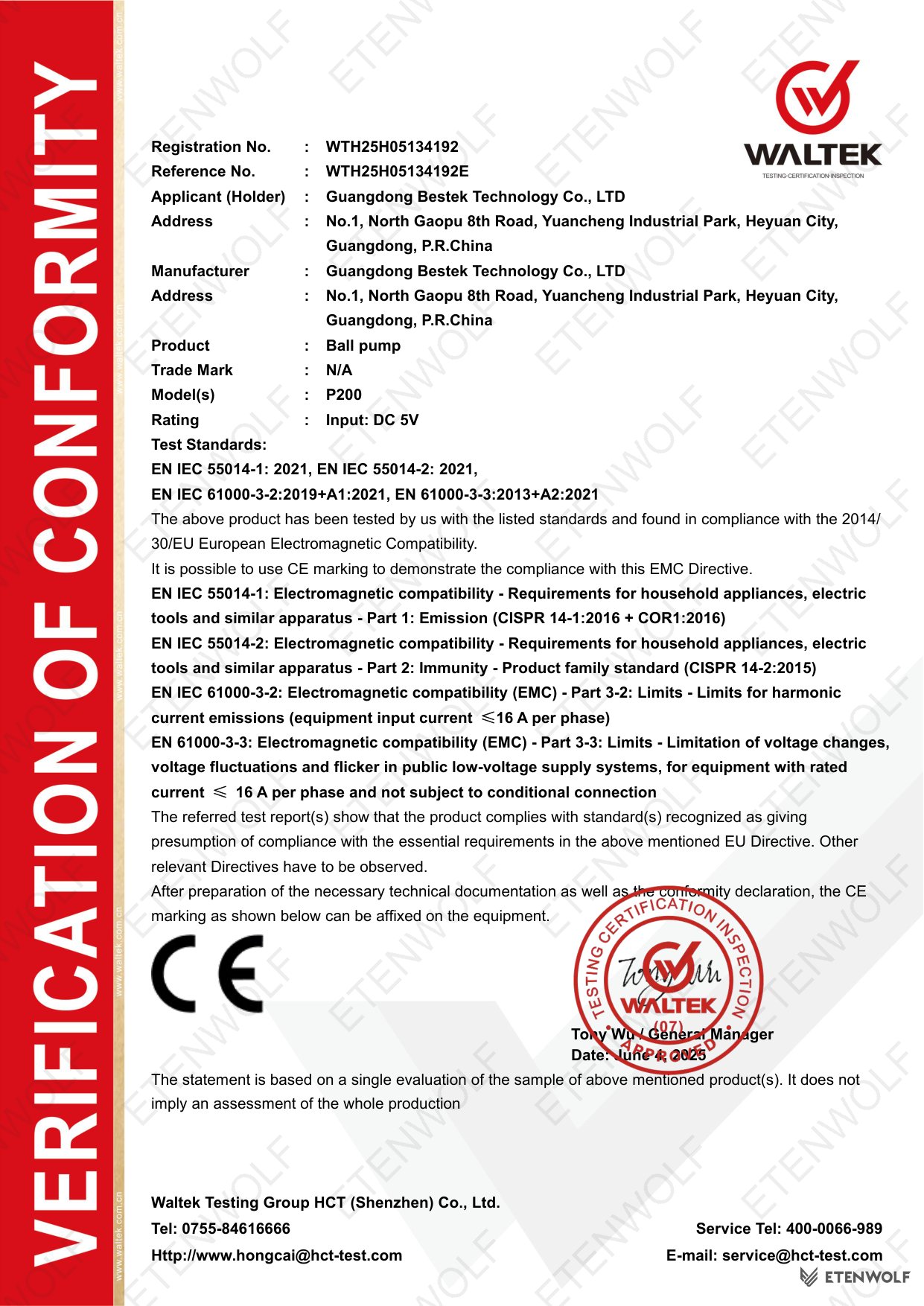

Document Pages
