Document Overview This page presents the RoHS compliance test report for the ETENWOLF T200 Tire Pressure Detector, issued by Waltek Testing Group (Shenzhen) Co., Ltd. The report was prepared in accordance with EU RoHS Directive 2011/65/EU and its amendment (EU) No. 2015/863, which restricts the…
- Document type
- Certification Report
- Prepared by
- Michelle Torres
- Published
- Last reviewed
- Topics
- Pressure & Measurement
Document Overview
This page presents the RoHS compliance test report for the ETENWOLF T200 Tire Pressure Detector, issued by Waltek Testing Group (Shenzhen) Co., Ltd. The report was prepared in accordance with EU RoHS Directive 2011/65/EU and its amendment (EU) No. 2015/863, which restricts the use of ten hazardous substances in electrical and electronic equipment placed on the European Union market.

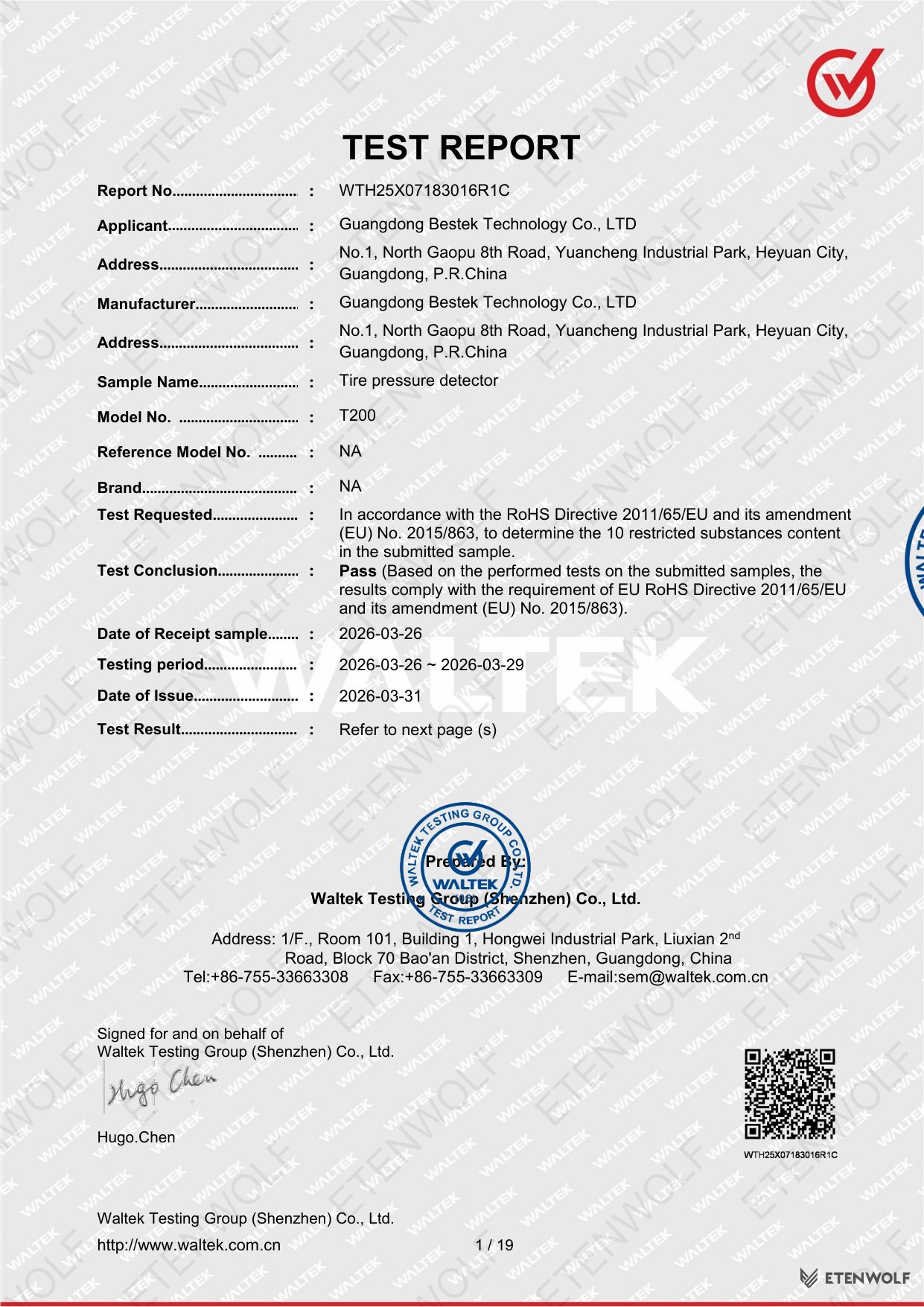

| Field | Details |
|---|---|
| Document Type | RoHS Test Report |
| Report Number | WTH25X07183016R1C |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Date of Issue | 2026-03-31 |
| Applicable Directive | EU RoHS 2011/65/EU & Amendment (EU) No. 2015/863 |
| Test Conclusion | PASS — All restricted substances within permitted limits |
Product Information

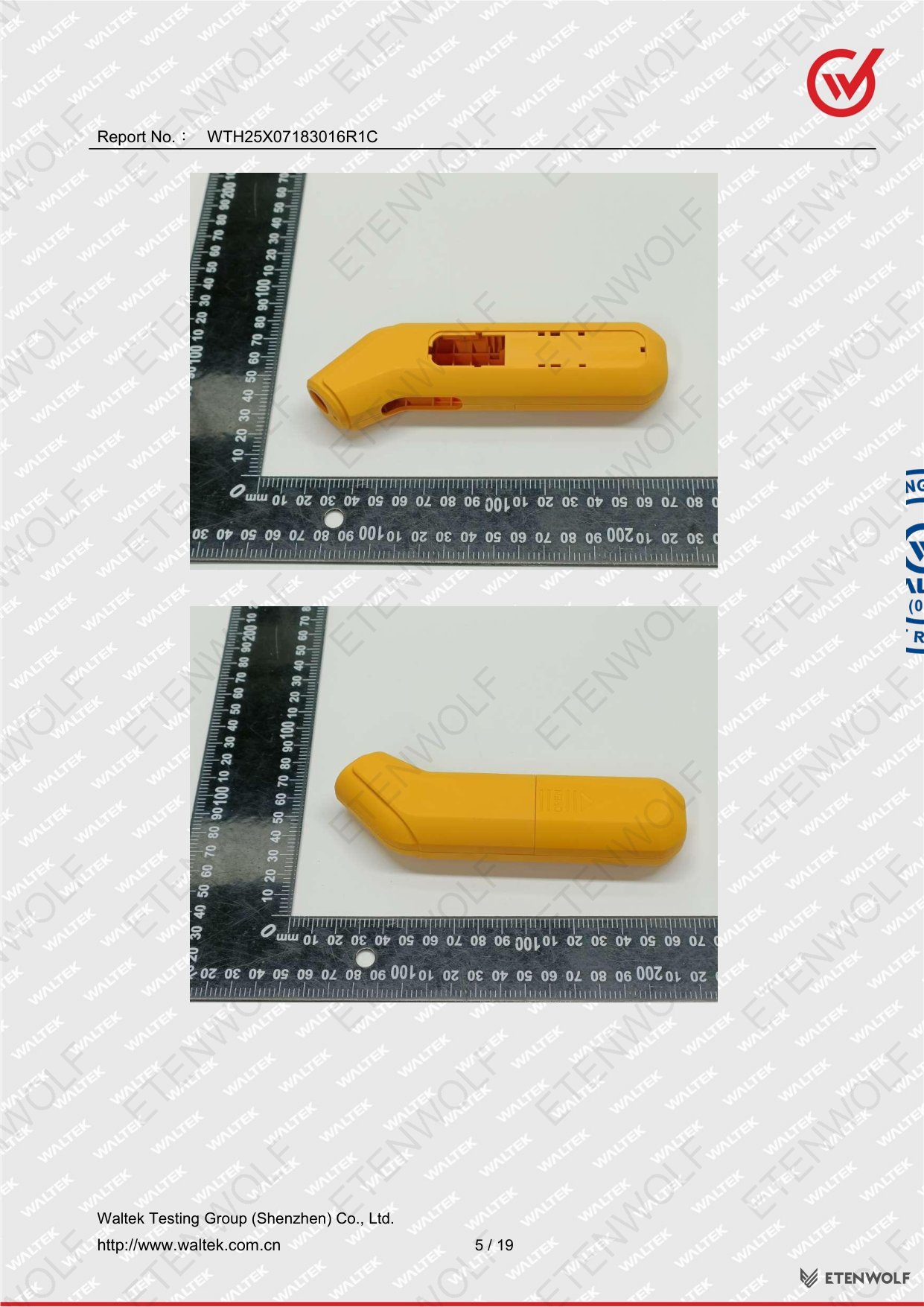

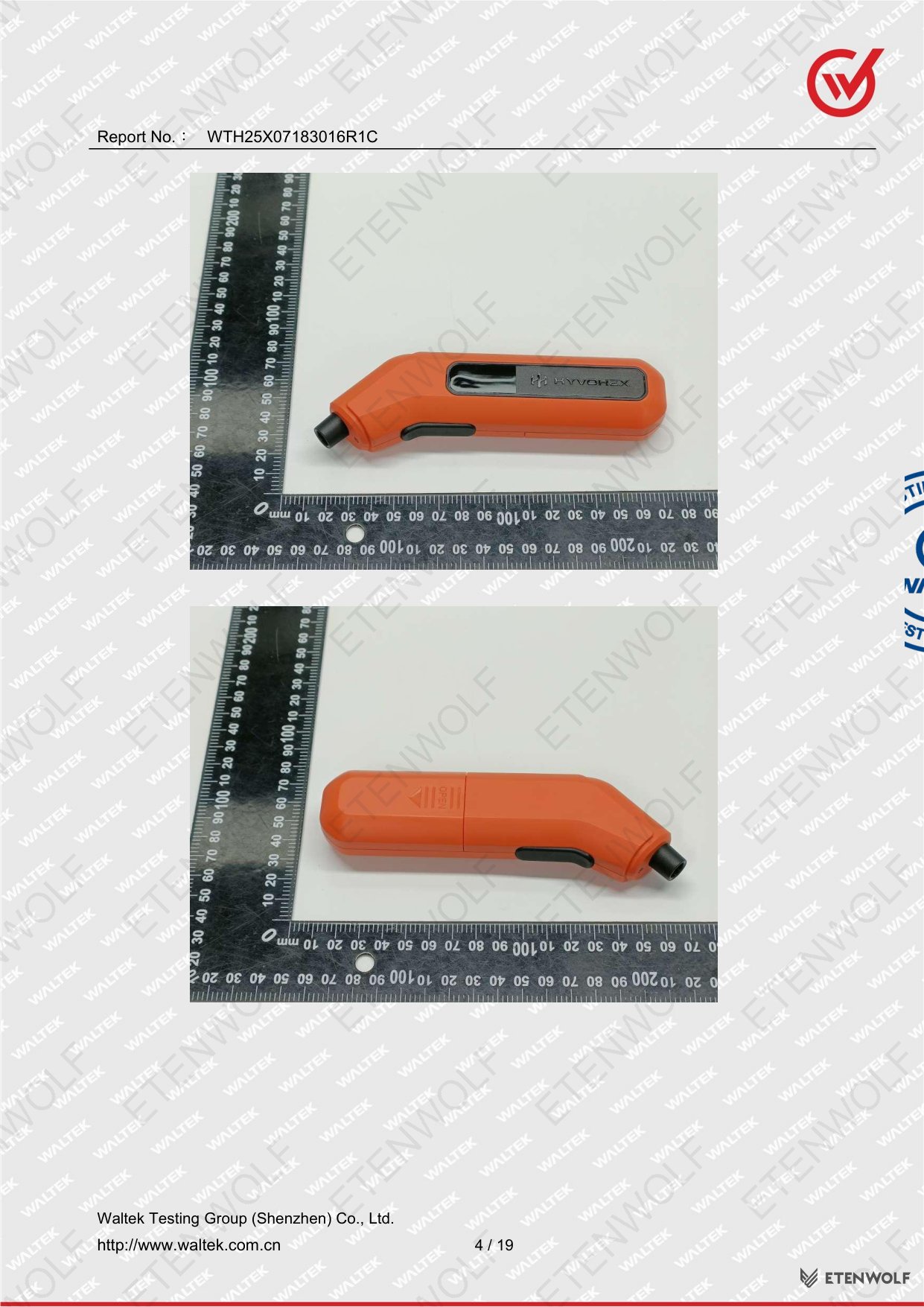

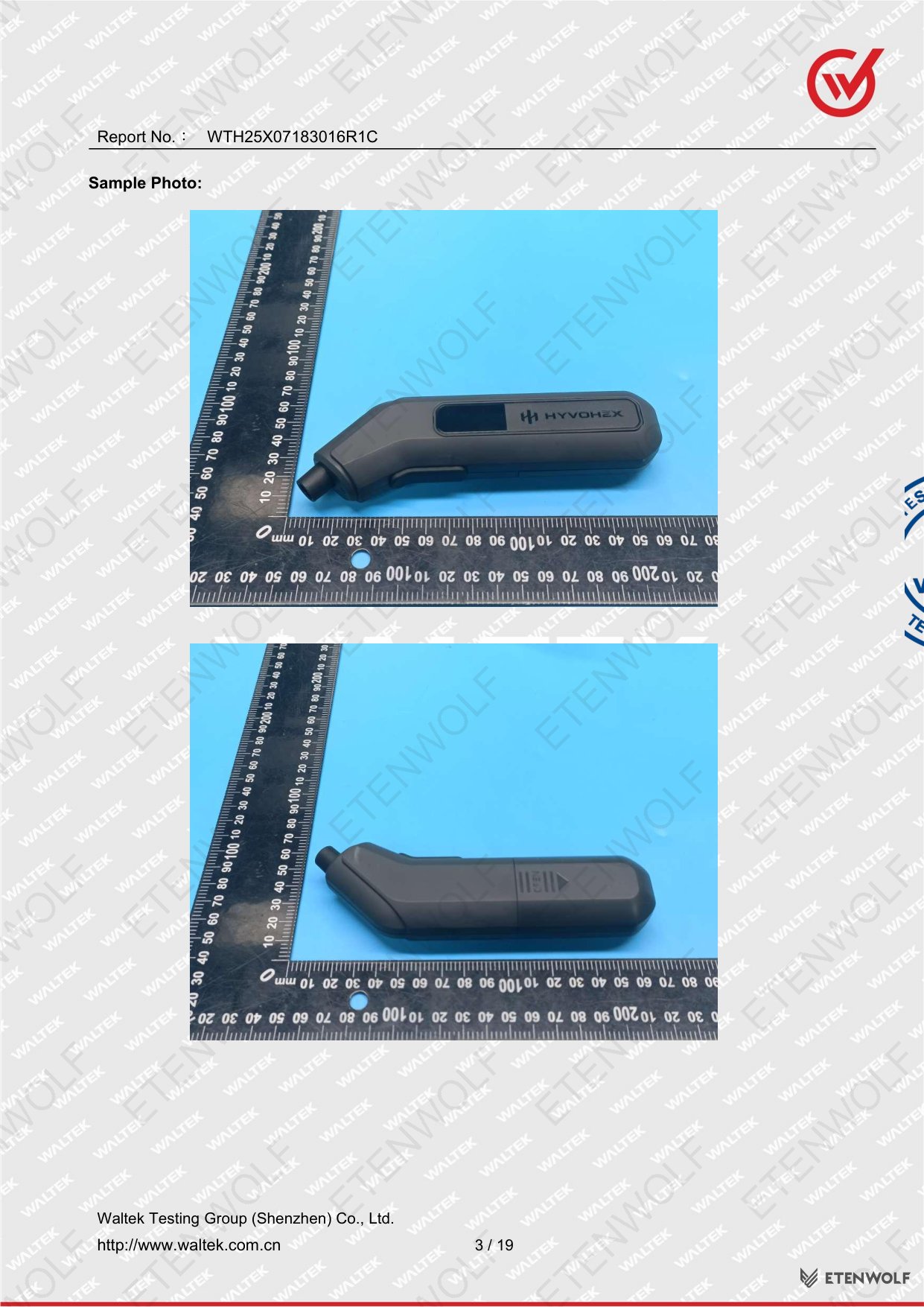

The tested product is the ETENWOLF T200 Tire Pressure Detector, manufactured and supplied by Guangdong Bestek Technology Co., Ltd. The sample evaluated covers the standard housing colours as well as two newly added colour variants (Orange and Yellow shell), all of which are included in this report.
| Field | Details |
|---|---|
| Sample Name | Tire Pressure Detector |
| Model Number | T200 |
| Reference Model | NA |
| Brand | NA (manufactured by Guangdong Bestek Technology Co., Ltd.) |
| Applicant | Guangdong Bestek Technology Co., Ltd. |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Date of Sample Receipt | 2026-03-26 |
| Testing Period | 2026-03-26 to 2026-03-29 |

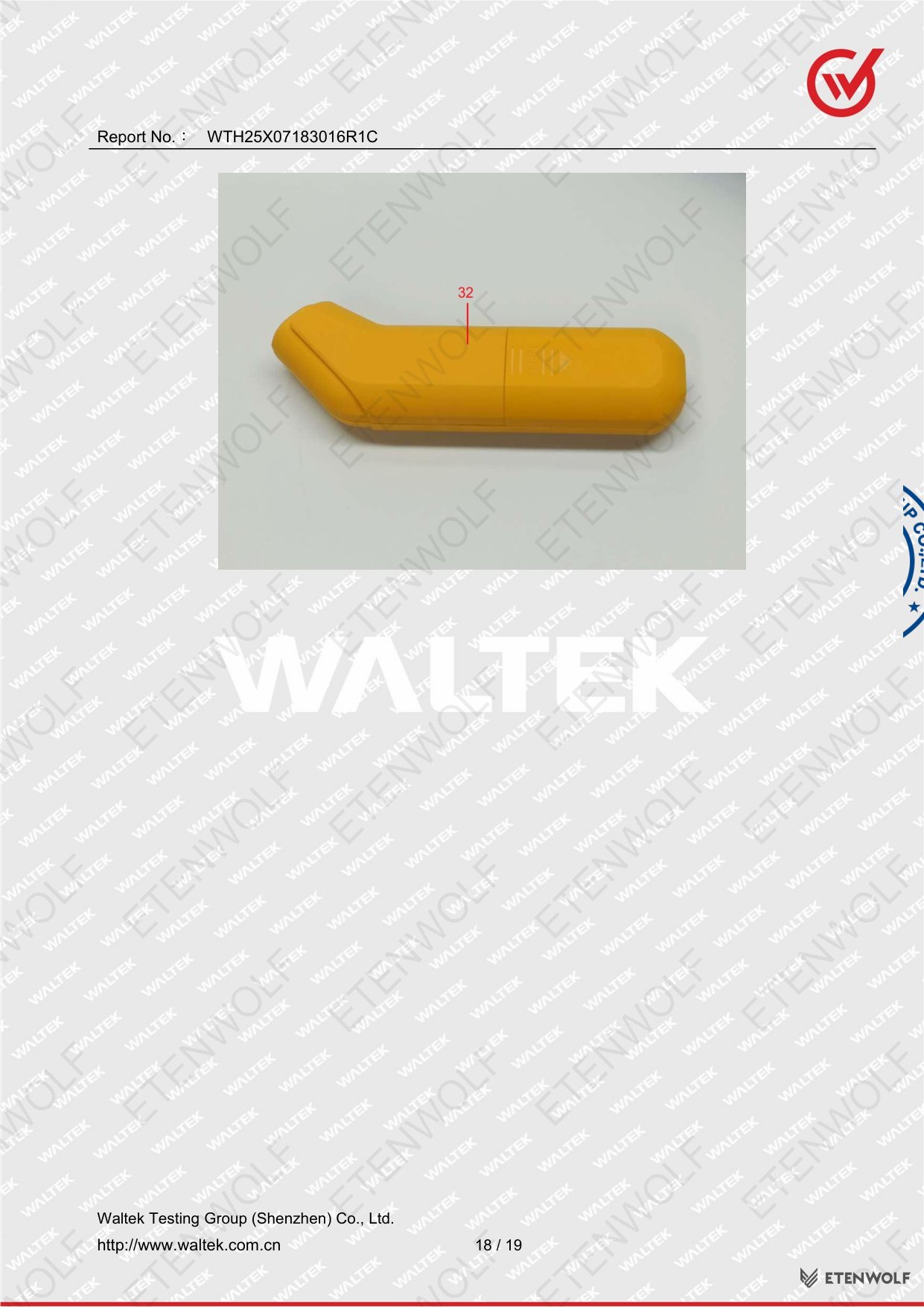

| New Colour Variants Covered | Orange plastic shell (Part 31) and Yellow plastic shell (Part 32) |
Key Details
A total of 32 component parts were subjected to XRF screening and, where required, confirmatory chemical analysis. The table below summarises all tested parts and their XRF screening outcomes. Parts that returned an inconclusive (IN) XRF result for a specific element were escalated to confirmatory chemical testing; all confirmatory results were negative or not detected.

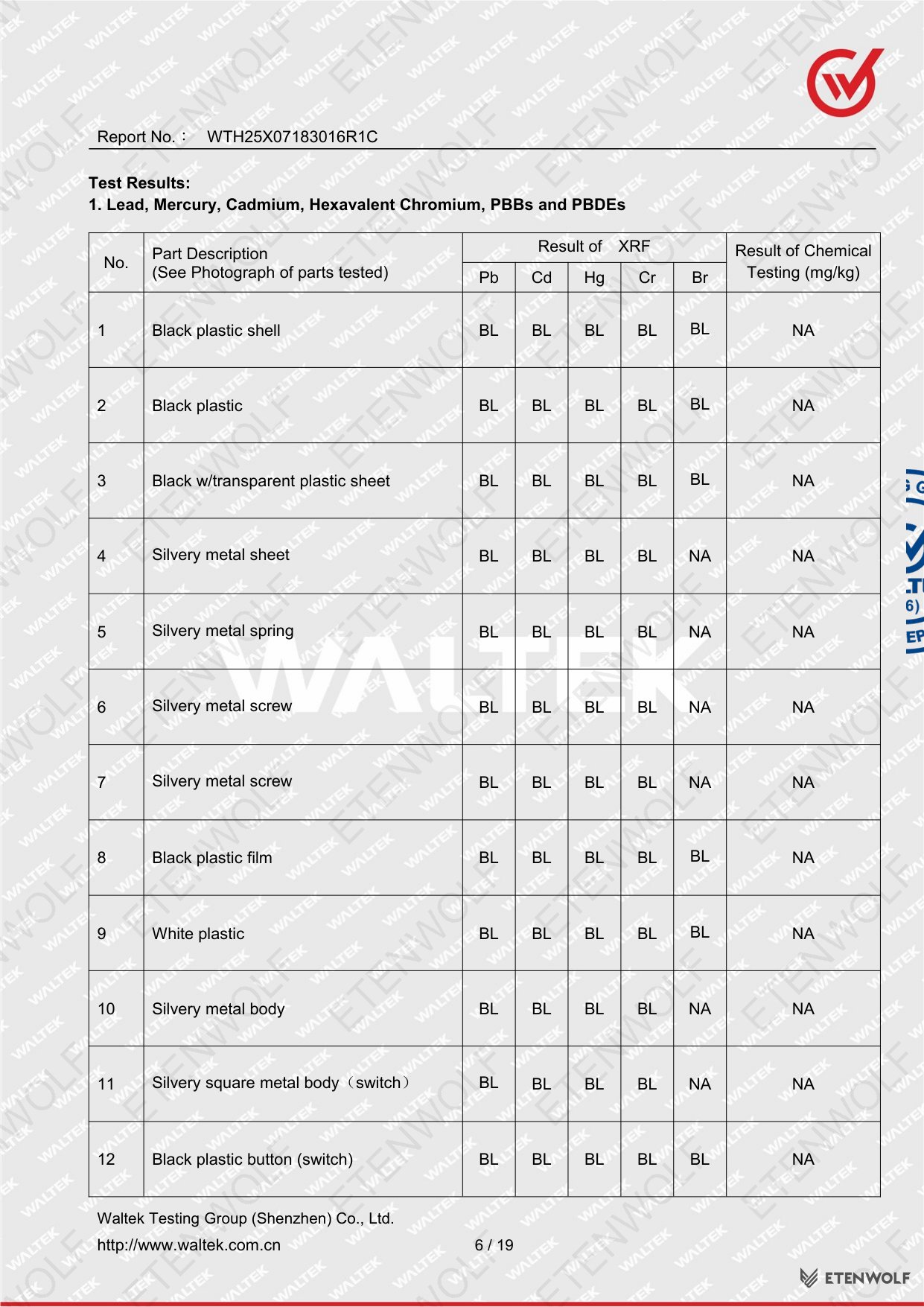

| No. | Part Description | XRF: Pb | XRF: Cd | XRF: Hg | XRF: Cr | XRF: Br | Confirmatory Result |
|---|---|---|---|---|---|---|---|

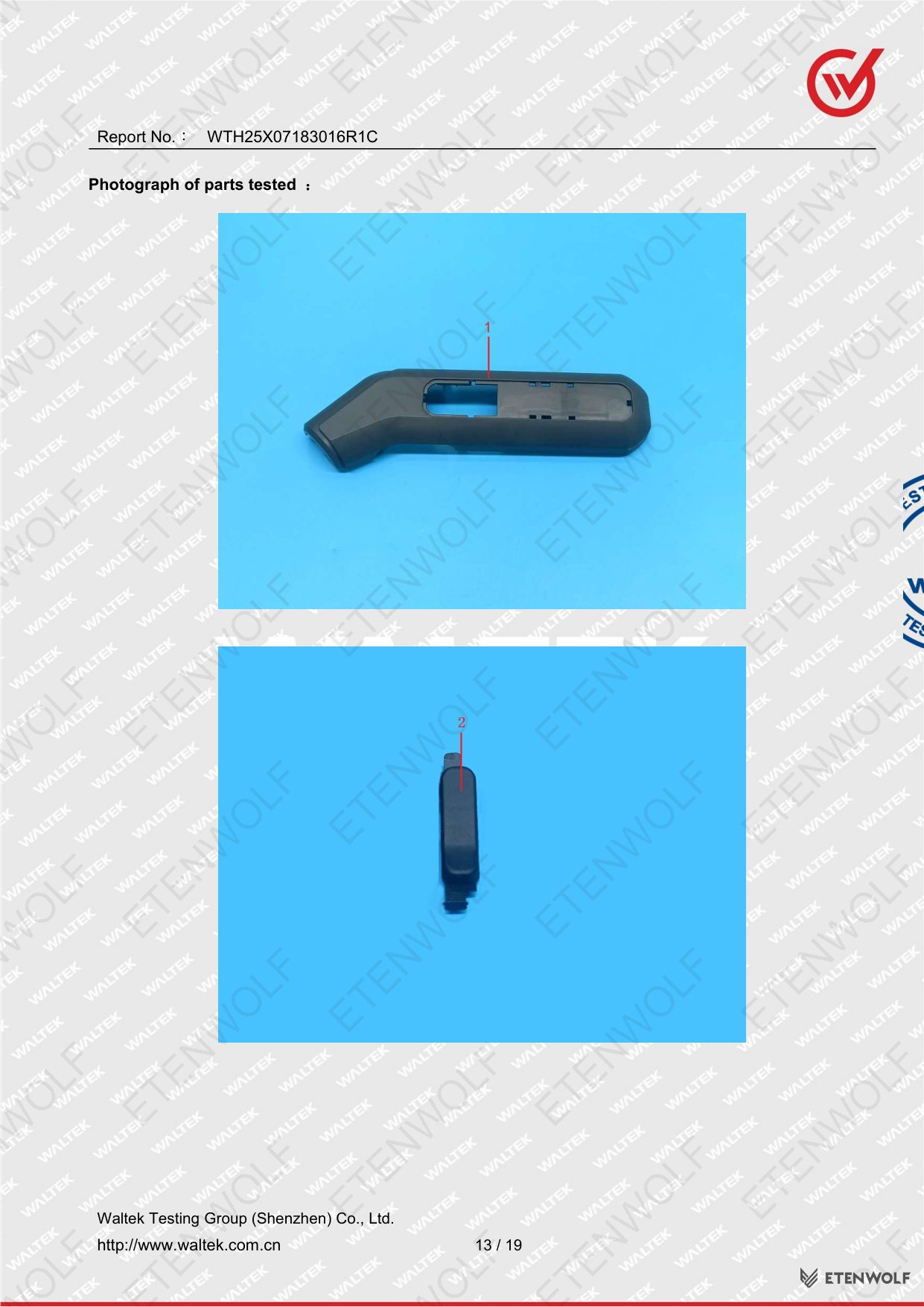

| 1 | Black plastic shell | BL | BL | BL | BL | BL | NA |
| 2 | Black plastic | BL | BL | BL | BL | BL | NA |

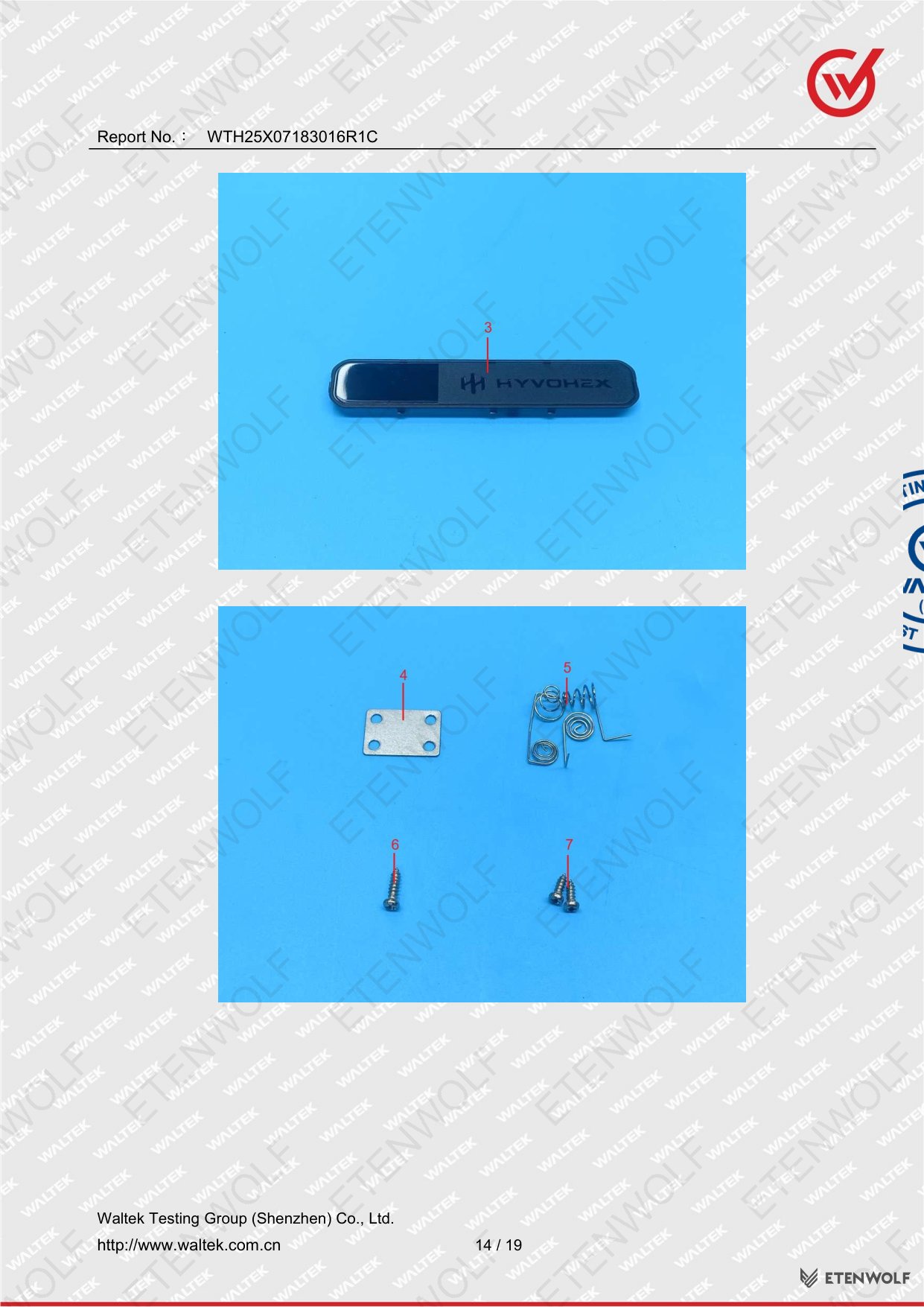

| 3 | Black w/transparent plastic sheet | BL | BL | BL | BL | BL | NA |
| 4 | Silvery metal sheet | BL | BL | BL | BL | NA | NA |
| 5 | Silvery metal spring | BL | BL | BL | BL | NA | NA |
| 6 | Silvery metal screw | BL | BL | BL | BL | NA | NA |
| 7 | Silvery metal screw | BL | BL | BL | BL | NA | NA |

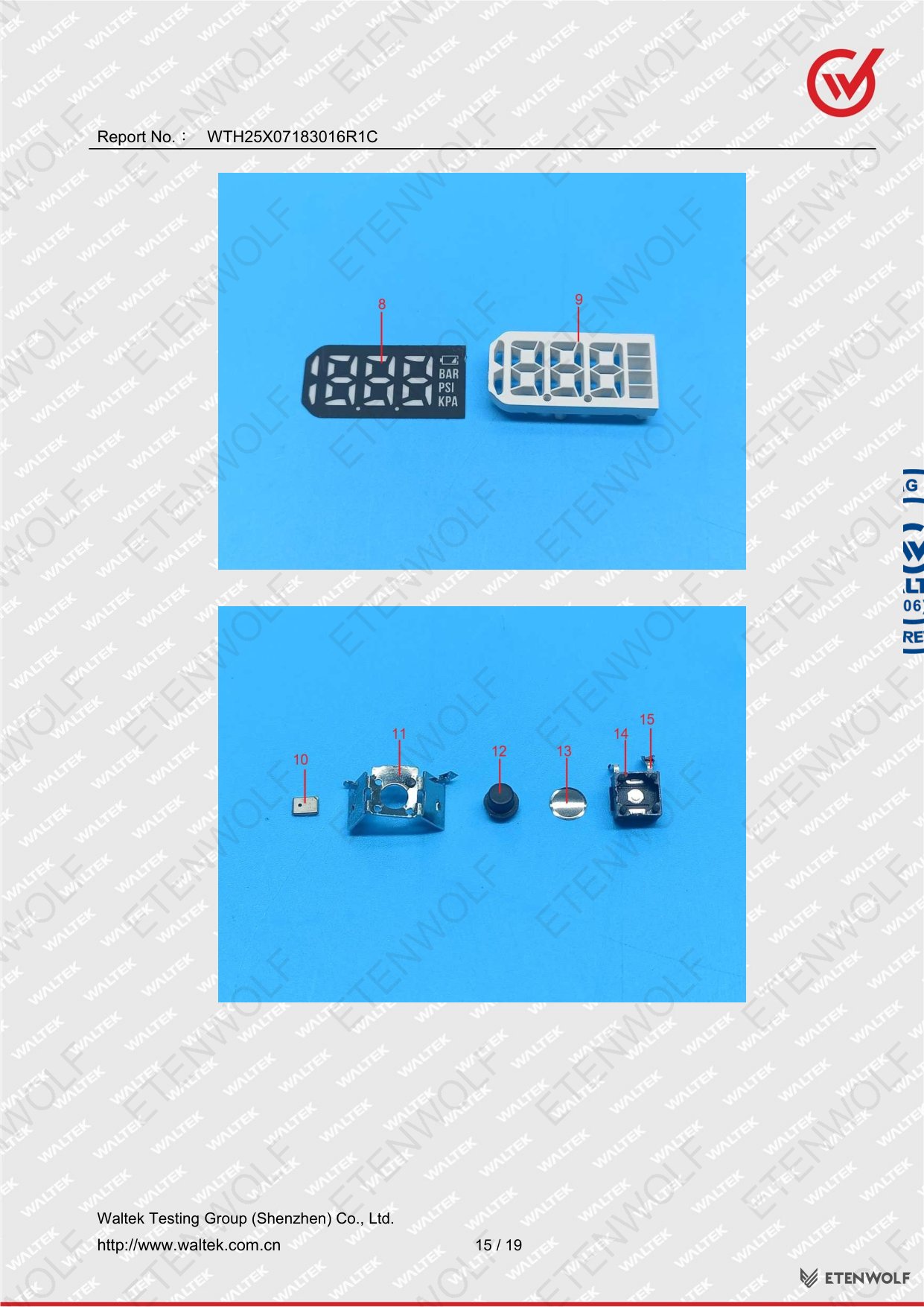

| 8 | Black plastic film | BL | BL | BL | BL | BL | NA |
| 9 | White plastic | BL | BL | BL | BL | BL | NA |
| 10 | Silvery metal body | BL | BL | BL | BL | NA | NA |
| 11 | Silvery square metal body (switch) | BL | BL | BL | BL | NA | NA |
| 12 | Black plastic button (switch) | BL | BL | BL | BL | BL | NA |

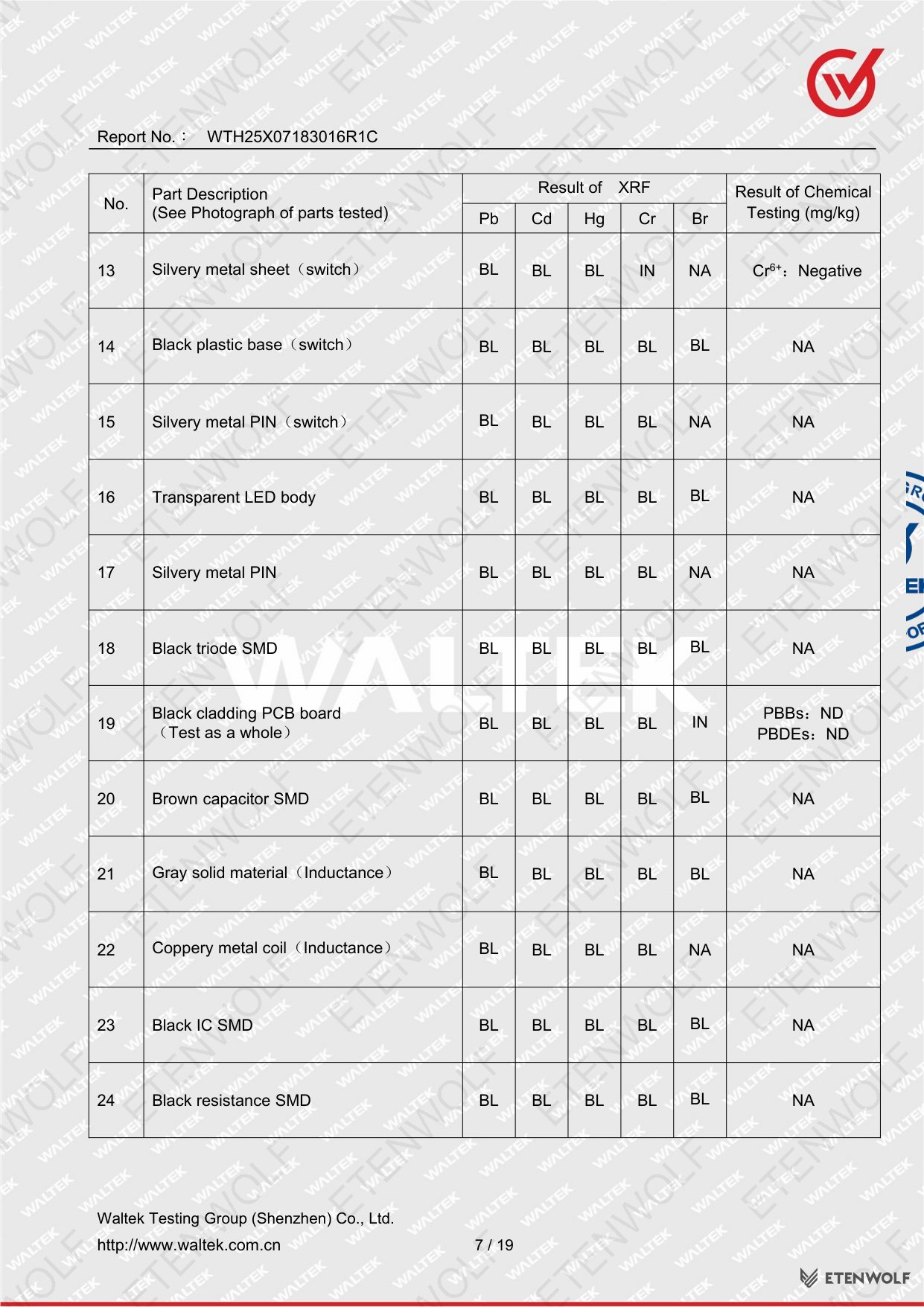

| 13 | Silvery metal sheet (switch) | BL | BL | BL | IN | NA | Cr6+: Negative |
| 14 | Black plastic base (switch) | BL | BL | BL | BL | BL | NA |
| 15 | Silvery metal PIN (switch) | BL | BL | BL | BL | NA | NA |
| 16 | Transparent LED body | BL | BL | BL | BL | BL | NA |
| 17 | Silvery metal PIN | BL | BL | BL | BL | NA | NA |
| 18 | Black triode SMD | BL | BL | BL | BL | BL | NA |

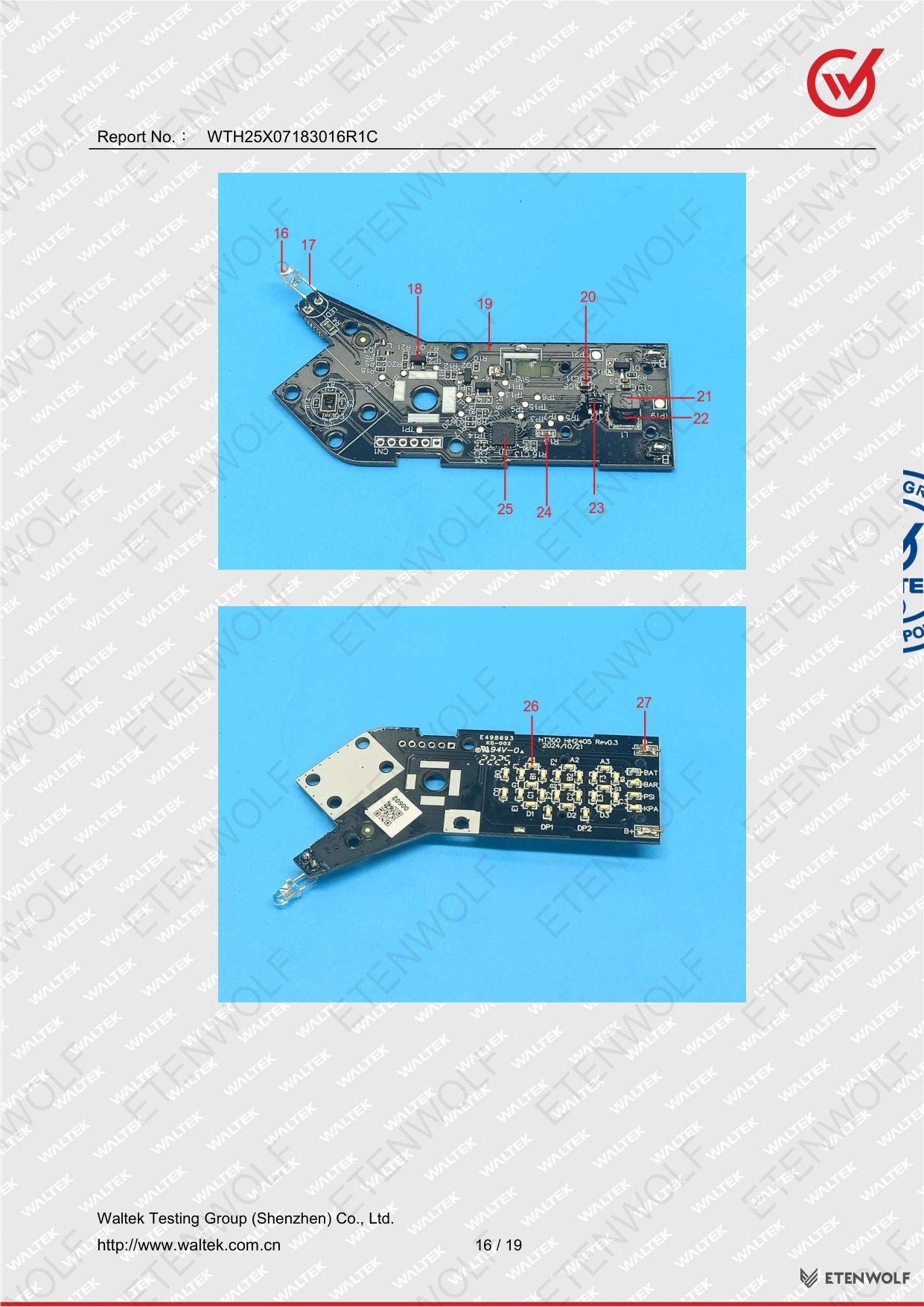

| 19 | Black cladding PCB board (whole) | BL | BL | BL | BL | IN | PBBs: ND; PBDEs: ND |
| 20 | Brown capacitor SMD | BL | BL | BL | BL | BL | NA |
| 21 | Gray solid material (Inductance) | BL | BL | BL | BL | BL | NA |
| 22 | Coppery metal coil (Inductance) | BL | BL | BL | BL | NA | NA |
| 23 | Black IC SMD | BL | BL | BL | BL | BL | NA |
| 24 | Black resistance SMD | BL | BL | BL | BL | BL | NA |

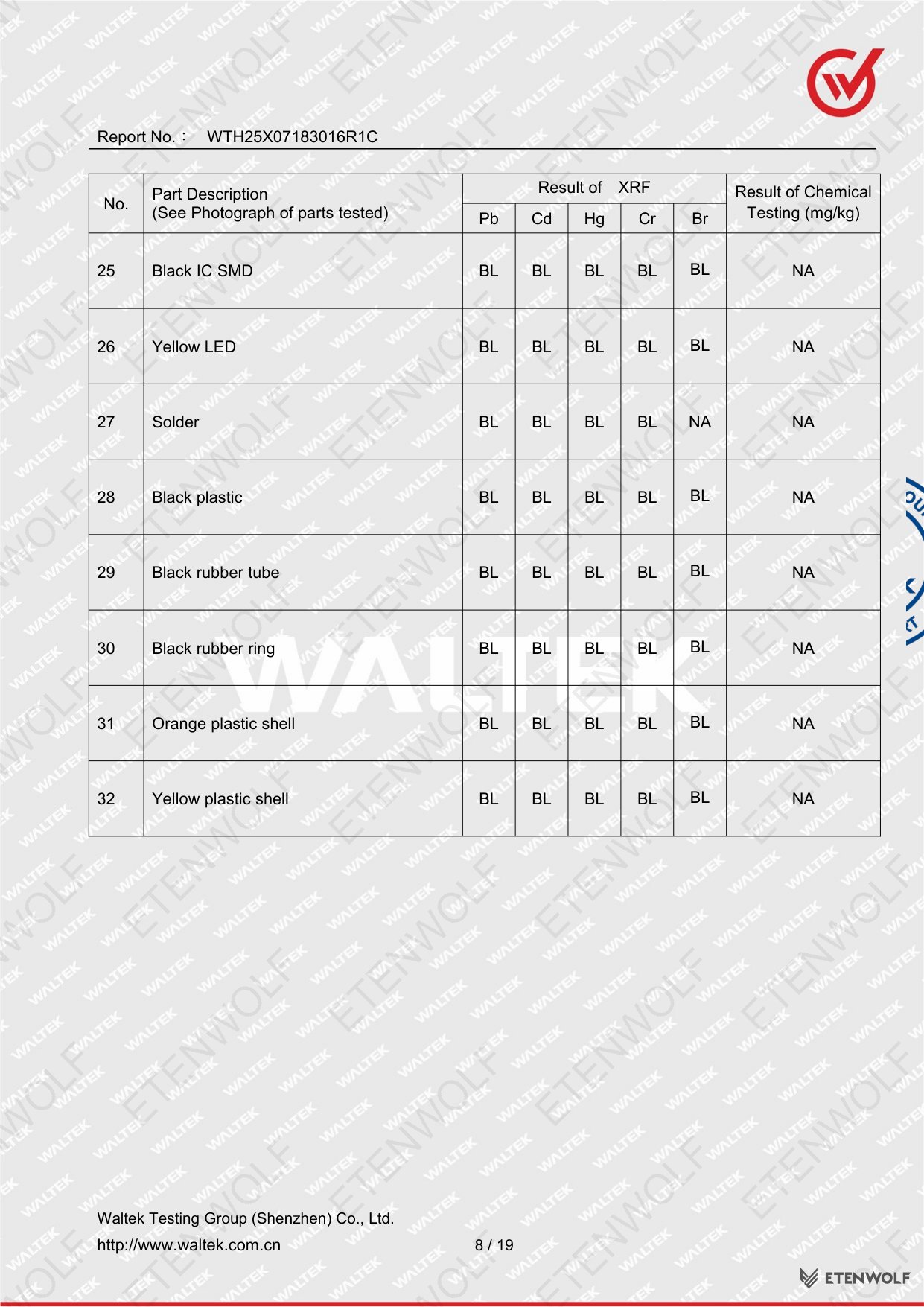

| 25 | Black IC SMD | BL | BL | BL | BL | BL | NA |
| 26 | Yellow LED | BL | BL | BL | BL | BL | NA |
| 27 | Solder | BL | BL | BL | BL | NA | NA |
| 28 | Black plastic | BL | BL | BL | BL | BL | NA |

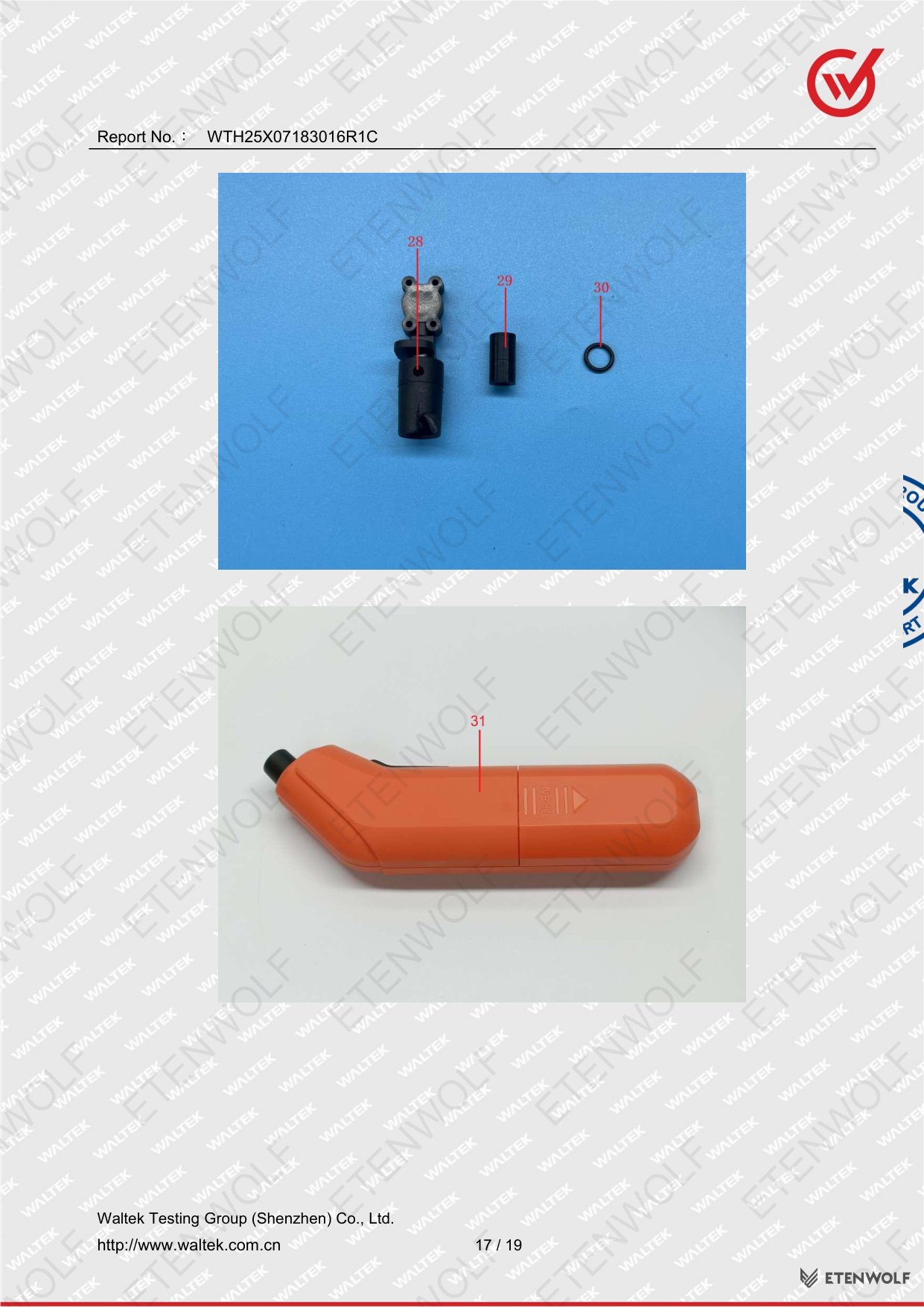

| 29 | Black rubber tube | BL | BL | BL | BL | BL | NA |
| 30 | Black rubber ring | BL | BL | BL | BL | BL | NA |
| 31 | Orange plastic shell | BL | BL | BL | BL | BL | NA |
| 32 | Yellow plastic shell | BL | BL | BL | BL | BL | NA |
The two parts that returned an inconclusive (IN) XRF reading — Part 13 (Cr) and Part 19 (Br) — were confirmed compliant via chemical analysis: Cr6+ was Negative and PBBs/PBDEs were Not Detected.
Restricted substance limits applied under RoHS 2011/65/EU and (EU) No. 2015/863 are as follows:
| Restricted Substance | Permitted Limit |
|---|---|
| Cadmium (Cd) | 0.01% (100 mg/kg) |
| Lead (Pb) | 0.1% (1000 mg/kg) |
| Mercury (Hg) | 0.1% (1000 mg/kg) |
| Hexavalent Chromium (Cr6+) | 0.1% (1000 mg/kg) |
| Polybrominated Biphenyls (PBBs) | 0.1% (1000 mg/kg) |
| Polybrominated Diphenyl Ethers (PBDEs) | 0.1% (1000 mg/kg) |

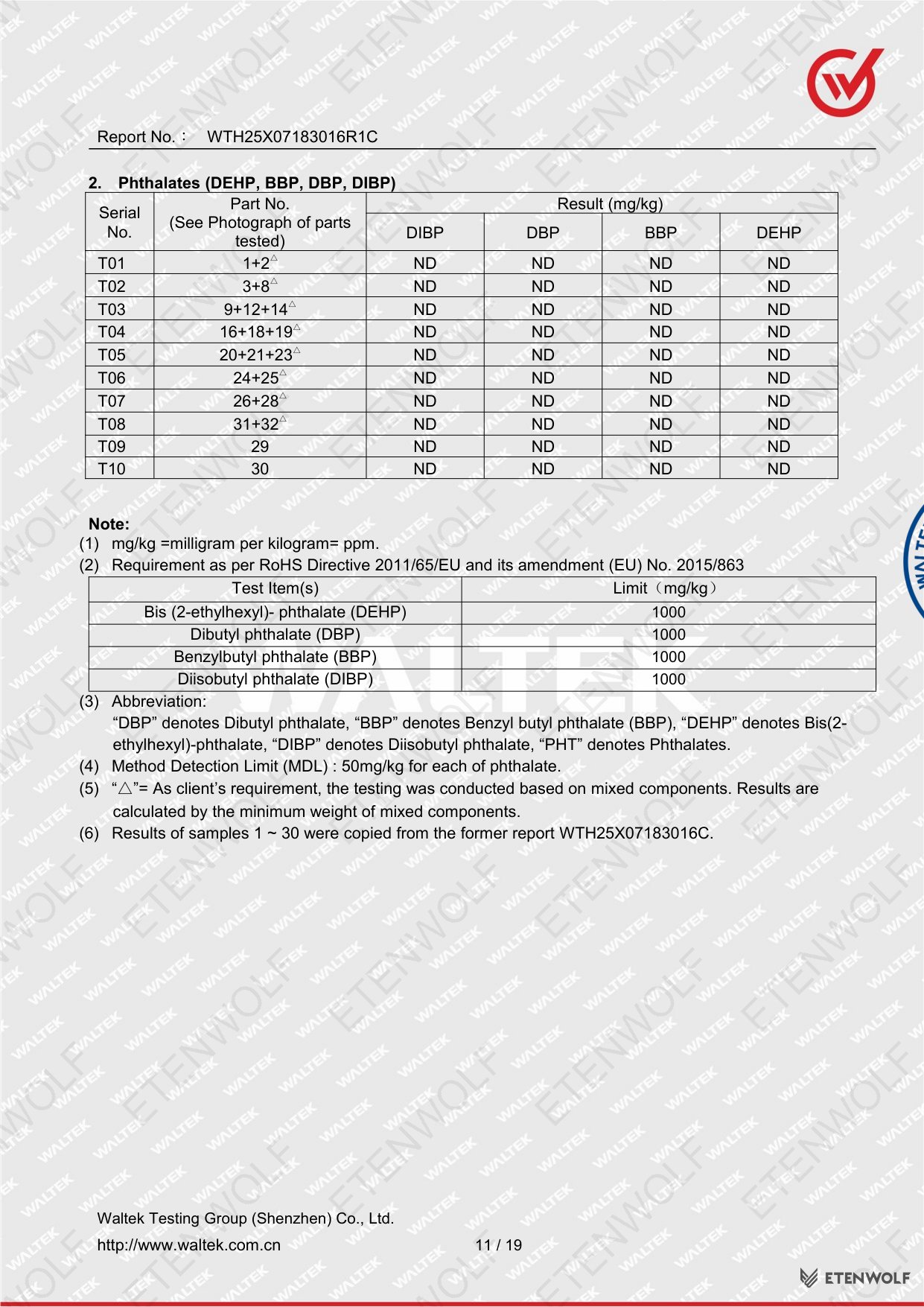

| Bis(2-ethylhexyl) phthalate (DEHP) | 0.1% (1000 mg/kg) |
| Benzyl butyl phthalate (BBP) | 0.1% (1000 mg/kg) |
| Dibutyl phthalate (DBP) | 0.1% (1000 mg/kg) |
| Diisobutyl phthalate (DIBP) | 0.1% (1000 mg/kg) |
Standards & Compliance

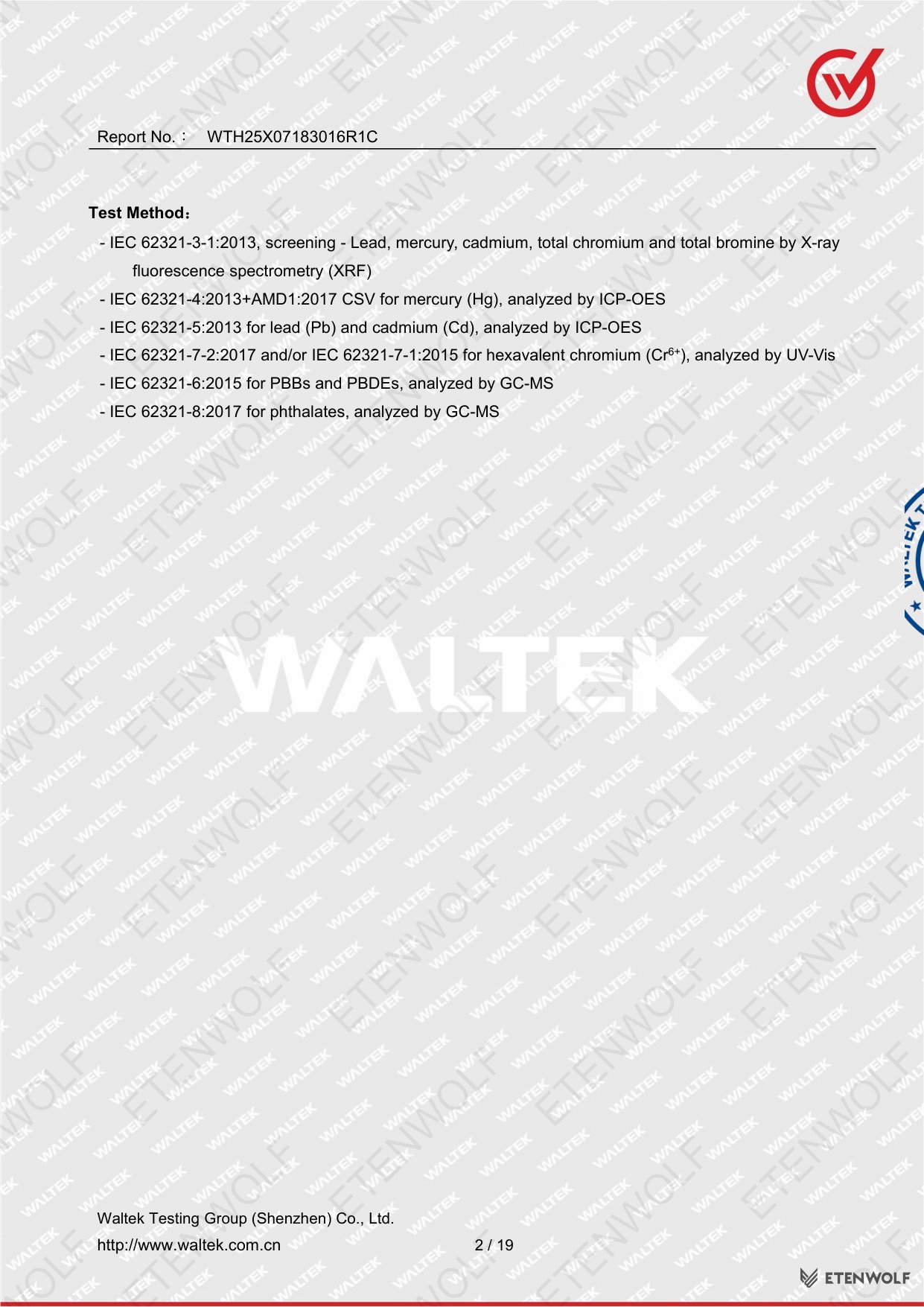

The test was conducted using the following internationally recognised IEC standards for RoHS substance determination:
- IEC 62321-3-1:2013 — Screening of Lead (Pb), Mercury (Hg), Cadmium (Cd), total Chromium (Cr) and total Bromine (Br) by X-ray fluorescence spectrometry (XRF)
- IEC 62321-4:2013+AMD1:2017 CSV — Determination of Mercury (Hg) by ICP-OES
- IEC 62321-5:2013 — Determination of Lead (Pb) and Cadmium (Cd) by ICP-OES
- IEC 62321-7-2:2017 and/or IEC 62321-7-1:2015 — Determination of Hexavalent Chromium (Cr6+) by UV-Vis spectrophotometry
- IEC 62321-6:2015 — Determination of Polybrominated Biphenyls (PBBs) and Polybrominated Diphenyl Ethers (PBDEs) by GC-MS
- IEC 62321-8:2017 — Determination of phthalates by GC-MS
The governing regulatory framework is EU RoHS Directive 2011/65/EU (Restriction of Hazardous Substances in Electrical and Electronic Equipment) as amended by (EU) No. 2015/863, which extended the restricted substances list to include four phthalates (DEHP, BBP, DBP, DIBP).

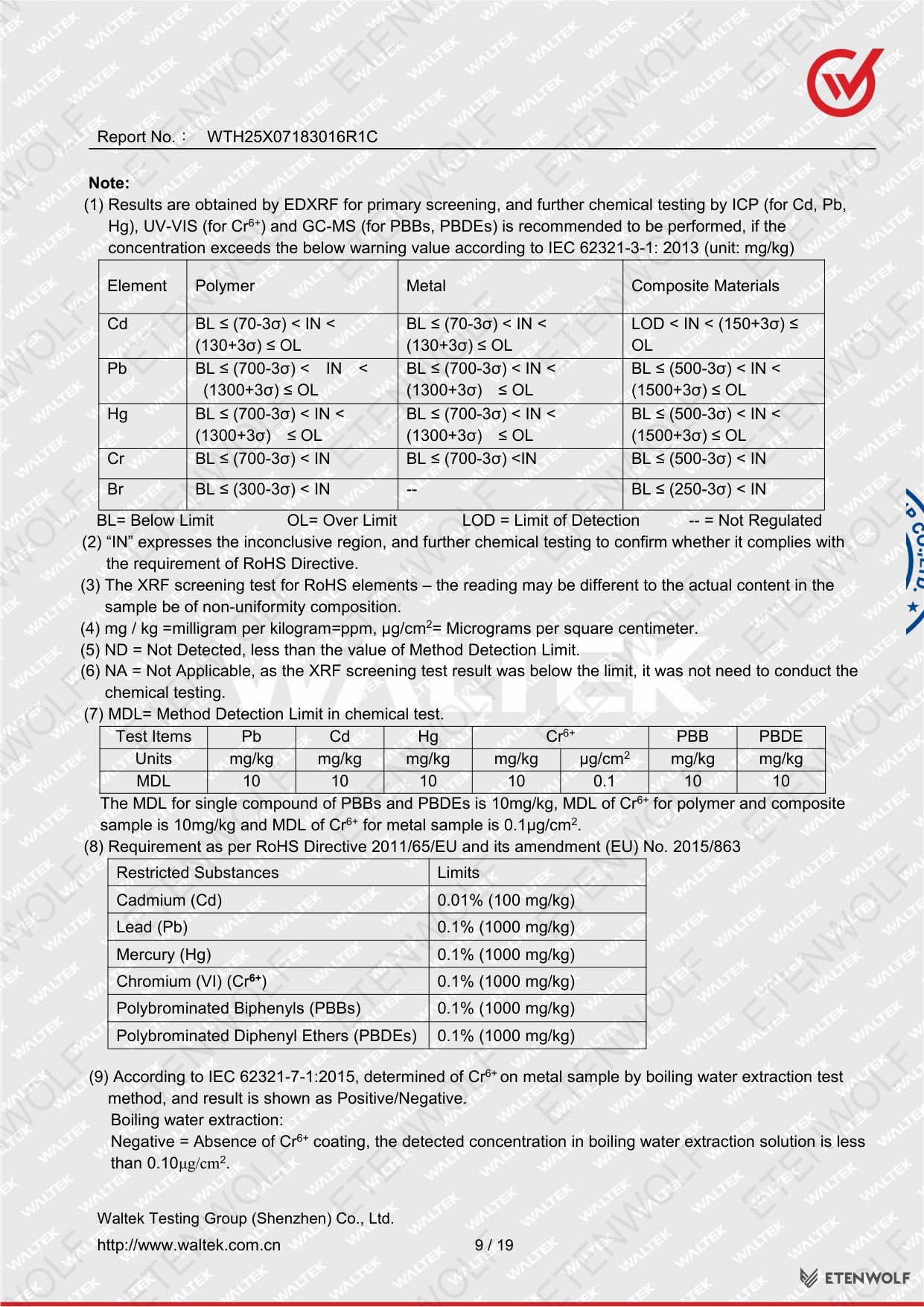

The Method Detection Limits (MDL) applied during chemical testing are:
| Test Item | MDL |
|---|---|
| Lead (Pb) | 10 mg/kg |
| Cadmium (Cd) | 10 mg/kg |
| Mercury (Hg) | 10 mg/kg |
| Hexavalent Chromium (Cr6+) — polymer/composite | 10 mg/kg |
| Hexavalent Chromium (Cr6+) — metal | 0.1 μg/cm² |
| PBBs (single compound) | 10 mg/kg |
| PBDEs (single compound) | 10 mg/kg |
Validity & Certification Body
The test report was issued on 2026-03-31 by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory. The report is valid for the specific sample batch received on 2026-03-26 and tested between 2026-03-26 and 2026-03-29.
| Field | Details |
|---|---|
| Report Number | WTH25X07183016R1C |
| Date of Issue | 2026-03-31 |
| Sample Receipt Date | 2026-03-26 |
| Testing Period | 2026-03-26 to 2026-03-29 |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Website | http://www.waltek.com.cn |
| Contact Tel | +86-755-33663308 |
| Contact Fax | +86-755-33663309 |
| Contact Email | [email protected] |
| Signed By | Hugo Chen, Waltek Testing Group (Shenzhen) Co., Ltd. |

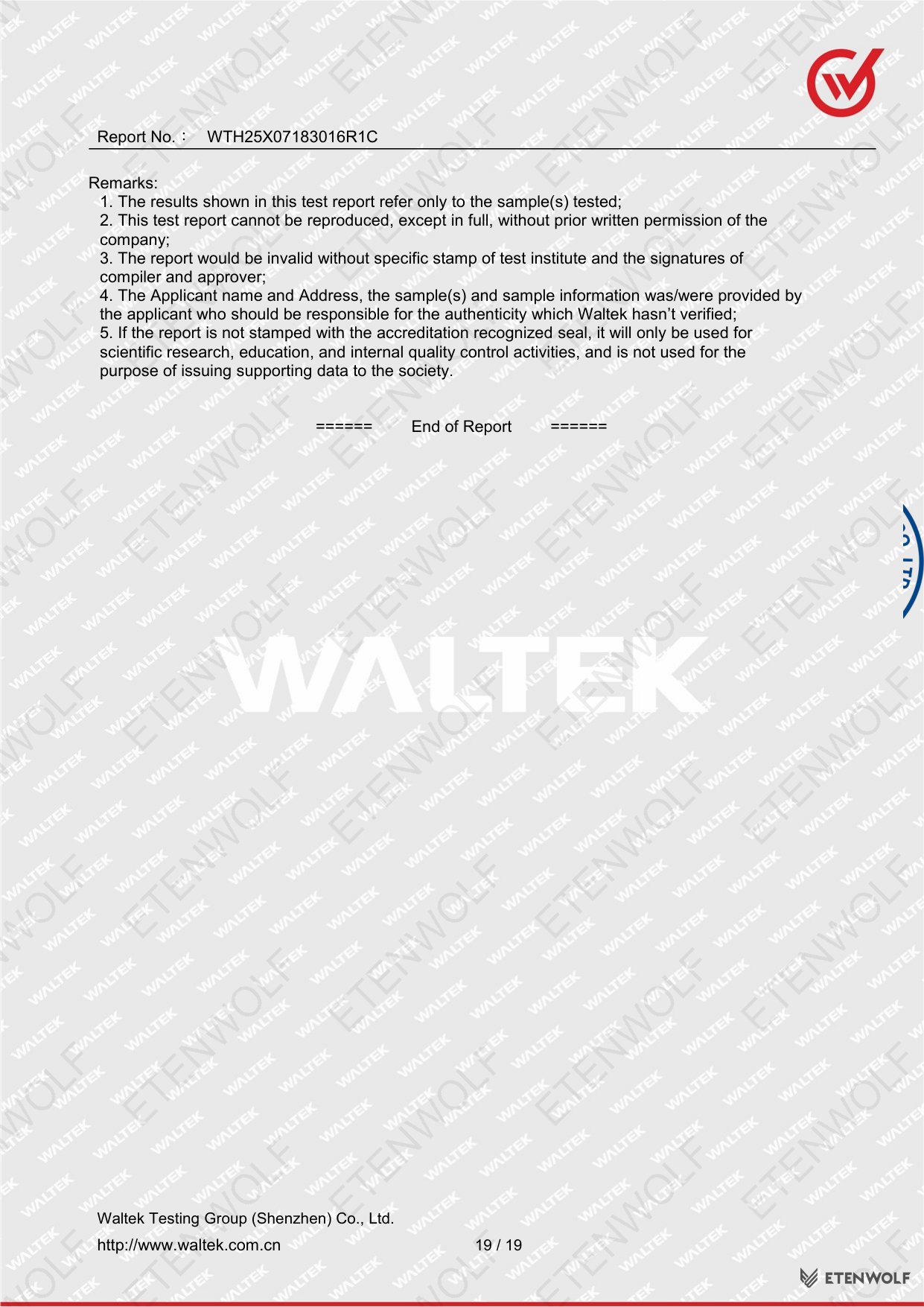

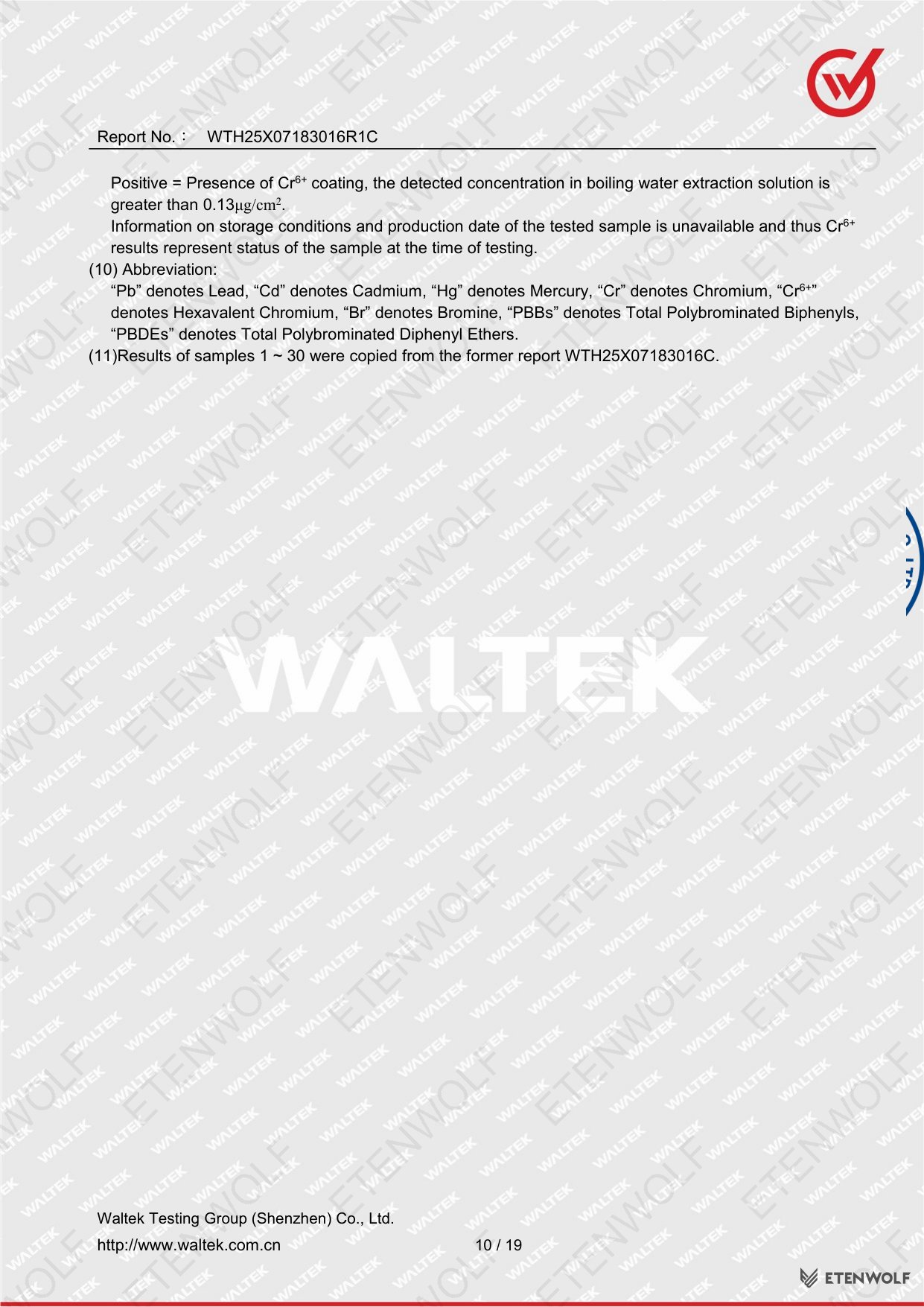

This report applies specifically to the submitted samples tested. Results reflect the condition of the samples at the time of testing. Storage conditions and production date of the tested samples were not available; therefore, Hexavalent Chromium (Cr6+) results represent the status of the sample at the time of testing only.
Frequently Asked Questions
- What does this RoHS test report confirm for the T200?
-
Report No. WTH25X07183016R1C confirms that all 32 tested component parts of the ETENWOLF T200 Tire Pressure Detector comply with EU RoHS Directive 2011/65/EU and its amendment (EU) No. 2015/863. All ten restricted substances — including Lead, Cadmium, Mercury, Hexavalent Chromium, PBBs, PBDEs, and four phthalates — were found below the permitted thresholds.
- Does this report cover the new Orange and Yellow colour variants of the T200?
-
Yes. Parts 31 (Orange plastic shell) and 32 (Yellow plastic shell) are explicitly included in this test report and both passed XRF screening with all elements below the detection limit. This report was issued specifically to cover these two newly added colour variants alongside the existing T200 design.
- Why were Parts 13 and 19 subjected to additional chemical testing?
-
During XRF screening, Part 13 (Silvery metal sheet — switch) returned an inconclusive result for Chromium, and Part 19 (Black cladding PCB board) returned an inconclusive result for Bromine. Under IEC 62321-3-1:2013, inconclusive XRF readings require confirmatory chemical analysis. Cr6+ on Part 13 was confirmed Negative by boiling water extraction per IEC 62321-7-1:2015, and PBBs/PBDEs on Part 19 were confirmed Not Detected by GC-MS per IEC 62321-6:2015.
- Is this RoHS report sufficient for CE marking of the T200 in the EU?
-
RoHS compliance demonstrated by this report is one required element of CE marking for electrical and electronic equipment sold in the EU. However, CE marking also requires conformity with other applicable directives and regulations depending on the product category (such as EMC, Low Voltage, Radio Equipment, etc.). This report alone does not constitute a complete CE declaration of conformity.
Related Documents
For a complete EU market compliance dossier for the ETENWOLF T200 Tire Pressure Detector, the following additional certification and test reports are relevant:
- REACH Compliance Report — Confirms absence of Substances of Very High Concern (SVHCs) on the REACH candidate list per REACH Regulation (EC) No. 1907/2006.
- CE Declaration of Conformity — Manufacturer’s self-declaration covering all applicable EU directives including EMC Directive 2014/30/EU and Radio Equipment Directive 2014/53/EU where applicable.
- EMC Test Report — Electromagnetic compatibility testing per relevant IEC/CISPR standards required for CE marking.
- Electrical Safety / LVD Test Report — Safety testing against IEC standards applicable to the product’s voltage range and category.
- FCC Declaration of Conformity — Required for sale in the United States market; covers unintentional radiator requirements per FCC Part 15.
- KC Certification — Required for the South Korean market, covering safety and EMC requirements under KC standards.
- Packaging Material RoHS / Heavy Metals Declaration — Confirms compliance of product packaging with hazardous substance restrictions.
