Document Overview
This article covers the official FCC Supplier’s Declaration of Conformity (SDoC) test report for the T200 Tire Pressure Detector manufactured by Guangdong Bestek Technology Co., LTD under the ETENWOLF brand. The report was issued by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited electromagnetic compatibility (EMC) test laboratory, and carries the reference number WTH25H07183012E.

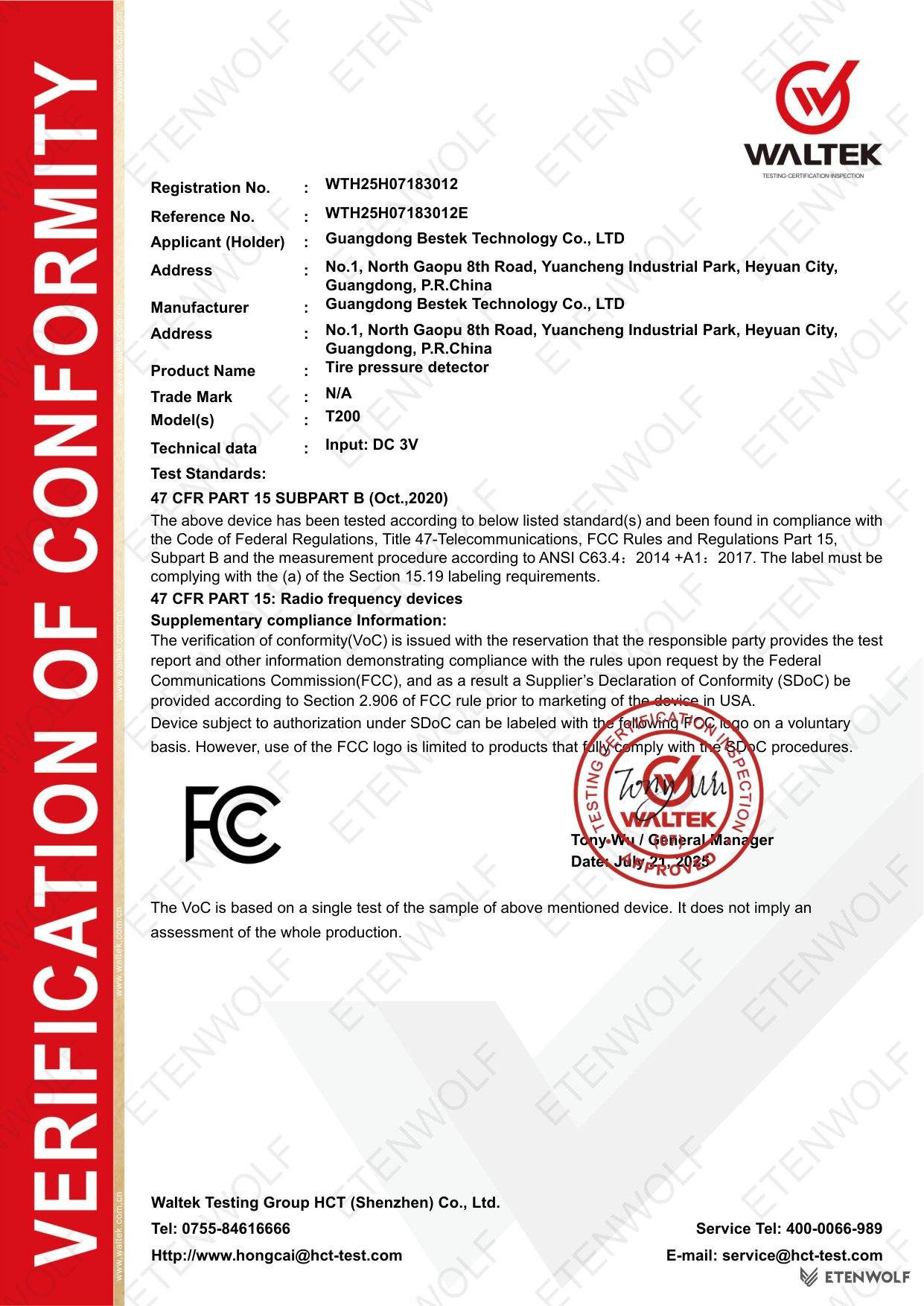

- Document Type: FCC Supplier’s Declaration of Conformity (SDoC) — Test Report
- Issuing Body: Waltek Testing Group HCT (Shenzhen) Co., Ltd.
- Internal Form Number: TRF FCC CFR 47 Part 15 Subpart B-EMC-001-V01 / HCT/RF-23-21
- Date of Issue: 2025-07-21
- Test Dates: 2025-07-14 to 2025-07-17
- Sample Receipt Date: 2025-07-10
- Scope: Conducted Emission and Radiated Emission testing in accordance with FCC CFR 47 Part 15 Subpart B
- Overall Test Result: PASS

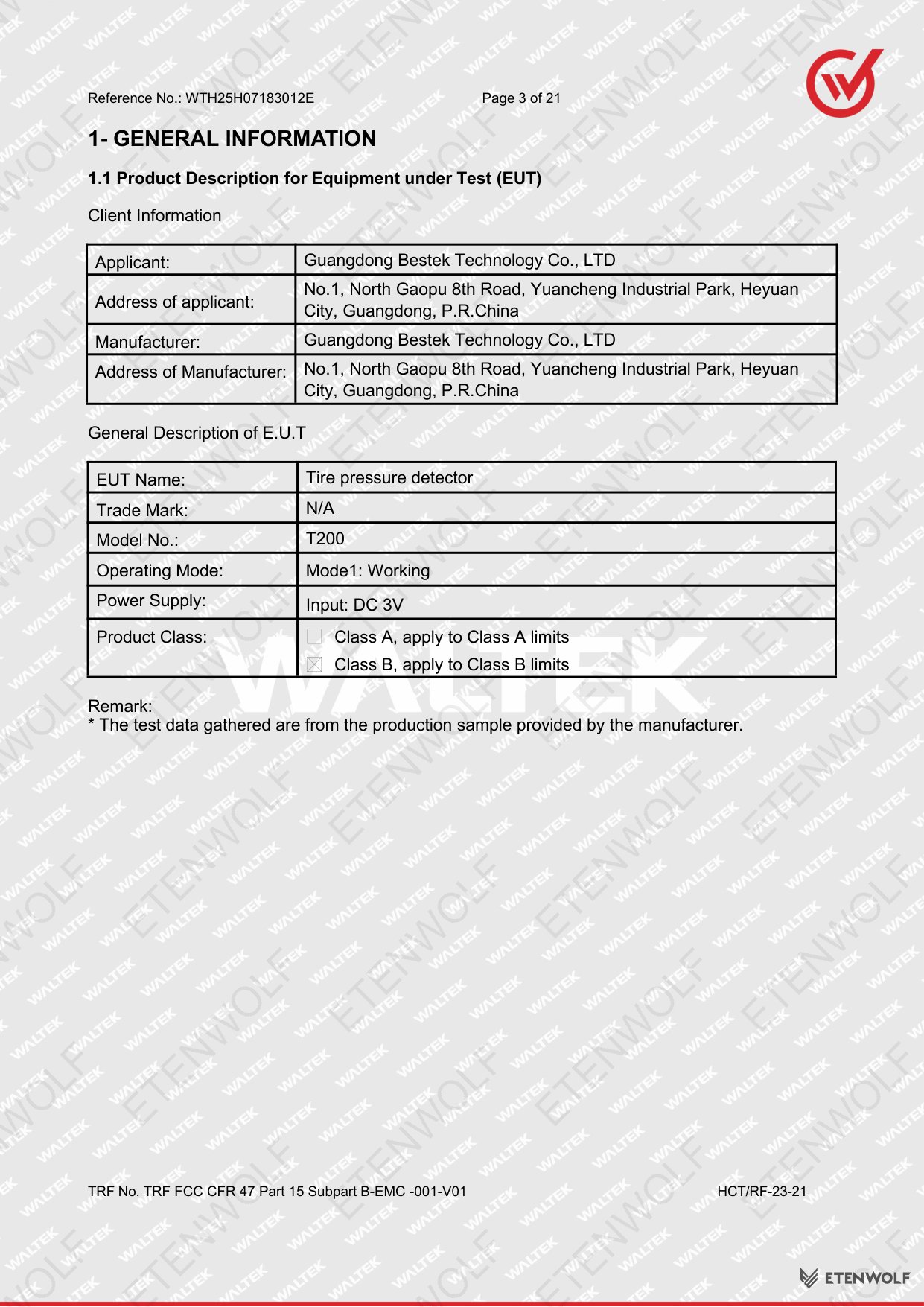

Product Information

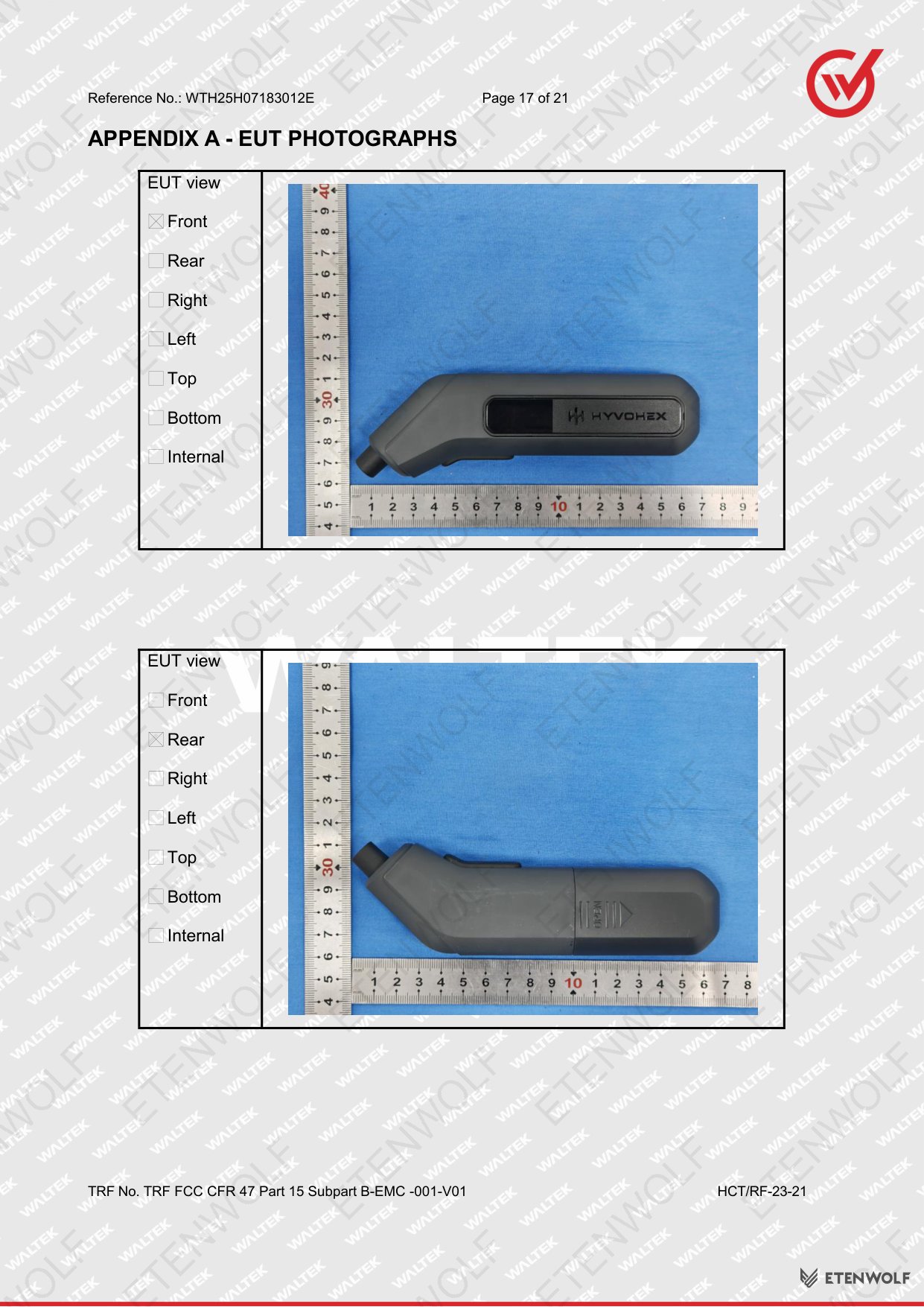

The equipment under test (EUT) is the T200 Tire Pressure Detector, a portable consumer device designed to measure and monitor tire pressure. It is produced by Guangdong Bestek Technology Co., LTD and marketed globally under the ETENWOLF brand.
| Field | Details |
|---|---|
| Product Name | Tire Pressure Detector |
| Model Number | T200 |
| Trade Mark | N/A |
| Applicant | Guangdong Bestek Technology Co., LTD |
| Manufacturer | Guangdong Bestek Technology Co., LTD |
| Manufacturer Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
| Applicant Address | No.1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China |
The T200 is intended for use in the consumer market and is subject to FCC Part 15 Subpart B unintentional radiator requirements, confirming the device does not generate RF emissions beyond the permitted limits set by the Federal Communications Commission.
Key Details
The test report WTH25H07183012E covers two primary EMC test disciplines required under FCC CFR 47 Part 15 Subpart B for unintentional radiators. Both disciplines returned a PASS result.

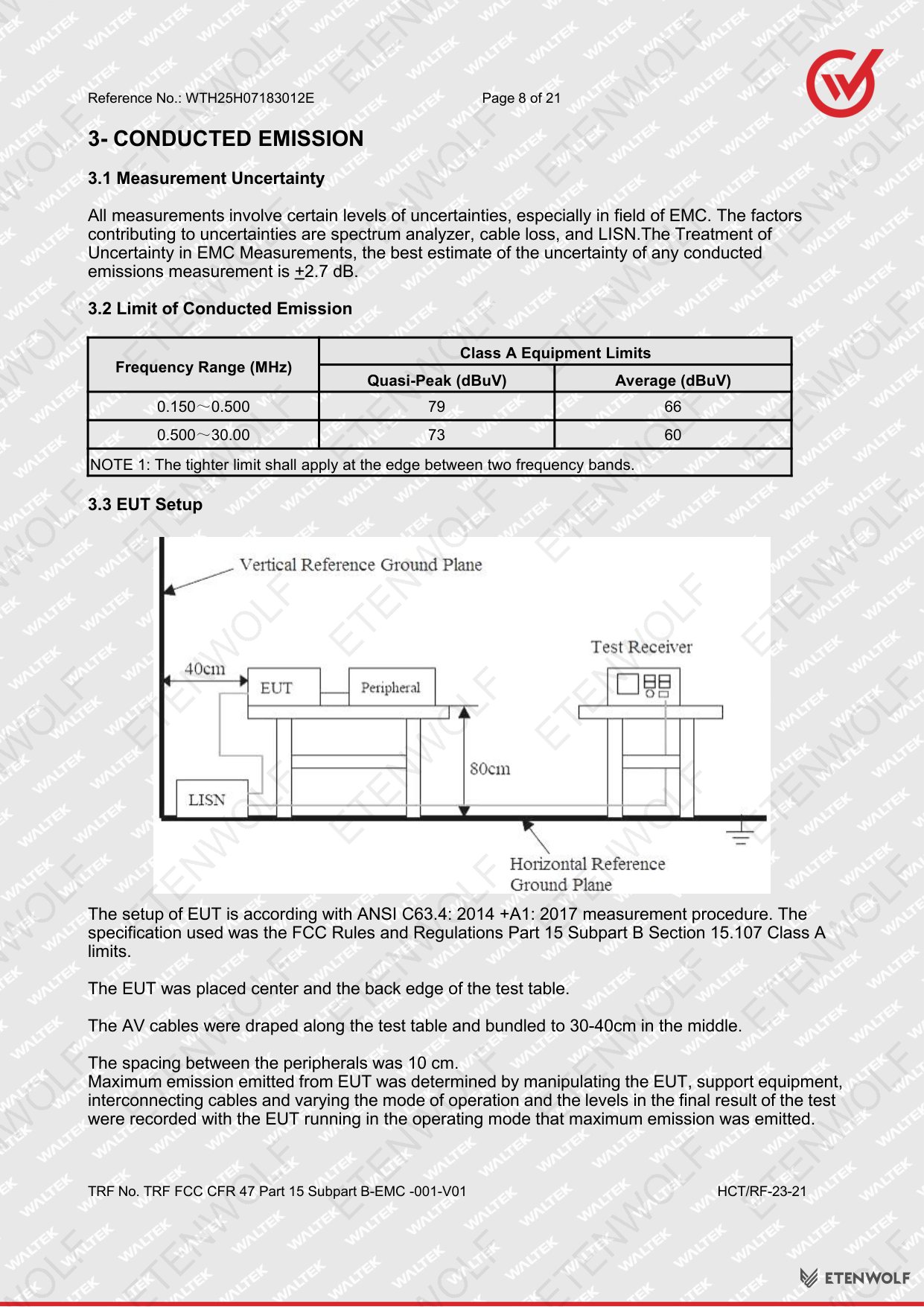

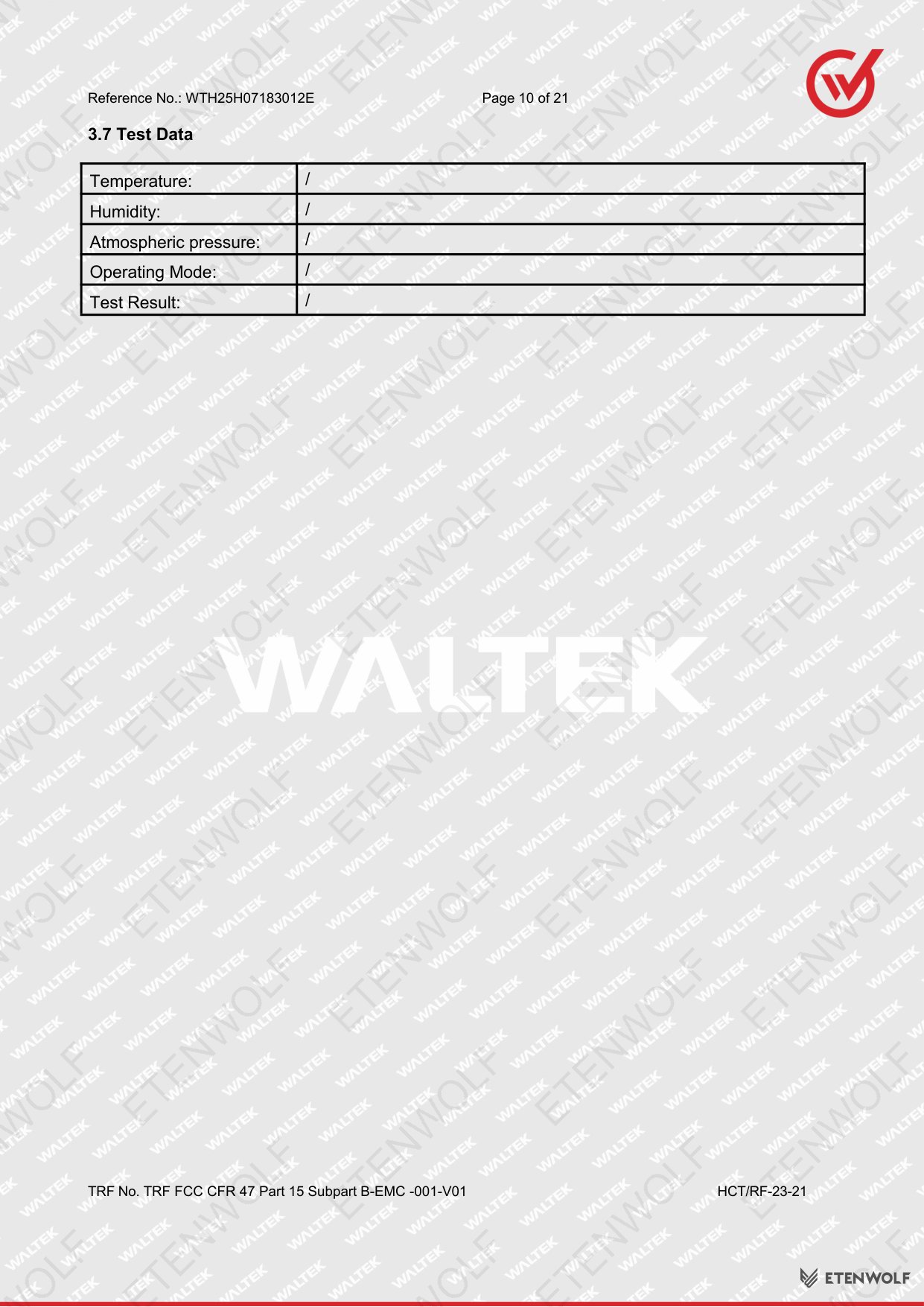

Conducted Emission Testing
| Parameter | Details |
|---|---|
| Test Section | Section 3 — Conducted Emission |
| Measurement Uncertainty | Documented in Section 3.1 |
| Applicable Limit | FCC CFR 47 Part 15 Subpart B conducted emission limits |
| EUT Setup | Per Section 3.3 of report |
| Instrument Setup | Per Section 3.4 of report |
| Test Result | Pass |

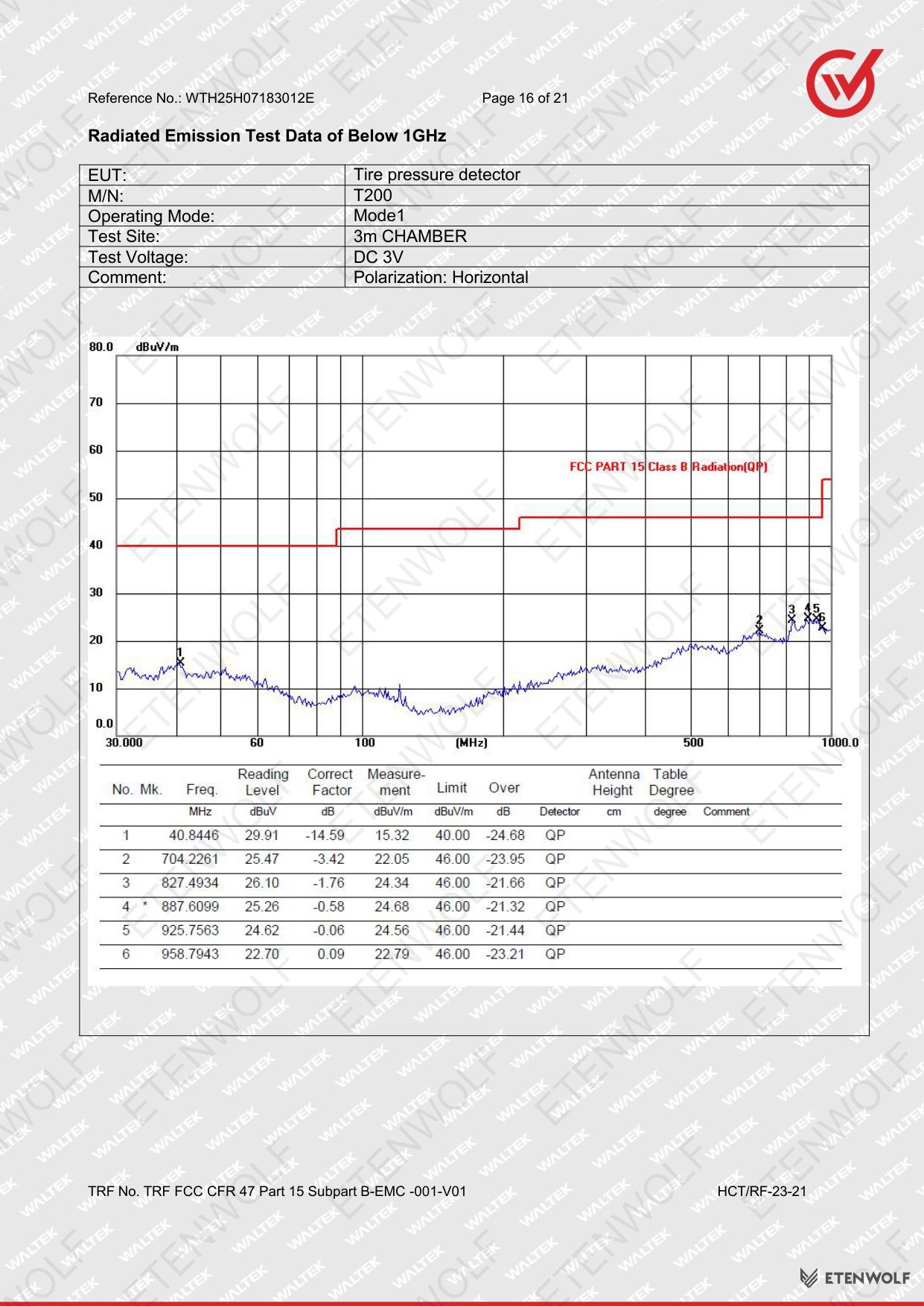

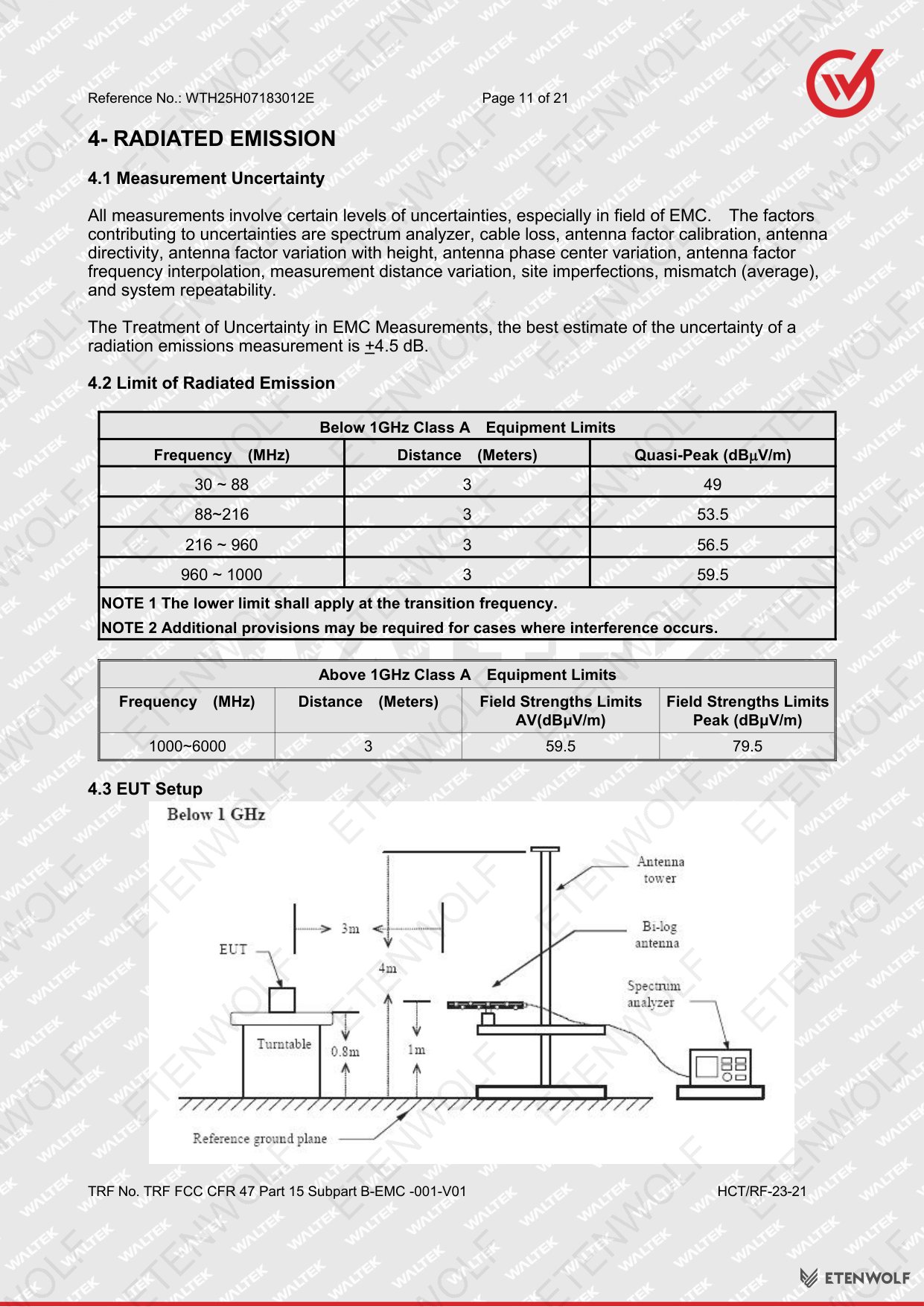

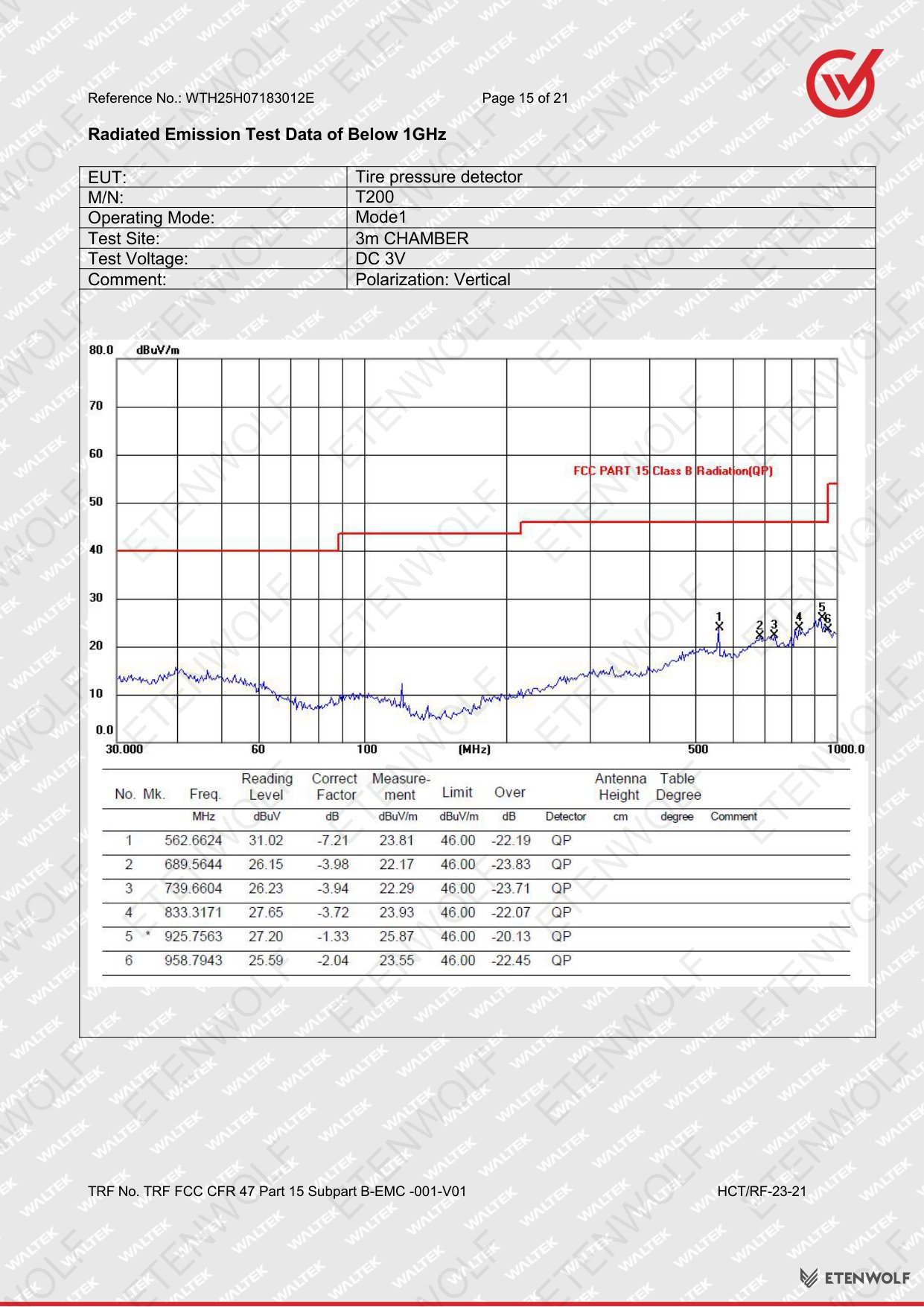

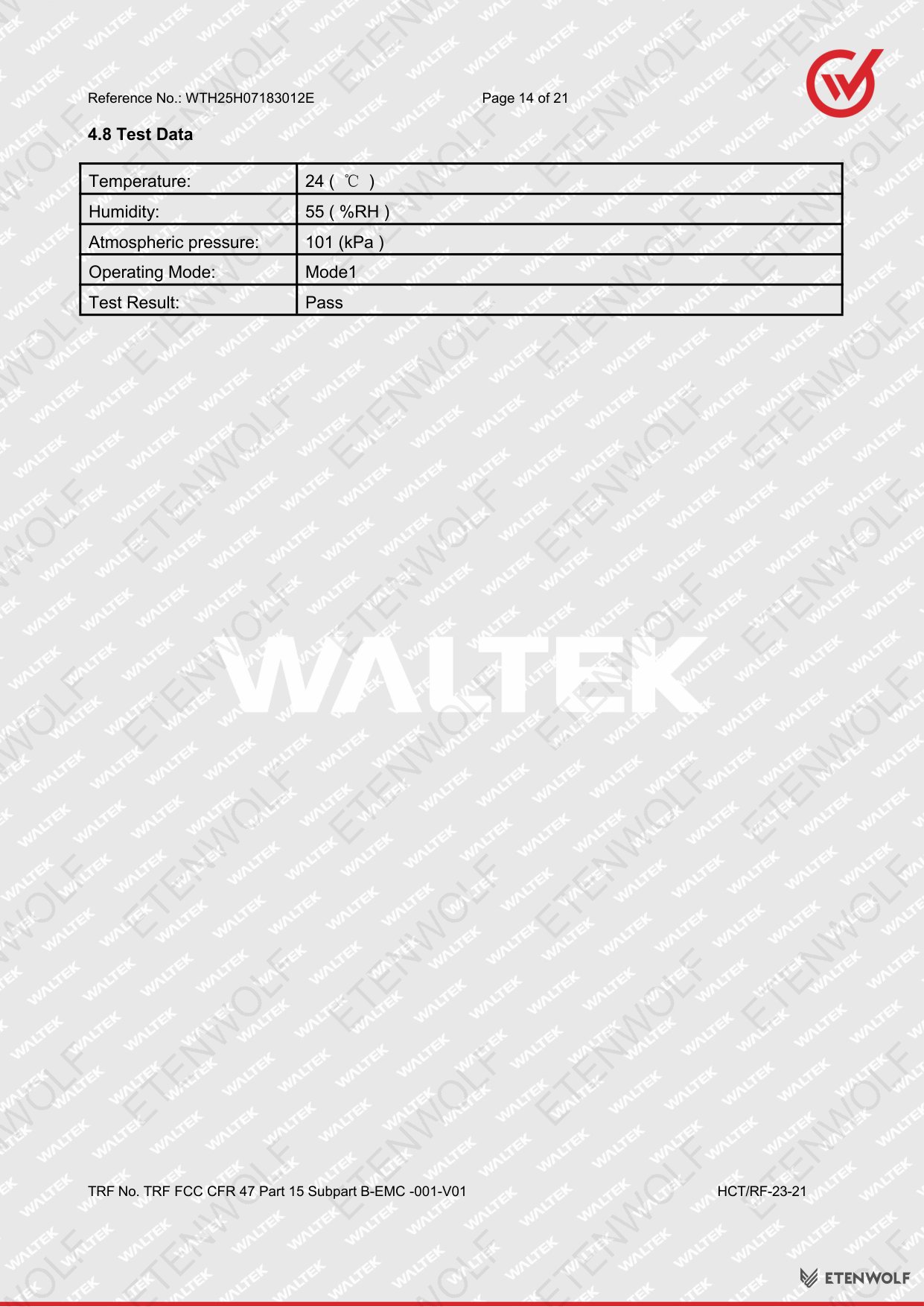

Radiated Emission Testing
| Parameter | Details |
|---|---|
| Test Section | Section 4 — Radiated Emission |
| Measurement Uncertainty | Documented in Section 4.1 |
| Applicable Limit | FCC CFR 47 Part 15 Subpart B radiated emission limits |
| EUT Setup | Per Section 4.3 of report |

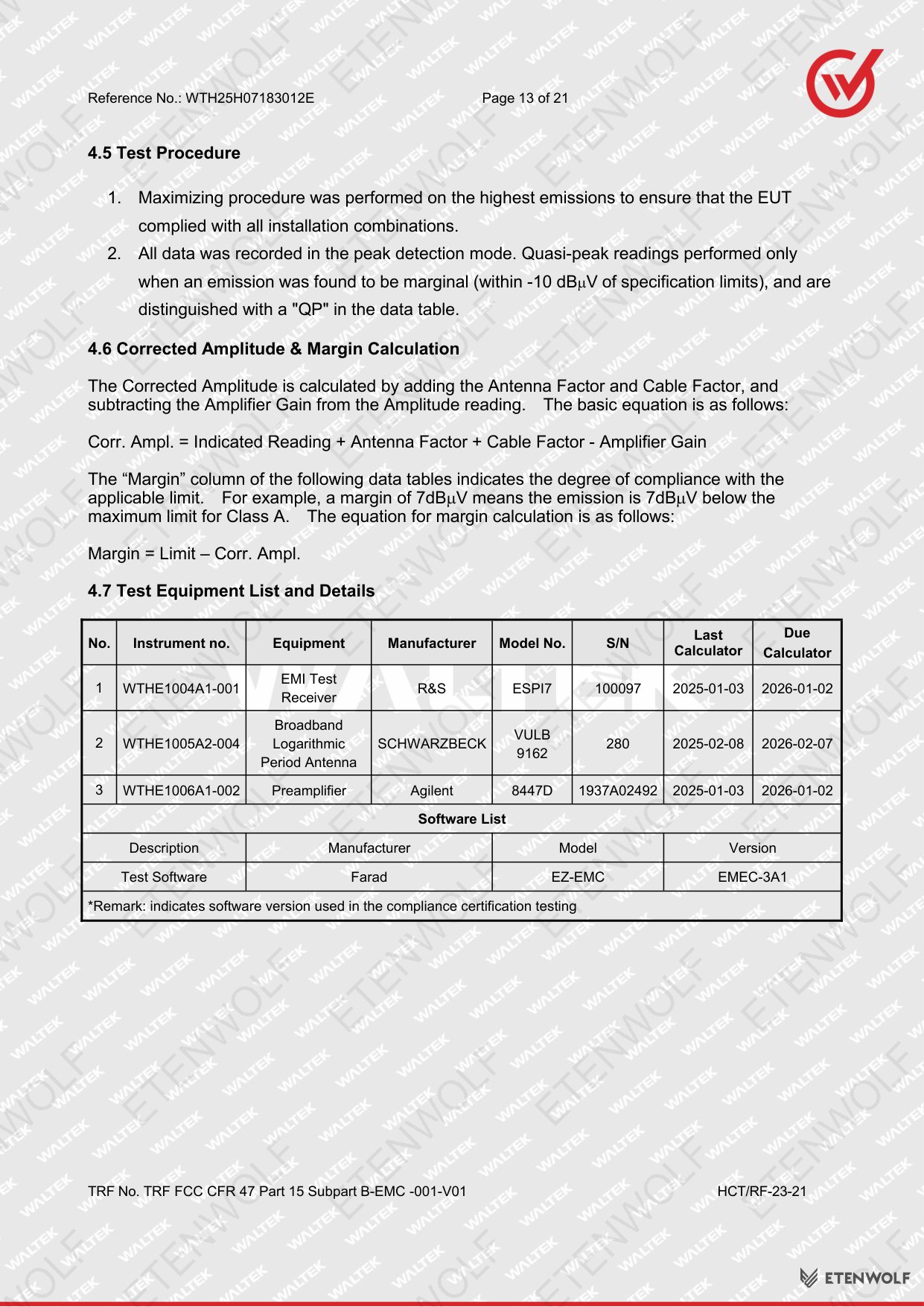

| Corrected Amplitude & Margin | Calculated per Section 4.6 |
| Test Result | Pass |
Report Signatories
| Role | Name |
|---|---|
| Prepared By | Snow Zeng |
| Approved By | Tony Wu |

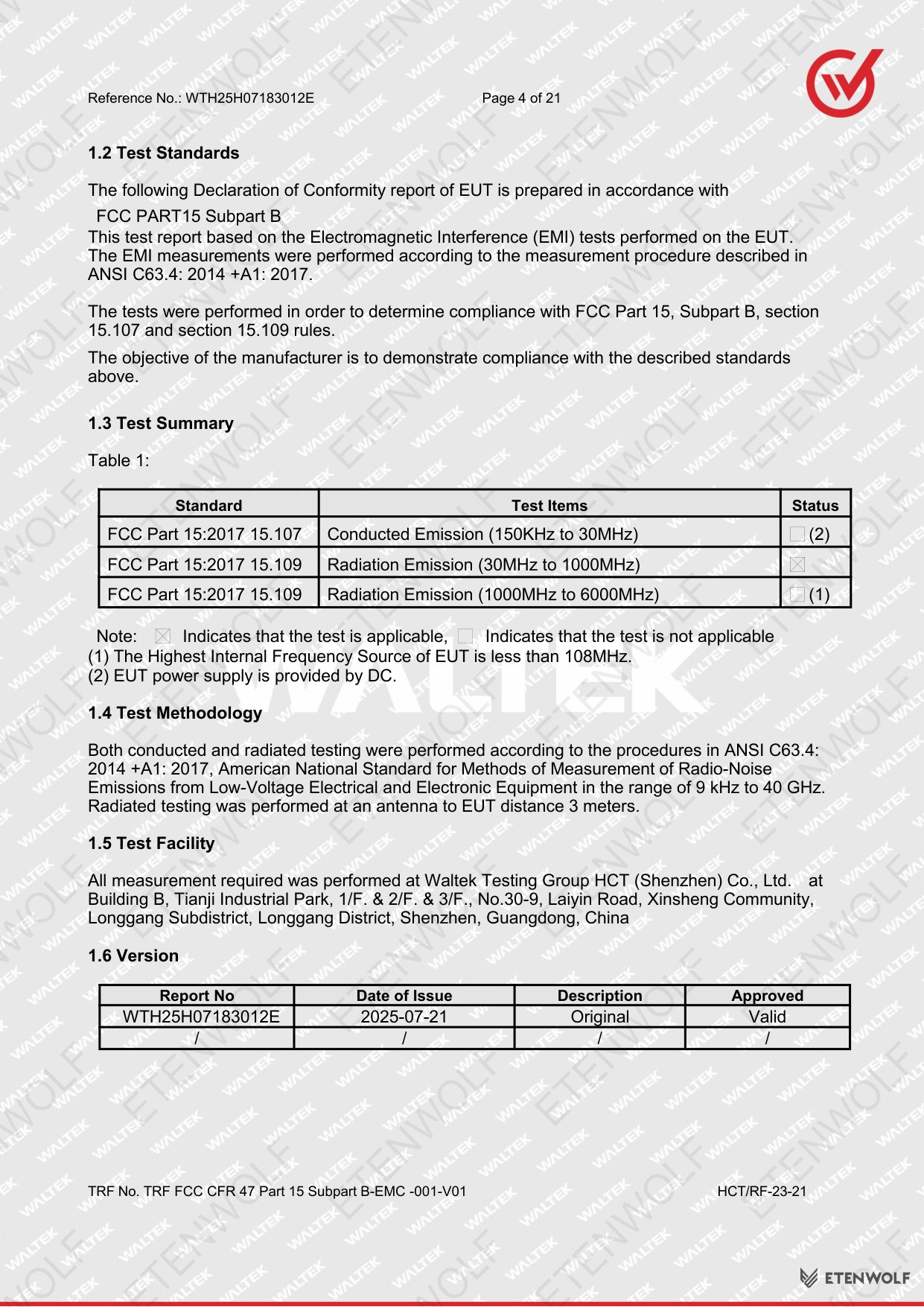

Standards & Compliance
The T200 Tire Pressure Detector was evaluated against the following regulatory standard:
| Standard | Scope | Authority |
|---|---|---|
| FCC CFR 47 Part 15 Subpart B | Unintentional Radiators — Conducted and Radiated Emission Limits | Federal Communications Commission (FCC), USA |
FCC CFR 47 Part 15 Subpart B establishes the technical standards for unintentional radiators — devices that generate radio frequency energy incidentally as a byproduct of their operation. Compliance demonstrates that the T200 does not cause harmful interference to other electronic devices or communication services operating within the United States.
The test methodology followed the Test Report Form TRF FCC CFR 47 Part 15 Subpart B-EMC-001-V01 and included:

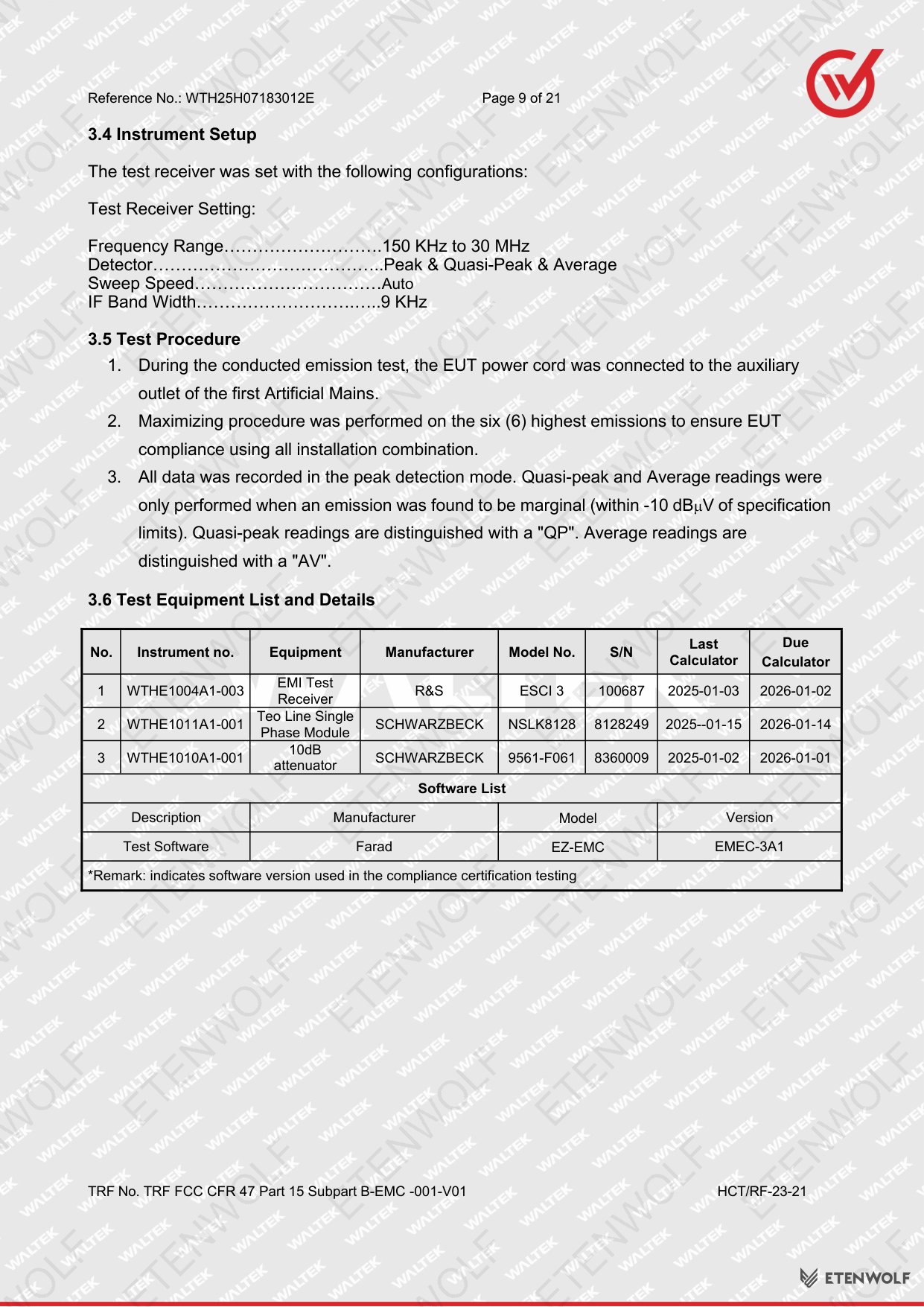

- Conducted emission measurements using a calibrated spectrum analyzer and LISN (Line Impedance Stabilization Network)

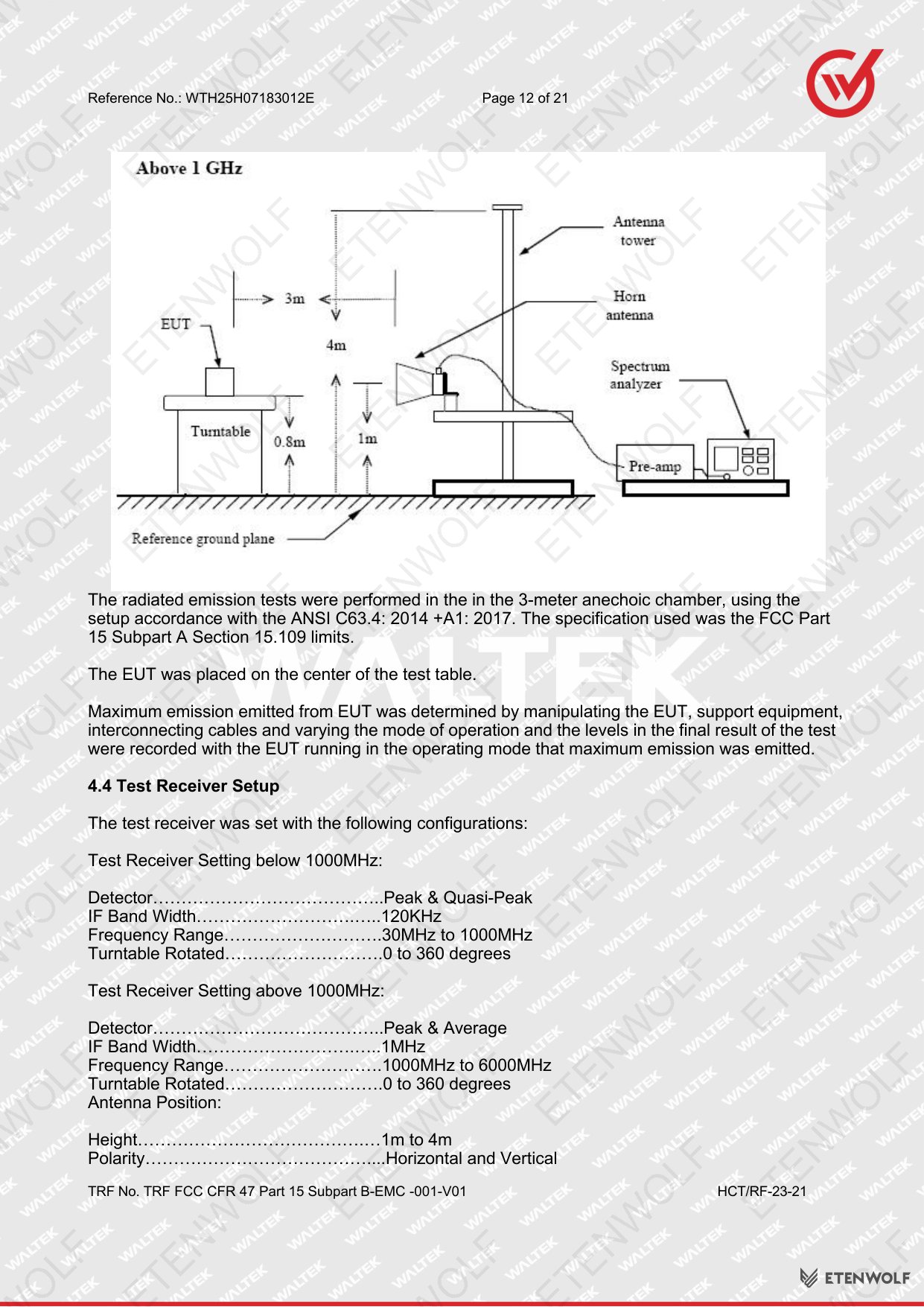

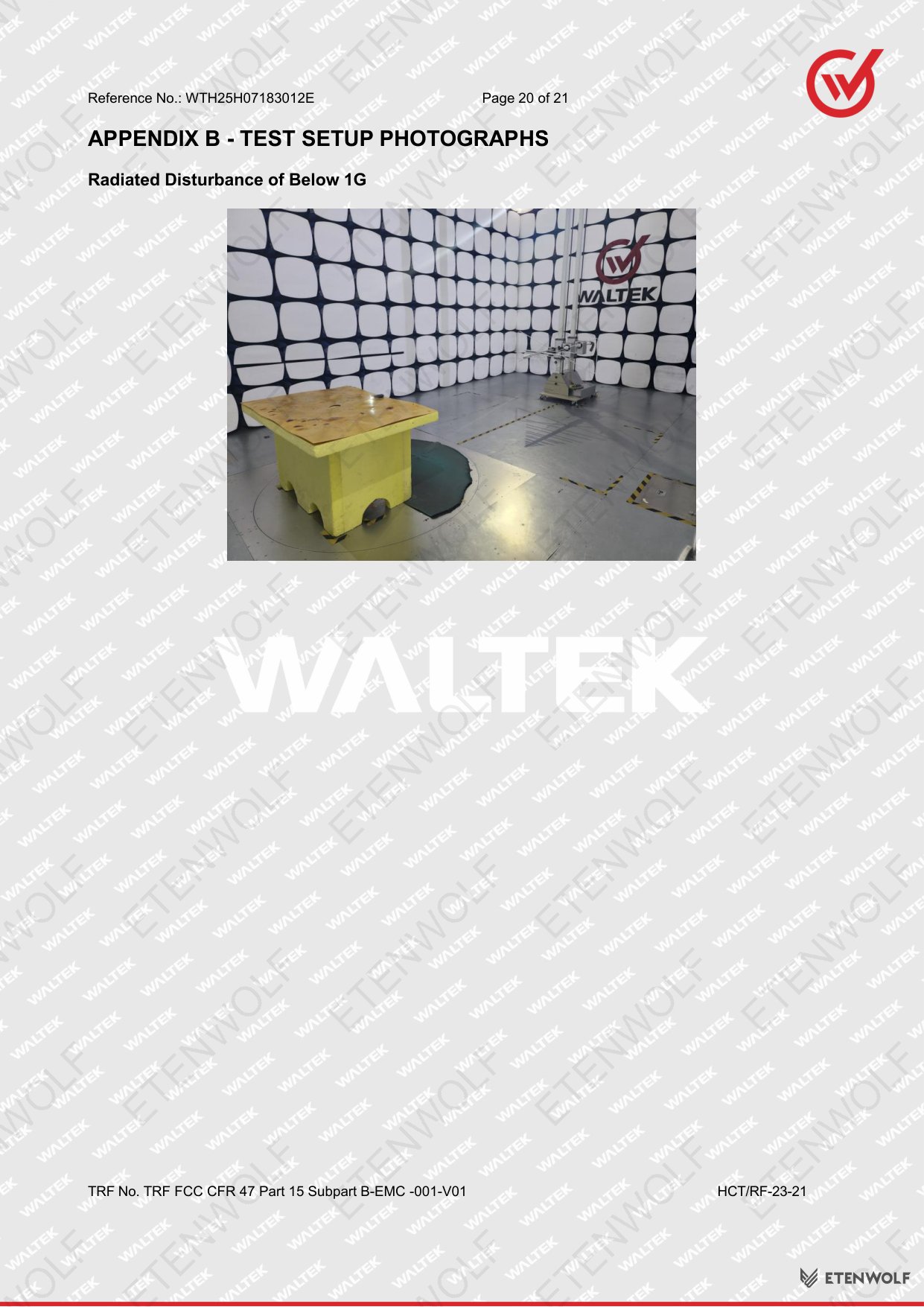

- Radiated emission measurements performed in a suitable RF test facility with corrected amplitude and margin calculations

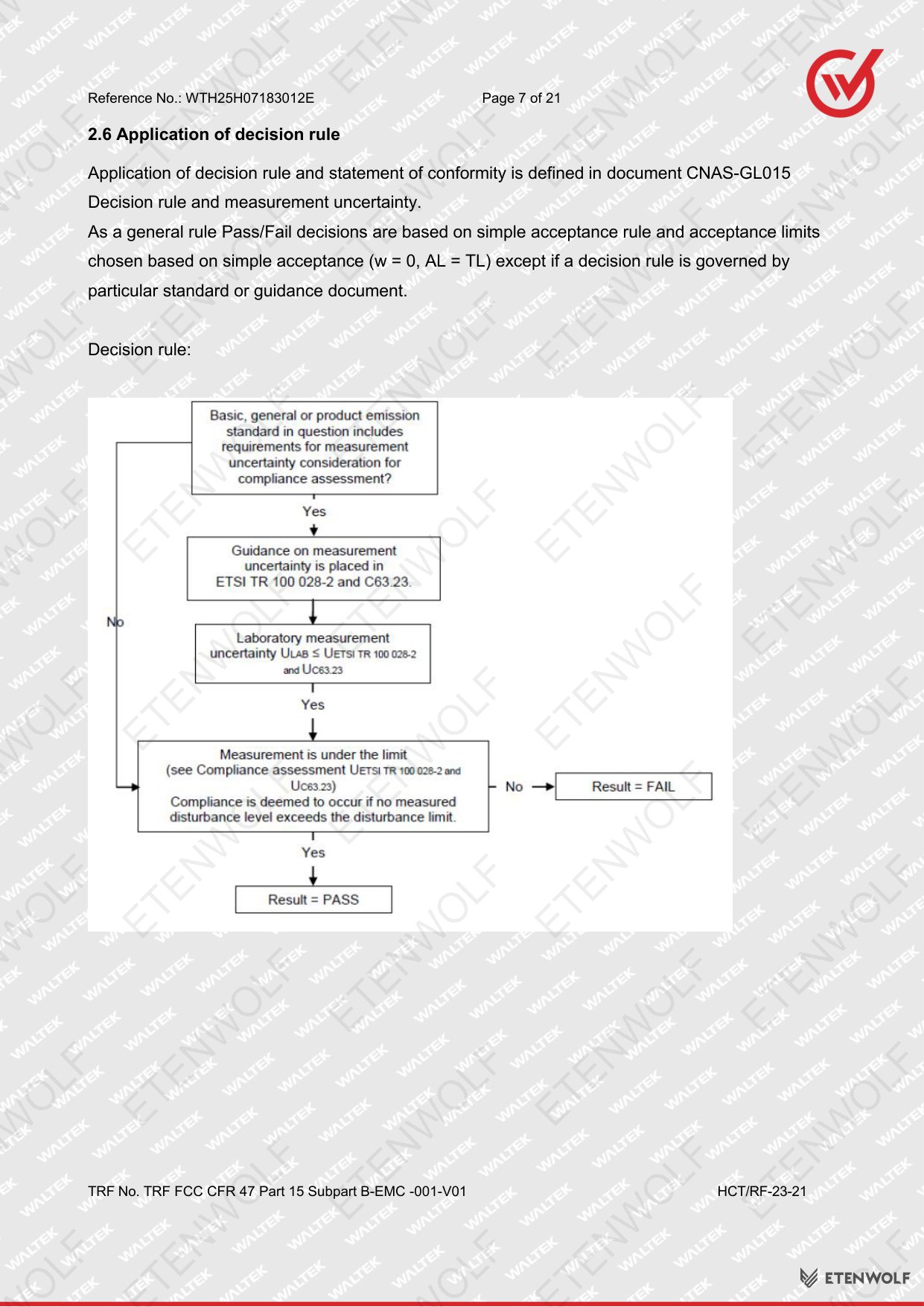

- Application of the laboratory’s documented decision rule for pass/fail determination
- Full recording of test equipment used, including calibration traceability (Sections 3.6 and 4.7 of the report)
Validity & Certification Body
The test report was issued on 2025-07-21 by Waltek Testing Group HCT (Shenzhen) Co., Ltd., an accredited EMC and RF testing laboratory operating under the internal quality reference HCT/RF-23-21.
| Field | Details |
|---|---|
| Report Reference Number | WTH25H07183012E |
| Date of Issue | 2025-07-21 |
| Test Period | 2025-07-14 to 2025-07-17 |
| Sample Received | 2025-07-10 |
| Issuing Laboratory | Waltek Testing Group HCT (Shenzhen) Co., Ltd. |
| Laboratory Address | Building B, Tianji Industrial Park, 1/F. & 2/F. & 3/F., No.30-9, Laiyin Road, Xinsheng Community, Longgang Subdistrict, Longgang District, Shenzhen, Guangdong, China |
| Laboratory Tel | 0755-84616666 |
| Service Tel | 400-0066-989 |
| [email protected] | |
| Total Report Pages | 21 pages |
FCC SDoC test reports do not carry a fixed expiration date in the same manner as third-party certifications; however, the declaration remains valid as long as the product continues to be manufactured to the same specifications tested. Any design change that could affect RF emissions would require re-evaluation against FCC CFR 47 Part 15 Subpart B.
Frequently Asked Questions
- What does the FCC SDoC for the T200 Tire Pressure Detector confirm?
-
The FCC Supplier’s Declaration of Conformity (SDoC), supported by test report WTH25H07183012E, confirms that the T200 Tire Pressure Detector complies with the conducted and radiated emission limits set out in FCC CFR 47 Part 15 Subpart B. This means the device can be legally sold and used in the United States without causing harmful electromagnetic interference to other equipment.
- Which test laboratory performed the FCC emission testing for the T200?
-
Testing was conducted by Waltek Testing Group HCT (Shenzhen) Co., Ltd., located in Longgang District, Shenzhen, Guangdong, China. The tests were carried out between 2025-07-14 and 2025-07-17, and the report was issued on 2025-07-21. The report was prepared by Snow Zeng and approved by Tony Wu.
- What is the difference between FCC SDoC and FCC ID certification?
-
FCC SDoC (Supplier’s Declaration of Conformity) is a self-declaration path available for certain unintentional radiators under Part 15 Subpart B. The manufacturer or importer tests the product and declares compliance without requiring FCC authorization. FCC ID certification, by contrast, involves third-party review and results in a registered FCC ID number on the device. The T200 qualifies under the SDoC route as a Part 15 Subpart B unintentional radiator.
- Does this FCC test report cover the T200 for markets outside the United States?
-
No. Report WTH25H07183012E specifically addresses FCC CFR 47 Part 15 Subpart B requirements for the US market. For other markets, separate certifications may be required — for example, CE marking for the European Union, KC certification for South Korea, or other regional EMC approvals.
Related Documents
The following certification and compliance documents are relevant for the T200 Tire Pressure Detector and are recommended to support a complete global compliance portfolio:
- CE EMC Declaration of Conformity — Required for the European market; covers emission and immunity testing under IEC and ETSI harmonized standards.
- CE LVD (Low Voltage Directive) Report — Applicable if the T200 operates within the low voltage directive scope for electrical safety.
- RoHS Compliance Report — Confirms restriction of hazardous substances in line with RoHS Directive 2011/65/EU, required for EU market access.
- REACH SVHC Declaration — Addresses substance of very high concern (SVHC) requirements under REACH Regulation (EC) No 1907/2006.
- KC Certification (KCC) — Required for the South Korean market, covering EMC and safety requirements for electronic devices.
- UN 38.3 Battery Transport Test Report — If the T200 contains or is sold with a lithium battery, a UN 38.3 transport test report is required for international shipping compliance.
- ISO 9001 Quality Management Certificate — Issued to the manufacturing facility to confirm quality management system compliance per ISO 9001.
