Document Overview

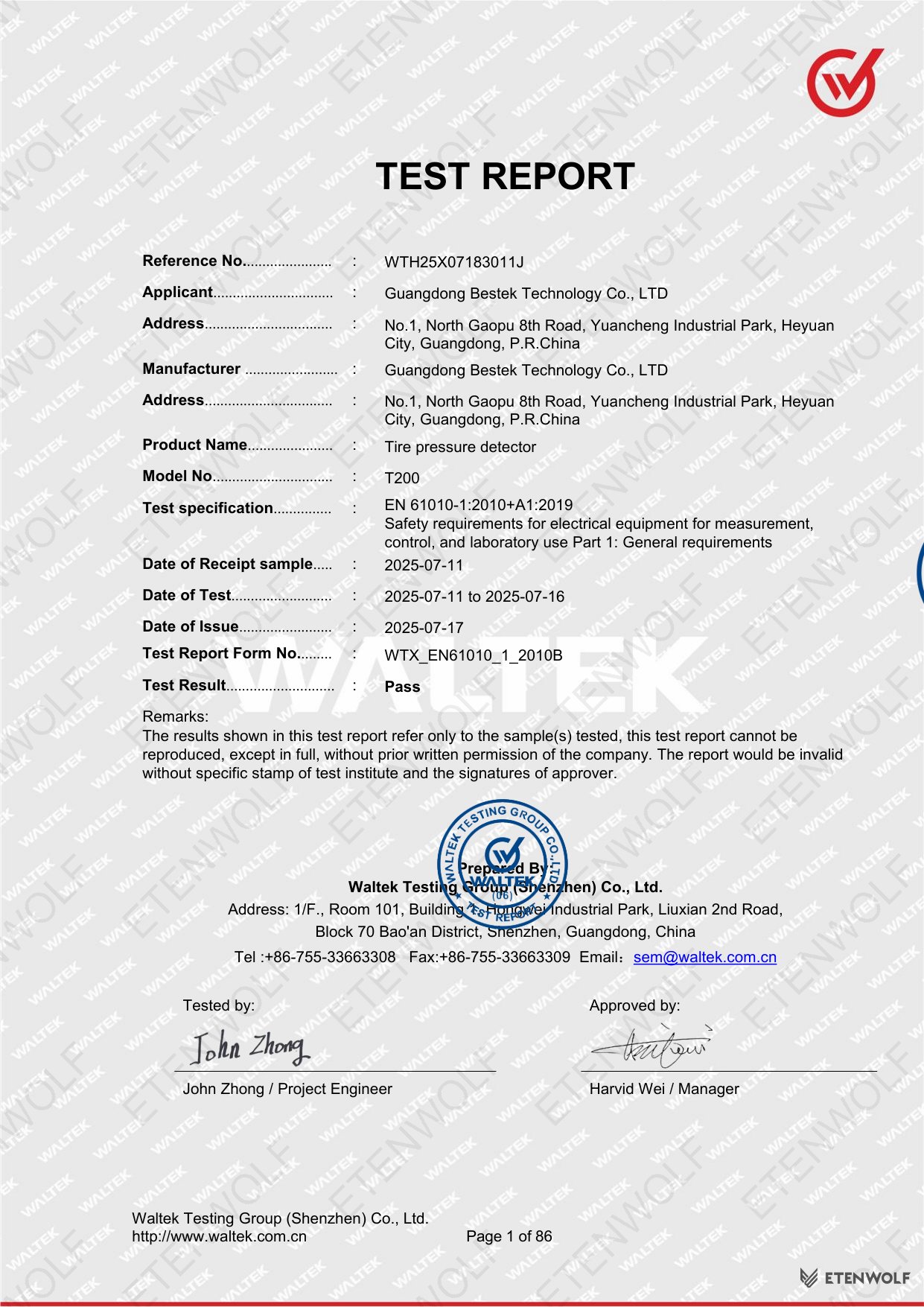

This article covers the official CE Low Voltage Directive (LVD) test report issued for the ETENWOLF T200 Tire Pressure Detector. The document is a full safety compliance test report, not a certificate, and was prepared by Waltek Testing Group (Shenzhen) Co., Ltd., an accredited third-party testing laboratory located in Bao’an District, Shenzhen, Guangdong, China.
| Field | Detail |
|---|---|
| Reference Number | WTH25X07183011J |
| Document Type | CE-LVD Safety Test Report |
| Test Report Form No. | WTX_EN61010_1_2010B |
| Date of Sample Receipt | 2025-07-11 |
| Date of Testing | 2025-07-11 to 2025-07-16 |
| Date of Issue | 2025-07-17 |
| Overall Test Result | Pass |
| Issuing Laboratory | Waltek Testing Group (Shenzhen) Co., Ltd. |
The report confirms that the submitted sample complies with all applicable requirements under the referenced standard. Results apply exclusively to the tested sample and may not be reproduced in part without prior written permission from Waltek.

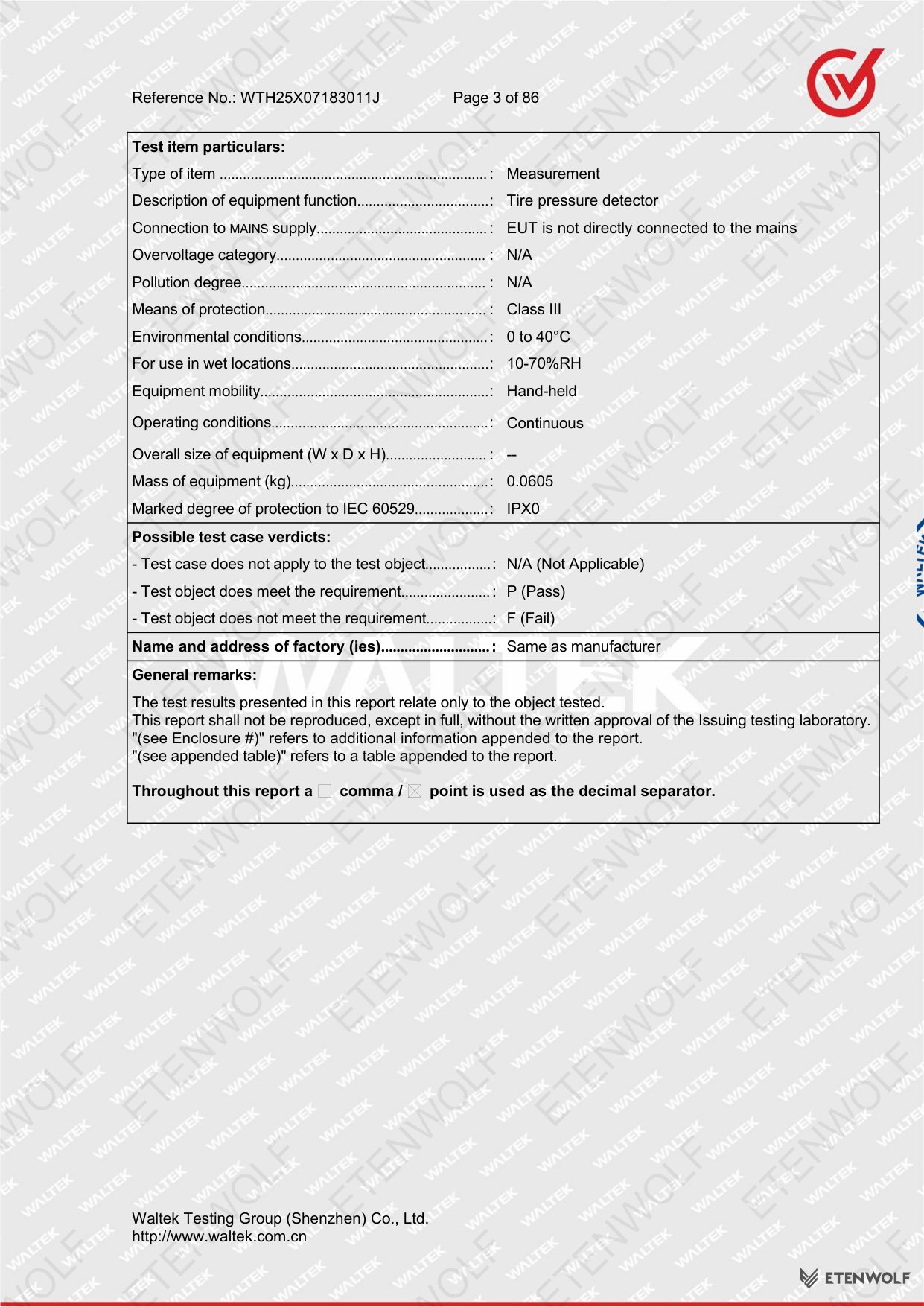

Product Information
The product evaluated in this report is the ETENWOLF T200, a hand-held tire pressure detector designed for consumer and professional use. The device operates on battery power and is not connected to a mains supply, placing it in the Class III protection category under the applicable standard.
| Attribute | Value |
|---|---|
| Product Name | Tire Pressure Detector |
| Model Number | T200 |
| Input Rating | 3 V (1.5 V AAA × 2) |
| Equipment Type | Measurement instrument |
| Equipment Mobility | Hand-held |
| Operating Conditions | Continuous |
| Mass | 0.0605 kg |
| Degree of Protection | IPX0 (per IEC 60529) |
| Means of Protection | Class III |
| Mains Connection | Not directly connected to mains |
| Overvoltage Category | N/A |
| Pollution Degree | N/A |
| Environmental Temperature Range | 0 °C to 40 °C |
| Humidity Range | 10% to 70% RH |
| Country of Origin | China |
The applicant and manufacturer on record is Guangdong Bestek Technology Co., Ltd., located at No. 1, North Gaopu 8th Road, Yuancheng Industrial Park, Heyuan City, Guangdong, P.R. China.
Key Details

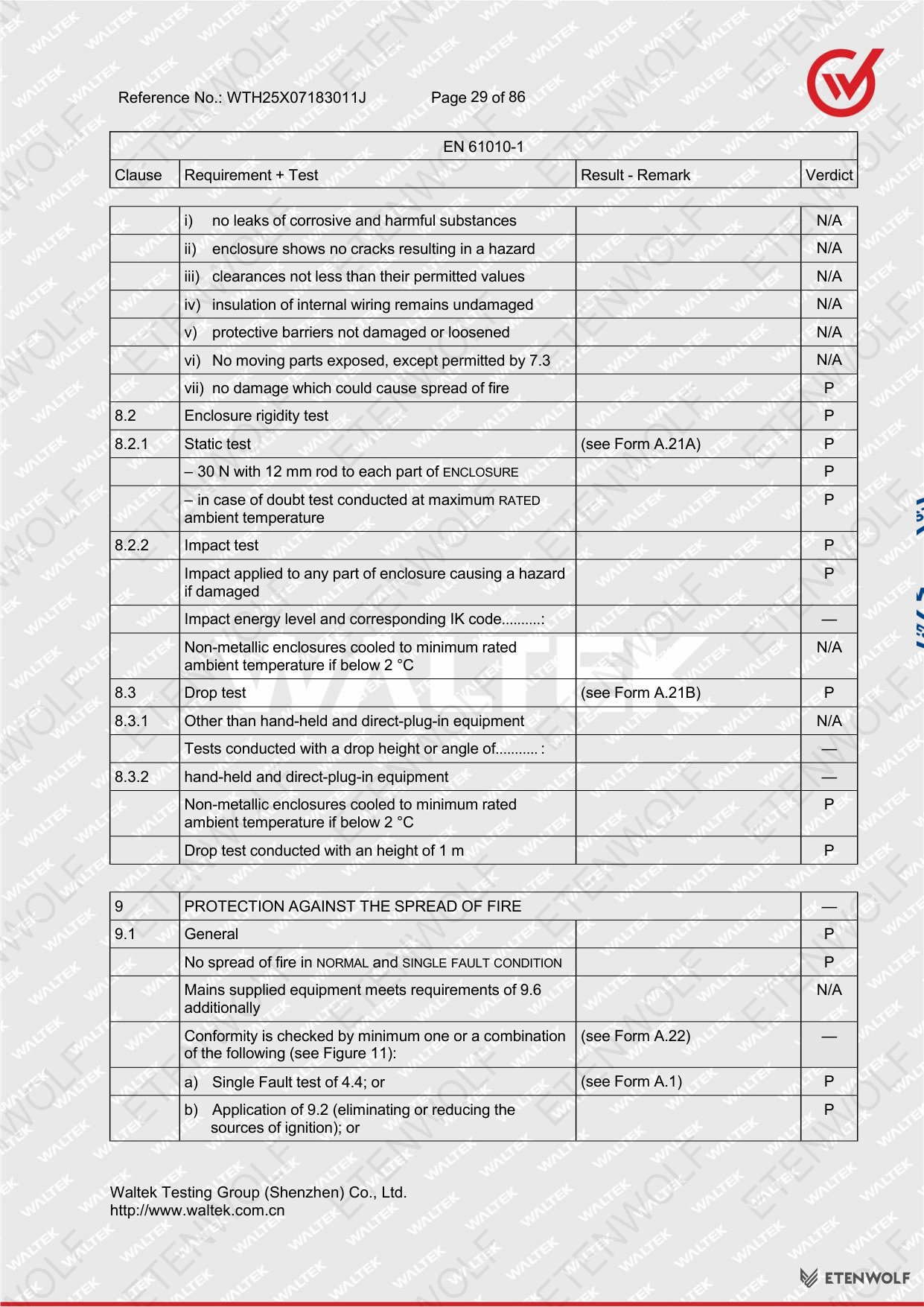

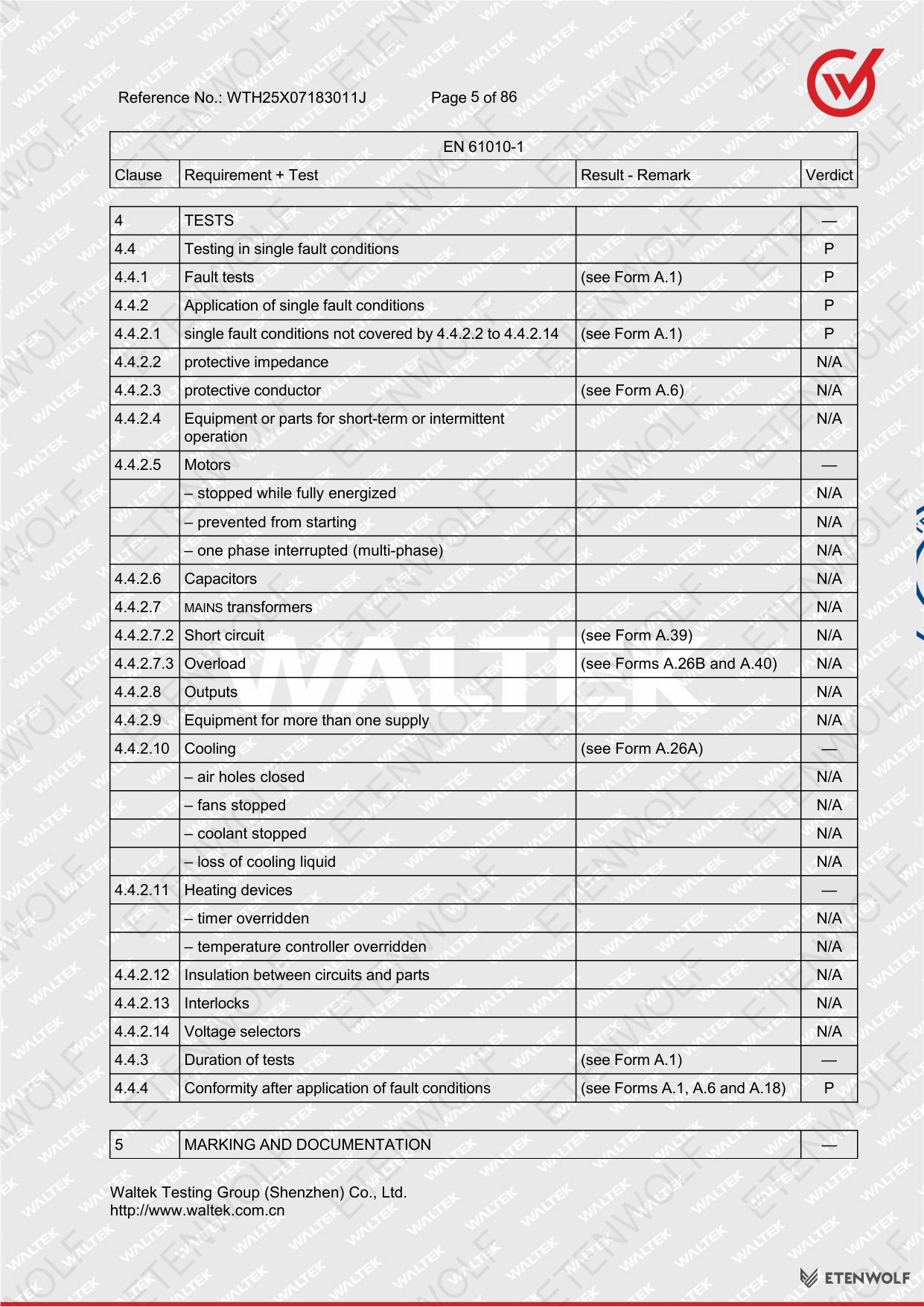

The test report covers a comprehensive evaluation of the T200 against each applicable clause of EN 61010-1:2010+A1:2019. The table below summarises the key test clauses, their requirements, and the verdicts recorded by Waltek engineers.
| Clause | Requirement / Test Area | Verdict |
|---|---|---|

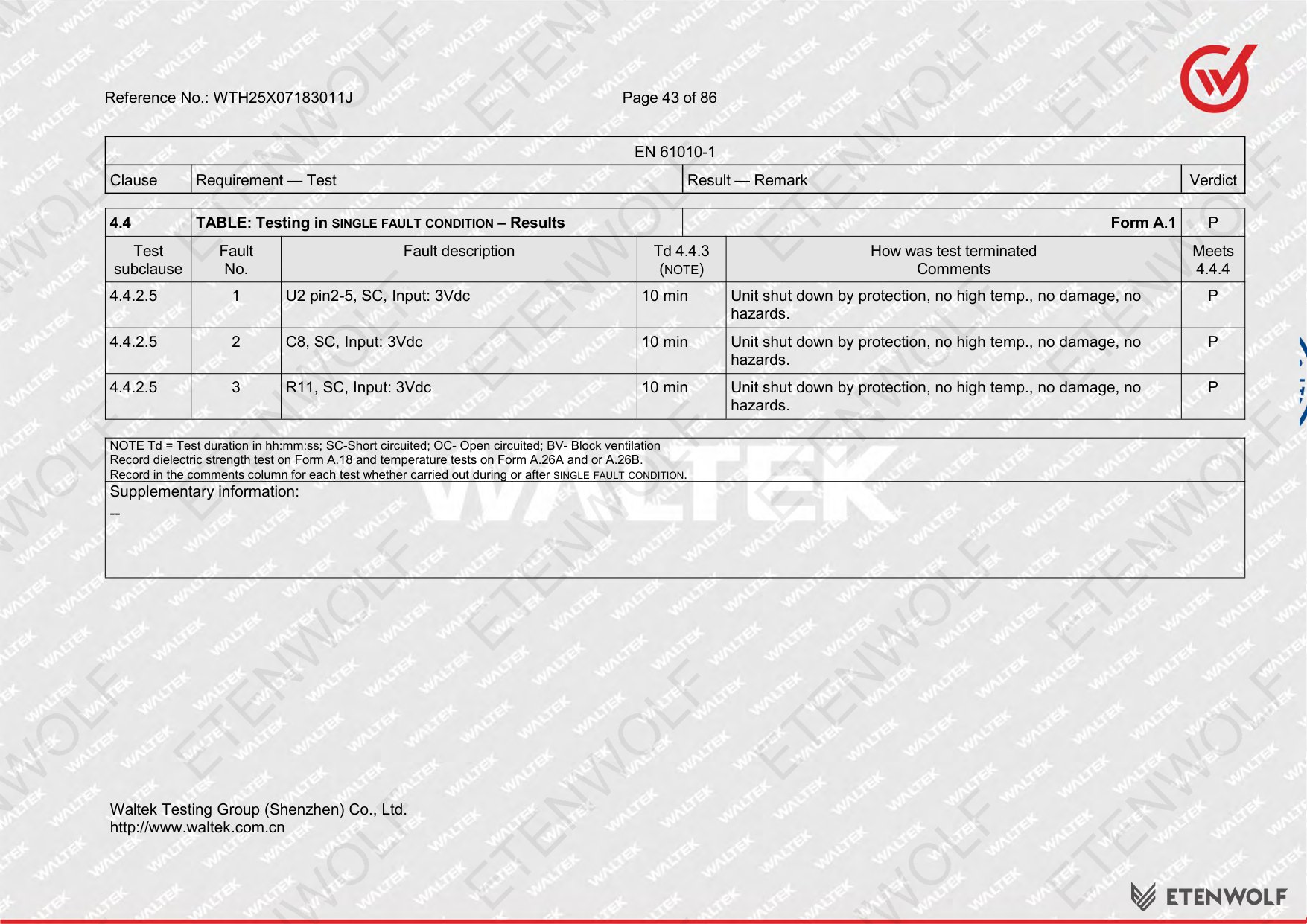

| 4.4 | Testing in single fault conditions | Pass |
| 4.4.1 | Fault tests (Form A.1) | Pass |
| 4.4.2.1 | Single fault conditions not covered by 4.4.2.2–4.4.2.14 | Pass |

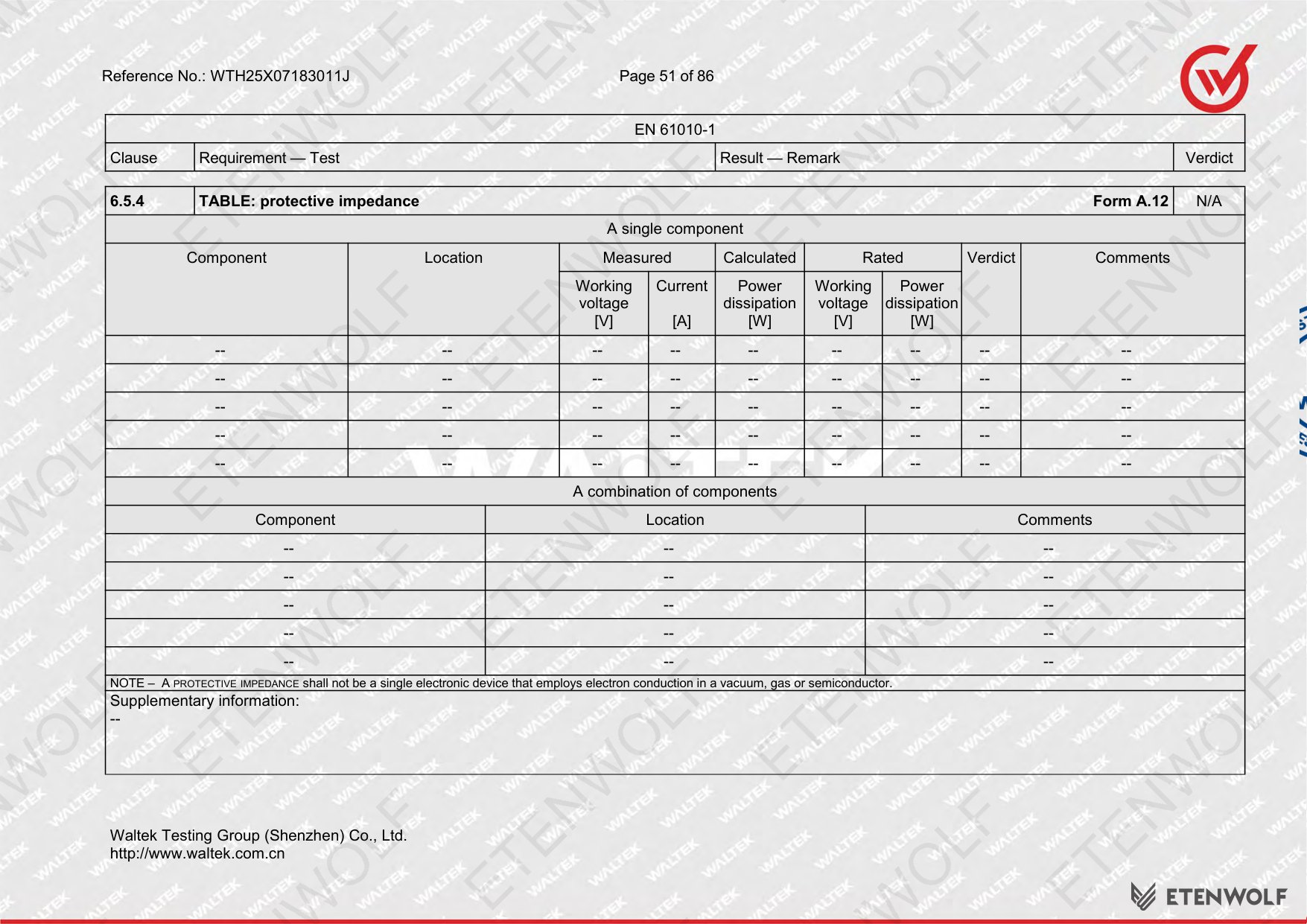

| 4.4.2.2 | Protective impedance | N/A |
| 4.4.2.3 | Protective conductor (Form A.6) | N/A |

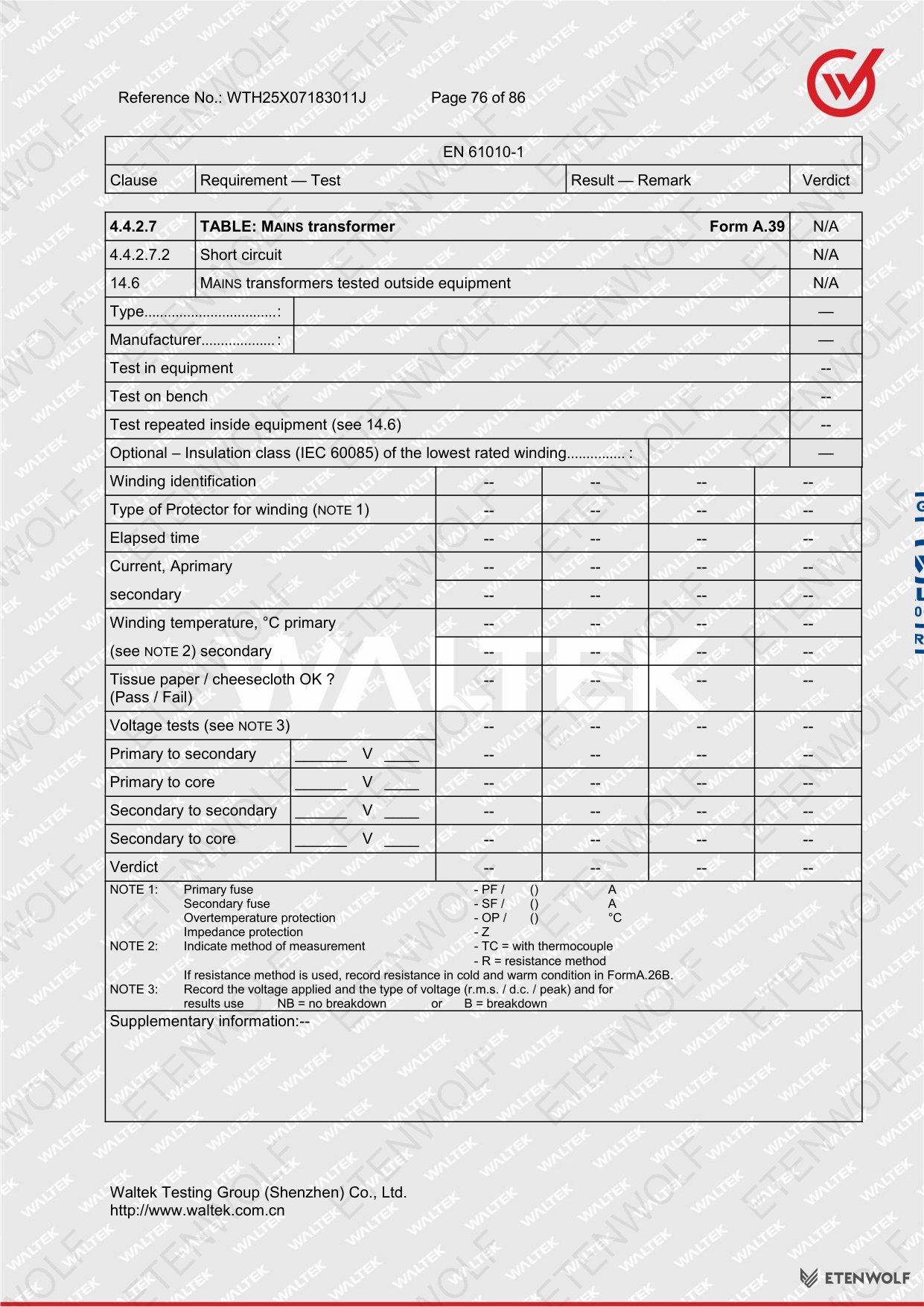

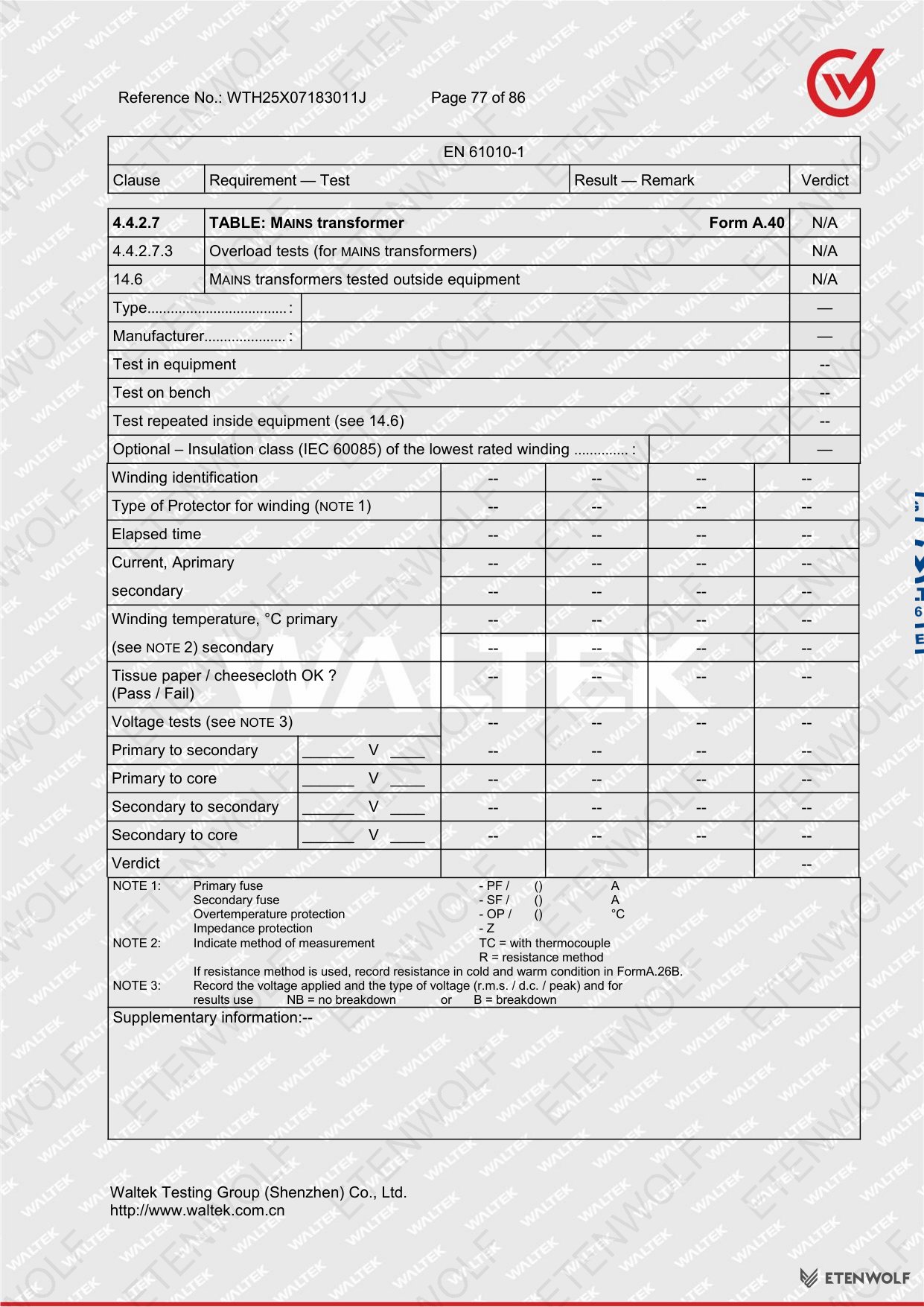

| 4.4.2.7 | Mains transformers | N/A |
| 4.4.2.10 | Cooling (air holes, fans, coolant) | N/A |
| 4.4.4 | Conformity after application of fault conditions | Pass |

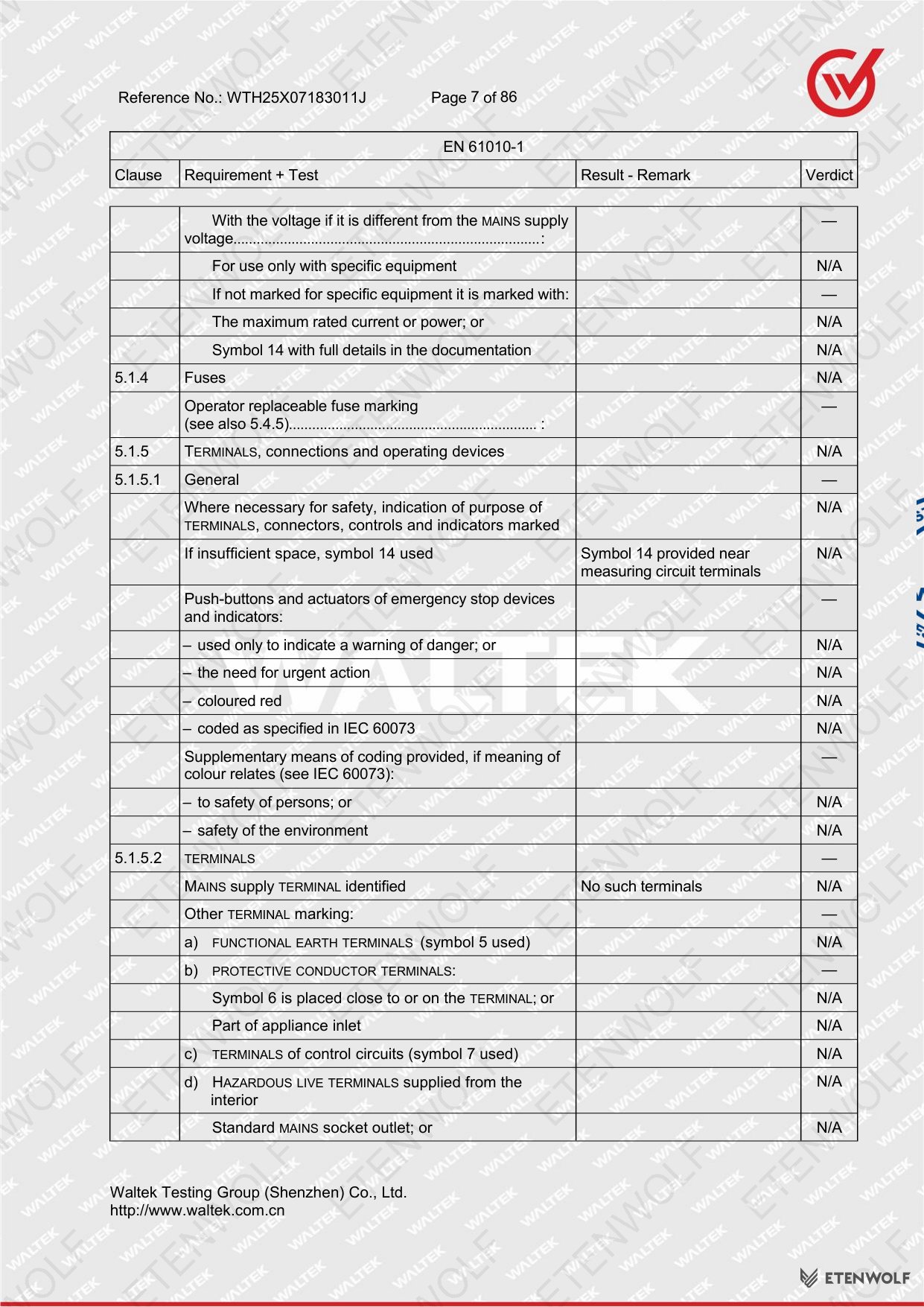

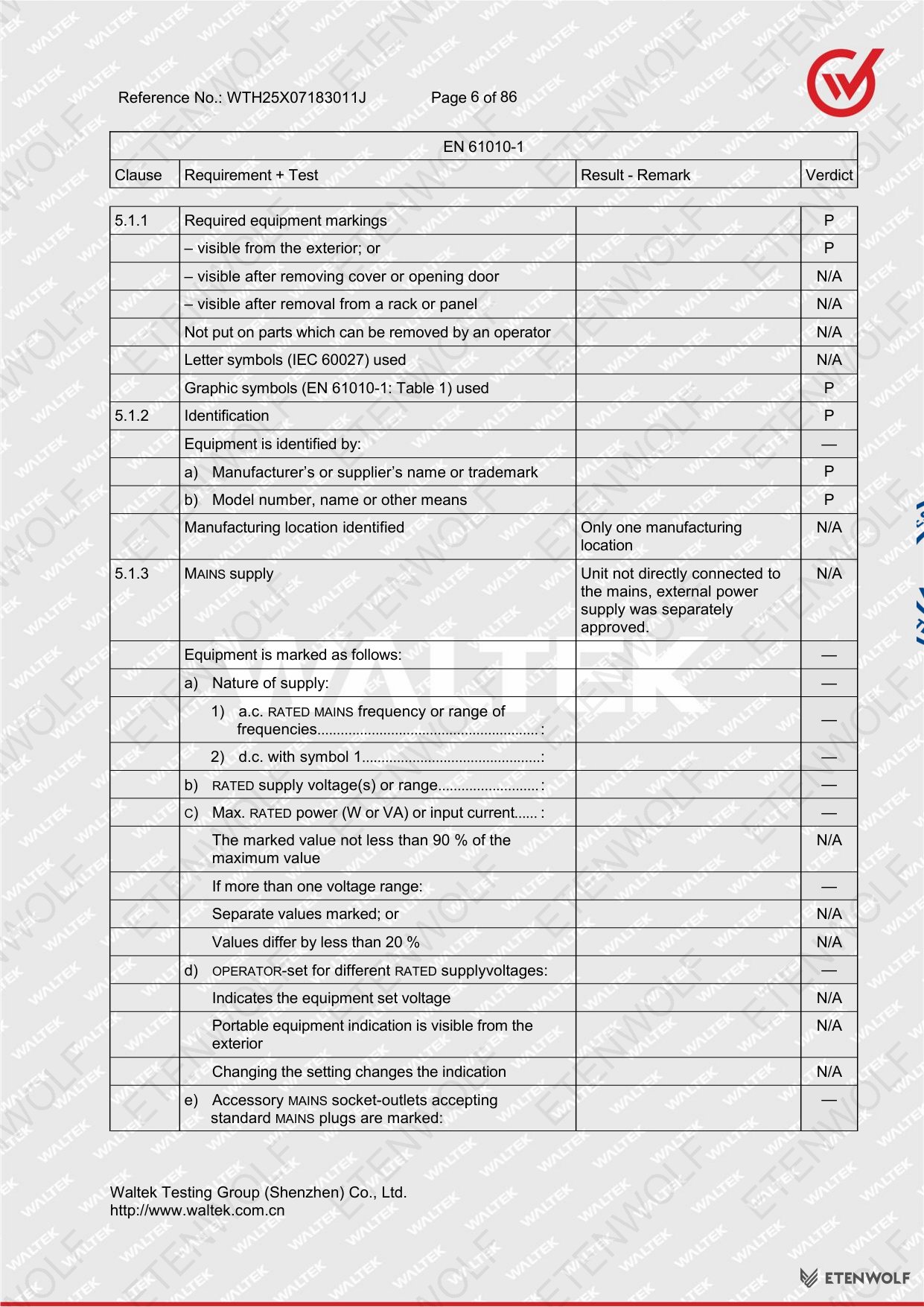

| 5.1.1 | Required equipment markings (visible from exterior) | Pass |
| 5.1.1 | Graphic symbols per EN 61010-1 Table 1 | Pass |
| 5.1.2a | Identification – manufacturer name or trademark | Pass |
| 5.1.2b | Identification – model number or name | Pass |

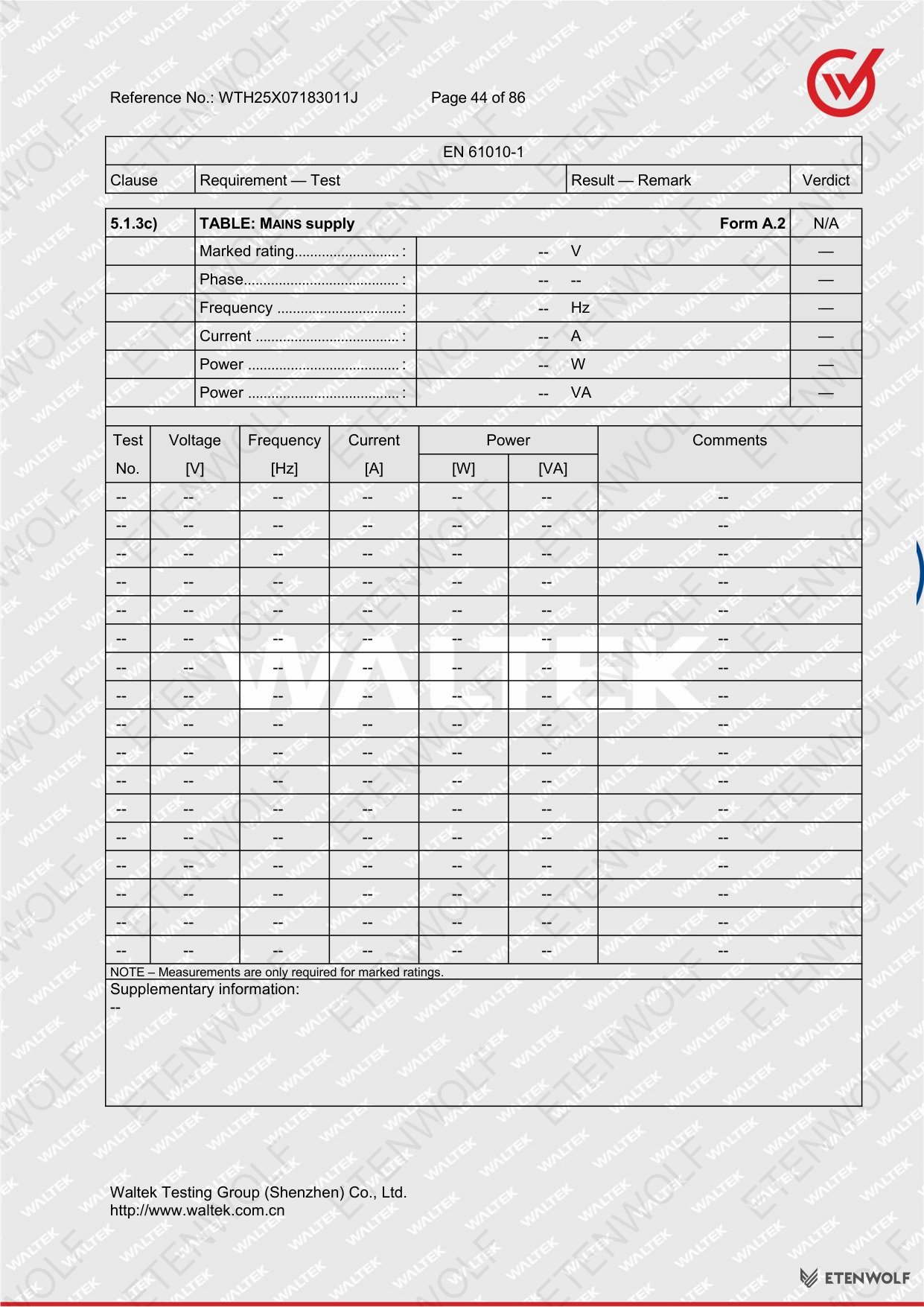

| 5.1.3 | Mains supply marking | N/A (battery-powered) |
Clauses marked N/A were determined to be inapplicable because the T200 is battery-powered (Class III), has no mains connection, no internal transformer, no cooling system, and no motor. All applicable clauses returned a Pass verdict. National differences and group differences for CENELEC member countries were reviewed and confirmed as addressed.

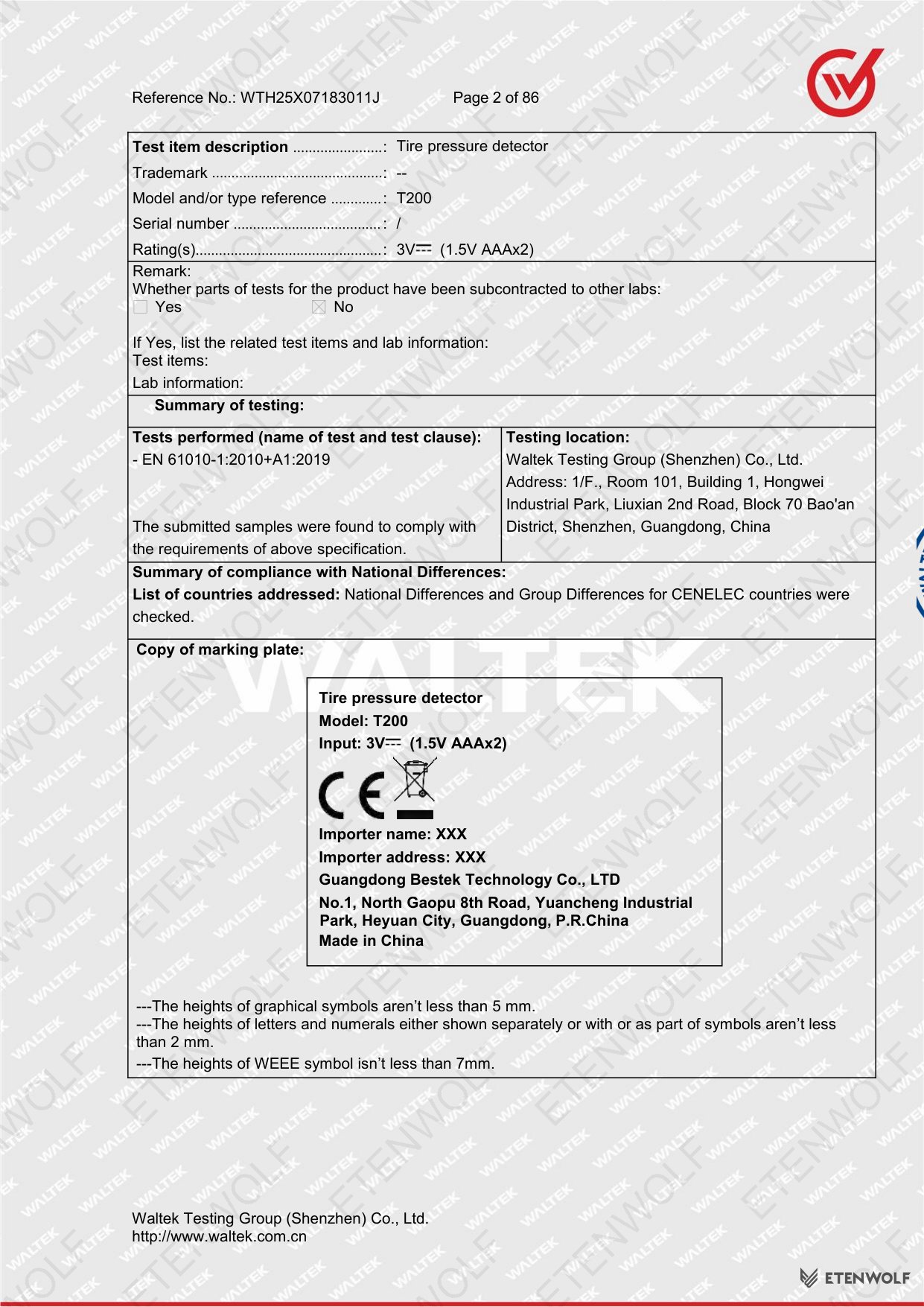

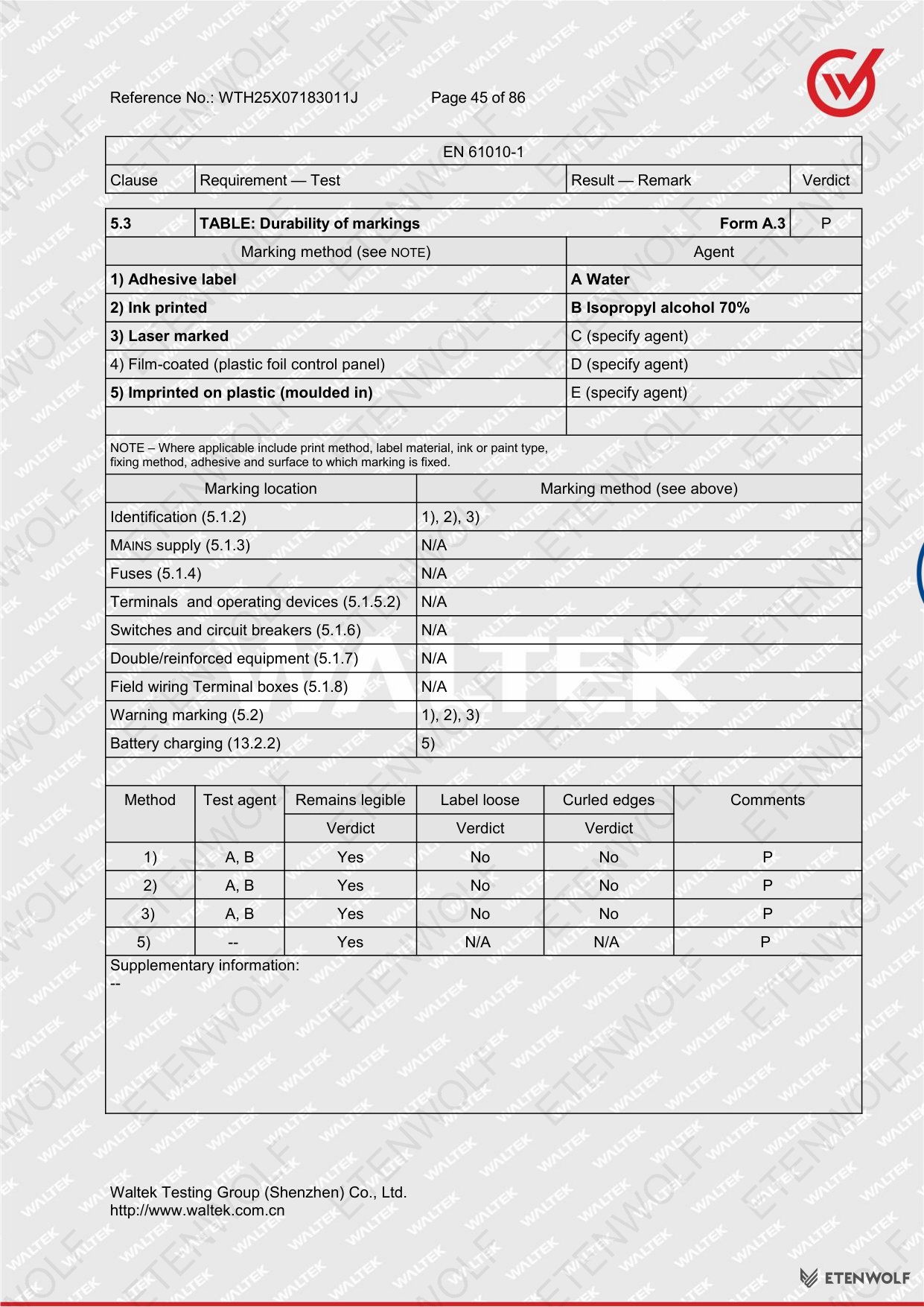

Marking requirements verified on the product label include:
- Graphical symbol heights not less than 5 mm
- Letter and numeral heights not less than 2 mm
- WEEE symbol height not less than 7 mm
Standards & Compliance
The T200 was evaluated against the following standard in connection with the CE Low Voltage Directive (LVD) 2014/35/EU:
| Standard | Title | Scope |
|---|---|---|
| EN 61010-1:2010+A1:2019 | Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements | Battery-operated hand-held measurement instruments including tire pressure detectors |
The standard EN 61010-1:2010+A1:2019 is the harmonised European standard underpinning CE marking for this product category. It addresses electrical safety, mechanical safety, marking, documentation, and fault condition behaviour. Because the T200 is a Class III device powered by two 1.5 V AAA batteries (3 V total), many mains-related clauses are not applicable, and the device falls outside the scope of high-voltage insulation and transformer requirements.
Testing was conducted entirely in-house at Waltek Testing Group (Shenzhen) Co., Ltd. No test items were subcontracted to external laboratories. The submitted sample was found to comply in full with the requirements of the above specification.
Validity & Certification Body
The test report reference number WTH25X07183011J was issued on 2025-07-17 by Waltek Testing Group (Shenzhen) Co., Ltd. Test report validity is contingent on the product remaining unchanged from the tested sample. Any modification to design, materials, or components may require re-evaluation.
| Field | Detail |
|---|---|
| Report Reference | WTH25X07183011J |
| Date of Issue | 2025-07-17 |
| Testing Period | 2025-07-11 to 2025-07-16 |
| Prepared By | John Zhong, Project Engineer |
| Approved By | Harvid Wei, Manager |
| Laboratory Name | Waltek Testing Group (Shenzhen) Co., Ltd. |
| Laboratory Address | 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70, Bao’an District, Shenzhen, Guangdong, China |
| Laboratory Tel | +86-755-33663308 |
| Laboratory Fax | +86-755-33663309 |
| Laboratory Email | [email protected] |
| Laboratory Website | http://www.waltek.com.cn |
The report carries the specific stamp of the test institute and the signatures of both the project engineer and the approving manager, as required for validity. The report is 86 pages in total (page count per document header). Reproduction of any part of this report without full reproduction and prior written permission is prohibited.
Frequently Asked Questions
- What does CE-LVD compliance mean for the T200 Tire Pressure Detector?
-
CE-LVD compliance means the T200 has been tested against EN 61010-1:2010+A1:2019 and found to meet all applicable electrical safety requirements under the European Low Voltage Directive 2014/35/EU. This allows the product to be legally placed on the European market with the CE mark.
- Why are so many test clauses marked N/A in the report?
-
The T200 is a battery-powered, hand-held Class III device that operates at 3 V. It has no mains connection, no internal transformer, no motor, and no active cooling system. Clauses covering those features — such as mains transformer short-circuit tests and cooling system fault tests — are simply not applicable to this product type, which is why they are recorded as N/A rather than Pass or Fail.
- Which laboratory conducted the CE-LVD testing and is it accredited?
-
Testing was performed by Waltek Testing Group (Shenzhen) Co., Ltd., a professional third-party testing laboratory based in Shenzhen, China. The report was prepared by Project Engineer John Zhong and approved by Manager Harvid Wei. Waltek operates under internationally recognised quality and accreditation frameworks for electrical safety testing.
- Does this test report cover all CE directives required for the T200?
-
This specific report (WTH25X07183011J) covers only the LVD safety requirement under EN 61010-1:2010+A1:2019. Depending on the product’s full feature set and target markets, additional assessments — such as EMC (EN 55032 / EN 55035), RoHS, or REACH compliance — may also be required as part of a complete CE technical file.
Related Documents
For a complete compliance and technical file for the ETENWOLF T200 Tire Pressure Detector, the following related certification and compliance documents are typically required or recommended alongside the CE-LVD test report:
- CE-EMC Test Report – Electromagnetic compatibility evaluation under EN 55032 and EN 55035, required for electronic measurement instruments sold in the EU.
- CE Declaration of Conformity (DoC) – The manufacturer’s formal declaration that the T200 meets all applicable CE directives, incorporating the LVD test report as supporting evidence.
- RoHS Compliance Report – Confirms restriction of hazardous substances (lead, mercury, cadmium, etc.) per EU RoHS Directive 2011/65/EU.
- REACH SVHC Declaration – Supplier declaration confirming the product does not contain Substances of Very High Concern above threshold levels per REACH Regulation (EC) No 1907/2006.
- UN 38.3 Battery Transport Report – If the T200 is shipped with lithium batteries or battery packs, UN 38.3 transport testing documentation is required. (Note: the T200 uses AAA alkaline batteries, so this may not apply.)
- IEC 60529 IP Rating Report – Supporting documentation for the declared IPX0 rating, confirming no specific ingress protection claims are made beyond the default open enclosure classification.
- User Manual / Safety Instructions – Required documentation per EN 61010-1 Clause 5, confirming safe operating temperature range (0–40 °C), storage conditions, and humidity limits (10–70% RH).

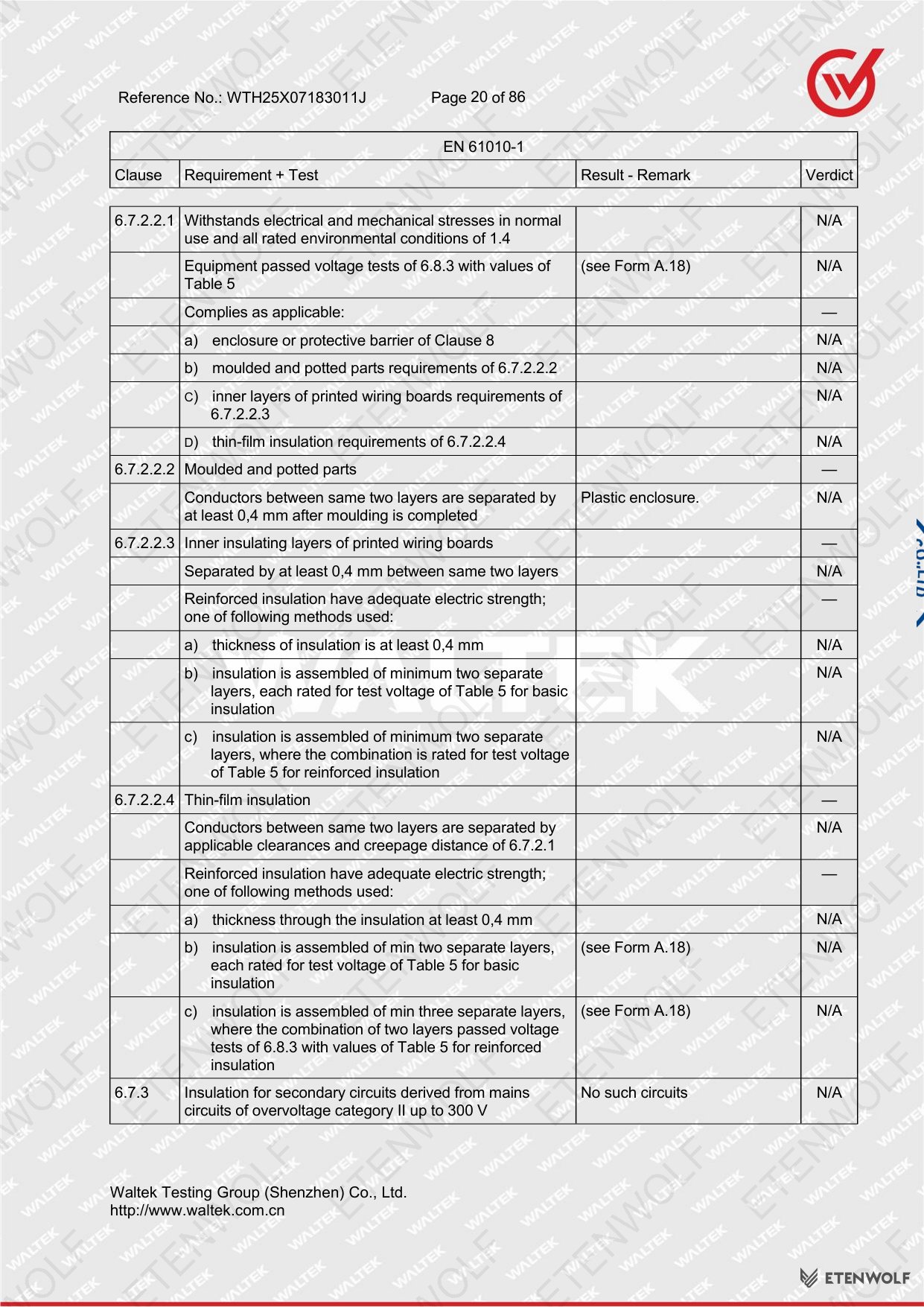

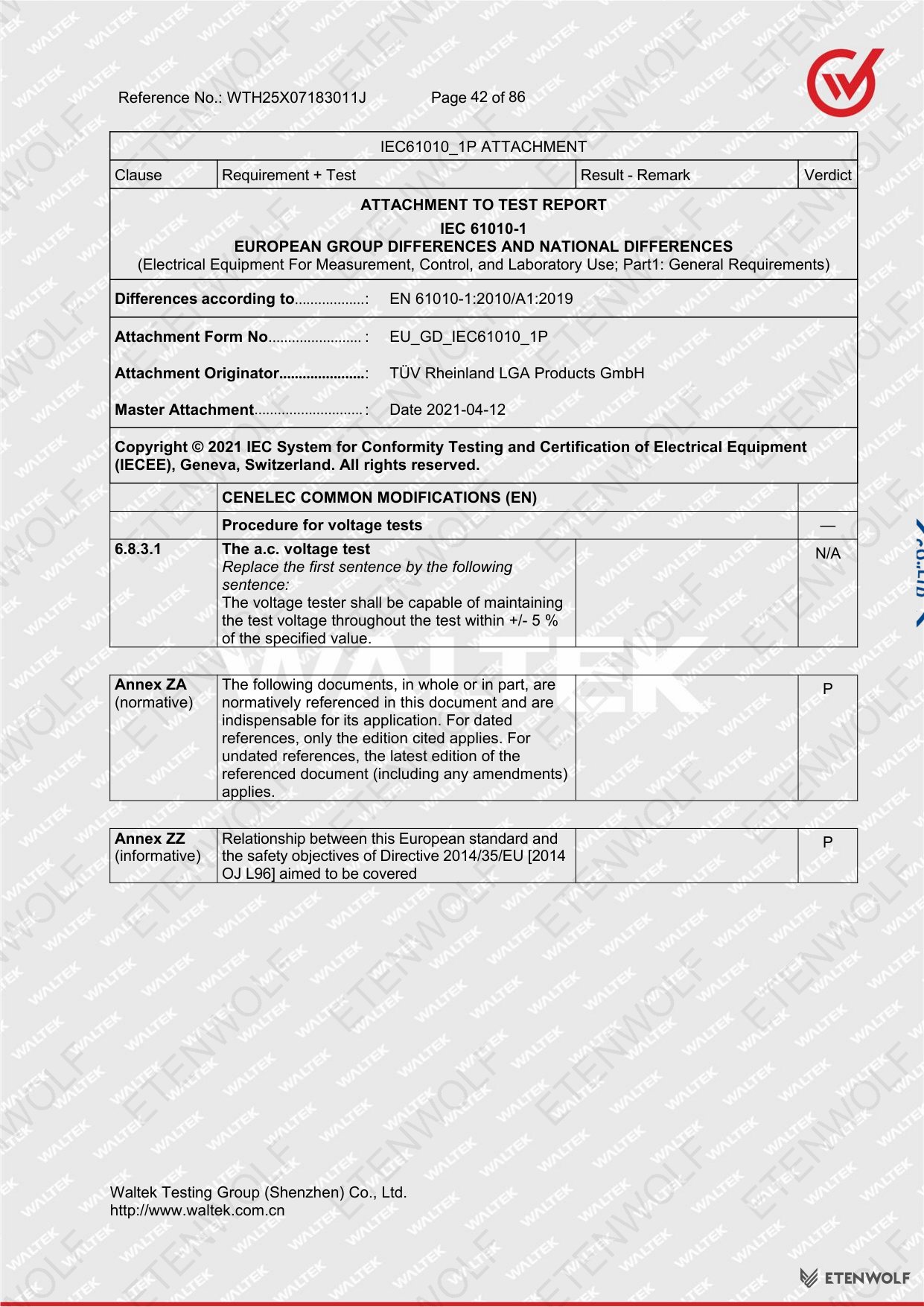

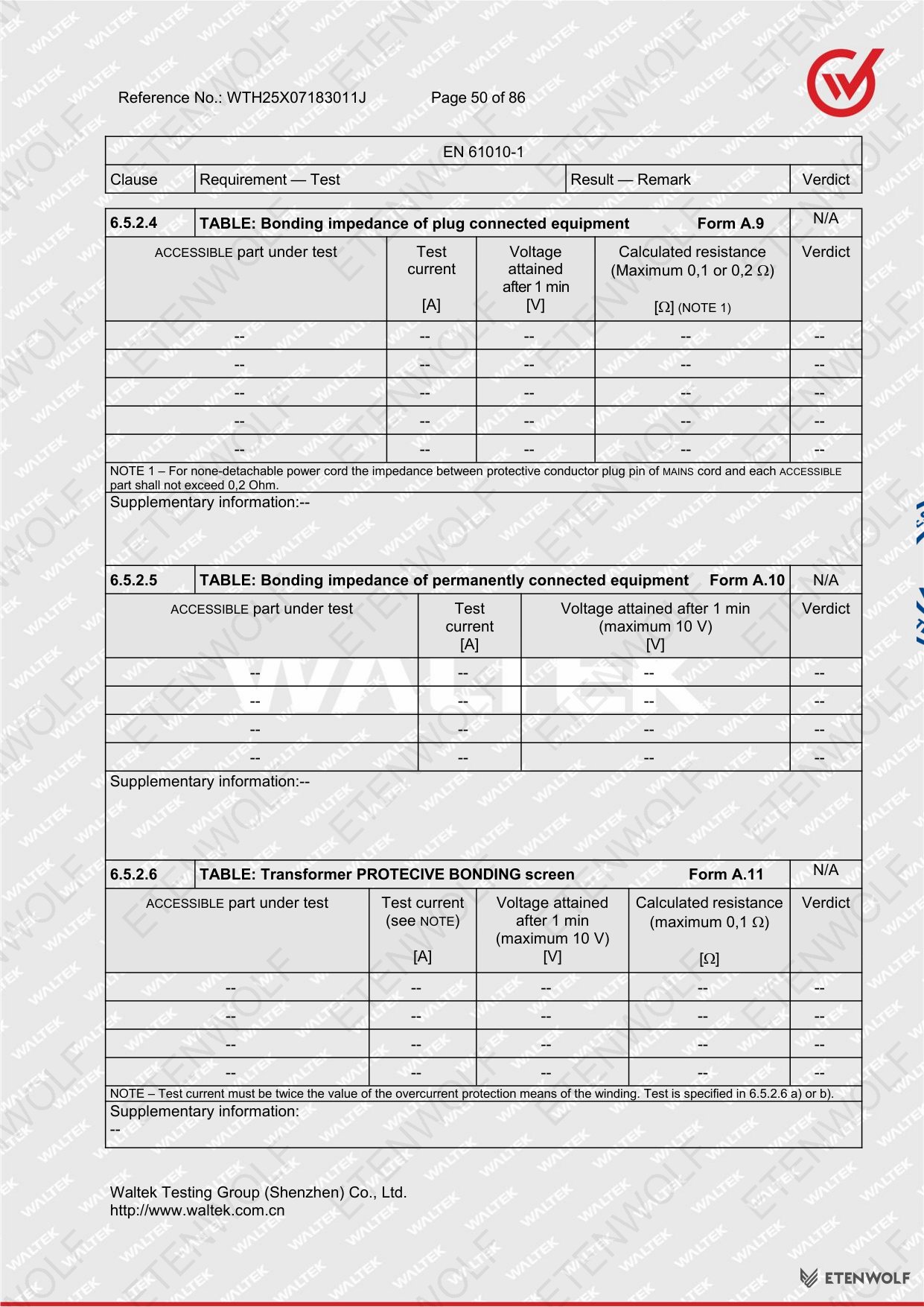

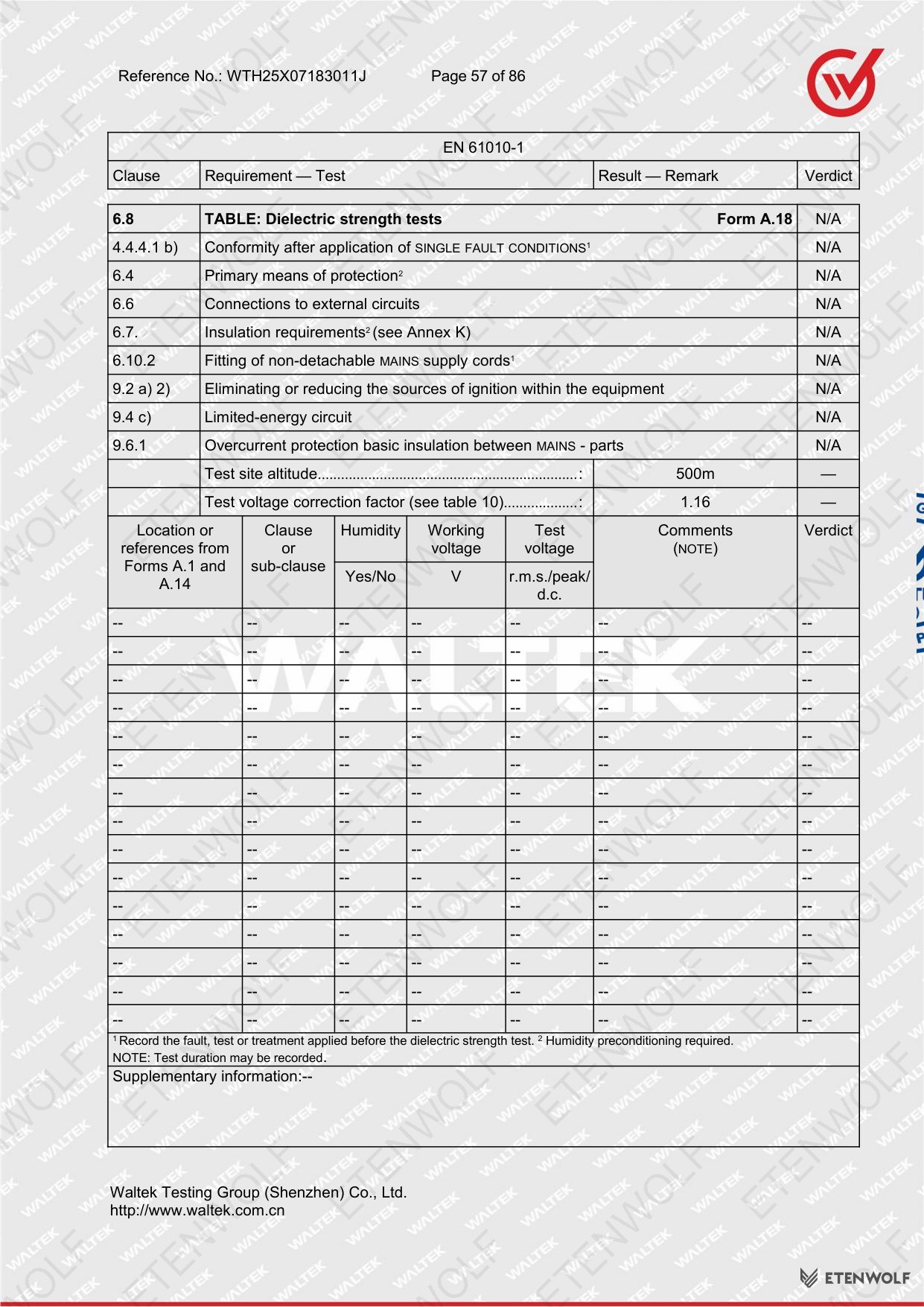

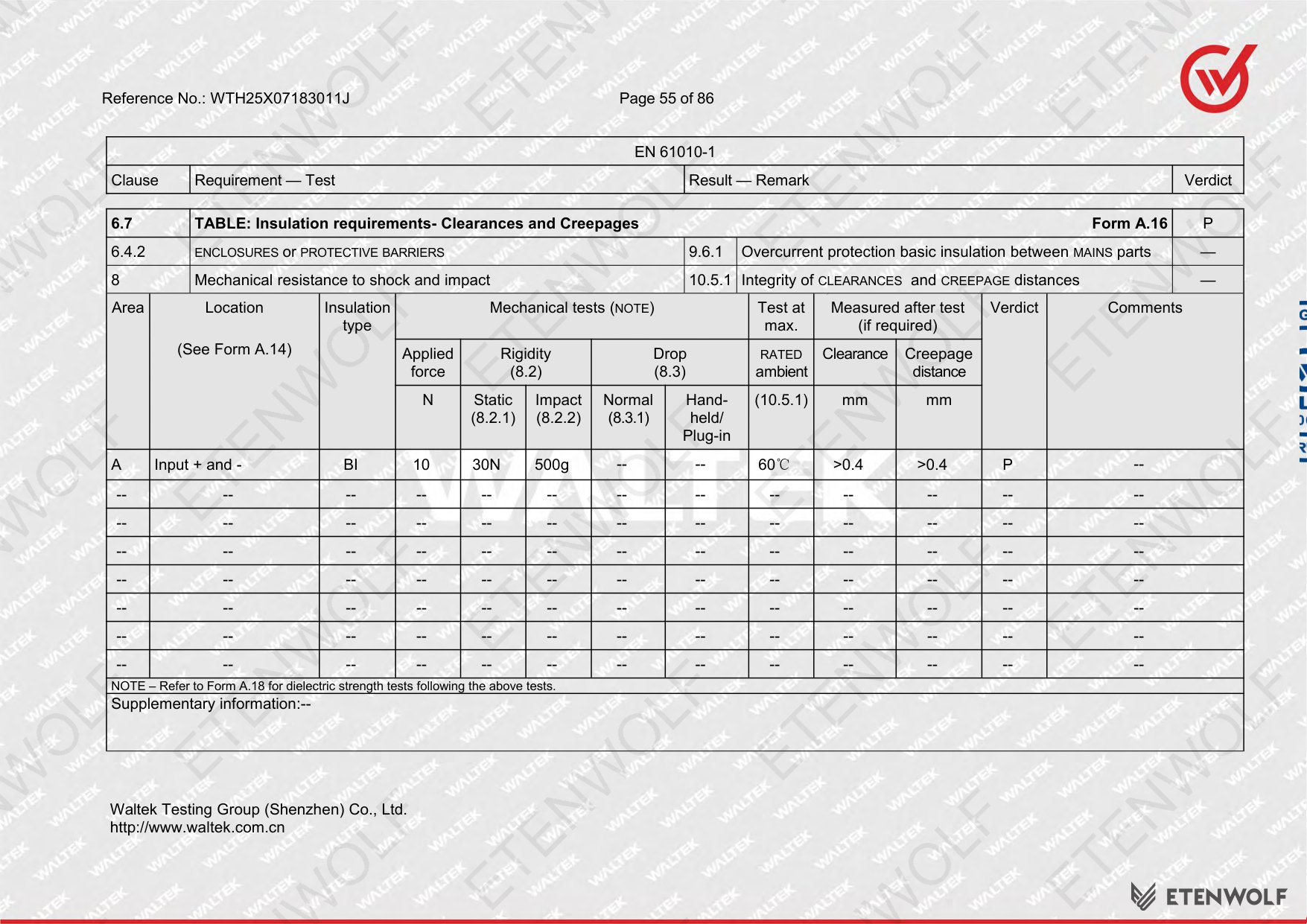

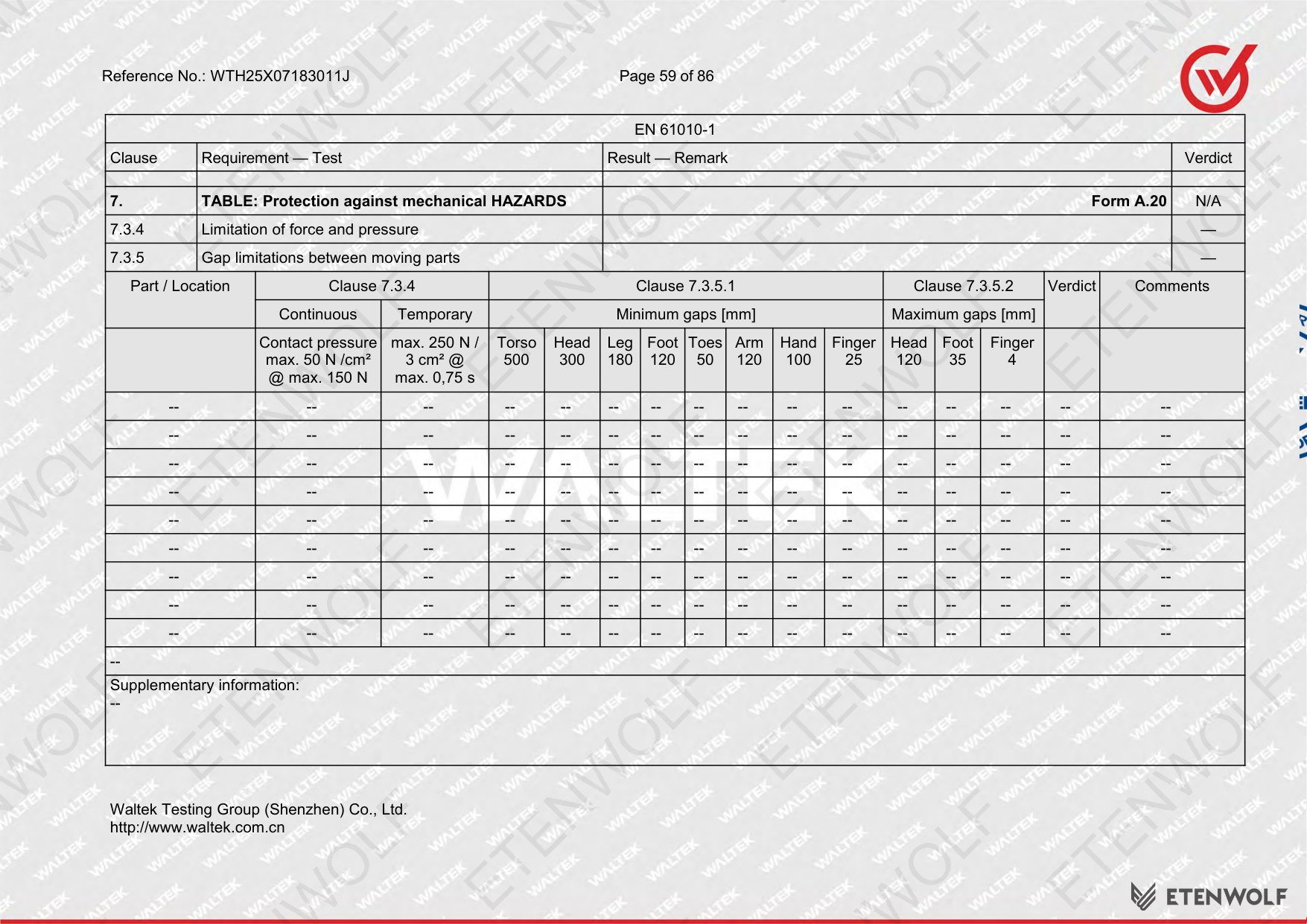

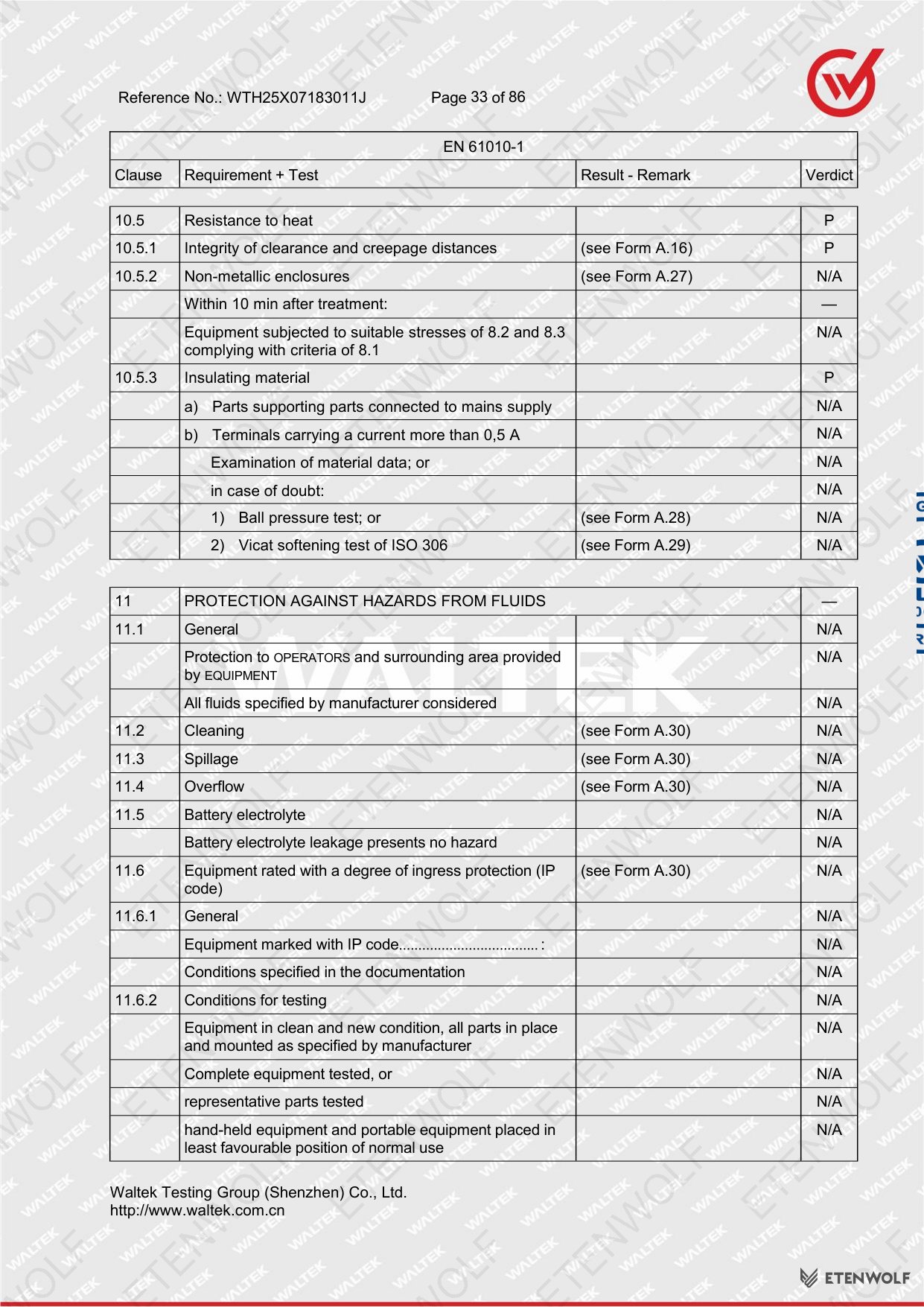

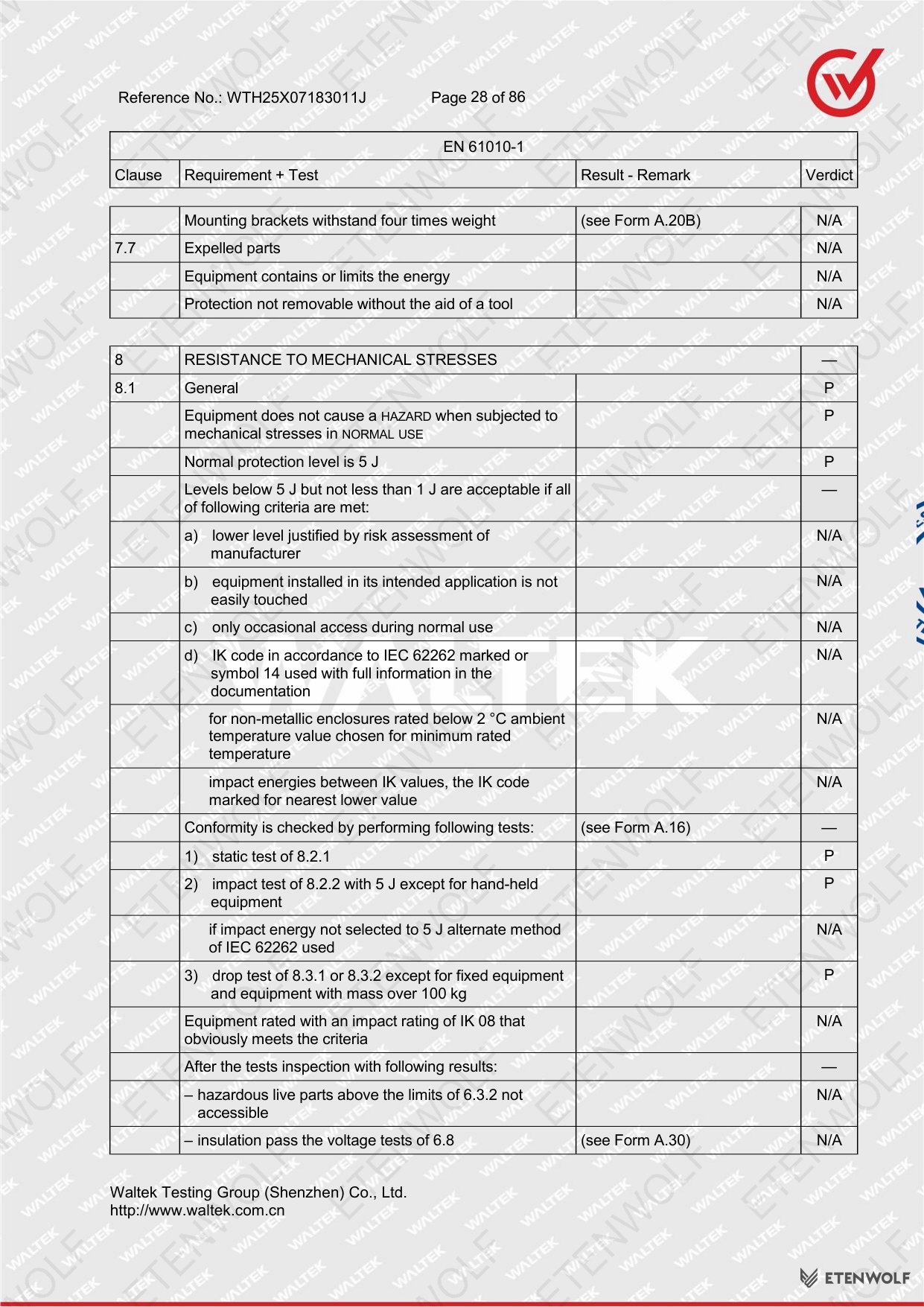

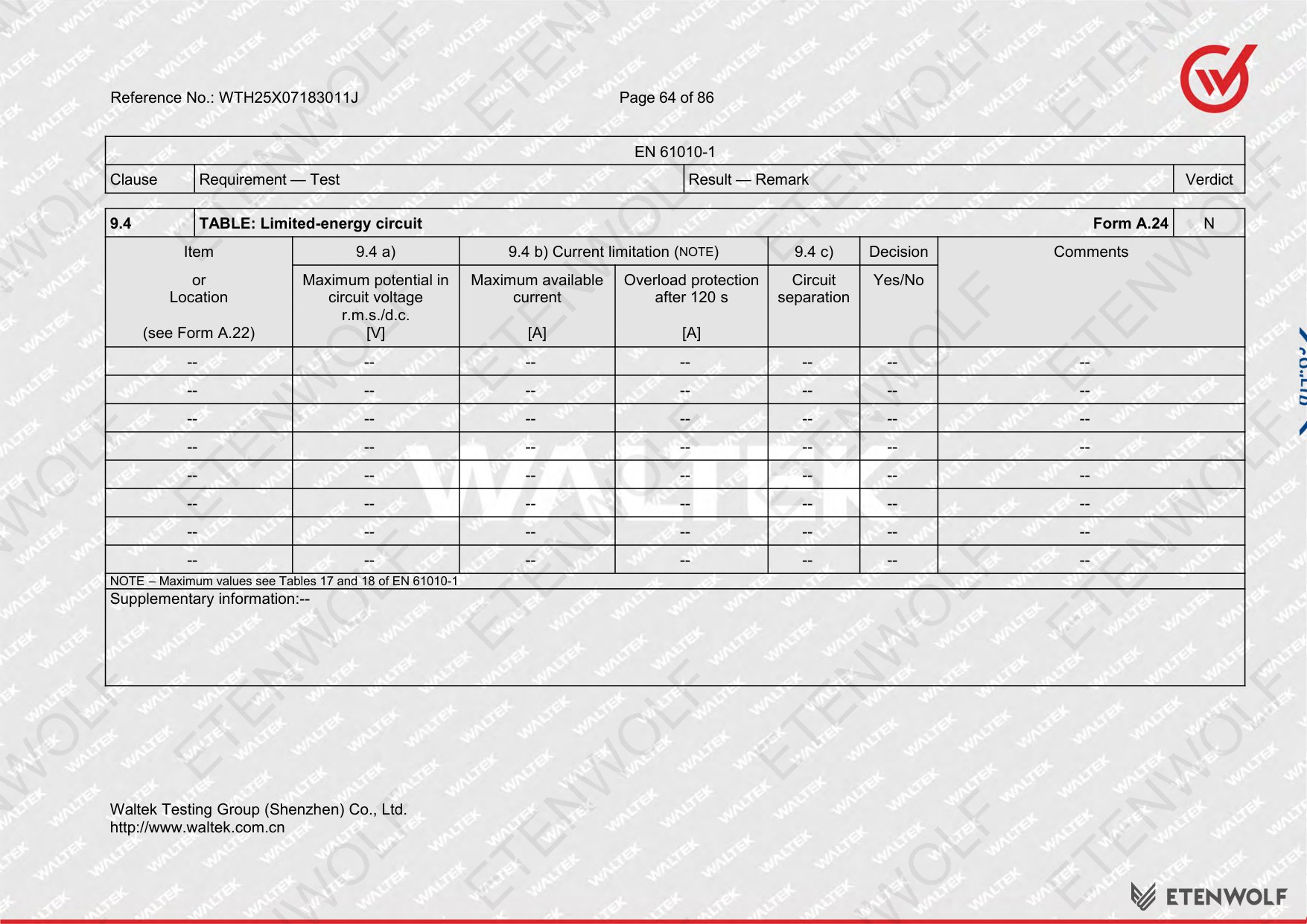

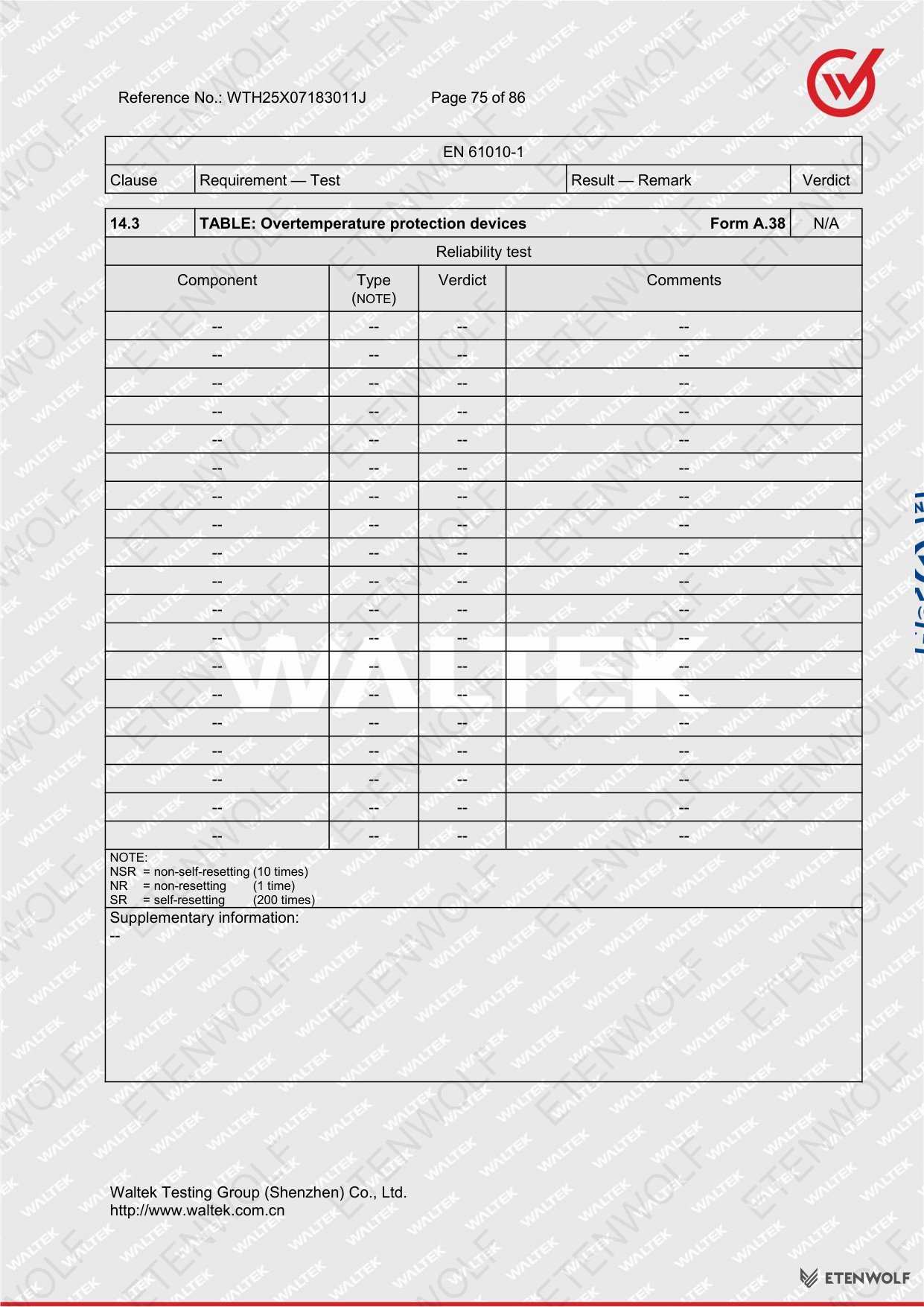

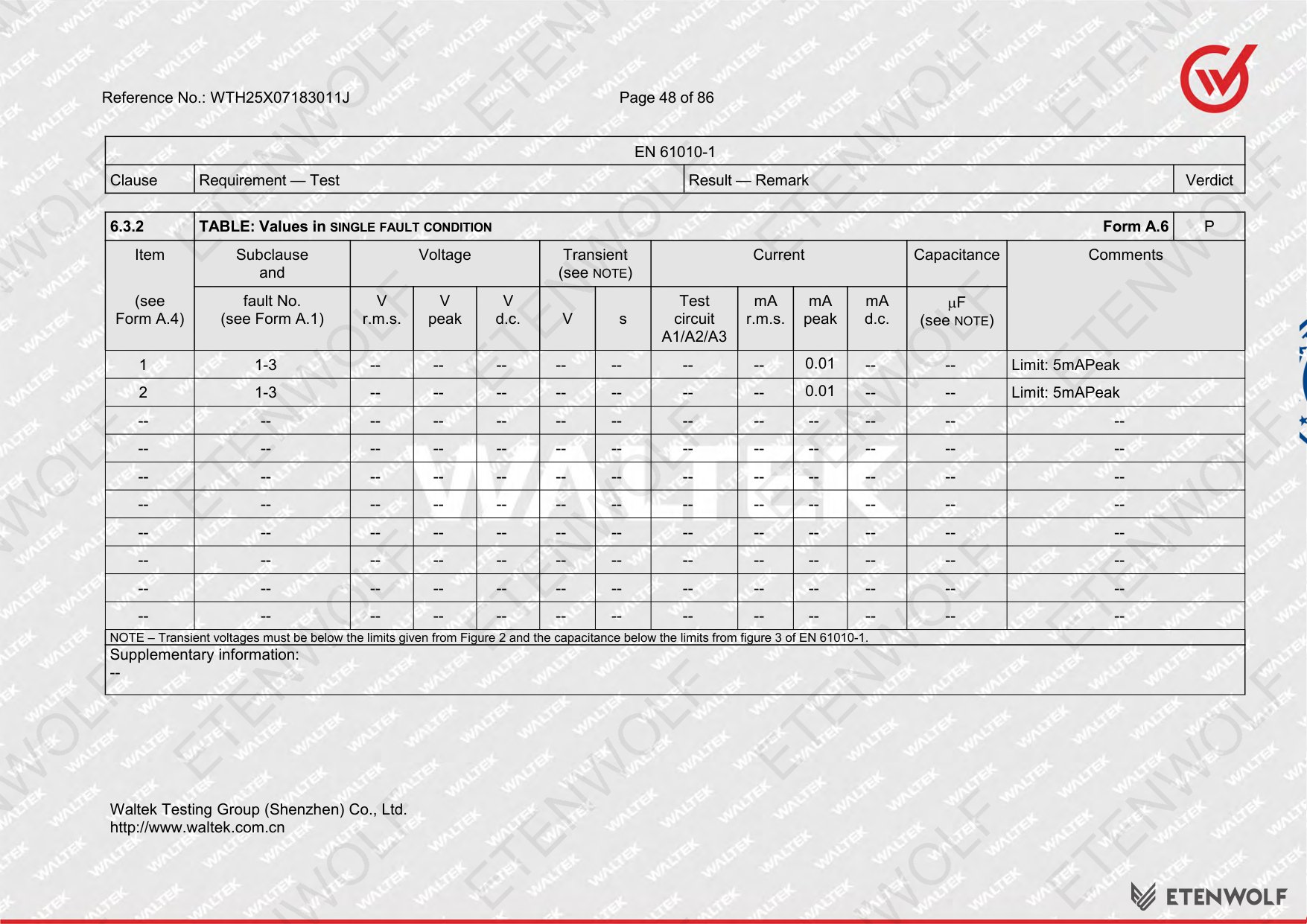

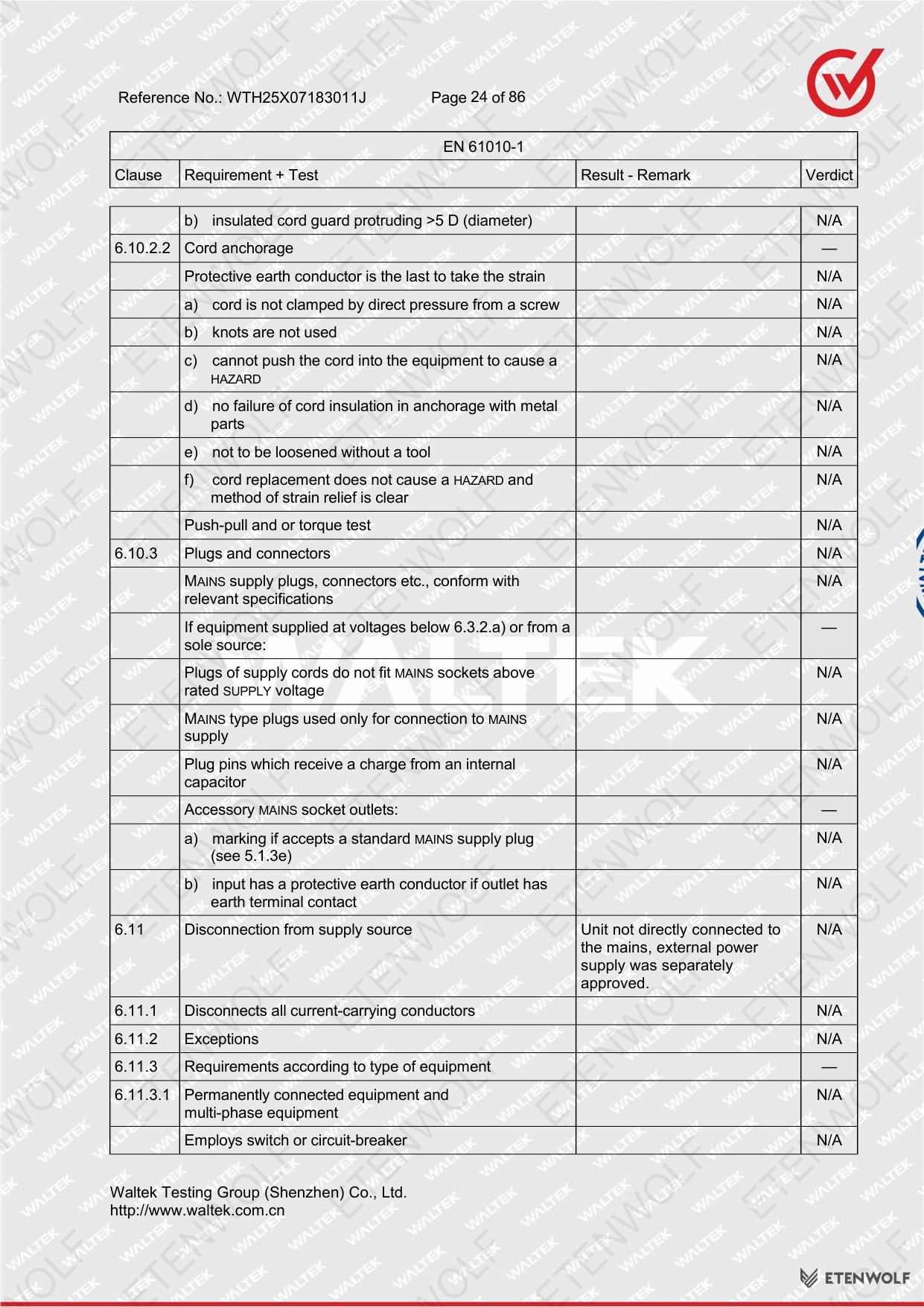

Document Pages
